ECHO DSRM-2100 Owners Manual

Page 1

Operator’s

Manual

DSRM-2100

Grass Trimmer

This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Cancer and Reproductive Harm www.P65Warnings.ca.gov

Read and understand all provided literature before use. Failure to do so could result in serious injury.

Note: This product complies with CAN ICES-003(B) / NMB-003(B)

99922238008

Page 2

TABLE OF CONTENTS

DSRM-2100

TABLE OF CONTENTS

Introduction............................................................................................................3

Servicing Information..........................................................................................................3

Parts / Serial Number.................................................................................................3

Service.......................................................................................................................4

ECHO Consumer Product Support............................................................................4

Product Registration..................................................................................................4

Additional Literature...................................................................................................4

Packing List...............................................................................................................4

Safety.................................................................................................................................5

Manual Safety Symbols and Important Information...................................................5

International Symbols.................................................................................................6

General Power Tool Safety Warnings........................................................................7

FCC Statement........................................................................................................13

Enviromentally Battery Disposal..............................................................................14

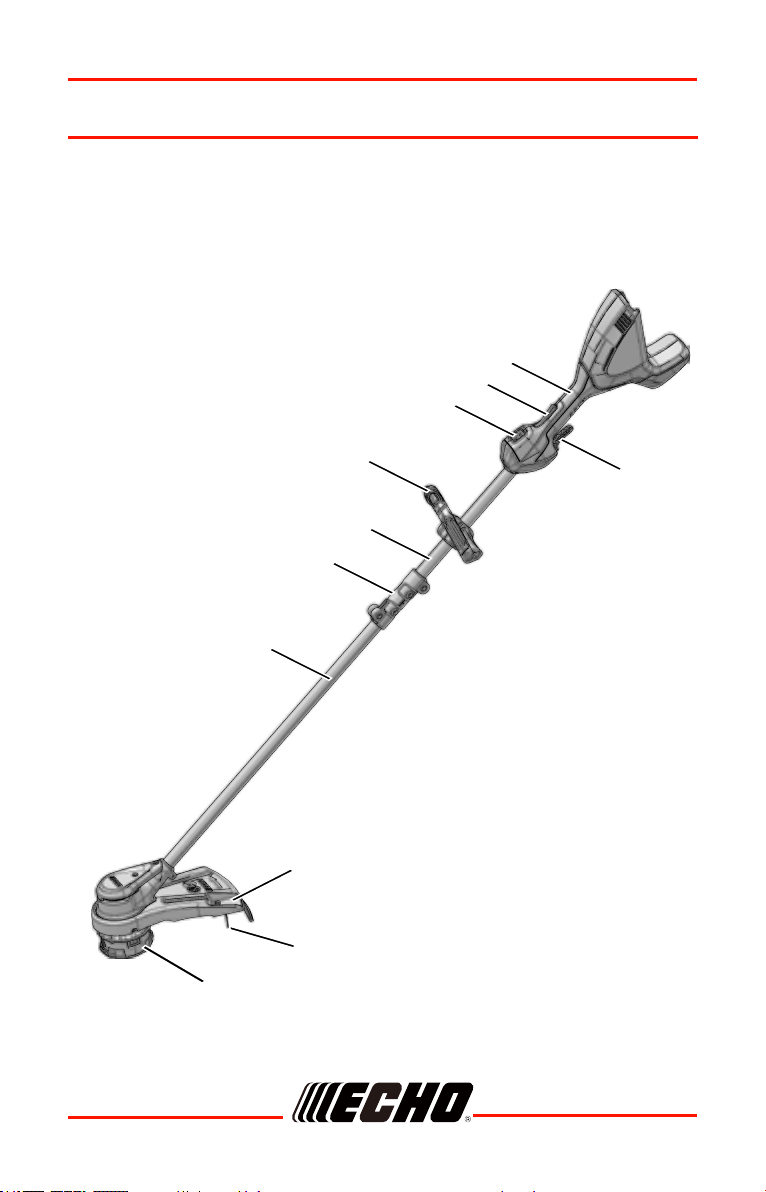

Description.......................................................................................................................15

Assembly..............................................................................................................17

Unpack The Machine...............................................................................................17

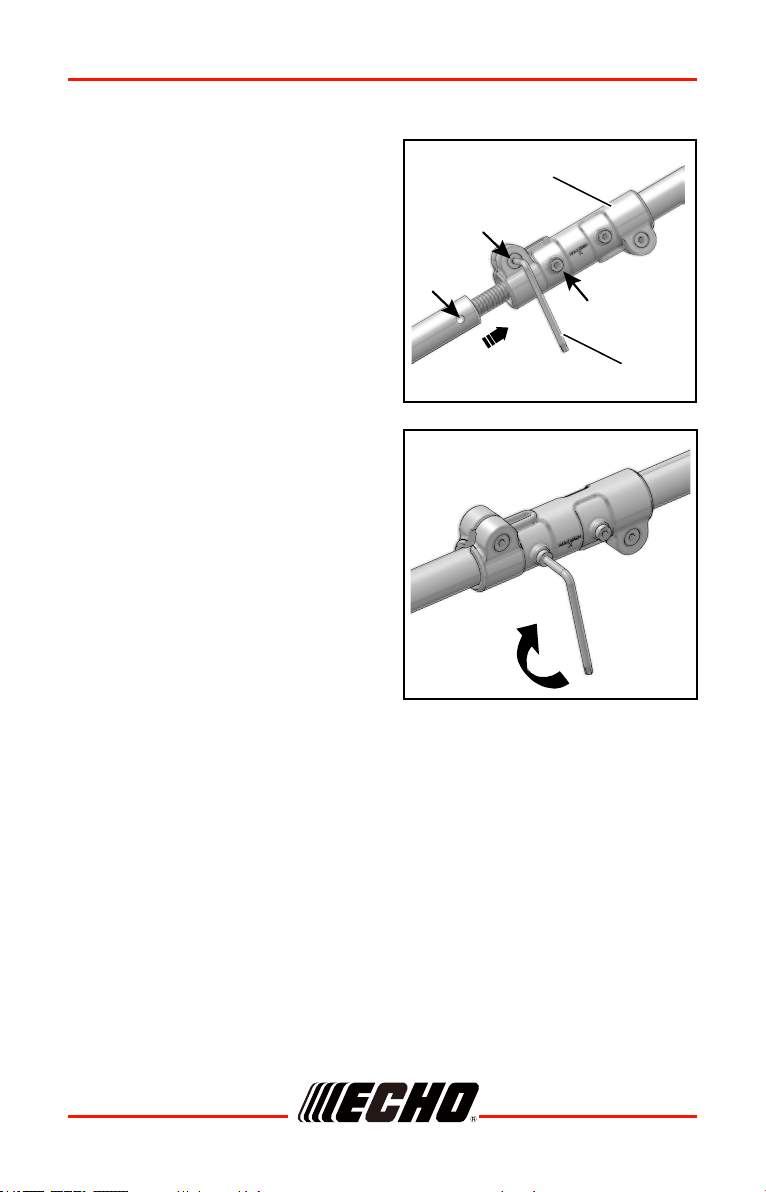

Assemble The Shaft.................................................................................................18

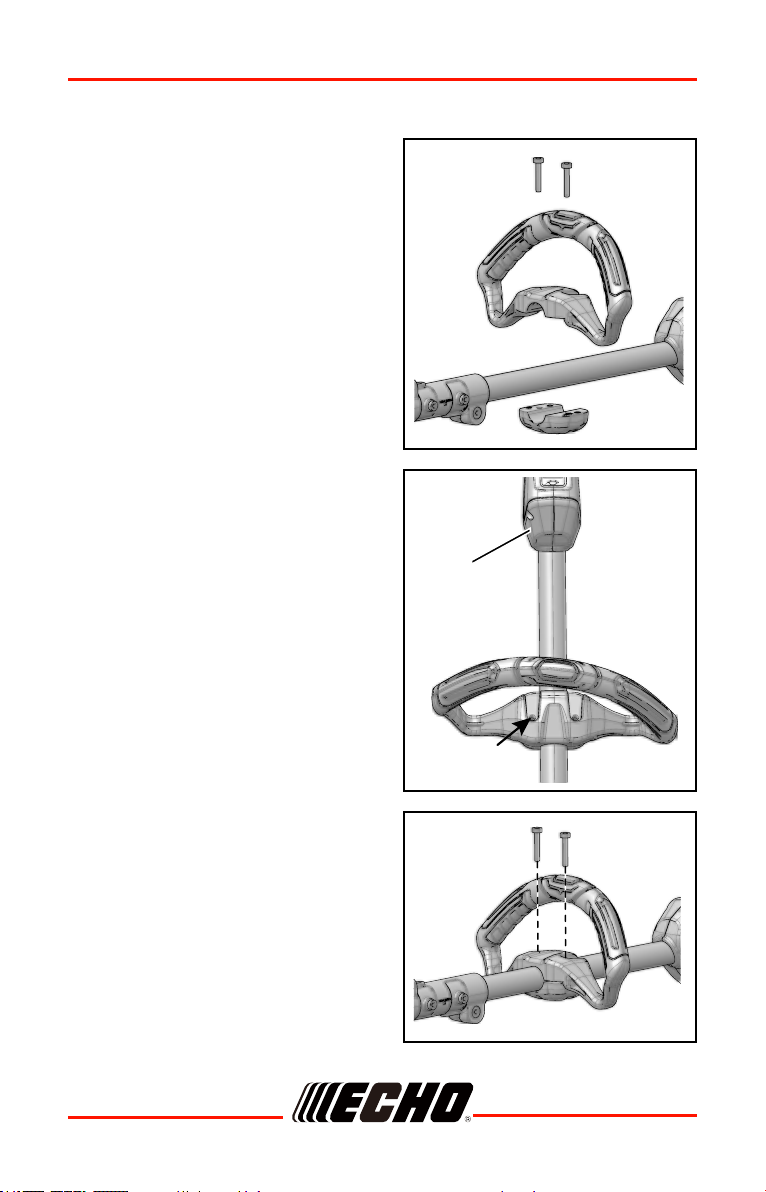

Attach The Support Handle......................................................................................19

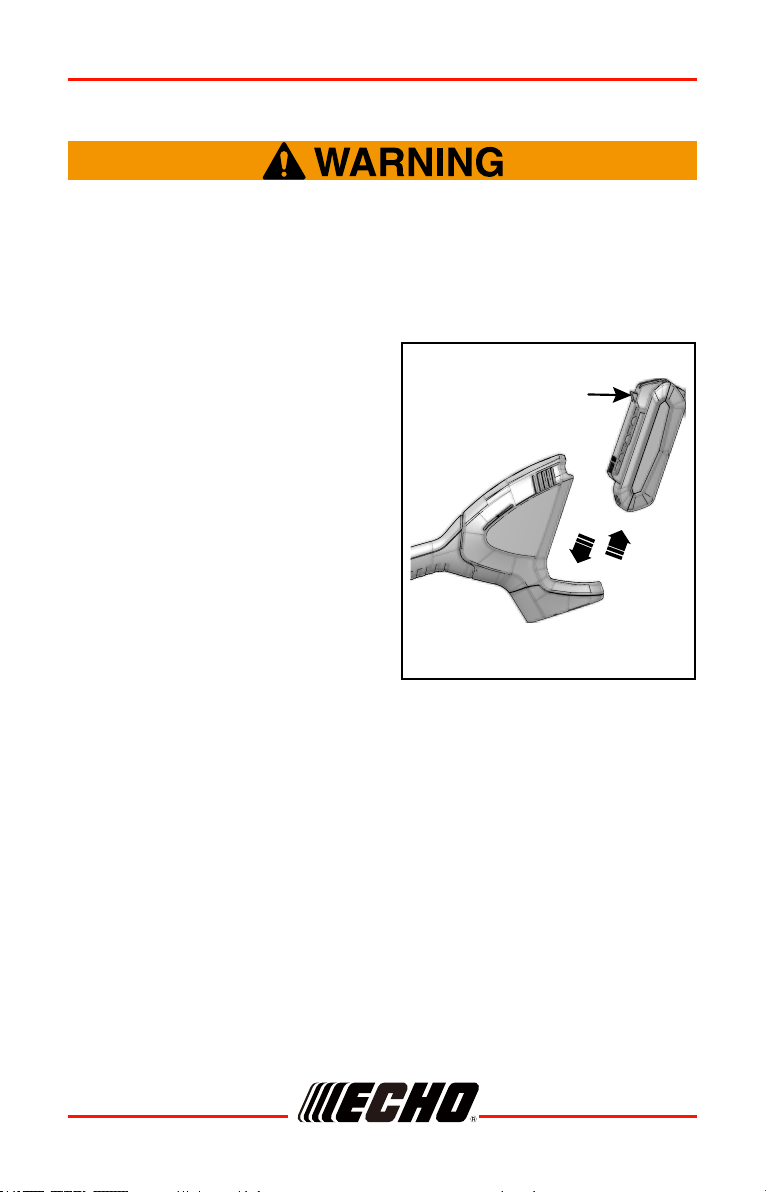

Install The Battery....................................................................................................20

Remove The Battery................................................................................................20

Operation............................................................................................................21

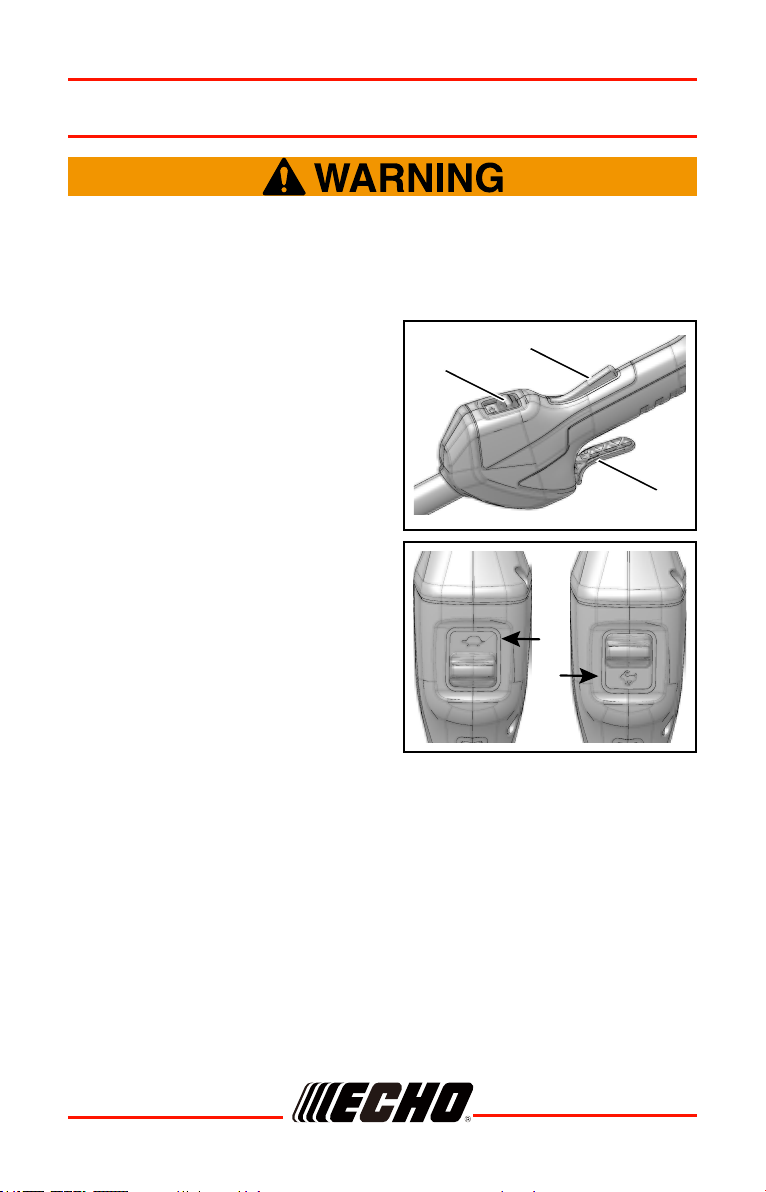

Start The Machine....................................................................................................21

Stop The Machine....................................................................................................21

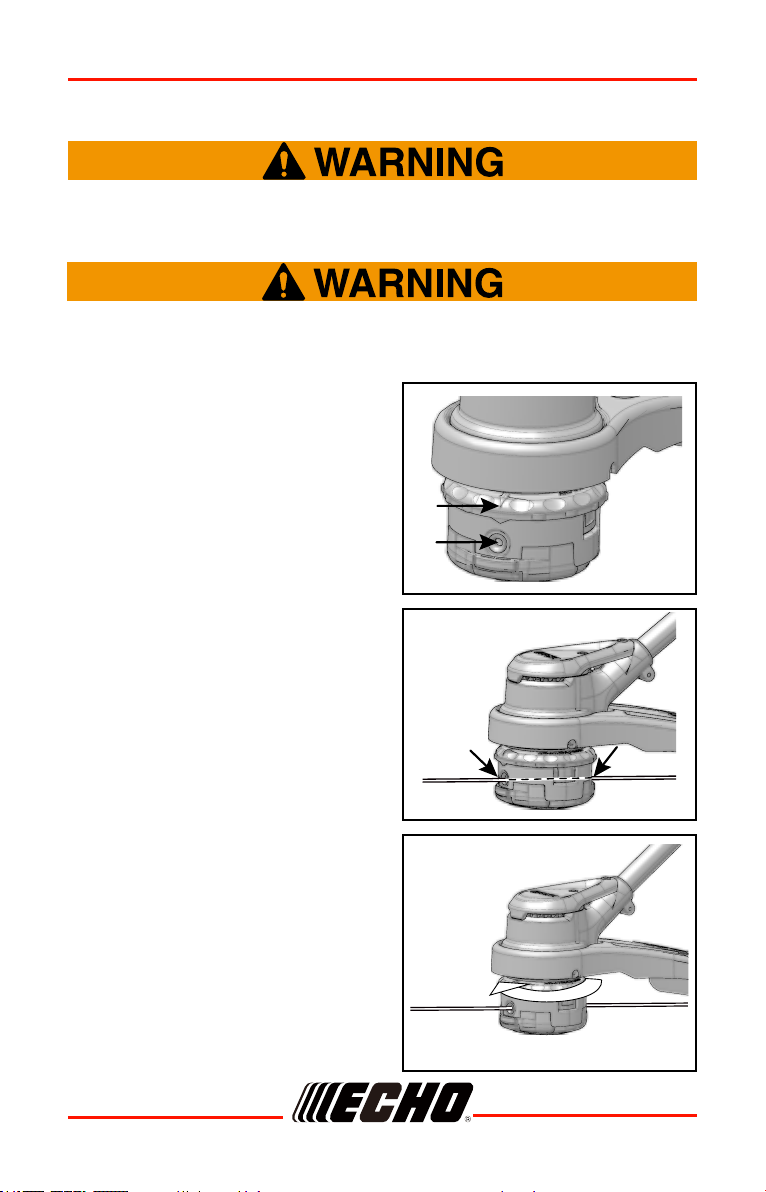

Adjust The Length Of The Cutting Line...................................................................22

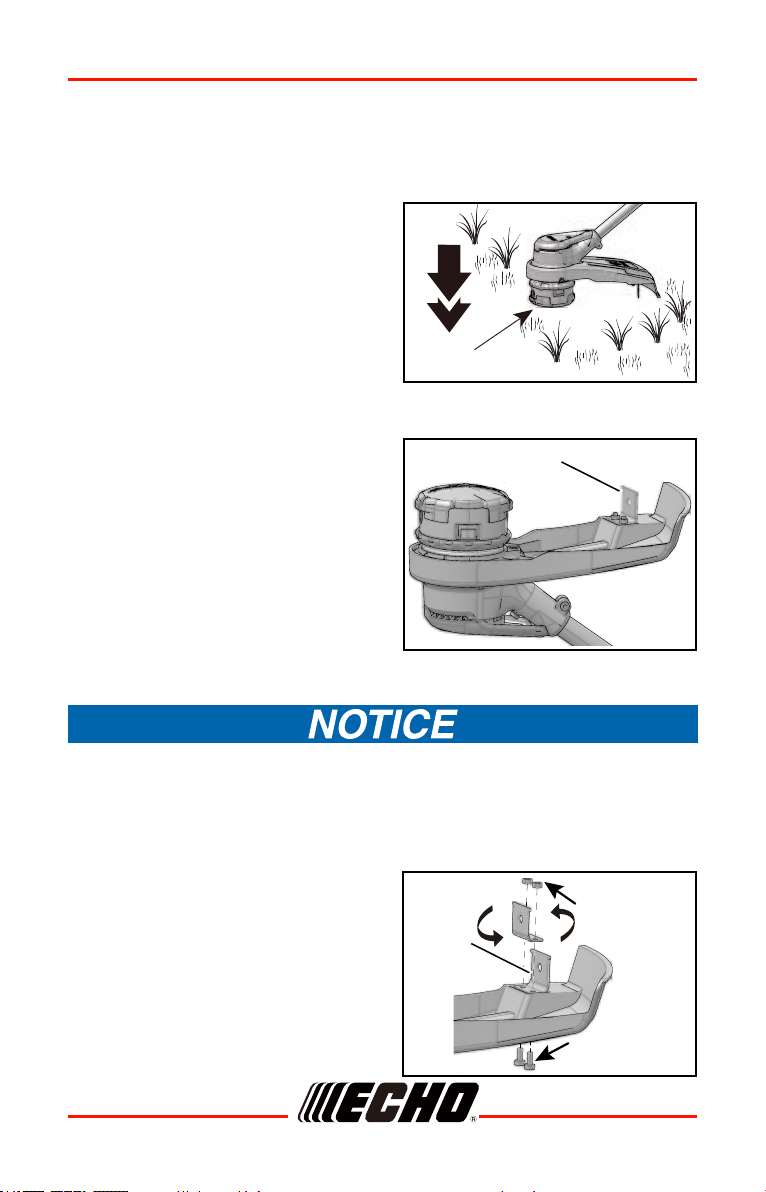

Line Cut-off Knife.....................................................................................................22

Adjust The Cutting Diameter....................................................................................22

Operation Tips.........................................................................................................23

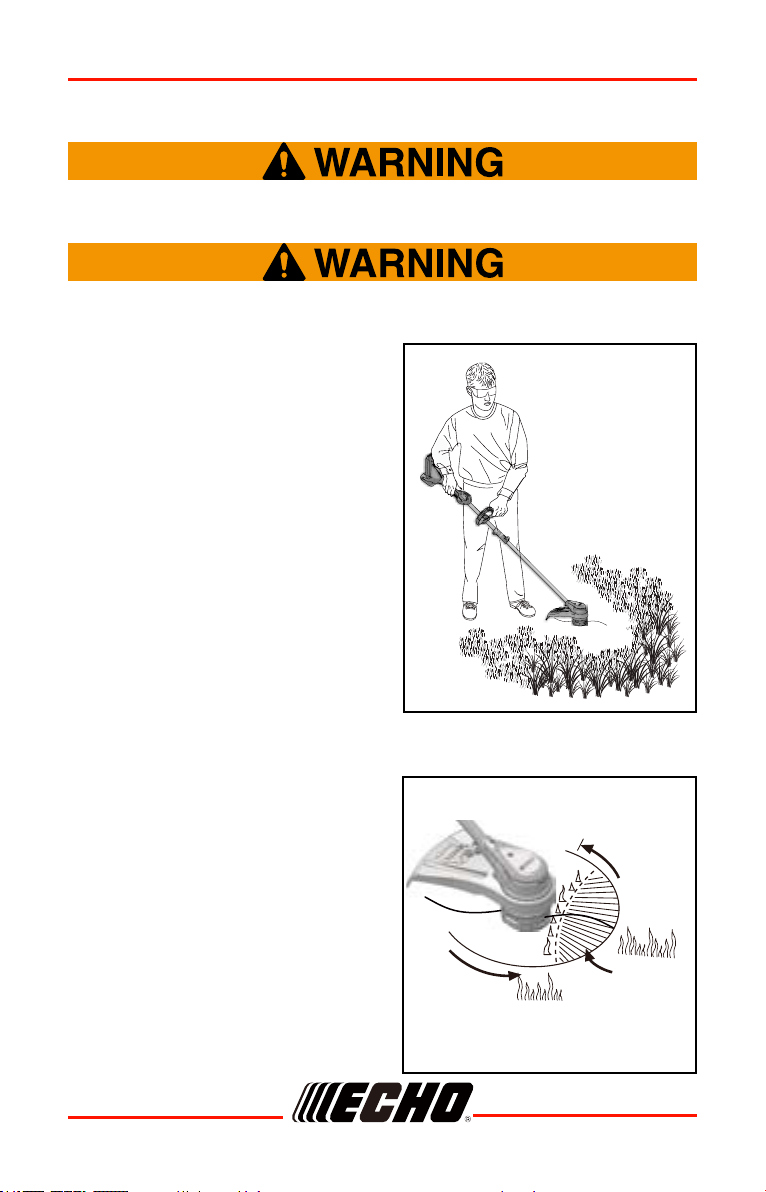

Cutting Tips.............................................................................................................23

Maintenance..............................................................................................................24

General Information.................................................................................................24

Clean The Machine..................................................................................................24

Nylon Line Replacement..........................................................................................25

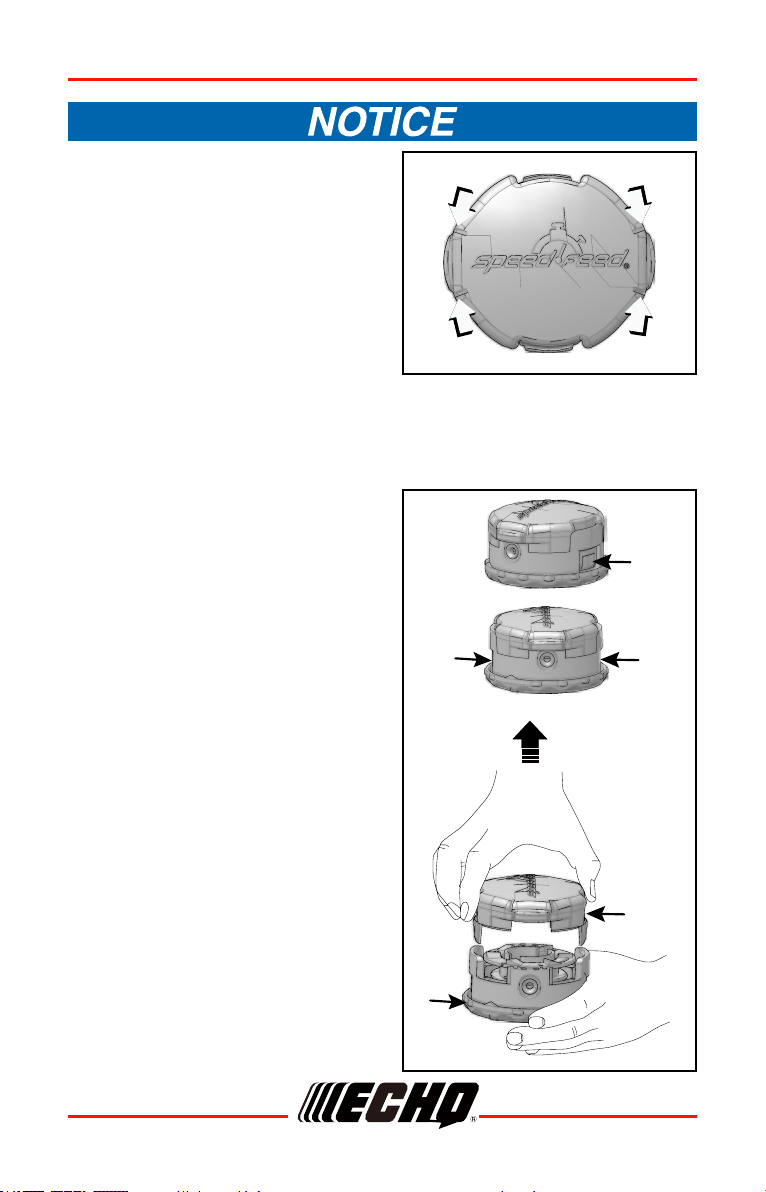

Nylon Line Head Disassembly Instructions.............................................................26

Troubleshooting...............................................................................................................27

Storage...............................................................................................................29

Storage After Use....................................................................................................29

Specications.............................................................................................................30

Product Registration.........................................................................................................31

Warranty.............................................................................................................33

999222380082

Page 3

DSRM-2100

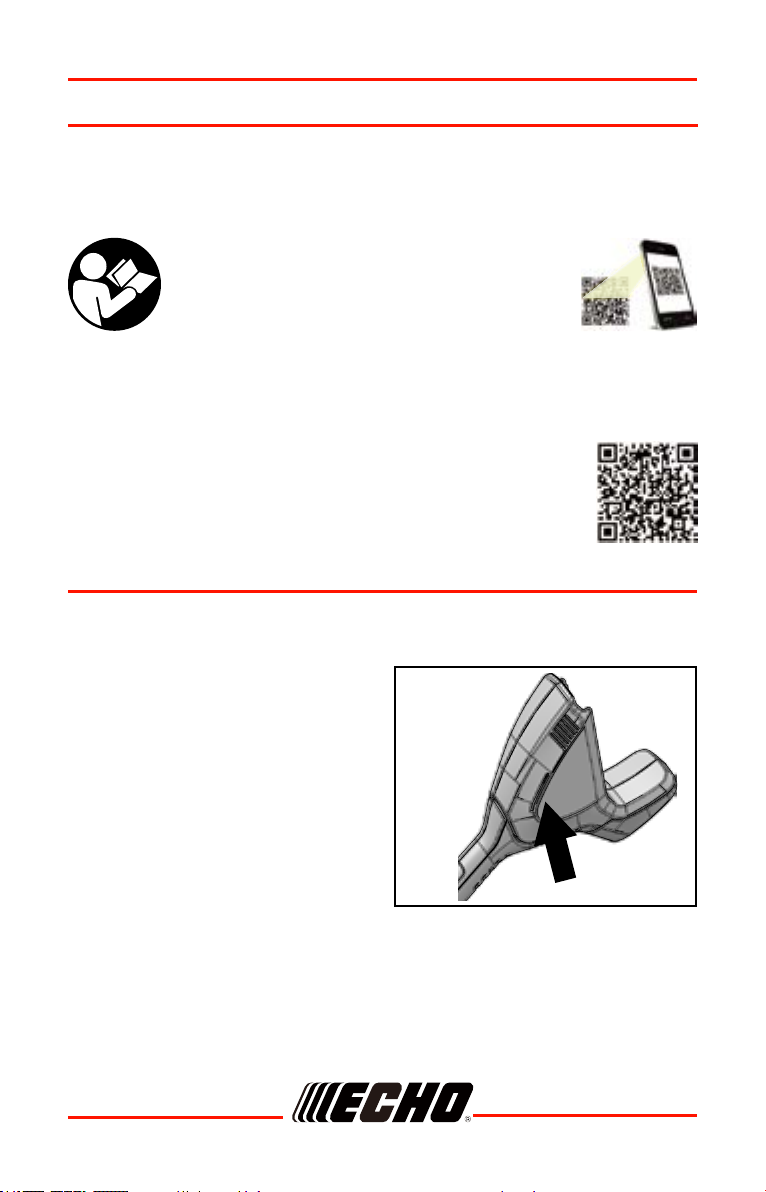

INTRODUCTION

Specications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may

not include all standard equipment.

Read and understand all provided

literature. Literature contains specications and information for safety, operation, maintenance, storage, and assembly specic

to this product. Scan QR code for more information.

For additional literature, including safety manuals where applicable, or questions regarding terms used in this manual, visit:

https://www.echo-usa.com/manuals

SERVICING INFORMATION

Parts / Serial Number

Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference write them in the space provided below.

Model No. _______________ Serial No. _______________

99922238008

Page 4

SERVICING INFORMATION

DSRM-2100

Service

Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized

ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO

(3246). Dealer information is also available on our Web Site www.echo-

usa.com. When presenting your unit for Warranty service/ repairs, proof of

purchase is required.

ECHO Consumer Product Support

If you require assistance or have questions concerning the application, operation, or maintenance of this product, call the ECHO Consumer Product

Support Department at 1-800-432-ECHO (3246) from 8:00 am to 5:00 pm

(Central Standard Time) Monday through Friday. Before calling, please know

the model and serial number of your unit.

Product Registration

the product registration sheet included in this manual. Registering your product

conrms warranty coverage and provides a direct link to ECHO if we nd it

necessary to contact you.

Additional Literature

In addition to nding information online, information is available from your Authorized ECHO Service Dealer, or by contacting ECHO Incorporated, 400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).

PACKING LIST

The ECHO product you purchased has been factory pre-assembled for

your convenience. Due to packaging restrictions, some assembly may be

necessary.

After opening the carton, check for damage. Immediately notify your retailer or

ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

1 Grass Trimmer Bare Tool 1 Support Handle Assembly 1 Wrench 1 Operator's Manual

999222380084

Page 5

DSRM-2100

SAFETY

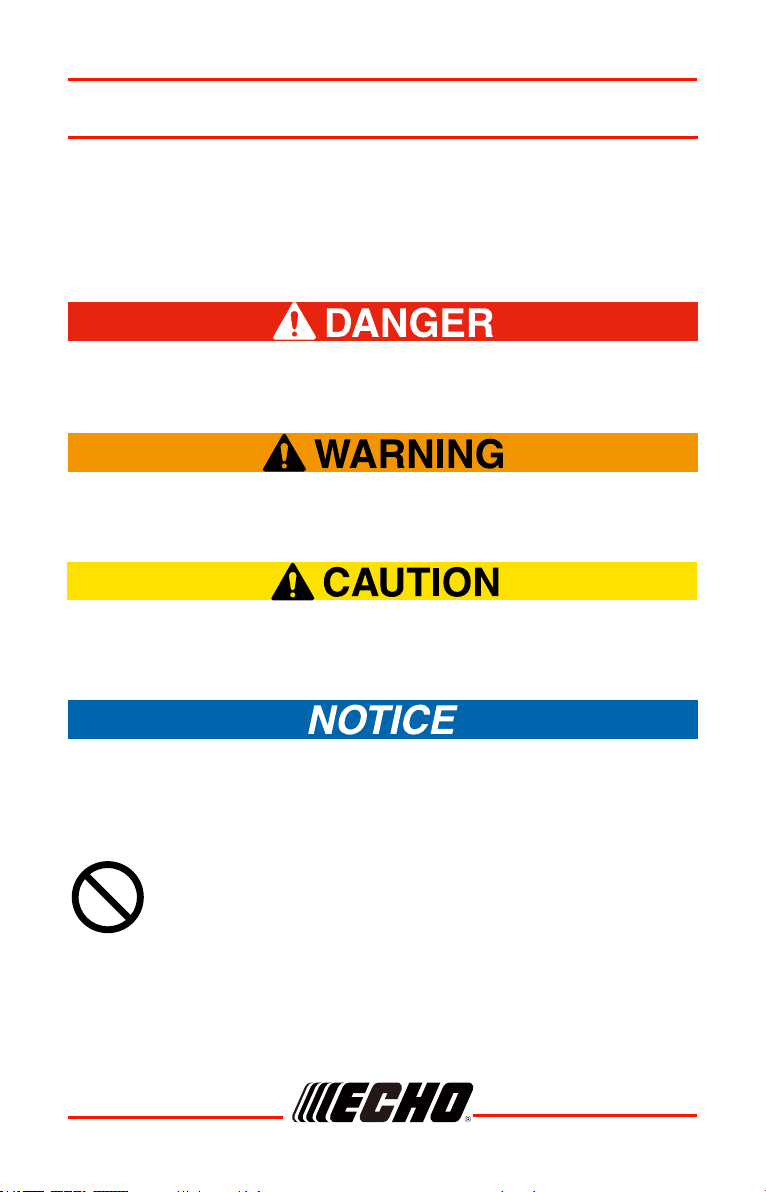

Manual Safety Symbols and Important Information

Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages preceded by symbols or key words. The

following is an explanation of those symbols and key words and what they mean to you.

The safety alert symbol accompanied by the word “DANGER” calls attention to an act or condition which WILL lead to serious personal injury or death if not avoided.

The safety alert symbol accompanied by the word “WARNING” calls attention to an act or condition which CAN lead to serious personal injury or death if not avoided.

The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which might lead to minor or moderate personal injury if not avoided.

The enclosed message provides information necessary for the protection of the unit.

Note: This enclosed message provides tips for use, care and

maintenance of the unit.

CIRCLE AND SLASH SYMBOL

This symbol means the specic action shown is prohibited.

Ignoring these prohibitions can result in serious or fatal injury.

99922238008

Page 6

SAFETY

DSRM-2100

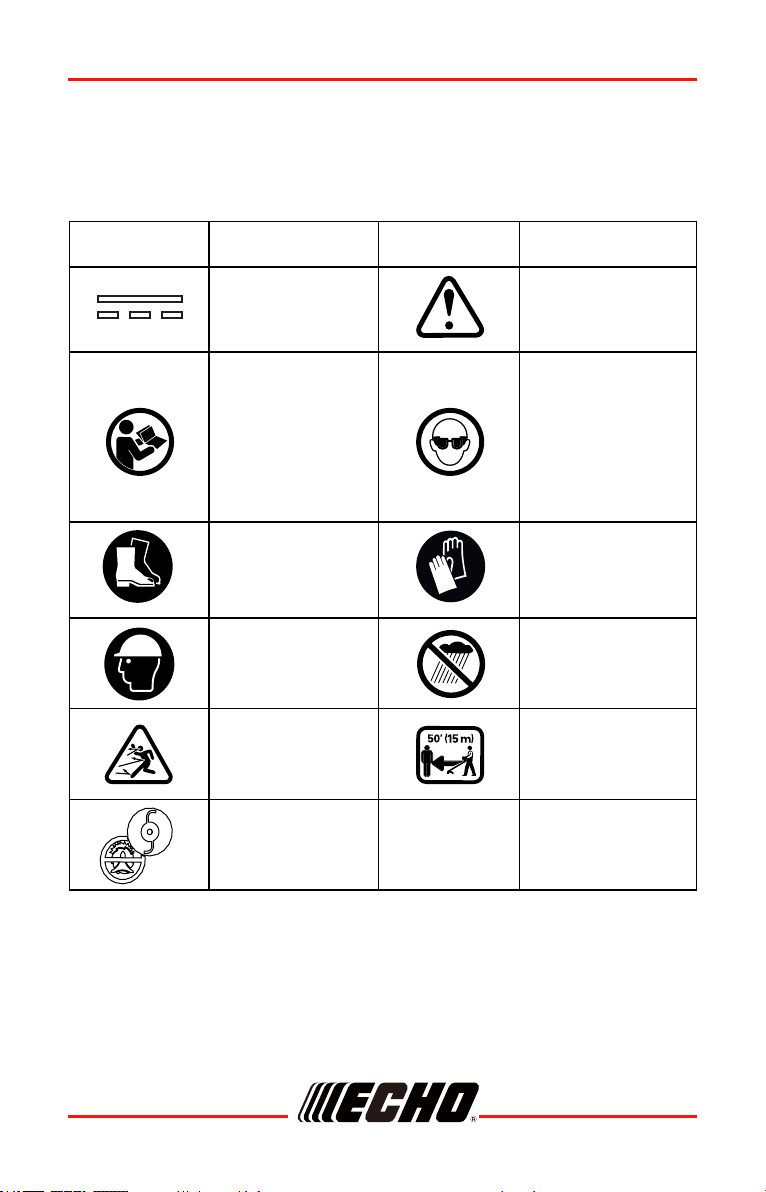

International Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

Symbol Description Symbol Description

Direct current Safety / Alert

Read and follow all

safety precautions

in the operator's manual. Failure to follow instructions

could result in

serious personal

injury.

Wear eye protection.

Wear safety

footwear.

Wear head

protection.

Thrown objects can

ricochet and result

in personal injury or

property damage.

Do not use blades –

line heads only.

Note: Not all symbols will appear on your unit.

Wear protective

gloves.

Do not expose to rain or in damp condition.

Keep all bystanders

at least 50'/15m

away.

999222380086

Page 7

DSRM-2100

SAFETY

General Power Tool Safety Warnings

READ ALL INSTRUCTIONS BEFORE USING (THIS POWER TOOL)

Read all safety warnings, instructions, illustrations and

specications provided with this power tool. Failure to follow

the warnings and instructions may result in electric shock re and/or

serious injury.

Save all warnings and instructions for future reference.

The term ″power tool″ in the warnings refers to your BATTERY-operated

(cordless) power tool.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite

accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create

sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any

way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric

shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of

electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces

the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a

RESIDUAL CURRENT DEVICE (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

99922238008

Page 8

SAFETY

DSRM-2100

Personal Safety

• Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment

of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used appropriately will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery and when picking up or carrying the tool. Carrying power tools with your nger on the

switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

• Do not over-reach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless

action can cause severe injury within a fraction of a second.

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or remove the battery, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of

untrained users.

• Maintain power tools and accessories. Check for misalignment or

999222380088

Page 9

DSRM-2100

binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly

maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool and accessories in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from

those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe

handling and control of the tool in unexpected situations.

SAFETY

Battery Tool Use and Care

• Recharge only with ECHO eFORCE™ 56V battery series chargers.

A charger that is suitable for one type of battery may create a risk of re

when used with another battery.

• Use only with ECHO eFORCE™ 56V battery series. Use of any other

batteries may create a risk of injury and re.

• When battery is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the

battery terminals together may cause burns or re.

• Do not open or destroy the battery. Electrolytes contained within the battery are corrosive and may cause damage to eyes or skin if released. It may be toxic if swallowed.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected

from the battery may cause irritation or burns.

• Exercise care in handling batteries to avoid shorting the battery with conducting materials such as rings, bracelets, keys, etc. The battery

or conductor may overheat and cause burns if contact with said materials is made.

• Do not use a battery or tool that is damaged or modied. Damaged

or modied batteries may exhibit unpredictable behavior resulting in re,

explosion or risk of injury.

• Do not expose a battery or tool to re or excessive temperature.

Exposure to re or temperature above 266 °F (130 °C) may cause

explosion.

• Follow all charging instructions and do not charge the battery or tool outside the temperature range specied in the instructions. Charging

improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

99922238008

Page 10

SAFETY

DSRM-2100

Child Safety

Tragic accidents can occur if the operator is not aware of the presence of children.

• Keep children out of the working area and under the watchful care of a responsible adult.

• Do not allow children to operate this machine.

• Stay alert, and turn the machine off if a child or any other person enters the working area.

• Use extreme care when approaching blind corners,doorways, shrubs,

trees, or other objects that may obscure your view of a child who may run

into the path of the machine.

Service

• Have your power tool serviced by an authorized ECHO dealer using

only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged batteries. Service of batteries should only be performed by the manufacturer or authorized service providers.

Grass Trimmer Safety Warnings

• Use only identical manufacturer’s replacement parts and accessories. Use of any other parts may create a hazard or cause product damage.

• Always wear safety glasses with side shields marked to comply with ANSI

Z87.1. Everyday glasses have only impact resistant lenses. They are NOT

safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operating in dusty work spaces.

• Avoid dangerous environment – Don’t expose power tools to damp or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Don’t use in rain.

• Keep all bystanders, children, and pets at least 50 ft./15 m. away.

• Dress properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

• Use the right machine. Do not use the machine for any job except that for which it is intended.

• Avoid unintentional starting – Don’t carry the machine with nger on switch. Be sure switch is off when battery is plugged in.

• Don’t force the machine – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

• Don’t overreach – Keep proper footing and balance at all times.

9992223800810

Page 11

DSRM-2100

• Stay alert – Watch what you are doing. Use common sense. Do not

operate this unit when you are tired, ill or under the inuence of alcohol,

drugs or medication.

• Always store idle power tools indoors – When not in use, power tools

should be stored indoors in a dry and high or locked-up place, out of reach

of children.

• Maintain the machine with care – Replace string head if cracked,

chipped, or damaged in any way. Be sure the string head is properly

installed and securely fastened. Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions

for lubricating and changing accessories. Inspect cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease. Failure to do so can cause serious

injury.

• Check damaged parts before using the machine, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving

parts, binding of moving parts, breakage of parts, damaged mountings,

and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

• Remove or disconnect battery before servicing, cleaning or removing material from the gardening machine.

• Do not modify or attempt to repair the machine or the battery (as applicable) except as indicated in the instructions for use and care. Use machines only with ECHO eFORCE™ 56V battery series. Use of any

other batteries may create a risk of injury and re.

• Recharge only with ECHO eFORCE™ 56V battery series chargers. A

charger that is suitable for one type of battery may create a risk of re

when used with another battery.

• When battery is not in use, keep it away from other metal objects, like

paper clips, coins, keys, nails, screws or other small metal objects, that

can make a connection from one terminal to another. Shorting the battery

terminals together may cause a re.

cause irritation or burns.

• Do not use a battery or machine that is damaged or modied. Damaged

or modied batteries may exhibit unpredictable behavior resulting in re,

explosion or risk of injury.

• Do not expose a battery or machine to re or excessive temperature.

Exposure to re or temperature above 265 °F (130 °C) may cause an

explosion.

SAFETY

99922238008

Page 12

SAFETY

• Do not dispose of the batteries in a re. The cells may explode. Check with local codes for possible special disposal instructions.

• Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

• Exercise care in handling batteries in order not to short the battery with

conducting materials such as rings, bracelets, and keys. The battery or

conductor may overheat and cause burns.

• Follow all charging instructions and do not charge the battery or machine

outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

• Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

• Keep guards in place and in working order.

• Keep hands and feet away from cutting area.

• Disconnect the battery from the machine before making any adjustments,

changing accessories, or storing machine. Such preventive safety

measures reduce the risk of starting the machine accidentally.

• Use only with the nylon cutting line of 0.095" (2.4 mm) diameter and smaller. Do not use heavier lines than recommended by the manufacturer

and line materials of other types – for example, metal wire, rope, and the

like.

DSRM-2100

SAVE THESE INSTRUCTIONS

9992223800812

Page 13

DSRM-2100

SAFETY

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. The reception can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

99922238008

Page 14

SAFETY

DSRM-2100

Enviromentally Safe Battery Disposal

The toxic and corrosive materials below are in the batteries used in this

machine: Lithium-Ion, a toxic material.

Discard all toxic materials in a specied manner to prevent

contamination of the environment. Before discarding damaged or worn out Li-ion battery, contact your local waste disposal agency, or the

local Environmental Protection Agency for information and specic

instructions. Take the batteries to a local recycling and/or disposal

center, certied for lithium-ion disposal.

If the battery cracks or breaks, with or without leaks, do not recharge it and do not use. Discard it and replace with a new battery. DO NOT TRY TO REPAIR IT!

To prevent injury and risk of re, explosion, or electric shock, and to

avoid damage to the environment: Cover the terminals of the battery with heavy-duty adhesive tape. DO NOT try to remove or destroy any of the battery components. DO NOT try to open the battery. If a leak develops, the released electrolytes are corrosive and toxic. DO

NOT get the solution in the eyes or on skin, and do not swallow it. DO NOT put these batteries in your regular household trash. DO NOT incinerate.

DO NOT put them where they will become part of any waste landll or

municipal solid waste stream.

Take them to a certied recycling or disposal center.

The recommended ambient temperature range:

ITEM TEMPERATURE

Power tool storage temperature range 32°F (0°C) - 113°F (45°C)

Power tool operation temperature range 32°F (0°C) - 113°F (45°C)

Battery charging temperature range 39°F (4°C) - 104°F (40°C)

Charger operation temperature range 39°F (4°C) - 104°F (40°C)

Battery storage temperature range 32°F (0°C) - 113°F (45°C)

Battery discharging temperature range 32°F (0°C) - 113°F (45°C)

9992223800814

Page 15

DSRM-2100

DESCRIPTION

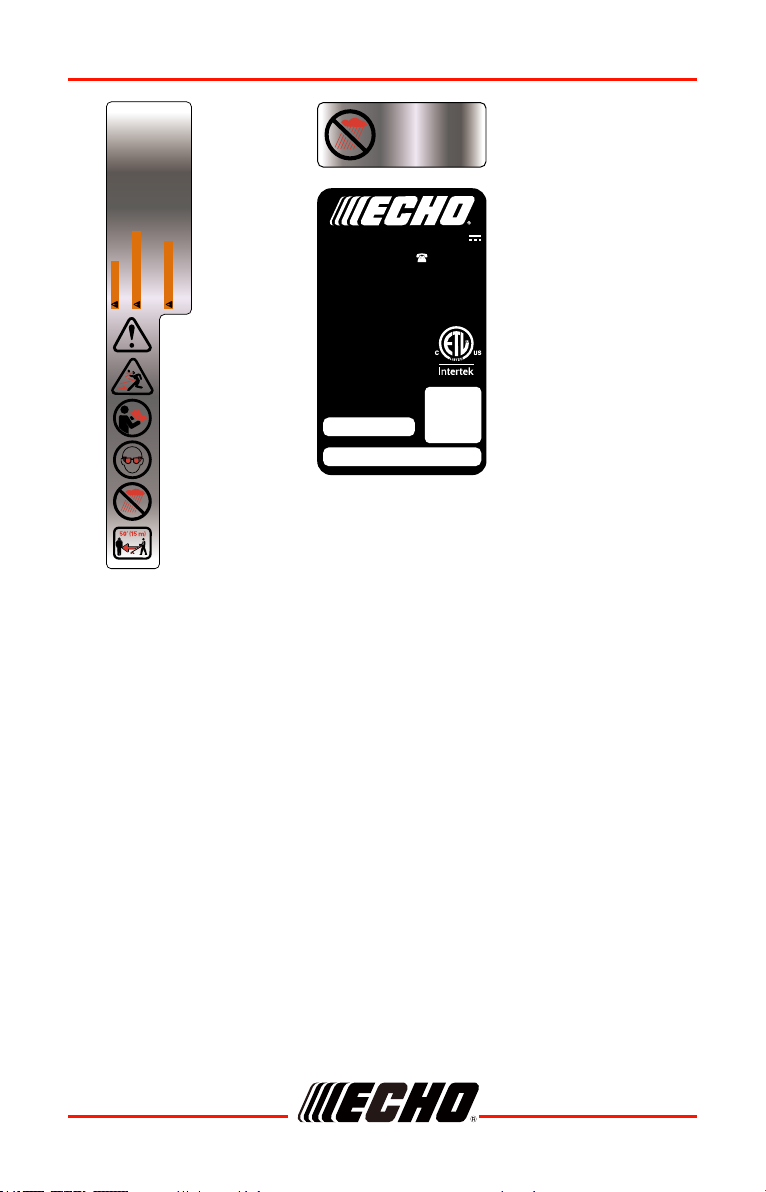

Locate the safety label(s) on your unit. Make sure the label(s) is legible and

that you understand and follow the instructions on it. If a label cannot be read,

a new one can be ordered from your ECHO dealer. Safety label is for example only. Your label my appear slightly different.

99922238008

Page 16

DESCRIPTION

Pour réduire les risques de blessures, l ’utilisateur doit lire le manuel d’instruction. Ne pas

faire fonctionner sans que t ous les dispositifs de protection soient en p lace. R etirer la

Para reducir el riesgo de lesiones, el usuario debe leer y entender este manual de instrucciones. No

utilice el equipo sin los medios de protección instalados, retire la batería cuando el equipo no esté

To reduce the risk of injury to persons, user must read instruction manual. Do not operate without guards in place.

Remove battery pack when not in use. Risk of eye injury. Use safety glasses or similar eye protection. To reduce

AVERTISSEMENT:

ADVERTENCIA:

WARNING:

the risk of electric shock, do not expose to water, or operate unit on wet ground. For use only with ECHO eFORCE™ 56V battery series. See operator's

1. Rear handle

2. Lock-out lever

3. Trigger switch

4. Speed switch

5. Support handle

6. Upper shaft

7. Coupler

8. Lower shaft

9. Trimmer head

10. Debris shield

11. Cut-off knife

para ver la lista de números de modelos compatibles. Guarde solo en el interior, evite exponerlo a la humedad o al agua.

exponga al agua o utilizar la unidad en suelo húmedo. Sólo para uso con la serie d e baterías ECHO eFORCE™ 56V. Consulte el manual d el operador

en uso. Riesgo de l esiones oculares. Utilice gafas de seguridad u otra protección ocular similar. Para reducir el riesgo de descargas eléctricas, n o

ECHO eFORCE™ 56V. Voir le manuel de l'opérateur pour la liste d es numéros de modèle compatibles.Entreposer à l’intérieur seulement, à l ’abri de

risque de choc électrique, n’exposez pas cet appareil à l 'eau, ou utiliser l’appareil sur un sol mouillé. À utiliser uniquement avec la série de batteries

l’humidité ou de l’eau.

batterie lorsque l’outil n’est pas en usage. R isque de blessures aux yeux. Portez des lunettes de sécurité ou une p rotection similaire. Pour réduire le

manual for list of compatible model numbers. Store indoors only, avoid moisture or water.

For use only with ECHO eFORCE™ 56V b attery series. See operator's manual for list of c ompatible model numbers. À utiliser uniquement avec l a série de batteries ECHO eFORCE™ 56V. V oir le manuel de l 'opérateur pour la liste des numéros de modèle compatibles. Sólo para uso con la serie de baterías ECHO eFORCE™ 56V. Consulte el manual del operador para ver la lista de números de modelos compatibles.

CORDLESS STRING TRIMMER COUPE-HERBE SANS FIL PODADORA INALÁMBRICA

0.095 IN (2.4 MM) DIA. SILENTWIST LINE 0,095 IN (2,4 MM) DIA. FIL DE SILENTWIST

0.095 PULG. (2.4 MM) DIA. LÍNEA DE SILENTWIST Certified to CSA std.C22.2 No.147 Conforms to UL Std. 82 Certifié selon la norme CSA C22.2 No.147 Conforme à UL Std. 82 Certificado a CSA STD C22.2 No.147 Cumple con UL Std. 82 Made in China Fabriqué en Chine Hecho en China ECHO Incorporated 400 Oakwood Road Lake Zurich, IL 60047 Build date:

SN:

DSRM-2100

1-800-432-3246

5021527

QR:

56V

DSRM-2100

9992223800816

Page 17

DSRM-2100

ASSEMBLY

Remove the battery from the machine before installation.

Do not use accessories that are not recommended for this machine.

Unpack the Machine

Make sure that you correctly assemble the machine before use.

• If the parts are damaged, do not use the machine.

• If you do not have all the parts, do not operate the machine.

• If the parts are damaged or missing, speak to the service center.

1. Open the package.

2. Read the documentation in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and package in compliance with local regulations.

99922238008

Page 18

ASSEMBLY

Asemble the Shaft

1. Loosen the screws (A,B) on the coupler (7) with the wrench (12).

2. Align the positioning hole (C) on the lower shaft with the screw (B) and slide the two shafts together.

3. Turn the lower shaft until the screw (B) locks into the positioning hole.

4. Tighten the screws (B,A).

DSRM-2100

9992223800818

Page 19

DSRM-2100

Attach the Support Handle

1. Remove the screws from the handle.

2. Attach the support handle and lower clamp on the shaft.

3. Put screw holes (D) on the support handle towards the rear handle (1).

4. Set the support handle in the most comfortable in use position.

ASSEMBLY

5. Tighten the screws.

99922238008

Page 20

ASSEMBLY

DSRM-2100

Install the Battery

• If the battery or charger is damaged, replace the battery or the charger.

• Stop the machine and wait until the motor stops before you install or remove the battery.

• Read and understand the instructions in the battery and charger manual.

1. Align the lift ribs on the battery with the grooves in the battery compartment.

2. Push the battery into the battery compartment until the battery locks into place.

3. When you hear a click, the battery is installed.

Remove the Battery

1. Push and hold the battery release button (E).

2. Remove the battery from the machine.

9992223800820

Page 21

DSRM-2100

OPERATION

Before you operate the machine, read and understand the safety regulations and the operation instructions.

Start the Machine

1. Push the lock-out lever (2) and pull

the trigger switch(3).

2. Push the speed switch (4) to the

desired operating speed.

3. Push the speed switch to position

(F, tortoise) for low speed or position (G, rabbit) for high speed.

Stop the Machine

1. Release the trigger switch to stop the machine.

99922238008

Page 22

OPERATION

DSRM-2100

Adjust the Length Of the Cutting Line

While you operate the machine, the cutting line will wear and shorten. You can

adjust the length of the cutting line.

1. Hit the trimmer head against the

ground while you operate the machine.

2. Line is automatically released and

the cut-off knife cuts the excess length.

Bump Knob

Line Cut-off Knife

This trimmer is equipped with a line cutoff knife (11) on the debris shield. The line cut-off knife continuously trims the

line to ensure a consistent and efcient

cut diameter. Advance line whenever you hear the motor running faster than

normal, or when trimming efciency

diminishes. This will maintain best performance and keep line long enough to advance properly.

Adjust the Cutting Diameter

The machine is set at a 16 in. (40.6 cm) cutting diameter. You can adjust to a 14 in. (35.6 cm) cutting diameter. Set the cutting diameter to 14 in. (35.6 cm) for greater runtime and 16 in. (40.6 cm) for a larger

cutting area.

1. Remove the battery.

2. Remove the knife screws (H) and

nuts (I) from the cut-off knife (11).

3. Turn the cut-off knife180°.

4. Tighten the knife screws and nuts.

9992223800822

Page 23

DSRM-2100

OPERATION

Operation Tips

Keep clearance between the body and the machine.

Do not operate the machine without debris shield in place.

Do these tips when you use the machine:

• Keep a rm hold with the two hands

on the machine while you operate the machine.

• Cut tall grass from the top down.

If grass winds around the trimmer head:

• Remove the battery.

• Remove the grass.

Cutting Tips

• Tilt the machine toward the area to be

cut. Use the tip of the cutting line to cut grass.

• Move the machine from right to left to

prevent thrown debris from hitting the operator.

• Do not cut in the danger area.

• Do not force the trimmer head into

uncut grass.

• Wire and picket fences cause cutting

line wear and breakage. Stone and

brick walls, curbs, and wood can wear

the cutting line quickly.

99922238008

Direction of rotation

Dangerous cutting area

Best cutting area

Page 24

MAINTENANCE

DSRM-2100

MAINTENANCE

Read and understand the safety regulations and the maintenance instructions before you clean, repair or do the maintenance work on the machine.

Make sure that all nuts, bolts and screws are tight. Examine regularly that you install the handles tightly.

Use only the replacement parts and accessories of the initial manufacturer.

General Information

Only your dealer or approved service center can do the maintenance that is not given in this manual.

Before the maintenance operations:

• Stop the machine.

• Remove the battery.

• Cool the motor.

• Store the machine in cool and dry place.

• Use correct clothing, protective gloves and safety glasses.

Clean the Machine

• Clean the machine after use with a moist cloth dipped in neutral detergent.

• Do not use aggressive detergents or solvents to clean the plastic parts or

handles.

• Keep the trimmer head free of grass, leaves, or excessive grease.

• Keep the air vents clean and free of debris to avoid overheating and damage

to the motor or the battery.

• Do not spray water onto the motor and electrical components.

9992223800824

Page 25

DSRM-2100

MAINTENANCE

Nylon Line Replacement

Wear gloves or personal injury may result:

• Cut-off knife is sharp.

Never use wire or wire-rope that can break off and become a dangerous “projectile”. Serious injury can occur.

1. Cut one piece of line to

recommended length.

2.0 mm (0.080 in.) diameter 6 m (20 ft.).

2.4 mm (0.095 in.) diameter 6 m (20 ft.).

2. Align arrows (J) on top of knob with

openings in eyelets (K).

3. Insert one end of trimmer line into

an eyelet (K), and push line equal

distance through trimmer head.

4. Hold trimmer head while turning

knob clockwise to wind line onto spool until about 13 cm (5 in.) of each line remains exposed.

Trimmer head is now fully loaded and ready for operation.

99922238008

Page 26

MAINTENANCE

DSRM-2100

When the wear indicators located at the bottom of the Speed-Feed® head are worn smooth, or if holes appear, replacement of the cover or the entire Speed-Feed® head is required.

Nylon Line Head Disassembly Instructions

Note: For normal use, Speed-Feed® head disassembly is not necessary. However, if circumstances require disassembly, follow these instructions.

1. Press top of locking tabs (L) on

both sides of Speed-Feed® head

to release cover (M) from eyelet carrier (N).

2. Remove cover from eyelet carrier.

9992223800826

Page 27

DSRM-2100

TROUBLE SHOOTING

Problem Possible Cause Solution

The machine does not start when you push the trigger switch.

The machine stops when you cut.

No electrical contact between the machine and the battery.

The battery is depleted. Charge the battery. The lock-out lever and

trigger switch are not pushed at the same time.

The debris shield is not attached to the machine.

Heavy cutting line is used.

The grass winds around the motor shaft or the trimmer head.

The motor is overloaded.

The battery or machine is too hot.

The battery is disconnected from the tool.

The battery is depleted. Charge the battery.

1. Remove battery.

2. Check contact and install the battery again.

1. Push the lock-out lever and hold it.

2. Pull the trigger switch to start the machine.

Remove the battery and attach the debris shield to the machine.

Use only with the nylon cutting line of

0.095" diameter line or smaller.

1. Stop the machine.

2. Remove the battery.

3. Remove the grass from the motor shaft and trimmer head.

1. Remove the trimmer head from the grass.

2. The motor will recover to work as soon as the load is removed.

3. When you cut, move the trimmer

head in and out of the grass to be cut and remove no more than 8" in pass.

1. Cool the battery until its function returns to normal.

2. Cool the machine for approximately 10 minutes.

Install the battery again.

99922238008

Page 28

TROUBLESHOOTING

Problem Possible Cause Solution

The line does not advance.

The line keeps breaking.

Lines are welded to themselves.

Not enough line on spool.

Lines are worn too short.

Lines are tangled on spool.

The machine is used incorrectly.

Lubricate with silicone spray.

Install more line.

Advance the cutting line.

1. Remove the lines from the spool.

2. Wind the lines.

1. Cut with the tip of the line, avoid stones, walls and other hard objects.

2. Advance the cutting line regularly to keep full cutting width.

DSRM-2100

Grass winds around the trimmer head and motor housing.

The line does not cut well.

Heavy vibration.

Cut tall grass at ground level.

The cut-off knife becomes dull.

The length of line on one side is longer than the other side.

1. Cut tall grass from the top down.

2. Remove no more than 8" in each pass to prevent wrapping.

Sharpen the cut-off knife with a le or

replace it. Make sure that the line on both sides

is equal in length. Advance the line.

9992223800828

Page 29

DSRM-2100

STORAGE

Storage After Use

When storing the product for long periods of time, ensure that the following

preparations for storage are carried out.

Grass Trimmer

Do not store your unit without performing protective storage maintenance which includes the following:

• Turn power to unit off.

• Remove battery from grass trimmer.

• Remove accumulation of dirt and debris from exterior of unit.

• Tighten all screws and nuts.

• Cover battery compartment of grass trimmer.

• Store unit in a dry, dust-free place, out of the reach of children.

Battery

• Remove battery from grass trimmer.

• Store in a dry, dust-free place, out of the reach of children.

• Store in temperatures between 32 °F (0 °C) and 113 °F (45 °C).

• If battery is stored for longer than one year, charge it to 100% capacity.

Charger

• Remove battery from charger.

• Disconnect charger from power supply.

• Store in a dry, dust-free place, out of the reach of children.

99922238008

Page 30

SPECIFICATIONS

DSRM-2100

SPECIFICATIONS

MODEL DSRM-2100

Length 1700 mm (66.93 in.) Width 295 mm (11.61 in.) Height 230 mm (9.06 in.) Weight (without battery) 3.4 kg (7.5 lbs.) Weight (with battery) 4.42 kg (9.75 lbs.) Operating Rod 25.0 mm aluminum Tube Rotating Direction Counterclockwise; viewed from top Cutter Head Speed-Feed® Nylon line head Handle Front - loop, Rear handle Type Cordless, battery powered Motor 56V No load speed 6000/5000 ±10% RPM Cutting line diameter 2.4 mm (0.095 in.)

Cutting path diameter 406 mm (16 in.) / 356 mm (14 in.)

Feed Type Bump Feed Battery model Type Voltage Charger type Charger input voltage Charger model ECHO eFORCE™ 56V battery series charger Charger time See Battery Operator's Manual

ECHO eFORCE™ 56V battery series batteries Li-Ion 56 (rated 50.4) CCCV AC 120

9992223800830

Page 31

DSRM-2100

PRODUCT REGISTRATION

Thank you for choosing ECHO Power Equipment

Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product online. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO Incorporated.

Registering your purchase enables us to contact you in the unlikely event of

a service update or product recall, and veries your ownership for warranty

consideration.

If you do not have access to the Internet, you can complete the form below and

mail to:

ECHO Incorporated, Product Registration, PO Box 1139, Lake Zurich, IL

60047.

99922238008

Page 32

PRODUCT REGISTRATION

DSRM-2100

9992223800832

Page 33

DSRM-2100

WARRANTY

Limited Warranty Statement for ECHO 56 Volt Handheld Products and Walk Behind Mowers sold in USA and Canada

ECHO Incorporated warrants to the original retail purchaser that this ECHO brand 56 Volt outdoor product is free from defects in material and workmanship

and agrees to repair or replace, at ECHO Incorporated’s discretion, any

defective product free of charge within these time periods from the date of purchase:

■ If the product is for homeowner use:

• Units and Bare Tool – 5 Years

• Battery or charger – 2 years

■ If the product is for commercial use:

• Units and Bare Tool – 2 Years

• Battery or charger – 2 years

■ If the product is for rental use: 90 days for all units, batteries, and chargers.

■ Cutting attachments such as, but not limited to, bars, chains, sprockets,

blades, tines, belts, PowerBroomTM and nylon trimmer heads for

homeowner or non-income producing use will be covered for failures due to defects in material or workmanship for a period of 60 days from original product purchase date and 30 days for commercial / rental use. Any misuse

from contact with concrete, rocks, or other structures is not covered by this

warranty.

This warranty extends to the original retail purchaser only and commences on the date of the original retail purchase.

Any part of this product found in the reasonable judgment of ECHO

Incorporated, to be defective in material or workmanship will be repaired or

replaced without charge for parts and labor by an authorized ECHO dealer.

Units, repair parts and accessories replaced under this warranty are warranted

only for the balance of the original warranty period.

The product, including any defective part, must be returned to an authorized

ECHO dealer within the warranty period. The expense of delivering the product to the service center for warranty work and the expense of returning it back to the owner after repair or replacement will be paid by the owner. ECHO

Incorporated’s, responsibility in respect to claims is limited to making the

required repairs or replacements and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any ECHO brand

99922238008

Page 34

WARRANTY

56 Volt outdoor product. Proof of purchase will be required by the dealer to substantiate any warranty claim. All warranty work must be performed by an authorized ECHO dealer.

This warranty does not cover any units, battery or charger that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specied in the Operator’s

Manual. This warranty does not cover normal deterioration due to the use

or exposure, and any repairs made necessary by normal wear, improper maintenance, improper lubrication, improper storage, dirt, abrasives, impact, moisture, water, rain, snow, rust, corrosion, varnish, or other similar conditions.

This warranty does not cover damage to chargers or batteries by improper charging voltage and batteries that have been exposed to temperatures

beyond those specied in the Operator’s Manual, batteries that have not been

properly charged or batteries that have reached their useful life. This warranty does not apply to any damage to the product that is the result

of improper maintenance or to any product that has been altered or modied.

The warranty does not extend to repairs made necessary by normal wear or by the use of parts or accessories which are either incompatible with the ECHO

brand 56 Volt outdoor product or adversely affect its operation, performance, or durability. In addition, this warranty does not cover wear to normal items such as, but not limited to:

Wear items – Bump Knobs, Outer Spools, Cutting Lines, Inner Reels, Felt Washers, Hitch Pins, Mulching Blades, Blower Fans, Blower and Vacuum Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains, Grass Catch Bag, Hedge Trimmer Blades, and Wheels

ECHO Incorporated, reserves the right to change or improve the design of

this product without assuming any obligation to modify any product previously manufactured.

All implied warranties are limited in duration to the stated warranty period.

Accordingly, any such implied warranties including merchantability, tness for a particular purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate ve-year, two-year, one-year, 90-day, 60-day, or

30-day warranty period. ECHO Incorporated’s obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts.

ECHO Incorporated, does not assume or authorize anyone to assume for

them any other obligation. Some states do not allow limitations on how long

an implied warranty lasts, so the above limitation may not apply to you. ECHO Incorporated, assumes no responsibility for incidental, consequential, or other damages including, but not limited to, expense of returning the product to an

DSRM-2100

9992223800834

Page 35

DSRM-2100

authorized dealer for ECHO brand 56 Volt outdoor products and expense of

delivering it back to the owner, mechanic’s travel time, telephone charges, rental of a like product during the time warranty service is being performed, travel, loss or damage to personal property, loss of revenue, loss of use of the product, loss of time, or inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or

exclusion may not apply to you.

This warranty gives you specic legal rights, and you may also have other

rights which vary from state to state. This warranty applies to all ECHO brand

56 Volt outdoor products manufactured by or for ECHO Incorporated, and sold

in the United States and Canada.

To locate your nearest authorized ECHO dealer, visit www.ECHO-usa.com or

dial 1-800-432-ECHO (3246).

WARRANTY

99922238008

Page 36

NOTES

DSRM-2100

9992223800836

Page 37

DSRM-2100

NOTES

99922238008

Page 38

400SRM100001 - 400SRM999999 418SRM100001 - 418SRM999999

ECHO INCORPORATED

400 Oakwood Road

Lake Zurich, IL 60047

www.echo-usa.com
