Echo CS-8001(6digits)(36), CS-8001 Series Parts Catalog

PARTS CATALOG

CHAIN SAW

CS-8001(6digits)(36)

CS-8001(6digits)(36)

CS-8001(6digits)(36)

1. Cylinder, Crankcase, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 900162-06025 4

BOLT, H.S. 6*25

6*25 W,SW

2 101001-30832 1

CYLINDER ASSY

Sus. by 101001-

30833

2 101001-30833 1

CYLINDER W/GASKET

Sr/Nr 36001000

and before

2 P021-005410 1

CYLINDER ASY

Sr/Nr 36001001

and after

3 + 101010-30830 1

GASKET, CYL. BASE

4 100000-30831 1

PISTON KIT

Sus. by 100000-

30832

4 100000-30832 1

PISTON KIT

Sr/Nr 36001000

and before

4 P021-005420 1

PISTON KIT

Sr/Nr 36001001

and after

5 + 100011-30831 2

RING, PISTON

6 + 100013-30830 1

PIN, PISTON

8*13*34.8

Sr/Nr 36001000

and before

6 + V611-000000 1

PIN,ENG 13

8*13*38.8

Sr/Nr 36001001

and after

7 + 100015-30830 2

CIRCLIP, PISTON PIN

8 + 100012-30830 1

BEARING, NEEDLE

9 100100-30830 1

CRANKSHAFT ASSY

10 100142-30830 1

KEY, WOODRUFF

12 130516-30830 1

BAND

13 130510-30830 1

ADAPTER, INTAKE

14 433016-11031 1

SCREW, TENSIONER

- 1 -

CS-8001(6digits)(36)

1. Cylinder, Crankcase, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

15 433028-11030 1

CLIP

16 433014-02830 1

TENSIONER

17 433000-19831 1

CATCHER KIT, CHAIN

18 + 900162-05020 1

BOLT, H.S. 5*20

5*20 W,SW

19 900600-00005 1

WASHER 5

5

21 100204-30832 1

CRANKCASE KIT

22 + 100213-30830 1

OILSEAL

25Z-16 39.9 7

23 + 436114-13930 1

VALVE, CHECK

24 + 900345-50010 1

PIN, SPRING 5*10SUS

5*10SUS

25 + 100215-02830 2

PIN, DOWEL

26 + 900810-36203 2

BEARING, BALL 6203

6203/C3

27 + 433011-19830 2

STUD, GUIDE BAR

28 + 100242-30830 1

GASKET, CRANKCASE

30 + 100212-19830 1

OILSEAL

ISM 15*25*6

29 900162-05035 4

BOLT, H.S. 5*35

5*35 W,SW

31 100921-30830 1

CUSHION

32 900162-05014 2

BOLT, H.S. 5*14

5*14 W,SW

Sr/Nr 36001185

and before

32 900162-05014 1

BOLT, H.S. 5*14

5*14 W,SW

Sr/Nr 36001186

and after

33 900162-05020 5

BOLT, H.S. 5*20

5*20 W,SW

34 436001-31730 1

CAP ASSY, OIL TANK

35 + 900721-00025 1

O-RING 25

G-25

36 + 131050-19830 1

RETAINER, LINK

37 + 900246-03008 1

SCREW 3*8

3*8

- 2 -

CS-8001(6digits)(36)

1. Cylinder, Crankcase, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

38 + 131051-19830 1

LINK

60L

39 900238-05014 1

SCREW 5*14

5*14

Sr/Nr 36001186

and after

40 880210-30830 1

BUMPER, SPIKED

41 900105-06020 2

BOLT, H.S. 6*20

6*20

42 900605-00006 2

WASHER, SPRING 6

6

43 101501-31730 1

COVER, CYLINDER

45 + 101578-30830 1

PLUG

44 101520-33330 1

COVER

46 101541-30831 1

PLATE, GUIDE

47 890345-39230 1

LABEL,CAUTION

48 890631-38130 1

LABEL, CAUTION

- 3 -

CS-8001(6digits)(36)

2. Air Cleaner, Muffler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 130302-30830 1

COVER SET, AIR CLN

2 + 130406-30830 1

NUT, THUMB

3 + 900720-00010 1

O-RING P-10

P-10

4 + 900720-00003 1

O-RING P-3

P-3

5 890112-60830 1

LABEL, MODEL

Sus. by 890112-

60831

5 890112-60831 1

LABEL, MODEL

11 130303-30831 1

FILTER, AIR W/SEAL

12 + 130356-19830 1

GROMMET

13 + 130320-30831 1

SEAL, CLEANER

14 130306-30830 1

CASE, CARBURETOR(BS)

15 101529-30830 1

PLATE, GUIDE (A)

16 129013-30831 1

SCREW, IDLE SPEED

17 129010-19830 1

GROMMET

Sr/Nr 36001000

and before

17 129010-38830 1

GROMMET, NEEDLE

Sr/Nr 36001001

and after

18 100905-19830 1

CUSHION

19 130339-30830 1

PLUG

21 130007-30830 1

INSULATOR

20 + 130012-30830 1

SEAL, DUST

22 + 130020-19830 2

NUT

23 900162-05025 4

BOLT, H.S. 5*25

5*25 W,SW

24 130110-30830 1

PIPE, IMPULSE

25 129011-19831 1

PLATE

26 900162-05055 2

BOLT, H.S. 5*55

5*55 W,SW

- 4 -

CS-8001(6digits)(36)

2. Air Cleaner, Muffler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 900162-05014 2

BOLT, H.S. 5*14

5*14 W,SW

28 130405-30830 1

SUPPORTER, FILTER

29 123000-30832 1

CARBURETOR ASSY

HDA-63

30 178078-19830 1

SPRING

31 178114-19830 1

HOLDER, THR. LEVER

32 178510-30830 1

ROD, CHOKE

33 178810-11231 1

GROMMET

34 178307-30830 1

ROD, THROTTLE

35 163400-30830 1

SWITCH, IGNITION

36 890157-19830 1

LABEL, SWITCH

37 156114-04920 2

GROMMET

38 162021-30830 1

LEAD

39 900242-04008 1

SCREW

4*8

40 900220-04008 1

SCREW 4*8

4*8

41 145610-30830 1

MUFFLER

42 900162-04010 4

BOLT, H.S. 4*10

4*10 W,SW

43 145861-30830 1

LID, MUFFLER

46 145510-30830 1

GASKET, MUFFLER

47 900162-06020 2

BOLT, H.S. 6*20

6*20 W.SW

48 145711-30830 1

BRACKET, MUFFLER

49 145813-31730 1

COVER, MUFFLER

50 900162-05020 1

BOLT, H.S. 5*20

5*20 W,SW

- 5 -

CS-8001(6digits)(36)

3. Starter, Magneto(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 101534-30830 1

PLATE, GUIDE

2 900162-05020 2

BOLT, H.S. 5*20

5*20 W,SW

3 156800-32631 1

ROTOR, MAGNETO

4 101521-30831 1

FAN, COOLING

Sus. by 101521-

30832

4 101521-30832 1

FAN, COOLING

5 100143-19830 1

WASHER

8.2*31*0.8

6 433019-12330 1

NUT, FLANGE 8

M-8

7 159012-03433 1

CAP, SPARK PLUG

8 159011-03432 1

COIL, SPARK PLUG

9 159017-31730 1

PLUG, SPARK RCJ-6Y

RCJ-6Y

10 152112-05730 1

BUSHING

11 156601-30831 1

COIL, IGNITION

12 900162-04020 2

BOLT, H.S. 4*20

4*20 W,SW

13 150611-30830 1

TUBE

7*8.6*45

20 177234-30830 2

SPRING, RETURN

21 177247-12331 2

SPACER, RATCHET

22 177218-30830 2

PAWL, STARTER

23 900603-00005 2

WASHER 5

5.5*12*0.8

24 900162-05030 2

BOLT, H.S. 5*30

5*30 W,SW

Sus. by V203-

000140

24 V203-000140 2

BOLT,5

5*30

25 101535-30830 1

COVER, FAN

26 177200-30831 1

STARTER ASSY

27 + 900238-05014 1

SCREW 5*14

5*14

Sus. by 900162-

05014

- 6 -

CS-8001(6digits)(36)

3. Starter, Magneto(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 + 900162-05014 1

BOLT, H.S. 5*14

5*14 W,SW

28 + 177214-02830 1

WASHER

5.2*16*1.0T

29 + 177226-07060 1

ROPE, STARTER

4.0*950

30 + 177206-14330 1

DRUM, STARTER

31 + 177216-12330 1

COLLAR

32 + 177242-30830 1

PLATE, STARTER

33 + 177220-02834 1

SPRING, REWIND

34 + 177221-02830 1

PLATE, STARTER

35 + 177228-30830 1

GRIP, STARTER

36 + 177227-07060 1

GUIDE, ROPE

37 900162-05020 4

BOLT, H.S. 5*20

5*20 W,SW

38 890118-17930 1

LABEL, ECHO

Sus. by X502-

000460

- 7 -

CS-8001(6digits)(36)

4. Starter, Magneto(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 101534-30830 1

PLATE, GUIDE

2 900162-05020 2

BOLT, H.S. 5*20

5*20 W,SW

3 156800-32631 1

ROTOR, MAGNETO

4 101521-30832 1

FAN, COOLING

5 100143-19830 1

WASHER

8.2*31*0.8

6 433019-12330 1

NUT, FLANGE 8

M-8

7 159012-03433 1

CAP, SPARK PLUG

8 159011-03432 1

COIL, SPARK PLUG

9 159017-31730 1

PLUG, SPARK RCJ-6Y

RCJ-6Y

10 152112-05730 1

BUSHING

11 156601-30831 1

COIL, IGNITION

Sus. by 156601-

30832

12 900162-04020 2

BOLT, H.S. 4*20

4*20 W,SW

13 150611-30830 1

TUBE

7*8.6*45

20 177234-30830 2

SPRING, RETURN

21 177247-12331 2

SPACER, RATCHET

22 177218-30830 2

PAWL, STARTER

23 900603-00005 2

WASHER 5

5.5*12*0.8

24 V203-000140 2

BOLT,5

5*30

25 101535-30830 1

COVER, FAN

26 177200-30831 1

STARTER ASSY

27 + 900162-05014 1

BOLT, H.S. 5*14

5*14 W,SW

28 + 177214-02830 1

WASHER

5.2*16*1.0T

29 + 177226-07060 1

ROPE, STARTER

4.0*950

30 + 177206-14330 1

DRUM, STARTER

31 + 177216-12330 1

COLLAR

- 8 -

CS-8001(6digits)(36)

4. Starter, Magneto(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

32 + 177242-30830 1

PLATE, STARTER

33 + 177220-02834 1

SPRING, REWIND

34 + 177221-02830 1

PLATE, STARTER

35 + 177228-30830 1

GRIP, STARTER

36 + 177227-07060 1

GUIDE, ROPE

37 900162-05020 4

BOLT, H.S. 5*20

5*20 W,SW

38 890118-17930 1

LABEL, ECHO

Sus. by X502-

000460

38 X502-000460 1

LABEL,ECHO

- 9 -

CS-8001(6digits)(36)

5. Auto-Oiler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 900162-04014 3

BOLT, H.S. 4*14

4*14 W,SW

2 437605-32430 1

COVER, OIL PUMP

3 437066-30831 1

WASHER, CIRCULAR

4 132013-26630 1

CLIP

6.5MM

6 437063-33231 1

GEAR, WORM

7 900720-00003 2

O-RING P-3

P-3

8 437211-32430 1

PIPE

9 437212-32430 1

CONNECTOR, OIL PIPE

10 437210-30830 1

PIPE, OIL

NBR 3*6*210L

11 437100-19831 1

OIL PUMP ASSY

Sus. by 437100-

19832

11 437100-19832 1

OILER ASY, MANUAL

12 + 437118-19830 1

NIPPLE

13 + 437122-03430 2

O-RING

14 + 437012-00330 2

VALVE, BALL

15 + 437013-00330 2

SPRING, VALVE

Sus. by V450-

000290

15 + V450-000290 2

SPRING,COMPRESSION

16 + 437112-19831 1

PISTON, MANUAL

17 + 900720-00007 1

O-RING 7

P-7

18 + 437111-19830 1

SPRING

19 + 437110-19831 1

BODY, OIL PUMP

20 + 900345-20016 1

PIN, SPRING 2*16SUS

2*16SUS

22 + 437121-10130 1

ADAPTER, OIL PUMP

21 900162-05020 1

BOLT, H.S. 5*20

5*20 W,SW

23 900700-00003 1

E-RING 3

CE-3

- 10 -

CS-8001(6digits)(36)

5. Auto-Oiler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

24 437015-19830 1

SPRING

25 437039-30830 1

KNOB

27 132115-12330 1

GROMMET

28 437210-32430 1

PIPE, OIL (INNER)

Sus. by 437210-

38330

28 437210-38330 1

PIPE, OIL

29 436205-14730 1

STRAINER, OIL

35 437002-37530 1

AUTO-OILER ASSY

36 + 900720-00003 1

O-RING P-3

P-3

37 + 437009-35430 1

PIN, CONTROL

38 ++ 437065-19830 1

CLIP

39 ++ 437030-19830 1

O-RING

40 + 437062-19830 1

CAP, PLUNGER

41 + 437006-32330 1

PLUNGER KIT

42 ++ 437020-32430 1

V-RING

- 11 -

CS-8001(6digits)(36)

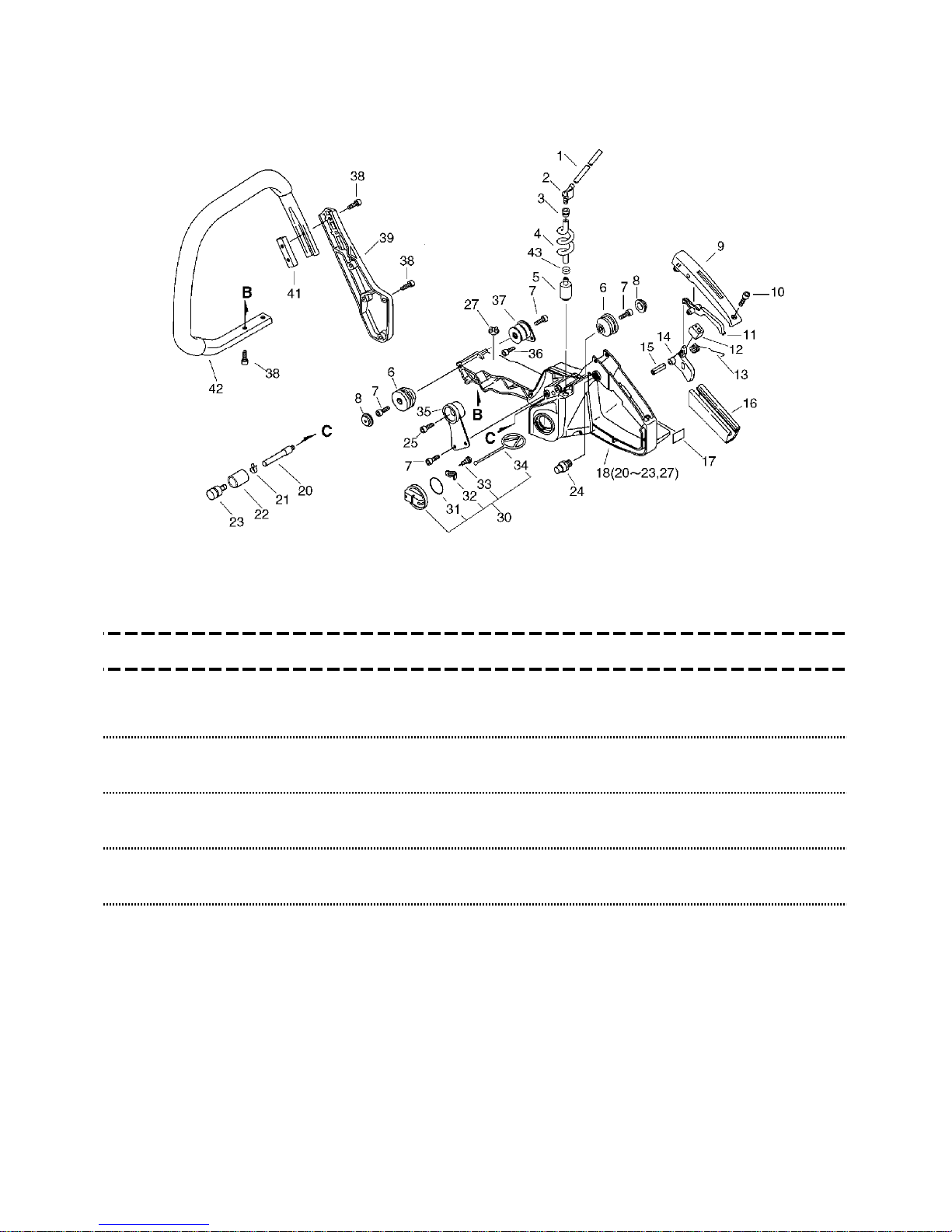

6. Handle(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 132012-02960 1

PIPE, FUEL

3*6*120L

2 132011-19830 1

CONNECTOR, FUEL PIPE

Sus. by 132011-

19831

3 132115-01461 1

GROMMET

4 132010-30830 1

PIPE

5 131205-19830 1

STRAINER, FUEL

6 100910-30830 2

CUSHION

7 900162-05014 5

BOLT, H.S. 5*14

5*14 W,SW

8 100918-19830 2

CAP, CUSHION

9 351155-30131 1

COVER, HANDLE

10 900162-04014 1

BOLT, H.S. 4*14

4*14 W,SW

11 178090-30130 1

LOCKOUT, T. CONTROL

12 178073-32430 1

CUSHION, THROTTLE

13 178043-19830 1

SPRING, THR. RETURN

14 178010-19830 1

CONTROL, THROTTLE

15 900342-50025 1

PIN, SPRING 5*25

5*25

16 351111-19830 1

GRIP, HANDLE

17 890157-39130 1

LABEL, SWITCH

18 351103-30832 1

HANDLE,W/FUEL TANK

20 + 437210-31730 1

PIPE 3* 5* 55

21 + 130111-00530 1

CLIP

5.5

22 + 131328-40630 1

COVER, VENT

23 + 131300-56430 1

VALVE, CHECK

27 + 100252-30830 1

CUSHION

19 131329-32330 1

PLUG, FUEL TANK

Sr/Nr 001400 and

before

- 12 -

CS-8001(6digits)(36)

6. Handle(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

24 178302-12330 1

LATCH, THROTTLE

25 900162-05020 1

BOLT, H.S. 5*20

5*20 W,SW

30 131004-19831 1

CAP ASSY, FUEL TANK

31 + 900720-20029 1

O-RING 29

P-29

32 + 131050-19830 1

RETAINER, LINK

33 + 900246-03008 1

SCREW 3*8

3*8

34 + 131051-19830 1

LINK

60L

35 100917-30830 1

CUSHION

36 900162-04010 2

BOLT, H.S. 4*10

4*10 W,SW

37 100922-30830 1

CUSHION

38 900162-05020 8

BOLT, H.S. 5*20

5*20 W,SW

39 351614-60830 1

BRACKET, F. HNDL. BS

41 305114-06060 1

BRACKET

42 351606-60830 1

HANDLE, FRONT

43 132013-26630 1

CLIP

6.5MM

Sr/Nr 36001481

andafter

- 13 -

CS-8001(6digits)(36)

7. Handle(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 132012-02960 1

PIPE, FUEL

3*6*120L

2 132011-19830 1

CONNECTOR, FUEL PIPE

Sus. by 132011-

19831

2 132011-19831 1

CONNECTOR, FUEL PIPE

3 132115-01461 1

GROMMET

4 132010-30830 1

PIPE

5 131205-19830 1

STRAINER, FUEL

6 100910-30830 2

CUSHION

7 900162-05014 5

BOLT, H.S. 5*14

5*14 W,SW

8 100918-19830 2

CAP, CUSHION

9 351155-30131 1

COVER, HANDLE

10 900162-04014 1

BOLT, H.S. 4*14

4*14 W,SW

11 178090-30130 1

LOCKOUT, T. CONTROL

12 178073-32430 1

CUSHION, THROTTLE

13 178043-19830 1

SPRING, THR. RETURN

14 178010-19830 1

CONTROL, THROTTLE

15 900342-50025 1

PIN, SPRING 5*25

5*25

16 351111-19830 1

GRIP, HANDLE

17 890157-39130 1

LABEL, SWITCH

18 351103-30832 1

HANDLE,W/FUEL TANK

20 + 437210-31730 1

PIPE 3* 5* 55

21 + 130111-00530 1

CLIP

5.5

22 + 131328-40630 1

COVER, VENT

23 + 131300-56430 1

VALVE, CHECK

27 + 100252-30830 1

CUSHION

24 178302-12330 1

LATCH, THROTTLE

- 14 -

CS-8001(6digits)(36)

7. Handle(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

25 900162-05020 1

BOLT, H.S. 5*20

5*20 W,SW

30 131004-19831 1

CAP ASSY, FUEL TANK

31 + 900720-20029 1

O-RING 29

P-29

32 + 131050-19830 1

RETAINER, LINK

33 + 900246-03008 1

SCREW 3*8

3*8

34 + 131051-19830 1

LINK

60L

35 100917-30830 1

CUSHION

36 900162-04010 2

BOLT, H.S. 4*10

4*10 W,SW

37 100922-30830 1

CUSHION

38 900162-05020 8

BOLT, H.S. 5*20

5*20 W,SW

39 351614-60830 1

BRACKET, F. HNDL. BS

41 305114-06060 1

BRACKET

42 351606-60830 1

HANDLE, FRONT

43 132013-26630 1

CLIP

6.5MM

- 15 -

CS-8001(6digits)(36)

8. Clutch, Sprocket, Tools(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 890118-15130 1

LABEL, ECHO

Sus. by X502­000560

2 433019-12330 2

NUT, FLANGE 8

M-8

3 433012-30830 1

PLATE, GUIDE (OUTER)

4 900241-03006 2

SCREW 3*6

3*6

5 900241-04008 1

SCREW 4*8

4*8

6 433013-30830 1

PLATE, GUIDE (INNER)

7 175000-30831 1

CLUTCH ASSY

Sus. by 175000-

30832

7 175000-30832 1

CLUTCH ASSEMBLY

8 + 175019-30830 2

PLATE, CLUTCH

9 + 175029-30830 1

PLATE, CLUTCH

10 + 175059-30830 1

PLATE, SPRING

11 + 175016-30830 1

HUB, CLUTCH

12 + 175018-30830 1

SPRING, CLUTCH

13 + 175002-30830 1

SHOE, CLUTCH

Sus. by 175002-

30831

13 + 175002-30831 1

SHOE, CLUTCH

14 + 900105-04008 6

BOLT, H.S. 4*8

4*8

15 175012-30830 1

BEARING, NEEDLE

16 175105-30830 1

DRUM, CLUTCH

Sus. by 175105-

30831

17 175033-14731 1

SPROCKET, RIM 68210S

18 890316-39130 1

LABEL, CAUTION

19 890155-30130 1

LABEL, CAUTION

22 895812-03930 1

DRIVER, SCREW 50

- 16 -

CS-8001(6digits)(36)

8. Clutch, Sprocket, Tools(Sr/Nr 36001915 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

23 895410-02830 1

WRENCH, W/S. DRIVER

24 898513-31731 1

SCABBARD, GUIDE BAR

25 + 898568-14530 1

ROPE

5*900

- 17 -

CS-8001(6digits)(36)

9. Clutch, Sprocket, Tools(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 890118-15130 1

LABEL, ECHO

Sus. by X502­000560

1 X502-000560 1

LABEL,ECHO

2 433019-12330 2

NUT, FLANGE 8

M-8

3 433012-30830 1

PLATE, GUIDE (OUTER)

4 900241-03006 2

SCREW 3*6

3*6

5 900241-04008 1

SCREW 4*8

4*8

6 433013-30830 1

PLATE, GUIDE (INNER)

7 175000-30832 1

CLUTCH ASSEMBLY

8 + 175019-30830 2

PLATE, CLUTCH

9 + 175029-30830 1

PLATE, CLUTCH

10 + 175059-30830 1

PLATE, SPRING

11 + 175016-30830 1

HUB, CLUTCH

12 + 175018-30830 1

SPRING, CLUTCH

13 + 175002-30831 1

SHOE, CLUTCH

14 + 900105-04008 6

BOLT, H.S. 4*8

4*8

15 175012-30831 1

BEARING, NEEDLE

16 175105-30830 1

DRUM, CLUTCH

Sus. by 175105-

30831

16 175105-30831 1

DRUM, CLUTCH

17 175033-14731 1

SPROCKET, RIM 68210S

18 890316-39130 1

LABEL, CAUTION

19 890155-30130 1

LABEL, CAUTION

22 895812-03930 1

DRIVER, SCREW 50

23 895410-02830 1

WRENCH, W/S. DRIVER

- 18 -

CS-8001(6digits)(36)

9. Clutch, Sprocket, Tools(Sr/Nr 36001916 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

24 898513-31731 1

SCABBARD, GUIDE BAR

Sus. by 898513­16431

25 + 898568-14530 1

ROPE

5*900

28 898510-39130 1

BAG, TOOL

- 19 -

CS-8001(6digits)(36)

10. Carburetor(Sr/Nr 36001000 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

123000-30832 1

CARBURETOR ASSY

HDA-63

1 + 123110-16130 1

SCREW, PUMP COVER

2 + 123124-19830 1

COVER, FUEL PUMP

3 + 123125-12330 1

GASKET, FUEL PUMP

4 + 123112-12330 1

DIAPHRAGM, FUEL PUMP

5 + 123114-38830 2

SCREW

6 + 123132-17330 1

VALVE, CHOKE

7 + 123136-10630 1

BALL, CHOKE FRICTION

8 + 123135-10630 1

SPRING, CHOKE FRICT.

9 + 123126-10631 1

SCREEN, INLET

10 + 123113-16130 1

SPRING, THRT. RETURN

11 + 123117-32430 1

SHAFT, THROTTLE

12 + 123114-03930 1

SCREW

Sus. by 123114-

38830

12 + 123114-38830 1

SCREW

13 + 123116-16130 1

VALVE, THROTTLE

14 + 123131-19830 1

SHAFT, CHOKE

15 + 123156-12330 1

STOP, THROTTLE

18 + 123120-30830 1

NEEDLE, HIGH SPEED

19 + 123121-16130 2

SPRING, NEEDLE

20 + 123118-30830 1

NEEDLE, IDLE

21 + 123123-18330 1

LEVER, METERING

22 + 123122-16130 1

SPRING, METER. LEVER

23 + 123137-19830 1

VALVE, INLET NEEDLE

24 + 123138-03930 1

PIN, METERING LEVER

25 + 123139-03930 1

SCREW, M. LEVER PIN

- 20 -

CS-8001(6digits)(36)

10. Carburetor(Sr/Nr 36001000 and before)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 + 123140-16131 1

GASKET, M. DIAPHRAGM

28 + 123141-16131 1

DIAPHRAGM, METERING

29 + 123142-17330 1

COVER, M. DIAPHRAGM

30 + 123130-02960 4

SCREW

31 + 123168-10631 1

SCREEN

32 + 123169-10630 1

RING, RETAINING

33 + 123146-17330 1

PLUG, CUP

34 + 123178-15030 1

PLUG, FRICTION

35 + 123146-10631 1

PLUG, WELCH

- 21 -

CS-8001(6digits)(36)

11. Carburetor(Sr/Nr 36001001 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

123000-38832 1

CARBURETOR HDA-153B

HDA-153B

1 + 123110-16130 1

SCREW, PUMP COVER

2 + 123124-19830 1

COVER, FUEL PUMP

3 + 123125-12330 1

GASKET, FUEL PUMP

4 + 123112-12330 1

DIAPHRAGM, FUEL PUMP

5 + 123114-38830 2

SCREW

6 + 123132-17330 1

VALVE, CHOKE

7 + 123136-10630 1

BALL, CHOKE FRICTION

8 + 123135-10630 1

SPRING, CHOKE FRICT.

9 + 123126-10631 1

SCREEN, INLET

10 + 123113-16130 1

SPRING, THRT. RETURN

11 + 123117-32430 1

SHAFT, THROTTLE

12 + 123114-38830 1

SCREW

13 + 123116-16130 1

VALVE, THROTTLE

14 + 123131-19830 1

SHAFT, CHOKE

15 + 123156-30830 1

STOP, THROTTLE

18 + 123120-32631 1

NEEDLE, HIGH SPEED

19 + P003-000010 2

LIMITER CAP

20 + 123118-02261 1

NEEDLE

21 + 123123-18330 1

LEVER, METERING

22 + 123122-32630 1

SPRING, METER. LEVER

23 + 123137-19830 1

VALVE, INLET NEEDLE

24 + 123138-03930 1

PIN, METERING LEVER

25 + 123139-03930 1

SCREW, M. LEVER PIN

27 + 123140-16131 1

GASKET, M. DIAPHRAGM

28 + 123141-16131 1

DIAPHRAGM, METERING

- 22 -

CS-8001(6digits)(36)

11. Carburetor(Sr/Nr 36001001 and after)

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

29 + 123142-17330 1

COVER, M. DIAPHRAGM

30 + 123130-02960 4

SCREW

34 + 123146-10631 1

PLUG, WELCH

35 + 123178-15030 1

PLUG, FRICTION

- 23 -

CS-8001(6digits)(36)

12. Chain Brake

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

P021-007310 1

BRAKE ASY, CHAIN

Sus. by P021­007311

P021-007311 1

BRAKE ASY, CHAIN

1 + 433105-60830 1

LEVER, BRAKE

2 + 433114-38330 1

SPRING

Sus. by 433114-

38331

2 + 433114-38331 1

SPRING

3 + 900330-35260 1

PIN 3.5*26

3.5*26

4 + 900238-05035 1

SCREW 5*35

5*35

5 + 433167-39130 2

SPACER

6 + 900560-00005 1

NUT, LOCK 5

5

Sus. by 900562-

50005

6 + 900562-50005 1

LOCKNUT 5

5

7 + 433208-35431 1

LEVER, BRAKE

8 + 900330-40088 1

ROLLER 4*8.8

4*8.8

9 + 433312-32630 1

COVER, SEAL

11 + 433115-38330 1

WASHER 5.2*12*14

5.2*12*14

12 + 433209-35430 1

STOPPER, BRAKE

13 + 433122-38130 1

SPRING, BRAKE

14 + 433310-60830 1

COVER, BRAKE

15 + 900238-04010 2

SCREW 4*10

4*10

17 + 900238-05025 1

SCREW 5*25

5*25

18 + 351249-06960 1

WASHER

19 + 433123-60830 1

BAND, BRAKE

20 + 433142-60830 1

ADJUSTER, BRAKE

22 + 433010-60830 1

GUARD, SPROCKET

- 24 -

CS-8001(6digits)(36)

12. Chain Brake

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

23 + 433025-60830 1

PAD, GUARD

- 25 -

Index

Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.

100000-30831 1 - 4 123113-16130 10 - 10 123146-10631 11 - 34
100000-30832 1 - 4 123113-16130 11 - 10 123146-17330 10 - 33
100011-30831 1 - 5 123114-03930 10 - 12 123156-12330 10 - 15
100012-30830 1 - 8 123114-38830 10 - 5 123156-30830 11 - 15
100013-30830 1 - 6 123114-38830 10 - 12 123168-10631 10 - 31
100015-30830 1 - 7 123114-38830 11 - 5 123169-10630 10 - 32
100100-30830 1 - 9 123114-38830 11 - 12 123178-15030 10 - 34
100142-30830 1 - 10 123116-16130 10 - 13 123178-15030 11 - 35
100143-19830 3 - 5 123116-16130 11 - 13 129010-19830 2 - 17
100143-19830 4 - 5 123117-32430 10 - 11 129010-38830 2 - 17
100204-30832 1 - 21 123117-32430 11 - 11 129011-19831 2 - 25
100212-19830 1 - 30 123118-02261 11 - 20 129013-30831 2 - 16
100213-30830 1 - 22 123118-30830 10 - 20 130007-30830 2 - 21
100215-02830 1 - 25 123120-30830 10 - 18 130012-30830 2 - 20
100242-30830 1 - 28 123120-32631 11 - 18 130020-19830 2 - 22
100252-30830 6 - 27 123121-16130 10 - 19 130110-30830 2 - 24
100252-30830 7 - 27 123122-16130 10 - 22 130111-00530 6 - 21
100905-19830 2 - 18 123122-32630 11 - 22 130111-00530 7 - 21
100910-30830 6 - 6 123123-18330 10 - 21 130302-30830 2 - 1
100910-30830 7 - 6 123123-18330 11 - 21 130303-30831 2 - 11
100917-30830 6 - 35 123124-19830 10 - 2 130306-30830 2 - 14
100917-30830 7 - 35 123124-19830 11 - 2 130320-30831 2 - 13
100918-19830 6 - 8 123125-12330 10 - 3 130339-30830 2 - 19
100918-19830 7 - 8 123125-12330 11 - 3 130356-19830 2 - 12
100921-30830 1 - 31 123126-10631 10 - 9 130405-30830 2 - 28
100922-30830 6 - 37 123126-10631 11 - 9 130406-30830 2 - 2
100922-30830 7 - 37 123130-02960 10 - 30 130510-30830 1 - 13
101001-30832 1 - 2 123130-02960 11 - 30 130516-30830 1 - 12
101001-30833 1 - 2 123131-19830 10 - 14 131004-19831 6 - 30
101010-30830 1 - 3 123131-19830 11 - 14 131004-19831 7 - 30
101501-31730 1 - 43 123132-17330 10 - 6 131050-19830 1 - 36
101520-33330 1 - 44 123132-17330 11 - 6 131050-19830 6 - 32
101521-30831 3 - 4 123135-10630 10 - 8 131050-19830 7 - 32
101521-30832 3 - 4 123135-10630 11 - 8 131051-19830 1 - 38
101521-30832 4 - 4 123136-10630 10 - 7 131051-19830 6 - 34
101529-30830 2 - 15 123136-10630 11 - 7 131051-19830 7 - 34
101534-30830 3 - 1 123137-19830 10 - 23 131205-19830 6 - 5
101534-30830 4 - 1 123137-19830 11 - 23 131205-19830 7 - 5
101535-30830 3 - 25 123138-03930 10 - 24 131300-56430 6 - 23
101535-30830 4 - 25 123138-03930 11 - 24 131300-56430 7 - 23
101541-30831 1 - 46 123139-03930 10 - 25 131328-40630 6 - 22
101578-30830 1 - 45 123139-03930 11 - 25 131328-40630 7 - 22
123000-30832 10 - 123140-16131 10 - 27 131329-32330 6 - 19
123000-30832 2 - 29 123140-16131 11 - 27 132010-30830 6 - 4
123000-38832 11 - 123141-16131 10 - 28 132010-30830 7 - 4
123110-16130 10 - 1 123141-16131 11 - 28 132011-19830 6 - 2
123110-16130 11 - 1 123142-17330 10 - 29 132011-19830 7 - 2
123112-12330 10 - 4 123142-17330 11 - 29 132011-19831 7 - 2
123112-12330 11 - 4 123146-10631 10 - 35 132012-02960 6 - 1

- 26 -

Index

Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.

132012-02960 7 - 1 175105-30830 8 - 16 351111-19830 7 - 16
132013-26630 5 - 4 175105-30830 9 - 16 351155-30131 6 - 9
132013-26630 6 - 43 175105-30831 9 - 16 351155-30131 7 - 9
132013-26630 7 - 43 177200-30831 3 - 26 351249-06960 12 - 18
132115-01461 6 - 3 177200-30831 4 - 26 351606-60830 6 - 42
132115-01461 7 - 3 177206-14330 3 - 30 351606-60830 7 - 42
132115-12330 5 - 27 177206-14330 4 - 30 351614-60830 6 - 39
145510-30830 2 - 46 177214-02830 3 - 28 351614-60830 7 - 39
145610-30830 2 - 41 177214-02830 4 - 28 433000-19831 1 - 17
145711-30830 2 - 48 177216-12330 3 - 31 433010-60830 12 - 22
145813-31730 2 - 49 177216-12330 4 - 31 433011-19830 1 - 27
145861-30830 2 - 43 177218-30830 3 - 22 433012-30830 8 - 3
150611-30830 3 - 13 177218-30830 4 - 22 433012-30830 9 - 3
150611-30830 4 - 13 177220-02834 3 - 33 433013-30830 8 - 6
152112-05730 3 - 10 177220-02834 4 - 33 433013-30830 9 - 6
152112-05730 4 - 10 177221-02830 3 - 34 433014-02830 1 - 16
156114-04920 2 - 37 177221-02830 4 - 34 433016-11031 1 - 14
156601-30831 3 - 11 177226-07060 3 - 29 433019-12330 3 - 6
156601-30831 4 - 11 177226-07060 4 - 29 433019-12330 4 - 6
156800-32631 3 - 3 177227-07060 3 - 36 433019-12330 8 - 2
156800-32631 4 - 3 177227-07060 4 - 36 433019-12330 9 - 2
159011-03432 3 - 8 177228-30830 3 - 35 433025-60830 12 - 23
159011-03432 4 - 8 177228-30830 4 - 35 433028-11030 1 - 15
159012-03433 3 - 7 177234-30830 3 - 20 433105-60830 12 - 1
159012-03433 4 - 7 177234-30830 4 - 20 433114-38330 12 - 2
159017-31730 3 - 9 177242-30830 3 - 32 433114-38331 12 - 2
159017-31730 4 - 9 177242-30830 4 - 32 433115-38330 12 - 11
162021-30830 2 - 38 177247-12331 3 - 21 433122-38130 12 - 13
163400-30830 2 - 35 177247-12331 4 - 21 433123-60830 12 - 19
175000-30831 8 - 7 178010-19830 6 - 14 433142-60830 12 - 20
175000-30832 8 - 7 178010-19830 7 - 14 433167-39130 12 - 5
175000-30832 9 - 7 178043-19830 6 - 13 433208-35431 12 - 7
175002-30830 8 - 13 178043-19830 7 - 13 433209-35430 12 - 12
175002-30831 8 - 13 178073-32430 6 - 12 433310-60830 12 - 14
175002-30831 9 - 13 178073-32430 7 - 12 433312-32630 12 - 9
175012-30830 8 - 15 178078-19830 2 - 30 436001-31730 1 - 34
175012-30831 9 - 15 178090-30130 6 - 11 436114-13930 1 - 23
175016-30830 8 - 11 178090-30130 7 - 11 436205-14730 5 - 29
175016-30830 9 - 11 178114-19830 2 - 31 437002-37530 5 - 35
175018-30830 8 - 12 178302-12330 6 - 24 437006-32330 5 - 41
175018-30830 9 - 12 178302-12330 7 - 24 437009-35430 5 - 37
175019-30830 8 - 8 178307-30830 2 - 34 437012-00330 5 - 14
175019-30830 9 - 8 178510-30830 2 - 32 437013-00330 5 - 15
175029-30830 8 - 9 178810-11231 2 - 33 437015-19830 5 - 24
175029-30830 9 - 9 305114-06060 6 - 41 437020-32430 5 - 42
175033-14731 8 - 17 305114-06060 7 - 41 437030-19830 5 - 39
175033-14731 9 - 17 351103-30832 6 - 18 437039-30830 5 - 25
175059-30830 8 - 10 351103-30832 7 - 18 437062-19830 5 - 40
175059-30830 9 - 10 351111-19830 6 - 16 437063-33231 5 - 6

- 27 -

Index

Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.

437065-19830 5 - 38 900162-04014 5 - 1 900345-50010 1 - 24
437066-30831 5 - 3 900162-04014 6 - 10 900560-00005 12 - 6
437100-19831 5 - 11 900162-04014 7 - 10 900562-50005 12 - 6
437100-19832 5 - 11 900162-04020 3 - 12 900600-00005 1 - 19
437110-19831 5 - 19 900162-04020 4 - 12 900603-00005 3 - 23
437111-19830 5 - 18 900162-05014 1 - 32 900603-00005 4 - 23
437112-19831 5 - 16 900162-05014 1 - 32 900605-00006 1 - 42
437118-19830 5 - 12 900162-05014 2 - 27 900700-00003 5 - 23
437121-10130 5 - 22 900162-05014 3 - 27 900720-00003 2 - 4
437122-03430 5 - 13 900162-05014 4 - 27 900720-00003 5 - 7
437210-30830 5 - 10 900162-05014 6 - 7 900720-00003 5 - 36
437210-31730 6 - 20 900162-05014 7 - 7 900720-00007 5 - 17
437210-31730 7 - 20 900162-05020 1 - 18 900720-00010 2 - 3
437210-32430 5 - 28 900162-05020 1 - 33 900720-20029 6 - 31
437210-38330 5 - 28 900162-05020 2 - 50 900720-20029 7 - 31
437211-32430 5 - 8 900162-05020 3 - 2 900721-00025 1 - 35
437212-32430 5 - 9 900162-05020 3 - 37 900810-36203 1 - 26
437605-32430 5 - 2 900162-05020 4 - 2 P003-000010 11 - 19
880210-30830 1 - 40 900162-05020 4 - 37 P021-005410 1 - 2
890112-60830 2 - 5 900162-05020 5 - 21 P021-005420 1 - 4
890112-60831 2 - 5 900162-05020 6 - 25 P021-007310 12 ­890118-15130 8 - 1 900162-05020 6 - 38 P021-007311 12 ­890118-15130 9 - 1 900162-05020 7 - 25 V203-000140 3 - 24
890118-17930 3 - 38 900162-05020 7 - 38 V203-000140 4 - 24
890118-17930 4 - 38 900162-05025 2 - 23 V450-000290 5 - 15
890155-30130 8 - 19 900162-05030 3 - 24 V611-000000 1 - 6
890155-30130 9 - 19 900162-05035 1 - 29 X502-000460 4 - 38
890157-19830 2 - 36 900162-05055 2 - 26 X502-000560 9 - 1
890157-39130 6 - 17 900162-06020 2 - 47
890157-39130 7 - 17 900162-06025 1 - 1
890316-39130 8 - 18 900220-04008 2 - 40
890316-39130 9 - 18 900238-04010 12 - 15
890345-39230 1 - 47 900238-05014 1 - 39
890631-38130 1 - 48 900238-05014 3 - 27
895410-02830 8 - 23 900238-05025 12 - 17
895410-02830 9 - 23 900238-05035 12 - 4
895812-03930 8 - 22 900241-03006 8 - 4
895812-03930 9 - 22 900241-03006 9 - 4
898510-39130 9 - 28 900241-04008 8 - 5
898513-31731 8 - 24 900241-04008 9 - 5
898513-31731 9 - 24 900242-04008 2 - 39
898568-14530 8 - 25 900246-03008 1 - 37
898568-14530 9 - 25 900246-03008 6 - 33
900105-04008 8 - 14 900246-03008 7 - 33
900105-04008 9 - 14 900330-35260 12 - 3
900105-06020 1 - 41 900330-40088 12 - 8
900162-04010 2 - 42 900342-50025 6 - 15
900162-04010 6 - 36 900342-50025 7 - 15
900162-04010 7 - 36 900345-20016 5 - 20

- 28 -

(36)

No.

©2012
