WHEELED
TRIMMER
WT190 - 190cc BRIGGS & STRATTON PUSH
WT190S - 190cc BRIGGS & STRATTON SELF-PROPELLED
WT190T - 190cc BRIGGS & STRATTON PUSH W/TILT
PARTS MANUAL
PN: 12330
Rev. 070113
Companion to 12331
SN Range: D04579 to Current
Before You Begin
DEAR ECHO BEAR CAT CUSTOMER
Thank you for purchasing a ECHO Bear Cat product. The ECHO Bear Cat line is designed, tested, and manufactured
to give years of dependable performance. To keep your machine operating at peak efciency, it is necessary to adjust
it correctly and make regular inspections. The following pages will assist you in the operation and maintenance of your
machine. Please read and understand this manual before operating your machine.
If you have any questions or comments about this manual, please call us toll-free at 1.888.645.4520.
If you have any questions or problems with your machine, please call or write your local authorized ECHO Bear Cat Dealer.
This document is based on information available at the time of its publication. ECHO Bear Cat is continually making
improvements and developing new equipment. In doing so, we reserve the right to make changes or add improvements
to our product without obligation for equipment previously sold.
PLEASE SEND US YOUR WARRANTY CARD
A warranty card is included in your owner's kit packaged with your machine. Please take the time to ll in the information
requested on the card. When you send your completed card to us, we will register your machine and start your coverage under our limited warranty or go to bearcatproducts.com/warranty/warranty-registration/.
FOR MACHINE SERVICE OR PARTS:
For service assistance, contact your nearest authorized
ECHO Bear Cat dealer or the factory. For parts, contact
your authorized dealer. The parts manual for your machine
is available at http://bearcatproducts.com/main/support/index_html. Your dealer will need to know the serial number
of your machine to provide the most efcient service. See
below for information on how to identify and record the serial number for your machine.
FOR ENGINE SERVICE OR PARTS:
For engine service or parts, contact your nearest authorized engine dealer. ECHO Bear Cat does not handle any
parts, repairs or warranties for engines.
SERIAL NUMBER LOCATION
Please record the serial number in the space provided and
on the warranty and registration card.
MANUFACTURED BY CRARY INDUSTRIES
WEST FARGO, NORTH DAKOTA 58078 U.S.A.
SERIAL NUMBER
MANUFACTURED IN U.S.A.
XXXXXX
ORDERING PARTS
Only genuine ECHO Bear Cat replacement parts should
be used to repair the machine. Replacement parts manufactured by others could present safety hazards, even
though they may t on this machine. Replacement parts
are available from your ECHO Bear Cat dealer.
Provide the following when ordering parts:
The SERIAL NUMBER of your machine.
The PART NUMBER of the part.
The PART DESCRIPTION.
The QUANTITY needed.
SERIAL NUMBER
HOW TO CONTACT ECHO BEAR CAT
ADDRESS PHONE E-MAIL HOURS
237 NW 12th Street
P.O. Box 849
West Fargo, ND 58078
*Original Instructions
© 2011, CRARY INDUSTRIES, ALL RIGHTS RESERVED. PRODUCED AND PRINTED IN THE U.S.A.
888.645.4520
701.282.5520
FAX: 701.282.9522
sales@bearcatproducts.com
service@bearcatproducts.com
Monday - Friday,
8 am to 5 pm
Central Time
TABLE OF CONTENTS
DESCRIPTION PAGE
WT190 DRIVE .................................................................................................................................................................2
PUSH
WT190 HANDLEBAR .....................................................................................................................................................4
PUSH
WT190 BODY ..................................................................................................................................................................6
PUSH
WT190S DRIVE...............................................................................................................................................................8
SELF-PROPELLED
WT190S HANDLEBAR .................................................................................................................................................10
SELF-PROPELLED
WT190S BODY .............................................................................................................................................................12
SELF-PROPELLED
WT190T DRIVE .............................................................................................................................................................14
PUSH W/TILT
WT190T HANDLEBAR .................................................................................................................................................16
PUSH W/TILT
WT190T BODY .............................................................................................................................................................18
PUSH W/TILT
SERVICE PARTS & OPTIONS .....................................................................................................................................20

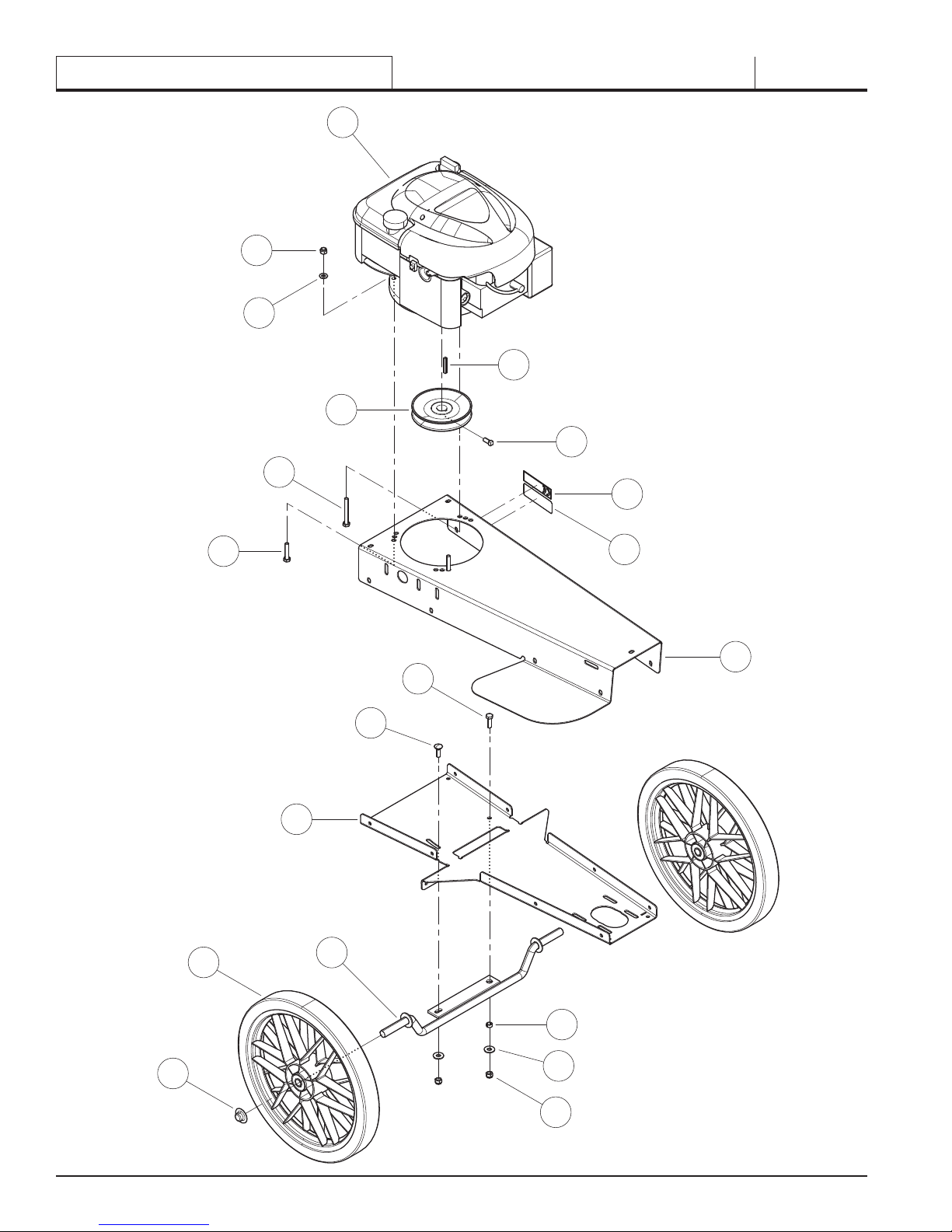

WT190 DRIVE
9
11
4
14
1
12
PUSH
3
07/13
2
15
7
13
17
5
8
19
18
10
2
16
6
9
WHEELED TRIMMER
07/13
ITEM PART NUMBER DESCRIPTION
1 12319 PULLEY, 5.0 X 7/8 AB
2 14560-00 DECAL, 6.5 HP INFORMATION
3 15131 SCREW, 5/16-18 X 5/8 SQ HD SET
4 15154 BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP
5 15219 BOLT, 5/16 X 1 HHCS GR5 NC ZP
6 15250 WASHER, 5/16 FLAT ZP
7 15282 BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP
8 15301 BOLT, 5/16 X 1 CRG GR5 ZP
9 15356 NUT, 5/16 NE NYLOCK ZP
10 15406 PUSHNUT, 5/8 ZP
11 15416 WASHER, 5/16 SAE FLAT ZP
12 15434 KEY, 3/16 SQUARE X 1-1/2 LONG PLAIN
13 16155 DECAL, SERIAL NUMBER
14
15 18957-00 WHEEL, 15 INCH TRIMMER (BLACK)
16 69126 SPACER, IDLER PIVOT
17 73630-35 BODY, TRIMMER
18 75503-12 WELDMENT, TRIMMER AXLE
19 75504-12 BOTTOM, TRIMMER FRAME
PUSH
ENGINE, 6.5 HP QUANTUM HD 49 STATE (CALIF. EMISSION COMPLIANT)
(FOR SERVICE SEE ENGINE OWNER’S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER.)
WT190 DRIVE
WHEELED TRIMMER
3

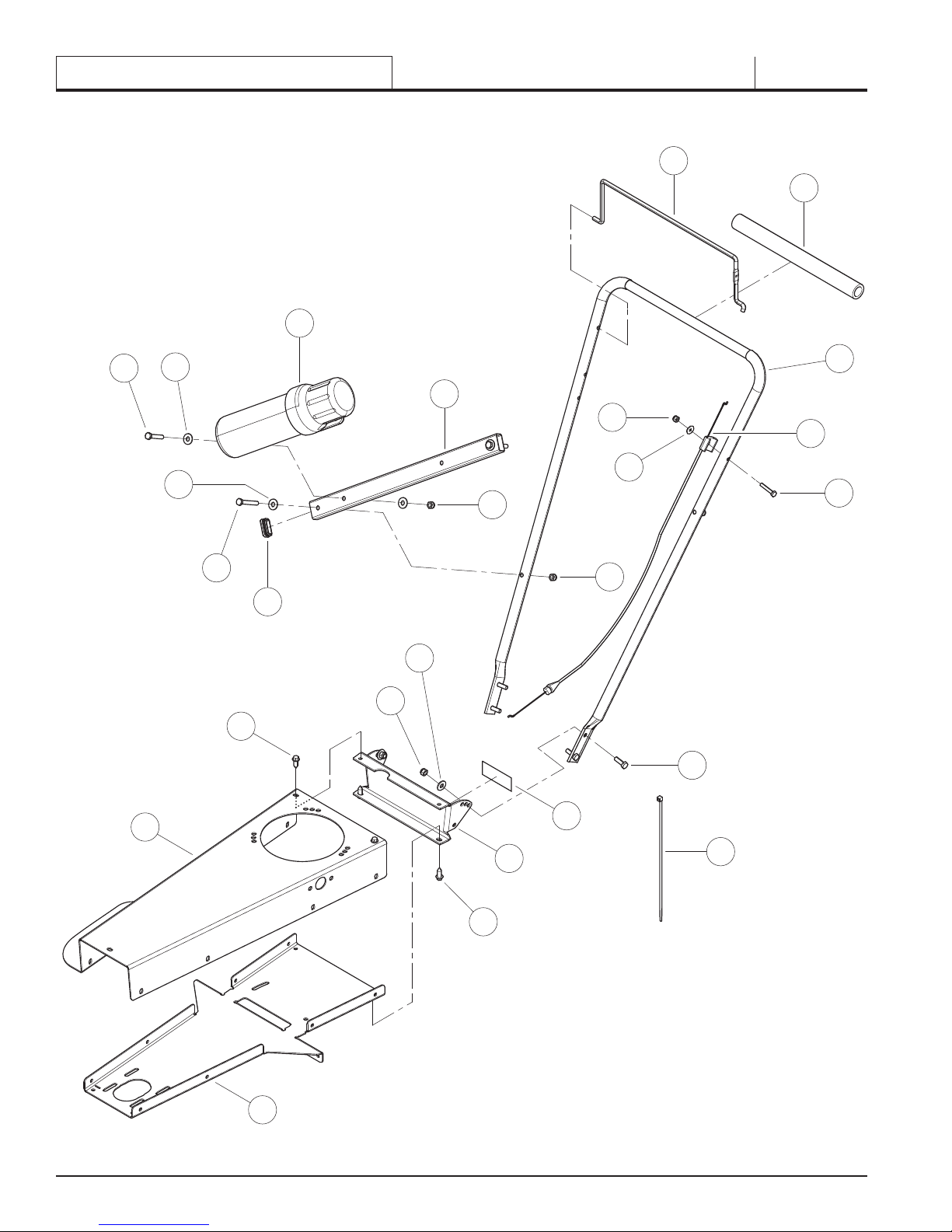

WT190 HANDLEBAR
1
2
3
5
6
6
7
8
9
9
10
11
12
13
14
16
18
4
4
6
9
17
19
20
21
15
PUSH
07/13
4
WHEELED TRIMMER
07/13
ITEM PART NUMBER DESCRIPTION
1 12324 CABLE, BRAKE CONTROL
2 12326 PAD, FOAM HANDLEBAR
3 15030 WASHER, 1/4 FLAT ZP
4 15176 SCREW, 11/32 X 7/8 HWH AB THREAD ZP
5 15219 BOLT, 5/16 X 1 HHCS GR5 NC ZP
6 15250 WASHER, 5/16 FLAT ZP
7 15342 BOLT, 1/4 X 1-1/2 HHCS GR5 ZP
8 15355 NUT, 1/4 NE NYLOCK ZP
9 15356 NUT, 5/16 NE NYLOCK ZP
10 15403 BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP
11 15754-00 BOLT, 5/16 X 2-1/4 HCPS GR5
12 17320 STRAP, 11 IN. BLACK TIE
13 18008-00 CONTAINER, MANUAL
14 18955-00 CAP, PLASTIC 3/4 X 1-1/2 TUBE
15 31890-00 DECAL, ATLANTIC BRIDGE LTD INFO
16 72732-12 BAIL, TRIMMER
17 72760 HANDLEBAR, TRIMMER
18 73630-35 BODY, TRIMMER
19 74964-12 TUBE, CONTAINER MANUAL
20 75504-12 BOTTOM, TRIMMER FRAME
21 75518-12 CHANNEL, HANDLE SUPPORT
PUSH
WT190 HANDLEBAR.
WHEELED TRIMMER
5
