Welcome

To improve both reliability and efficiency, national and regional power distribution grids must become smarter. They must also be able to manage themselves using intelligent distributed control and be able to communicate with any device, over any network or protocol, to optimize grid operations and anticipate problems before they occur.
The Echelon hardware products enable power distribution grids to become smarter. The ECN 7000 Series distributes the intelligence that public and private electrical power utilities need to monitor and control devices at the edge of the grid. The edge of the grid is the critical point where the distribution network connects to customers and where energy supply and demand are becoming increasingly unpredictable and complex.
The ECN 7000 Series is powered by the Echelon Control System (ECoS) software platform, which is part of the Echelon Networked Energy Services (NES) system. ECoS software provides an open, secure, and modular software framework that allows you to host hundreds of new applications that are needed for a smarter grid. This powerful hardware and software combination brings intelligent distributed control to the edge of the grid for maximum reliability, survivability, and responsiveness.
This manual describes how a utility worker installs an ECN 7650 device on a utility power pole or a transformer pad.
®
Edge Control Node (ECN) 7000 Series of open and extensible

Audience

This document assumes that you have a good understanding of medium (<50 kV) and low (<1 kV) power electrical power distribution grids. You should be able to make electrical connections to medium and low power distribution transformers, and be able to make physical connections for electrical devices within the medium and low power electrical distribution grid. You must also understand the safety requirements for working within this environment.

Related Documentation

The following manuals are available from the Echelon Web site
www.echelon.com) and provide additional information that can help you deploy
( Edge Control Node devices and develop applications for them:
Edge Control Node 7000 Series Hardware Guide
manual describes the hardware for the ECN.
Edge Control Node 7000 Series Expansion Card Development Guide
xxxx-01A). This manual describes the functional requirements for third­party development of expansion cards that plug into the ECN 7000 Series of products.
ECoS User's Guide
configure the i.LON SmartServer and use its applications to manage control networks.
(078-xxxx-01A). This document describes how to
(078-xxxx-01A). This
(078-
Edge Control Node 7000 Series Installation Guide iii
ECoS Power Line Repeating Guide
(078-xxxx-01A). This document describes how to manage, control, and monitor a power line repeating network using the SmartServer.
ECoS Vision User’s Guide
to create custom Web pages for monitoring and controlling L networks and other control networks.
ECoS App Programming Tools User’s Guide
describes how to create and use FPMs on your SmartServer, and how to localize the language of the SmartServer Web interface.
Introduction to the LONW
provides an introduction to the ISO/IEC 14908-1 (ANSI/CEA-709.1 and EN14908) Control Network Protocol, and provides a high-level introduction to L
ONWORKS networks and the tools and components that
are used for developing, installing, operating, and maintaining them.
All of the Echelon documentation is available in Adobe PDF files, you must have a current version of the Adobe Reader download from Adobe at:
get.adobe.com/reader.

FCC Compliance Notice

Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules, per sections 15.107 and
15.109. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:
(078-xxxx-01A). This document describes how
ONWORKS
®
(078-xxxx-01A). This guide
ORKS
Platform
(078-0183-01B). This manual
®
PDF format. To view the
®
, which you can
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that
which the receiver is connected.
Consult the dealer or an experienced radio/television technician for
help.
Changes or modifications not expressly approved by Echelon Corporation could void the user’s authority to operate the equipment.

RF Statements

This equipment also complies with the limits for wireless devices per FCC sections 15.203, 15.205, 15.207, 15.209 and 15.247. It uses frequency 2.4 GHz per Institute of Electrical and Electronics Engineers (IEEE) standard 802.15.4­2006, and uses a frequency bandwidth from 2400 MHz to 2483.5 MHz.
iv
This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

EMC and Safety Statements

TBD
TÜV Certified per EN 60950, 2000, IEC60950, 2000,
UL60950, and CSA60950 by TÜV under NRTL

Declaration of Conformity

To Be Added
89/336/EEC, Electromagnetic Compatibility Directive (EMC), 73/23/EEC, Low Voltage Directive (LVD)
Edge Control Node 7000 Series Installation Guide v
Table of Contents
Welcome.........................................................................................................iii
Audience ........................................................................................................iii
Related Documentation ................................................................................iii
FCC Compliance Notice................................................................................iv
RF Statements...............................................................................................iv
EMC and Safety Statements......................................................................... v
Declaration of Conformity .............................................................................v
Introduction........................................................................................................ 1
Introduction to the Edge Control Node ........................................................ 2
Pole Mount Installation..................................................................................... 3
Introduction.................................................................................................... 4
Required Tools................................................................................................ 4
Installation Location...................................................................................... 5
Preparing for Installation.............................................................................. 5
Performing the Installation........................................................................... 5
Attach Pole Mounting Bracket ............................................................... 6
Attach ECN to Pole Mounting Bracket.................................................. 6
Secure ECN to Pole Mounting Bracket.................................................. 7
Connect the ECN to Power and the Network ........................................ 8
Complete the Installation .......................................................................9
Verifying Successful Installation .................................................................. 9
Pad Mount Installation.................................................................................... 11
Introduction.................................................................................................. 12
Required Tools.............................................................................................. 12
Installation Location....................................................................................13
Preparing the Transformer Pad.................................................................. 13
Preparing for Installation............................................................................ 13
Performing the Installation.........................................................................14
Extend Pad Mounting Bracket ............................................................. 14
Attach Pad Mounting Bracket to Lifting Nut...................................... 15
Attach Conduit Housing to Pad Mounting Bracket ............................ 16
Insert Conduit Thread into Conduit Housing .....................................17
Attach ECN to Pad Mounting Bracket................................................. 18
Secure ECN to Pad Mounting Bracket ................................................19
Connect the ECN to Power and the Network ...................................... 20
Close and Lock the Conduit Housing ...................................................21
Complete the Installation .....................................................................22
Verifying Successful Installation ................................................................ 24
Field Replacement for an ECN 7000 Series Device........................................ 25
Overview....................................................................................................... 26
Replacing a Pole-Mounted ECN.................................................................. 26
Replacing a Pad-Mounted ECN ..................................................................27
Replacing the Battery Pack......................................................................... 27
ECN 7000 Series Specifications....................................................................... 31
General Specifications .................................................................................32
Environmental Rating Specifications ......................................................... 33
Mechanical Specifications............................................................................34
Electrical Specifications............................................................................... 35
Edge Control Node 7000 Series Installation Guide vii
Safety Specifications ....................................................................................35
EMC Specifications ......................................................................................36
FCC Specifications .......................................................................................37
Communications Specifications ..................................................................37
External Connection Specifications ............................................................37
Life Expectancy ............................................................................................39
Safety and High-Voltage Warnings................................................................. 41
Safety and High-Voltage Warning.............................................................. 42
Safety Warning ............................................................................................44
ESD and Battery Warnings............................................................................. 45
ESD Warning ...............................................................................................46
Battery Warning ..........................................................................................46
viii
1

Introduction

This chapter introduces the Edge Control Node 7000 Series of products.
Edge Control Node 7000 Series Installation Guide 1

Introduction to the Edge Control Node

Residential and commercial energy customers are increasingly focused energy efficiency and reliability, while also reducing the environmental impact of electricity use. National and regional power distribution grids in the 21 must address these customer concerns, while at the same time monitoring electricity as it flows through many types of devices and transmission media (substation elements, high, medium, and low voltage power lines, capacitor banks, transformers, meters, communicating thermostats, load-control devices, and so on).
A modern smart power grid network must be able to manage itself using intelligent distributed control and be able to communicate with any device, over any network or protocol, to optimize grid operations and anticipate problems before they occur.
The Echelon Edge Control Node (ECN) 7000 Series of open and extensible hardware products enable power distribution grids to become smarter. The ECN 7000 Series distributes the intelligence that public and private electrical power utilities need to monitor and control devices at the edge of the grid. The edge of the grid is the critical point where the distribution network connects to customers and where energy supply and demand are becoming increasingly unpredictable and complex.
The ECN 7000 Series of products use the Echelon Control System (ECoS) software platform, which provides the open, secure and modular software framework needed to host hundreds of new applications needed for a smarter grid. This powerful combination of hardware and software brings intelligent distributed control to the edge of the grid for maximum reliability, survivability and responsiveness.
st
century
The ECN 7650 is the first member of the ECN 7000 Series of products. The ECN 7650 supports a variety of local, wide-area, and device radio frequency (RF) networks, with up to nine antennas, all contained within the ECN 7650 enclosure to reduce vandalism and security risks.
The cover of the ECN 7650 is secured with one-way screws, which virtually eliminates unauthorized access. When the ECN 7650 is pad mounted, you secure the power and network connections inside a metal housing with a padlock. The ECN 7650 is also rugged and sturdy enough to allow a person (for example, a utility working gaffing a utility pole) to stand on it.
The ECN 7650 is designed for quick and secure installation using a rapid-mount bracket on either a utility pole or a pad-mounted distribution transformer. Because the ECN 7650 is small enough (H: 305 mm, 12 in – W: 356 mm, 14 in – D: 178 mm, 7 in) and light enough (<5.4 kg, <12 lb) to hand carry, installation is simple and easy.
The rest of this manual describes how to install the ECN 7650, either to a utility pole or to a pad-mounted distribution transformer.
2 Introduction
2

Pole Mount Installation

This chapter describes how to install the ECN on a utility pole.
Edge Control Node 7000 Series Installation Guide 3

Introduction

You can install an ECN on any standard utility pole, in either the supply space or the common area. The ECN provides a carrying loop that you can tie with a rope so that you can easily carry the ECN while climbing the pole. The ECN is also small and light enough that you can carry it while working from a boom lift.
After installation, the ECN can withstand a 1330 J/m (300 ft-lb) force, for example, from a utility worker standing on the unit. The ECN is designed to be small enough that a utility worker can gaff up the pole and around the unit with minimal difficulty.
The installation includes a bracket that you attach to the utility pole. You then attach the ECN to the installed bracket. Subsequent replacement or installation of an ECN can reuse the installed bracket, thus substantially reducing replacement installation time and effort. In addition, you can connect or disconnect the ECN from either power or the communications network easily, without having to uninstall the entire unit.

Required Tools

To perform the installation for the ECN and the Pole Mounting Bracket, you will need the following tools:
A drill, with drill bit appropriate for a 1.6 cm (5/8 inch) diameter bolt that is 12 to 70 cm (4.5 to 27.5 inches) in length
A 1.6 cm (5/8 inch) wrench
A wire stripping tool
A fiberglass or plastic cable puller tool
A standard Phillips
In addition to the tools listed above, you need an ECN Pole Mount Kit, which includes the following components:
Pole Mounting Bracket
Support bolt: 12 to 70 cm (4.5 to 27.5 inches) in length (depends on the
pole class and the planned installation height for the ECN), 1.6 cm (5/8 inch) in diameter
Two 1.6 cm (5/8 inch) washers
One 1.6 cm (5/8 inch) square-head nut
Input power cable accessory:
o The input power cable accessory is available in three lengths: 3
m, 9 m, and 12 m (10 ft, 30 ft, and 40 ft).
o The cable type conforms to the specifications for 2.05 mm (12
AWG) stranded copper conductors. Two conductors are covered with black UV jacket insulation (600 V rating), and one with white UV jacket insulation (600 V rating).
®
screwdriver, Point Size 2
o The end of the cable that connects to the ECN input power
connector is fitted. The other end of the cable is not fitted.
4 Pole Mount Installation

Installation Location

Typically, you install the ECN on a utility pole either in the supply space (near the service distribution transformer) or in the common area (3-½ to 4-½ meters or 12 to 15 feet above ground level).
Important: Do not install the ECN in the communication space; that space is reserved for cable, telephone, and other companies to install their equipment.
For optimal antenna performance, you should place the ECN as high on the utility pole as possible, in the supply space. However, many installations will install the ECN common area: installation in the common area is typically easier to perform, less expensive, and involves less risk for the installer.

Preparing for Installation

After you have selected the installation location on the utility pole (within the supply space or in the common area), determine the distance from the low­voltage (LV) attachment point (typically at or near the service distribution transformer) and the proposed installation point for the ECN. If the ECN input power cable is shorter than this distance, splice an additional length of cable and weather seal that splice.
When the ECN is installed in the common area, the input power cable must be shielded in a protective conduit to protect the input power cable from communications workers and other personnel who climb the pole. When the ECN is installed in the supply space, this protective conduit is not necessary. You can use a simple vertical wire guard, but generally you should use Schedule 40 conduit. flow freely through the conduit. The bottom end of the conduit should terminate near the ECN, but should not be attached to it. Feed the input power cable through the conduit and connect it to an available power source.
Drill a hole through the utility pole. The diameter of this hole should be able to fit a 1.6 cm (5/8 inch) diameter bolt securely. The hole should be centered horizontally with respect to the pole diameter, and should be centered vertically with respect to the planned location of the ECN.
1
Leave both the top and bottom of the conduit open so that water can

Performing the Installation

To install the ECN using the pole mount method, perform the following tasks:
1. Attach the Pole Mounting Bracket to the pole
2. Attach the ECN to the Pole Mounting Bracket
3. Secure the ECN to the Pole Mounting Bracket
4. Connect the ECN to power and to the network
5. Complete the installation
Each of these tasks is described in the following sections.
1
See UL 651, NEMA TC-2, or NEC-Article 352 for Schedule 40 specifications.
Edge Control Node 7000 Series Installation Guide 5

Attach Pole Mounting Bracket

You connect the ECN to the utility pole using the hole that you drilled into the pole to prepare for installation; see the bracket against the pole, insert the support bolt, and secure the bolt with a washer and nut, as shown in fit any standard utility pole.
Preparing for Installation
Figure 1. The Pole Mounting Bracket is designed to
on page 5. Place
Figure 1. Attach Pole Mounting Bracket

Attach ECN to Pole Mounting Bracket

After the Pole Mounting Bracket is securely attached to the utility pole, you can attach the ECN to the Pole Mounting Bracket. The top of the back side of the ECN includes two tabs that slide into the top of the Pole Mounting Bracket. Figure 2 on page 7 shows the ECN attached to the Pole Mounting Bracket.
Note that if you should need to replace an ECN, you need replace only the ECN and not the Pole Mounting Bracket.
6 Pole Mount Installation
Figure 2. Attach the ECN to the Pole Mounting Bracket

Secure ECN to Pole Mounting Bracket

To secure the ECN to the Pole Mounting Bracket, insert two screws to the bottom of the ECN to attach it to the Pole Mounting Bracket. These screws are already connected to the ECN, and are designed not to make contact with the pole. Figure 3 on page 8 shows a front view of the ECN attached to the Pole Mounting Bracket, with the bottom screws visible.
Edge Control Node 7000 Series Installation Guide 7
Figure 3. Secure the ECN to the Pole Mounting Bracket

Connect the ECN to Power and the Network

You make the connections to power and to the communications network at the bottom of the ECN.
You can connect the ECN to either low voltage or medium voltage. The exact configuration of the ECN bottom panel depends on the options that you
have installed in the ECN, but at a minimum, the bottom panel has a connection for power and for at least one communications network. In the figure, the bottom left connection is for power.

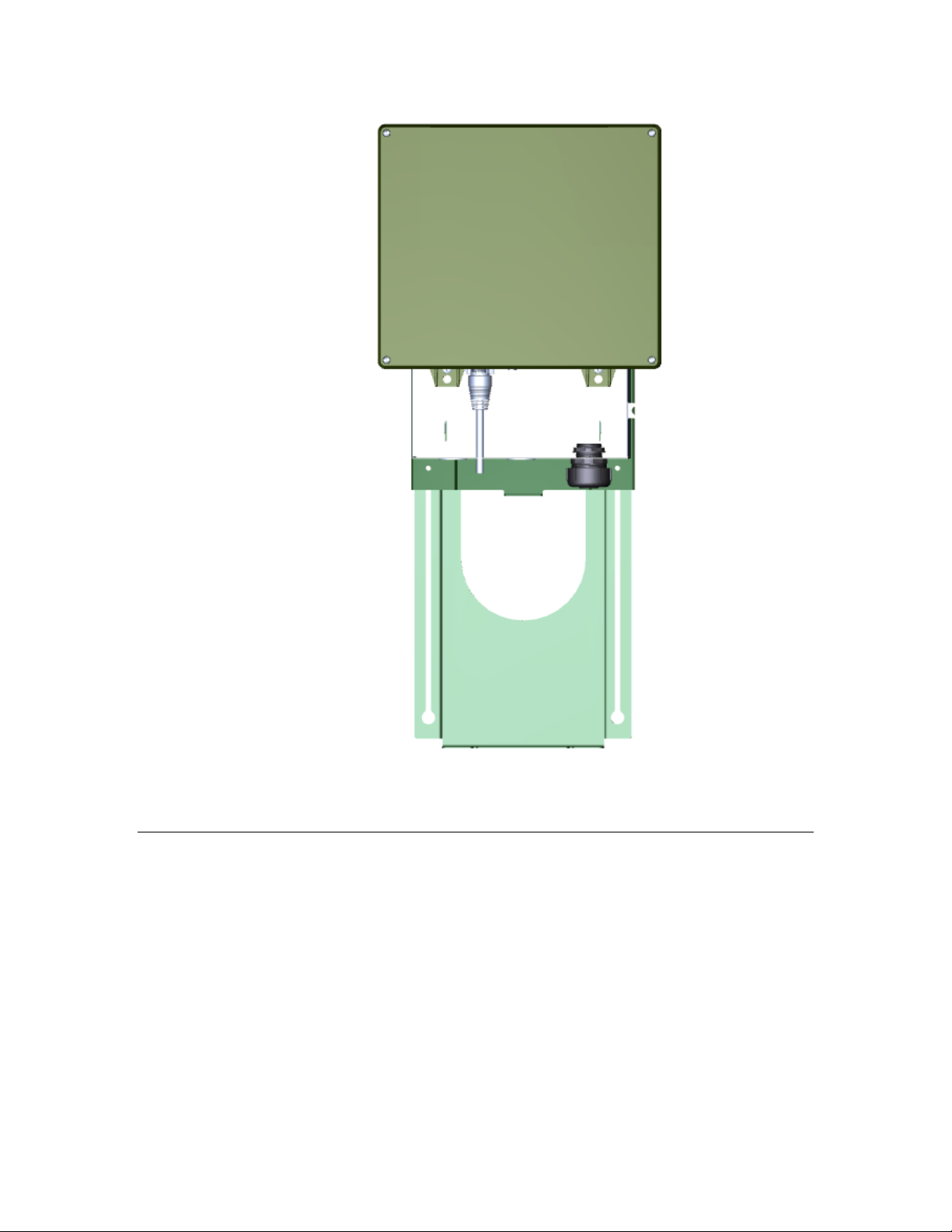

Figure 4 shows the bottom of the ECN, before installation.
Figure 4. Connect the ECN to Power and the Network
8 Pole Mount Installation

Complete the Installation

After the installation is complete, perform the following tasks:
1. Inspect the connection of the ECN to the Pole Mounting Bracket.
2. Inspect the connection of the Pole Mounting Bracket to the utility pole.
3. Inspect the cabling connections to the ECN.
The completed installation should look similar to the views depicted in on page ECN.
7. Note that the figure does not show the cabling connections to the

Verifying Successful Installation

Because the ECN has no external lights or displays, it uses an internal audio buzzer to provide indications of important installation-related states. The buzzer’s audio frequency is 2.4 kHz (as a 1/2 duty cycle square wave) and outputs
2
85 to 92 dBA of sound pressure,
Table 1 lists the sound patterns for the audio indicator. The audio indicator
ft). outputs its audio indicator patterns once only.
Table 1. Internal Audio Indicator Sound Patterns
Sound Pattern
On (ms) Off (ms) Repeat
1000 0 1 ECN first starts up
1000 0 1 ECN main processor starts running
1000 500 3 Successful direct WAN connection
which should be audible from at least 10 m (30
Description
Figure 2
1000 500 6 Successful indirect WAN connection
4000 500 2 No WAN connection made
As the table shows, a successful installation should include two 1 second sound bursts and at least one repeated pattern (1 s on, 0.5 s off) to indicate a successful network connection. If you receive the repeated pattern (4 s on, 0.5 s off) that indicates unsuccessful network connection, check the network cable connection and verify that the network is operational.
After installation is verified successful, use the ECoS Web page interface for the ECN to verify additional functionality. You might also want to disable the internal audio indicator so that subsequent resets or power events do not cause the audio indicator to output its audio indicator patterns.
2
dBA measures sound pressure levels relative to 20 μPa (rms) at 1 m.
Edge Control Node 7000 Series Installation Guide 9
Loading...
+ 38 hidden pages
