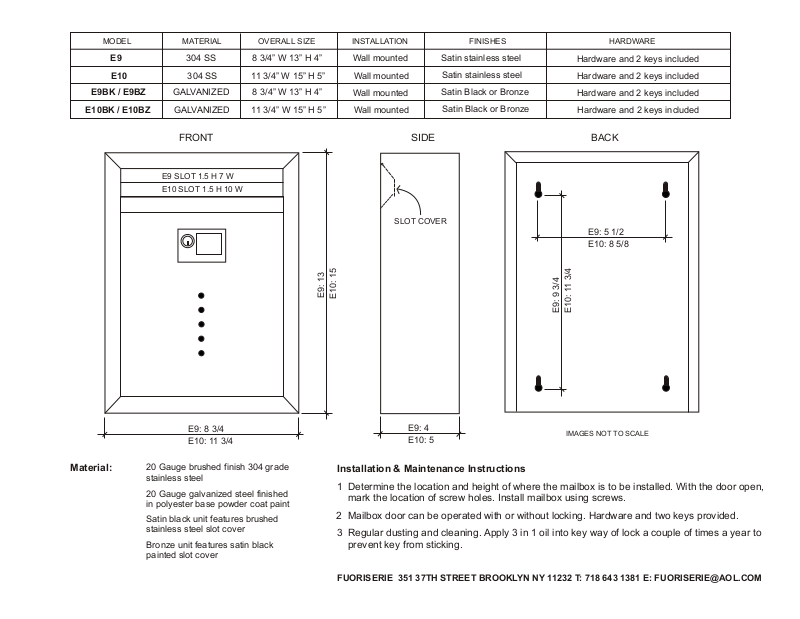

MODEL
E9
E10
E9BK / E9BZ
E10BK / E10BZ
MATERIAL
304 SS
304 SS
GALVANIZED
GALVANIZED
OVERALL SIZE
8 3/4” W 13” H 4”
11 3/4” W 15” H 5”
8 3/4” W 13” H 4”
11 3/4” W 15” H 5”
INSTALLATION
Wall mounted
Wall mounted
Wall mounted
Wall mounted
FINISHES
Satin stainless steel
Satin stainless steel
Satin Black or Bronze
Satin Black or Bronze
HARDWARE
Hardware and 2 keys included
Hardware and 2 keys included
Hardware and 2 keys included
Hardware and 2 keys included
FRONT
E9 SLOT 1.5 H 7 W
E10 SLOT 1.5 H 10 W
E9: 8 3/4
E10: 11 3/4
E9: 13
E10: 15
SIDE
SLOT COVER
E9: 4
E10: 5
BACK
E9: 5 1/2
E10: 8 5/8
E9: 9 3/4
E10: 11 3/4
IMAGES NOT TO SCALE
Material:
20 Gauge brushed finish 304 grade
stainless steel
20 Gauge galvanized steel finished
in polyester base powder coat paint
Satin black unit features brushed
stainless steel slot cover
Bronze unit features satin black
painted slot cover
Installation & Maintenance Instructions
1 Determine the location and height of where the mailbox is to be installed. With the door open,
mark the location of screw holes. Install mailbox using screws.
2 Mailbox door can be operated with or without locking. Hardware and two keys provided.
3 Regular dusting and cleaning. Apply 3 in 1 oil into key way of lock a couple of times a year to
prevent key from sticking.
FUORISERIE 351 37TH STREET BROOKLYN NY 11232 T: 718 643 1381 E: [email protected]
