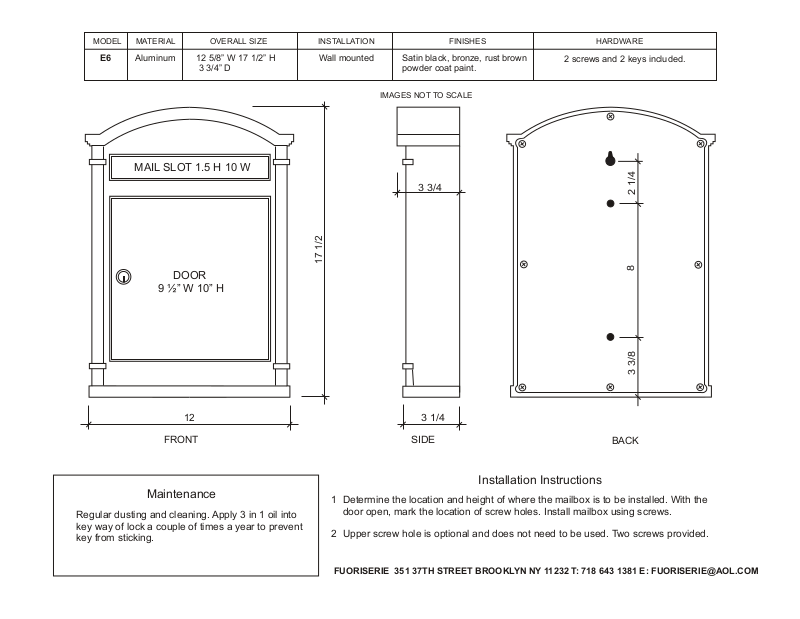

Page 1
SIDE
BACK
FRONT
2 1/4
3 3/8
8
1 Determine the location and height of where the mailbox is to be installed. With the
door open, mark the location of screw holes. Install mailbox using screws.
2 Upper screw hole is optional and does not need to be used. Two screws provided.
Installation Instructions
MODEL
MATERIAL
OVERALL SIZE INSTALLATION
HARDWARE
2 screws and 2 keys included.
Wall mounted
12 5/8” W 17 1/2” H
3 3/4” D
E6
Aluminum
FINISHES
Satin black, bronze, rust brown
powder coat paint.
Regular dusting and cleaning. Apply 3 in 1 oil into
key way of lock a couple of times a year to prevent
key from sticking.
Maintenance
FUORISERIE 351 37TH STREET BROOKLYN NY 11232 T: 718 643 1381 E: FUORISERIE@AOL.COM
IMAGES NOT TO SCALE
3 1/4
3 3/4
17 1/2
12
MAIL SLOT 1.5 H 10 W
DOOR
9 ½” W 10” H
