EBS TH E DRIV E
USERS MANUAL
www.ebssweden.comwww.ebssweden.com
USERS MANUAL
EBS TH E DRIV E
THANK YOU FOR PURCHASING THE DRIVE
- ANALOG BOOST/OVERDRIVE PEDAL FROM EBS!
THE DRIVE is developed by EBS with input from several Swedish top
session guitarists. The Drive gives you that extra boost you need to
emphasize your tone and make it stand out. The kind of device you
might leave on without thinking about it, but miss dearly when you
turn it of f.
Can I use it with bass too? The Drive helps boost your bass tone
when engaged. Use the Drive knob to control how much you’d like
it to break up. Crank it up to bring out some nice vintage style bass
tones from your amp or keep it subtle if you prefer a cleaner boost.
/The EBS Team
Visit EBSSWEDEN.COM
for info on all EBS effects,
amps and accessories.
www.ebssweden.com
EBS TH E DRIV E
USERS MANUAL
THE CONTROLS
POWER SUPPLY INPUT*
Use a power supply that provides
stabilized 9-12V DC with a
standard 2.1mm contact, center
negative, such as the EBS-AD9+
Power Supply.
DRIVE
Controls the input
Gain/Drive level.
OUTPUT
Connect the output
to your amp, or the
next device in your
signal path.
ON/OFF SWITCH
Relay type footswitch
to switch the pedal on
and off.
* The Dri ve can run on a 9 V DC bat tery as w ell. Remove t he botto m plate to at tach a batter y.
TONE
Shapes the tone range
of the ef fect from
darker to brighter.
VOLUME
Sets the output
volume of the pedal.
Notice that higher
Drive level increases
the overall output as
well.
INPUT
Connect your
instrument, or the
previous device in
your signal path, to
the input jack.
www.ebssweden.comwww.ebssweden.com
USERS MANUAL
EBS TH E DRIV E
SAMPLE SOUND SETTINGS
For sound samples and suggested settings, please visit
ebssweden.com, and go to the dedicated page for The Drive.
However, we really recommend you to simply spend some time with
the pedal to find your own favourite sounds with your unique setup!
RECOMMENDED ACCESSORIES
We recommend to use this pedal with the EBS AD-9+ Power Supply.
If you use more than one pedal in the setup, you can use the EBS
DC daisy-chain cables to distribute power to up to 20 pedals.
We also recommend the original EBS PCF Flat Patch Cables to
connec t your pedals. These are available in a Deluxe (improved
standard) and Premium Gold Plated version and offers ultimate
space-saving and elegant setup of pedals on any pedal board!
EBS AD -9+
EBS DC- Split Ca bles.
Availab le in 1 to 2, 4 and
6 models w ith stra ight or
angled contacts.
EBS Flat Pa tch Cable s
reduce s pace and p rovide
an elega nt setup. In t his
example: EBS-PG10
www.ebssweden.com
EBS TH E DRIV E
TROUBLE SHOOTING GUIDE
Please consult the following checkpoints, before consulting one of
the authorized EBS service centers or support@ebssweden.com
Checkpoint
1) Does the cable(s) work
properly?
2) Are the 1/4” plugs properly
connec ted all the way in?
3) Are the Instrument cable
attached to the Right
(input) jack, and the Amp
cable connected to the Left
(output) jack?
4) Does the pedal have a
battery, and is the bat tery
OK?
5) Does the indicator LED
light when pressing the foot
switch alternatively?
6) Does the instrument wor k?
7) Does the amplifier work
and is the volume turned
up?
8) If you are using a DC
adapter, Are you using an
EBS A D-9?
Action if ans wered NO
- Replace cable(s).
- Push the 1/4” plugs all
- Reconnect input and
- Put a new batter y in
- Replace/put in battery, or
- Check the instrument.
- Turn up volume or check
- Check the voltage and
USERS MANUAL
the way in.
output jacks.
the pedal.
use a DC power supply.
the amp at your nearest
EBS service center.
polarity of the adapter
you are using.
www.ebssweden.comwww.ebssweden.com
USERS MANUAL

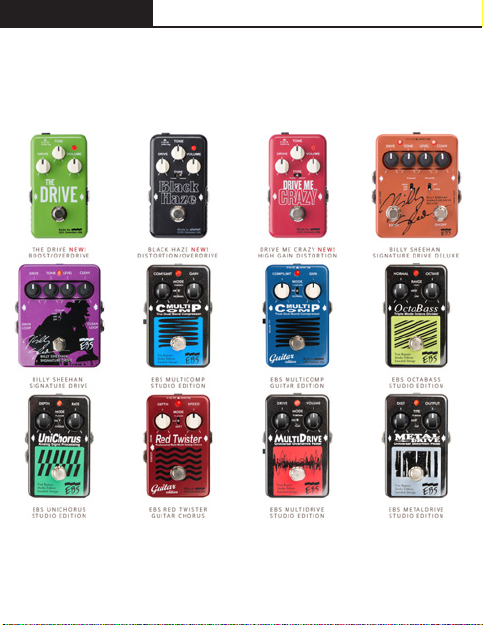

EBS offers a wide range of effects for bass, guitar and beyond.
Visit www.ebssweden.com to learn more.
EBS TH E DRIV E
www.ebssweden.com
EBS TH E DRIV E
USERS MANUAL
www.ebssweden.comwww.ebssweden.com
USERS MANUAL
EBS TH E DRIV E
TECHNICAL SPECIFICATIONS EBS THE DRIVE
Nominal Input Level -10 dBv
Input Impedance 900 kohms
Output Impedance <700 ohms
Tone frequency range 1-20 kHz (passive LP)
Dimensions: Width 2.6” (66.5 mm)
(including all Height 4.5” (113 mm)
hardware) Depth 1.9” (48 mm)
Weight 300g (0.66 lbs)
Power Requirements 9 - 12 V DC Regulated, 30 mA max.
Protected against accidental over voltage up to 18 V.
Specifications are subject to change without notice.
If you did not find the answer in this manual, please contac t
EBS at suppor t@ebssweden.com
www.ebssweden.com
