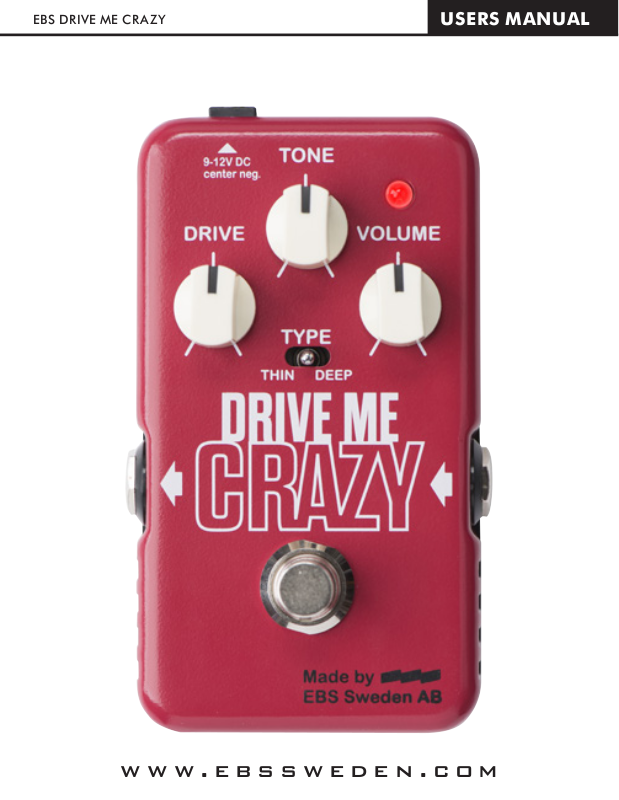

Page 1
EBS DR IVE ME C RA ZY
USERS MANUAL
www.ebssweden.comwww.ebssweden.com
Page 2
USERS MANUAL
EBS DR IVE ME C RA ZY
THANK YOU FOR PURCHASING THE DRIVE ME CRAZY
- ANALOG HIGH GAIN DISTORTION PEDAL FROM EBS!
The DRI VE ME CR AZY is developed by EBS with input from several
Swedish top session guitarists. It turns any nice clean guitar combo
amp into a full force high gain stack. The Drive Me Crazy features
dual drive engines and low-range compensation.
Can I use it with bass too? The Drive Me Crazy offers a dynamic
drive sound for bass with a lot of edge to it to cut through the mix.
The low-range compensation preserves the bottom of your sound
when the ef fect is used with bass.
/The EBS Team
Visit EBSSWEDEN.COM
for info on all EBS effects,
amps and accessories.
www.ebssweden.com
Page 3
EBS DR IVE ME C RA ZY
USERS MANUAL
THE CONTROLS
POWER SUPPLY INPUT*
Use a power supply that provides
stabilized 9-12V DC with a
standard 2.1mm contact, center
negative, such as the EBS- AD9+
Power Supply.
DRIVE
Controls the input
Gain/Drive level.
OUTPUT
Connect the output
to your amp, or the
next device in your
signal path.
ON/OFF SWITCH
Relay type foot switch
to switch the pedal on
and off.
* Drive M e Crazy ca n run on a 9V DC b atter y as well. Remove the b ottom pl ate to att ach a bat tery.
TONE
Shape the tone range
of the ef fect from
darker to brighter.
VOLUME
Sets the output
volume of the pedal.
Notice that higher
Drive level increases
the overall output as
well.
INPUT
Connect your
instrument, or the
previous device in
your signal path, to
the input jack.
TYPE
Set tone character to THIN,
NORMAL or DEEP. The deep
position compensates for low
frequency loss.
www.ebssweden.comwww.ebssweden.com
Page 4
USERS MANUAL
EBS DR IVE ME C RA ZY
SAMPLE SOUND SETTINGS
For sound samples and suggested settings, please visit
ebssweden.com, and go to the dedicated page for Drive Me Crazy.
However, we really recommend you to simply spend some time with
the pedal to find your own favourite sounds with your unique setup!
RECOMMENDED ACCESSORIES
We recommend to use this pedal with the EBS AD-9+ Power Supply.
If you use more than one pedal in the setup, you can use the EBS
DC daisy-chain cables to dis tribute power to up to 20 pedals.
We also recommend the original EBS PCF Flat Patch Cables to
connec t your pedals. These are available in a Deluxe (improved
standard) and Premium Gold Plated version and offers ultimate
space-saving and elegant setup of pedals on any pedal board!
EBS AD -9+
EBS DC- Split Cab les.
Availab le in 1 to 2, 4 and
6 models w ith stra ight or
angled contacts.
EBS Flat Pa tch Cable s
reduce s pace and pr ovide
an elega nt setup. In t his
example: EBS-PG10
www.ebssweden.com
Page 5
EBS DR IVE ME C RA ZY
TROUBLE SHOOTING GUIDE
Please consult the following checkpoints, before consulting one of
the authorized EBS service centers or [email protected]
Checkpoint
1) Does the cable(s) work
properly?
2) Are the 1/4” plugs properly
connec ted all the way in?
3) Are the Instrument cable
attached to the Right
(input) jack, and the Amp
cable connected to the Left
(output) jack?
4) Does the pedal have a
battery, and is the battery
OK?
5) Does the indicator LED
light when pressing the foot
switch alternatively?
6) Does the instrument work?
7) Does the amplifier work
and is the volume turned
up?
8) If you are using a DC
adapter, Are you using an
EBS A D-9?
Action if ans wered NO
- Replace cable(s).
- Push the 1/4” plugs all
- Reconnect input and
- Put a new batter y in
- Replace/put in battery, or
- Check the instrument.
- Turn up volume or check
- Check the voltage and
USERS MANUAL
the way in.
output jacks.
the pedal.
use a DC power supply.
the amp at your nearest
EBS service center.
polarity of the adapter
you are using.
www.ebssweden.comwww.ebssweden.com
Page 6
USERS MANUAL
EBS DR IVE ME C RA ZY

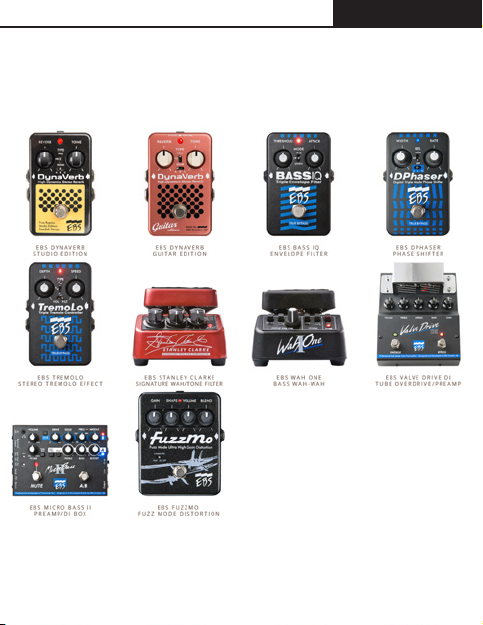

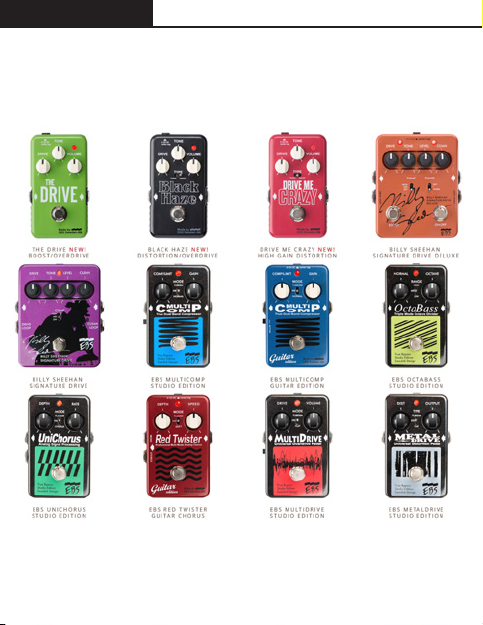

EBS offers a wide range of effects for bass, guitar and beyond.
Visit www.ebssweden.com to learn more.
www.ebssweden.com
Page 7
EBS DR IVE ME C RA ZY
USERS MANUAL
www.ebssweden.comwww.ebssweden.com
Page 8
USERS MANUAL
EBS DR IVE ME C RA ZY
TECHNICAL SPECIFICATIONS EBS DRIVE ME CRAZY
Nominal Input Level -10 dBv
Input Impedance 900 kohms
Output Impedance <700 ohms
Tone frequency range 750 Hz - 20 kHz (passive LP)
Dimensions: Width 2.6” (66.5 mm)
(including all Height 4.5” (113 mm)
hardware) Depth 1.9” (48 mm)
Weight 310g (0.68 lbs)
Power Requirements 9 - 12 V DC Regulated, 30 mA max.
Protected against accidental over voltage up to 18 V.
Specifications are subject to change without notice.
If you did not find the answer in this manual, please contact
EBS at suppor [email protected]
www.ebssweden.com
