THANK YOU FOR PURCHASING THE BLACK HAZE
- ANALOG DISTORTION/OVERDRIVE PEDAL FROM EBS!
The BL ACK H AZE is developed by EBS with input from several
Swedish top session guitarists. It is a beautiful drive with some
darkness to it to make it interesting and irresistible. The Black Haze
features dual drive engines and low-range compensation.
Can I use it with bass too? The Black Haze offers a rich and creamy
drive sound for your bass with solid bottom-end. Use the Type switch
to change the character bet ween a Deep sound with lots of low-end
to a more gnarly type of overdrive in the normal and Thin positions.
/The EBS Team
Visit EBSSWEDEN.COM
for info on all EBS ef fects,
amps and accessories.
www.ebssweden.com
Page 3
EBS B LACK H AZ E
USERS MANUAL

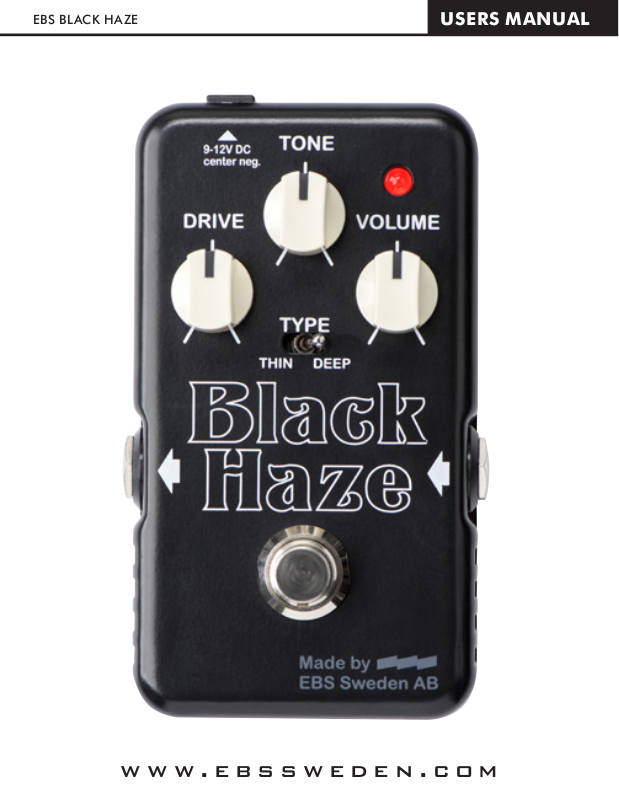

THE CONTROLS
POWER SUPPLY INPUT*
Use a power supply that provides
stabilized 9-12V DC with a
standard 2.1mm contact, center
negative, such as the EBS -A D9+
Power Supply.
DRIVE
Controls the input
Gain/Drive level.
OUTPUT
Connect the output
to your amp, or the
next device in your
signal path.
ON/OFF SWITCH
Relay type footswitch
to switch the pedal on
and off.
* Black H aze can ru n on a 9V DC b atte ry as wel l. Remove t he bot tom plat e to att ach a bat ter y.
TONE
Shape the tone range
of the ef fect from
darker to brighter.
VOLUME
Sets the output
volume of the pedal.
Notice that higher
Drive level increases
the overall output as
well.
INPUT
Connect your
instrument, or the
previous device in
your signal path, to
the input jack.
TYPE
Set tone charac ter to THIN,
NORMAL or DEEP. The deep
position compensates for low
frequency loss.
www.ebssweden.comwww.ebssweden.com
Page 4
USERS MANUAL
EBS B LACK H AZ E
SAMPLE SOUND SETTINGS
For sound samples and suggested settings, please visit
ebssweden.com, and go to the dedicated page for Black Haze.
However, we really recommend you to simply spend some time with
the pedal to find your own favourite sounds with your unique setup!
RECOMMENDED ACCESSORIES
We recommend to use this pedal with the EBS A D-9+ Power Supply.
If you use more than one pedal in the setup, you can use the EBS
DC daisy-chain cables to distribute power to up to 20 pedals.
We also recommend the original EBS PCF Flat Patch Cables to
connec t your pedals. These are available in a Deluxe (improved
standard) and Premium Gold Plated version and offers ultimate
space-saving and elegant setup of pedals on any pedal board!
EBS AD -9+
EBS DC- Split C ables.
Availab le in 1 to 2, 4 and
6 models w ith str aight or
angled contacts.
EBS Flat Pa tch Cabl es
reduce s pace an d provide
an elega nt setup. I n this
example: EBS-PG10
www.ebssweden.com
Page 5
EBS B LACK H AZ E
TROUBLE SHOOTING GUIDE
Please consult the following checkpoints, before consulting one of
the authorized EBS service centers or [email protected]
Checkpoint
1) Does the cable(s) work
properly?
2) Are the 1/4” plugs properly
connec ted all the way in?
3) Are the Instrument cable
attached to the Right
(input) jack, and the Amp
cable connected to the Left
(output) jack?
4) Does the pedal have a
battery, and is the battery
OK?
5) Does the indicator LED
light when pressing the foot
switch alternatively?
6) Does the instrument work?
7) Does the amplifier work
and is the volume turned
up?
8) If you are using a DC
adapter, Are you using an
EBS A D-9?
Action if an swered NO
- Replace cable(s).
- Push the 1/4” plugs all
- Reconnect input and
- Put a new battery in
- Replace/put in battery, or
- Check the instrument.
- Turn up volume or check
- Check the voltage and
USERS MANUAL
the way in.
output jacks.
the pedal.
use a DC power supply.
the amp at your nearest
EBS service center.
polarity of the adapter
you are using.
www.ebssweden.comwww.ebssweden.com
Page 6
USERS MANUAL
EBS B LACK H AZ E

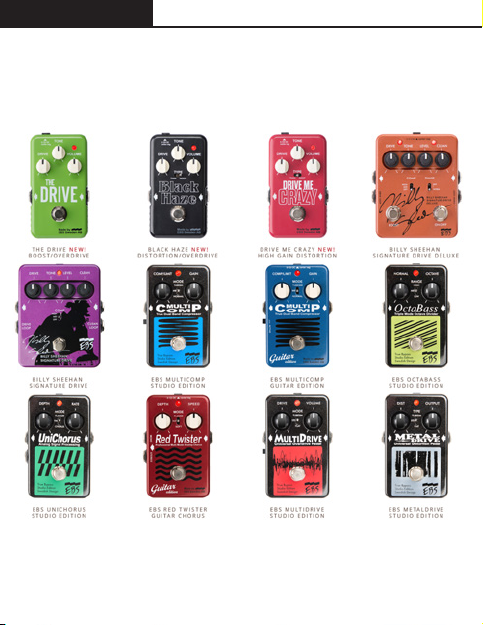

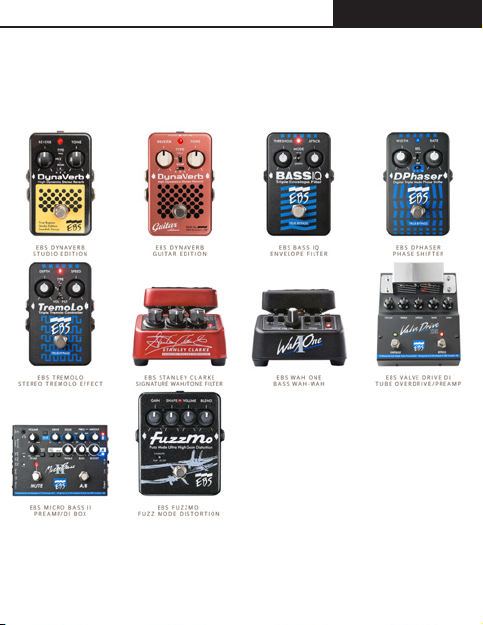

EBS offers a wide range of effects for bass, guitar and beyond.
Visit www.ebssweden.com to learn more.
www.ebssweden.com
Page 7
EBS B LACK H AZ E
USERS MANUAL
www.ebssweden.comwww.ebssweden.com
Page 8
USERS MANUAL
EBS B LACK H AZ E
TECHNICAL SPECIFICATIONS EBS BLACK HAZE
Nominal Input Level -10 dBv
Input Impedance 900 kohms
Output Impedance <700 ohms
Tone frequency range 500 Hz - 15 kHz (passive LP)
Dimensions: Width 2.6” (66.5 mm)
(including all Height 4.5” (113 mm)
hardware) Depth 1.9” (48 mm)
Weight 310g (0.68 lbs)
Power Requirements 9 - 12 V DC Regulated, 30 mA max.
Protected against accidental over voltage up to 18 V.
Specifications are subject to change without notice.
If you did not find the answer in this manual, please contact
EBS at suppor [email protected]
