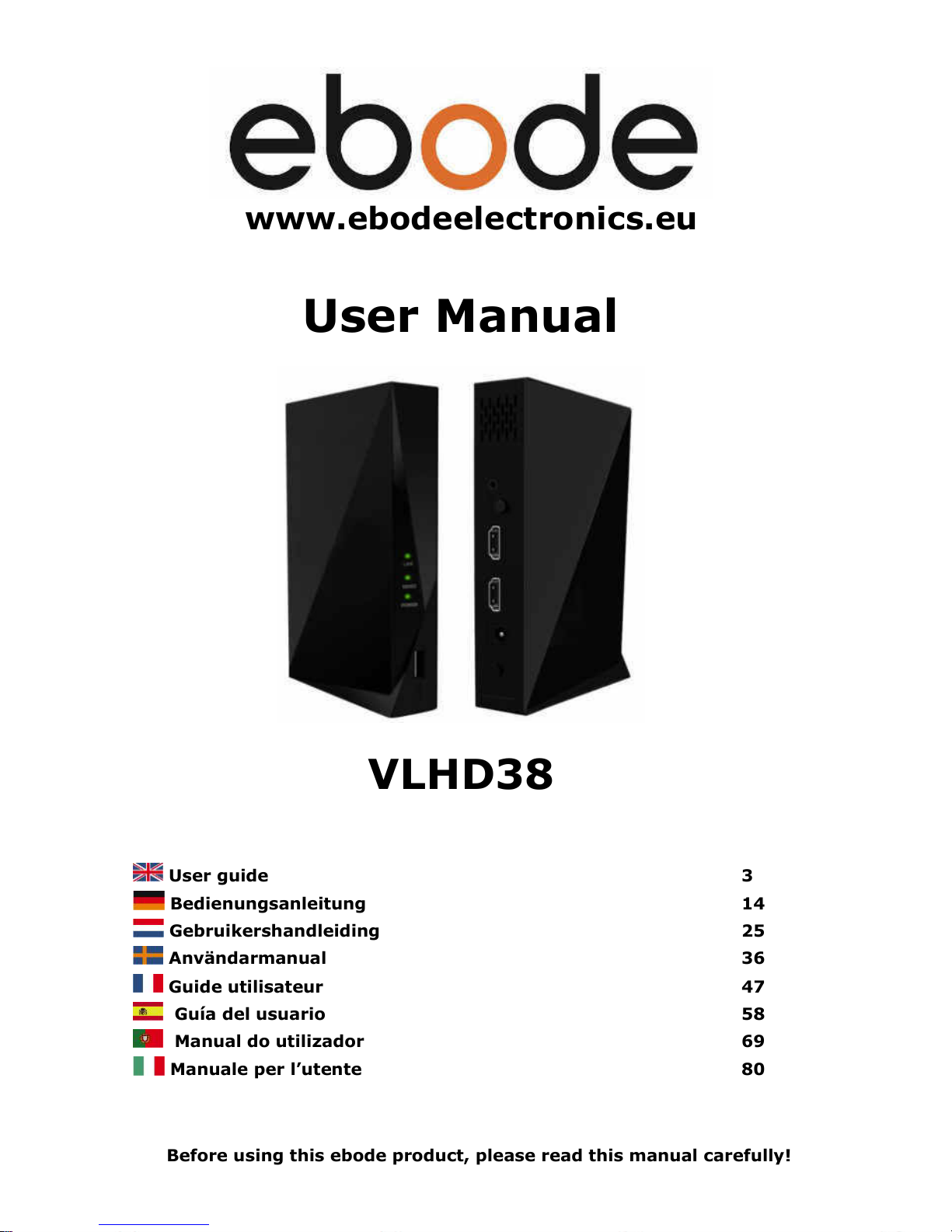

Ebode VLHD38 User Manual

www.ebodeelectronics.eu
User Manual
VLHD38
User guide 3
Manuale per lutente 80
Before using this ebode product, please read this manual carefully!
2-6-2016 2 ebode VLHD38

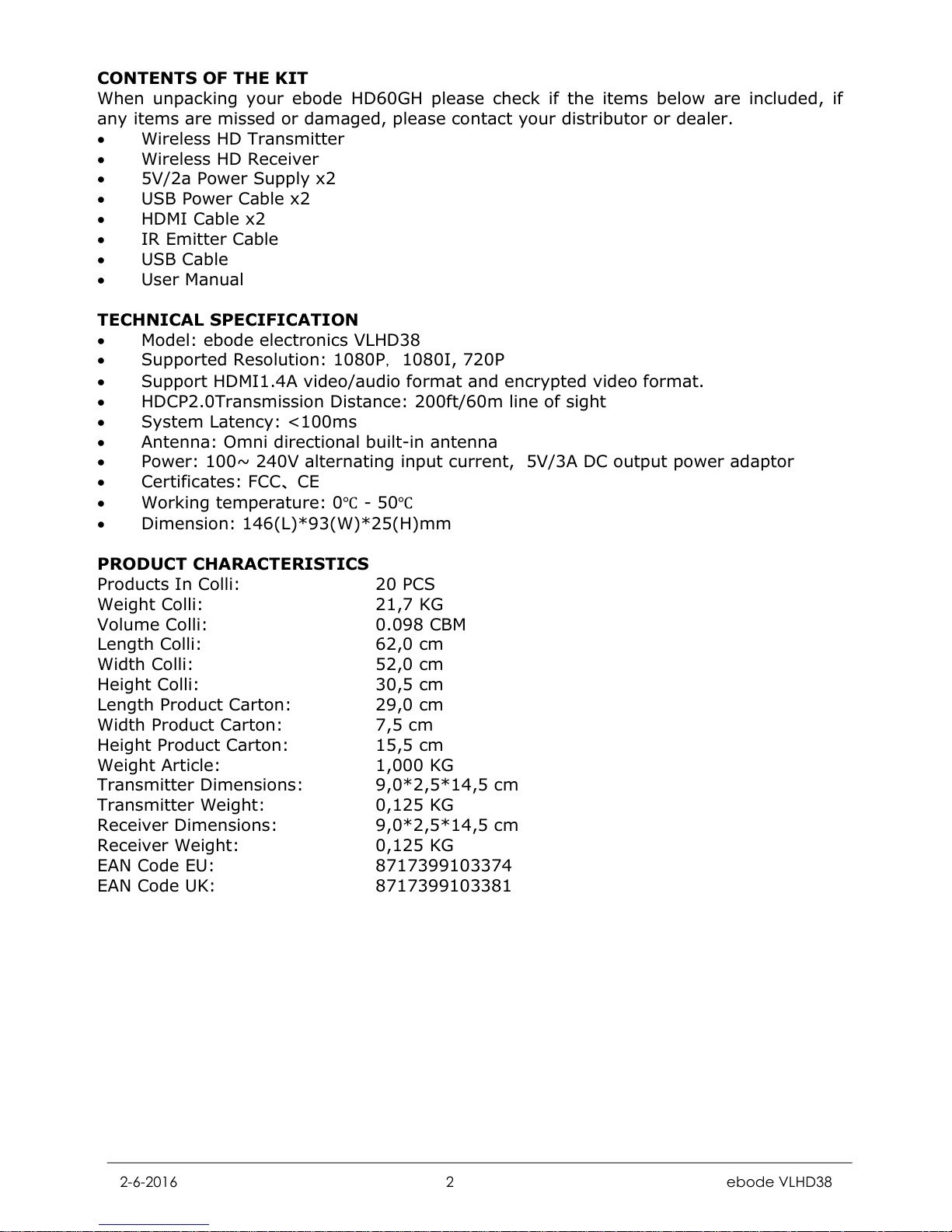

CONTENTS OF THE KIT
When unpacking your ebode HD60GH please check if the items below are included, if any items are missed or damaged, please contact your distributor or dealer.
Wireless HD Transmitter Wireless HD Receiver 5V/2a Power Supply x2 USB Power Cable x2 HDMI Cable x2 IR Emitter Cable USB Cable User Manual
TECHNICAL SPECIFICATION
Model: ebode electronics VLHD38 Supported Resolution: 1080P, 1080I, 720P
Support HDMI1.4A video/audio format and encrypted video format. HDCP2.0Transmission Distance: 200ft/60m line of sight System Latency: <100ms Antenna: Omni directional built-in antenna Power: 100~ 240V alternating input current, 5V/3A DC output power adaptor Certificates: FCCCE Working temperature: 0 - 50 Dimension: 146(L)*93(W)*25(H)mm
PRODUCT CHARACTERISTICS
Products In Colli: 20 PCS Weight Colli: 21,7 KG Volume Colli: 0.098 CBM Length Colli: 62,0 cm Width Colli: 52,0 cm Height Colli: 30,5 cm Length Product Carton: 29,0 cm Width Product Carton: 7,5 cm Height Product Carton: 15,5 cm Weight Article: 1,000 KG Transmitter Dimensions: 9,0*2,5*14,5 cm Transmitter Weight: 0,125 KG Receiver Dimensions: 9,0*2,5*14,5 cm Receiver Weight: 0,125 KG EAN Code EU: 8717399103374 EAN Code UK: 8717399103381
2-6-2016 3 ebode VLHD38

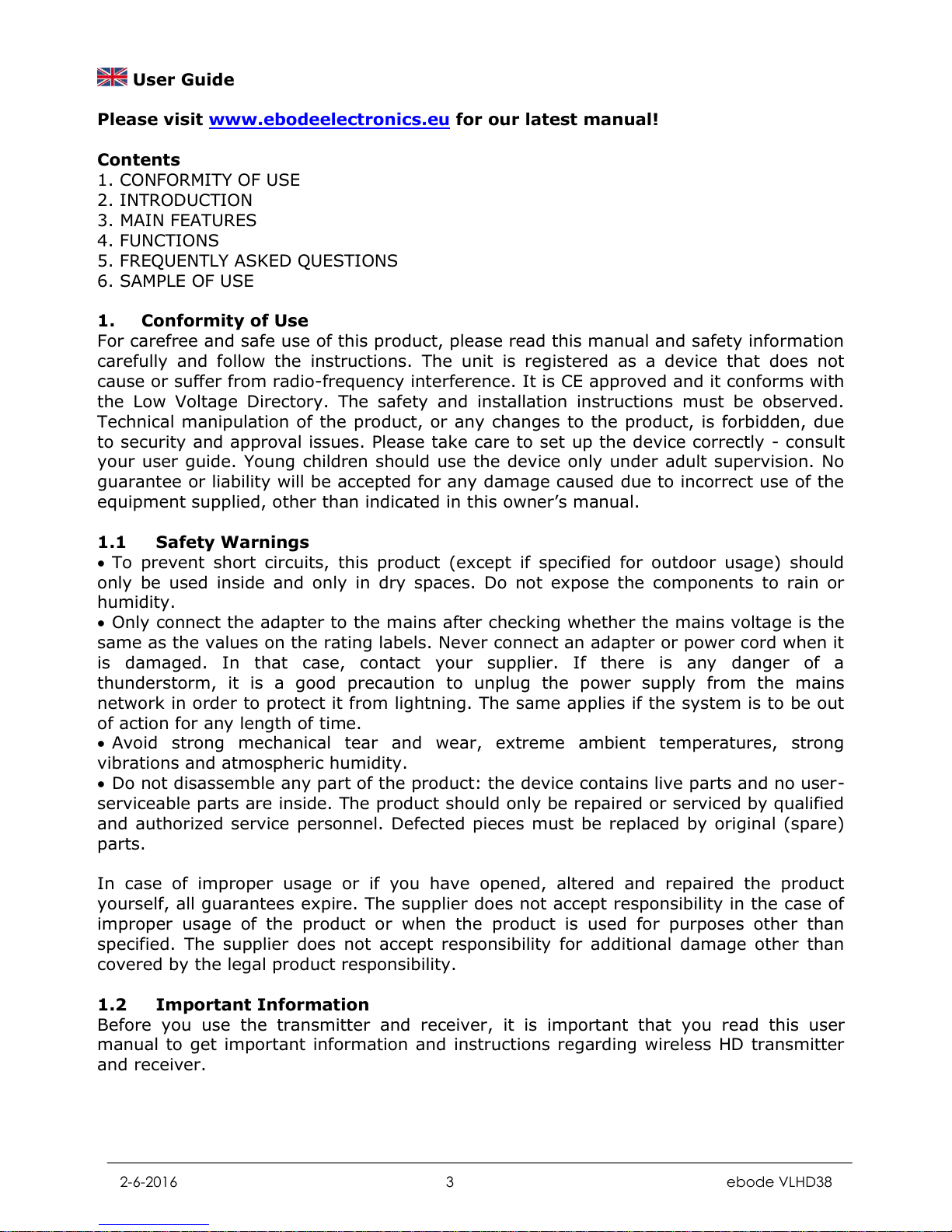

User Guide
Please visit
www.ebodeelectronics.eu for our latest manual!
Contents
1. CONFORMITY OF USE
2. INTRODUCTION
3. MAIN FEATURES
4. FUNCTIONS
5. FREQUENTLY ASKED QUESTIONS
6. SAMPLE OF USE
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product, or any changes to the product, is forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owners manual.
1.1 Safety Warnings To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity. Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the rating labels. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm, it is a good precaution to unplug the power supply from the mains network in order to protect it from lightning. The same applies if the system is to be out of action for any length of time. Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity. Do not disassemble any part of the product: the device contains live parts and no user- serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.
1.2 Important Information
Before you use the transmitter and receiver, it is important that you read this user manual to get important information and instructions regarding wireless HD transmitter and receiver.
2-6-2016 4 ebode VLHD38

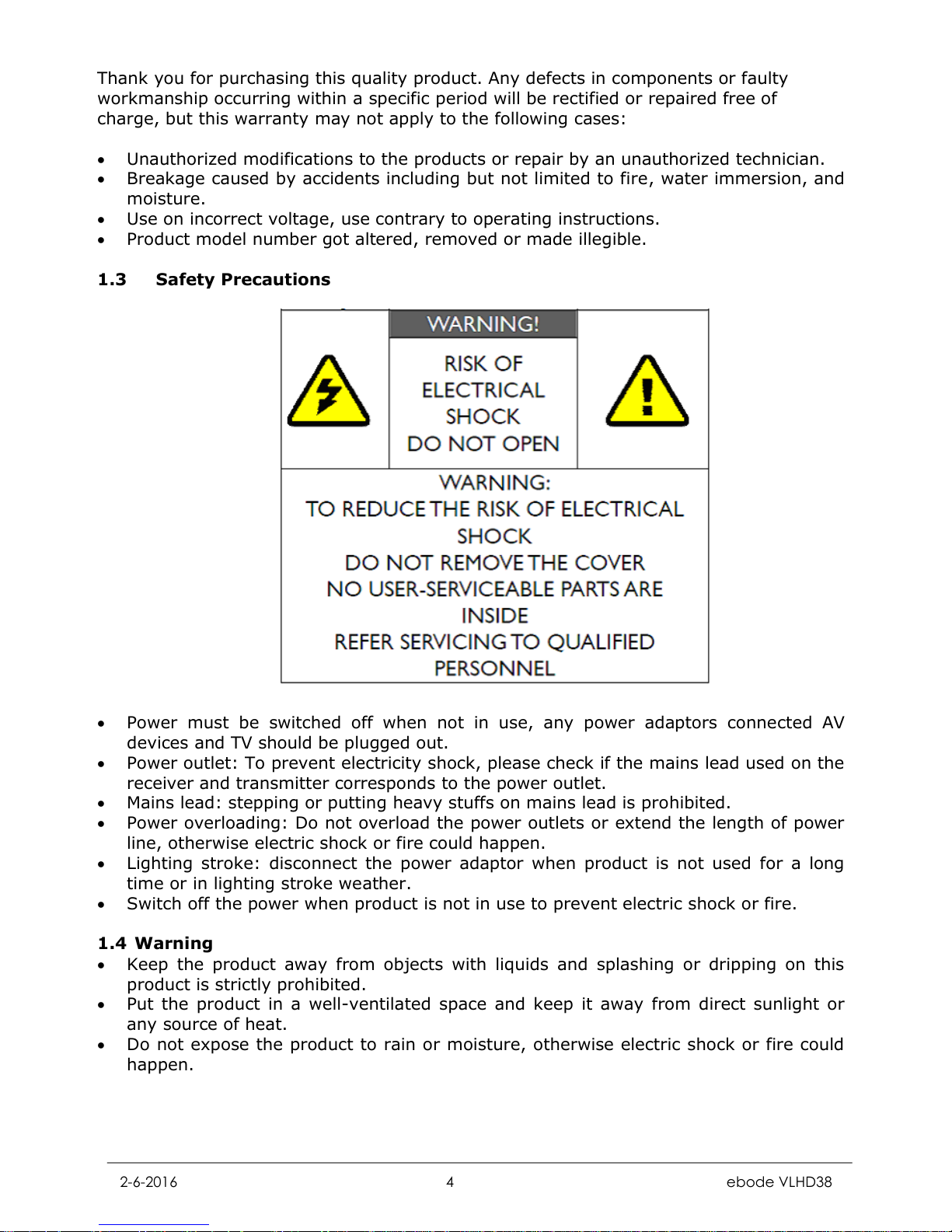

Thank you for purchasing this quality product. Any defects in components or faulty workmanship occurring within a specific period will be rectified or repaired free of charge, but this warranty may not apply to the following cases:
Unauthorized modifications to the products or repair by an unauthorized technician. Breakage caused by accidents including but not limited to fire, water immersion, and
moisture.
Use on incorrect voltage, use contrary to operating instructions. Product model number got altered, removed or made illegible.
1.3 Safety Precautions
Power must be switched off when not in use, any power adaptors connected AV
devices and TV should be plugged out.
Power outlet: To prevent electricity shock, please check if the mains lead used on the
receiver and transmitter corresponds to the power outlet.
Mains lead: stepping or putting heavy stuffs on mains lead is prohibited. Power overloading: Do not overload the power outlets or extend the length of power
line, otherwise electric shock or fire could happen.
Lighting stroke: disconnect the power adaptor when product is not used for a long
time or in lighting stroke weather.
Switch off the power when product is not in use to prevent electric shock or fire.
1.4 Warning
Keep the product away from objects with liquids and splashing or dripping on this
product is strictly prohibited.
Put the product in a well-ventilated space and keep it away from direct sunlight or
any source of heat.
Do not expose the product to rain or moisture, otherwise electric shock or fire could
happen.
2-6-2016 5 ebode VLHD38

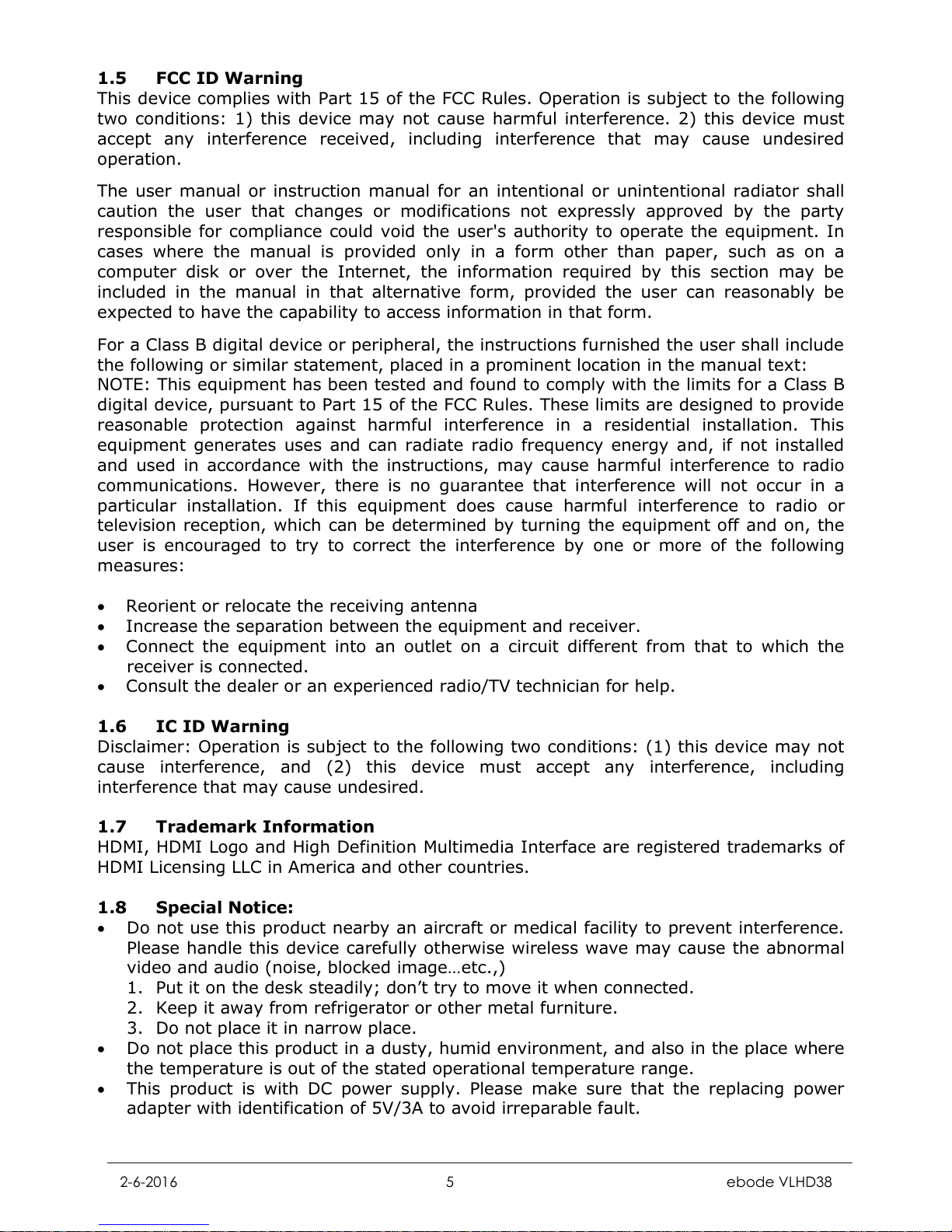

1.5 FCC ID Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference. 2) this device must accept any interference received, including interference that may cause undesired operation.
The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form.
For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the manual text: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.6 IC ID Warning
Disclaimer: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired.
1.7 Trademark Information
HDMI, HDMI Logo and High Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC in America and other countries.
1.8 Special Notice:
Do not use this product nearby an aircraft or medical facility to prevent interference.
Please handle this device carefully otherwise wireless wave may cause the abnormal video and audio (noise, blocked imageetc.,)
1. Put it on the desk steadily; dont try to move it when connected.
2. Keep it away from refrigerator or other metal furniture.
3. Do not place it in narrow place.
Do not place this product in a dusty, humid environment, and also in the place where
the temperature is out of the stated operational temperature range.
This product is with DC power supply. Please make sure that the replacing power
adapter with identification of 5V/3A to avoid irreparable fault.
2-6-2016 6 ebode VLHD38

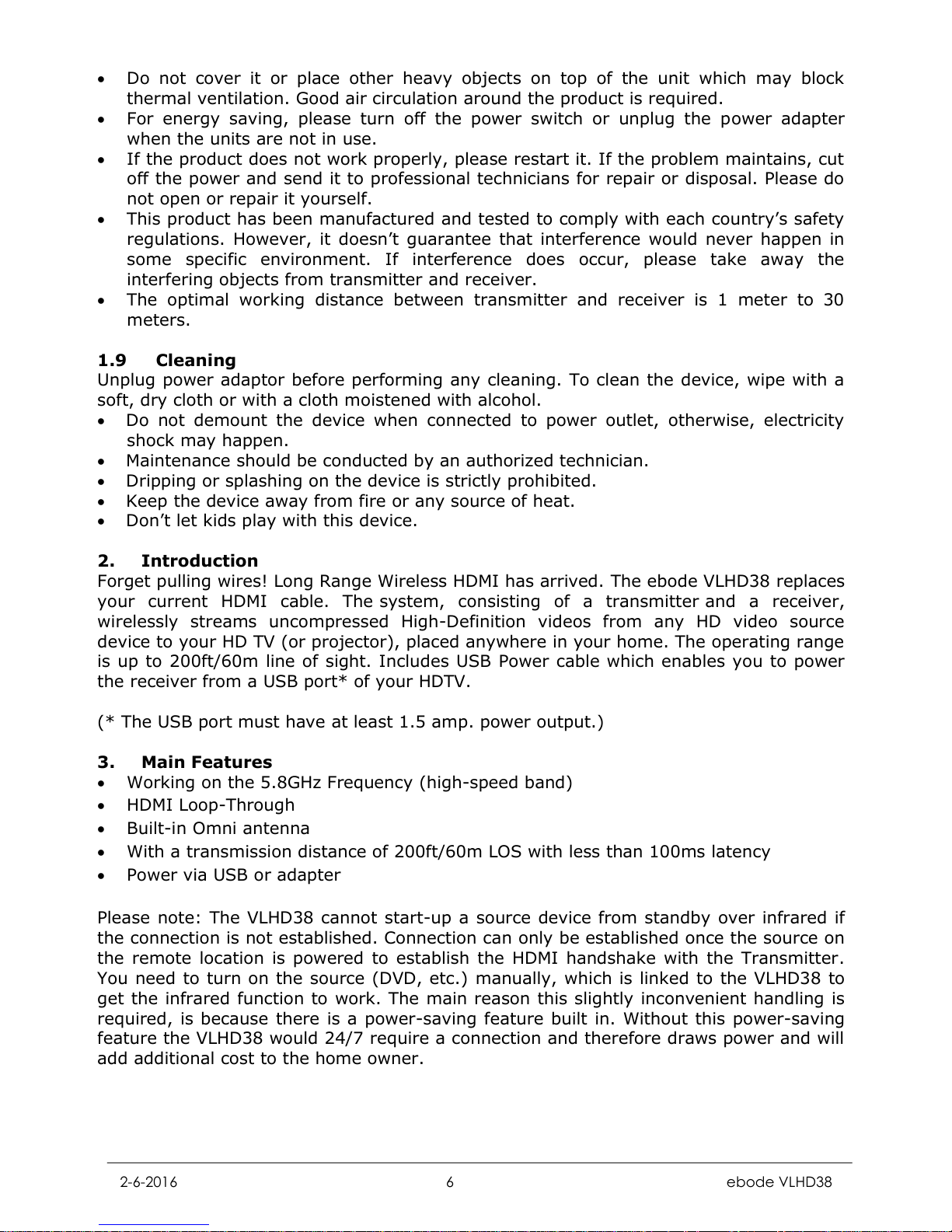

Do not cover it or place other heavy objects on top of the unit which may block
thermal ventilation. Good air circulation around the product is required.
For energy saving, please turn off the power switch or unplug the power adapter
when the units are not in use.
If the product does not work properly, please restart it. If the problem maintains, cut
off the power and send it to professional technicians for repair or disposal. Please do not open or repair it yourself.
This product has been manufactured and tested to comply with each countrys safety
regulations. However, it doesnt guarantee that interference would never happen in
some specific environment. If interference does occur, please take away the interfering objects from transmitter and receiver.
The optimal working distance between transmitter and receiver is 1 meter to 30
meters.
1.9 Cleaning
Unplug power adaptor before performing any cleaning. To clean the device, wipe with a soft, dry cloth or with a cloth moistened with alcohol. Do not demount the device when connected to power outlet, otherwise, electricity
shock may happen.
Maintenance should be conducted by an authorized technician. Dripping or splashing on the device is strictly prohibited. Keep the device away from fire or any source of heat. Dont let kids play with this device.
2. Introduction Forget pulling wires! Long Range Wireless HDMI has arrived. The ebode VLHD38 replaces your current HDMI cable. The system, consisting of a transmitter and a receiver, wirelessly streams uncompressed High-Definition videos from any HD video source device to your HD TV (or projector), placed anywhere in your home. The operating range is up to 200ft/60m line of sight. Includes USB Power cable which enables you to power the receiver from a USB port* of your HDTV.
(* The USB port must have at least 1.5 amp. power output.)
3. Main Features
Working on the 5.8GHz Frequency (high-speed band) HDMI Loop-Through Built-in Omni antenna With a transmission distance of 200ft/60m LOS
with less than 100ms latency
Power via USB or adapter
Please note: The VLHD38 cannot start-up a source device from standby over infrared if the connection is not established. Connection can only be established once the source on the remote location is powered to establish the HDMI handshake with the Transmitter. You need to turn on the source (DVD, etc.) manually, which is linked to the VLHD38 to get the infrared function to work. The main reason this slightly inconvenient handling is required, is because there is a power-saving feature built in. Without this power-saving feature the VLHD38 would 24/7 require a connection and therefore draws power and will add additional cost to the home owner.
2-6-2016 7 ebode VLHD38

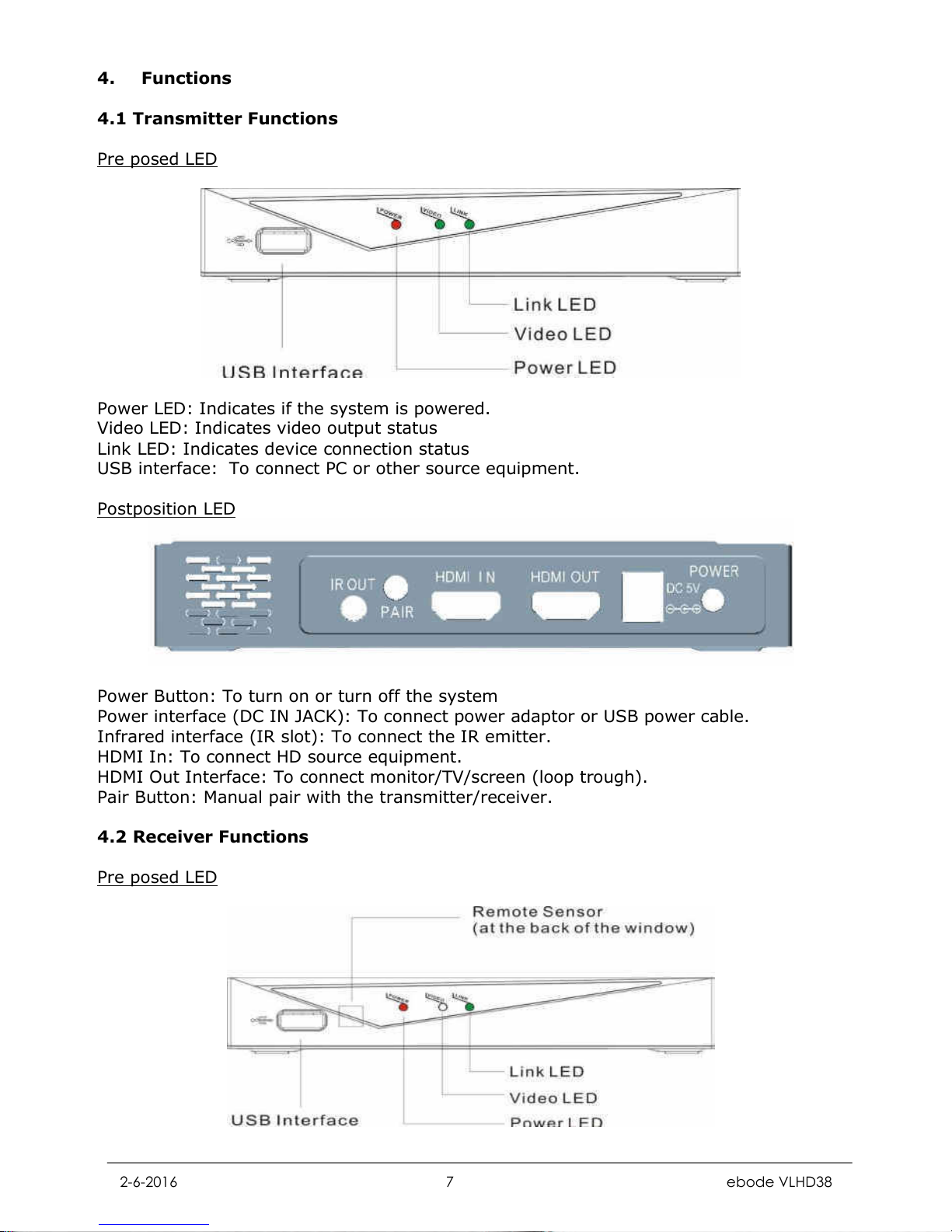

4. Functions
4.1 Transmitter Functions
Pre posed LED
Power LED: Indicates if the system is powered. Video LED: Indicates video output status Link LED: Indicates device connection status USB interface: To connect PC or other source equipment.
Postposition LED
Power Button: To turn on or turn off the system Power interface (DC IN JACK): To connect power adaptor or USB power cable. Infrared interface (IR slot): To connect the IR emitter. HDMI In: To connect HD source equipment. HDMI Out Interface: To connect monitor/TV/screen (loop trough). Pair Button: Manual pair with the transmitter/receiver.
4.2 Receiver Functions
Pre posed LED
2-6-2016 8 ebode VLHD38

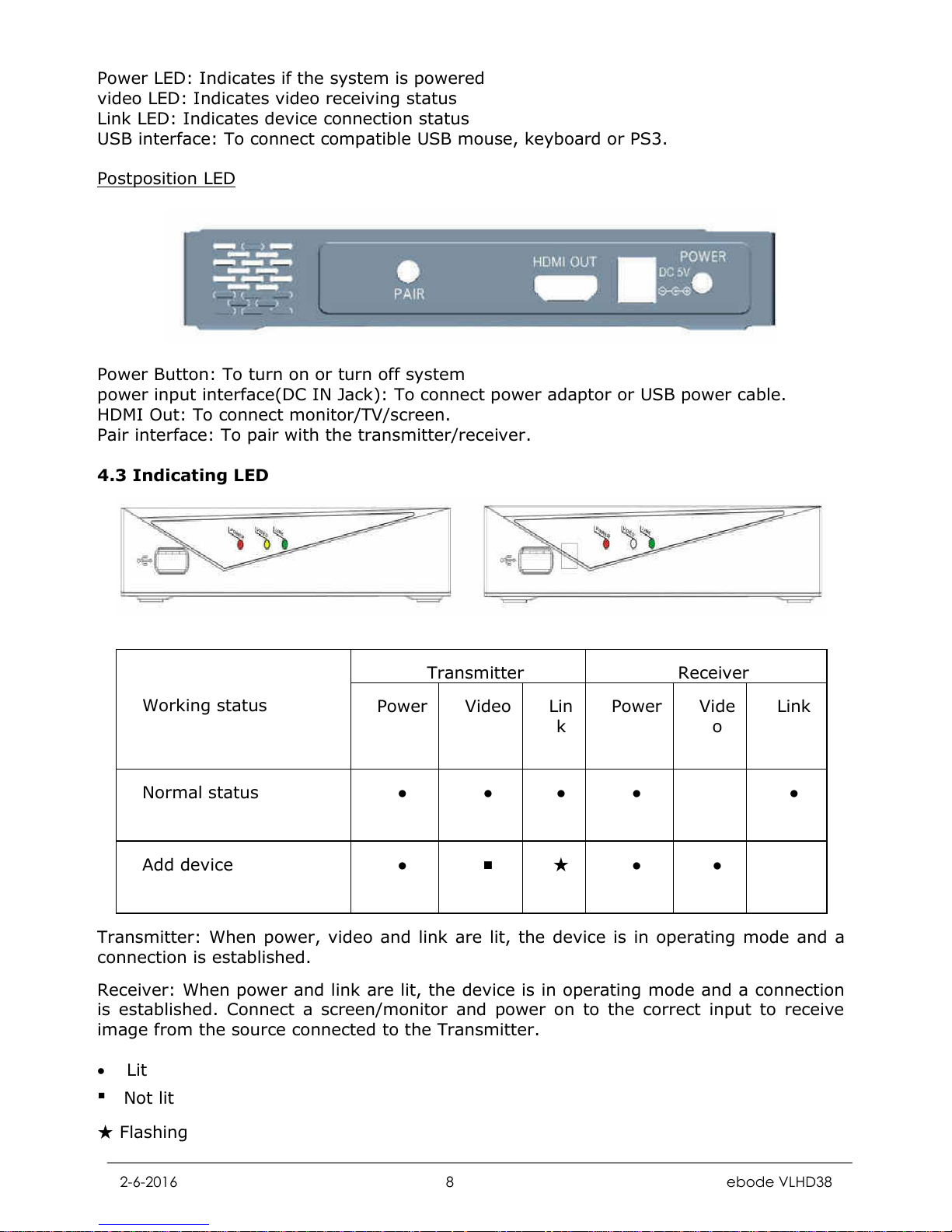

Power LED: Indicates if the system is powered video LED: Indicates video receiving status Link LED: Indicates device connection status USB interface: To connect compatible USB mouse, keyboard or PS3.
Postposition LED
Power Button: To turn on or turn off system power input interface(DC IN Jack): To connect power adaptor or USB power cable. HDMI Out: To connect monitor/TV/screen. Pair interface: To pair with the transmitter/receiver.
4.3 Indicating LED
Working status
Transmitter
Receiver
Power
Video
Link Power
Vide
o
Link
Normal status
Add device
Transmitter: When power, video and link are lit, the device is in operating mode and a connection is established.
Receiver: When power and link are lit, the device is in operating mode and a connection is established. Connect a screen/monitor and power on to the correct input to receive image from the source connected to the Transmitter.
Lit
Not lit
Flashing
2-6-2016 9 ebode VLHD38

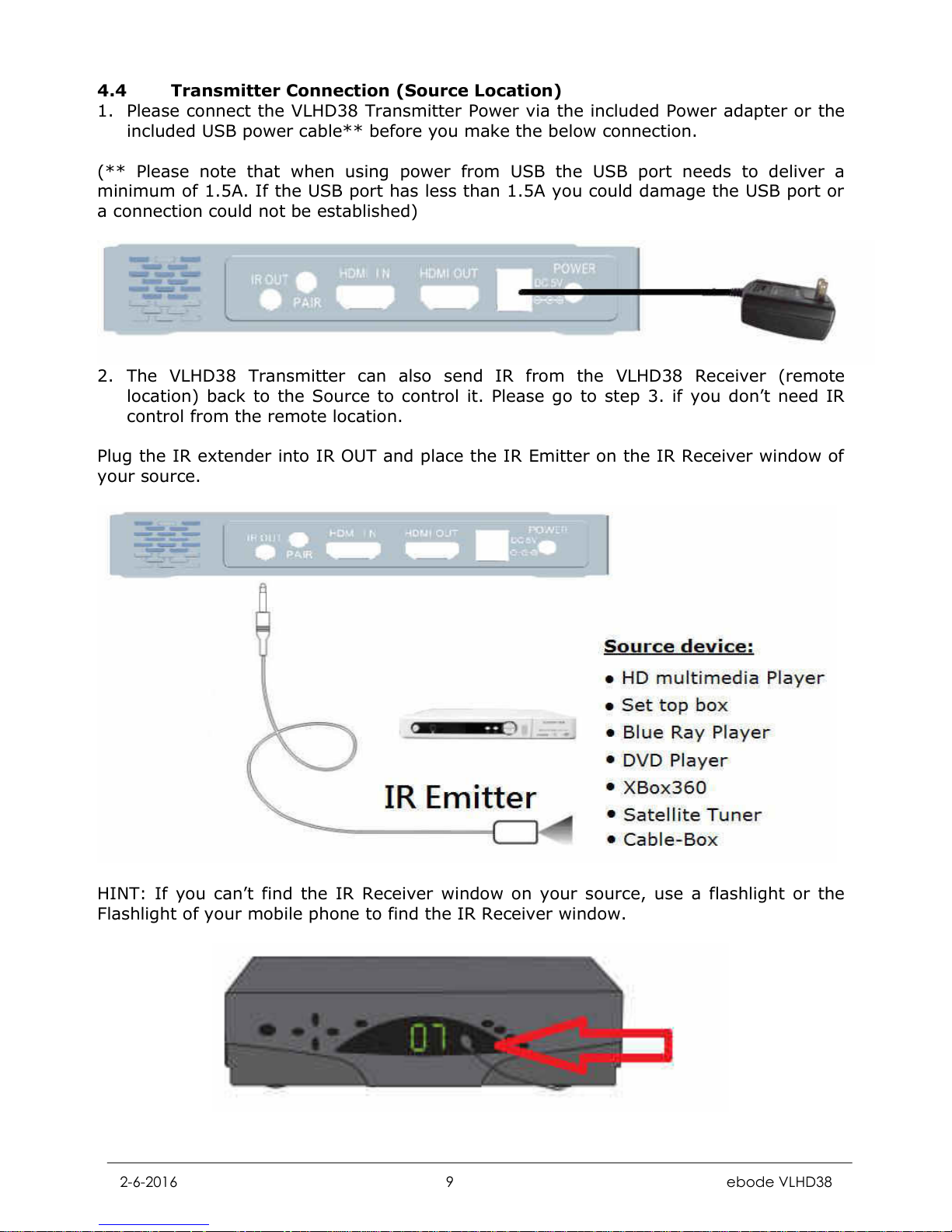

4.4 Transmitter Connection (Source Location)
1. Please connect the VLHD38 Transmitter Power via the included Power adapter or the included USB power cable** before you make the below connection.
(** Please note that when using power from USB the USB port needs to deliver a minimum of 1.5A. If the USB port has less than 1.5A you could damage the USB port or a connection could not be established)
2. The VLHD38 Transmitter can also send IR from the VLHD38 Receiver (remote location) back to the Source to control it. Please go to step 3. if you dont need IR control from the remote location.
Plug the IR extender into IR OUT and place the IR Emitter on the IR Receiver window of your source.
HINT: If you cant find the IR Receiver window on your source, use a flashlight or the Flashlight of your mobile phone to find the IR Receiver window.
2-6-2016 10 ebode VLHD38

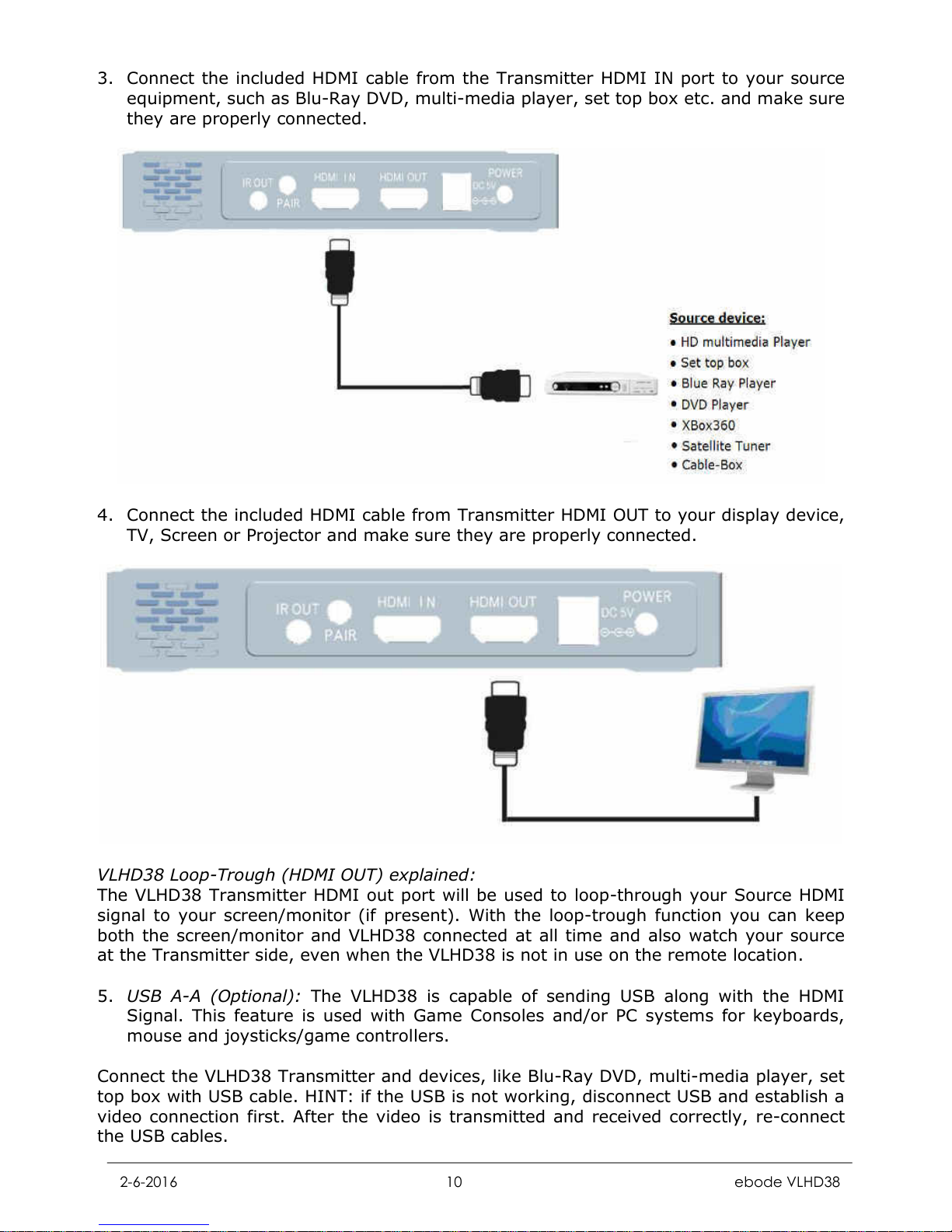

3. Connect the included HDMI cable from the Transmitter HDMI IN port to your source equipment, such as Blu-Ray DVD, multi-media player, set top box etc. and make sure they are properly connected.
4. Connect the included HDMI cable from Transmitter HDMI OUT to your display device, TV, Screen or Projector and make sure they are properly connected.
VLHD38 Loop-Trough (HDMI OUT) explained:
The VLHD38 Transmitter HDMI out port will be used to loop-through your Source HDMI signal to your screen/monitor (if present). With the loop-trough function you can keep both the screen/monitor and VLHD38 connected at all time and also watch your source at the Transmitter side, even when the VLHD38 is not in use on the remote location.
5. USB A-A (Optional): The VLHD38 is capable of sending USB along with the HDMI Signal. This feature is used with Game Consoles and/or PC systems for keyboards, mouse and joysticks/game controllers.
Connect the VLHD38 Transmitter and devices, like Blu-Ray DVD, multi-media player, set top box with USB cable. HINT: if the USB is not working, disconnect USB and establish a video connection first. After the video is transmitted and received correctly, re-connect the USB cables.
2-6-2016 11 ebode VLHD38

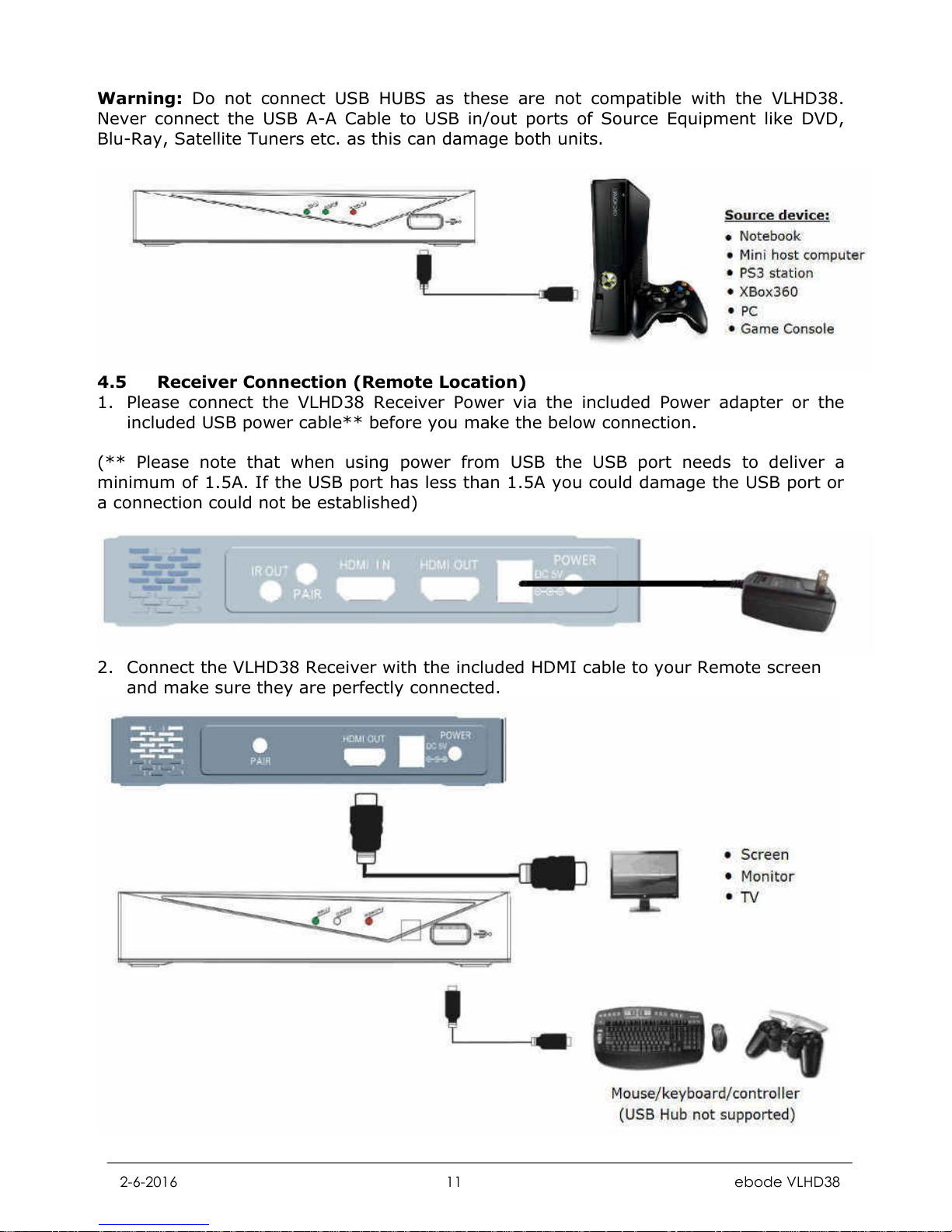

Warning: Do not connect USB HUBS as these are not compatible with the VLHD38. Never connect the USB A-A Cable to USB in/out ports of Source Equipment like DVD, Blu-Ray, Satellite Tuners etc. as this can damage both units.
4.5 Receiver Connection (Remote Location)
1. Please connect the VLHD38 Receiver Power via the included Power adapter or the included USB power cable** before you make the below connection.
(** Please note that when using power from USB the USB port needs to deliver a minimum of 1.5A. If the USB port has less than 1.5A you could damage the USB port or a connection could not be established)
2. Connect the VLHD38 Receiver with the included HDMI cable to your Remote screen and make sure they are perfectly connected.
2-6-2016 12 ebode VLHD38

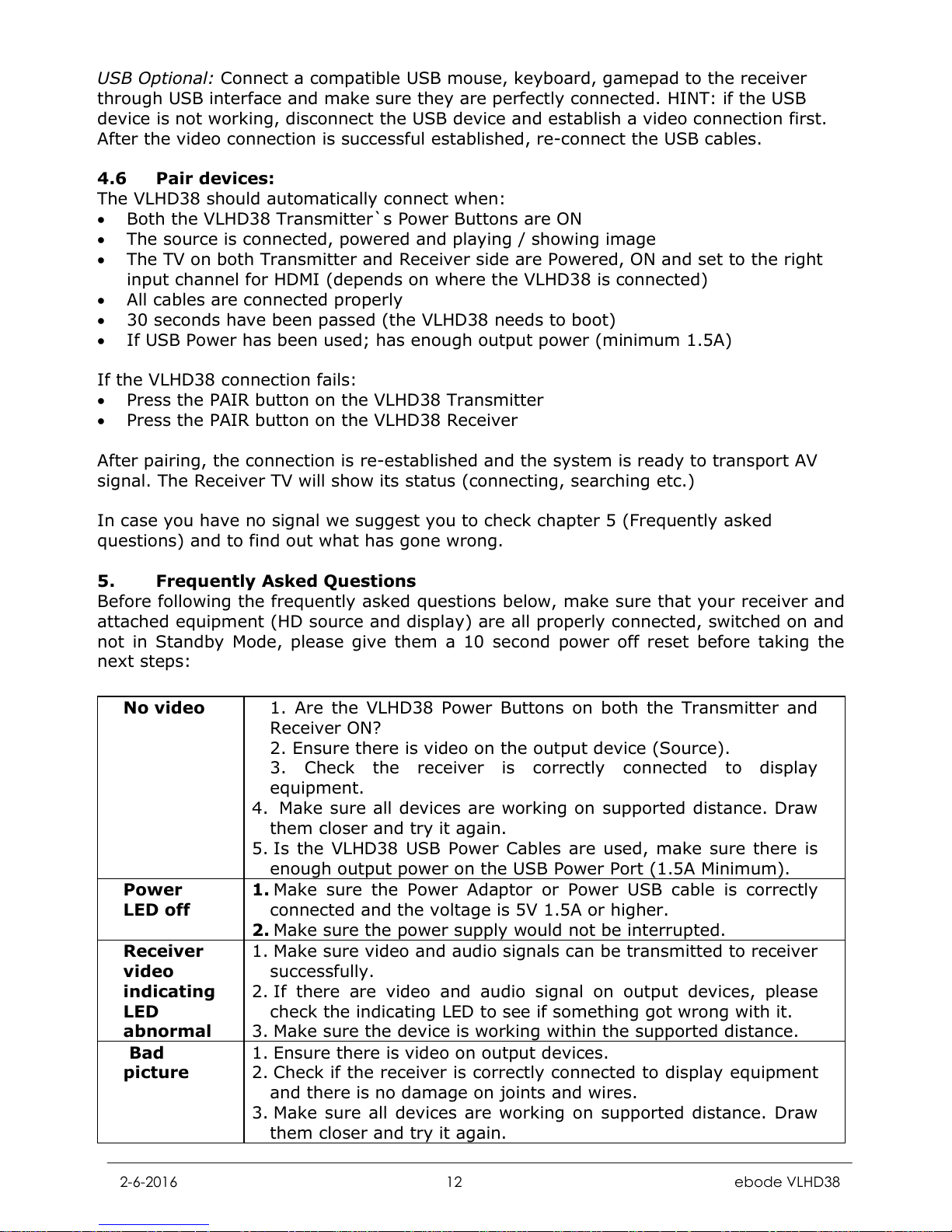

USB Optional: Connect a compatible USB mouse, keyboard, gamepad to the receiver through USB interface and make sure they are perfectly connected. HINT: if the USB device is not working, disconnect the USB device and establish a video connection first. After the video connection is successful established, re-connect the USB cables.
4.6 Pair devices:
The VLHD38 should automatically connect when:
Both the VLHD38 Transmitter`s Power Buttons are ON The source is connected, powered and playing / showing image The TV on both Transmitter and Receiver side are Powered, ON and set to the right
input channel for HDMI (depends on where the VLHD38 is connected)
All cables are connected properly 30 seconds have been passed (the VLHD38 needs to boot) If USB Power has been used; has enough output power (minimum 1.5A)
If the VLHD38 connection fails:
Press the PAIR button on the VLHD38 Transmitter Press the PAIR button on the VLHD38 Receiver
After pairing, the connection is re-established and the system is ready to transport AV signal. The Receiver TV will show its status (connecting, searching etc.)
In case you have no signal we suggest you to check chapter 5 (Frequently asked questions) and to find out what has gone wrong.
5. Frequently Asked Questions
Before following the frequently asked questions below, make sure that your receiver and attached equipment (HD source and display) are all properly connected, switched on and not in Standby Mode, please give them a 10 second power off reset before taking the next steps:
No video
1. Are the VLHD38 Power Buttons on both the Transmitter and Receiver ON?
2. Ensure there is video on the output device (Source).
3. Check the receiver is correctly connected to display equipment.
4. Make sure all devices are working on supported distance. Draw them closer and try it again.
5. Is the VLHD38 USB Power Cables are used, make sure there is enough output power on the USB Power Port (1.5A Minimum).
Power LED off
1. Make sure the Power Adaptor or Power USB cable is correctly
connected and the voltage is 5V 1.5A or higher.
2. Make sure the power supply would not be interrupted.
Receiver video indicating LED abnormal
1. Make sure video and audio signals can be transmitted to receiver successfully.
2. If there are video and audio signal on output devices, please check the indicating LED to see if something got wrong with it.
3. Make sure the device is working within the supported distance.
Bad picture
1. Ensure there is video on output devices.
2. Check if the receiver is correctly connected to display equipment and there is no damage on joints and wires.
3. Make sure all devices are working on supported distance. Draw them closer and try it again.
2-6-2016 13 ebode VLHD38

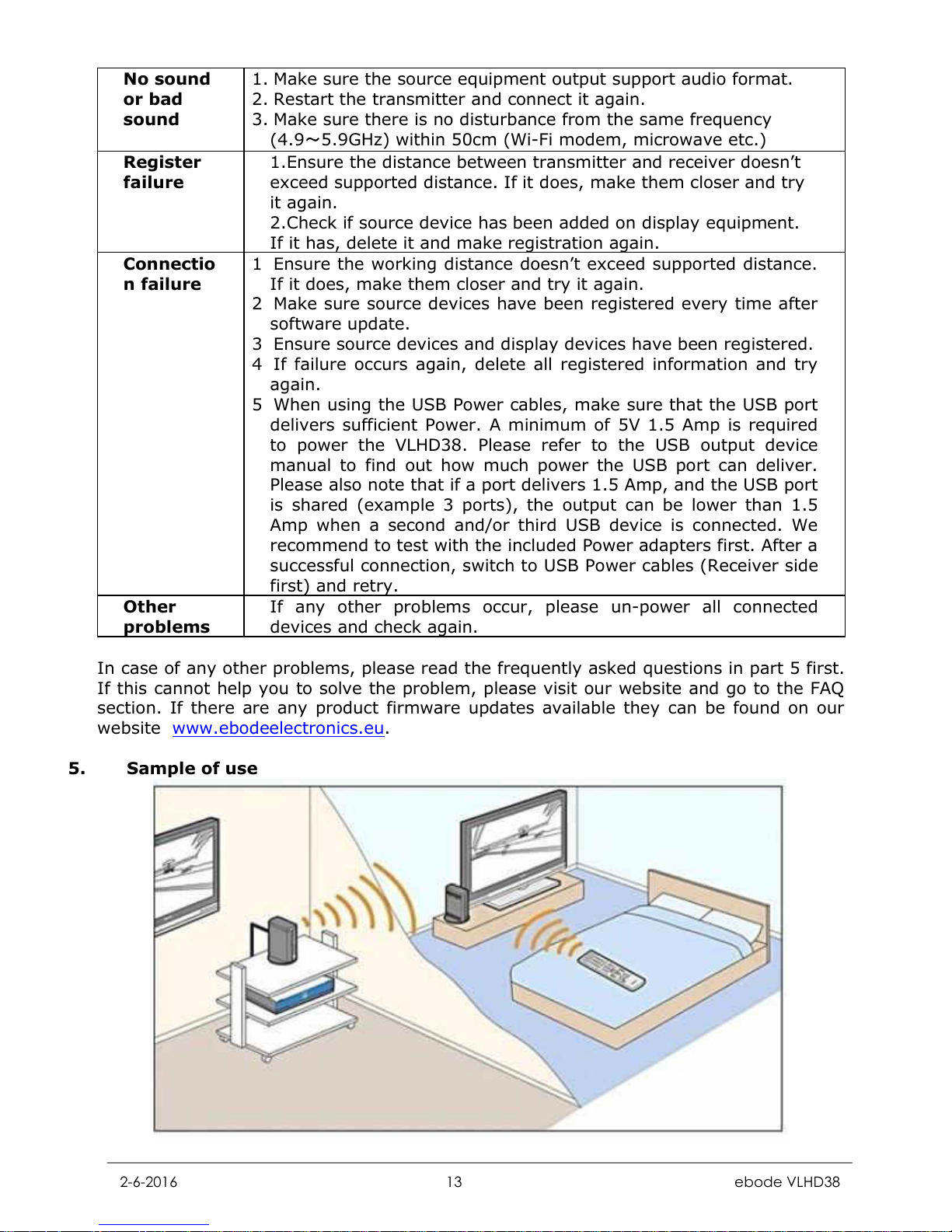

No sound or bad sound
1. Make sure the source equipment output support audio format.
2. Restart the transmitter and connect it again.
3. Make sure there is no disturbance from the same frequency (4.95.9GHz) within 50cm (Wi-Fi modem, microwave etc.)
Register failure
1.Ensure the distance between transmitter and receiver doesnt exceed supported distance. If it does, make them closer and try it again.
2.Check if source device has been added on display equipment. If it has, delete it and make registration again.
Connectio n failure
1 Ensure the working distance doesnt exceed supported distance.
If it does, make them closer and try it again.
2 Make sure source devices have been registered every time after
software update.
3 Ensure source devices and display devices have been registered. 4 If failure occurs again, delete all registered information and try
again.
5 When using the USB Power cables, make sure that the USB port
delivers sufficient Power. A minimum of 5V 1.5 Amp is required to power the VLHD38. Please refer to the USB output device manual to find out how much power the USB port can deliver. Please also note that if a port delivers 1.5 Amp, and the USB port is shared (example 3 ports), the output can be lower than 1.5 Amp when a second and/or third USB device is connected. We recommend to test with the included Power adapters first. After a successful connection, switch to USB Power cables (Receiver side first) and retry.
Other problems
If any other problems occur, please un-power all connected devices and check again.
In case of any other problems, please read the frequently asked questions in part 5 first. If this cannot help you to solve the problem, please visit our website and go to the FAQ section. If there are any product firmware updates available they can be found on our website
www.ebodeelectronics.eu.
5. Sample of use
2-6-2016 14 ebode VLHD38

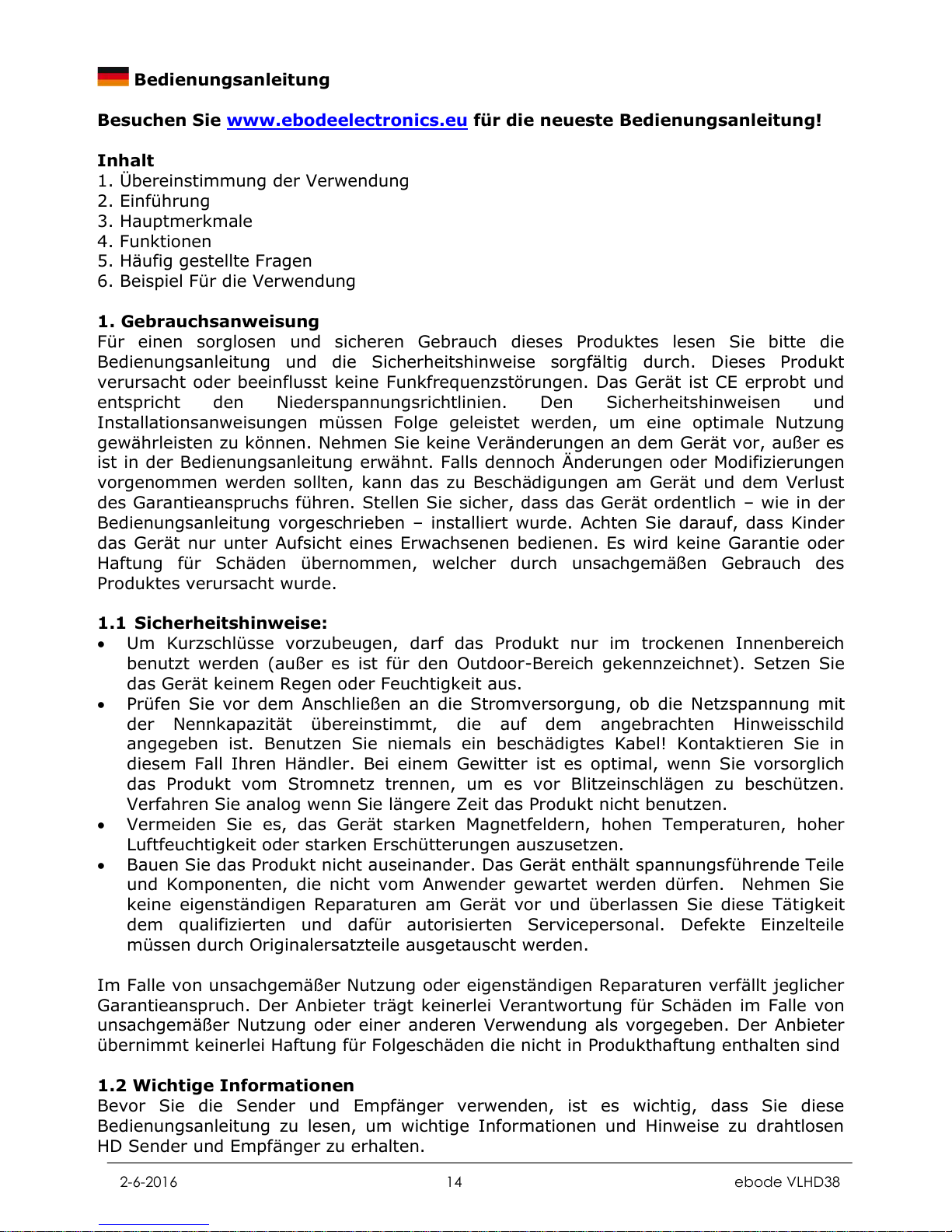

Bedienungsanleitung
Besuchen Sie
www.ebodeelectronics.eu für die neueste Bedienungsanleitung!
Inhalt
1. Übereinstimmung der Verwendung
2. Einführung
3. Hauptmerkmale
4. Funktionen
5. Häufig gestellte Fragen
6. Beispiel Für die Verwendung
1. Gebrauchsanweisung
Für einen sorglosen und sicheren Gebrauch dieses Produktes lesen Sie bitte die Bedienungsanleitung und die Sicherheitshinweise sorgfältig durch. Dieses Produkt verursacht oder beeinflusst keine Funkfrequenzstörungen. Das Gerät ist CE erprobt und entspricht den Niederspannungsrichtlinien. Den Sicherheitshinweisen und Installationsanweisungen ssen Folge geleistet werden, um eine optimale Nutzung gewährleisten zu können. Nehmen Sie keine Veränderungen an dem Gerät vor, außer es ist in der Bedienungsanleitung erwähnt. Falls dennoch Änderungen oder Modifizierungen vorgenommen werden sollten, kann das zu Beschädigungen am Gerät und dem Verlust des Garantieanspruchs führen. Stellen Sie sicher, dass das Gerät ordentlich wie in der Bedienungsanleitung vorgeschrieben installiert wurde. Achten Sie darauf, dass Kinder das Gerät nur unter Aufsicht eines Erwachsenen bedienen. Es wird keine Garantie oder Haftung für Schäden übernommen, welcher durch unsachgemäßen Gebrauch des Produktes verursacht wurde.
1.1 Sicherheitshinweise:
Um Kurzschlüsse vorzubeugen, darf das Produkt nur im trockenen Innenbereich
benutzt werden (außer es ist für den Outdoor-Bereich gekennzeichnet). Setzen Sie das Gerät keinem Regen oder Feuchtigkeit aus.
Prüfen Sie vor dem Anschlien an die Stromversorgung, ob die Netzspannung mit
der Nennkapazität übereinstimmt, die auf dem angebrachten Hinweisschild angegeben ist. Benutzen Sie niemals ein beschädigtes Kabel! Kontaktieren Sie in diesem Fall Ihren Händler. Bei einem Gewitter ist es optimal, wenn Sie vorsorglich das Produkt vom Stromnetz trennen, um es vor Blitzeinschlägen zu beschützen. Verfahren Sie analog wenn Sie längere Zeit das Produkt nicht benutzen.
Vermeiden Sie es, das Gerät starken Magnetfeldern, hohen Temperaturen, hoher
Luftfeuchtigkeit oder starken Erschütterungen auszusetzen.
Bauen Sie das Produkt nicht auseinander. Das Gerät enthält spannungsführende Teile
und Komponenten, die nicht vom Anwender gewartet werden dürfen. Nehmen Sie keine eigenständigen Reparaturen am Gerät vor und überlassen Sie diese Tätigkeit dem qualifizierten und dafür autorisierten Servicepersonal. Defekte Einzelteile ssen durch Originalersatzteile ausgetauscht werden.
Im Falle von unsachgeßer Nutzung oder eigenständigen Reparaturen verfällt jeglicher Garantieanspruch. Der Anbieter trägt keinerlei Verantwortung für Schäden im Falle von unsachgemäßer Nutzung oder einer anderen Verwendung als vorgegeben. Der Anbieter übernimmt keinerlei Haftung für Folgeschäden die nicht in Produkthaftung enthalten sind
1.2 Wichtige Informationen
Bevor Sie die Sender und Empfänger verwenden, ist es wichtig, dass Sie diese Bedienungsanleitung zu lesen, um wichtige Informationen und Hinweise zu drahtlosen HD Sender und Empfänger zu erhalten.
2-6-2016 15 ebode VLHD38

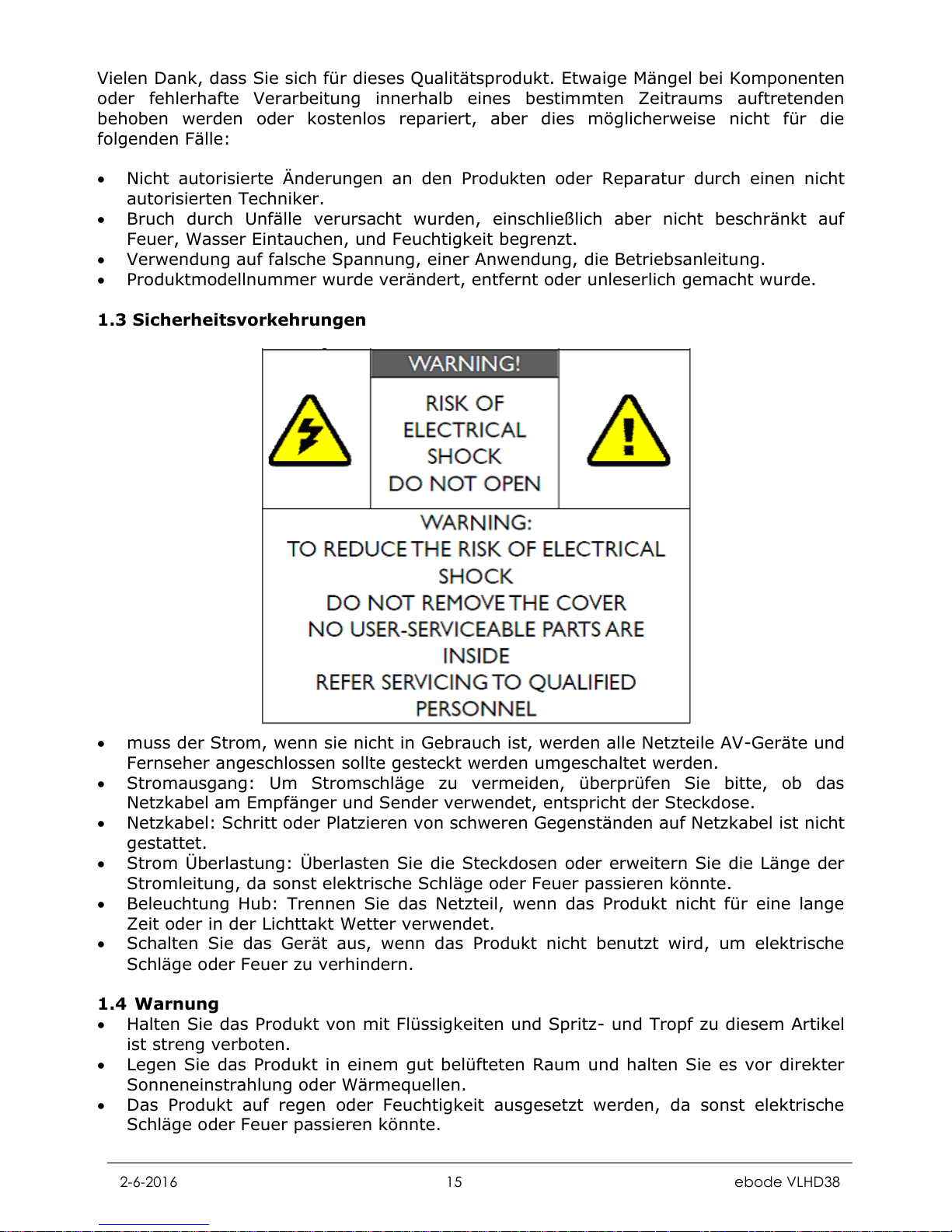

Vielen Dank, dass Sie sich für dieses Qualitätsprodukt. Etwaige Mängel bei Komponenten oder fehlerhafte Verarbeitung innerhalb eines bestimmten Zeitraums auftretenden behoben werden oder kostenlos repariert, aber dies möglicherweise nicht für die folgenden Fälle:
Nicht autorisierte Änderungen an den Produkten oder Reparatur durch einen nicht
autorisierten Techniker.
Bruch durch Unfälle verursacht wurden, einschlilich aber nicht beschränkt auf
Feuer, Wasser Eintauchen, und Feuchtigkeit begrenzt.
Verwendung auf falsche Spannung, einer Anwendung, die Betriebsanleitung. Produktmodellnummer wurde verändert, entfernt oder unleserlich gemacht wurde.
1.3 Sicherheitsvorkehrungen
muss der Strom, wenn sie nicht in Gebrauch ist, werden alle Netzteile AV-Geräte und
Fernseher angeschlossen sollte gesteckt werden umgeschaltet werden.
Stromausgang: Um Stromschläge zu vermeiden, überprüfen Sie bitte, ob das
Netzkabel am Empfänger und Sender verwendet, entspricht der Steckdose.
Netzkabel: Schritt oder Platzieren von schweren Gegenständen auf Netzkabel ist nicht
gestattet.
Strom Überlastung: Überlasten Sie die Steckdosen oder erweitern Sie die Länge der
Stromleitung, da sonst elektrische Schläge oder Feuer passieren könnte.
Beleuchtung Hub: Trennen Sie das Netzteil, wenn das Produkt nicht für eine lange
Zeit oder in der Lichttakt Wetter verwendet.
Schalten Sie das Gerät aus, wenn das Produkt nicht benutzt wird, um elektrische
Schläge oder Feuer zu verhindern.
1.4 Warnung
Halten Sie das Produkt von mit Flüssigkeiten und Spritz- und Tropf zu diesem Artikel
ist streng verboten.
Legen Sie das Produkt in einem gut belüfteten Raum und halten Sie es vor direkter
Sonneneinstrahlung oder Wärmequellen.
Das Produkt auf regen oder Feuchtigkeit ausgesetzt werden, da sonst elektrische
Schläge oder Feuer passieren könnte.
2-6-2016 16 ebode VLHD38

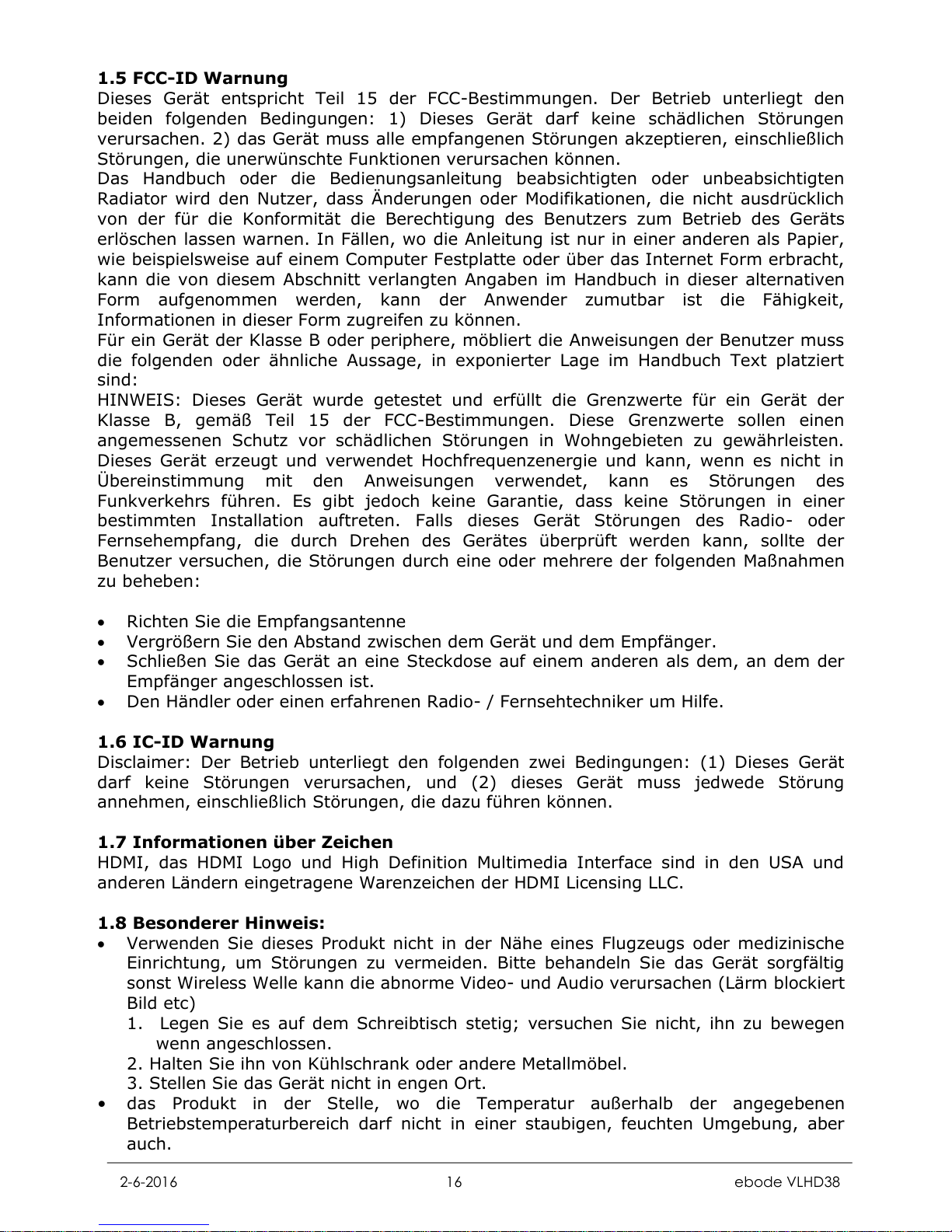

1.5 FCC-ID Warnung
Dieses Gerät entspricht Teil 15 der FCC-Bestimmungen. Der Betrieb unterliegt den beiden folgenden Bedingungen: 1) Dieses Gerät darf keine schädlichen Störungen verursachen. 2) das Gerät muss alle empfangenen Störungen akzeptieren, einschlilich Störungen, die unernschte Funktionen verursachen können. Das Handbuch oder die Bedienungsanleitung beabsichtigten oder unbeabsichtigten Radiator wird den Nutzer, dass Änderungen oder Modifikationen, die nicht ausdrücklich von der für die Konformität die Berechtigung des Benutzers zum Betrieb des Geräts erlöschen lassen warnen. In Fällen, wo die Anleitung ist nur in einer anderen als Papier, wie beispielsweise auf einem Computer Festplatte oder über das Internet Form erbracht, kann die von diesem Abschnitt verlangten Angaben im Handbuch in dieser alternativen Form aufgenommen werden, kann der Anwender zumutbar ist die Fähigkeit, Informationen in dieser Form zugreifen zu können. Für ein Gerät der Klasse B oder periphere, bliert die Anweisungen der Benutzer muss die folgenden oder ähnliche Aussage, in exponierter Lage im Handbuch Text platziert sind: HINWEIS: Dieses Gerät wurde getestet und erfüllt die Grenzwerte für ein Gerät der Klasse B, gemäß Teil 15 der FCC-Bestimmungen. Diese Grenzwerte sollen einen angemessenen Schutz vor schädlichen Störungen in Wohngebieten zu gewährleisten. Dieses Gerät erzeugt und verwendet Hochfrequenzenergie und kann, wenn es nicht in Übereinstimmung mit den Anweisungen verwendet, kann es Störungen des Funkverkehrs führen. Es gibt jedoch keine Garantie, dass keine Störungen in einer bestimmten Installation auftreten. Falls dieses Gerät Störungen des Radio- oder Fernsehempfang, die durch Drehen des Gerätes überprüft werden kann, sollte der Benutzer versuchen, die Störungen durch eine oder mehrere der folgenden Maßnahmen zu beheben:
Richten Sie die Empfangsantenne Vergrößern Sie den Abstand zwischen dem Gerät und dem Empfänger. Schlien Sie das Gerät an eine Steckdose auf einem anderen als dem, an dem der
Empfänger angeschlossen ist.
Den Händler oder einen erfahrenen Radio- / Fernsehtechniker um Hilfe.
1.6 IC-ID Warnung
Disclaimer: Der Betrieb unterliegt den folgenden zwei Bedingungen: (1) Dieses Gerät darf keine Störungen verursachen, und (2) dieses Gerät muss jedwede Störung annehmen, einschlilich Störungen, die dazu führen können.
1.7 Informationen über Zeichen
HDMI, das HDMI Logo und High Definition Multimedia Interface sind in den USA und anderen Ländern eingetragene Warenzeichen der HDMI Licensing LLC.
1.8 Besonderer Hinweis:
Verwenden Sie dieses Produkt nicht in der he eines Flugzeugs oder medizinische
Einrichtung, um Störungen zu vermeiden. Bitte behandeln Sie das Gerät sorgfältig sonst Wireless Welle kann die abnorme Video- und Audio verursachen (Lärm blockiert Bild etc)
1. Legen Sie es auf dem Schreibtisch stetig; versuchen Sie nicht, ihn zu bewegen wenn angeschlossen.
2. Halten Sie ihn von Kühlschrank oder andere Metallmöbel.
3. Stellen Sie das Gerät nicht in engen Ort.
das Produkt in der Stelle, wo die Temperatur außerhalb der angegebenen Betriebstemperaturbereich darf nicht in einer staubigen, feuchten Umgebung, aber auch.
2-6-2016 17 ebode VLHD38

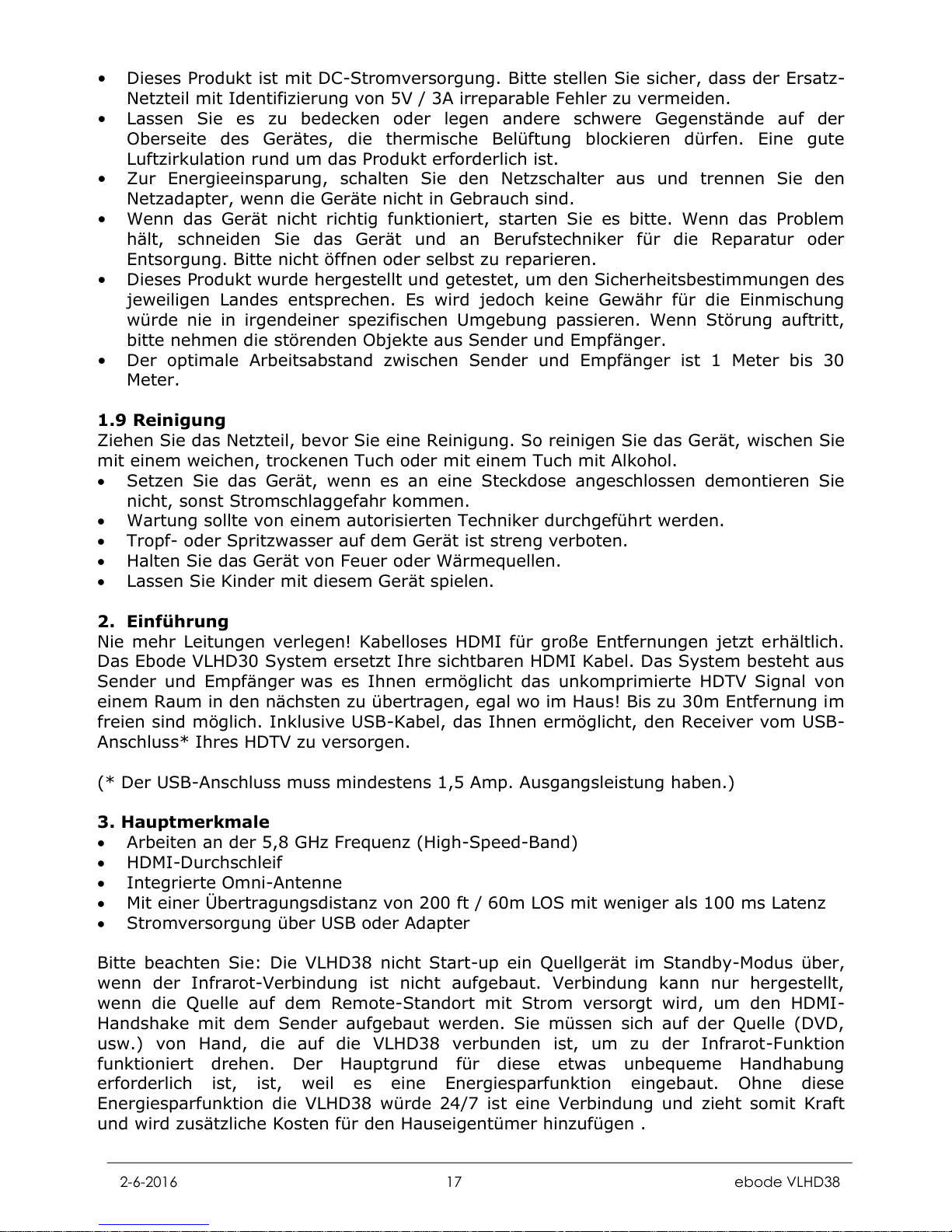

Dieses Produkt ist mit DC-Stromversorgung. Bitte stellen Sie sicher, dass der Ersatz- Netzteil mit Identifizierung von 5V / 3A irreparable Fehler zu vermeiden.
Lassen Sie es zu bedecken oder legen andere schwere Gegenstände auf der Oberseite des Gerätes, die thermische Belüftung blockieren dürfen. Eine gute Luftzirkulation rund um das Produkt erforderlich ist.
Zur Energieeinsparung, schalten Sie den Netzschalter aus und trennen Sie den Netzadapter, wenn die Geräte nicht in Gebrauch sind.
Wenn das Gerät nicht richtig funktioniert, starten Sie es bitte. Wenn das Problem hält, schneiden Sie das Gerät und an Berufstechniker für die Reparatur oder Entsorgung. Bitte nicht öffnen oder selbst zu reparieren.
Dieses Produkt wurde hergestellt und getestet, um den Sicherheitsbestimmungen des jeweiligen Landes entsprechen. Es wird jedoch keine Gewähr für die Einmischung rde nie in irgendeiner spezifischen Umgebung passieren. Wenn Störung auftritt, bitte nehmen die störenden Objekte aus Sender und Empfänger.
Der optimale Arbeitsabstand zwischen Sender und Empfänger ist 1 Meter bis 30 Meter.
1.9 Reinigung
Ziehen Sie das Netzteil, bevor Sie eine Reinigung. So reinigen Sie das Gerät, wischen Sie mit einem weichen, trockenen Tuch oder mit einem Tuch mit Alkohol. Setzen Sie das Gerät, wenn es an eine Steckdose angeschlossen demontieren Sie
nicht, sonst Stromschlaggefahr kommen.
Wartung sollte von einem autorisierten Techniker durchgeführt werden. Tropf- oder Spritzwasser auf dem Gerät ist streng verboten. Halten Sie das Gerät von Feuer oder Wärmequellen. Lassen Sie Kinder mit diesem Gerät spielen.
2. Einführung
Nie mehr Leitungen verlegen! Kabelloses HDMI für große Entfernungen jetzt erhältlich. Das Ebode VLHD30 System ersetzt Ihre sichtbaren HDMI Kabel. Das System besteht aus Sender und Empfänger was es Ihnen erglicht das unkomprimierte HDTV Signal von einem Raum in den nächsten zu übertragen, egal wo im Haus! Bis zu 30m Entfernung im freien sind glich. Inklusive USB-Kabel, das Ihnen ermöglicht, den Receiver vom USB- Anschluss* Ihres HDTV zu versorgen.
(* Der USB-Anschluss muss mindestens 1,5 Amp. Ausgangsleistung haben.)
3. Hauptmerkmale
Arbeiten an der 5,8 GHz Frequenz (High-Speed-Band) HDMI-Durchschleif Integrierte Omni-Antenne Mit einer Übertragungsdistanz von 200 ft / 60m LOS mit weniger als 100 ms Latenz Stromversorgung über USB oder Adapter
Bitte beachten Sie: Die VLHD38 nicht Start-up ein Quellgerät im Standby-Modus über, wenn der Infrarot-Verbindung ist nicht aufgebaut. Verbindung kann nur hergestellt, wenn die Quelle auf dem Remote-Standort mit Strom versorgt wird, um den HDMI- Handshake mit dem Sender aufgebaut werden. Sie ssen sich auf der Quelle (DVD, usw.) von Hand, die auf die VLHD38 verbunden ist, um zu der Infrarot-Funktion funktioniert drehen. Der Hauptgrund für diese etwas unbequeme Handhabung erforderlich ist, ist, weil es eine Energiesparfunktion eingebaut. Ohne diese Energiesparfunktion die VLHD38 rde 24/7 ist eine Verbindung und zieht somit Kraft und wird zusätzliche Kosten für den Hauseigentümer hinzufügen .
2-6-2016 18 ebode VLHD38

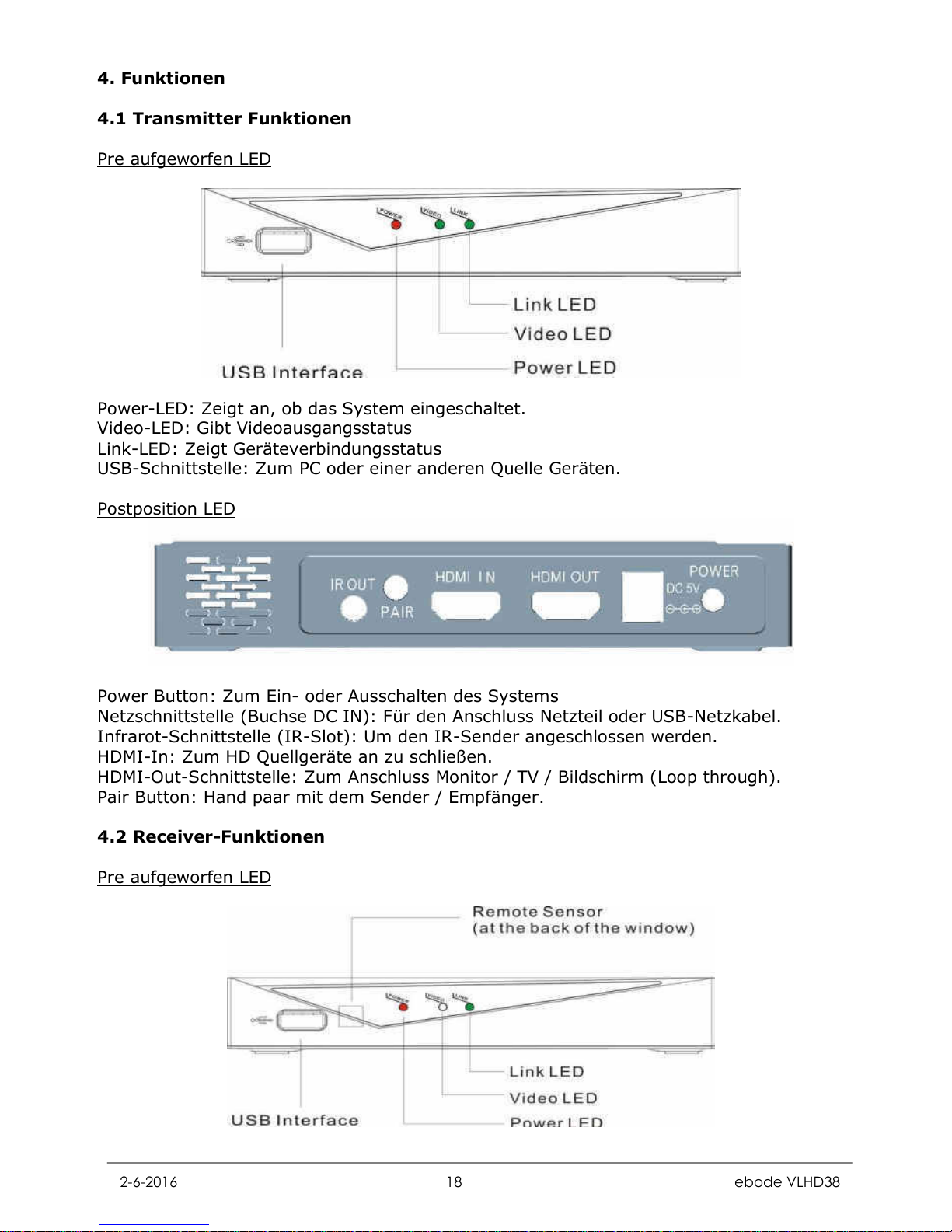

4. Funktionen
4.1 Transmitter Funktionen
Pre aufgeworfen LED
Power-LED: Zeigt an, ob das System eingeschaltet. Video-LED: Gibt Videoausgangsstatus Link-LED: Zeigt Geräteverbindungsstatus USB-Schnittstelle: Zum PC oder einer anderen Quelle Geräten.
Postposition LED
Power Button: Zum Ein- oder Ausschalten des Systems Netzschnittstelle (Buchse DC IN): Für den Anschluss Netzteil oder USB-Netzkabel. Infrarot-Schnittstelle (IR-Slot): Um den IR-Sender angeschlossen werden. HDMI-In: Zum HD Quellgeräte an zu schlien. HDMI-Out-Schnittstelle: Zum Anschluss Monitor / TV / Bildschirm (Loop through). Pair Button: Hand paar mit dem Sender / Empfänger.
4.2 Receiver-Funktionen
Pre aufgeworfen LED
2-6-2016 19 ebode VLHD38

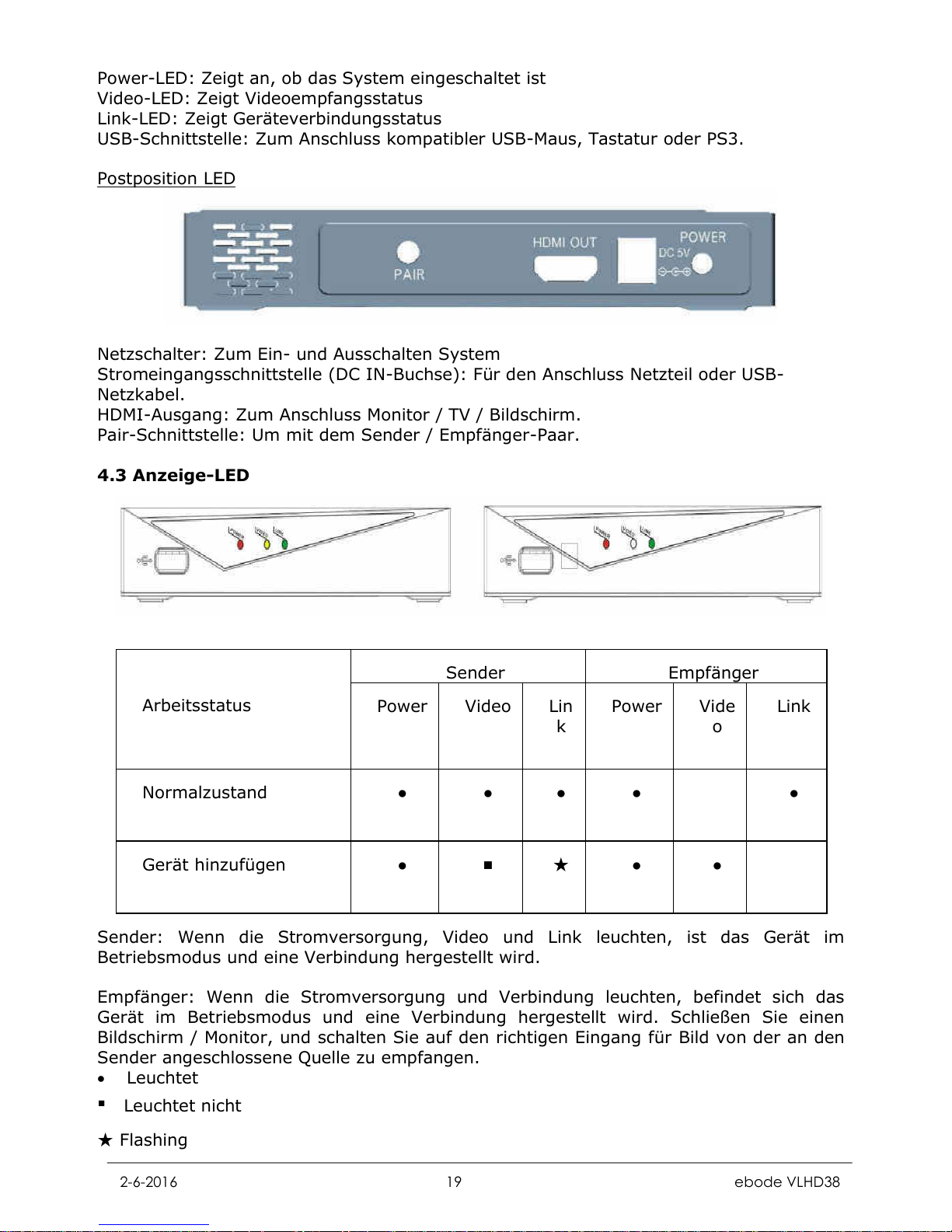

Power-LED: Zeigt an, ob das System eingeschaltet ist Video-LED: Zeigt Videoempfangsstatus Link-LED: Zeigt Geräteverbindungsstatus USB-Schnittstelle: Zum Anschluss kompatibler USB-Maus, Tastatur oder PS3.
Postposition LED
Netzschalter: Zum Ein- und Ausschalten System Stromeingangsschnittstelle (DC IN-Buchse): Für den Anschluss Netzteil oder USB- Netzkabel. HDMI-Ausgang: Zum Anschluss Monitor / TV / Bildschirm. Pair-Schnittstelle: Um mit dem Sender / Empfänger-Paar.
4.3 Anzeige-LED
Arbeitsstatus
Sender
Empfänger
Power
Video
Link Power
Vide
o
Link
Normalzustand
Gerät hinzufügen
Sender: Wenn die Stromversorgung, Video und Link leuchten, ist das Gerät im Betriebsmodus und eine Verbindung hergestellt wird.
Empfänger: Wenn die Stromversorgung und Verbindung leuchten, befindet sich das Gerät im Betriebsmodus und eine Verbindung hergestellt wird. Schlien Sie einen Bildschirm / Monitor, und schalten Sie auf den richtigen Eingang für Bild von der an den Sender angeschlossene Quelle zu empfangen. Leuchtet
Leuchtet nicht
Flashing
2-6-2016 20 ebode VLHD38

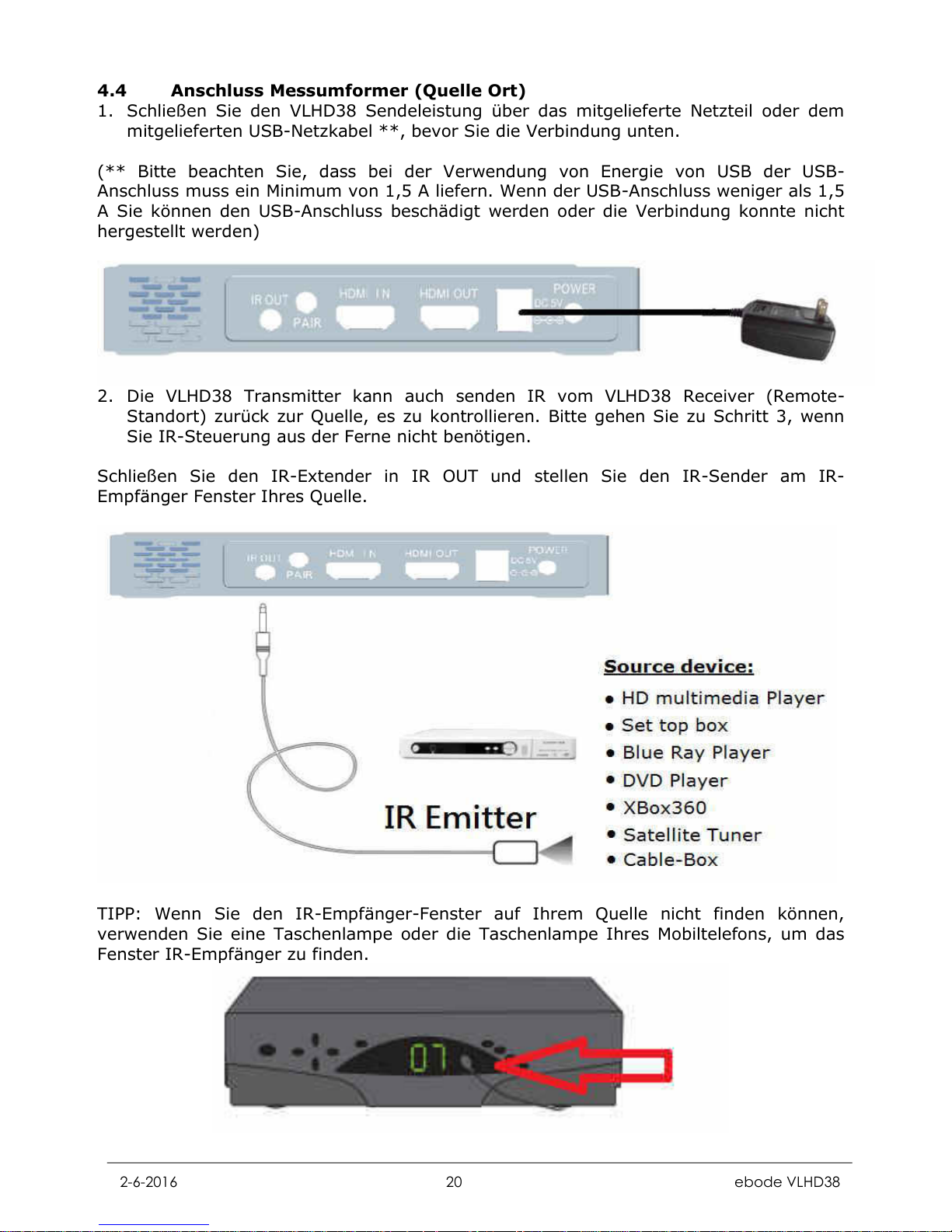

4.4 Anschluss Messumformer (Quelle Ort)
1. Schlien Sie den VLHD38 Sendeleistung über das mitgelieferte Netzteil oder dem mitgelieferten USB-Netzkabel **, bevor Sie die Verbindung unten.
(** Bitte beachten Sie, dass bei der Verwendung von Energie von USB der USB- Anschluss muss ein Minimum von 1,5 A liefern. Wenn der USB-Anschluss weniger als 1,5 A Sie können den USB-Anschluss beschädigt werden oder die Verbindung konnte nicht hergestellt werden)
2. Die VLHD38 Transmitter kann auch senden IR vom VLHD38 Receiver (Remote- Standort) zurück zur Quelle, es zu kontrollieren. Bitte gehen Sie zu Schritt 3, wenn Sie IR-Steuerung aus der Ferne nicht benötigen.
Schlien Sie den IR-Extender in IR OUT und stellen Sie den IR-Sender am IR- Empfänger Fenster Ihres Quelle.
TIPP: Wenn Sie den IR-Empfänger-Fenster auf Ihrem Quelle nicht finden können, verwenden Sie eine Taschenlampe oder die Taschenlampe Ihres Mobiltelefons, um das Fenster IR-Empfänger zu finden.
2-6-2016 21 ebode VLHD38

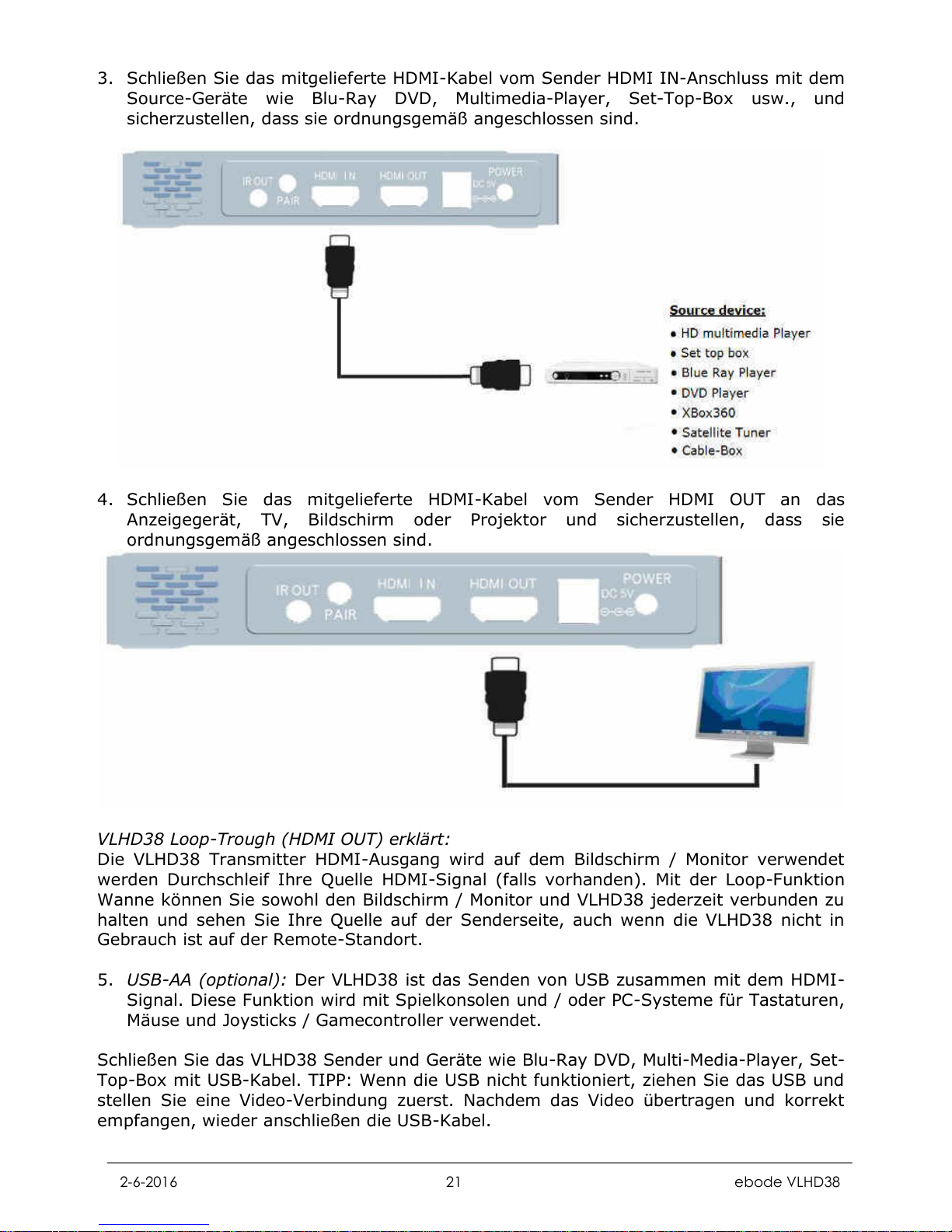

3. Schlien Sie das mitgelieferte HDMI-Kabel vom Sender HDMI IN-Anschluss mit dem Source-Geräte wie Blu-Ray DVD, Multimedia-Player, Set-Top-Box usw., und sicherzustellen, dass sie ordnungsgemäß angeschlossen sind.
4. Schlien Sie das mitgelieferte HDMI-Kabel vom Sender HDMI OUT an das Anzeigegerät, TV, Bildschirm oder Projektor und sicherzustellen, dass sie ordnungsgeß angeschlossen sind.
VLHD38 Loop-Trough (HDMI OUT) erklärt:
Die VLHD38 Transmitter HDMI-Ausgang wird auf dem Bildschirm / Monitor verwendet werden Durchschleif Ihre Quelle HDMI-Signal (falls vorhanden). Mit der Loop-Funktion Wanne können Sie sowohl den Bildschirm / Monitor und VLHD38 jederzeit verbunden zu halten und sehen Sie Ihre Quelle auf der Senderseite, auch wenn die VLHD38 nicht in Gebrauch ist auf der Remote-Standort.
5. USB-AA (optional): Der VLHD38 ist das Senden von USB zusammen mit dem HDMI- Signal. Diese Funktion wird mit Spielkonsolen und / oder PC-Systeme für Tastaturen, Mäuse und Joysticks / Gamecontroller verwendet.
Schlien Sie das VLHD38 Sender und Geräte wie Blu-Ray DVD, Multi-Media-Player, Set- Top-Box mit USB-Kabel. TIPP: Wenn die USB nicht funktioniert, ziehen Sie das USB und stellen Sie eine Video-Verbindung zuerst. Nachdem das Video übertragen und korrekt empfangen, wieder anschlien die USB-Kabel.
2-6-2016 22 ebode VLHD38

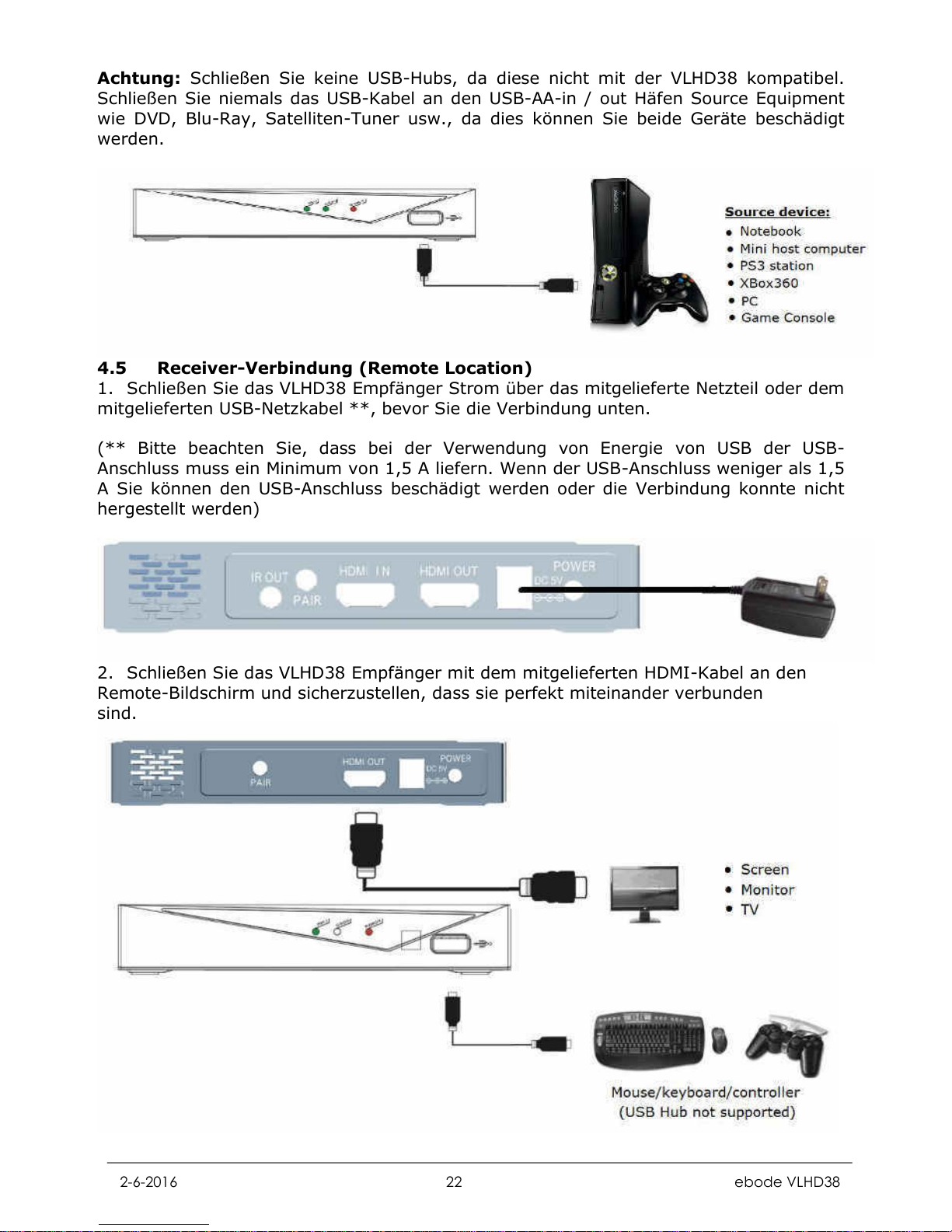

Achtung: Schlien Sie keine USB-Hubs, da diese nicht mit der VLHD38 kompatibel. Schlien Sie niemals das USB-Kabel an den USB-AA-in / out Häfen Source Equipment wie DVD, Blu-Ray, Satelliten-Tuner usw., da dies können Sie beide Geräte beschädigt werden.
4.5 Receiver-Verbindung (Remote Location)
1. Schlien Sie das VLHD38 Empfänger Strom über das mitgelieferte Netzteil oder dem
mitgelieferten USB-Netzkabel **, bevor Sie die Verbindung unten.
(** Bitte beachten Sie, dass bei der Verwendung von Energie von USB der USB- Anschluss muss ein Minimum von 1,5 A liefern. Wenn der USB-Anschluss weniger als 1,5 A Sie können den USB-Anschluss beschädigt werden oder die Verbindung konnte nicht hergestellt werden)
2. Schlien Sie das VLHD38 Empfänger mit dem mitgelieferten HDMI-Kabel an den
Remote-Bildschirm und sicherzustellen, dass sie perfekt miteinander verbunden sind.
2-6-2016 23 ebode VLHD38

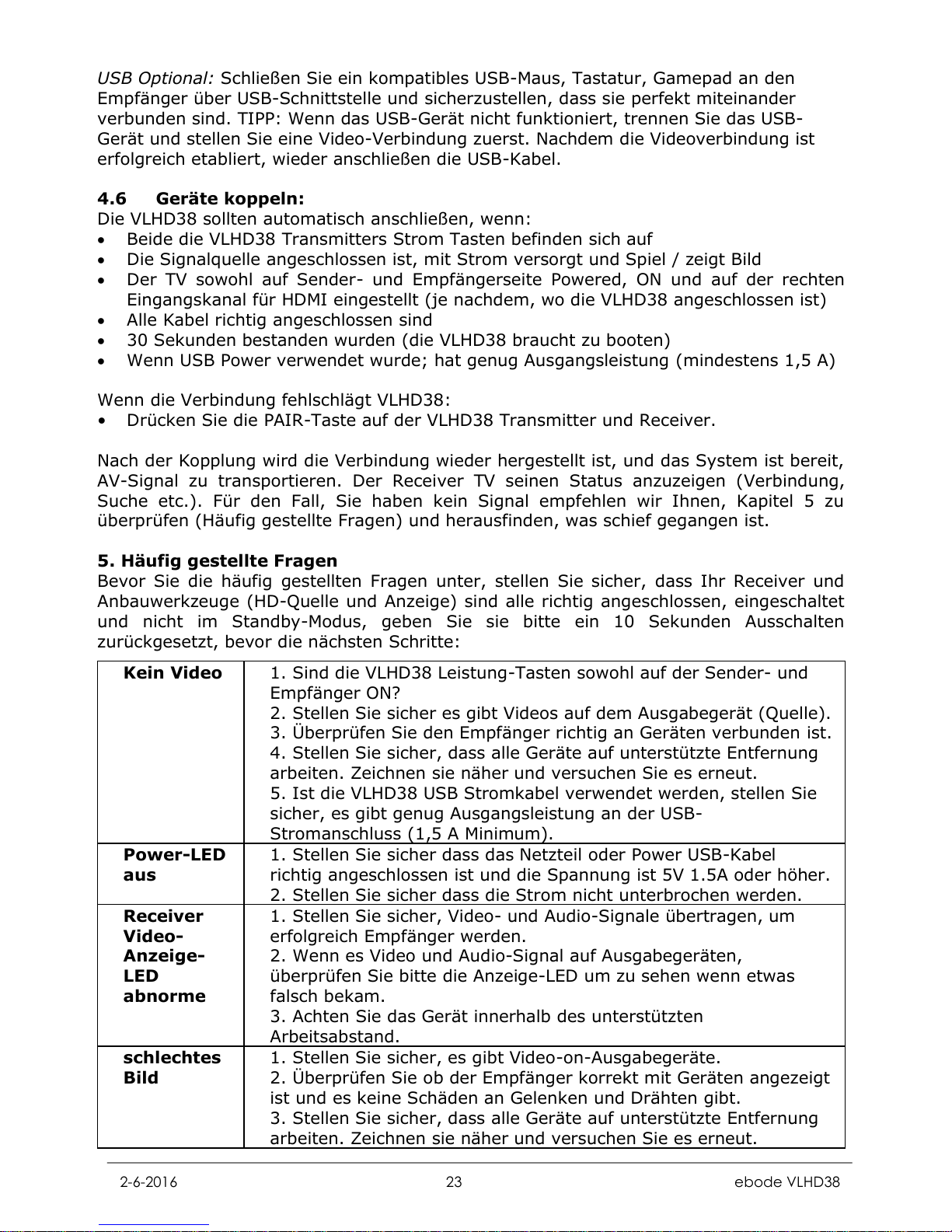

USB Optional: Schlien Sie ein kompatibles USB-Maus, Tastatur, Gamepad an den Empfänger über USB-Schnittstelle und sicherzustellen, dass sie perfekt miteinander verbunden sind. TIPP: Wenn das USB-Gerät nicht funktioniert, trennen Sie das USB- Gerät und stellen Sie eine Video-Verbindung zuerst. Nachdem die Videoverbindung ist erfolgreich etabliert, wieder anschlien die USB-Kabel.
4.6 Geräte koppeln:
Die VLHD38 sollten automatisch anschlien, wenn:
Beide die VLHD38 Transmitters Strom Tasten befinden sich auf Die Signalquelle angeschlossen ist, mit Strom versorgt und Spiel / zeigt Bild Der TV sowohl auf Sender- und Empfängerseite Powered, ON und auf der rechten
Eingangskanal für HDMI eingestellt (je nachdem, wo die VLHD38 angeschlossen ist)
Alle Kabel richtig angeschlossen sind 30 Sekunden bestanden wurden (die VLHD38 braucht zu booten) Wenn USB Power verwendet wurde; hat genug Ausgangsleistung (mindestens 1,5 A)
Wenn die Verbindung fehlschlägt VLHD38:
Drücken Sie die PAIR-Taste auf der VLHD38 Transmitter und Receiver.
Nach der Kopplung wird die Verbindung wieder hergestellt ist, und das System ist bereit, AV-Signal zu transportieren. Der Receiver TV seinen Status anzuzeigen (Verbindung, Suche etc.). Für den Fall, Sie haben kein Signal empfehlen wir Ihnen, Kapitel 5 zu überprüfen (Häufig gestellte Fragen) und herausfinden, was schief gegangen ist.
5. Häufig gestellte Fragen
Bevor Sie die häufig gestellten Fragen unter, stellen Sie sicher, dass Ihr Receiver und Anbauwerkzeuge (HD-Quelle und Anzeige) sind alle richtig angeschlossen, eingeschaltet und nicht im Standby-Modus, geben Sie sie bitte ein 10 Sekunden Ausschalten zurückgesetzt, bevor die nächsten Schritte:
Kein Video
1. Sind die VLHD38 Leistung-Tasten sowohl auf der Sender- und Empfänger ON?
2. Stellen Sie sicher es gibt Videos auf dem Ausgabegerät (Quelle).
3. Überprüfen Sie den Empfänger richtig an Geräten verbunden ist.
4. Stellen Sie sicher, dass alle Geräte auf unterstützte Entfernung arbeiten. Zeichnen sie näher und versuchen Sie es erneut.
5. Ist die VLHD38 USB Stromkabel verwendet werden, stellen Sie sicher, es gibt genug Ausgangsleistung an der USB- Stromanschluss (1,5 A Minimum).
Power-LED aus
1. Stellen Sie sicher dass das Netzteil oder Power USB-Kabel richtig angeschlossen ist und die Spannung ist 5V 1.5A oder höher.
2. Stellen Sie sicher dass die Strom nicht unterbrochen werden.
Receiver Video- Anzeige- LED abnorme
1. Stellen Sie sicher, Video- und Audio-Signale übertragen, um erfolgreich Empfänger werden.
2. Wenn es Video und Audio-Signal auf Ausgabegeräten, überprüfen Sie bitte die Anzeige-LED um zu sehen wenn etwas falsch bekam.
3. Achten Sie das Gerät innerhalb des unterstützten Arbeitsabstand.
schlechtes Bild
1. Stellen Sie sicher, es gibt Video-on-Ausgabegeräte.
2. Überprüfen Sie ob der Empfänger korrekt mit Geräten angezeigt ist und es keine Schäden an Gelenken und Drähten gibt.
3. Stellen Sie sicher, dass alle Geräte auf unterstützte Entfernung arbeiten. Zeichnen sie näher und versuchen Sie es erneut.
2-6-2016 24 ebode VLHD38

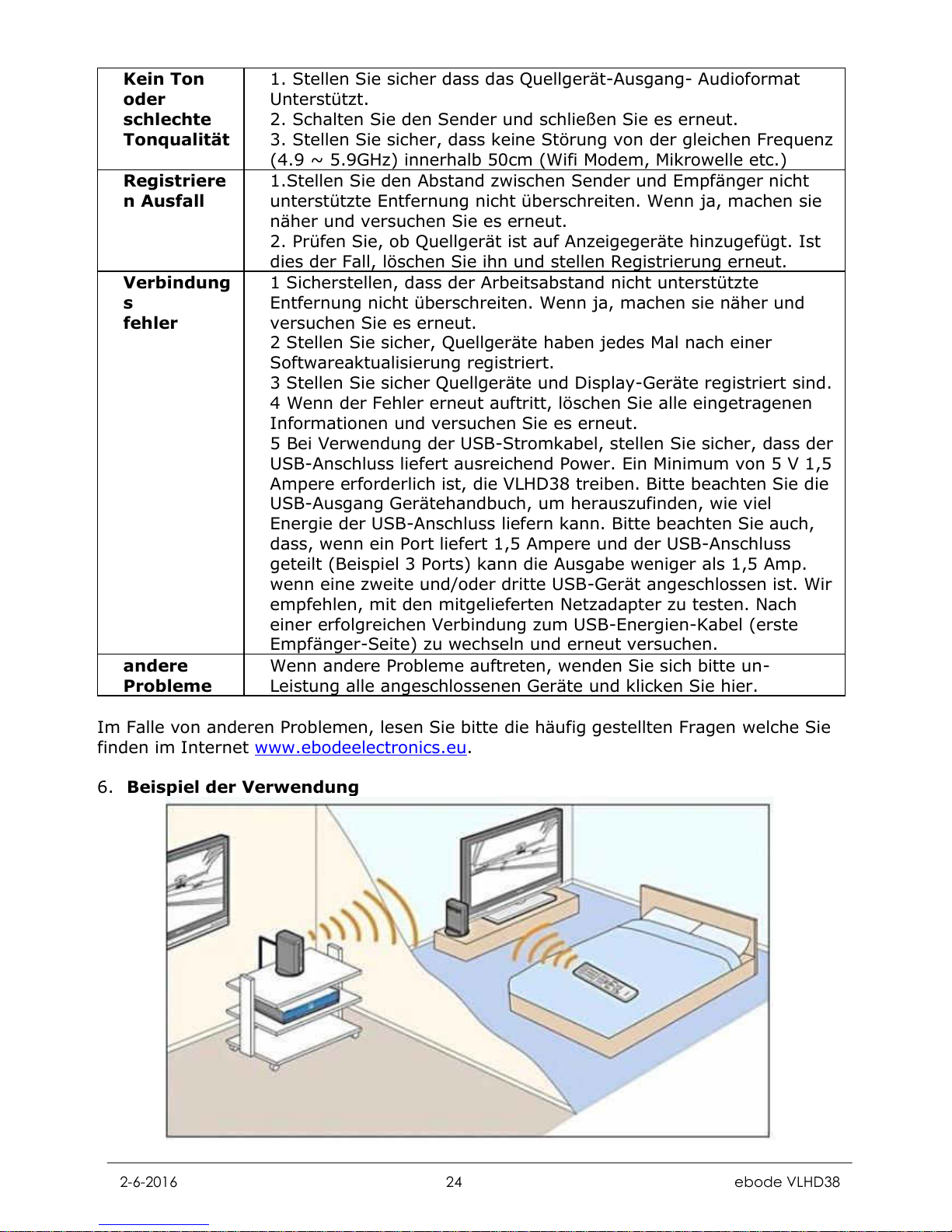

Kein Ton oder schlechte Tonqualität
1. Stellen Sie sicher dass das Quellgerät-Ausgang- Audioformat Unterstützt.
2. Schalten Sie den Sender und schlien Sie es erneut.
3. Stellen Sie sicher, dass keine Störung von der gleichen Frequenz (4.9 ~ 5.9GHz) innerhalb 50cm (Wifi Modem, Mikrowelle etc.)
Registriere n Ausfall
1.Stellen Sie den Abstand zwischen Sender und Empfänger nicht unterstützte Entfernung nicht überschreiten. Wenn ja, machen sie näher und versuchen Sie es erneut.
2. Prüfen Sie, ob Quellgerät ist auf Anzeigegeräte hinzugefügt. Ist dies der Fall, löschen Sie ihn und stellen Registrierung erneut.
Verbindung s fehler
1 Sicherstellen, dass der Arbeitsabstand nicht unterstützte Entfernung nicht überschreiten. Wenn ja, machen sie näher und versuchen Sie es erneut. 2 Stellen Sie sicher, Quellgeräte haben jedes Mal nach einer Softwareaktualisierung registriert. 3 Stellen Sie sicher Quellgeräte und Display-Geräte registriert sind. 4 Wenn der Fehler erneut auftritt, löschen Sie alle eingetragenen Informationen und versuchen Sie es erneut. 5 Bei Verwendung der USB-Stromkabel, stellen Sie sicher, dass der USB-Anschluss liefert ausreichend Power. Ein Minimum von 5 V 1,5 Ampere erforderlich ist, die VLHD38 treiben. Bitte beachten Sie die USB-Ausgang Gerätehandbuch, um herauszufinden, wie viel Energie der USB-Anschluss liefern kann. Bitte beachten Sie auch, dass, wenn ein Port liefert 1,5 Ampere und der USB-Anschluss geteilt (Beispiel 3 Ports) kann die Ausgabe weniger als 1,5 Amp. wenn eine zweite und/oder dritte USB-Gerät angeschlossen ist. Wir empfehlen, mit den mitgelieferten Netzadapter zu testen. Nach einer erfolgreichen Verbindung zum USB-Energien-Kabel (erste Empfänger-Seite) zu wechseln und erneut versuchen.
andere Probleme
Wenn andere Probleme auftreten, wenden Sie sich bitte un- Leistung alle angeschlossenen Geräte und klicken Sie hier.
Im Falle von anderen Problemen, lesen Sie bitte die häufig gestellten Fragen welche Sie finden im Internet www.ebodeelectronics.eu.
6. Beispiel der Verwendung
2-6-2016 91 ebode VLHD38

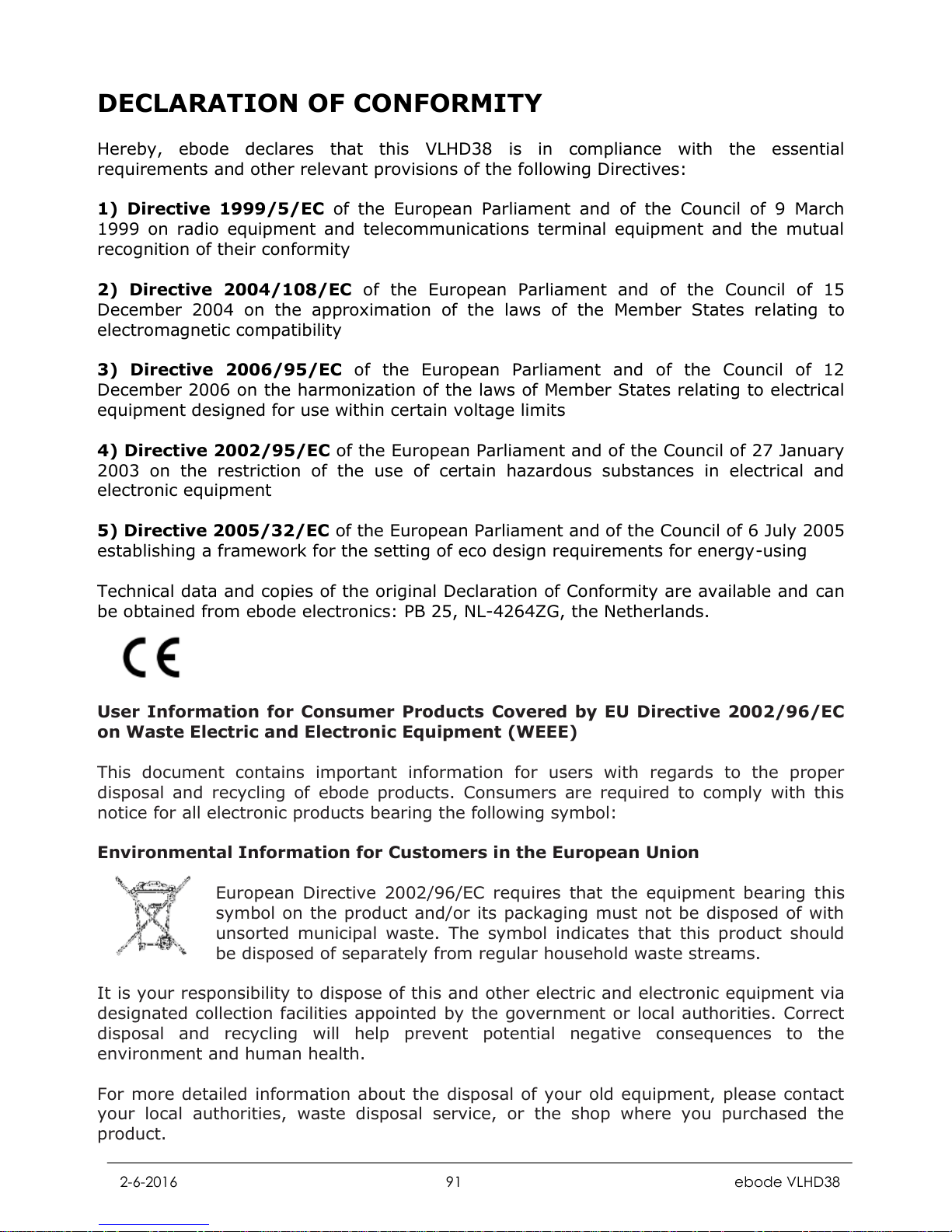

DECLARATION OF CONFORMITY
Hereby, ebode declares that this VLHD38 is in compliance with the essential requirements and other relevant provisions of the following Directives:
1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March
1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
2) Directive 2004/108/EC of the European Parliament and of the Council of 15
December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
3) Directive 2006/95/EC of the European Parliament and of the Council of 12
December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
4) Directive 2002/95/EC of the European Parliament and of the Council of 27 January
2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
5) Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005
establishing a framework for the setting of eco design requirements for energy-using
Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
2-6-2016 92 ebode VLHD38

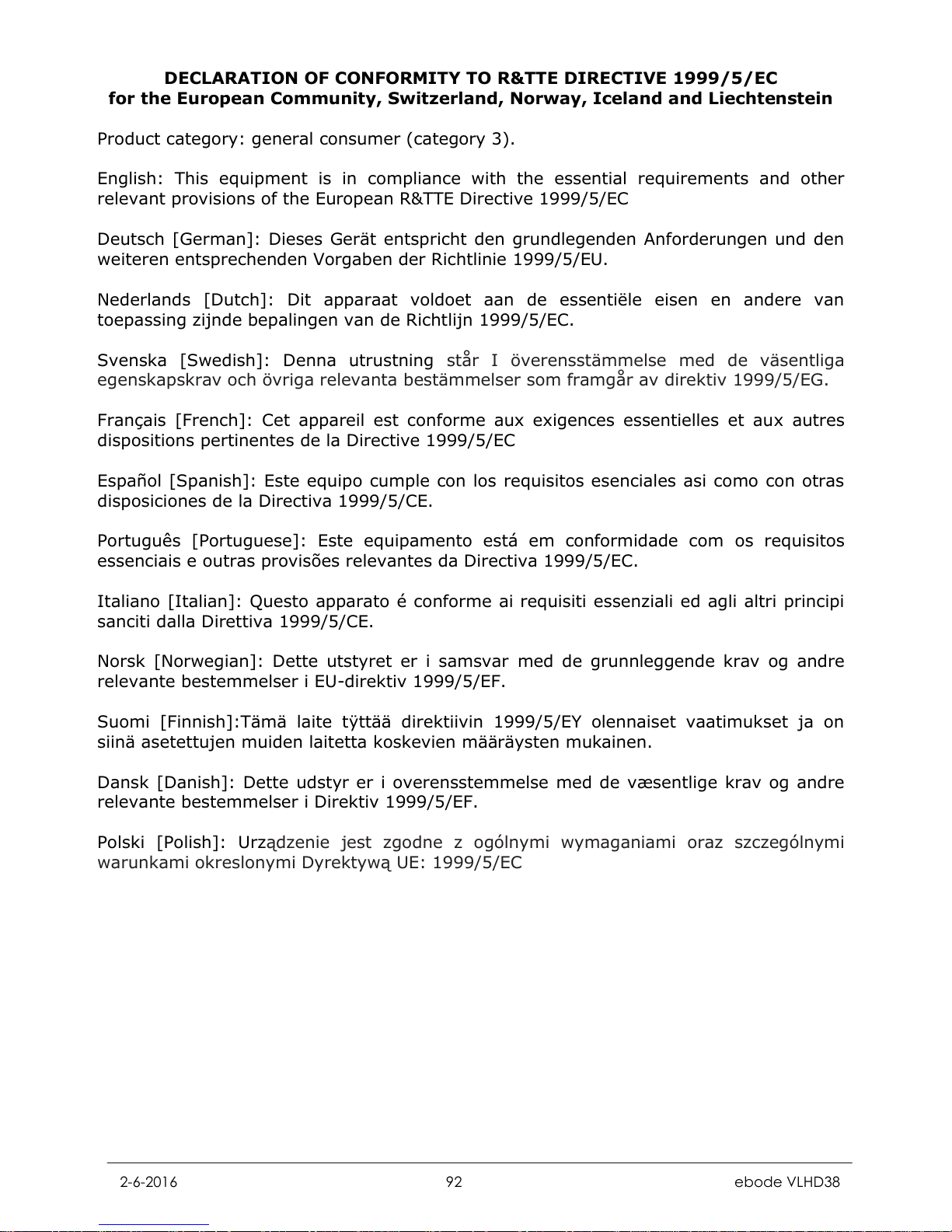

DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC
for the European Community, Switzerland, Norway, Iceland and Liechtenstein
Product category: general consumer (category 3).
English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
Deutsch [German]: Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Nederlands [Dutch]: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen van de Richtlijn 1999/5/EC.
Svenska [Swedish]: Denna utrustning
står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Français [French]: Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC
Español [Spanish]: Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 1999/5/CE.
Português [Portuguese]: Este equipamento está em conformidade com os requisitos essenciais e outras provies relevantes da Directiva 1999/5/EC.
Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE.
Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF.
Suomi [Finnish]:Tä laite tÿttää direktiivin 1999/5/EY olennaiset vaatimukset ja on siinä asetettujen muiden laitetta koskevien äräysten mukainen.
Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF.
Polski [Polish]: Urz
ądzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi
warunkami okreslonymi Dyrektywą UE: 1999/5/EC
2-6-2016 93 ebode VLHD38

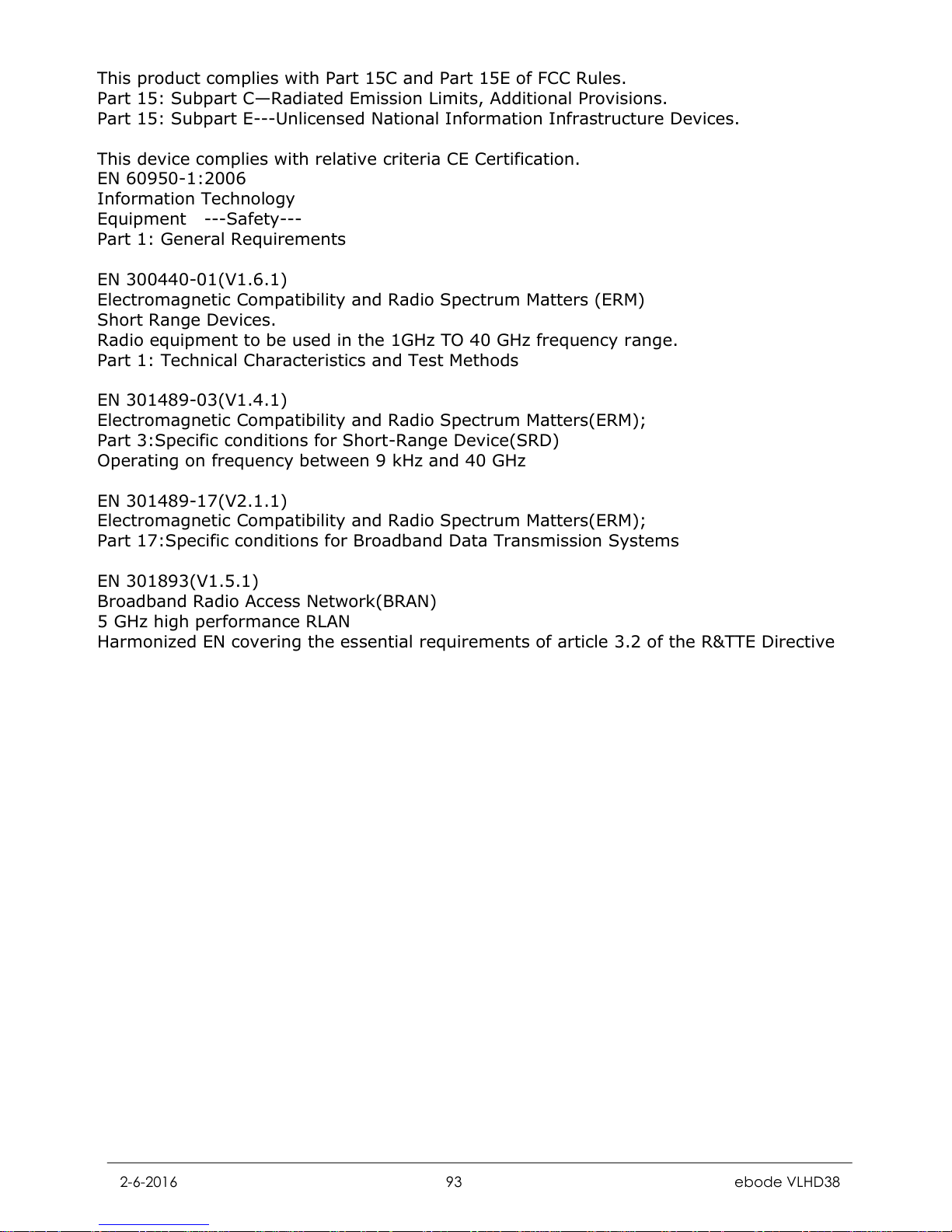

This product complies with Part 15C and Part 15E of FCC Rules. Part 15: Subpart CRadiated Emission Limits, Additional Provisions. Part 15: Subpart E---Unlicensed National Information Infrastructure Devices.
This device complies with relative criteria CE Certification. EN 60950-1:2006 Information Technology Equipment ---Safety--- Part 1: General Requirements
EN 300440-01(V1.6.1) Electromagnetic Compatibility and Radio Spectrum Matters (ERM) Short Range Devices. Radio equipment to be used in the 1GHz TO 40 GHz frequency range. Part 1: Technical Characteristics and Test Methods
EN 301489-03(V1.4.1) Electromagnetic Compatibility and Radio Spectrum Matters(ERM); Part 3:Specific conditions for Short-Range Device(SRD) Operating on frequency between 9 kHz and 40 GHz
EN 301489-17(V2.1.1) Electromagnetic Compatibility and Radio Spectrum Matters(ERM); Part 17:Specific conditions for Broadband Data Transmission Systems
EN 301893(V1.5.1) Broadband Radio Access Network(BRAN) 5 GHz high performance RLAN Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
2-6-2016 94 ebode VLHD38
2-6-2016 95 ebode VLHD38
2-6-2016 96 ebode VLHD38
www.ebodeelectronics.eu
Loading...
