Ebode VLHD30 User Manual

HD Video Link

Full HDMI Wireless Audio/Video Sender System

VLHD30

Before using our product, please read this documents carefully.

31-5-2012 2 ebode VLHD30

User Guide

CONTENTS

1. CONFORMITY OF USE

2. INTRODUCTION

3. SET CONTENTS

4. GENERAL SPECIFICATIONS

5. HARDWARE OVERVIEW

6. BEFORE YOU BEGIN

7. INSTALLING THE SYSTEM

8. QUICK INSTALLATION GUIDE

9. TECHNICAL DATA

10. Q&A

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information
carefully and follow the instructions. The unit is registered as a device that does not cause
or suffer from radio-frequency interference. It is CE approved and it conforms with the
Low Voltage Directory. The safety and installation instructions must be observed.
Technical manipulation of the product, or any changes to the product, is forbidden, due to
security and approval issues. Please take care to set up the device correctly - consult your
user guide. Young children should use the device only under adult supervision. No
guarantee or liability will be accepted for any damage caused due to incorrect use of the
equipment supplied, other than indicated in this owner’s manual.

SAFETY WARNINGS

 To prevent short circuits, this product (except if specified for outdoor usage) should
only be used inside and only in dry spaces. Do not expose the components to rain or
humidity.
 Only connect the adapter to the mains after checking whether the mains voltage is the
same as the values on the rating labels. Never connect an adapter or power cord when it
is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm,
it is a good precaution to unplug the power supply from the mains network in order to
protect it from lightning. The same applies if the system is to be out of action for any
length of time.
 Avoid strong mechanical tear and wear, extreme ambient temperatures, strong
vibrations and atmospheric humidity.
 Do not disassemble any part of the product: the device contains live parts and no
user-serviceable parts are inside. The product should only be repaired or serviced by
qualified and authorized service personnel. Defected pieces must be replaced by original
(spare) parts.
 Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical
waste. Never use old and new batteries or different types of batteries together. Remove
the batteries when you are not using the system for a longer period of time.

When inserting batteries, please be sure the polarity is right. Make sure that the batteries
are not short circuits and are not disposed in fire (danger of explosion).
In case of improper usage or if you have opened, altered and repaired the product
yourself, all guarantees expire. The supplier does not accept responsibility in the case of
improper usage of the product or when the product is used for purposes other than
specified. The supplier does not accept responsibility for additional damage other than
covered by the legal product responsibility.

31-5-2012 3 ebode VLHD30

2. Introduction

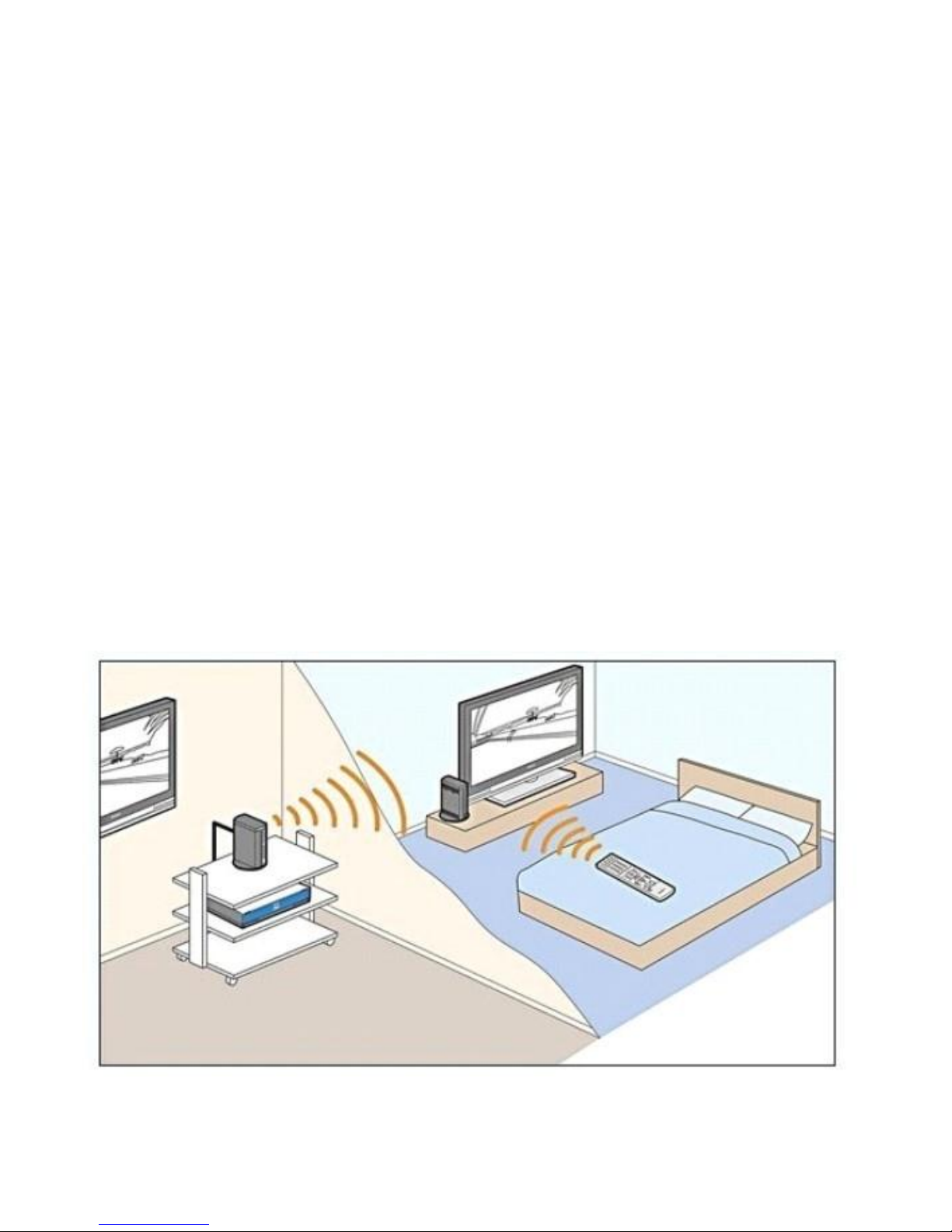

This wireless HD audio/video kit solution allows you to place your HD TV set or projector
wherever you want, free of constraint or cables. Just connect your HD TV or projector to
the Receiver with an HDMI cable, and connect your A/V equipment (Blu-ray players, HD
set-up boxes, game consoles or HD media players and streamers) to the Transmitter.
Almost every display with an HDMI input is compatible with this kit, please make sure the
display supports HDCP when watching Blu-ray movies.

This setup doesn’t clutter your media and allows the A/V equipment to be hidden in a
cabinet. This solution delivers uncompressed 1080p full HD video and audio content to
your existing HDTV set wirelessly. It operates the transmission in 4.9 GHz~ 5.9 GHz
frequencies and it can adjust its communication frequency automatically in case of
interference from another RF system. With built-in Omni-directional antennas, it can
transmit uncompressed video content up to 30 meters (66 feet) LOS (Line of sight) with
no latency.

Both IR Sensor Extender Cable and IR Blaster Extender Cable are included in the package
so users can point their own remote control of the A/V source at the Receiver directly for
device operation.

NOTE: Except North America, The wireless link might require 80 seconds

to connect between Transmitter and Receiver, and show video on the TV
screen. Please be patient and wait for a while.

Product description

Freedom from unsightly audio-visual components and wires is finally at hand! With the
Wireless HDMI Kit, you can enjoy your beautiful HDTV, HD projector without having to
stare at the mess of wires and boxes that make up your home theatre system. Just
connect your AV components, such as your STB, PS3, BD DVD player, HD camera, HD
Photographic or stereo receiver, to this Kit, and enjoy your multi-media content delivered
wirelessly with perfect resolution and clarity to any HDTV in your house. This means that
you can finally place your TVs exactly where you want, without having to worry about
available cable jacks, outlets, or space for your components.

Features

● No Latency for playing high definition video game console;

● Omni directional Antenna System for Maximum 100 feet (30 meters) LOS HD Video

Transmission Distance;

● fully Support the HDMI connector, Up to 1080P 60HZ Picture Quality;

● Support up to HDMI 1.3a, HDCP 1.2;

● Support EDID;

● Support CEC (Demand Transmission and Receiver Device support);

● Support IR Blasting;

● Transmission power ≧12dBm;

● Auto set-up, plug & play. One to One connection;

● Support AES-256 bit Encryption for securing Video Transmission over wireless;

● Support maximum 100kbs Return channel;

● Support OSD;

● Support WHDI 1.0;

31-5-2012 4 ebode VLHD30

3. Set contents

1x Transmitter
1x Receiver
2x Bracket
1x IR Extension Cable
2x HDMI Cable
2x Power Adapter

4. General Specifications

Supported Video Resolution

1080p, 1080i,720p,576p,480p,

Supported Audio Formats

PCM,DTS, DOLBY DIGITAL

Communication system

MIMO

Modulation

OFDM

Transmission Max. Power

12 dBm

Transmission Range

≦30M

System Latency

Less than 1ms

Antenna

Omni directional High performance small form factor
Internal Antennas

Operating Frequencies

5.1~5.9 GHz (non-DFS FREQUENCY Bands for US,
EU, JP, TW.

Supported IR Blasting
Frequency

38KHz

Power Supply

100～240V AC，5V 2A DC

Storage Temperature

-20～80℃

Operating Temperature

-10～50℃

*Operation on the NON-DFS (Dynamic frequency selection) Frequency with automatic
Frequency selection, the system will automatically change frequency in case of interference
with another RF system.

31-5-2012 5 ebode VLHD30

5. Hardware Overviews

Transmitter

① Receptor for the power Adapter

5V/2A, using power supply with different Voltage rating than the one included with the
VLHD30 will cause damage and void warranty for these products.

② HDMI Input Connector

Connect all devices with a good quality HDMI High Speed Cable to make sure
The connection is in the best possible condition.

③ IR signal output interface

Connect the IR extension cable and aim the IR head to the device which need to be
control. It will receive the IR signal from the Transmitter side and send it to the
Receiver side.

④ Network Link LED status

After the power is connected, the green LED in the front will show the communication
status. When the LED has turned green, your connection has succeeded. When the
green LED is off, the connection is not complete or out of range. When the LED is
flashing green, your device is defective.

⑤ Video Link LED status

When the HDMI cable is connected, the LED shows the video connected status. When
the LED is green, it show the video connect has succeeded. When the green LED is
off, it show the video connect has failed or is not complete, make sure your TV is on,
connected with the HDMI cable and on the right channel (source HDMI).

⑥ Frequency Reset button

When the received video image quality is poor, you can press this button for a short
time (less than 1 second). Then the transmitter is ready to change frequency and you
can start to change the transmitting frequency for every time you press this button.

⑦ Power LED.

31-5-2012 6 ebode VLHD30

Receiver

① Receptor for the power Adapter

5V/2A, using power supply with different Voltage rating than the one included with
the VLHD30 will cause damage and void warranty for these products.

② HDMI Output connector

Connect all devices with a good quality HDMI High Speed Cable to make sure
The connection is in the best possible condition.

③ Network Link LED status

After the power is connected, the green LED in the front will show the communication
status. When the LED has turned green, your connection has succeeded. When the
green LED is off, the connection is not complete or out of range. When the LED is
flashing green, your device is defective.

④ Video Link LED status

When the HDMI cable is connected, the LED shows the video connected status. When
the LED is green, it show the video connect has succeeded. When the green LED is
off, it show the video connect has failed or is not complete, make sure your TV is on,
connected with the HDMI cable and on the right channel (source HDMI).

⑤ This button is reserved for some extended functionality

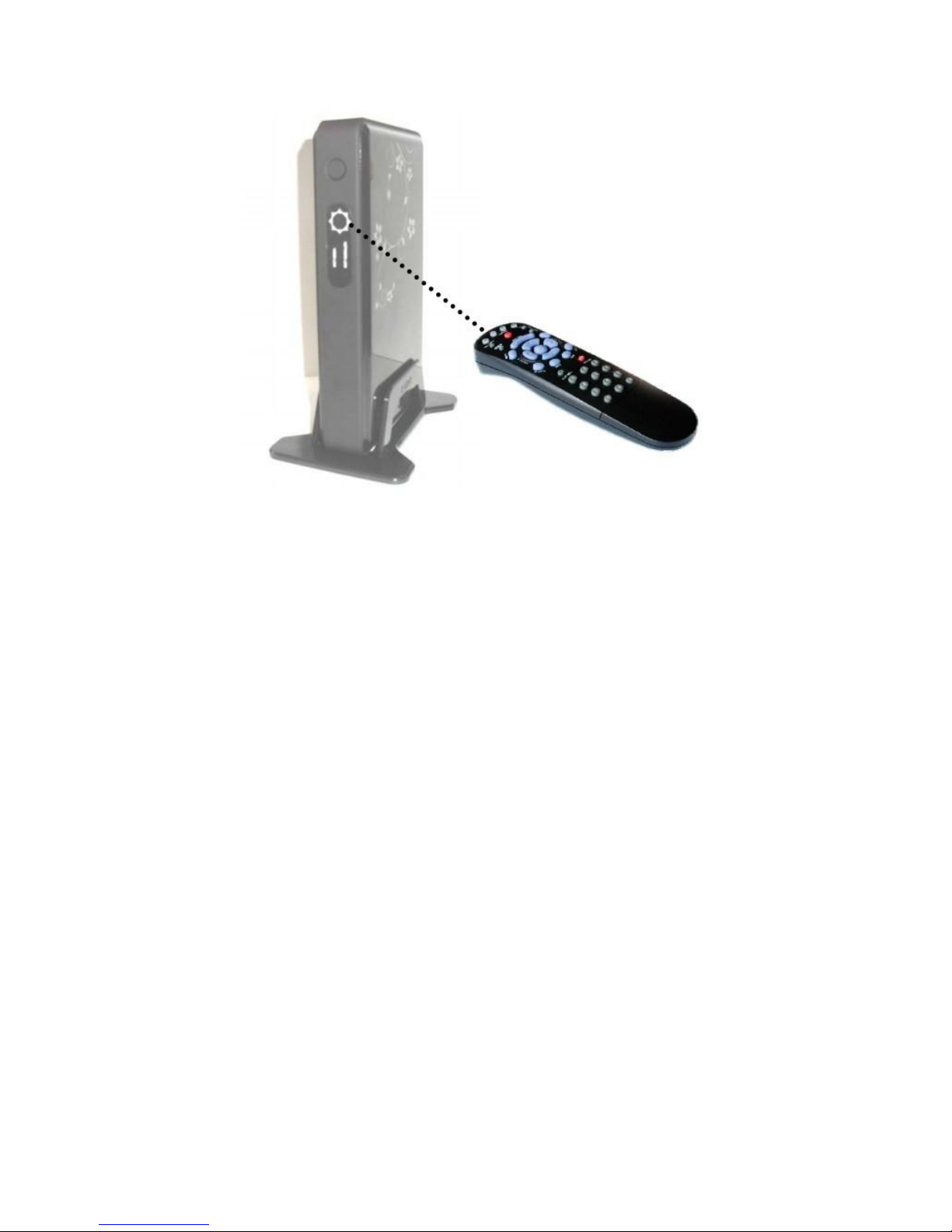

⑥ IR control receiving port

Aim the original remote of your video source to this window to control the source.

⑦ Power LED
