1 WELCOME

This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with
network connectivity and a powerful web server to bring clear to your Desktop from anywhere on your local
network or over the Internet.
The basic function of it is transmitting remote video on IP network. The high quality video image can be
transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology.
It is based on TCP/IP standard, build-in WEB server which could support Internet Explore. Therefore the
management and maintenance of your device become more simply by using network to achieve the
remote configuration, start-up and upgrade firmware.
You can use this IP Camera to monitor some special places such as your home and your office. Also
controlling and managing images are simple by clicking the website through the network.

1.1 Features

☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 300k pixels
☆Optimized MJPEG video compression for transmission
☆Multi-level users’ management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Support wireless network (WI-FI/802.11/b/g)
☆Supporting Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Giving alarm in cause of motion detection
☆Supporting image snapshot
☆Support multiple protocols：HTTP/TCP/IP/UDP/SMTP/DDNS/SNTP/DHCP/FTP
☆Support WEP/WPA/WPA2 encryption
☆Support 3G phone, Smart phone control and surveillance
☆Support Firefox, Safari, Google chrome browser.

1.2 Packing List

Untie the pack and check the items contained against the following list:

● IP Camera X1

● Quick Start Guide X1

● Power Supply X1

● CD X1

● Network Cable X1

● Mounting bracket X1

NOTE: Please contact us immediately in case of any damaged or short of contents.

Manual version 1 – March 2012 5 IP Vision 58

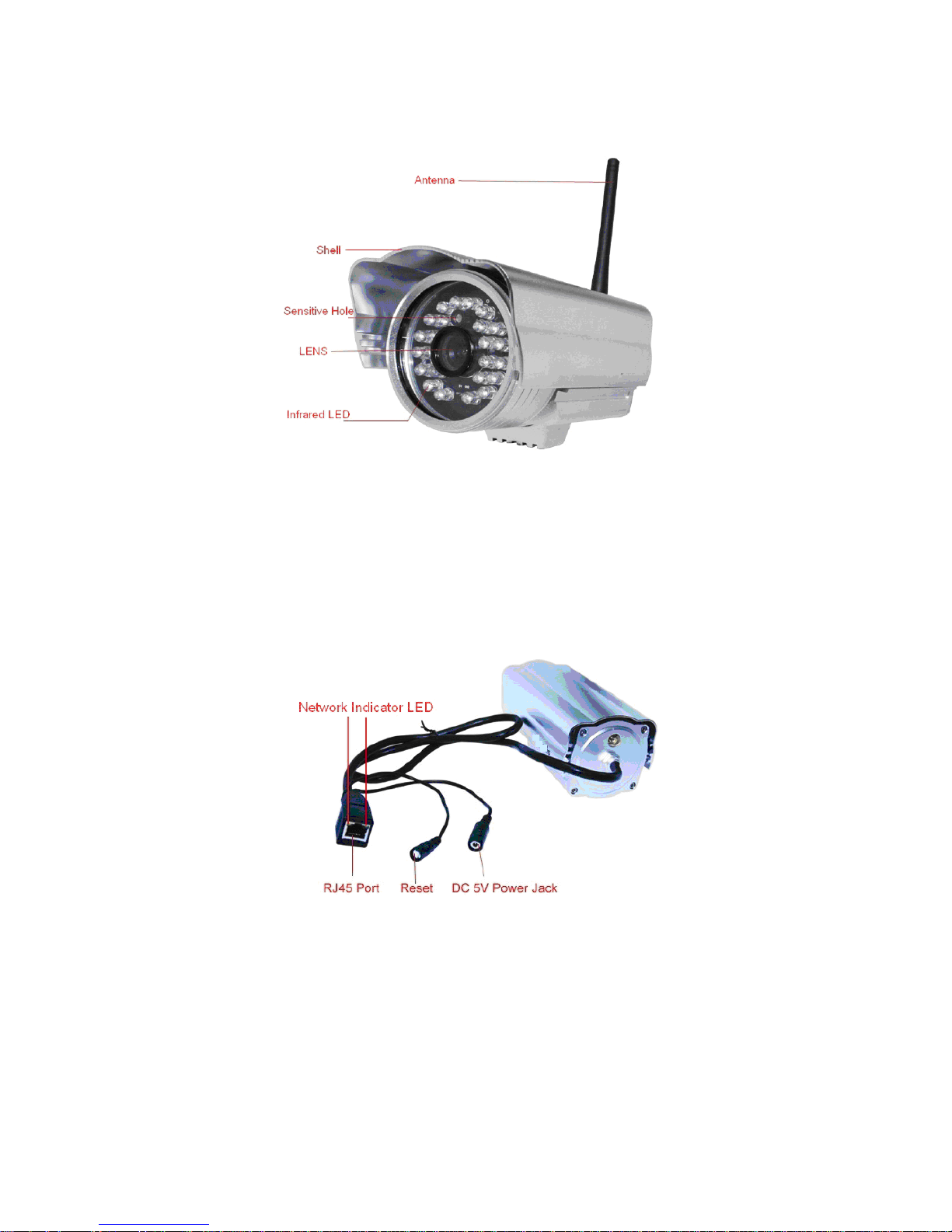

1.3 Product Views

1.3.1 Front View

Figure 1.1

Sensitive Hole: For light sensitive
Infrared LED: For night Vision.
LENS: CMOS sensor with fixed focus lens. (Default is 6mm, 3.6mm optional)
Antenna: WI-FI Antenna
Shell: For protection and waterproof

1.3.2 Rear Panel

Figure 1.2
Network Indicator LED: The green LED will on when connect to the network, the yellow LED will blink when
data transferred

RJ45 Port: RJ-45/10-100 base T, connect the network cable here.
Power Jack: DC 5V/2A power supply
RESET BUTTON: Press and hold the RESET BUTTON for 15 Seconds, then the IPCAM will be reset back to the
factory default Parameter. (Please keep the power on when do RESET)

Manual version 1 – March 2012 6 IP Vision 58

1.3.3 Bottom View

a

Figure 1.3

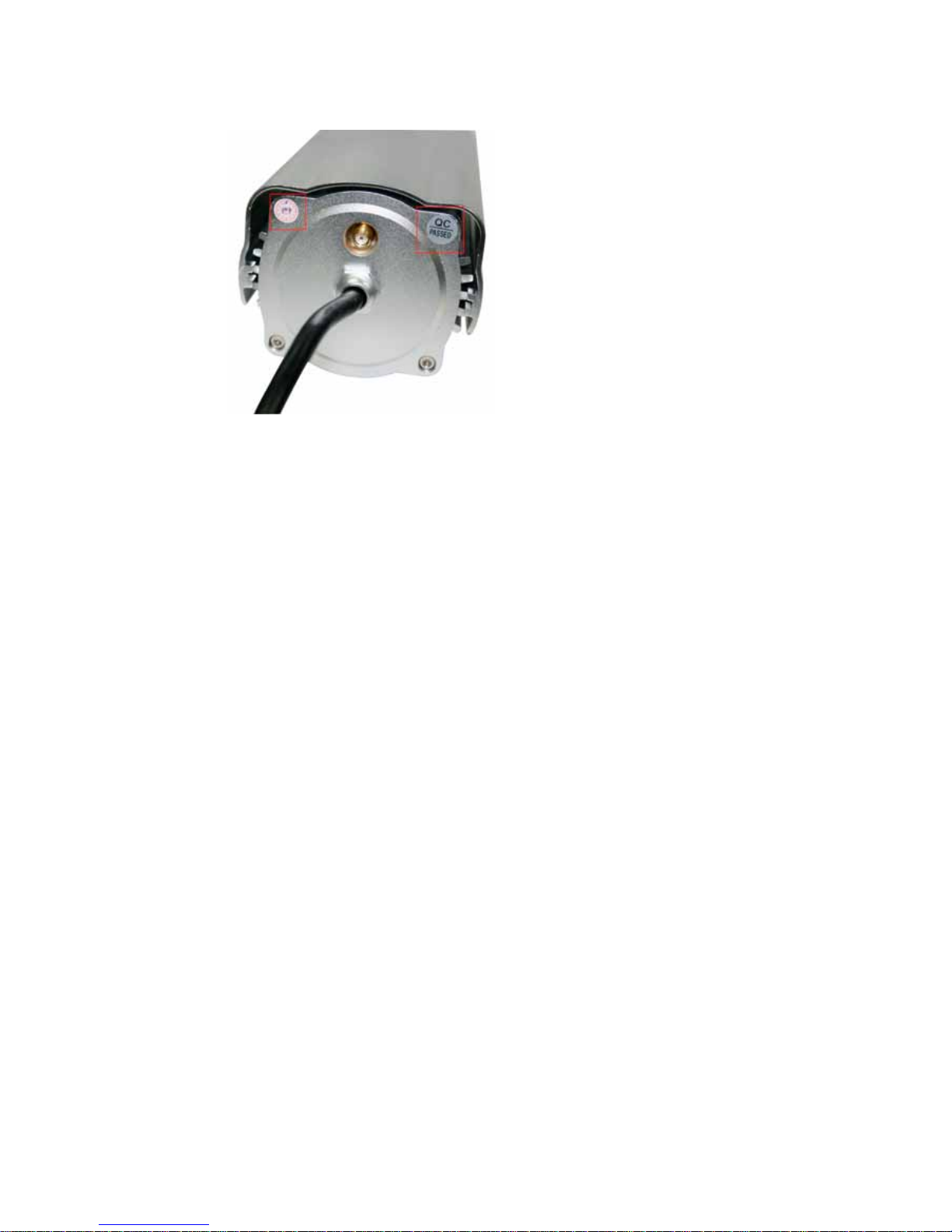

Original ebode IPCAM have some stickers at the bottom/back, such as MAC address sticker, QC sticker etc.
If your camera does not have these stickers, it may be a clone one, clone ebode IPCAM could not use the
original firmware and obtain our good after sale service.

1.4 PC System Requirements

System configuration requirements : (Example for viewing four IPCAM)
CPU: 2.06GHZ or above
Memory: 256M or above
Network Card: 10M or above
Display Card: 64M or above memory
Recommendable Operating system: Windows 2000/ XP/ Vista/ 7

1.5 Hardware Instruction

Follow the steps below to set up your camera hardware. Make sure to follow each step carefully to ensure
that the camera operates properly

1. Install the Wi-Fi antenna

2. Plug the power adaptor into camera

3. Plug the network cable into camera and router/switch

4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from

“IP Camera Tool” (Figure: 1.9)

5. When the power on and network cable connected, the green led of the real panel will keep on,
The yellow led will keep flash, and the Indicator led at the front of the camera will flash. (The indicator LED
can be controlled by software)

Manual version 1 – March 2012 7 IP Vision 58

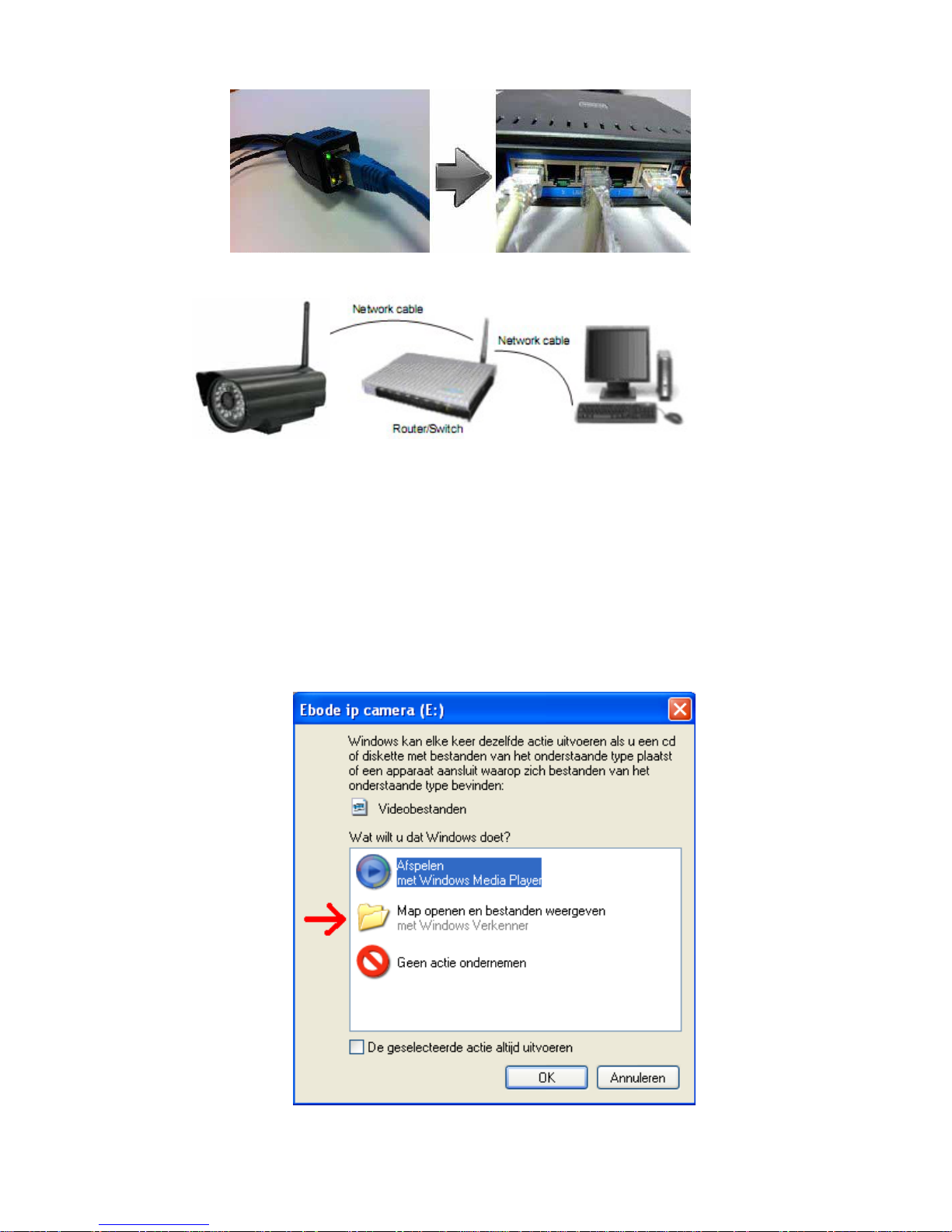

Figure1.4

1.6 Software Installation

1. IP Camera Tool: Insert the CD, a popup menu might appear like shown in the picture below.

2. Select “Open Map” and click “OK”

Manual version 1 – March 2012 8 IP Vision 58

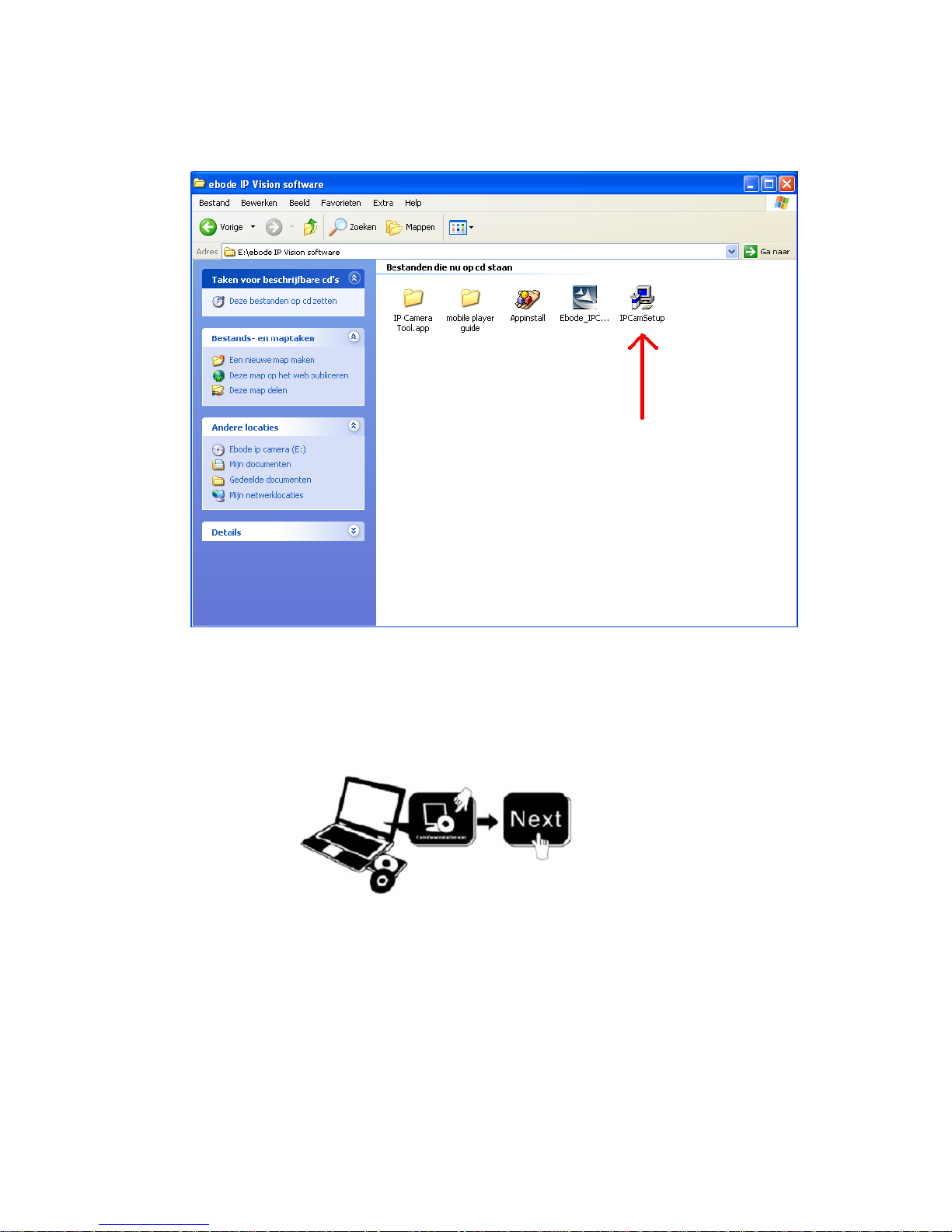

3. Open the “ebode IP Vision Software” map and double click “IPCamSetup.exe” then click next to

complete the software installation. (Please note that on some computer systems it might take a few
seconds before the “IPCamSetup” icon will appear)

In order to run smooth we will need to install the “ActiveX App” on each system we would like to use to visit the
camera. The “AppInstall” file is located in the same folder as the “IPCamSetup” file from the previous steps.
Please take the following steps:

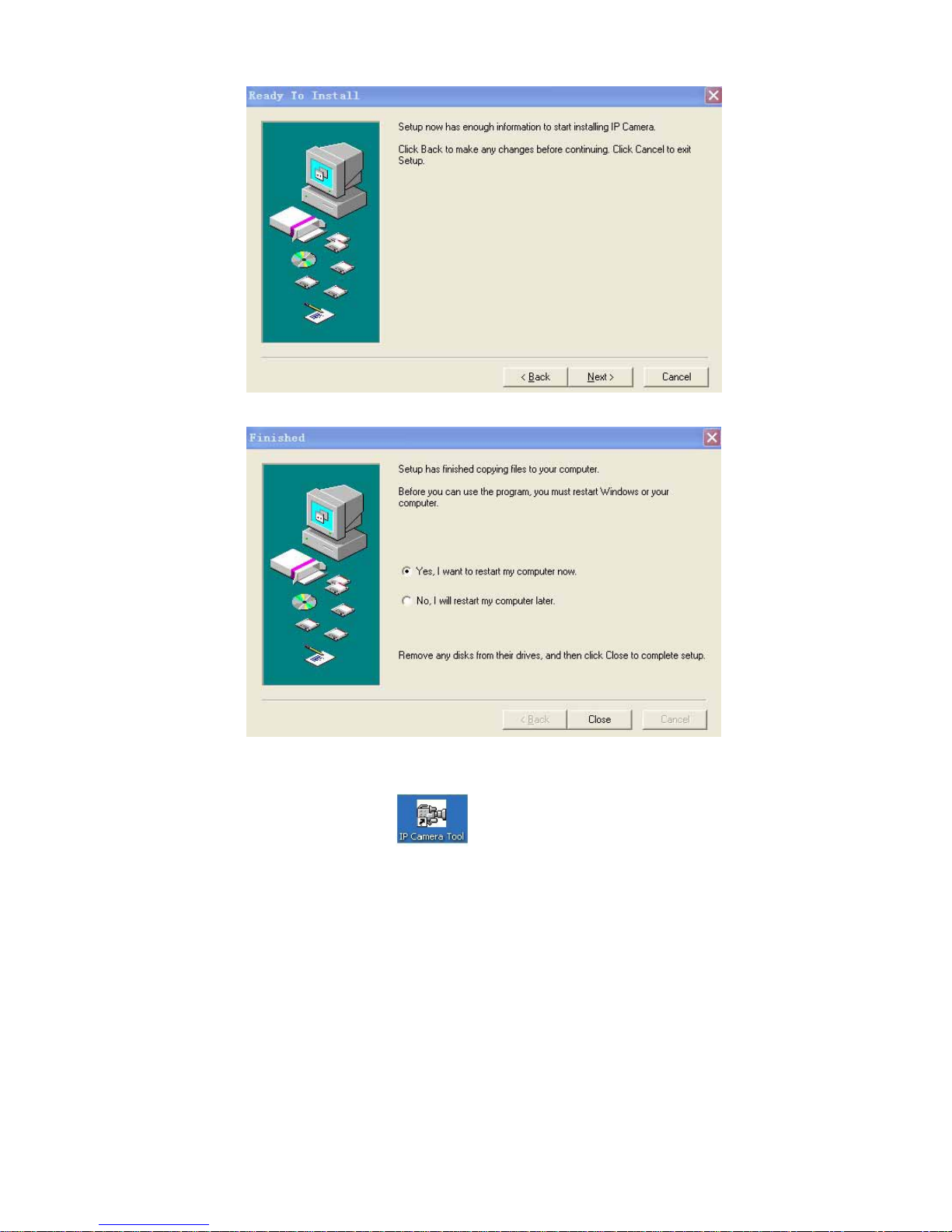

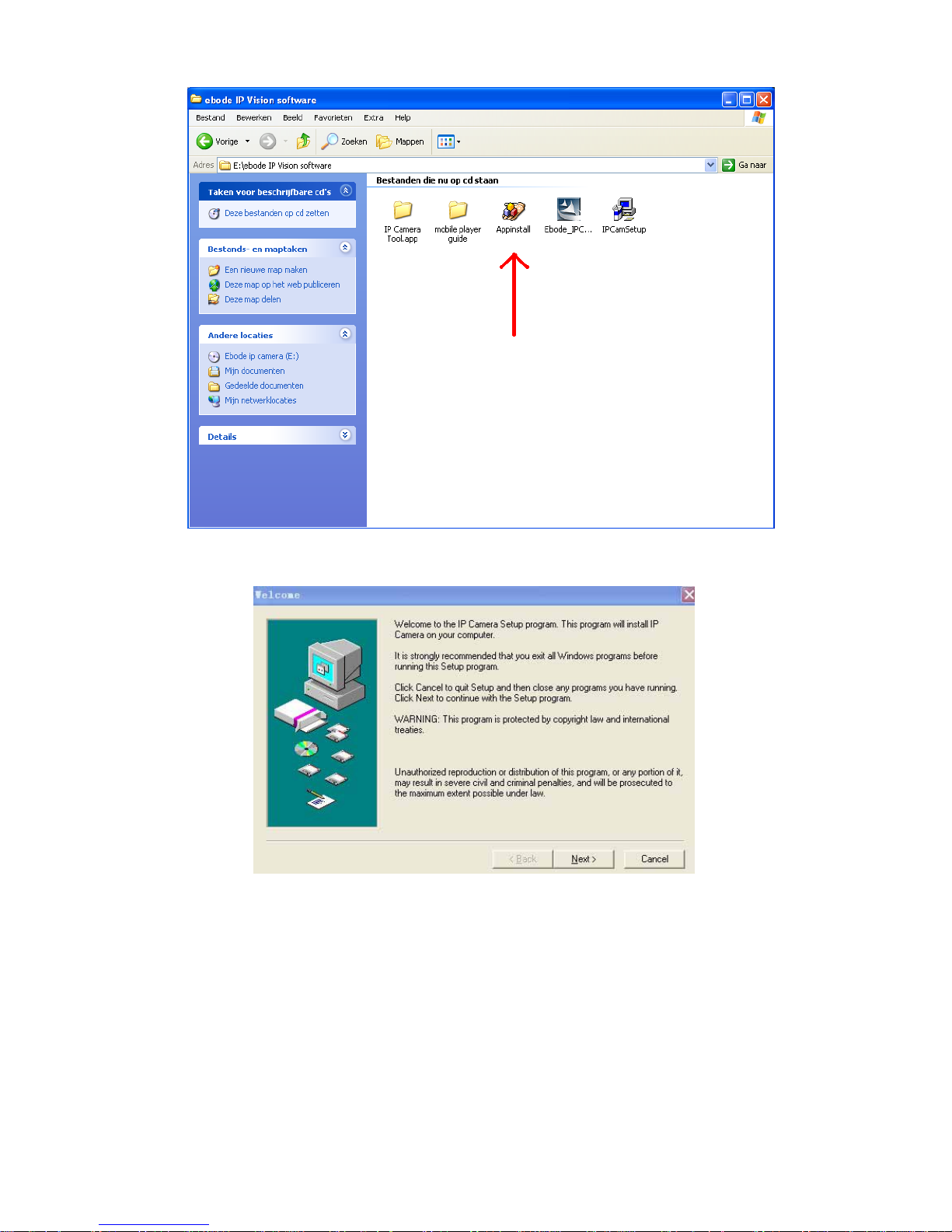

4. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.

Figure 1.5

Manual version 1 – March 2012 9 IP Vision 58

Figure1.5

Figure1.6

Manual version 1 – March 2012 10 IP Vision 58

Figure1.7

Figure1.8

After this done, the icon “IP Camera Tool”

will be displayed on desktop automatically.

CAUTION: Before installing and using the product, please read the following precautions carefully and make
sure they are fully understood.
Use only the power adaptor attached with the product. Use unauthorized power adapter may cause
damage to your IP Camera.

IP Camera terminal could be installed in an outdoor environment.

Do not touch the lens of the IP Camera at will. The optimum focus range has been set before it is delivered
out of the factory. If you turn the lens, it may cause incorrect focus and vague images.

For firmware upgrading or connection with an external, refer to detailed instructions contained in the CD.

Manual version 1 – March 2012 11 IP Vision 58

WARNING : On the first run of the program “IP Camera Tool” you might get a Windows Security Alert Popup. It
will ask you to choose a setting for the firewall. Please make sure you choose the ‘UNBLOCK’ option. Your IP
camera will not

work without unblocking the firewall settings.

2. SOFTWARE OPERATION

2.1 IP Camera Tool

When the Device has been mounted properly, you can double click the Icon “IP Camera Tool”

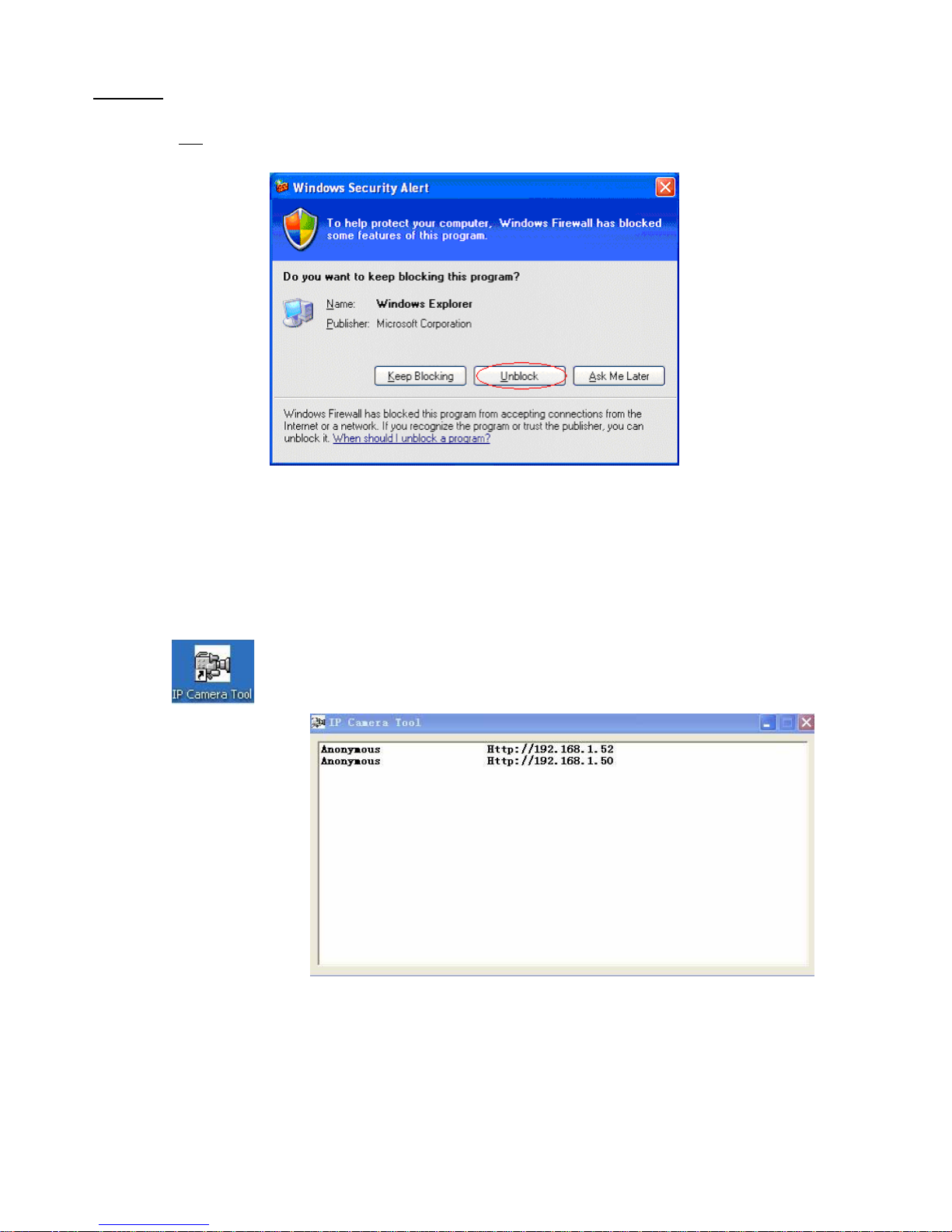

and a dialog box as Figure 1.9 will pop up.

Figure1.9

NOTE: The software searches IP Servers automatically over LAN.

There are 3 cases:

1. No IP Cameras found within LAN. After about 1 minute search, the Result Field will show “not found IP
Server” and the program shut automatically.

Manual version 1 – March 2012 12 IP Vision 58

2. IP Cameras have been installed within LAN. All the IP Cameras will be listed and the total number is
displayed in the result field as shown in Figure 1.9

3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt as
shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left mouse button to
choose the prompt and click the right mouse, choose Network Configuration to set the static IP address of
the Camera to the same subnet as LAN. (Figure 2.3)

NOTE: If it shows” Subnet doesn’t match, double click to change!”, you can also choose ”Obtain IP from DHCP
Server” to get a dynamic IP. (Figure 2.2) If the camera still doesn`t show in the IP Camera Tool please use the

Reset button on the bottom of the camera and hold it for 15 seconds with the power on. (Figure 1.3)

Please be sure your computer is on the same network as the camera !

2.1.1 Six Options

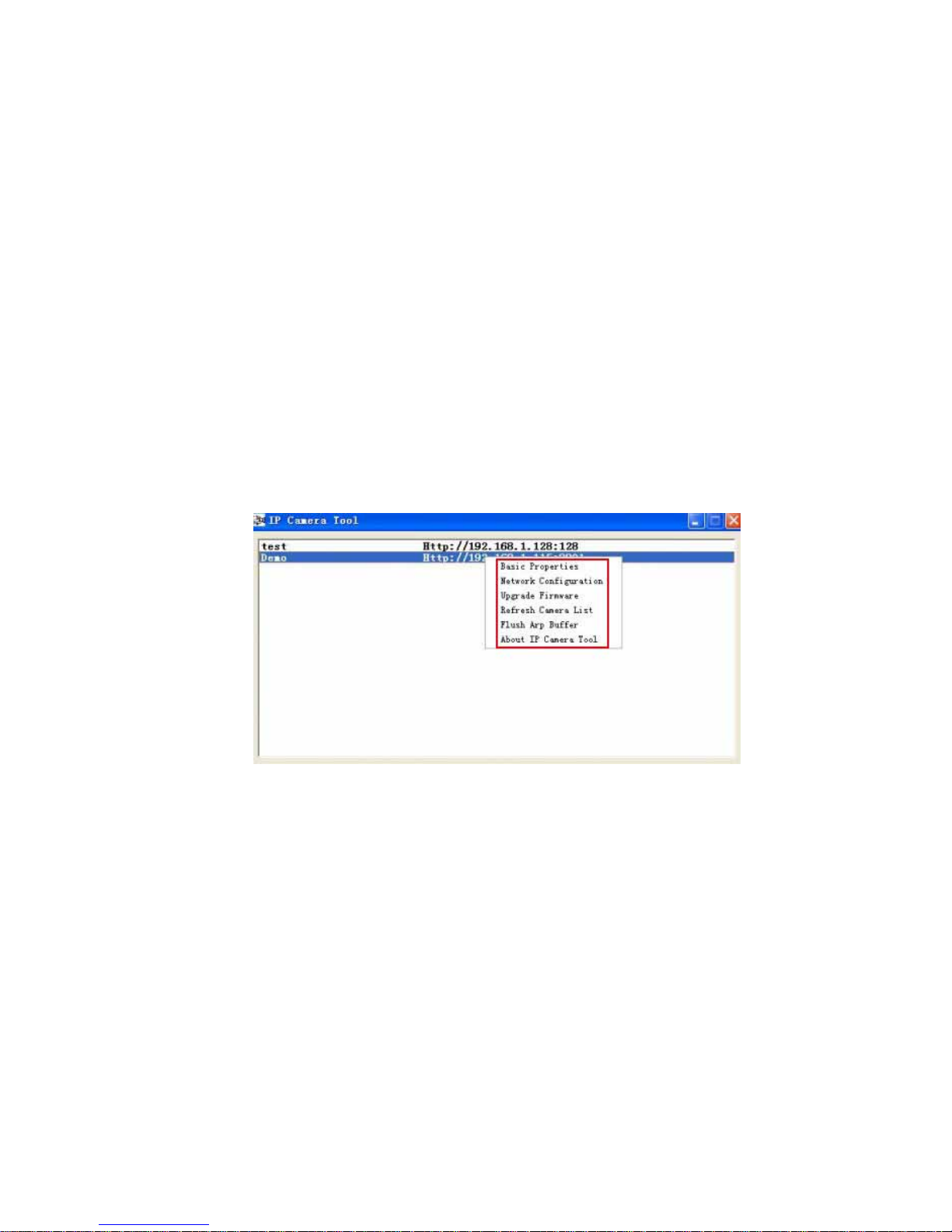

Choose the IP Camera and Click the right mouse button on that camera, there are six options: (Figure 2.0).

Basic Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp Buffer, About IP
Camera Tool.

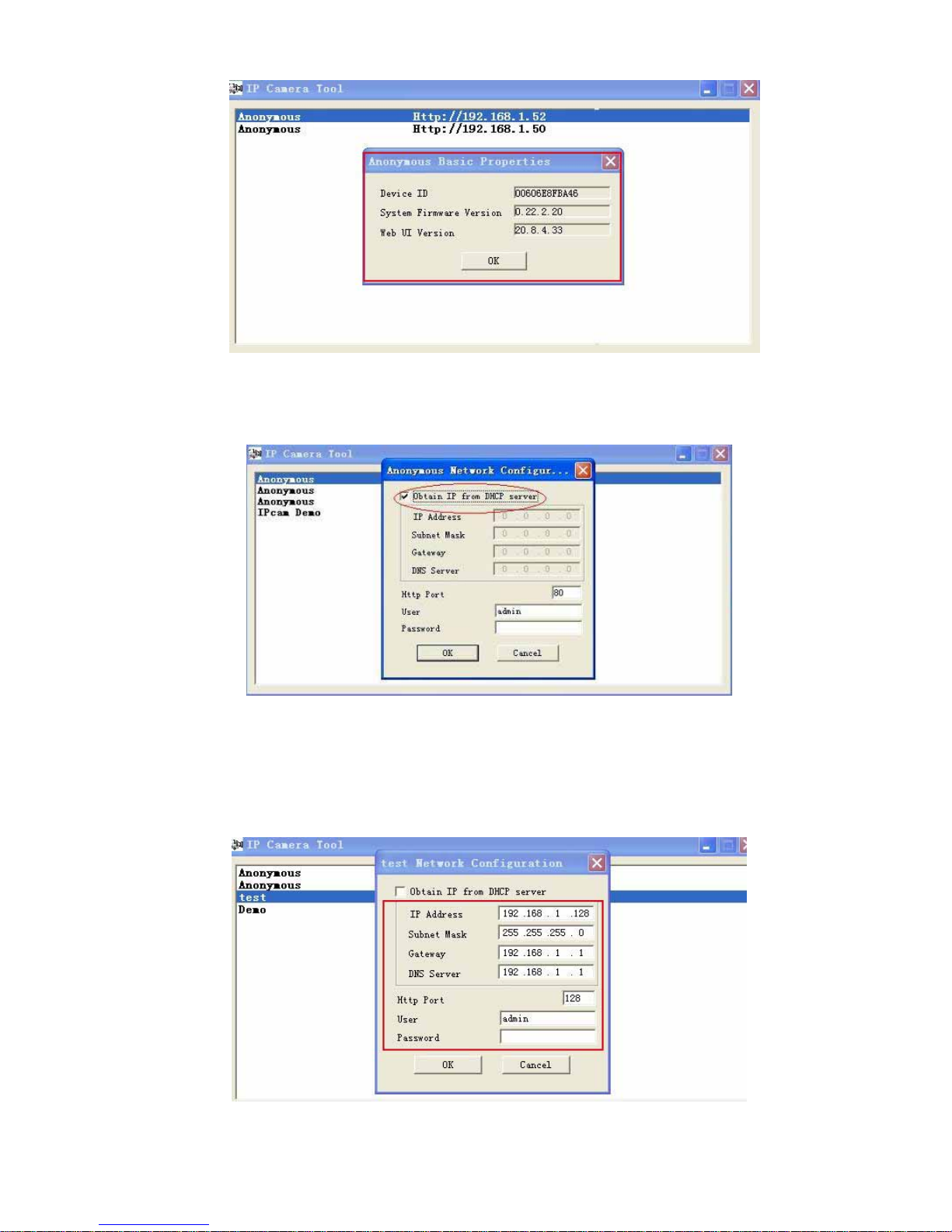

Figure2.0

2.1.1 .1 Basic Properties
There are some device information in the Basic Properties, such as Device ID, System Firmware Version, Web
UI Version.（Figure 2.1）

The Device ID just is the camera’s MAC ID, which should be the same as showed on the sticker at the bottom
of camera. Every camera has its unique MAC ID. So if there are many IP address showed in the list, check the
MAC ID, you can ensure which camera is it.

Sometimes, if there is no IP address showed on the IP Camera tool, maybe it’s blocked by firewall, then add
the MAC ID to the router, and give it a fixed IP or add the MAC ID as a trusted site. There are two MAC
Address, one is Device MAC ID, the other is WIFI MAC ID.

WIFI MAC ID, you can find it from the sticker at the bottom of the camera, if this sticker lost, you can login
your WIFI router, check the host status, which will show all the WIFI device connect to this router, you can also
find the IPCAM’s WIFI MAC ID there.

Manual version 1 – March 2012 13 IP Vision 58

Figure2.1

2.1.1.2 Network Configuration

In this page, you can configure the Network parameter.

Figure2.2

Obtain IP from DHCP server: If clicked, the device will obtain IP from DHCP server. In other words, the camera
will have a dynamic IP. (Make sure the Router which the camera connects has DHCP function and DHCP is
enabled). (Figure 2.2)

Figure 2.3

Manual version 1 – March 2012 14 IP Vision 58

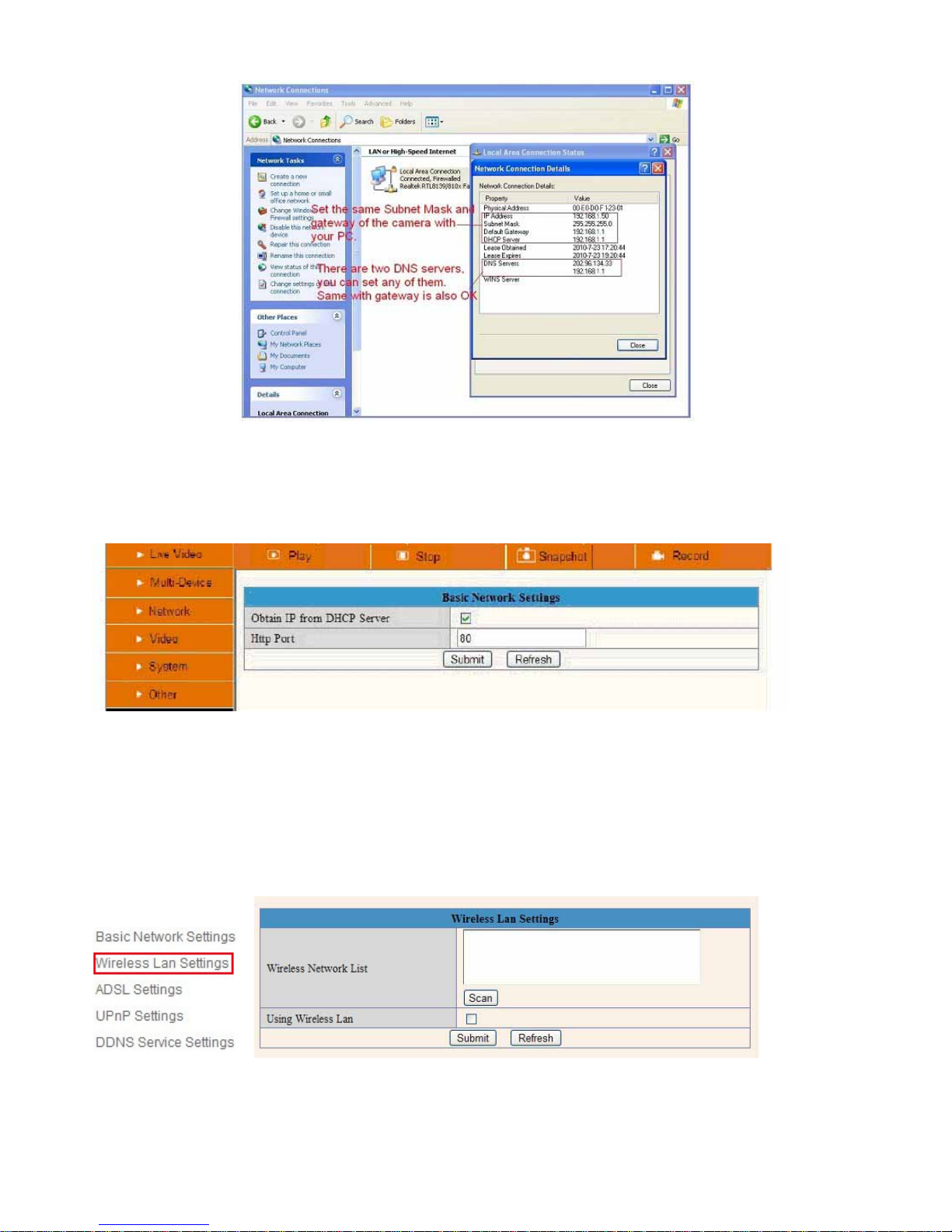

IP address: Fill in the IP address assigned and make sure it is in the same subnet as the Gateway, and the
subnet should be the same as your computer or router. (I.e. the first three sections are the same)
Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0. You can find the subnet mask from
your PC or router.

Gateway: Make sure it is in the same subnet with PC’s IP address .Here gateway is the LAN IP of your router.
DNS Server: IP address of IPS network provider. You can also set it’s the same as the Gateway.

NOTE: You can find the Subnet Mask, Gateway, DNS Server from your router, or check the local connection

status of your computer, get all the parameters. Normally two DNS servers are optional.

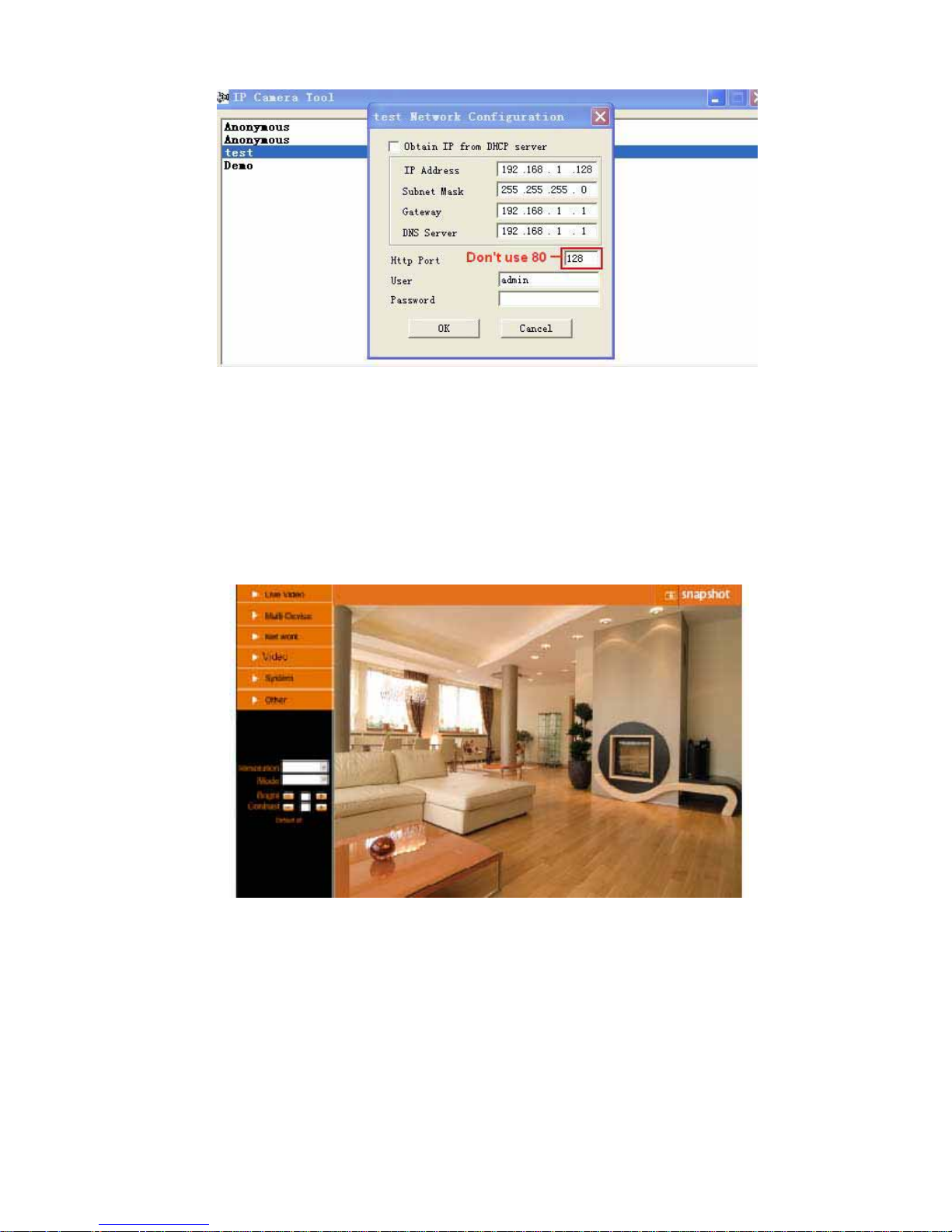

Http Port: LAN port assigned for the equipment, default is 80. You could set another port number like 81, 801,
8001 etc.

User: Default administrator username is: admin (please make sure all are lowercase letter)
Password: Default password is bank, no password.

NOTE: When prompt “subnet doesn’t match, double chick to change!” appeared, please set the IP Address,
Subnet Mask, Gateway, DNS Server once again, or enable Obtain IP from DHCP server.

2.1.1.3 Upgrade Firmware

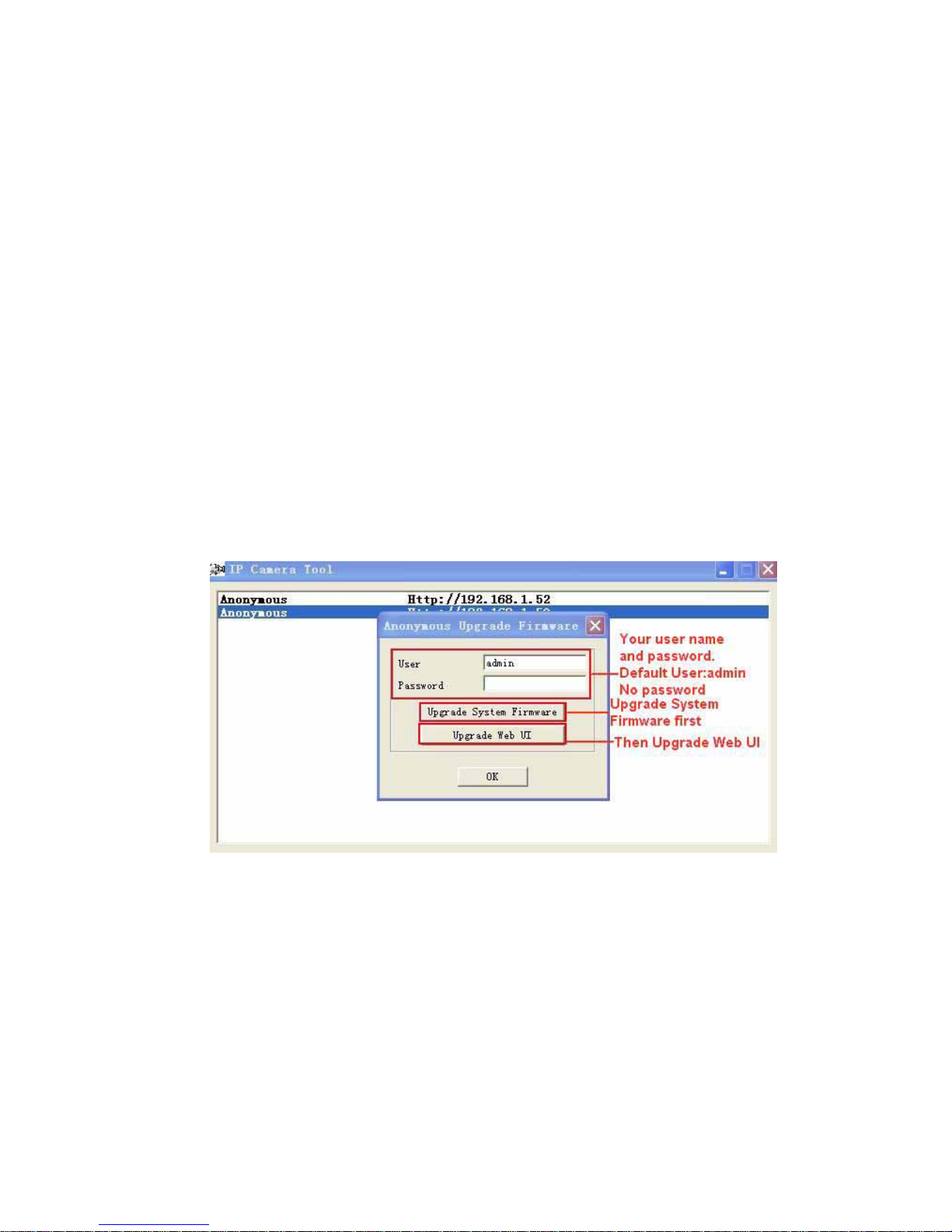

Enter the correct User and Password to upgrade system Firmware and Web UI. If you upgrade the camera,
Please upgrade system firmware first and then upgrade Web UI. Or it may damage the camera.（Figure 2.4）

Figure 2.4

Please download the firmware package under the correct type of your camera before upgrade.
Follow the upgrade document in the package carefully to upgrade. Please look readme firstly before you
do upgrade.

CAUTION: You should not upgrade the firmware unnecessarily. It is possible to damage the camera if a
mistake is made during the upgrade. If your camera works well with the current firmware, we recommend that
you don’t upgrade it.

NOTE: When doing an upgrade, remember you must keep the power on, and it’s best to use wired mode,
connected via the network cable.

Manual version 1 – March 2012 15 IP Vision 58

2.1.1.4 Refresh Camera List
Refresh camera list manually.

2.1.1.5 Flush Arp Buffer
When cable network and wireless network of the device are fixed IP address .There is a problem you may
encounter is can search the camera IP but can’t open the camera web page .you may try to use Flush Arp
Buffer.

2.1.1.6 About IP Camera Tool
Check the IP Camera Tool Version and IP Camera ActiveX Control Version here.

2.2 Camera Login

You can access the camera through IP Camera Tool or IE, Firefox, Safari, Google Chrome or other standard
browser directly.

1. Double click the IP address of the IP Camera listed (Figure 1.9). Select your language and

browser you use. Note that IE Browser stands for “Internet Explorer” which is Microsoft Windows
default browser.

ADVISORY: If you are going to use this manual to set up the camera, we suggest you select the English
language, as all images and references in this manual are in English. After installation, you can of course
select your own language to login and view the camera.

Manual version 1 – March 2012 16 IP Vision 58

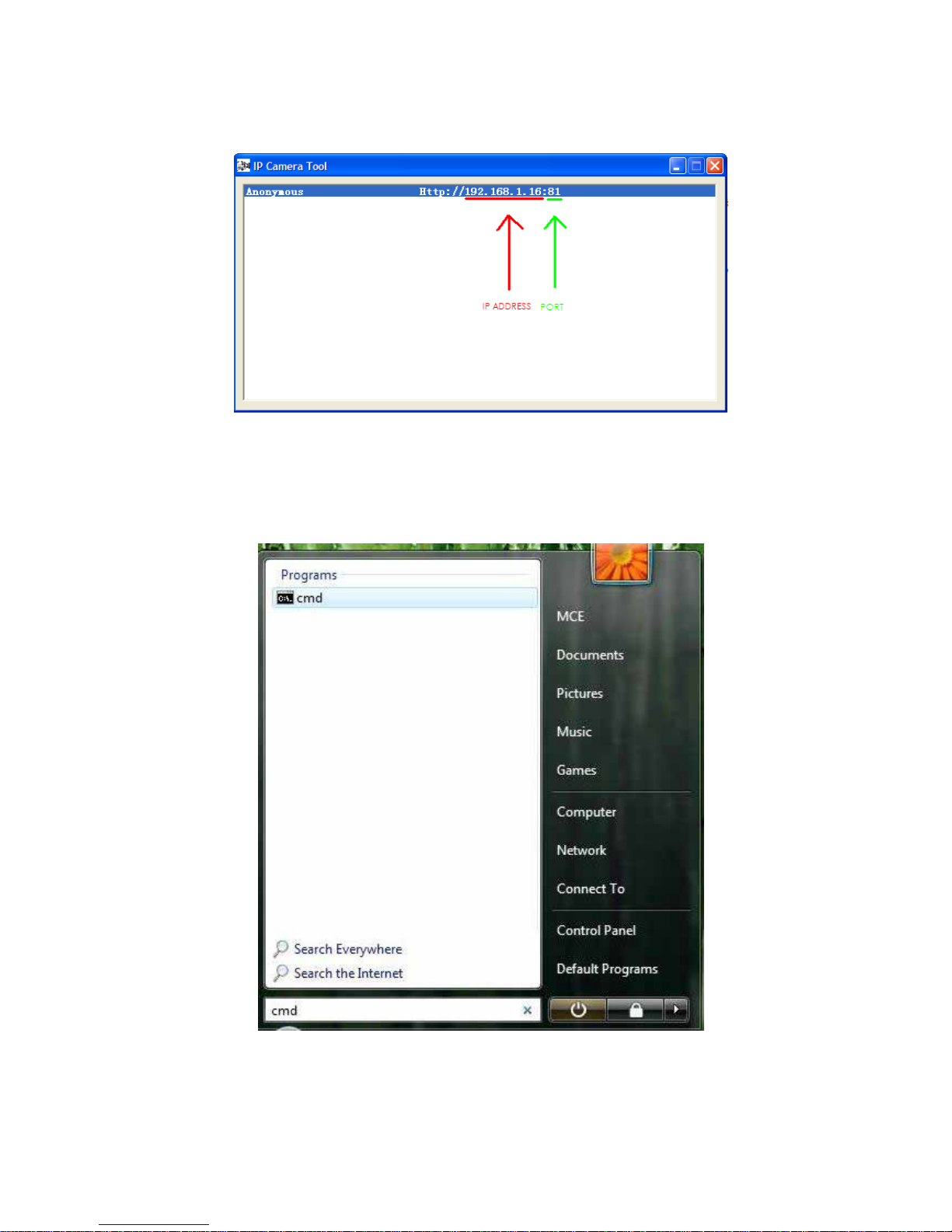

2. To access the camera by IE Browser directly, just type the camera’s IP address, You will find the
address of your camera with the Camera Tool (Figure 1.9). For example, if the camera’s IP address is

192.168.1.123:

Figure 2.5

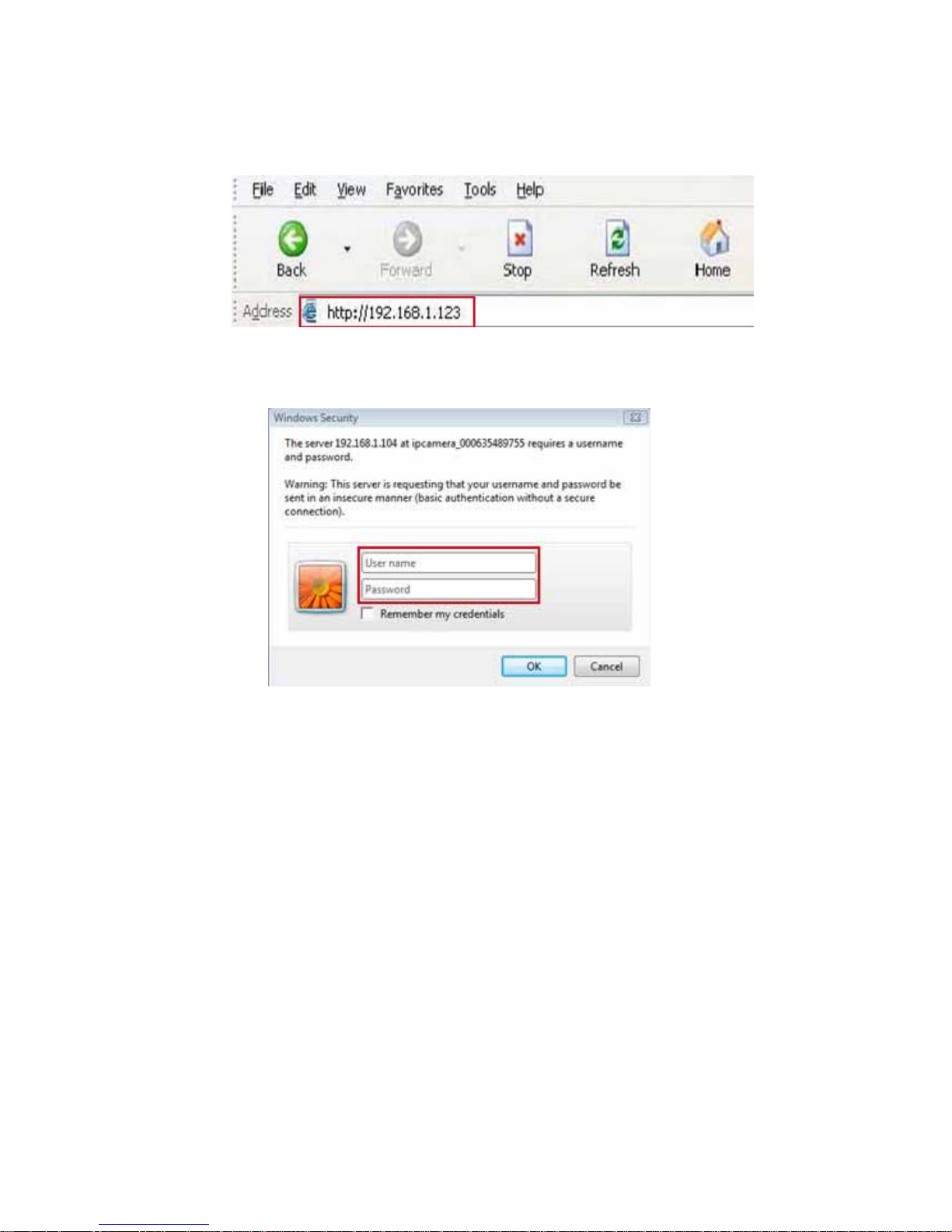

The following screen will pop up after pressing “Enter”:

Figure 2.6

The default user name is admin, no password (please leave password blank)

Input the correct user name and password, the Sign In interface will pop-up.

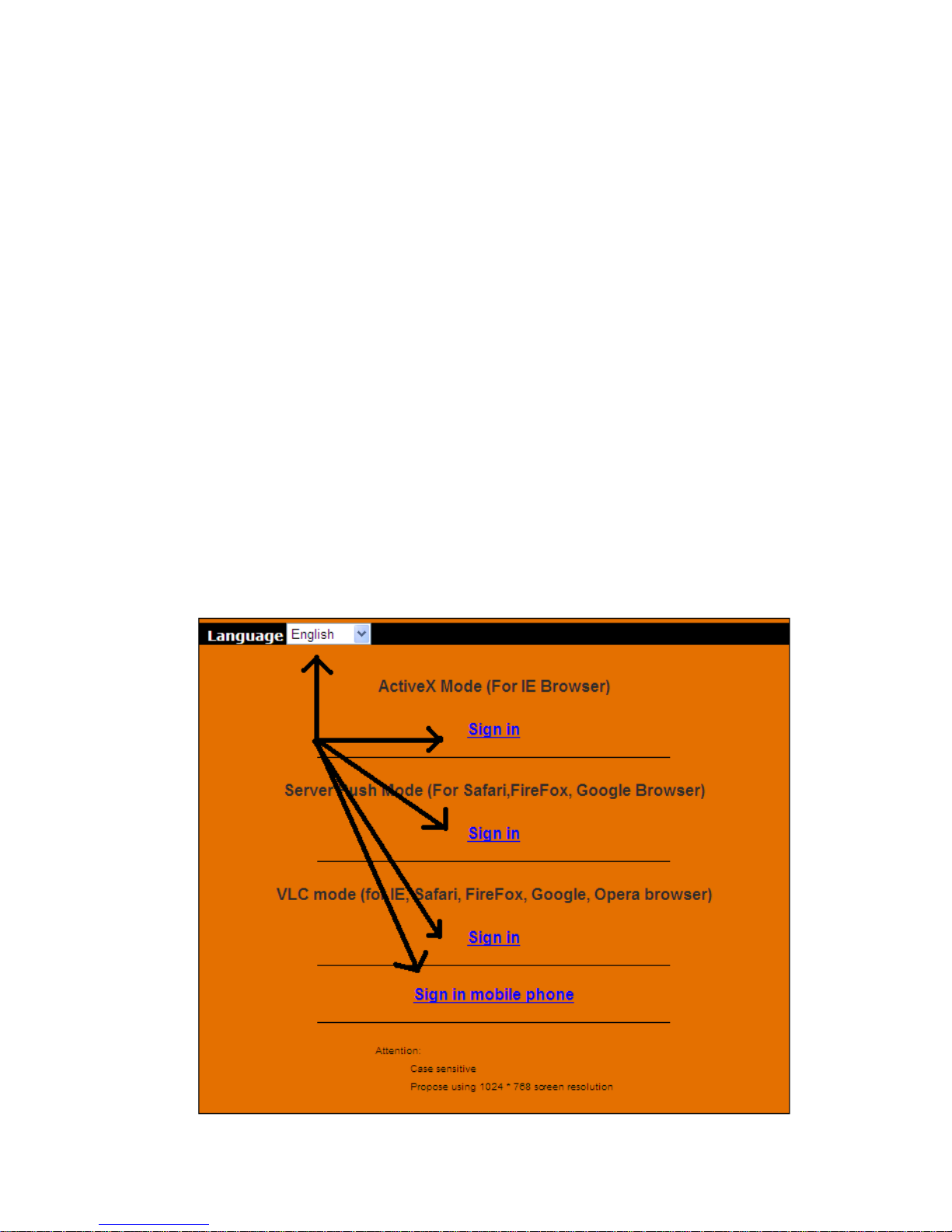

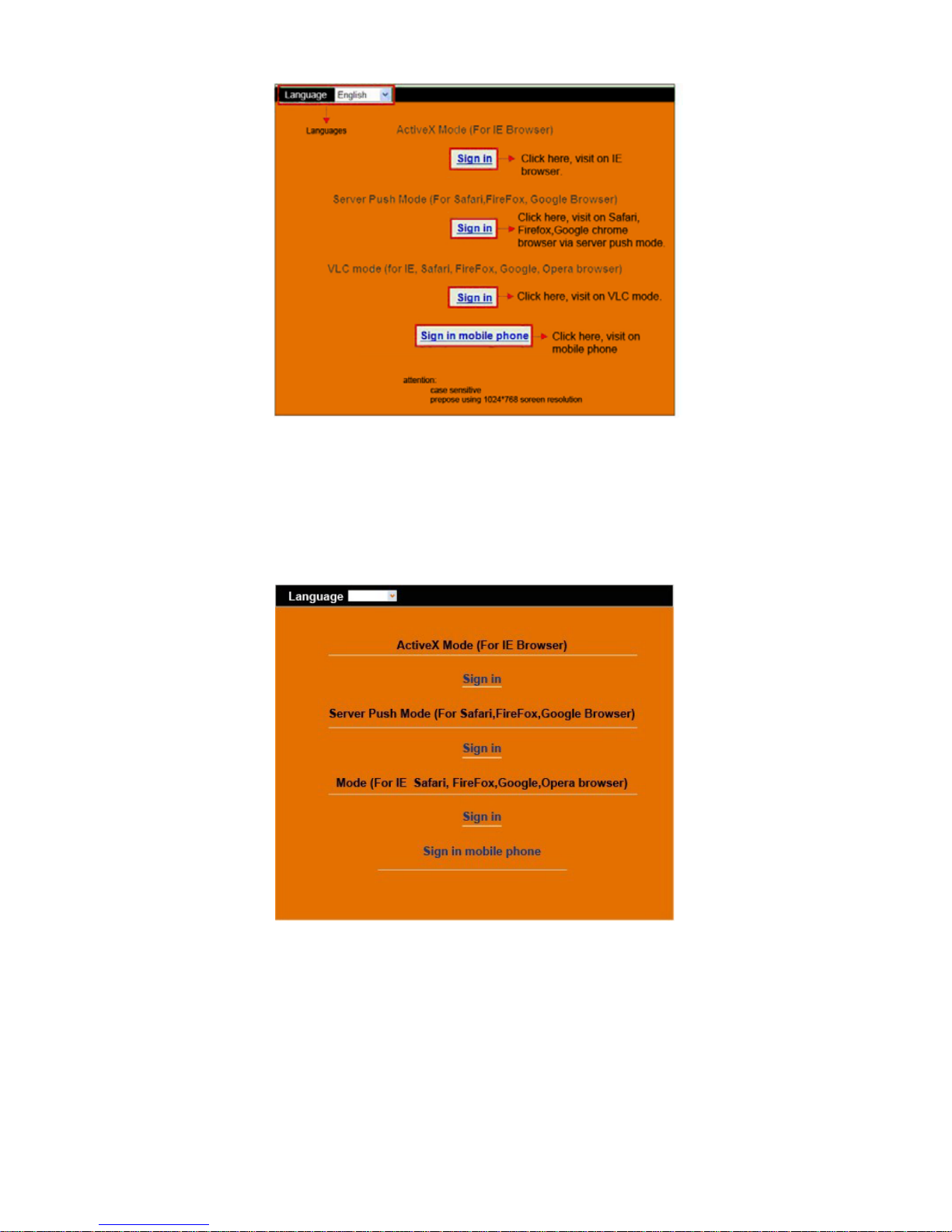

There are three models to login (figure 2.7).

Manual version 1 – March 2012 17 IP Vision 58

Figure 2.7
(1) Active Mode (For IE Browser): available in IE6.0 or above explorer
(2) “Server Push Mode”: available in Firefox, Safari, and Google Chrome browser.
(3) “Sign in mobile phone”: available in Mobile phone

2.3 For IE Browser (Microsoft Windows default browser “Internet Explorer”)
Choose Active Mode (For IE Browser), and sign in.

Figure 2.8

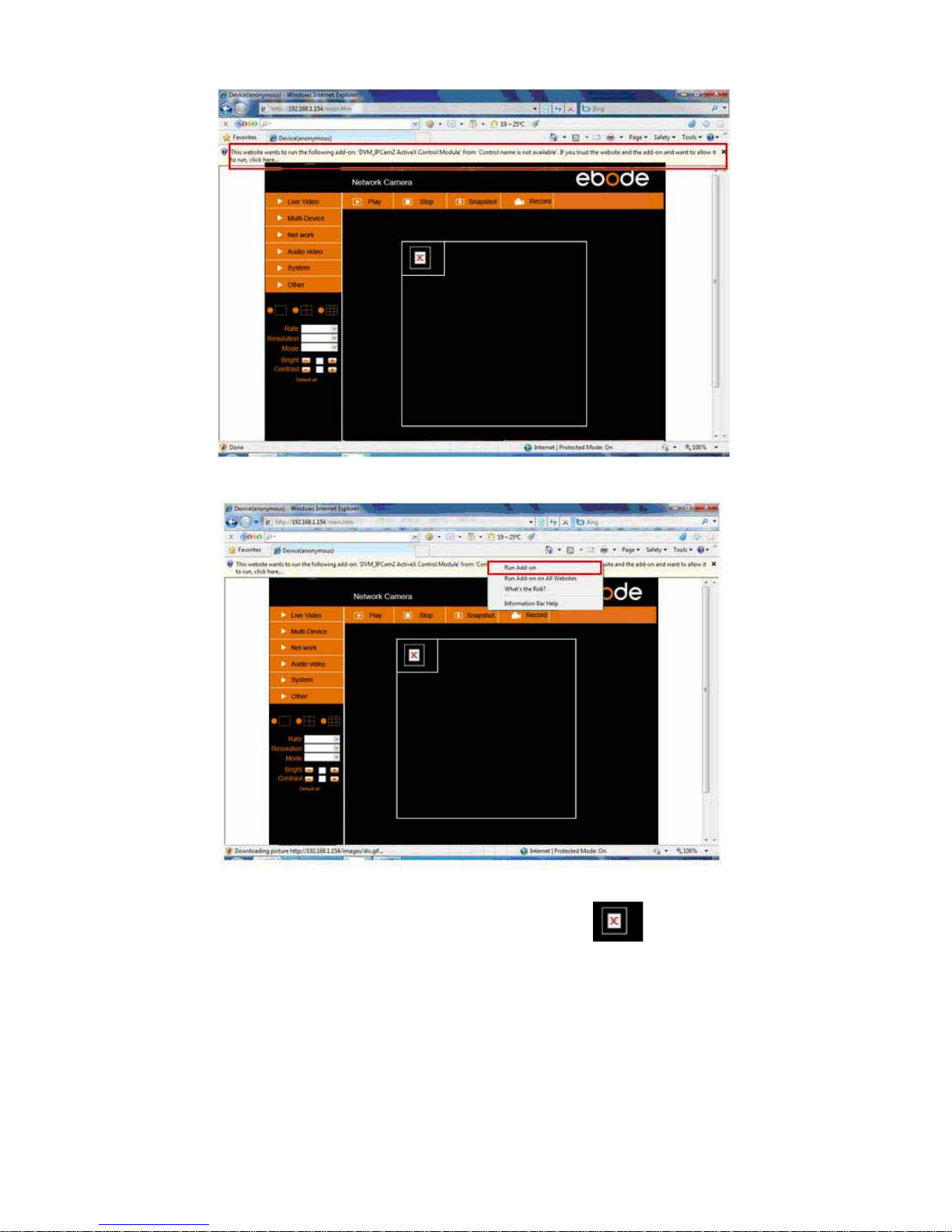

The first time you login to the camera, you might get an ActiveX prompt as in the picture above, please click
the prompt and choose Run Add-on, refresh and login to the camera again, then will see live video, as below:

Manual version 1 – March 2012 18 IP Vision 58

Figure2.9

Figure 3.0

Note: If there is still no live video after you run ActiveX, and a red cross

shows in the center of the

screen, or even just a black screen, please try to enable the ActiveX options of IE security settings.
(Did you install the ActiveX App from step 4 Figure 1.5?)

Please take the following steps:

1. Close the firewall of your computer.

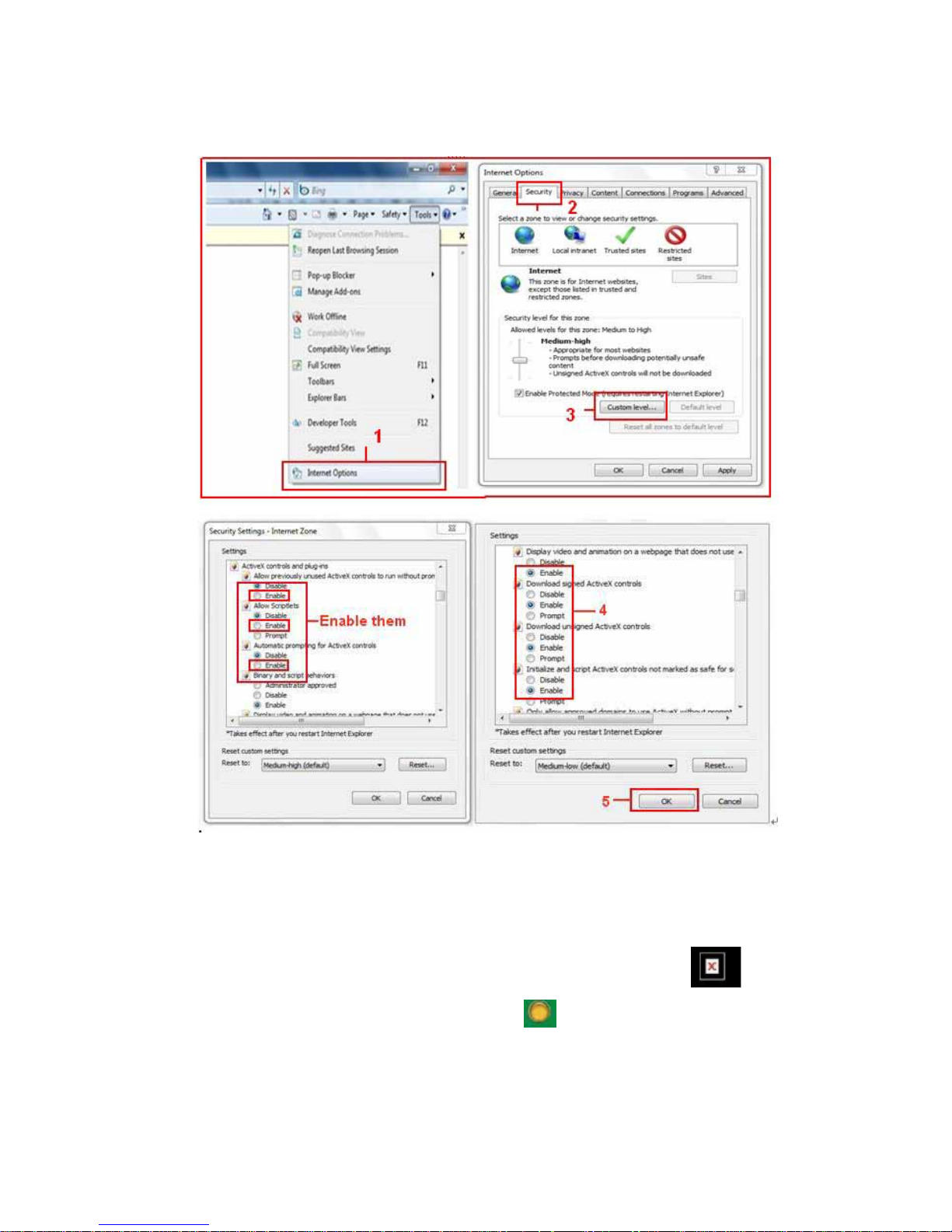

2. Change the ActiveX settings, “IE” browser > “Tool” > “Internet Options” > “Security”> “Custom Level” >
“ActiveX control and Plug-ins”, all the ActiveX options set to be “Enable”:
Especially:

Manual version 1 – March 2012 19 IP Vision 58

Enable: Download unsigned ActiveX controls

Enable: Initialize and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plug-ins

Figure 3.1

In addition: you can also click “Start” menu->“Internet Explorer”, choose “Internet attributes “ to enter, or via
“Control Panel” ->“Internet Explorer”, enter to Security setting.

If you allowed the ActiveX running, but still could not see live video, only a Red Cross

in the center of

the video, and the device status light change to yellow color

, not green, please change another port

number to try. Don’t use port 80, use other port such as 128, 1008 etc.

Manual version 1 – March 2012 20 IP Vision 58

Figure 3.2
NOTE: Make sure that the firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t
see live video, please close your firewall or anti-virus software, and try again.

2.4 For Safari, Firefox, Google Browser

Choose Server Push Mode (For Safari, Firefox, Google Browser), and sign in.
Server Push Mode doesn’t support ActiveX, so some functions are not available, such as Play, Stop, Record,
etc. if you want to use these functions, please use IE browser.

Figure 3.3

2.5 For Mobile Phone

Choose Sign in mobile phone, and sign in.
Mobile phone doesn’t support ActiveX, only some basic functions can be available in this mode.
It supports Iphone, Smart phone, 3G phone etc. Normally, if the mobile phone supports network video, then
it can work with our IP Camera.

Manual version 1 – March 2012 21 IP Vision 58

Figure 3.4

Manual version 1 – March 2012 22 IP Vision 58

2.6 ActiveX Mode (For Internet Explorer Browser)

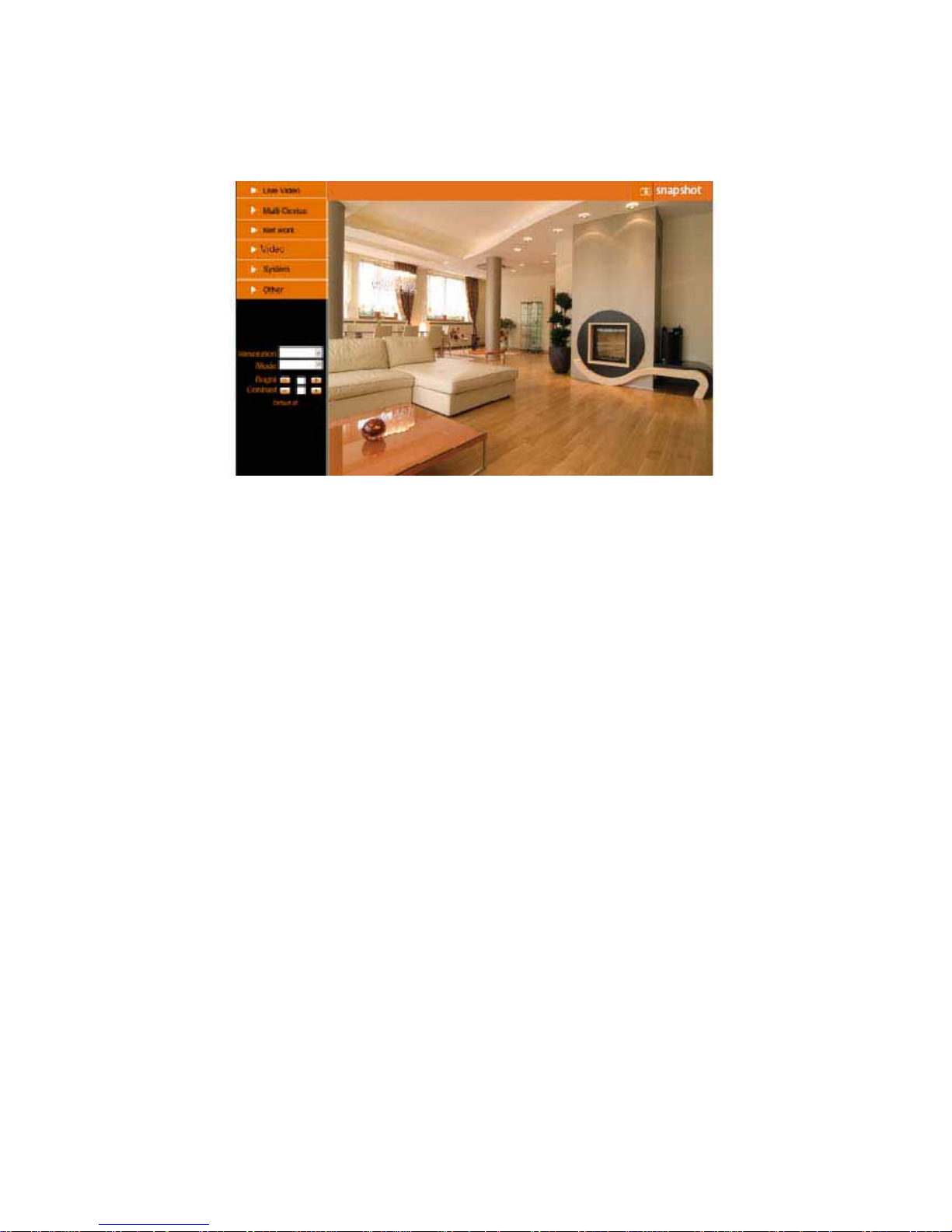

Login to the camera in ActiveX mode, the main User Interface is as below:
NOTE: There are 3 levels of users, Visitor, Operator, Administrator, if you login with different users, the use
authority is different. (See 3.11 User Settings, Figure 8.5).

2.7 For Visitor

When you login as Visitor, you can enter the IP Camera for visitor.
Visitor is the lowest level with only some operation available.

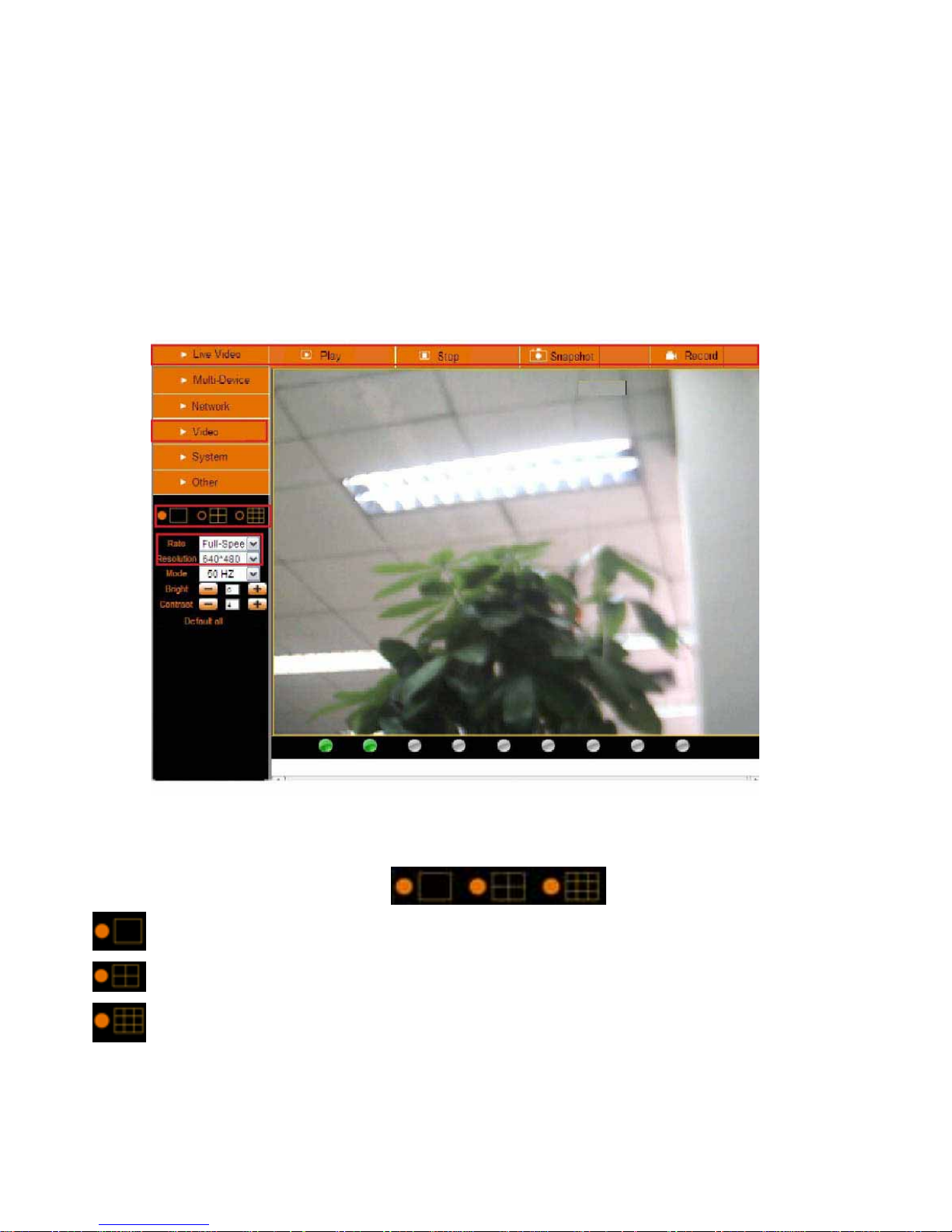

Figure 3.5

Channels:

The IE software supports 9 channels. Click

to get different windows.

Click this one to view the main channel of the camera you login to.

Click this one to view 4 Channels of cameras that are connected, from CH1 to CH4.

Click this one to view 9 Channels of cameras that are connected, from CH1 to CH9.

NOTE: If you want to view 4/9 channels, you should set the Multi-Device first (See 3.1 Multi-Device Settings).

Manual version 1 – March 2012 23 IP Vision 58

Status of Channels:

There are 9 icons

at the bottom of the UI which show the status of each channel of the camera.

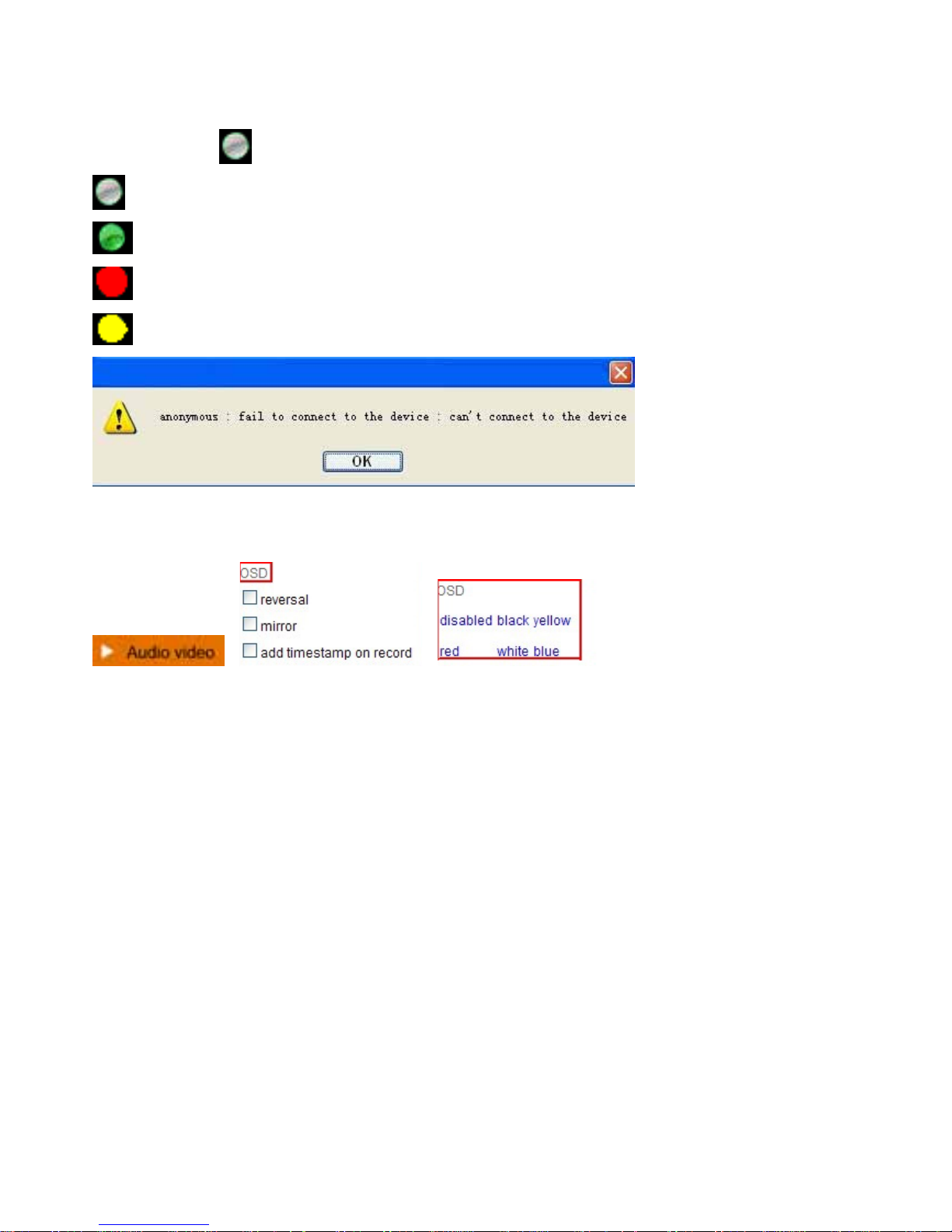

Grey color, means there is no device connected to the main device for this channel.

Green color, means the device is connected for this channel, and it works well.

Red color, means the device for this channel is recording.

Yellow color, means this channel is set in multi-device already, but it fails to connect to the main device.

Figure 3.6

OSD Settings:

Î Î

Figure 3.7

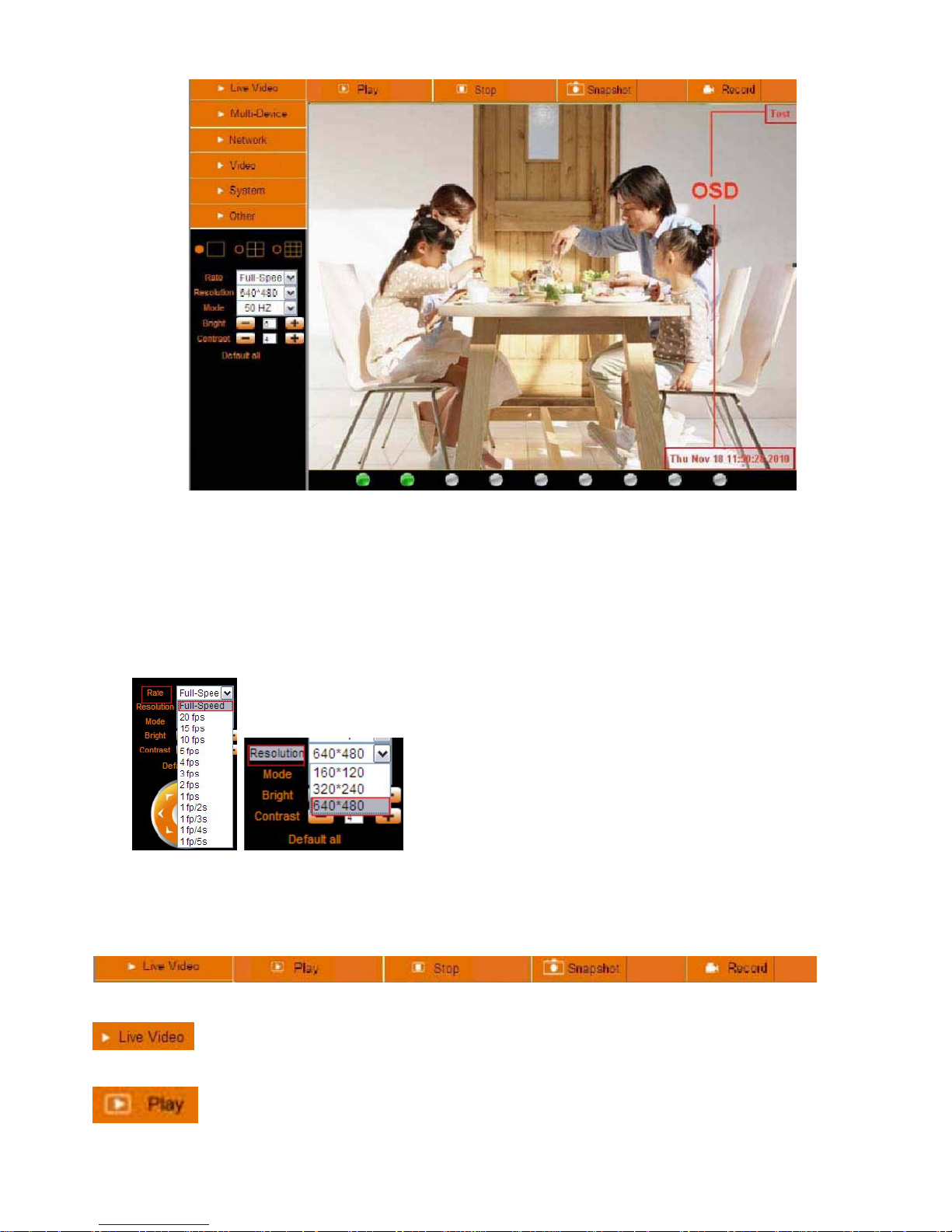

OSD: Means “On-Screen Display”, click “Audio video” > “OSD”, set display date and time on the video.
Disabled: Clicking this one means clear the OSD.
Color: Can set the OSD text color as black, yellow, red, white, blue etc.
Add time stamp on record: if you click this, there will be time OSD on record video files.

Manual version 1 – March 2012 24 IP Vision 58

Figure 3.8

Rate and Resolution:

Rate: Set video frame here, from “full-speed to 1fp/5s”. (Figure 3.9)
Resolution: Set the resolution to be 160*120/ VGA(640*480)/ QVGA (320*240). (Figure 4.0)

NOTE: When doing recording, Rate and Resolution parameter settings is very helpful for getting small size

record files, the lower parameter to get the smaller file.

Figure 3.9 Figure 4.0

TOP Menu:

Figure 4.1

: Click it to get live video. When you want to back to live video from other menus, just click it.

Only under live video, you can do the operation on the right side, such as play, stop, snapshot etc.

: Click it to get into play mode, when you click stop icon, the video will be stopped, then click

Manual version 1 – March 2012 25 IP Vision 58

play icon, it will show the video again.

: Click it to stop the live video. You can click play icon if you want to see live again.

: Click it to get snapshot. It will show the date and time of the snapshot you get, when you

want to save it, you will find the snapshot file named by “snapshot_MAC ID_date_time”.

: Click it to start record by manual, and the icon will change to red color, click it again, it will

stop record. The record file will be saved to the folder you set. (Figure 10.6-Figure10.9)

NOTE: For visitor, if you click other menus which visitor don’t have the right to operate it, there will be a
pop-up of login interface (Figure 2.6), please input the user name / password for at least 3 times to login
again.

2.8 For Operator

When login as Operator, you can enter the IP Camera for Operator.

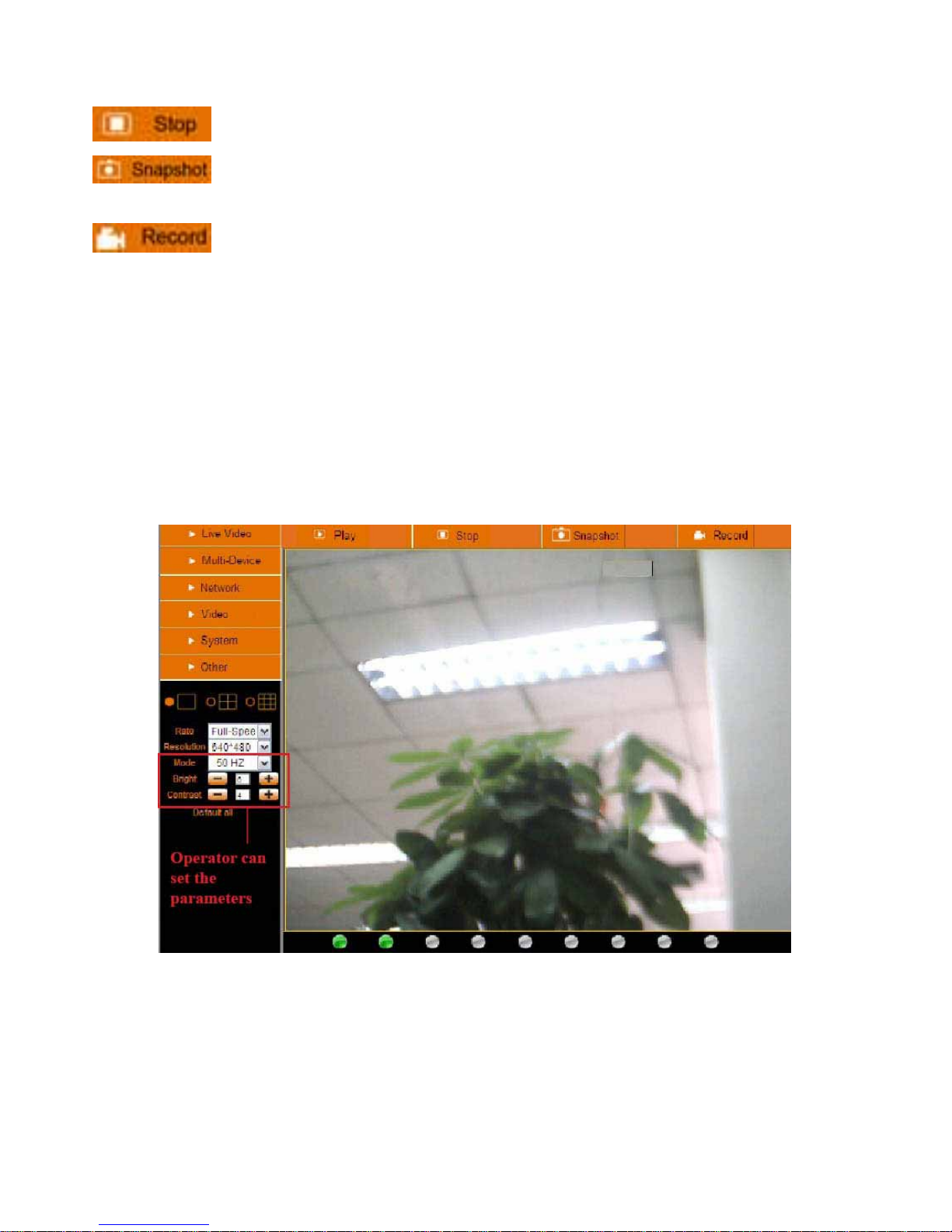

For operator, it not only supports all the functions which for Visitor, and also supports these functions as
below:

Figure 4.2

Manual version 1 – March 2012 26 IP Vision 58

Video Settings

Î

Figure 4.3

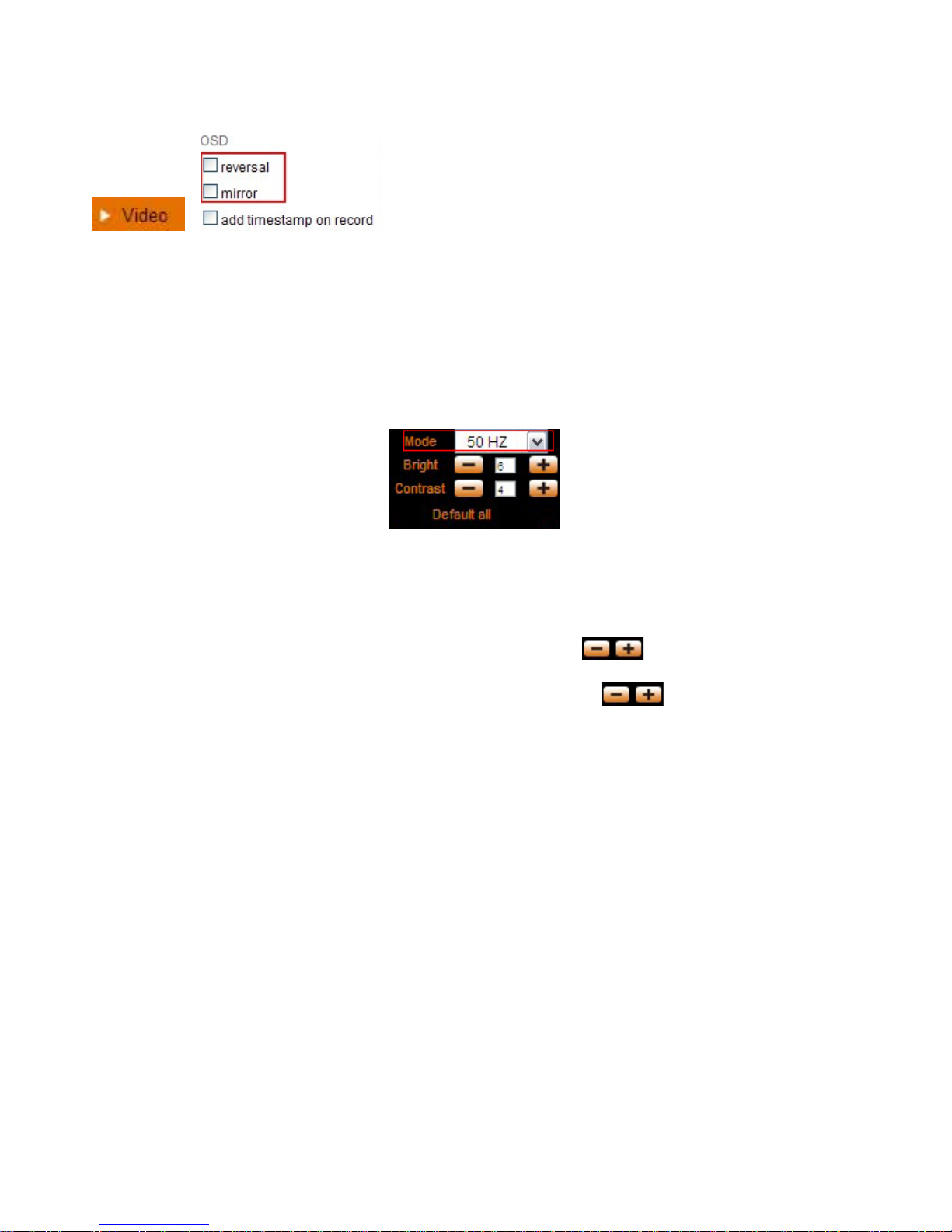

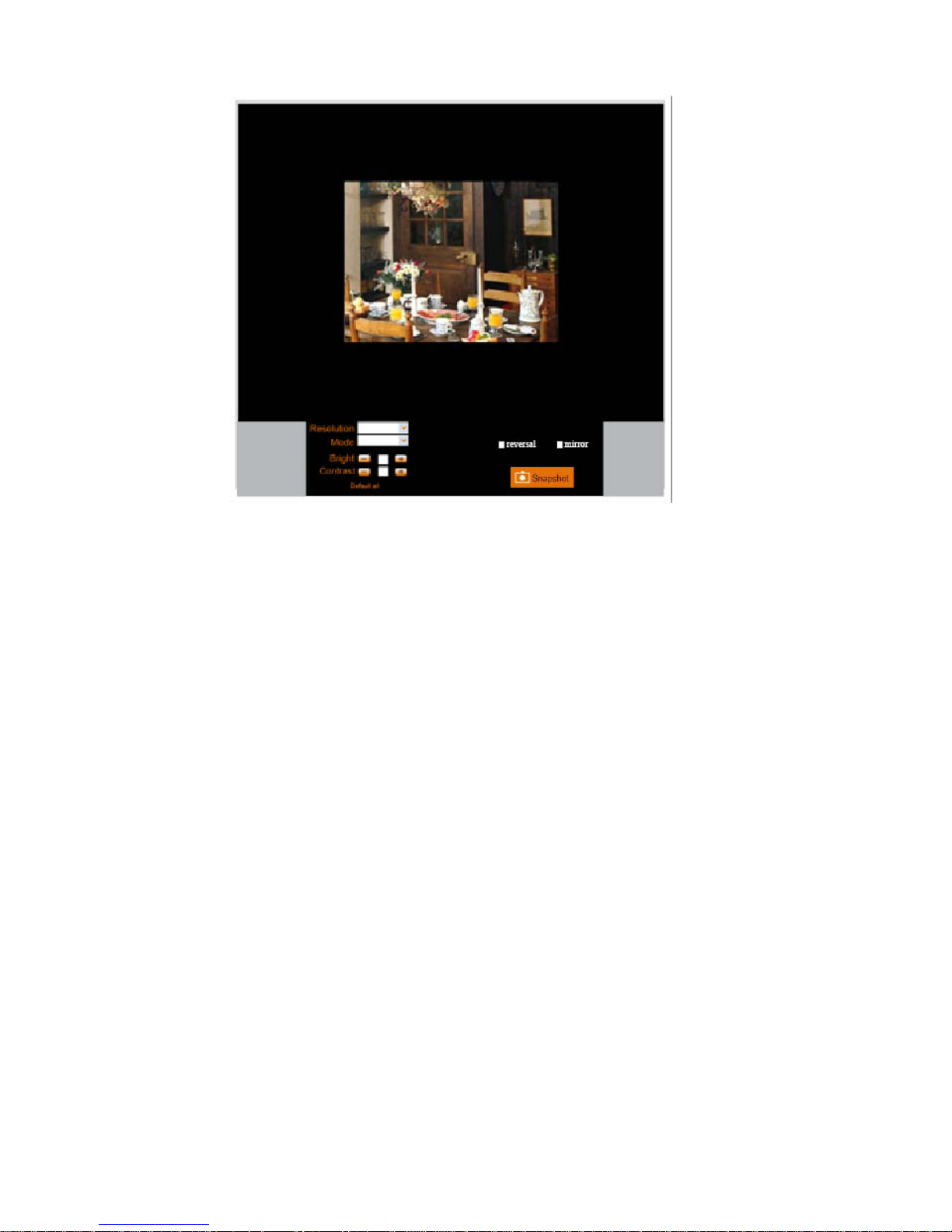

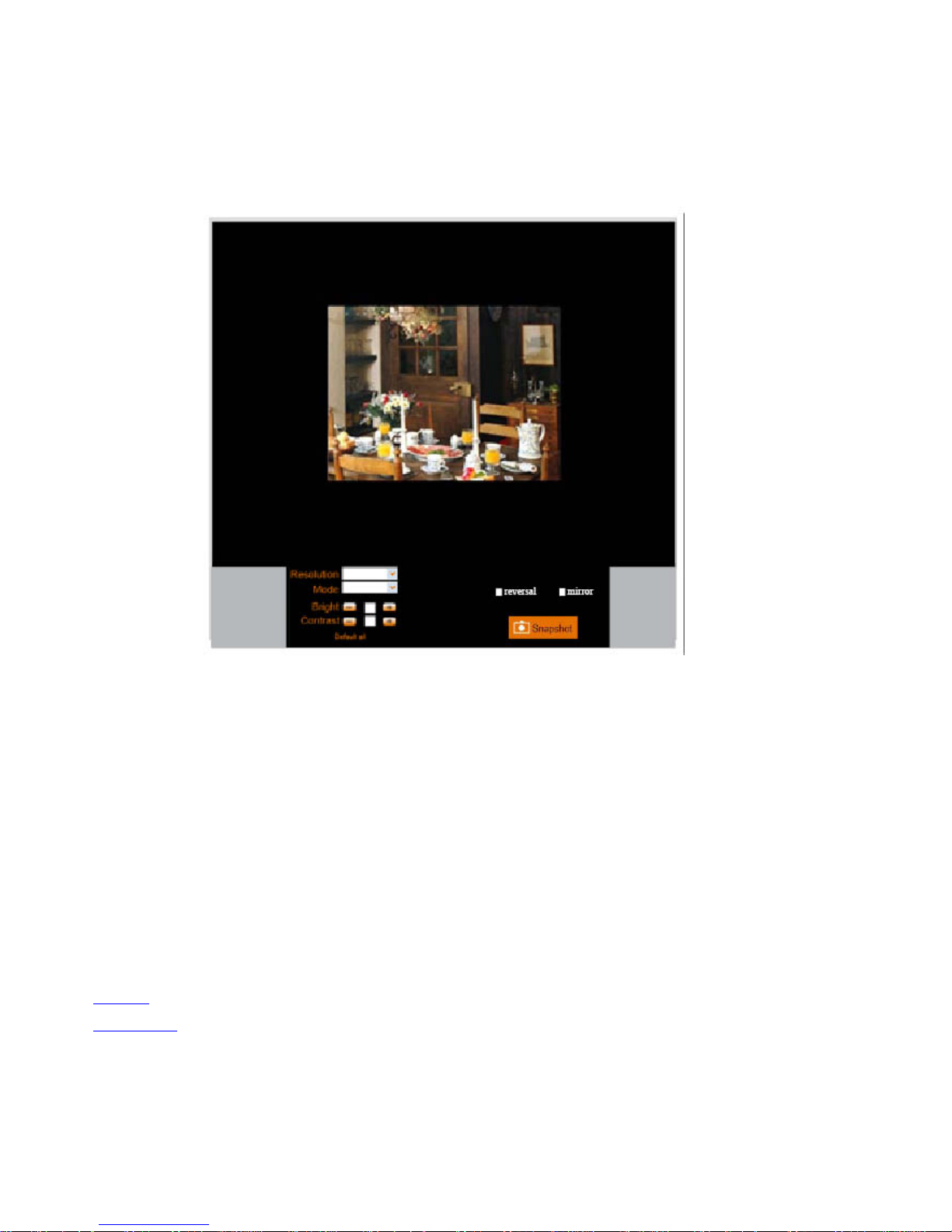

Reversal: Click this icon to see the reversal image. Click again, will back to normal.
Mirror: Click this icon to see the mirror image. Click again, will back to normal.

NOTE: You can choose Reversal and Mirror function when you set up the camera in a special position.

Mode, Bright, Contrast Settings

Figure 4.4

Mode: This is work mode optional, 50HZ/60HZ for the users who use 50HZ/60HZ frequency, outdoor for the
users who want to use this camera to monitor toward outdoor environment

Bright: Set the parameters to adjust the image quality of video. Click

to adjust the value

Contrast: Set the parameters to adjust the image quality of video. Click

to adjust the value

Default all: Click it to set all the parameters back to factory setting.

NOTE: If you login the camera, there is no video displayed, and the parameter of bright/contrast is blank,

maybe you can try to click “default all” to set the parameters back to factory setting to get live video.

NOTE: For Operator, if you click other menus which operator don’t have the right to operate it, there will be a
pop-up of login interface (Figure 2.6), please input the user name / password for at least 3 times to login
again.

2.9 For Administrator

Details see Settings as Administrator (details3.1-3.20).

Manual version 1 – March 2012 27 IP Vision 58

3 Settings as Administrator

When login as Administrator, you can enter the IP Camera for Administrator.
Administrator supports all the settings and operations of the camera; you can set and control it freely
There are some special functions only for administrator as below:

Figure 4.5

3.1 Multi-Device Settings

Î

Figure 4.6

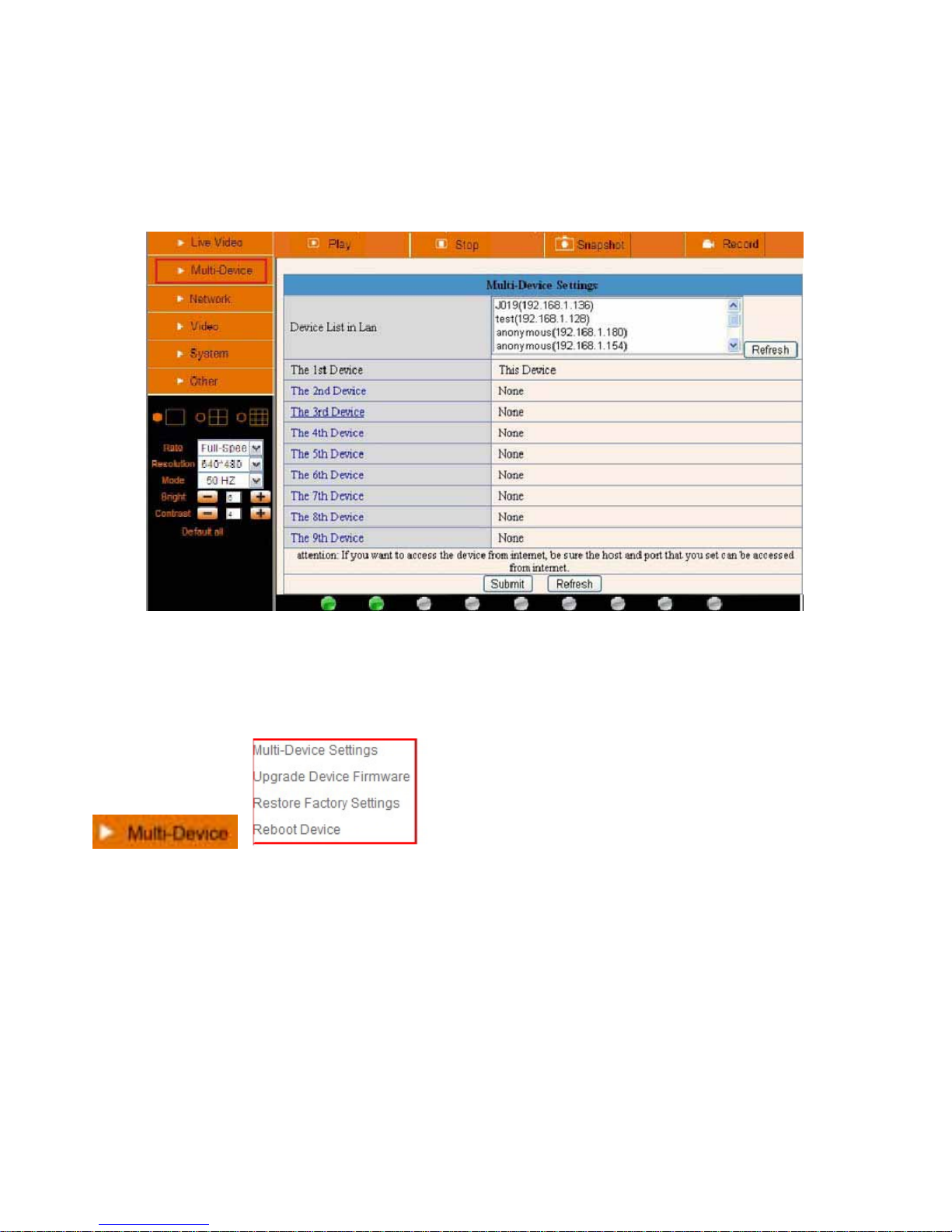

Multi-Device Settings

This camera can support max. 9 channels device at the same time.

3.1.1 Set Multi-Device in LAN

In the Multi-Device Settings page, you can see all devices searched in LAN. The 1st device is the default one.
You can add more cameras listed in LAN for monitoring. This web software supports up to 9 IP Cameras
online simultaneously.

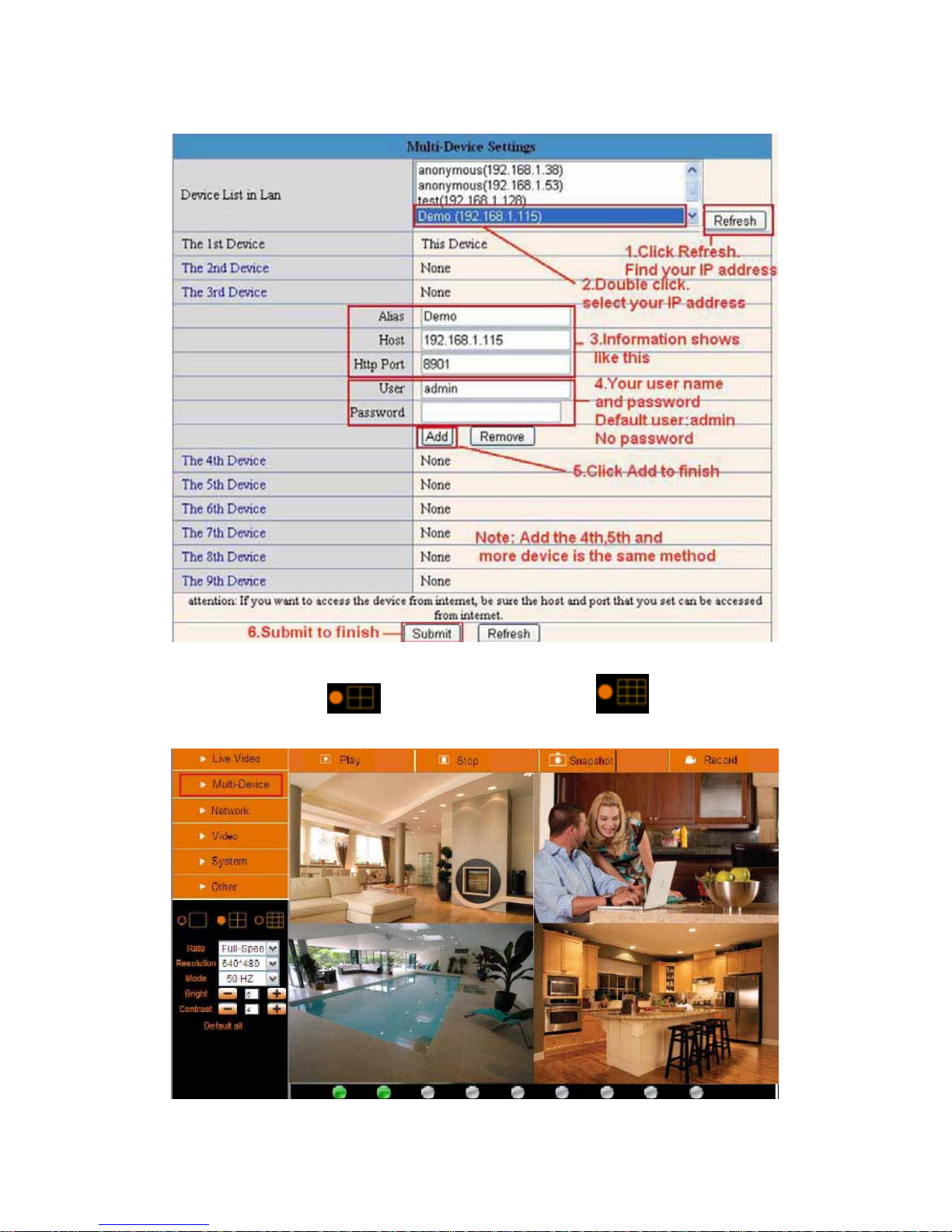

Click The 2nd Device and click the item in the Device List in Lan, it will fill the Alias, Host, Http Port

Manual version 1 – March 2012 28 IP Vision 58

automatically, then input the correct user name and password, click Add. Set more devices in the same way,
after all done, please click Submit.

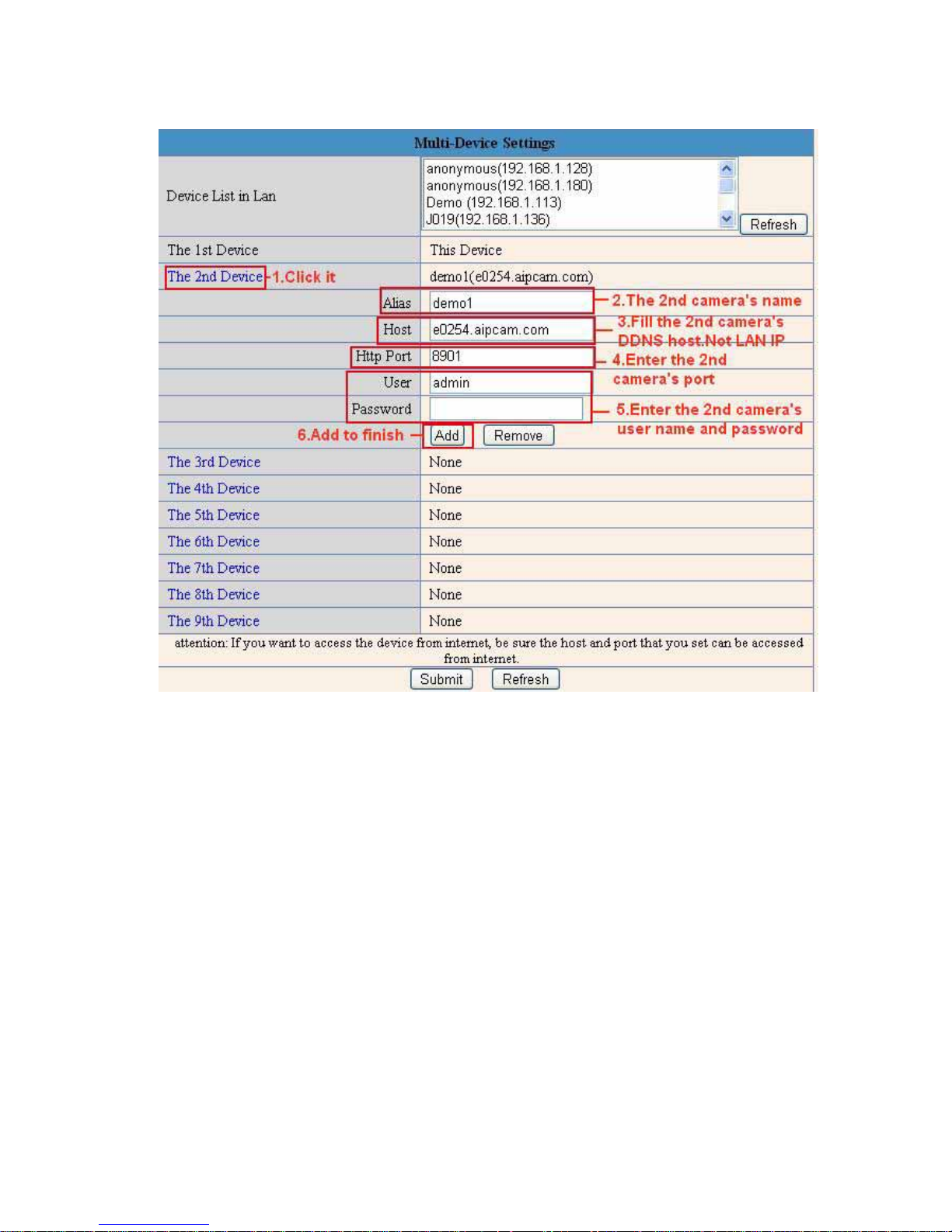

Figure 4.7

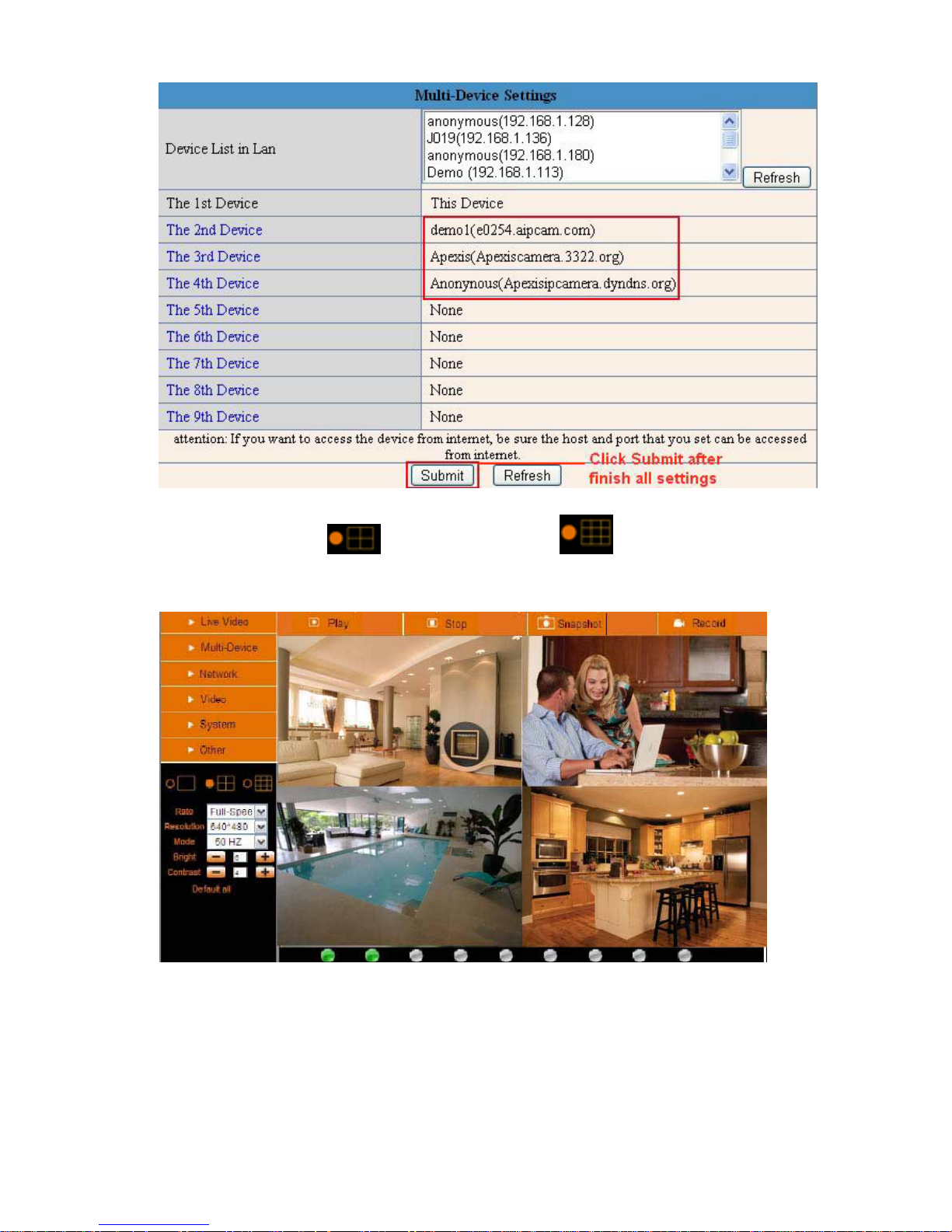

Click Live Video and then select

to see four channels, or click to see nine channels.

Figure 4.8

Manual version 1 – March 2012 29 IP Vision 58

Figure 4.9

3.1.2 Set Multi-Device for WAN

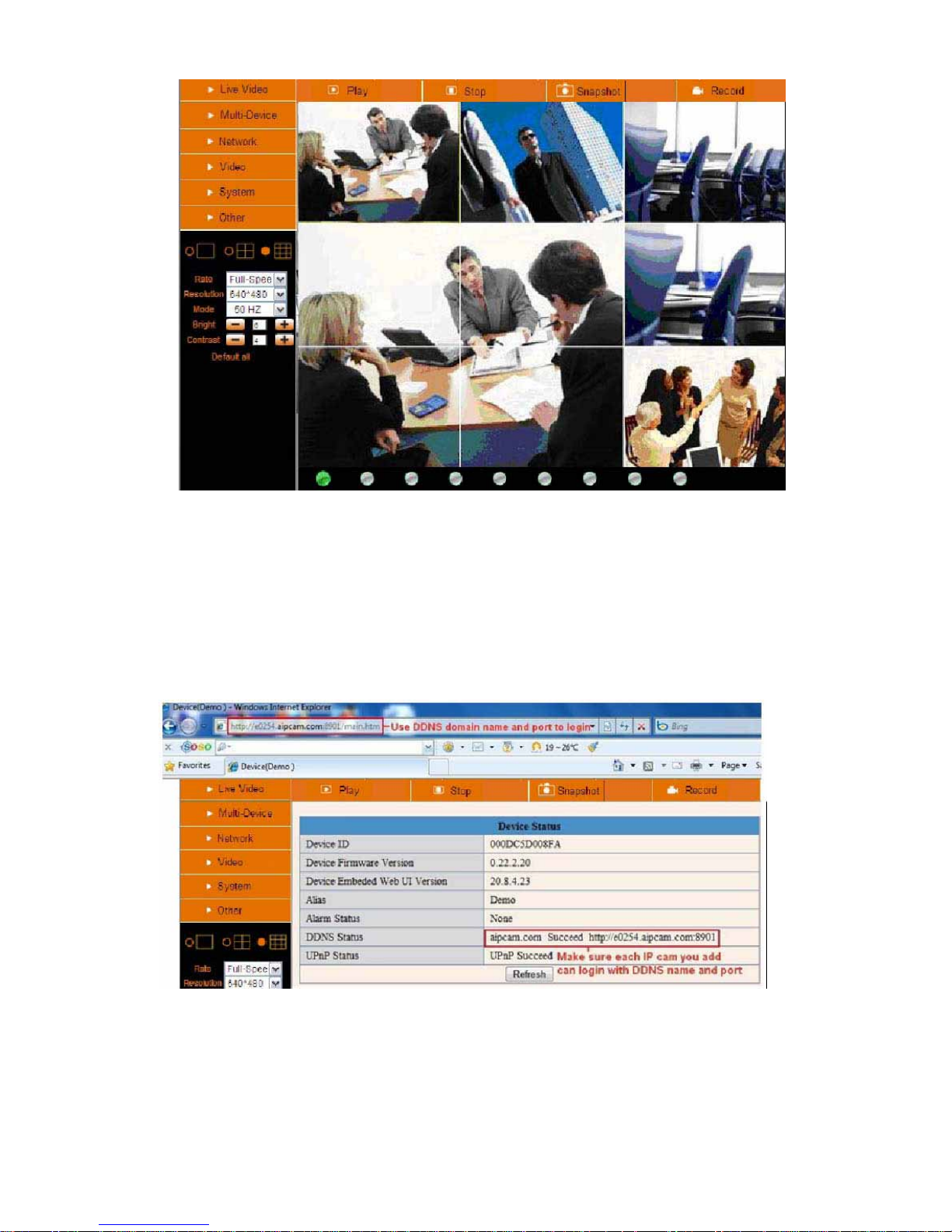

If you want to view cameras from internet, you have to add these devices by DDNS domain name.
Make sure all these cameras you want to add have been set DDNS successfully. (View 3.7 DDNS Service
Settings) And also these cameras work well with DDNS.

Login the first camera by DDNS domain name and port, this camera will be as the host camera.

Figure 5.0
Click Multi-Device, select Multi-Device Settings. Choose the 2nd Device; fill in the 2nd camera’s Alias, Host,
Http Port, User, Password by manual, click Add. Set more devices in the same way, after all done, please
click Submit.
NOTE: The Alias is optional; you can set the alias as per your wish. The Host must be the camera’s DDNS
domain name, and without “http://”, it’s not the Lan IP address.

Manual version 1 – March 2012 30 IP Vision 58

If you have several cameras, you can use the same DDNS domain name, just set different port number for
each different camera.

Figure 5.1
Note: Add the other camera in the same way, Click submit to add all of them.

Manual version 1 – March 2012 31 IP Vision 58

Figure 5.2

Click Live Video and then select

to see four channels, or to see nine channels.
In this case, you can see all the cameras from a remote position by internet, for example, if you are on the
business trip, you can use the first camera’s (Host camera) DDNS to view all the devices via internet

Figure 5.3

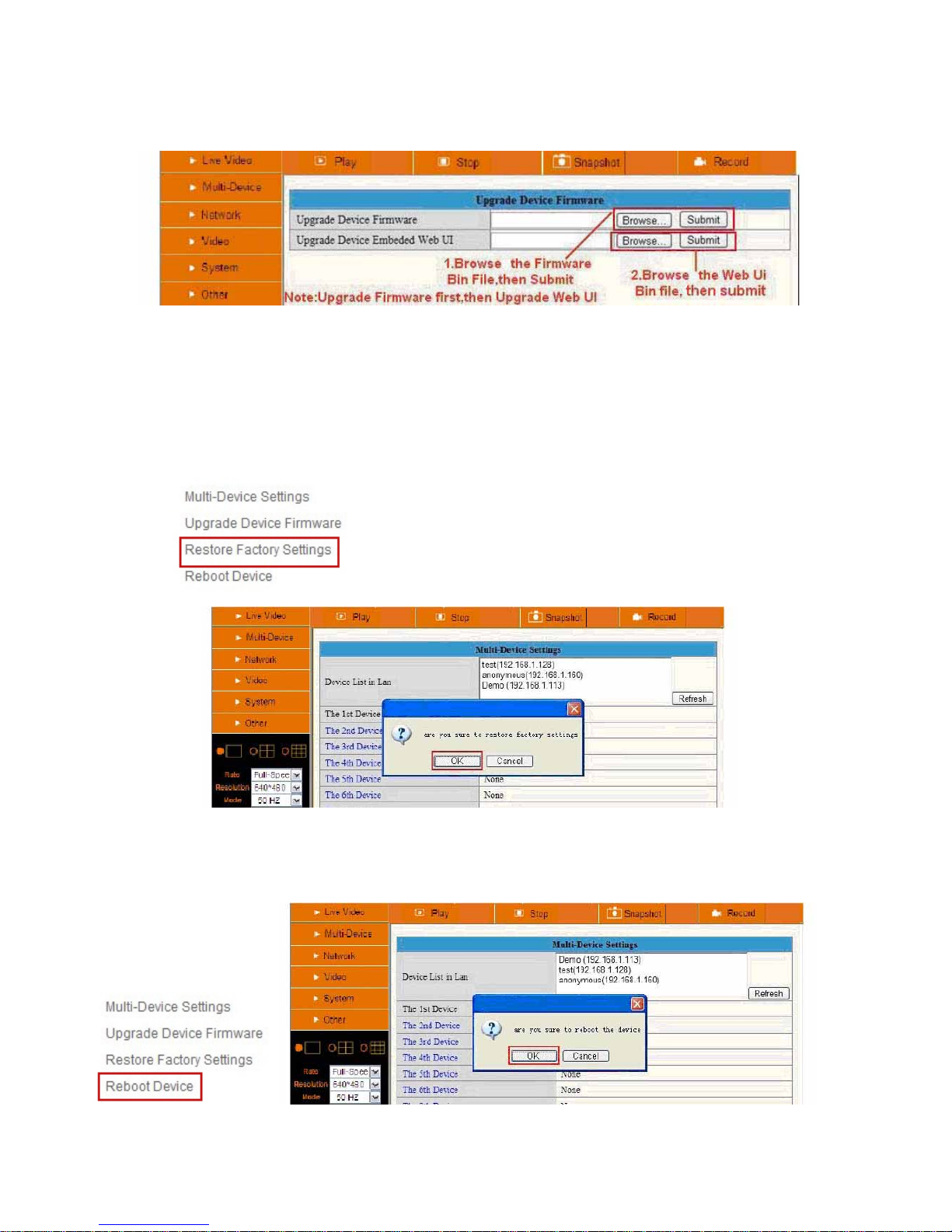

3.1.3 Upgrade Device Firmware

If you want to upgrade the camera, please upgrade Device Firmware first, then upgrade Web UI.
Click Browse and choose correct bin file, then click Submit to do upgrading.
NOTE: Before doing upgrade via Browser, please make sure the IP Camera Tool of your computer could find
the camera’s IP.

Manual version 1 – March 2012 32 IP Vision 58

Attention: Please must keep the power on during upgrading, and the better use wired mode.
Please don’t try upgrade freely, because wrong operation or incorrect upgrade bin file will damage the
camera.

Figure 5.4

3.1.4 Restore Factory Settings

Click Restore Factory Settings, will pop-up a prompt, select OK, all the parameter will be returned to factory
settings, and the device will reboot.

Figure 5.5

3.1.5 Reboot Device

Click Reboot the device, will pop-up a prompt, select OK, then the device will reboot

Figure 5.6

Manual version 1 – March 2012 33 IP Vision 58

3.2 Network Settings

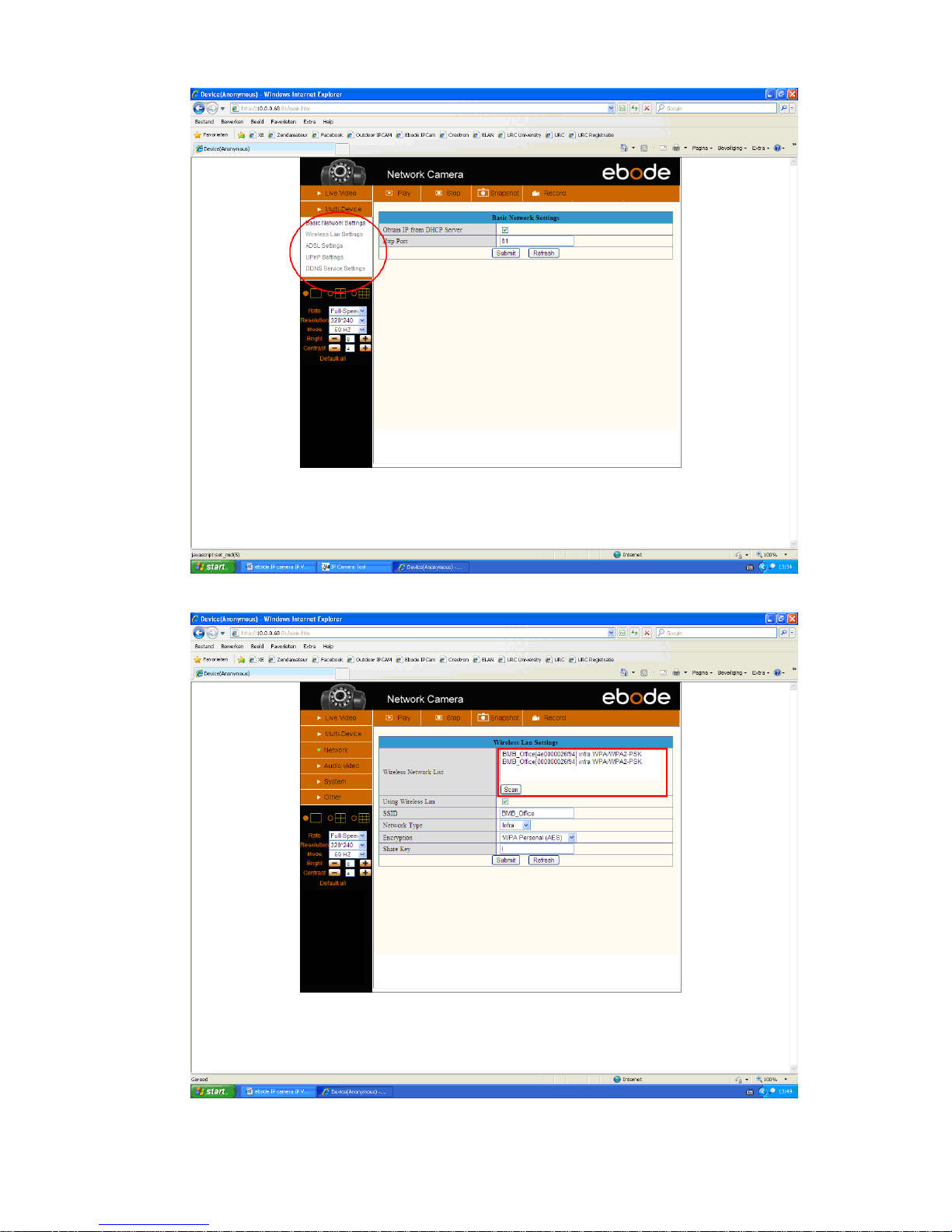

Click Network, will pop-up the prompt as below:

Figure5.7

3.3 Basic Network Settings

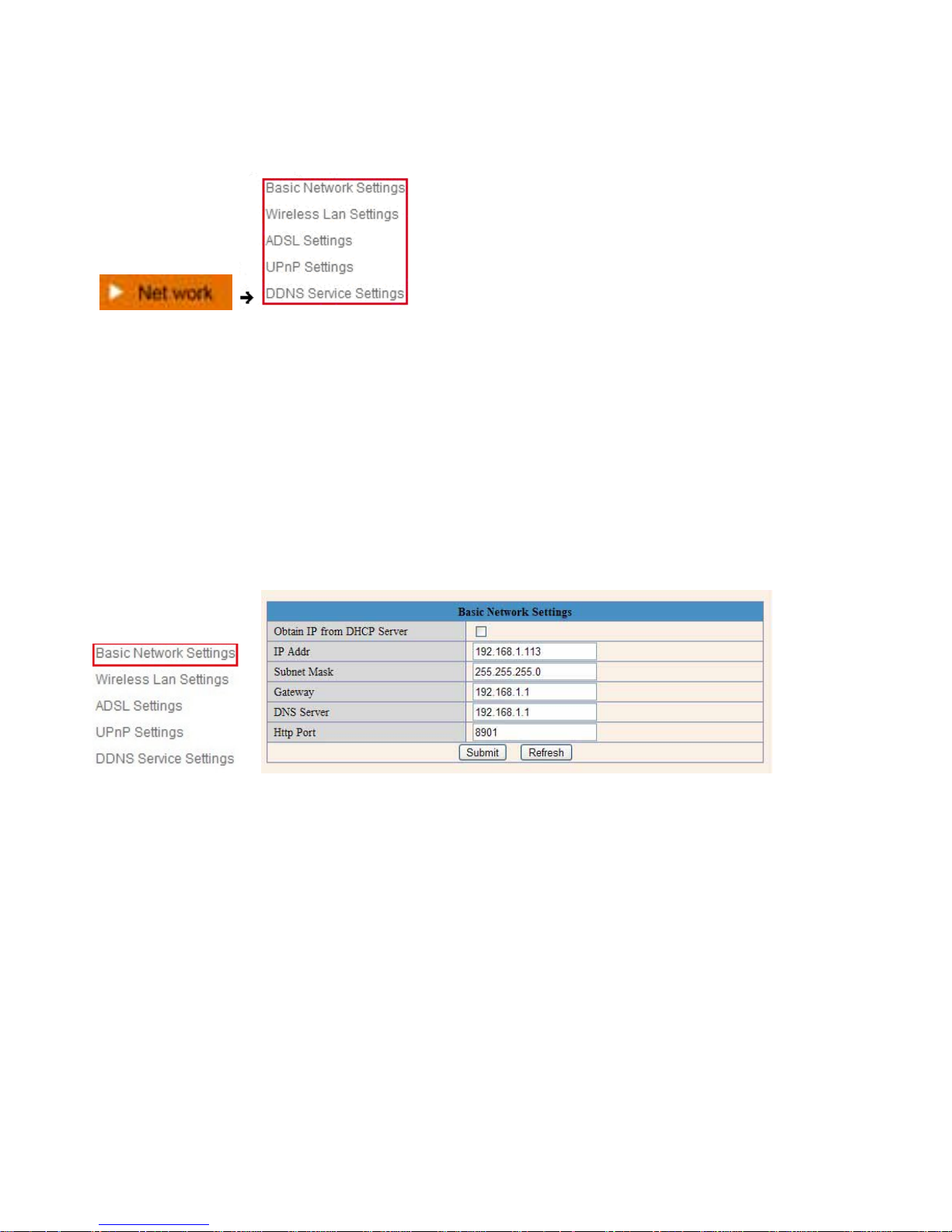

Here you can fix the camera’s IP address; means set the static IP address of camera manually.
You can also do the same settings from IP Camera Tool. (Figure 2.3)
There are some good reasons to give the camera a static IP. The factory default setting is DHCP, this means
that the network router will give the Camera an IP address itself for easy setup. The problem is that after a
camera or network power loss the router may decide to give the camera a different IP address than the last
time. If you want to login to the camera not using the IP Tool you don`t know the camera`s (new) IP address.

Î

Figure 5.8

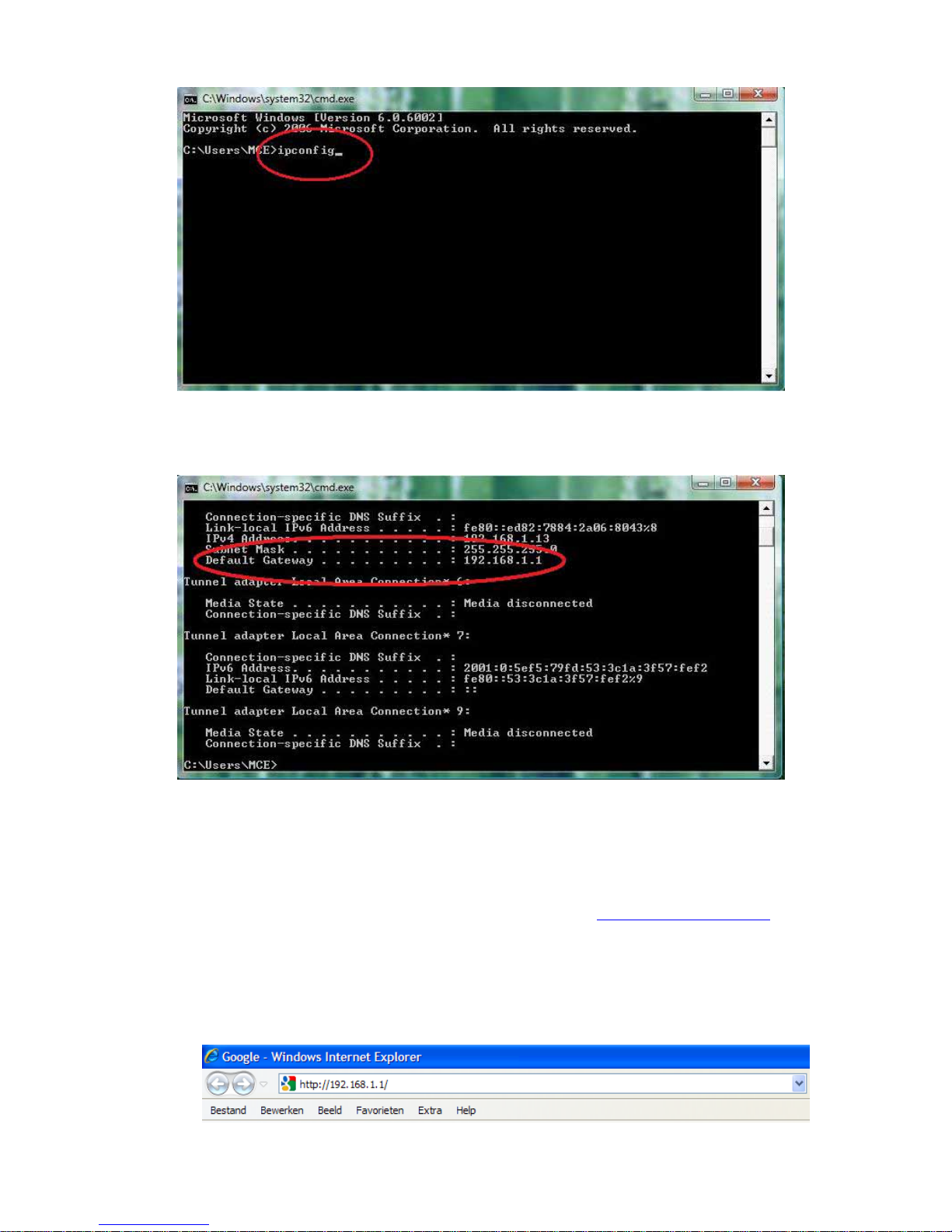

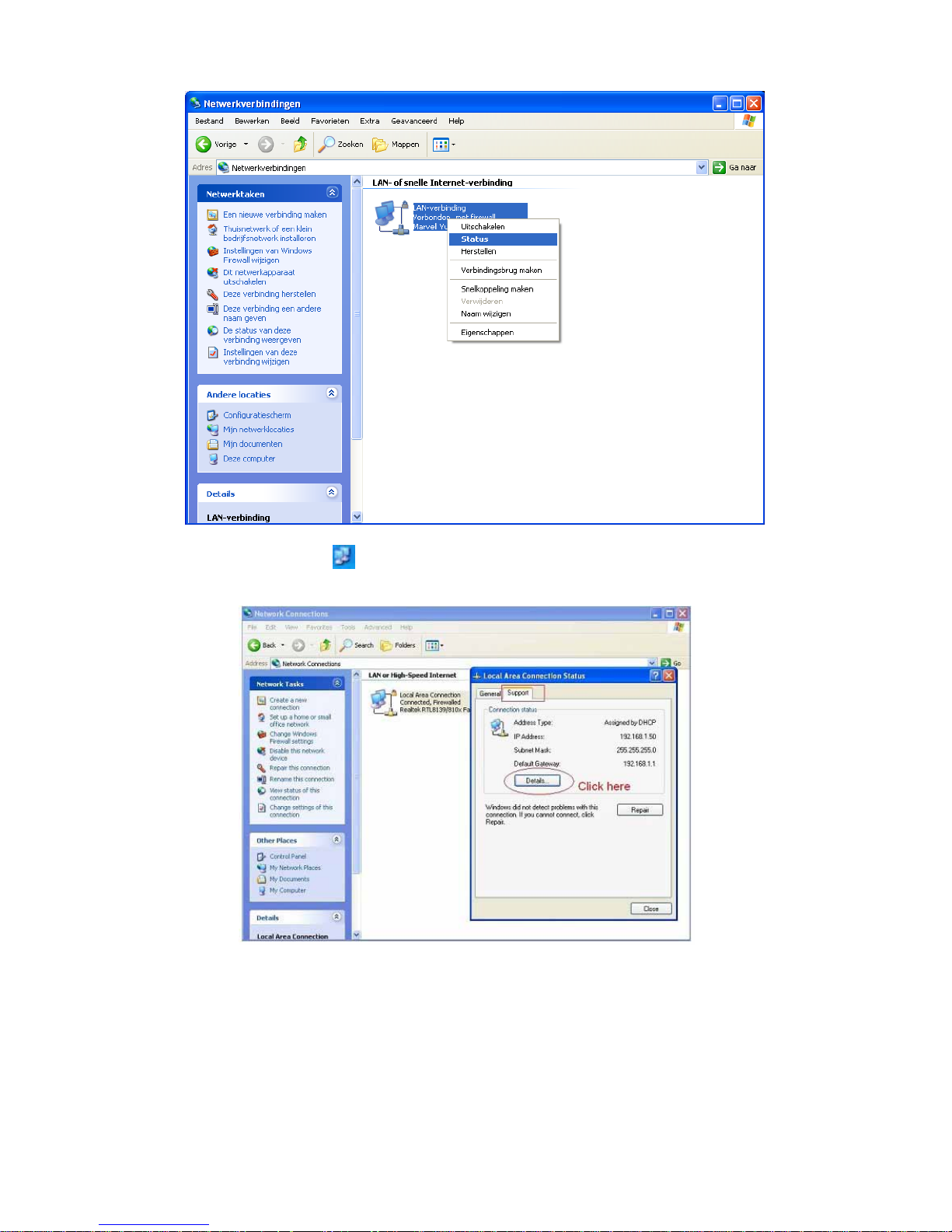

If you don’t know Subnet Mask, Gateway, DNS Server. Please check the Local Area Connection Status of
your computer; it contains all these information, steps as below:

1. Control PanelÎNetwork ConnectionsÎLocal Area ConnectionsÎ Support Î Details

Manual version 1 – March 2012 34 IP Vision 58

2. Find the local connection icon

, because you might see more than one icon, left click it, choose

Support Î Details

Figure 5.9

Manual version 1 – March 2012 35 IP Vision 58

Figure 6.0

If you don’t know the DNS Server, you can set it the same as Gateway.

If the router supports DHCP function, you can choose “Obtain IP from DHCP Server” to get dynamic IP.

Figure 6.1
Http Port: In most cases your Internet Service Provider blocks this port(80), you may change it to another port
number such as 85 or 86 or any number above 80. Make sure that if you have more than one camera it might
be useful to give each camera a unique port number, but it`s not necessary to do this.

3.4 Wireless Lan Settings

Î

Figure 6.2

1. Make sure the router is wireless router.

2. Make sure the Wi-Fi antenna installed.

Manual version 1 – March 2012 36 IP Vision 58

3. Determine whether there is encryption on the WLAN of router, if there is encryption, note the key somewhere
as we need it in the following steps.

Extra information:

Encryption is another word for password and security of the wireless network, most routers will have encryption
these days (and should be) so other people cannot brake in to your network. Some routers have a sticker on
the bottom with the factory username and password, other ones don`t have a password, and the password
can also be set by the user or mechanic. There is a very handy website with allot of router brand information

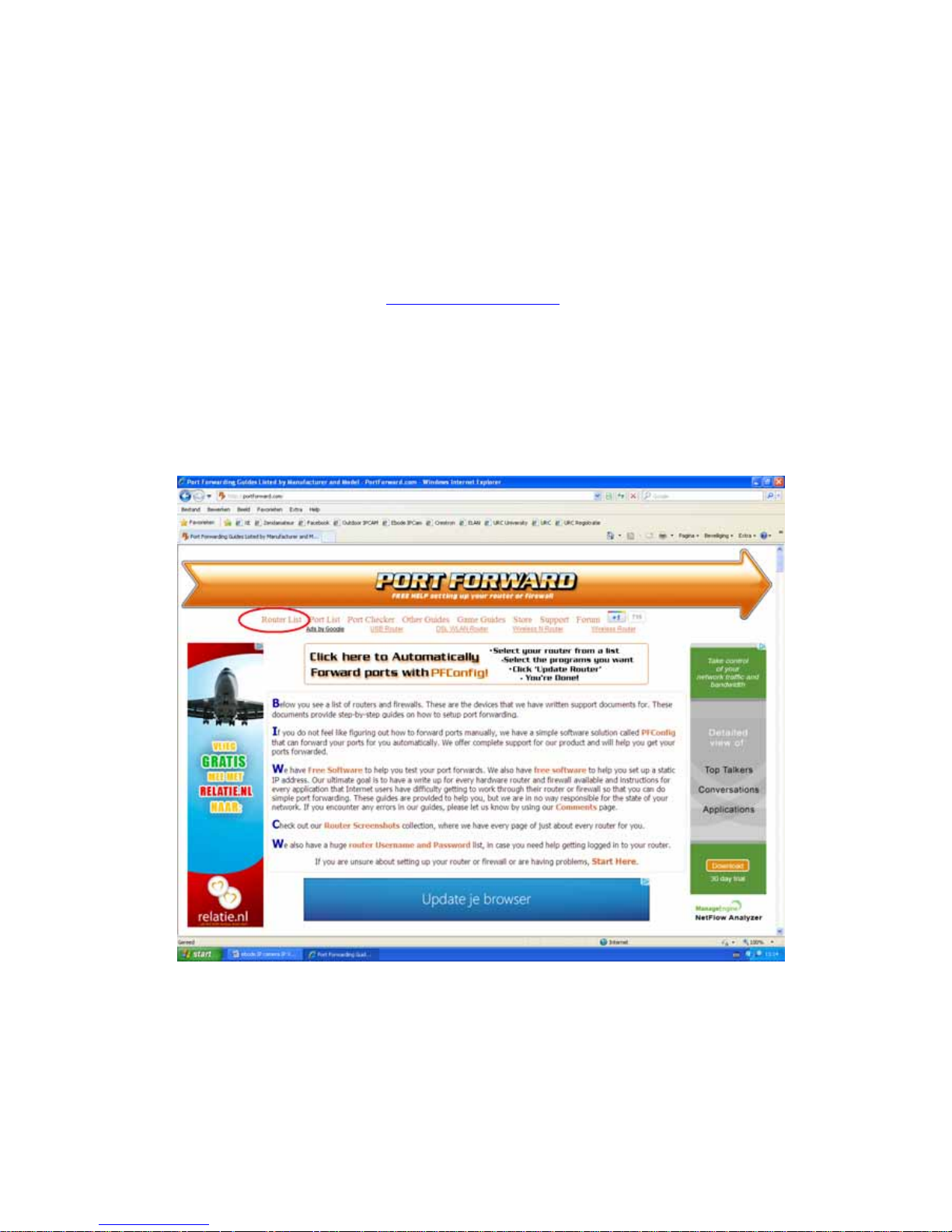

like default IP address, default username and password etc. Please note we only refer to this website, we do

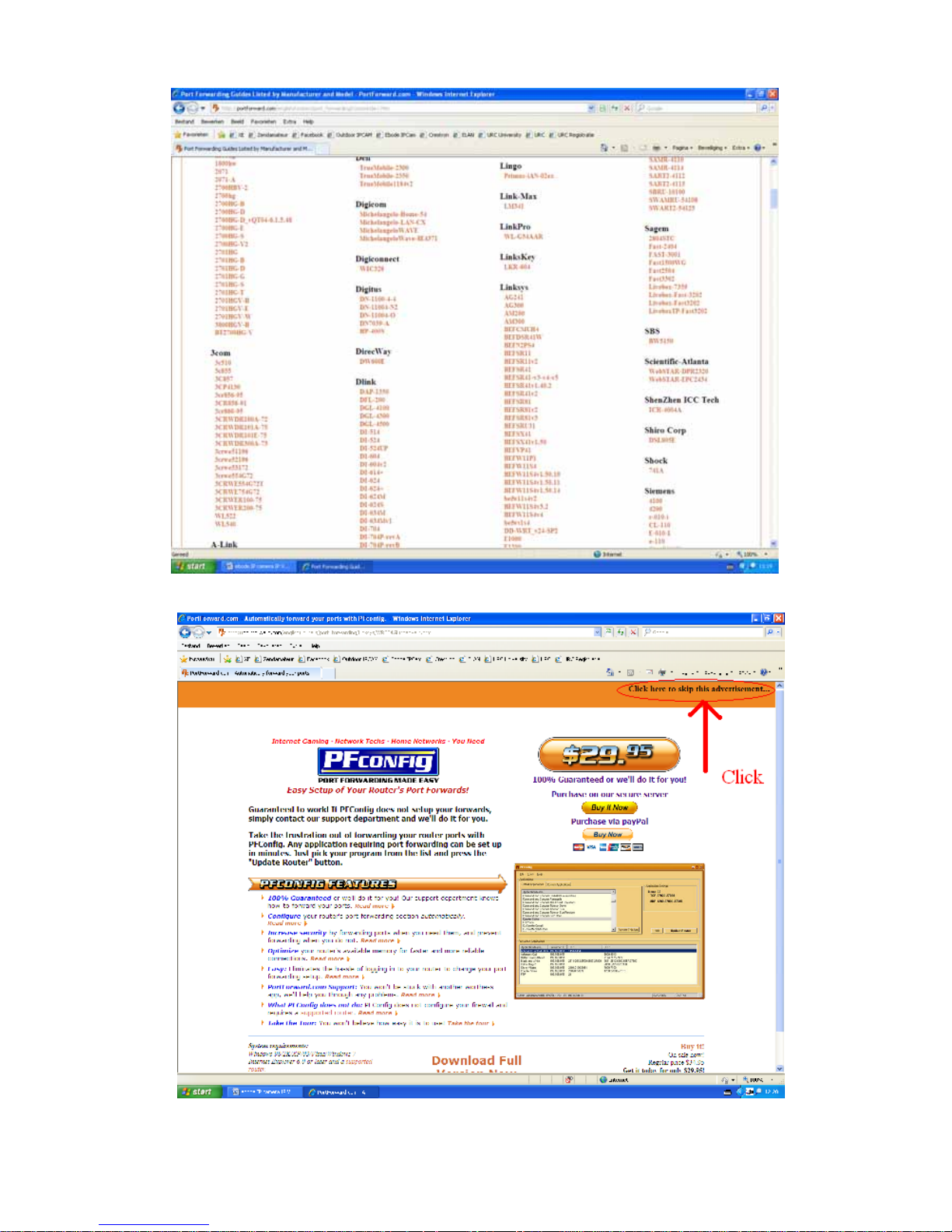

not maintain or support it. The website is: http://portforward.com/

Click “Router List” and find your brand and

type to find more handy details about your router if you can’t find them anywhere else.

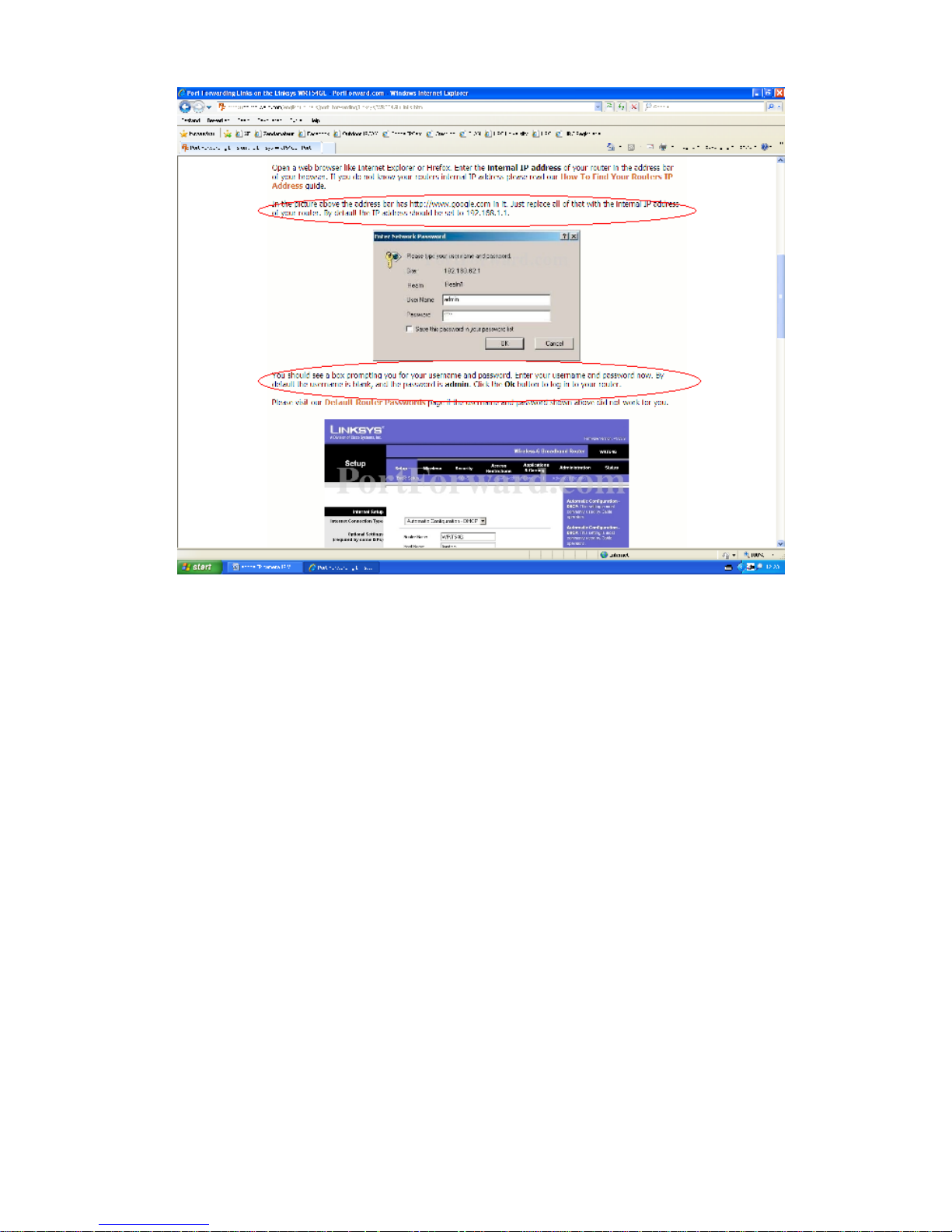

In the next screenshots we take a Linksys router as an example, here Portforward.com shows the default
username and password as well as the default IP address to visit the router settings menu.
Please note that Portforward.com is a website designed to tell you how to forward ports in your router.
Information may vary from type to type of routers. Lets proceed shall we?

Manual version 1 – March 2012 37 IP Vision 58

Manual version 1 – March 2012 38 IP Vision 58

4. Login to the camera with the IPCamera Tool or manual with your Browser.

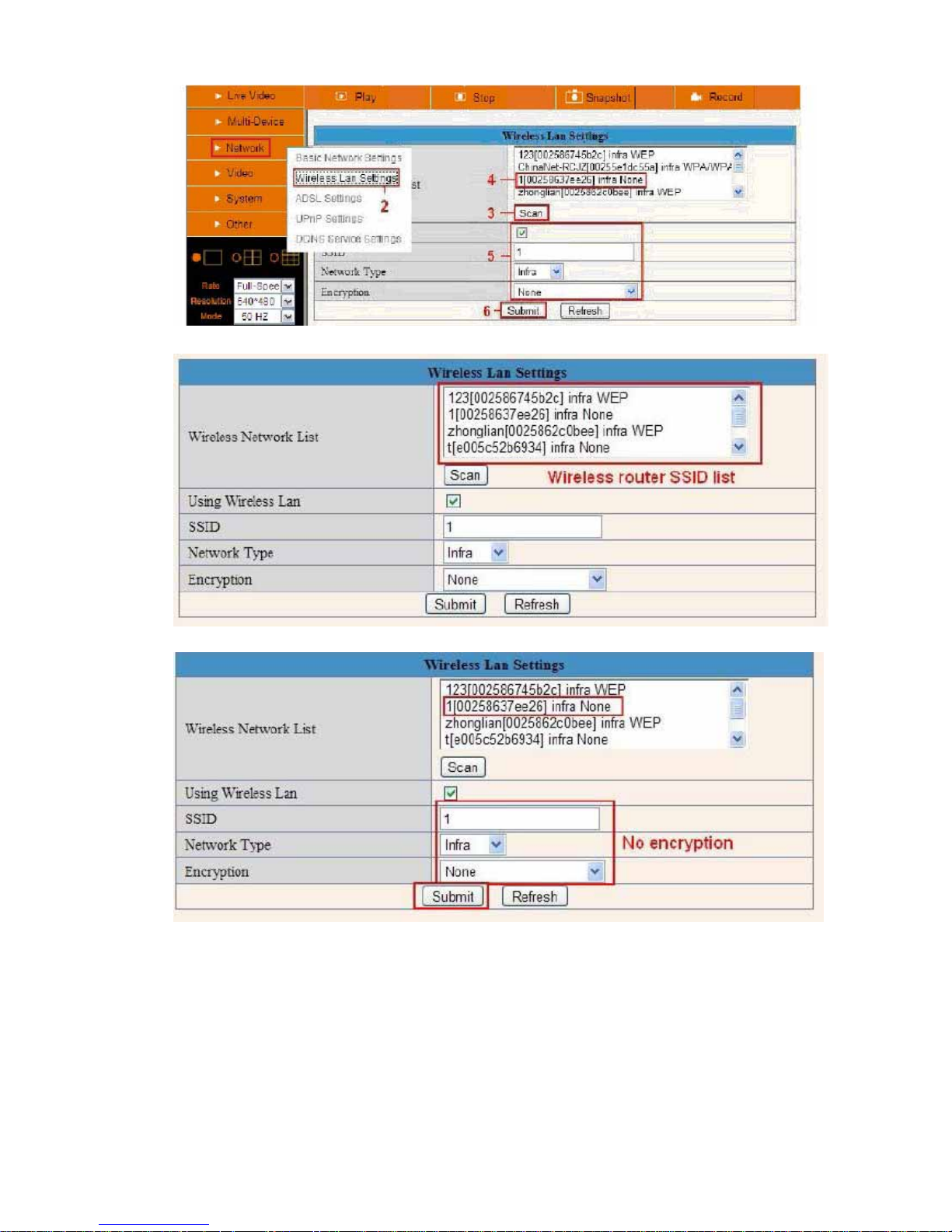

5. Click “Network”>”Wireless Lan Settings”>”Scan”, please press scan 2 times, then you will find the WLAN from

the list, choose the one you use. (Figure 6.4).

Manual version 1 – March 2012 39 IP Vision 58

Figure 6.1.1

Figure 6.2

Manual version 1 – March 2012 40 IP Vision 58

Please note that the (tree view) menu (Figure 6.1.1) can look different on different computer systems
depending on the resolution of the screen used. Figure 6.1.1 shows that we had to scroll over with our

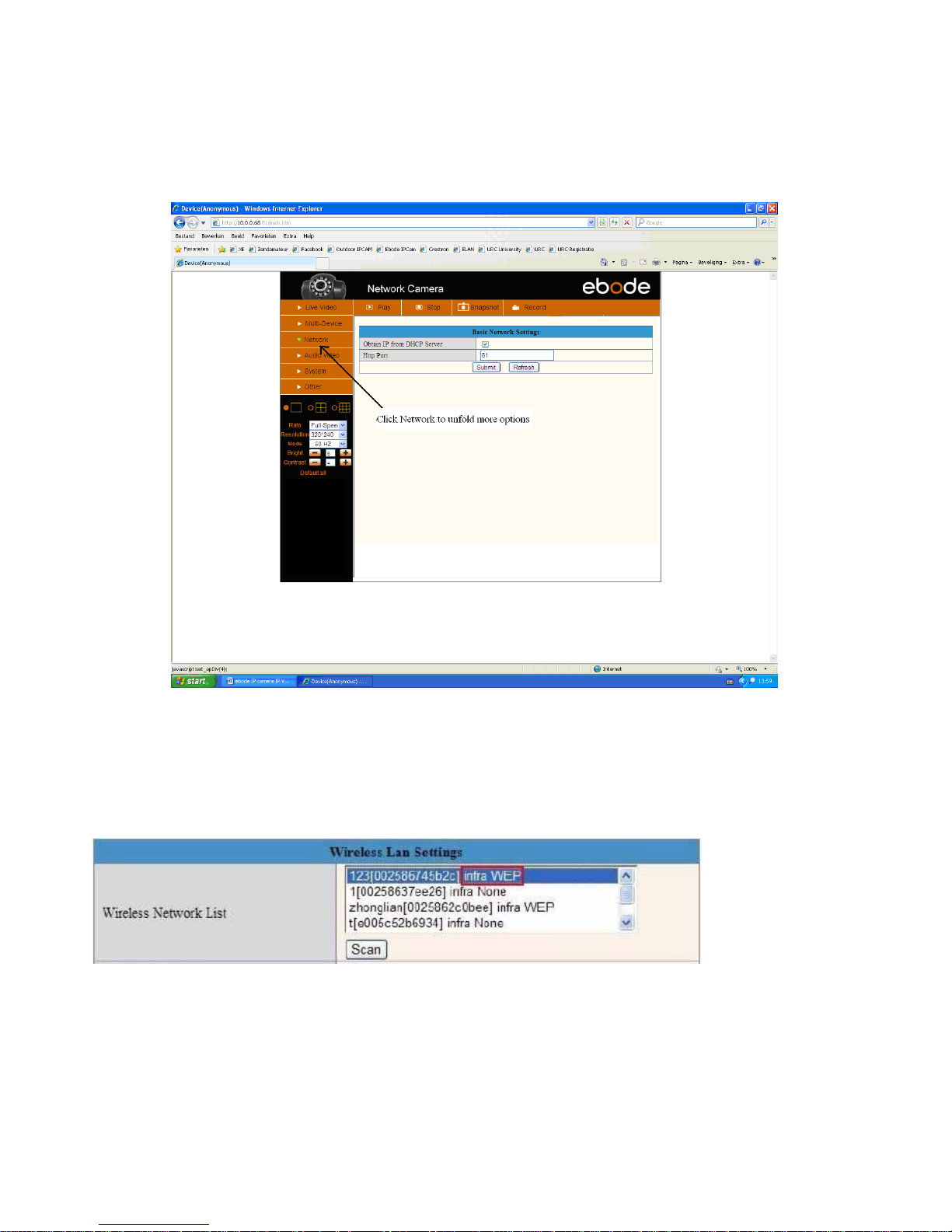

mouse and click “Network” inside the tree view on the left and that the options unfold in the tree view itself.
After clicking “Network” you will see something like Figure 6.1.1.

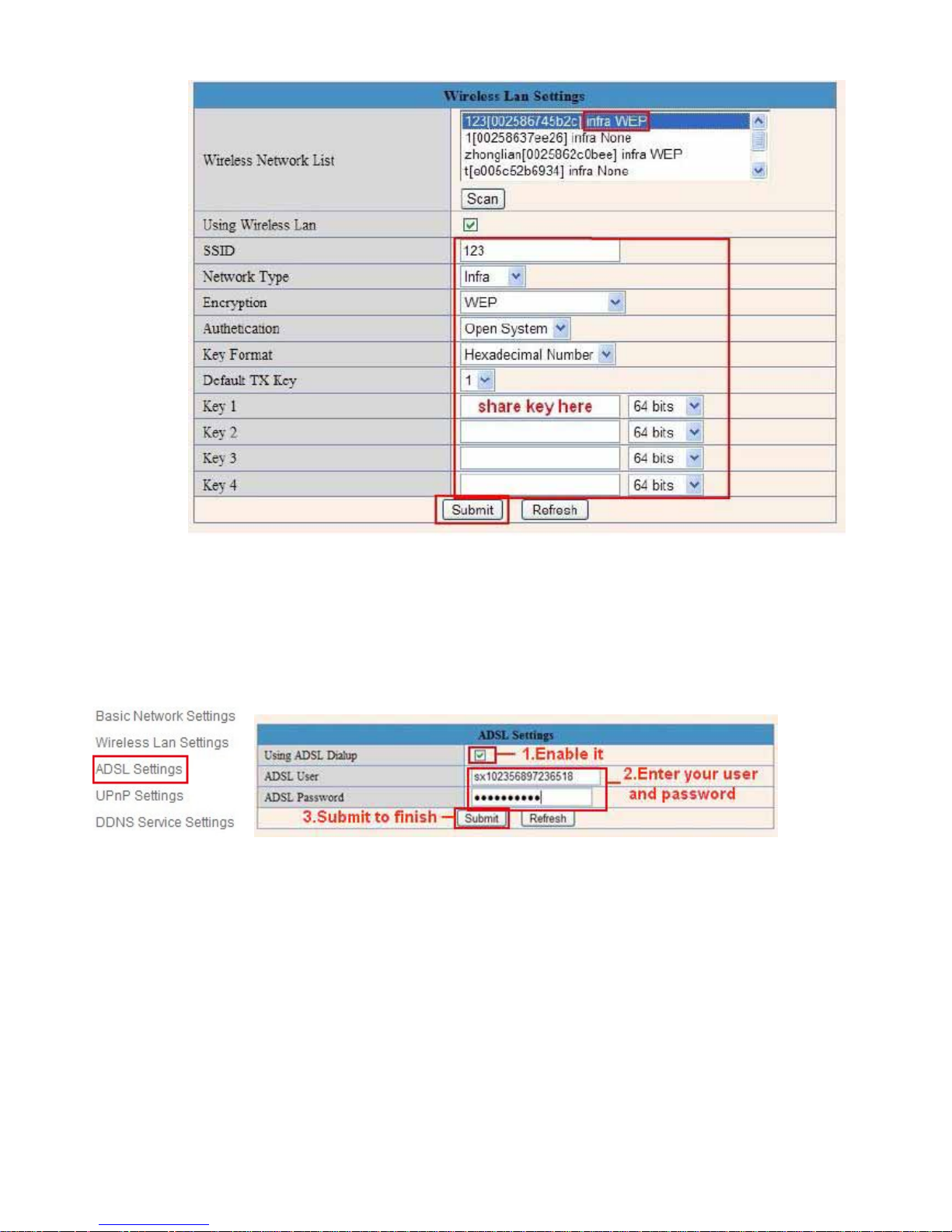

6. Select your Wireless network in the list, please look careful and select the right one.
“Wireless Lan” can also be referred as “SSID” in some router manuals or on the bottom of the router.

7. Behind the SSID you can also find your type of encryption, in this particular case the Camera discovered:

Network type “infra” Encryption “WEP”.

8. If there is no encryption, just click “Submit”. (Figure 6.5)

9. If there is encryption, please input the share key, then click “Submit”. (Figure 6.6)

10. Wait about 30 seconds, the camera will reboot, then unplug the network cable. You might have to login
to the Camera again to continue with the next steps.

Manual version 1 – March 2012 41 IP Vision 58

Figure 6.3

Figure 6.4

Figure 6.5

Manual version 1 – March 2012 42 IP Vision 58

Figure 6.6

3.5 ADSL Settings

When connected to the Internet through ADSL directly, you can enter the ADSL username
And password obtained from ISP.

Î

Figure 6.7

3.6 UPnP Settings

If we want to be able to see our camera live video from a computer outside our network, for example when
we are at work, we have to do some advanced settings in our router. For most people this will be a difficult
step, but we will try to help you out. UPnP stands for Universal plug n Play device. UPnP will do the port
forwarding in the router for us, so we don`t need to do this manually. In order to use this function we need to
have a router that is capable of using UPnP devices. Please make sure your router supports UPnP (please
check the manual of your router to determine if it supports UPnP), if not please skip the next step and continue
with step 3.7 DDNS Service Settings. By default UPnP is most likely disabled in your router. Please refer to the
router manual to enable UPnP.

Manual version 1 – March 2012 43 IP Vision 58

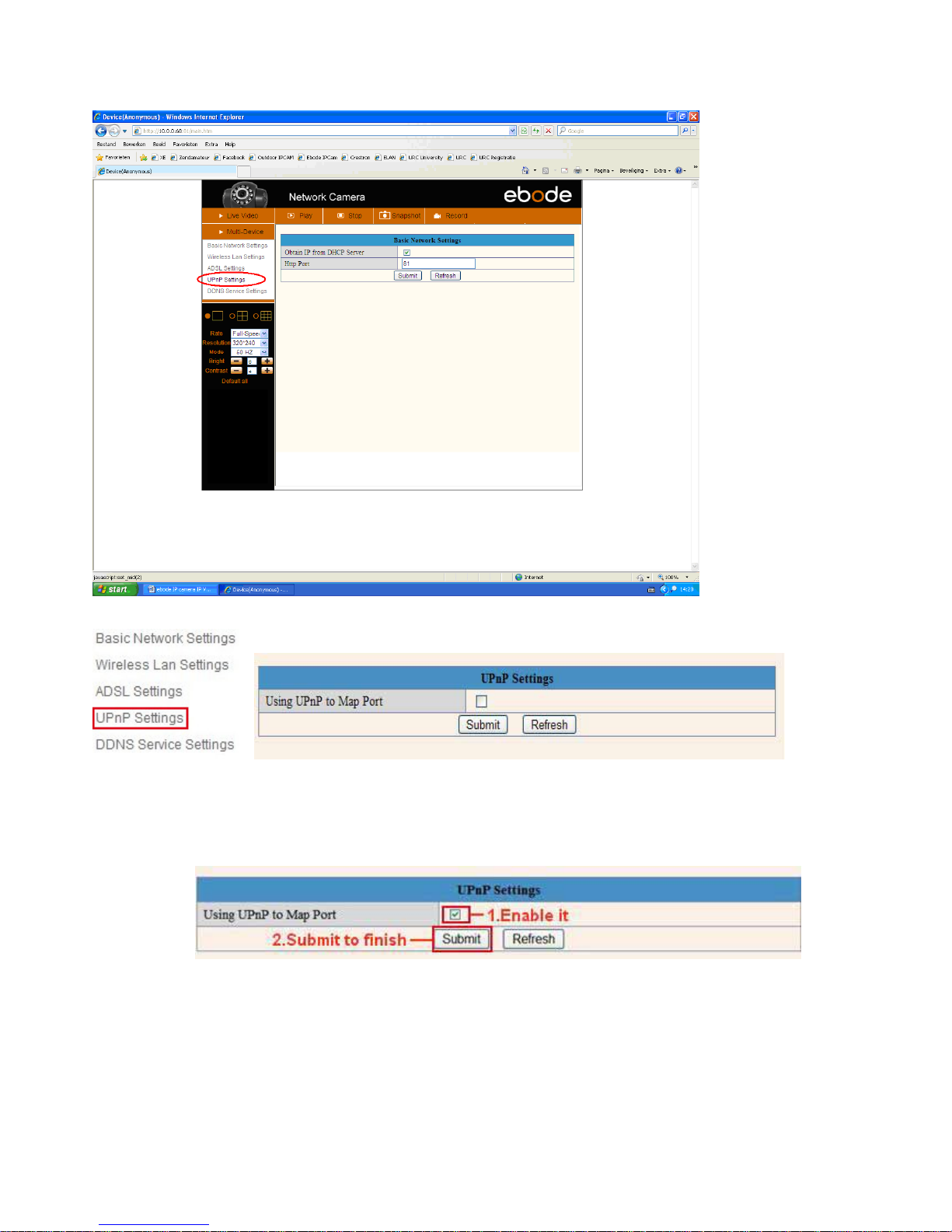

Click Network > UPnP Settings to choose Using UPnP to Map Port:

Î

Figure 6.8
Select it and click Submit, then the camera will support UPnP port forwarding automatically.
It’s helpful for using DDNS (viewing live video from outside our network). As soon as you have enabled UPnP in
you router, please proceed with the next steps.

Figure 6.9
NOTE: UPnP is only for port forwarding. It relates to the security settings of your router, make sure the UPnP
function of your router is enabled, before you continue. If your router does not support UPnP, it may show error
information, therefore we recommend you to do port forwarding manually in your router, as explained in step

3.7.3.

Manual version 1 – March 2012 44 IP Vision 58

3.7 DDNS Service Settings

Î

Figure 7.0
Select Network > DDNS Service Settings in the Tree View on the left (see picture above)

There are 2 options:
Manufacturer’s DDNS: This domain is provided with the Camera (see bottom of the camera). Choose ‘submit’.
In most cases you will need to login to the camera again. You can use the IPCamera tool for this or enter the
Camera`s IP address in your web browser. After you have done this, please skip the next step and continue
with step 3.7.1

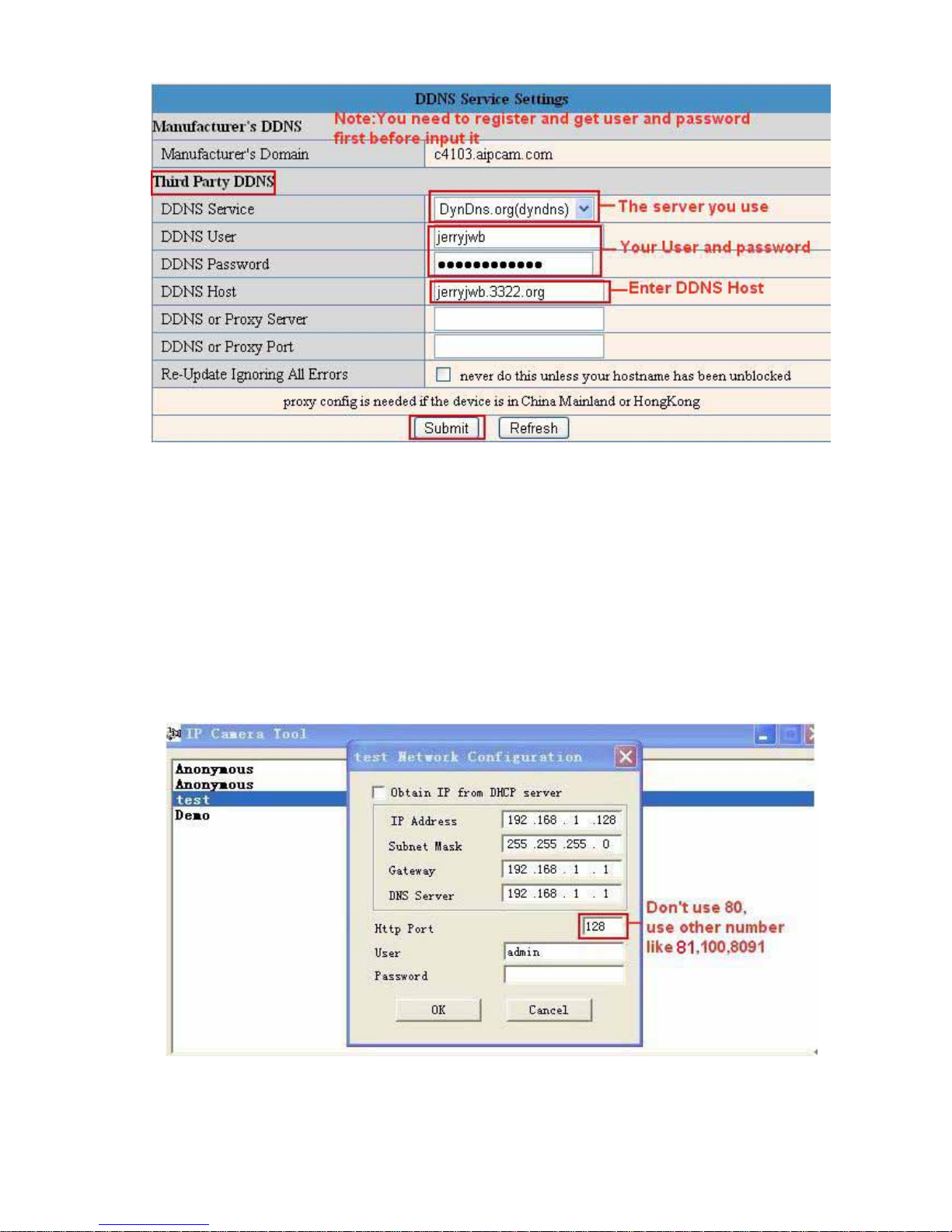

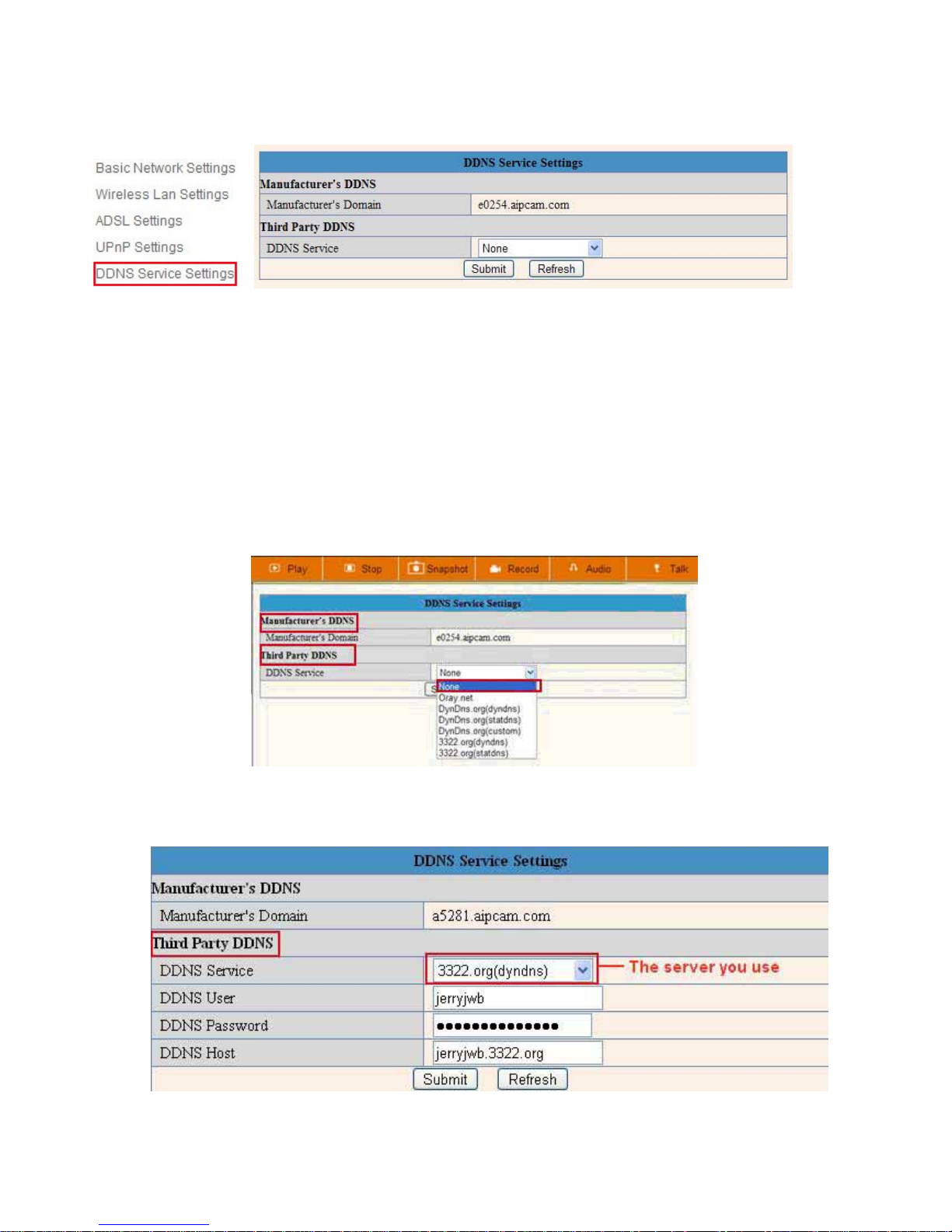

Third Party DDNS: You might have a DDNS server already, then it is useful to take the next steps.

This domain is provided by the third party, such as Dyndns, Oray, 3322 etc.

Figure 7.1

Third Party DDNS

If you use third party DDNS, please choose the server you use, such as “3322.org” or “dyndns.org” as below:

Figure 7.2

Manual version 1 – March 2012 45 IP Vision 58

Figure 7.3

You have to register an account firstly, keep the user, password, host, then input it.

NOTE: Only one DDNS can be chosen, for example, if you use the manufacturer’s DDNS, the third party one

won’t work, if you use the third party DDNS, the manufacturer’s one won’t work.

3.7.1 To change the camera’s port.

Open the IP Camera Tool from your Desktop select the ebode camera (it will turn blue) and right-mouse click
and choose network configuration. The default port of camera is “80”, please change “80” to any other one
you like, such as “81”, “100”, “8091” etc. Click “OK”, the camera will reboot, wait about 30 seconds.

Figure 7.4

Manual version 1 – March 2012 46 IP Vision 58

3.7.2 DDNS Status
After all these steps are done you should be able to access your camera from your mobile device or tablet
(using an app). You can also access your camera via your computers’ or laptops’ web browser using the
DDNS address.

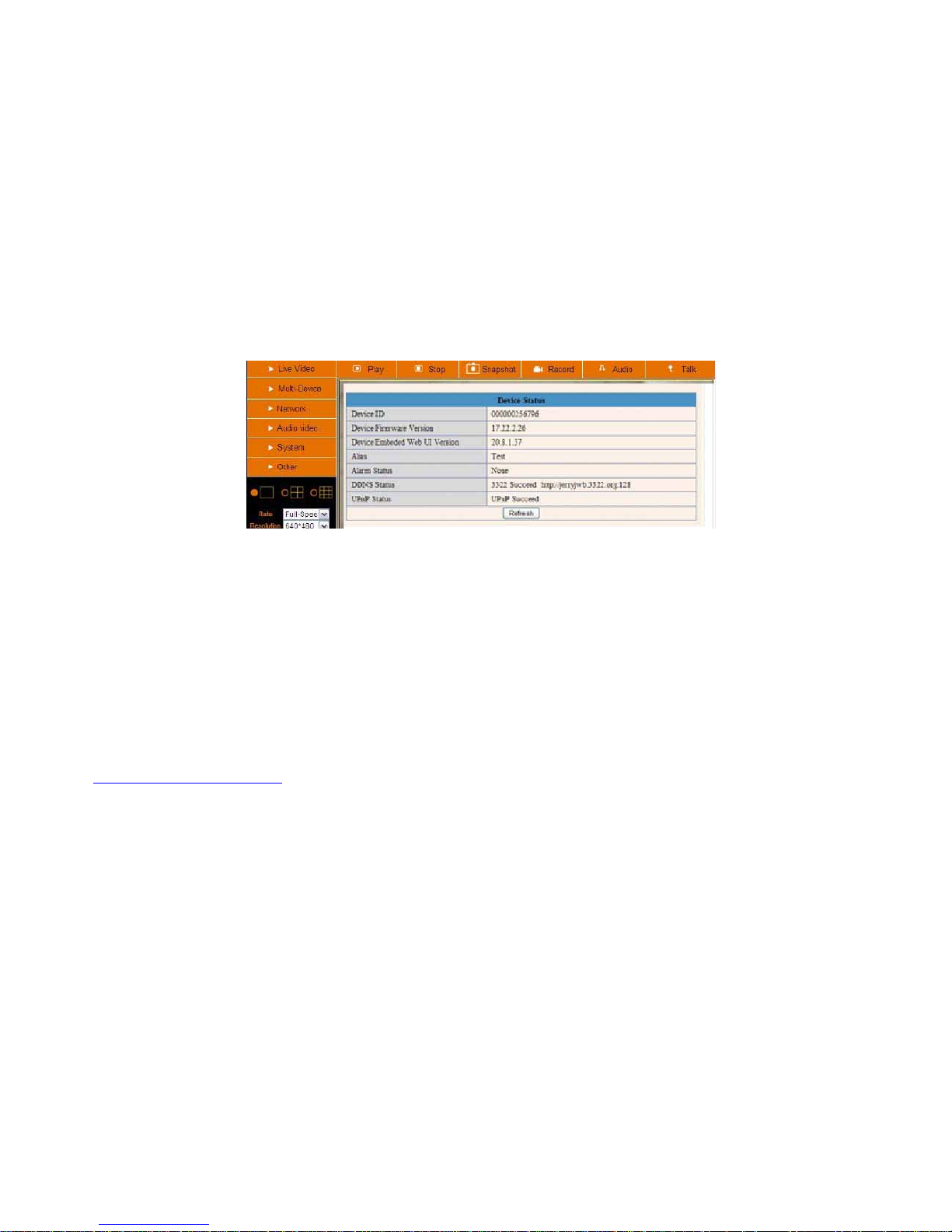

Before you can access it, you first need to check the DDNS status from the camera. Login to the camera and
choose “System”>”Device Info”. Please check that ‘DDNS Status’ shows ‘succeed’ followed by the address.
This is illustrated in the image below. It is important that you get the address link of DDNS to access the camera
from anywhere in the world. You can also find this address on the bottom of your camera. Write this address
somewhere or add is as your Favourite in your web browser to visit the camera from outside the network (from
your mobile device for example at work, school, on the road etc.)

Figure 7.8

Congratulations! You’ve know successfully installed your IP camera. It is always a good idea to ask friends or
family to login to the camera from their own place. Don’t forget to change the password of the camera
afterwards! Please save this manual for additional features. The following steps in this manual are only needed
if the camera is not accessible from outside the network, or if you want to use additional features.

If it didn’t succeed, it is most likely that UPnP is not supported by your router, please set the port forwarding
manually (as explained in the next step). You can always leave UPnP on, whether it’s working or not. If DDNS
status still doesn’t show ‘succeed’ please check the FAQ, Chapter 4, at the back of this manual or our website

www.ebodeelectronics.eu

.

3.7.3 Set Port Forwarding in the router (Manually)

ADVISORY: We highly recommend you to give the ebode camera a static IP address. This ensures you that the

camera will always have the same IP address, and reduces the risk of not being able to access and view the
camera by your mobile device. To give your camera a static IP address, please check step 3.3 in this manual.

This is the most important step. Please check the ‘extra information’ in step 3.4 for more information about
routers and port forwarding.

In order to get the DDNS to work, you have to forward your cameras port in the router. You need:

- IP address of the camera

- Port of the camera

- Default gateway IP address of the router

- Username and password of the router

Manual version 1 – March 2012 47 IP Vision 58

The first two items can be found if you start up the IP Camera tool from your desktop. As an example the IP
address from the below image is 192.168.1.16 and the port is 81.

REMEMBER: Your camera should not be on Port 80. If it is, please go to step 3.7.1 to change the port number.

How to discover the default gateway IP address in MS Windows Vista, 7: Click ‘Start’, and type in ‘cmd’, press
enter. (see image below)

Next, type in ‘ipconfig’ and press enter. Please refer to below image.

Manual version 1 – March 2012 48 IP Vision 58

Finally, you can see the default gateway address, as shown in the image below.

Now we know the default gateway address we only need to know the username and password of your router.
Some routers have a sticker on the bottom with the factory username and password, other ones don`t have a
password, and the password can also be set by the user or mechanic. There is a very handy website with allot
of router brand information like default IP address, default username and password etc. Please note we only
refer to this website, we do not maintain or support it. The website is: http://portforward.com/

Click “Router
List” and find your brand and type to find more handy details about your router if you can’t find them
anywhere else. For more information on portforward.com, please go to step 3.4.

We know have all information to get the DDNS working, we will show you how to do this.

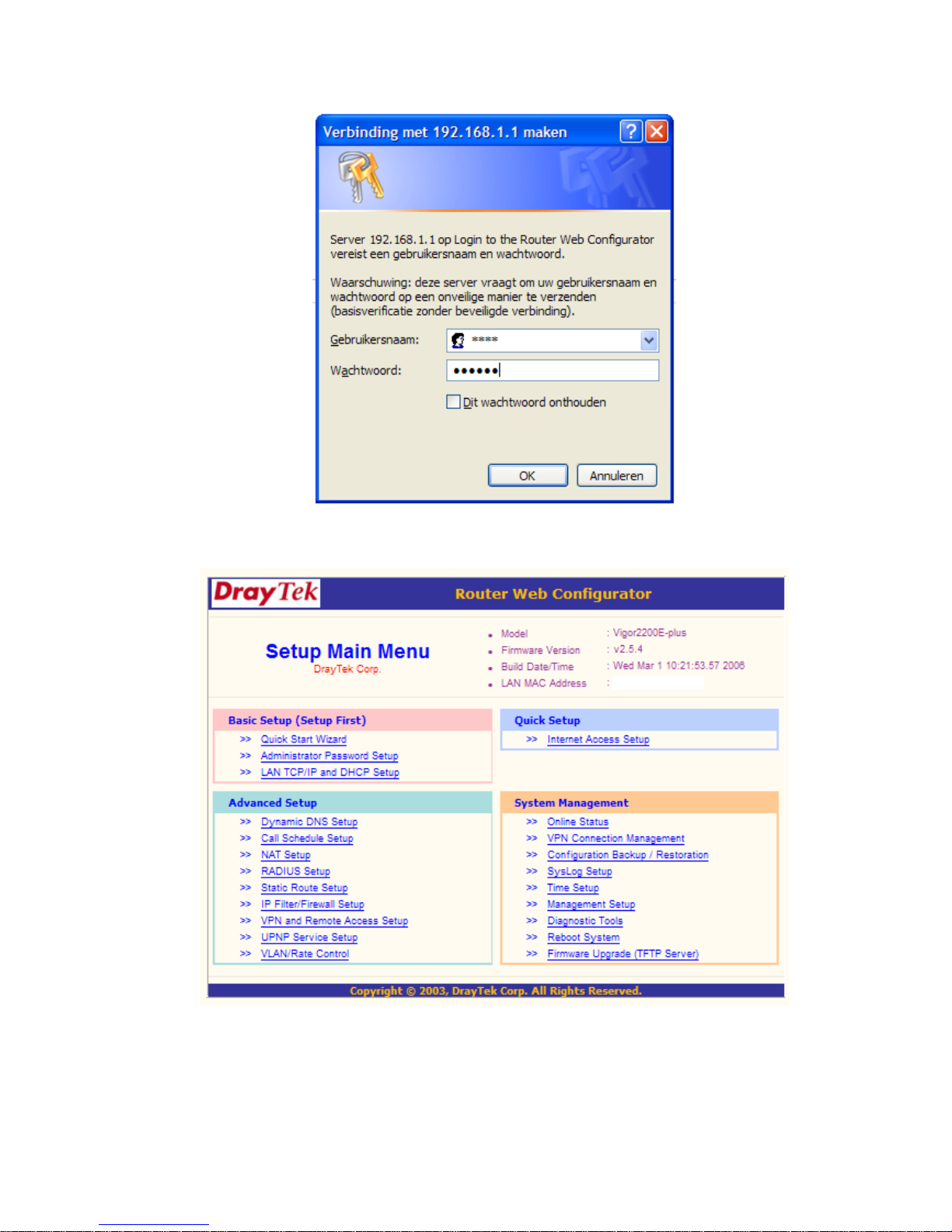

1. Open your web browser and type in the default gateway address and press enter.

Manual version 1 – March 2012 49 IP Vision 58

2. Enter the username and password from the router

3. The next screen is the interface of your router. Please note that each brand of router has its own interface.

This is just an example.

4. Select NAT Setup. Please note that for each brand this can have a different name for NAT setup.

Portforward.com contains more information about most router brands.

5. Please choose ‘Configure Port Redirection Table’

Manual version 1 – March 2012 50 IP Vision 58

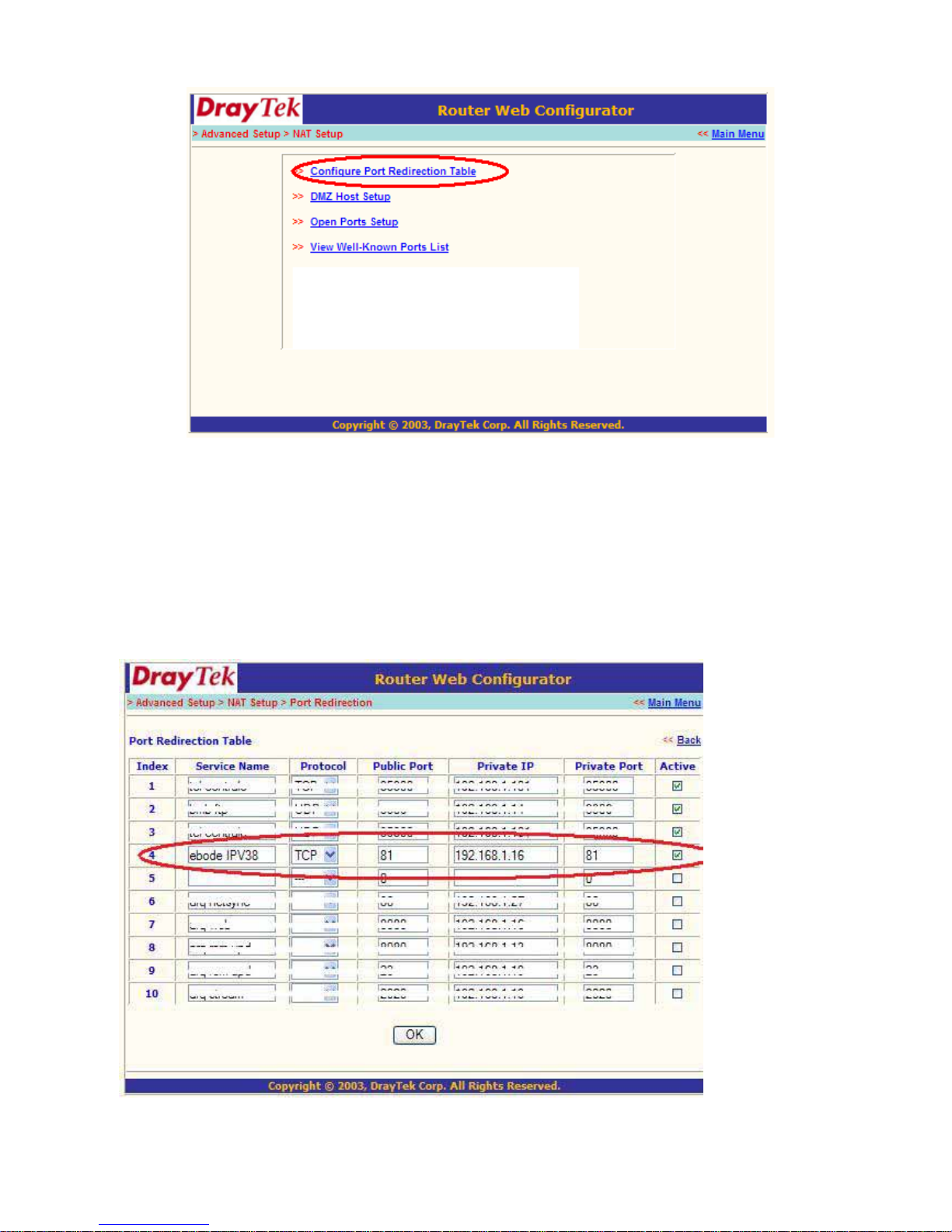

6. Now we have to let the router know, on which port the camera is located.

Service name: give the camera a recognizable name, i.e. ebode IP Cam
Protocol: Select TCP
Public Port: You’ve checked this earlier on, please enter the right port for your camera (you can always
use the IPCamera Tool to look it up, as explained at the beginning of this chapter)
Private IP: Is the IP address of the camera. Again, you can use the IPCamera Tool to look it up
Private Port: This is the same as public port
Please tick the box for ‘active’
Then press ok

Manual version 1 – March 2012 51 IP Vision 58

Now go to the DDNS Status from step 3.7.2 and check if it says ‘succeed’. You should now be able to login to
the camera from another location.

However, we showed you just one example, there are many different kinds of routers, therefore it’s difficult to
show fixed steps for each router, but here are some other samples of different router’s port forwarding settings.
Remember, portforwarding.com is a very useful source of information.

TP-LINK:

1. Login the router.

2. Choose “Forwarding”, select “Virtual Servers”

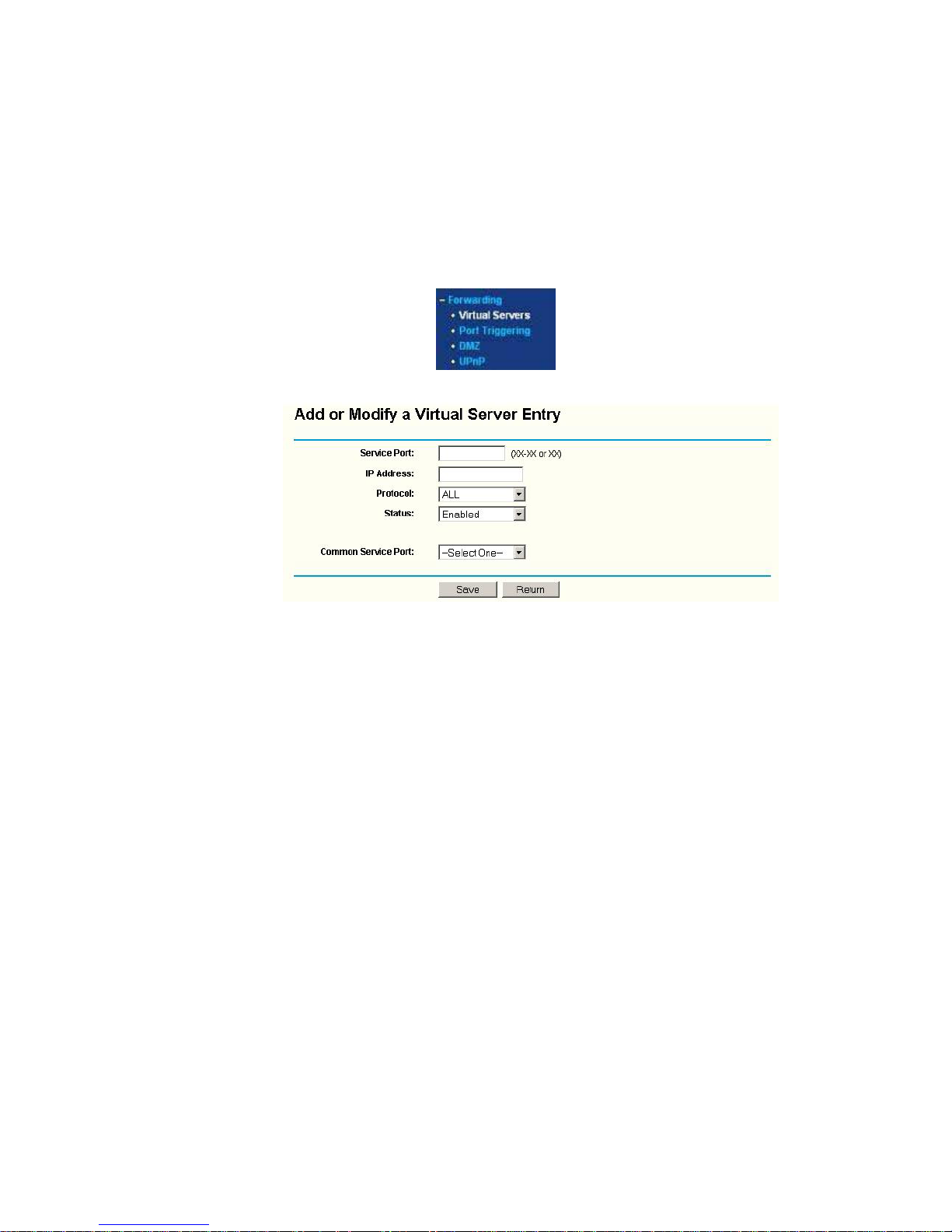

3. Click the Add New button, pop-up below:

Figure 7.5

Fill the service port (except 80), IP address of the camera, then click Save

NOTE: The port and IP address should be the same as Camera.

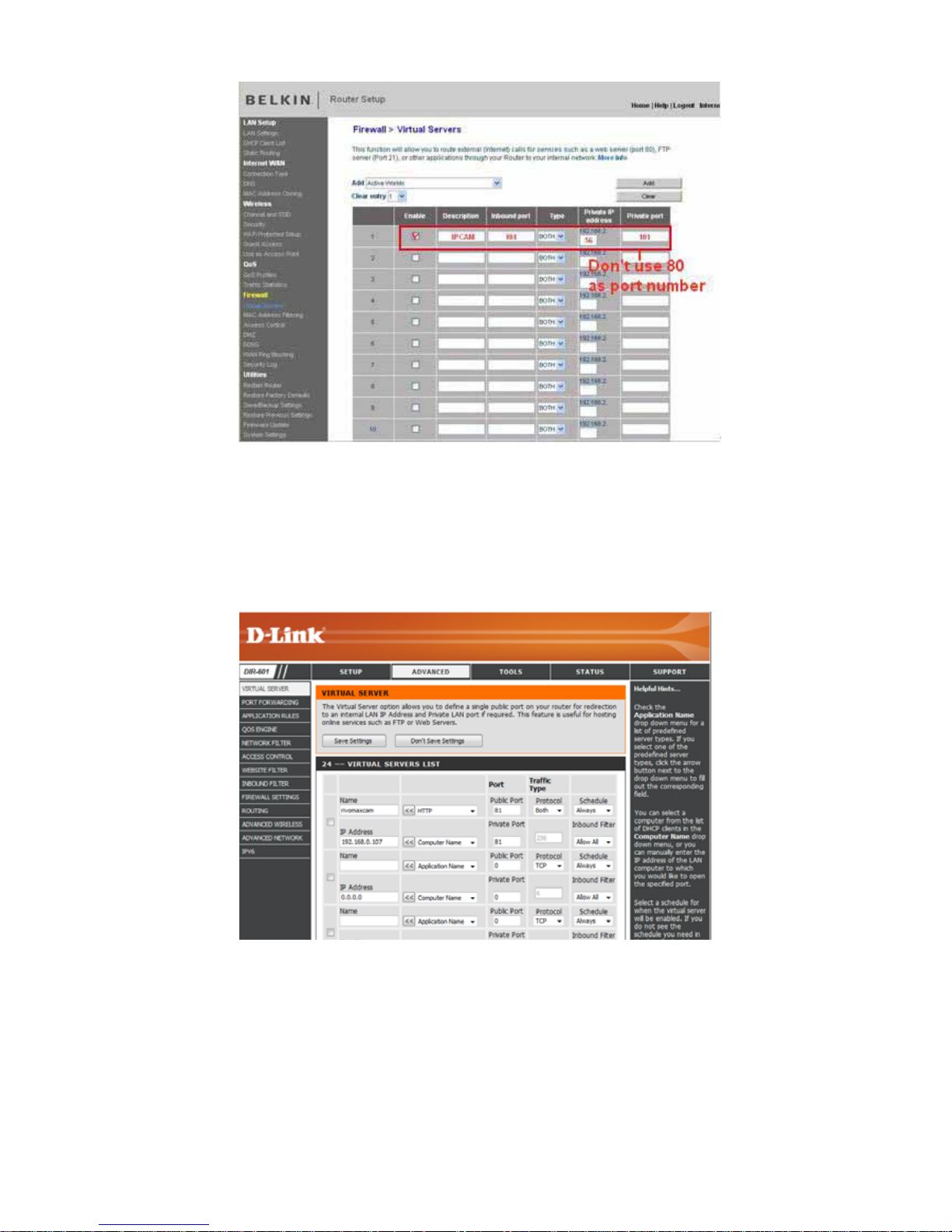

BELKIN:

1. Login the router.

2. Choose “Firewall”, select “Virtual Servers”

3. Input the port (except 80) and IP address, then click save.
NOTE: The port and IP address should be the same as Camera.

Manual version 1 – March 2012 52 IP Vision 58

Figure 7.6

DLINK:

1. Login the router.

2. Choose “Advanced”, select “Virtual Servers”

3. Input the port, IP address, Protocol, then click save.
NOTE: The “public port” & “private port” should be the same as camera’s port, choose the protocol to be
“both”.

Figure 7.7

Now you are finished setting up your camera. The next steps explain additional features of your camera and
FAQ.

Manual version 1 – March 2012 53 IP Vision 58

3.8 System Settings

Î

Figure 8.0

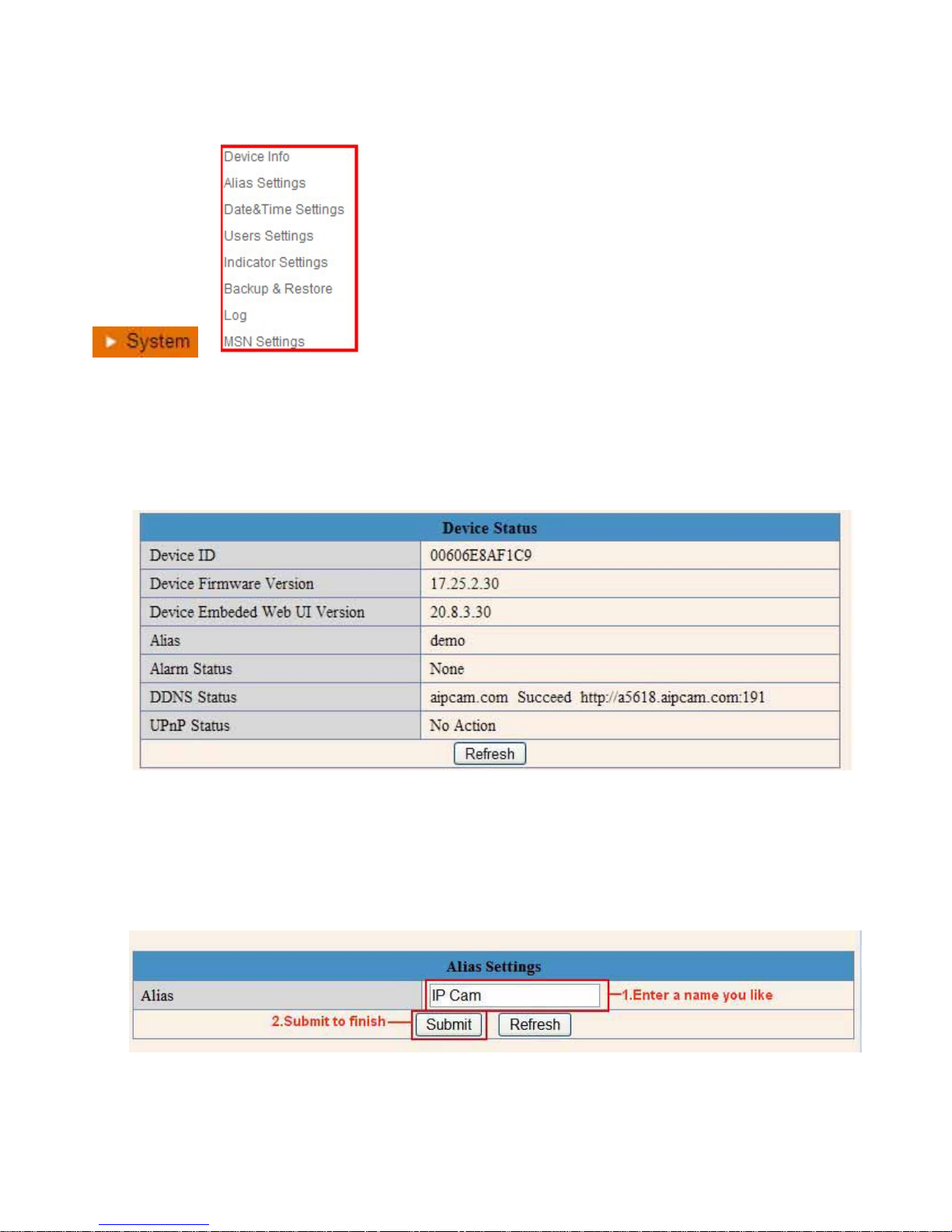

3.8.1 Device Info

You can find the information about Device ID, Firmware Version, Embedded Web UI Version, Alias, Alarm
Status, DDNS Status, UPnP Status and MSN status..

Figure 8.1

3.9 Alias Settings

Default device name is anonymous. You set any new name for your camera here, then click Submit.

Figure 8.2

Manual version 1 – March 2012 54 IP Vision 58

3.10 Date &Time Settings

Set the date and time for your camera.
Choose the Clock Time zone of your country.

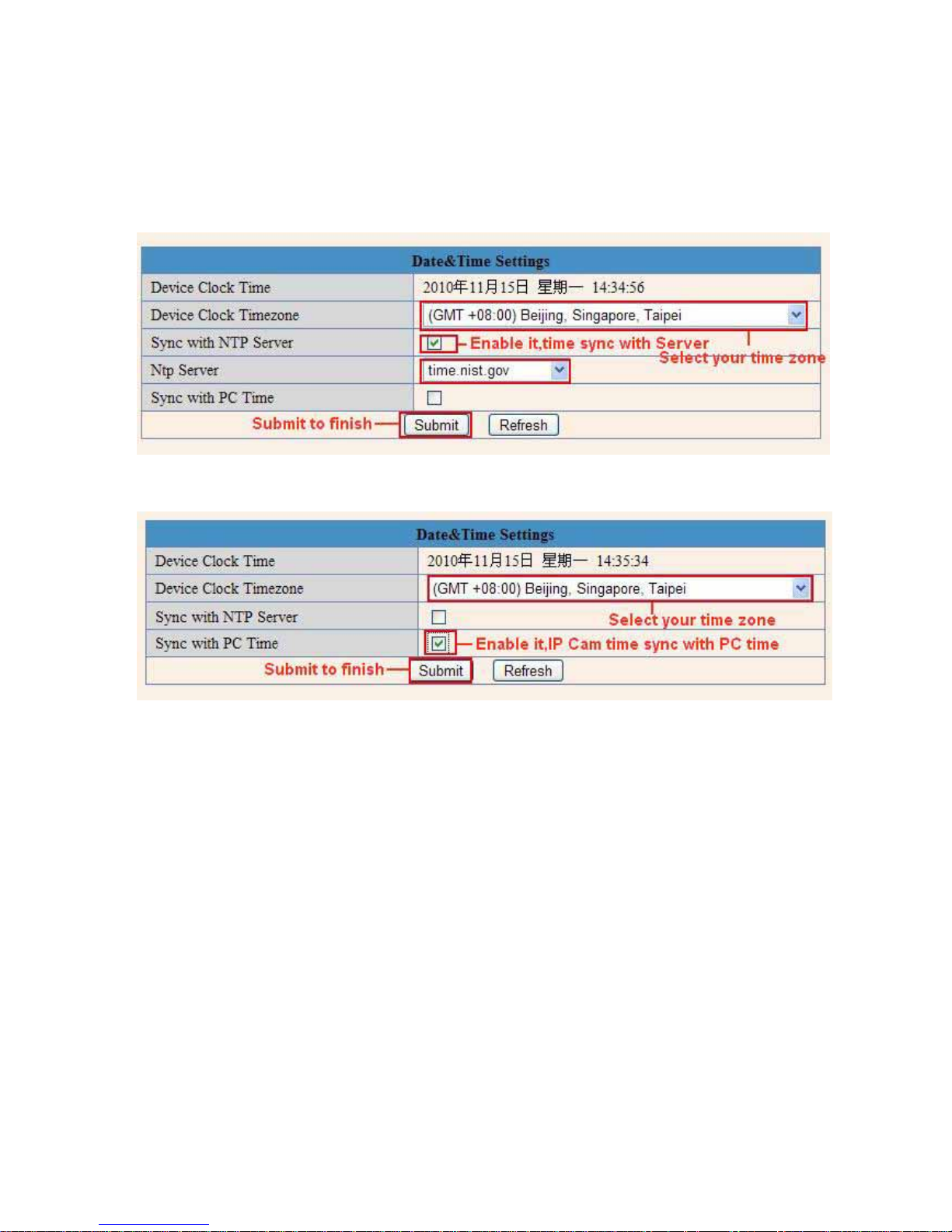

You can choose Sync with NTP Server (Figure 8.3) or Sync with PC Time (Figure 8.4).

Figure 8.3

Figure 8.4

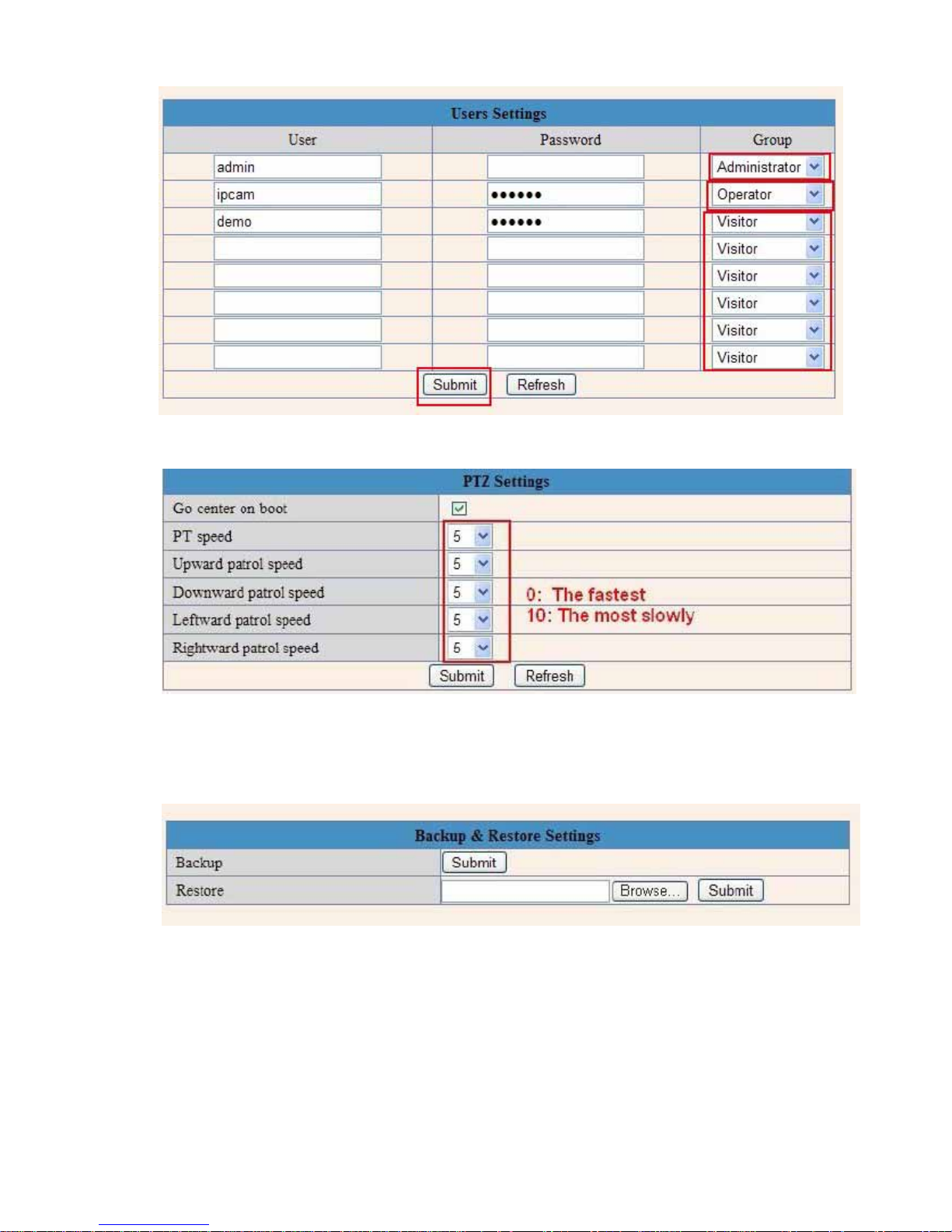

3.11 Users Settings

Eight accounts are acceptable for this system. Here you can set the user names and password as
Administrator, Operator or Visitor, the permission for them as below:

z Visitor: In this mode, you can only view. (Details 2.7)
z Operator: You can control the direction of IP Camera and set some parameter. (Details 2.8)
z Administrator: You can setup the advanced configurations of the IP Camera. (Details3.1-3.20)

Manual version 1 – March 2012 55 IP Vision 58

Figure 8.5

Figure 8.6

3.12 Backup & Restore

Figure 8.7

1）Backup: Backup IP Camera all the Parameter, if you want to save all the current settings that you have set
already, you can click Submit, then all the parameters you set will store as a parameters bin file.
2）Restore: Restore IP Camera all the Parameter, if you want to change the camera’s settings to a certain
status which has a backup, click Browse to load the bin file, then Submit it.

Manual version 1 – March 2012 56 IP Vision 58

Log

Figure 8.8

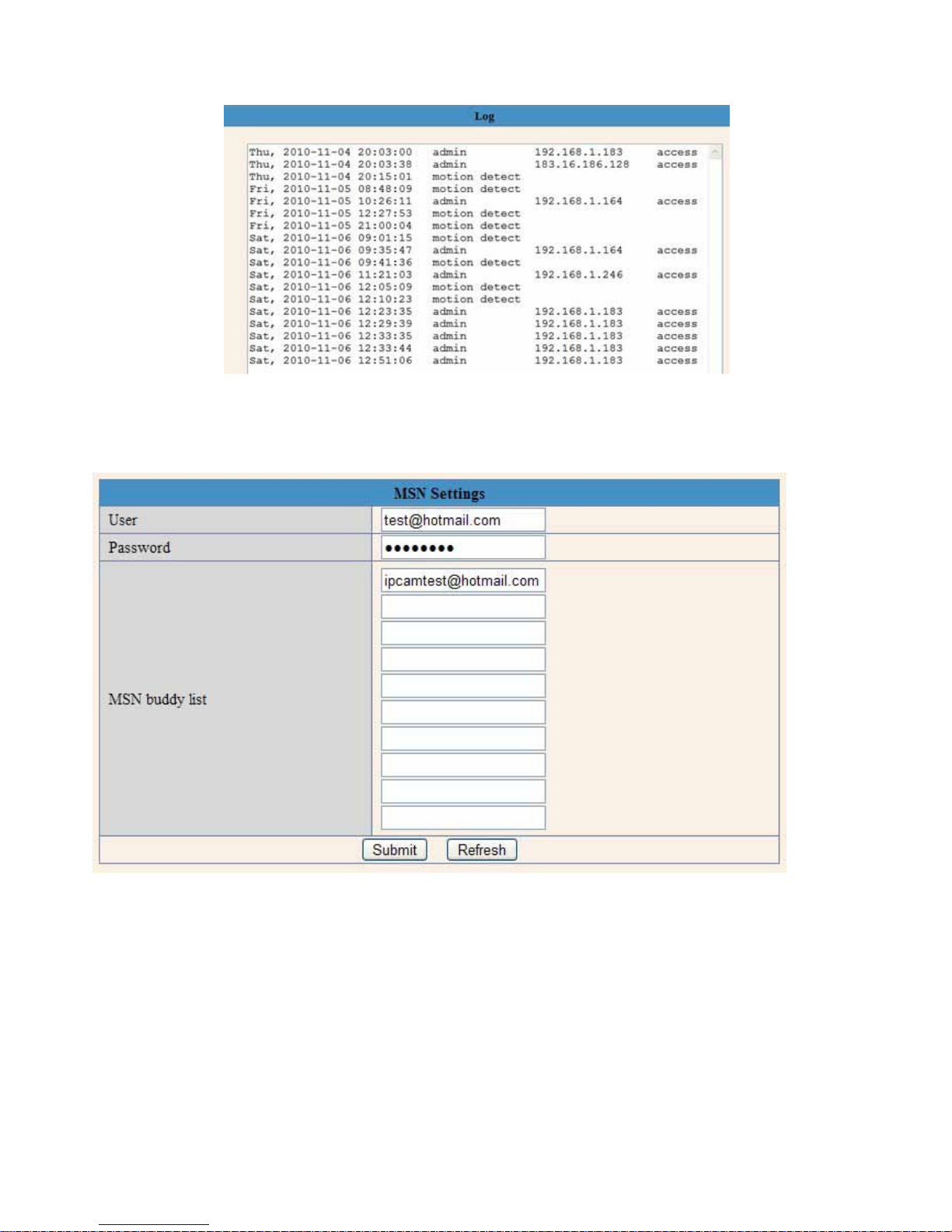

Record User information, including weekday, date, time, user name, visitor IP address etc.

MSN Settings

NOTE: Set the port forwarding successfully before setting MSN (Refer to port forwarding in DDNS settings).

Then get to the MSN settings page, fill in the correct user name and password, add the MSN buddy, max.
upto 10 friends, after submit, the user will be shown in your MSN friend list.

Click System—Device Info to check the MSN status.

Manual version 1 – March 2012 57 IP Vision 58

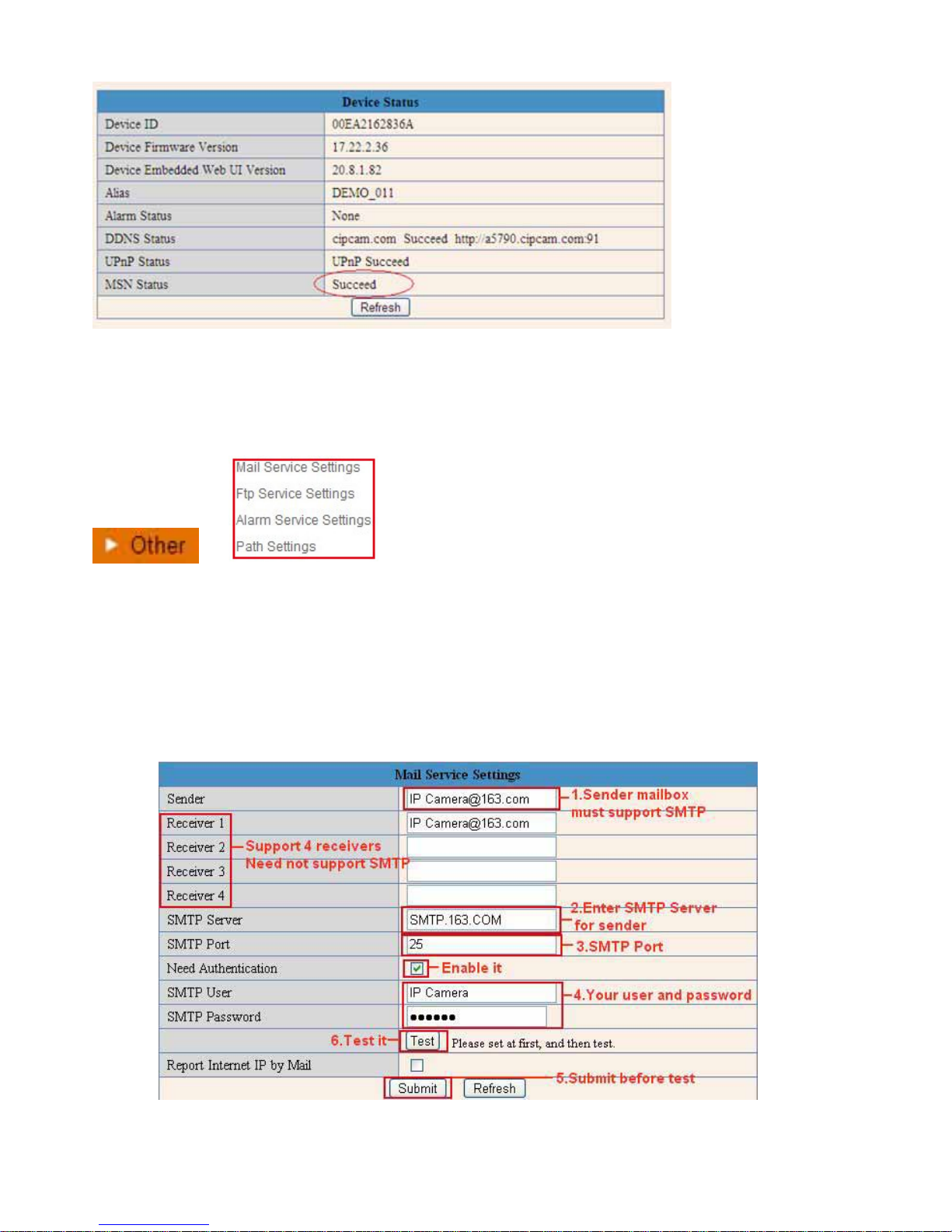

After it, run your MSN, open the chat dialog, type in the word “url?”, after a few seconds, you will get a reply
for the remote access ip address for this ip camera.

3.13 Other Settings

Î

Figure 8.9

Here you can configure some additional functions such as Motion Detection, Alarm, IO Linkage, Schedule,

FTP Upload, Alarm Mail Alert, Record Path etc.

3.14 Mail Service Settings

Set Mail Service Settings to enable the camera to send e-mail alerts when motion is detected.

Figure 9.0

Manual version 1 – March 2012 58 IP Vision 58

Sender: Make sure the sender mailbox server provider support SMTP, and the mailbox should not enable SSL
or TSL encryption too.

Receiver: Here you can set four receivers. For receiver, there is no SMTP limitation.
SMTP Server: The sender’s SMTP Server.
SMTP Port: The sender’s SMTP Port, usually is 25, some SMTP server have its own port such as 587.
Need Authentication: If there is SMTP user & password, please select authentication.
SMTP User: Input correct SMTP User here. Some SMTP User is the sender’s full email address, such as
[e-mail], some are without suffix, only the username, such as test.
SMTP Password: Input correct SMTP password here.
NOTE: Please click Submit firstly before choosing Test.

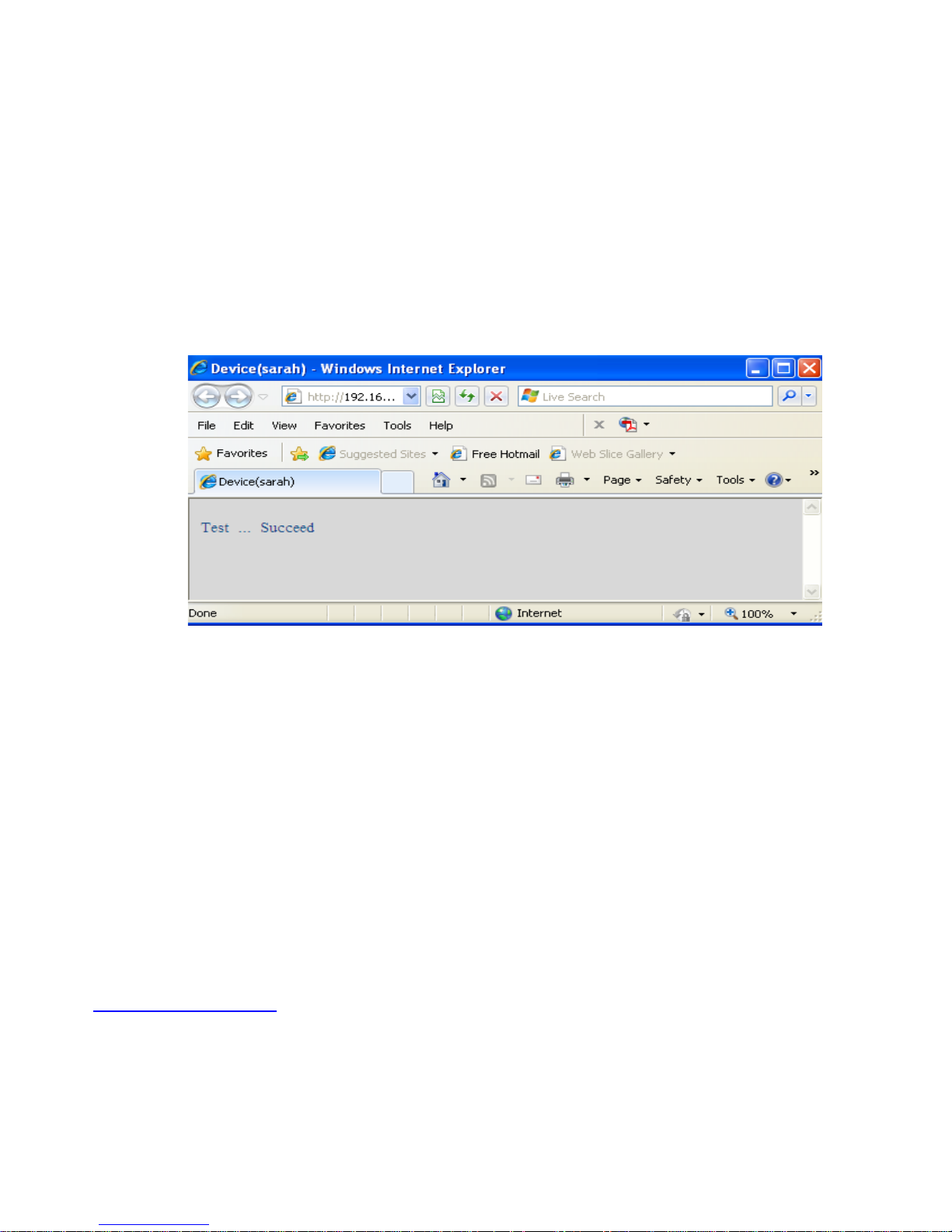

You will see the test result after click Test.

Figure 9.1

If it shows the following errors when you click Test. Please check whether the information you filled in is
incorrect and try again.

1) Cannot connect to the server.

2) Network Error. Please try later.

3) Server Error.

4) Incorrect user or password.

5) The sender is denied by the server. Maybe the server needs to authenticate the user, please check and try

again.

6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server.

7) The message is denied by the server. Maybe because of the anti-spam privacy of the server.

8) The server does not support the authentication mode used by the device.

Report Internet IP by Mail: If select it, you will receive emails which contain the camera’s internet IP. When
camera power on or Internet IP changed, it will send the internet IP by mail. (For example: IPCAM's URL is

http://121.213.109.69:1008

).

Manual version 1 – March 2012 59 IP Vision 58

3.15 FTP Service Settings

Set the FTP Service, you can upload images to your FTP server when motion detection triggered.

Figure 9.2

Figure 9.3

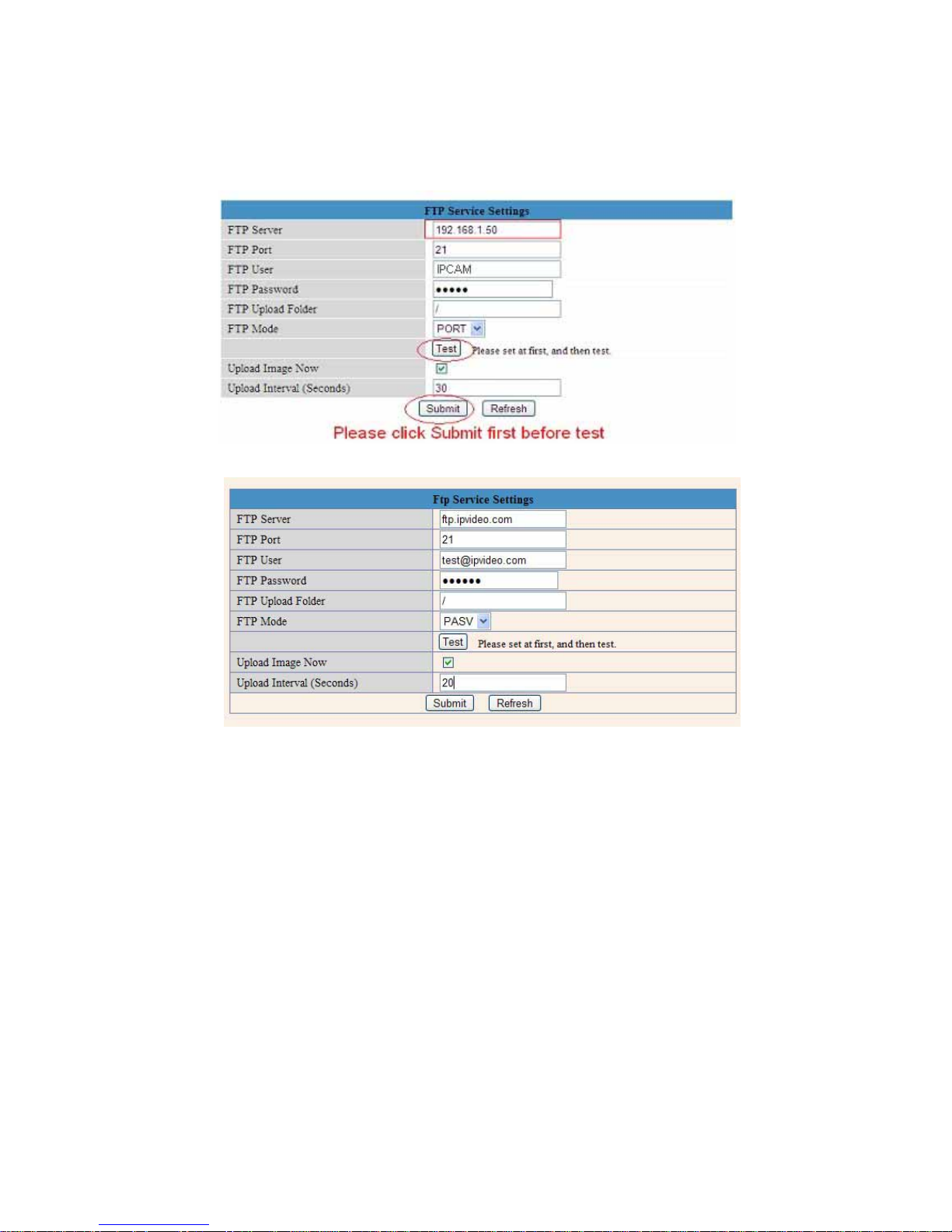

FTP Server: If your FTP server is set up in LAN. You can set as Figure 9.3.
If you have an FTP server that can be accessed from the Internet, you can set as Figure 9.4.

FTP Port: Usually the port is 21.
FTP Upload Folder: Make sure that the folder you plan to store images in exists. The camera cannot create the

folder itself. Also, the folder must be erasable.

FTP Mode: It supports standard (POST) mode and passive (PASV) mode.
Upload Image Now: It will upload images when you selected it. Here Upload Interval refers to the time

between the current image and the next image.

NOTE: Here upload image now means it can upload images freely, no alarm trigger needed.
Click Submit after these settings. Then click Test. You will see the following picture.

Manual version 1 – March 2012 60 IP Vision 58

Figure 9.4

If it prompts error information as follows.

1) Cannot connect to the server. Please check FTP Server is correct.

2) Network Error. Please try later.

3) Server Error.

4) Incorrect user or password. Please check the username and password is correct.

5) Cannot access the folder. Please be sure the folder exists and your account is authorized.

6) Error in PASV mode. Please be sure the server supports PASV mode.

7) Error in PORT mode. PASV mode should be selected if the device is behind a NAT.

8) Cannot upload file. Please be sure your account is authorized.
Please check if parameters you filled in are correct. The format of image is like 000DC5D008FA (IPCAM)
Please check if your FTP server supports this format of file name.

3.16 Alarm Service Settings

Î

Figure 9.5

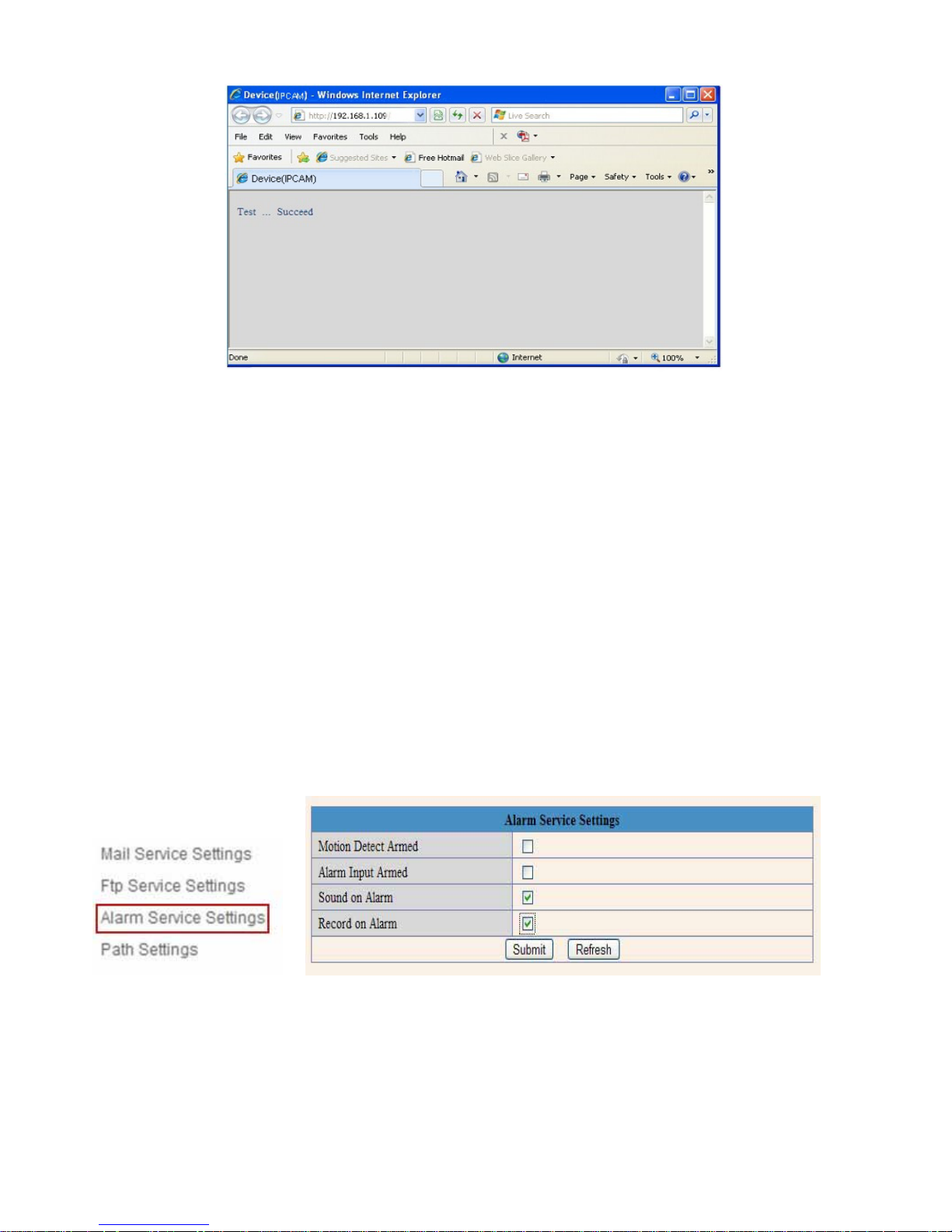

Enter Alarm Service Settings page to configure Motion Detection function.

3.16.1 Motion Detect Armed

If you enable Motion Detect Armed, it will record and make an alarm sound when there is motion detected.

Manual version 1 – March 2012 61 IP Vision 58

Figure 9.6

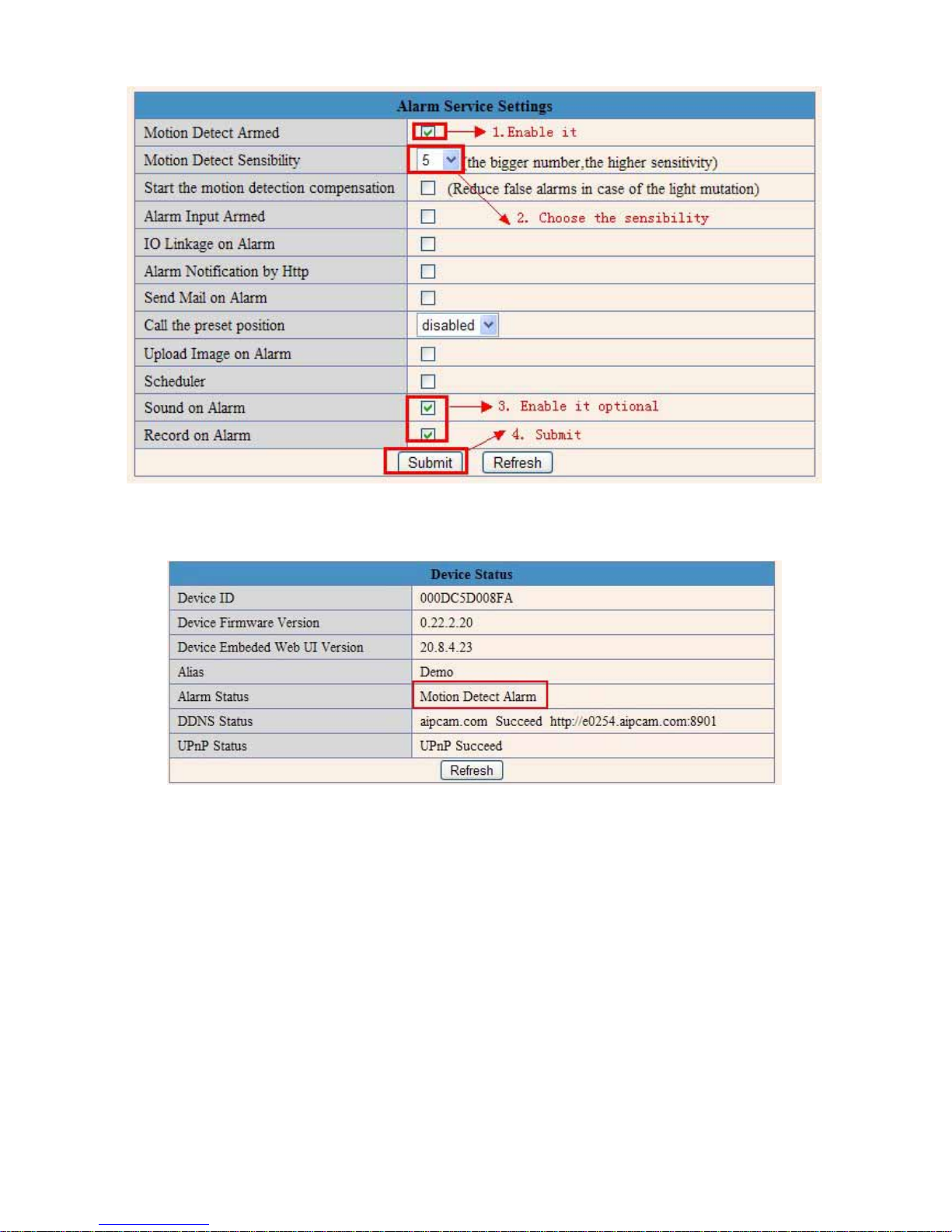

After you enable motion detect armed, if there is motion detected, the Alarm Status will turn to Motion
Detect Alarm. (Figure 9.7)

Figure 9.7

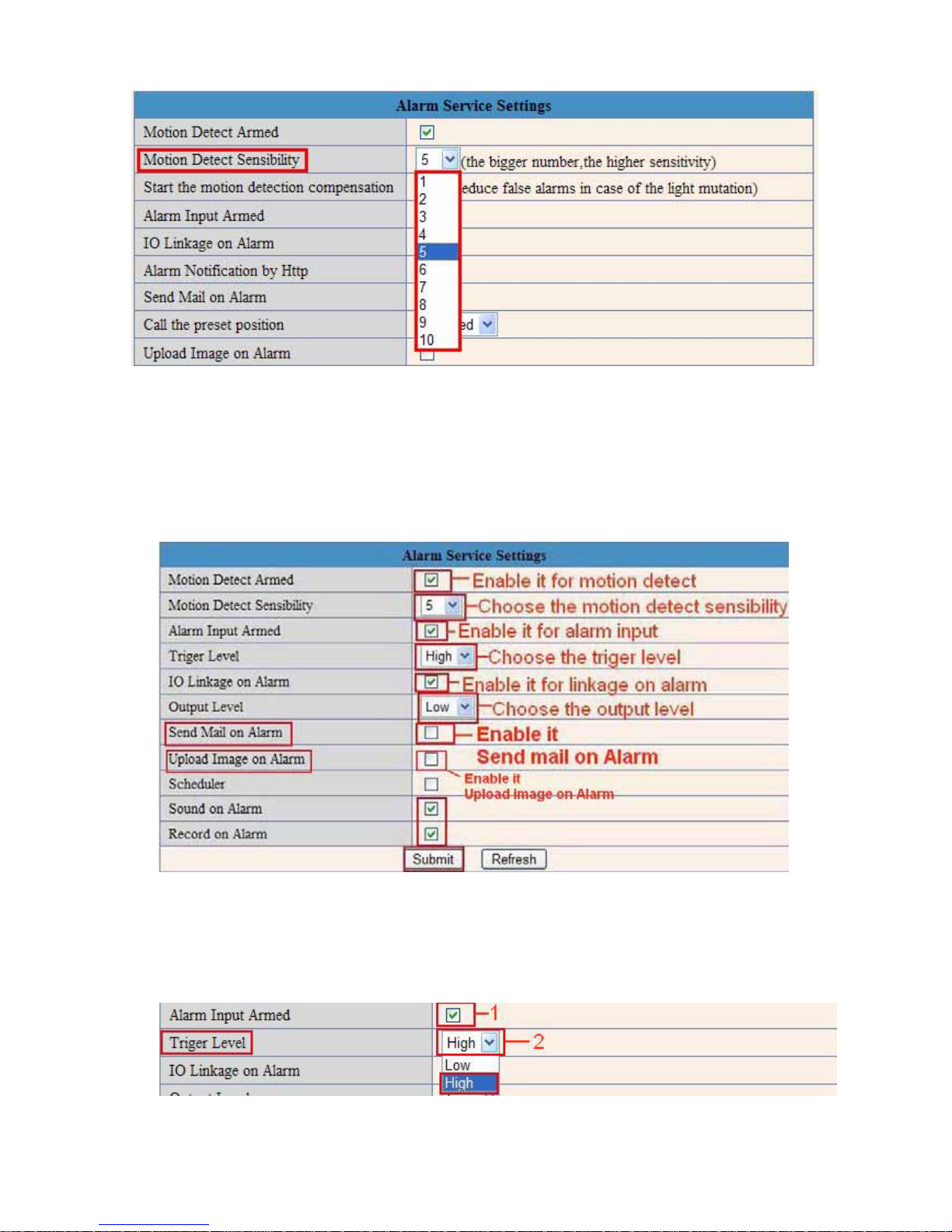

3.16.2 Motion Detect Sensibility

You can choose level 1-10; level 10 means the most sensitive, 1 means the least sensitive.

Manual version 1 – March 2012 62 IP Vision 58

Figure 9.8

3.16.3 Alarm Input Armed / IO Linkage on Alarm

If you want to connect external alarm devices, when it’s an alarm input device, choose Alarm Input Armed to
enable it, when it’s an output device, choose IO Linkage on Alarm to enable it.

Figure 9.9

There are two options for Trigger Level. (Figure 10.0)

High: When the external alarm device is close, then the alarm triggered.
Low: When the external alarm device is switching off, then the alarm triggered.

Figure 10.0

Manual version 1 – March 2012 63 IP Vision 58

There are two options for Output Level. (Figure 10.1)

High: When chosen, the IO Pins work as a switch that is closed.
Low: When chosen, the IO Pins work as a switch that is switching off.

Figure 10.1

3.17 Send Mail on Alarm

When chosen, it will send picture and e-mail to your e-mail once alarmed. (First you should finish the e-mail
Service Settings. Figure 9.1).
NOTE: It usually will send 6 snapshots by one e-mail to your mailbox for each alarm triggered. Each alarm will
last for 60 seconds.

Upload Image on Alarm
Enable Upload Image on Alarm to set upload images to FTP once alarmed.

Upload Interval: Set the upload interval (Seconds).
NOTE: The total alarm time is 60 seconds.

Figure 10.2

Scheduler

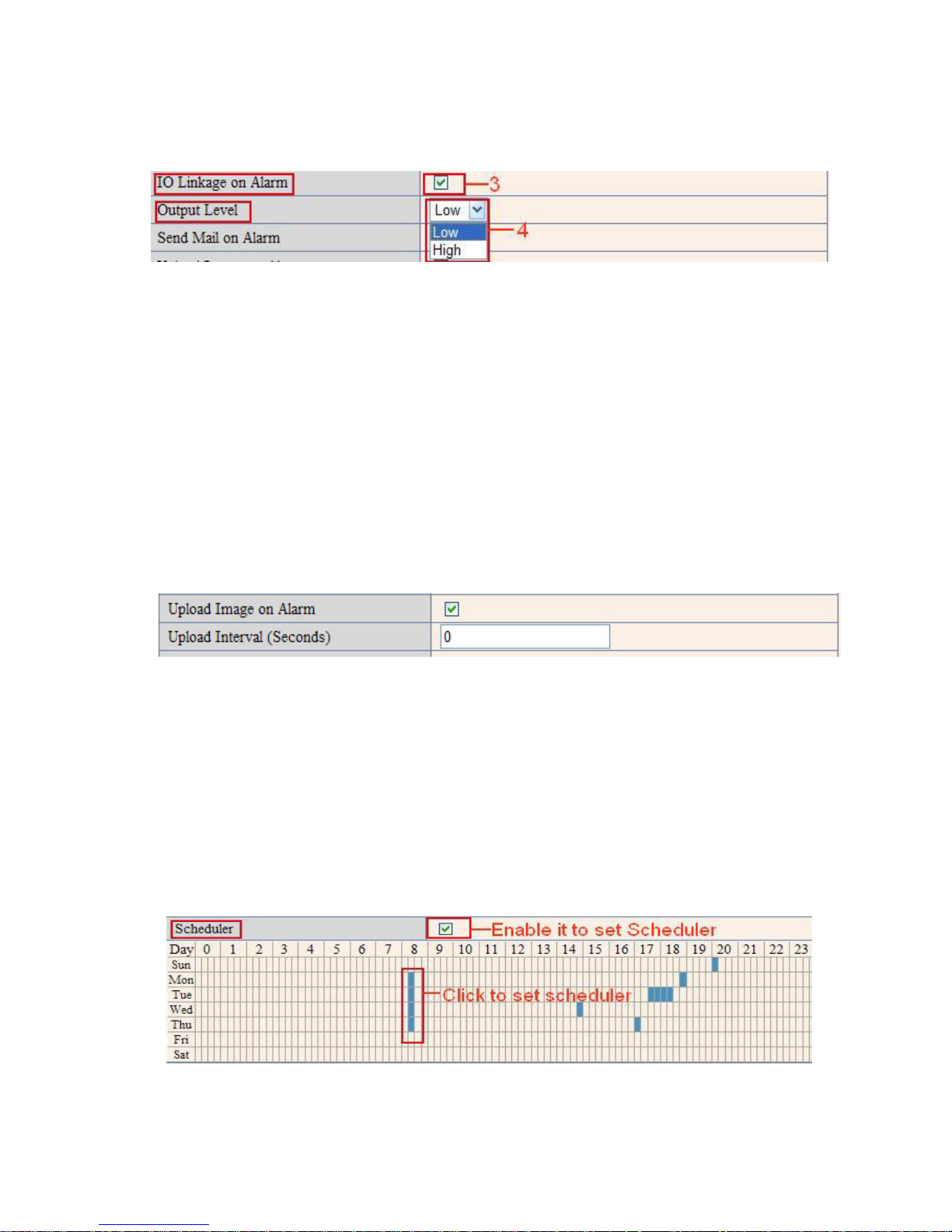

Here you can set the camera alarm during the time you set. Choose Scheduler and set the date & time range.
(Figure 10.5) From Monday to Sunday, and every day divided into 24 hours, each hour divided into 4 quarters.
Left click the frame of the time range, it will turn to blue color, which means the time you choose to be armed.
Click it again, it will turn back to gray, which means delete the scheduler.

NOTE: Make sure the date & time settings are correct first. (Figure 8.3).
ATTENTION: If you don’t choose Scheduler, the camera will alarm anytime when motion triggered.

Figure 10.3

Manual version 1 – March 2012 64 IP Vision 58

Sound on Alarm

When motion is detected, there will be a beep sound during the alarm, you can control this sound here.
If Enabled, there will be sound once alarmed.
If Canceled, there will be no sound once alarmed.

Record on Alarm

If you want the camera to record for every alarm, choose Record on Alarm to enable it.
If you do not want the camera to record once the alarm is triggered, cancel it here.

Figure 10.4

Once alarm occurred, there will be some representation:

1. The corresponding status light turns Red and keeps blinking.

Figure 10.5

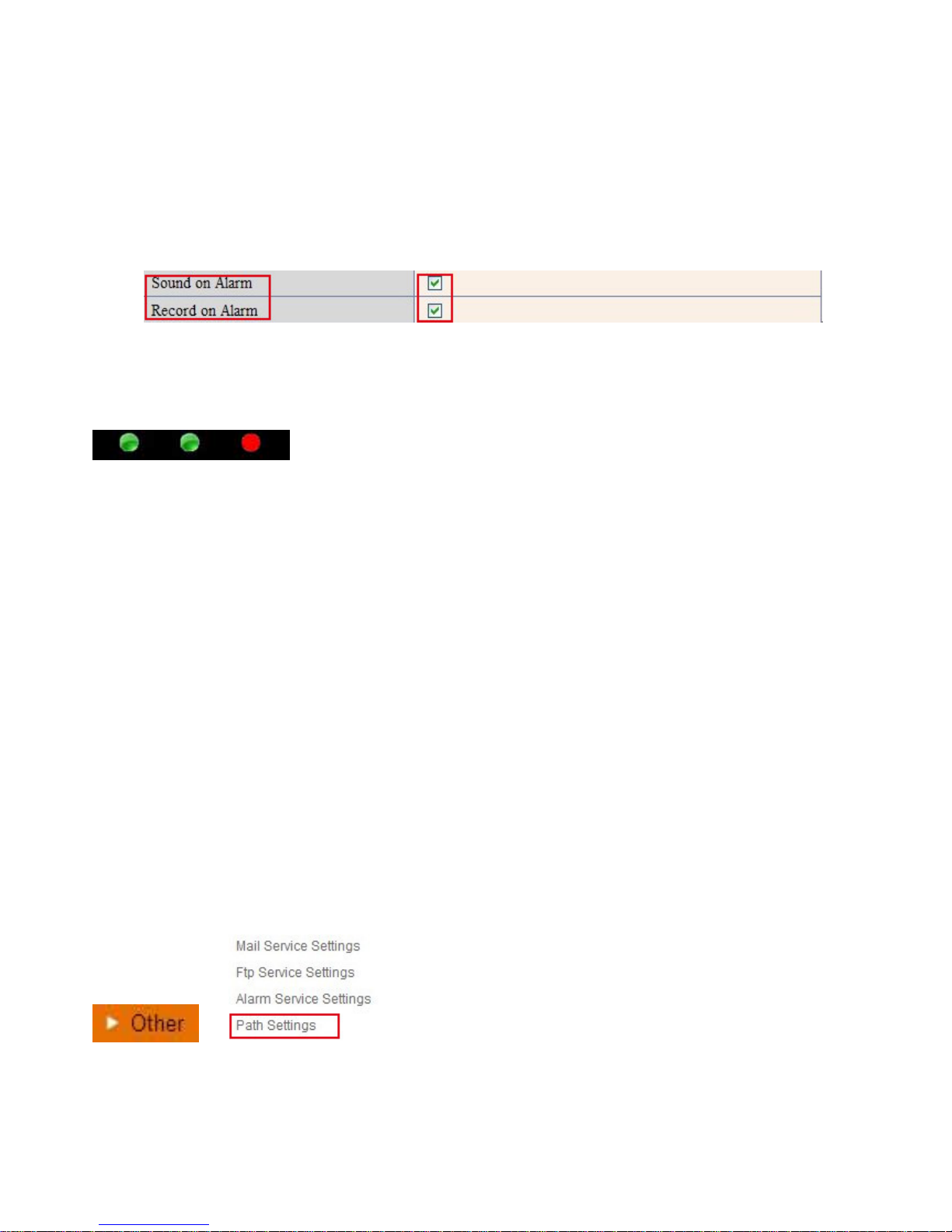

2. If you set Sound on Alarm, plug an earphone or a speaker to the computer you use, you can hear the
beep sound when alarmed. (Figure10.4)

3. If you set Record on Alarm, the camera will record automatically for approx one minute. You can find the
record file in the folder which you set. (Figure 10.4)

4. If you set Send Mail on Alarm, you will receive email alarm alert once motion triggered. (Figure 9.9)

5. You can also set Scheduler to enable the camera sends emails during a special time range you want.
(Figure 10.3)

6. If you set Upload Image on Alarm, it will upload images to the FTP Server you set already once alarmed.

(Figure 10.2)
NOTE: Each alarm only lasts for approx one minute, all the above functions for motion detection triggered only.

REC Automatically and Save to PC

When you enable motion detect and open the camera monitoring page on the PC. If there is an alarm
triggered, REC will start automatically for several seconds and save to the PC.

New Feature: Start the motion detection compensation and Alarm notification by Http.

3.18 Path Settings

Î

Figure 10.6

Here you can set record path and alarm record path for the camera.

Manual version 1 – March 2012 65 IP Vision 58

Figure 10.7

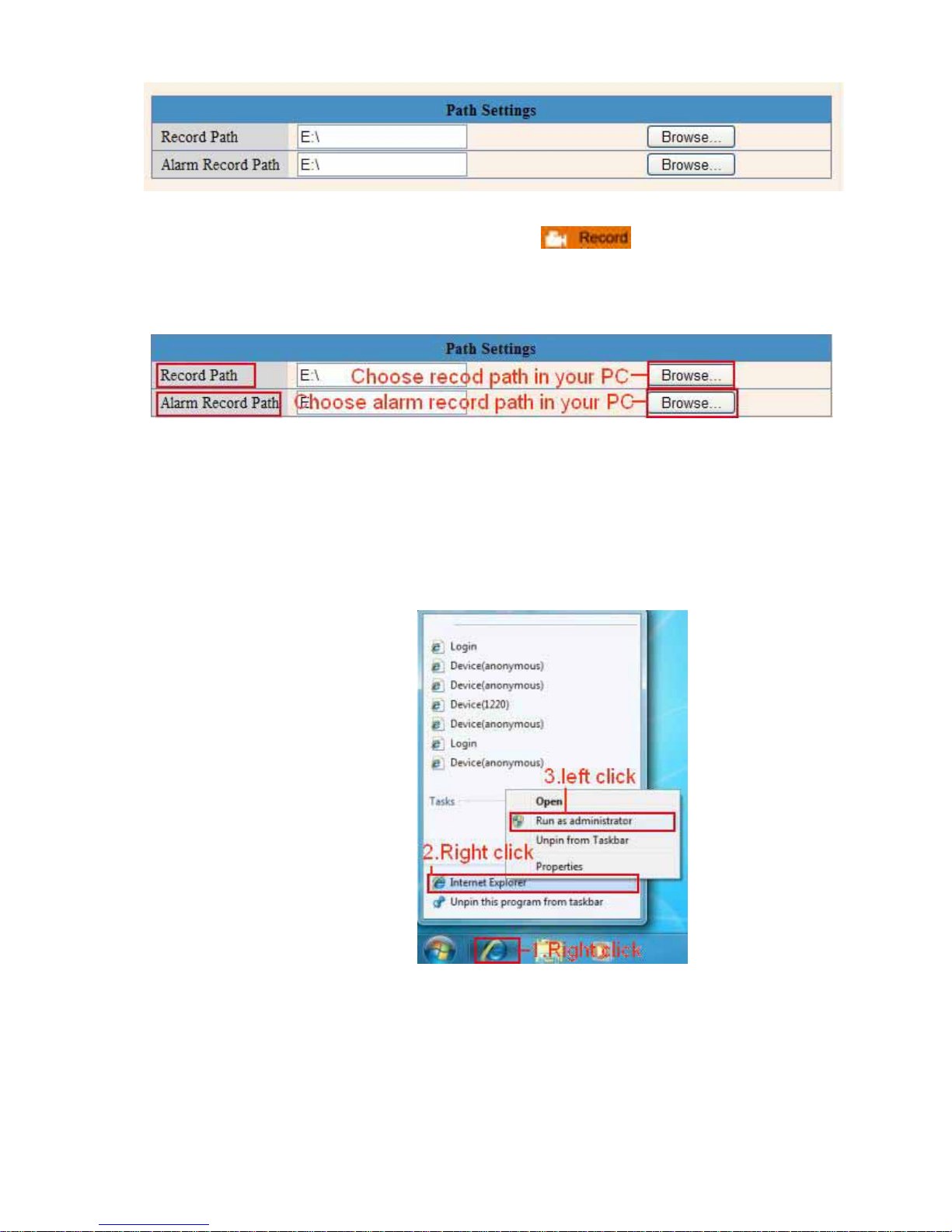

Record Path: Here you can set the manually record path. Click

, then start manually record, the

record file will be saved to the specified path here set.
Alarm Record Path: Here you can set the alarm record path. When the motion triggered, and record enable,
it will start alarm record automatically, the record file will be saved to the specified path here set.

Figure 10.8

NOTE: If you couldn’t set the path here in Windows 7 or Vista, please do it as below:
Windows 7 or Vista’s security level is higher than Windows XP, for “Path Settings”

1. User could add the Device IP address to the IE’s ‘Trusted sites’ firstly. The step is:
“IE browser→Tool→Internet Proper→Security→Trusted sites→Sites→Add”.

2. You can also run the IE as administrator, input the IP address of the camera manually. (Figure 10.9)

Figure 10.9

Manual version 1 – March 2012 66 IP Vision 58

3.19 Server Push Mode (For Safari, FireFox, Google Browser)

Choose Server Push Mode, login the camera, you will see the main user interface as below:

Figure 11.0

NOTE: Server Push Mode does not support ActiveX.

Play, Stop, Record, Multi-device settings, Path settings functions are controlled by ActiveX, so if you use Safari,

Firefox, Google chrome browser, it is impossible to find these options.
The other functions are the same as ActiveX Mode (For IE Browser)

Manual version 1 – March 2012 67 IP Vision 58

3.20 Sign in mobile phone

If you are using a mobile phone, choose Sign in mobile phone, login the camera, you will see the main user
interface as below:

Figure 11.1

NOTE: Mobile phone Mode doesn’t support ActiveX.

In mobile phone mode, it only supports some easy functions, such as Resolution, Mode, Bright, Contrast,

Snapshot, Reversal, Mirror functions

Compatible Apps for mobile devices

Please, keep checking the App store regularly; soon we will be introducing our own ebode app for the IP

camera, which gives you even more functionalities! Search for ebode IPVision!

In the meantime, for this IP camera, you can use the following apps:

IP Vision

from Marcio Almeida (paid)

CamViewer

from John McKerrell (free)

Manual version 1 – March 2012 68 IP Vision 58

4.0 APPENDIX

4.1 Frequently Asked Questions
Note: For most problems you might encounter, please check Network connections first.

Check the working status revealed by the indicators on the network server, hub, exchange and network card.
If abnormal, check the network connections.

4.1.1 I have forgotten the administrator username and/or password.

To reset the administrator username and password, press and hold down the RESET BUTTON for 15 seconds.
Release the power button and the username and password will be reset back to the factory default
administrator username and password.
Default administrator username: admin
Default administrator password: None, i.e., no password

4.1.2 Subnet doesn’t match, double click to change
If IP Camera Tool shows error information “Subnet doesn’t match, double click to change!” Please choose
Obtain IP from DHCP server. (Figure 2.2)
If it still show this error after obtain IP from DHCP server. Please check local area connection of your
computer, change subnet, gateway of the camera. Keep them in the same subnet of your computer.
(Figure 2.3)

4.1.3 IP Address configuration
Check whether IP address of the IP camera server shares the same subnet as your work station: Click My
Computer >Control Panel> Network & Dial-up Connections > LAN > Attributes >Internet Protocols (TCP/IP), and

check IP Address and Subnet Mask. Make sure they are in the same subnet when configuring the camera’s IP
address manually.

4.1.4 Can’t access IP camera in internet
There are some reasons:
1 ActiveX controller is not installed correctly (see more details: Figure2.9~Figure3.1).
2 The port that the camera is using is blocked by your Firewall or Anti-virus software. Please change to
another port number and try again. (Figure3.2)
3 Port forwarding is not successful (see more details: Figure7.5~Figure7.9)
Double check these settings and make sure they are correct.

4.1.5 IP Camera Tool could not find camera’s IP
Make sure the camera is connected to its power supply and the power supply is plugged in.
Check if the network cable is not loose.
Make sure DHCP is enabled in your router, don’t enable MAC address filter.
Make sure that firewall or anti-virus software does not block the camera. You can add the camera as a trusted
site in your firewall or anti-virus software.

4.1.6 UPnP always failed
UPnP only contains port forwarding in our recent software. Sometimes, it might fail to do port forwarding
automatically because of firewall or anti-virus software. It also relates to your router’s security settings. So we

Manual version 1 – March 2012 69 IP Vision 58

recommend you do port forwarding manually. You can view your camera via the Internet successfully after
you do port forwarding manually in your router.

4.1.7 Couldn’t find the shortcut on desktop after install IP camera tool
If you use Windows 7 or Vista, and you could not find the shortcut on desktop after installing the IP camera tool,
please check if the path of the tool port to is correct.
For example, was it was pointing to C:\Windows\System32\IPCamera.exe

.

Please fix this by pointing the shortcut to the correct path C:\Windows\SysWOW64\IPCamera.exe

. After this

you should be able to use the shortcut without any problems.

4.1.8 I can’t change the record path
When you use Windows7 or Vista, you may be not able to change the record path for the security settings of
computer.

1. Please add the camera as a trusted site to solve this issue.
The step is: “IE browser→Tool→Internet Proper→Security→Trusted sites→Sites→Add”.

2. You can also run the IE as administrator; input the IP address of the camera manually.

4.1.9 I can’t find multi-device settings and record icon
Record and multi-device function are controlled by activeX controller.
So if you use Safari, Firefox, Google chrome, it is impossible to use these functions.

4.1.10 Camera can not connect wireless
If your camera could not connect wirelessly after you set wireless settings and unplug the Network cable:
Please check whether your settings are correct. (Details: Wireless LAN settings).
If the camera can’t connect wirelessly it is usually because of wrong settings.
Double check the SSID, Encryption share key, Channel, should be the same as your wireless router.
Share key should not contain special characters, only letters and numbers.
Don’t enable MAC address filter.

4.1.11 I can’t see other cameras which in multi-device when remote access
If you want to view all the cameras in your WAN. Make sure that each camera you add in multi-device settings
can be logged-in using DDNS name and port number. Use DDNS domain name to fill in the host checkbox, not
camera’s LAN IP. Double check your settings. (Details: Set Multi-Device for WAN).

4.1.12 I only see black screen or unusual code when remotely logged in
If you could access the login page in a remote place, it indicates that your DDNS settings are correct. But if
you could not see live video, but only some undefined characters, it may be internet speed problems,
especially if the camera works OK via Wi-Fi.

4.1.13 There’s no picture (Problems with ActiveX Controller)

If using IE browser to connect the camera for the first time, and there is no image displayed, you might need to
install ActiveX. You need to change some browser settings to enable ActiveX. (See: For IE Browser).

4.1.14 Problems with network bandwidth

The image frame rate is subjected to the following factors:

1. Network bandwidth

Manual version 1 – March 2012 70 IP Vision 58

2. PC performance, network environment and display preference setting (brightness, theme, etc)

3. The number of visitors (Too many visitors will slow down the image frame rate)

4. Choice of switch or hub (Use a switch for multiple IP Camera Servers rather than a HUB)

4.1.15 How to register an account from DDNS web
You can enter http://www.dyndns.com and register an account.

4.1.16 Pop-up the prompt” Fail to connect to the device…”?

This prompt only appears in the case of using multiple cameras.

When you set multiple cameras, and the device status light changes to yellow

please make sure the

cameras are connected to power and working correctly.

4.2 Default Parameters

Default network Parameters

IP address: dynamic
Subnet mask: dynamic
Gateway: dynamic
DHCP: Disabled
DDNS: factory DDNS and third party DDNS

Username and password

Default administrator username: admin
Default administrator password: None, i.e., no password

Manual version 1 – March 2012 71 IP Vision 58

5. Specifications

Model IP Vision 58

Image Sensor

Sensor 1/4” Color CMOS Sensor
Resolution 640 x 480 Pixels (300k Pixels)
IR Lens f: 6mm, F 2.0 (3.6mm lens optional)

Viewing Angle 60 Degree (3.6mm lens is 90Degree)
Minimum Illumination 0.5Lux @ F2.0

Video / Image Setting

Video Compression MJPEG
Video Frame Rate 15fps(VGA), 30fps(QVGA)
Resolution 640 x 480(VGA), 320 x 240(QVGA)
Flip Mirror Images Vertical / Horizontal
Light Frequency 50Hz, 60Hz or Outdoor

Video Parameters Brightness, Contrast

Communication

System Interface 10Base-T/100Base-TX Ethernet Port
Supported Protocol

TCP/IP，DHCP，SMTP，HTTP，DDNS，UPNP，PPPoE, FTP, DNS, UDP , GPRS
Wireless LAN Support wireless network (Wi-Fi/802.11/b/g)
WEP Encryption Disable / 64 bit / 128 bit

WP A/WPA2 Encryption TKIP / AES

Physical / Environment

Power Supply 5VDC/2A External Power Adapter
Power Consumption 5W (Max.)
Operate Temperature

-10°C ~ 55°C (14℉~131℉)
Operate Humidity 20%-85% non-condensing
Storage temperature

-10°C ~ 60°C (14℉~140℉)
Storage Humidity 0%-90% non-condensing

PC System Requirement

CPU 2.0GHZ or above
Memory Size 256MB or above
Display Card 64M or above memory
Supported OS Microsof t Windows 98/ME/2000/XP/Vista/7
Browser IE6.0, IE7.0, IE8.0, Firefox, Safari, Google chrome etc
Certification CE, FCC, RoHS
Warranty Limited 1year warranty

Manual version 1 – March 2012 72 IP Vision 58

6. OBTAINING TECHNICAL SUPPORT

We hope your experience with your IP network camera is enjoyable, but if you experience any issues or have

any questions that this User’s Guide has not answered, please visit www.ebodeelectronics.eu

or e-mail

[e-mail]

.

This manual is based on the latest version of the camera at it's release. Updates might become available

overtime, so make sure you always make sure to run the latest firmware version for your camera in order to

obtain support.

If your camera does not support some special functions shown in this manual, please contact our technical

support team to obtain the latest Firmware and WEB UI file for upgrading.

Manual version 1 – March 2012 73 IP Vision 58

DECLARATION OF CONFORMITY

Hereby, ebode declares that this IP Vision 58 is in compliance with the essential
requirements and other relevant provisions of the following Directives:

1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999
on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity

2) Directive 2004/108/EC of the European Parliament and of the Council of 15
December 2004 on the approximation of the laws of the Member States relating to
electromagnetic compatibility

3) Directive 2006/95/EC of the European Parliament and of the Council of 12
December 2006 on the harmonization of the laws of Member States relating to
electrical equipment designed for use within certain voltage limits

4) Directive 2002/95/EC of the European Parliament and of the Council of 27 January
2003 on the restriction of the use of certain hazardous substances in electrical and
electronic equipment

5) Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005
establishing a framework for the setting of eco design requirements for energy-using

Technical data and copies of the original Declaration of Conformity are available and
can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste
Electric and Electronic Equipment (WEEE)

This document contains important information for users with regards to the proper
disposal and recycling of ebode products. Consumers are required to comply with this
notice for all electronic products bearing the following symbol:

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on
the product and/or its packaging must not be disposed of with unsorted municipal
waste. The symbol indicates that this product should be disposed of separately from
regular household waste streams.

It is your responsibility to dispose of this and other electric and electronic equipment
via designated collection facilities appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to
the environment and human health.

For more detailed information about the disposal of your old equipment, please
contact your local authorities, waste disposal service, or the shop where you
purchased the product.

Manual version 1 – March 2012 74 IP Vision 58

DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC

for the European Community, Switzerland, Norway, Iceland and

Liechtenstein

Product category: general consumer (category 3).

English: This equipment is in compliance with the essential requirements and other
relevant provisions of the European R&TTE Directive 1999/5/EC

Deutsch [German]: Dieses Gerät entspricht den grundlegenden Anforderungen und
den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.

Nederlands [Dutch]: Dit apparaat voldoet aan de essentiële eisen en andere van
toepassing zijnde bepalingen van de Richtlijn 1999/5/EC.

Svenska [Swedish]: Denna utrustning står I överensstämmelse med de väsentliga

egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.

Français [French]: Cet appareil est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la Directive 1999/5/EC

Español [Spanish]: Este equipo cumple con los requisitos esenciales asi como con
otras disposiciones de la Directiva 1999/5/CE.

Português [Portuguese]: Este equipamento está em conformidade com os requisitos
essenciais e outras provisões relevantes da Directiva 1999/5/EC.

Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi
sanciti dalla Direttiva 1999/5/CE.

Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre
relevante bestemmelser i EU-direktiv 1999/5/EF.

Suomi [Finnish]:Tämä laite tÿttää direktiivin 1999/5/EY olennaiset vaatimukset ja on siinä
asetettujen muiden laitetta koskevien määräysten mukainen.

Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre
relevante bestemmelser i Direktiv 1999/5/EF.

Polski [Polish]: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi

warunkami okreslonymi Dyrektywą UE: 1999/5/EC

Manual version 1 – March 2012 75 IP Vision 58

Also available from ebode: LightSpeaker

The Next Bright Idea

The unique ebode LightSpeaker

TM

cleverly
combines low consumption LED lighting
with wireless sound in one easy ‘plug and
play’ system that can be hidden away in a
lampshade or light fitting. Install it into any
room in just a few minutes without tools or
extra wiring!

LightSpeaker

TM

can be mounted into many different light fixtures including pendants

fittings, table and floor lamps.

It can even be recessed into your ceiling using our custom-made fitting. All you need is
an iPod

TM

, HiFi, television or PC to provide your music and a standard E27 socket to
plug into, and this multiroom, two source system will deliver brilliant lighting and tuneful
music around your home - free of wires and headphones.

How it works

Up to two music sources - an iPod

TM

and a radio for example, can be connected to
the transmitter in the base station, which wirelessly sends the sound to the
LightSpeakers

TM

which are screwed into a standard E27 socket to receive their power.

The wireless transmitter base station or the supplied remote control allow you to
control your source, music and lighting levels from anywhere in your home. Up to four
pairs of LightSpeakers

TM

can be ‘paired’ to one base station..

Manual version 1 – March 2012 76 IP Vision 58

Also available from ebode: Home Automation Modules

ebode offers a wide range of Home Automation products and solutions which help

you control your ‘electrical environment’. The home automation modules are ideal to

(remotely) control blinds/rollers, home cinema screen, lighting, and other household

appliances.

On-Wall Modules

Product Description

EM 2-position RF wall switch, ideal for retro fit installations

to e.g. control blinds, shutter, home cinema screens
but also lighting or appliances.

IMRF Single position RF wall switch, ideal for retro fit

installations to e.g. control applications or an inside or
outside light.

RMV

Control your shutter, blind or e.g. cinema screen via
the front panel keys, or remotely via any ebode / X10
compatible controller.

RMA

Control your appliance, light or e.g. pump via the
front panel keys, or remotely via any ebode/X10
compatible controller.

RPA,
RPL, RPT

Ideal for retro fit installations, the classic X10 plug-in
module in a new and stylish jacket. Control your
appliance or lamps etc, via any ebode or X10
compatible controller via PLC AND RF!

TPC /
TMML

New stylish RF remote to control any ebode or X10
compatible RF receiver.

In-Wall Modules

Product Description

EMML

2-position RF in-wall module to install behind any
mechanical wall switch. The EMML is battery
operated.

RMML

In-wall RF receiver, ideal for any switches lights and
appliances up to 300W.

Manual version 1 – March 2012 77 IP Vision 58

www.ebodeelectronics.eu


