Ebode IPV68P2P User Manual

www.ebodeelectronics.eu
User Manual
IPV68P2P
Wi-Fi HD960P 1.3MP PTZ Dome P2P IP Camera
Before using this product, please read this document carefully and visit
www.ebodeelectronics.eu for latest manual, Software and FAQ.
24-9-2015 2 ebode IPV68P2P
USER GUIDE
TABLE OF CONTENTS
1. CONTENTS OF THE KIT…………………………………………………………………………… 3
2. TECHNICAL SPECIFICATION…………………………………………………………………… 3
3. PRODUCT CHARACTERISTICS………………………………………………………………… 4
4. INTRODUCTION……………………………………………………………………………………… 4
5. OPTIONAL ARTICLES……………………………………………………………………………… 4
6. CONFORMITY OF USE……………………………………………………………………………… 5
7. OVERVIEW……………………………………………………………………………………………… 5
7.1 Key Features…………………………………………………………………………… 6
7.2 Read Before Use……………………………………………………………………… 6
7.3 Physical Description………………………………………………………………… 6
7.4 SD Card Management……………………………………………………………… 9
8. ACCESS THE IP CAMERA………………………………………………………………………… 9
8.1 Access the Camera in LAN……………………………………………………… 9
8.2 Access the Camera in WAN……………………………………………………… 12
8.3 Using the VLC player……………………………………………………………… 16
8.4 IP Camera Connection to the Server……………………………………… 18
9. SURVEILLANCE SOFTWARE GUI…………………………………………………………… 19
9.1 Login Window………………………………………………………………………… 19
9.2 Modify the Username and Password……………………………………… 19
9.3 Setup Wizard…………………………………………………………………………… 20
9.4 Surveillance Window………………………………………………………………… 22
10. ADVANCED CAMERA SETTINGS……………………………………………………………… 28
10.1 Status……………………………………………………………………………………… 28
10.2 Basic Settings………………………………………………………………………… 29
10.3 Network…………………………………………………………………………………… 37
10.4 Video………………………………………………………………………………………… 49
10.5 Alarm………………………………………………………………………………………… 53
10.6 Record……………………………………………………………………………………… 58
10.7 PTZ…………………………………………………………………………………………… 61
10.8 Firewall……………………………………………………………………………………… 65
10.9 System……………………………………………………………………………………… 66
11. PLAYBACK……………………………………………………………………………………………… 69
12. APPENDIX………………………………………………………………………………………………… 70
12.1 Frequently Asked Questions…………………………………………………… 70
12.2 Default Parameters………………………………………………………………… 74
12.3 Specifications…………………………………………………………………………… 75
12.4 CE & FCC…………………………………………………………………………………… 76
24-9-2015 3 ebode IPV68P2P
1. CONTENTS OF THE KIT:
1x IP Camera 1x Power Adapter 1x Resource CD
1x Ethernet Cable 1x Wi-Fi Antenna 1x Quick Start Guide
1x Surveillance Sticker 1x ebode leaflet
2. TECHNICAL SPECIFICATION:
Wi-Fi HD960P 1.3MP PTZ Dome P2P IP Camera P2P Feature For Easy Remote Access H.264 Video Compression 4x Zoom Lens Provide Detailed View Motion Detection Alarm via E-Mail And FTP Free ebode DDNS Service Embedded Compatible With Free ebode Central Management Software Compatible With Free ebode iOS And Android APP Supports IEEE 802.11n Wireless Connection Supports WEP, WPA And WPA2 Encryption Supports Two-Way Audio With 21pcs IR-LEDs, Night Vision Range Up To 20m Day / Night Surveillance, IR LEDs On / Off Auto Switch Auto Focus function Optional: Build in SD Memory Card and Dropbox Feature
U se rs ma n ua l
24-9-2015 4 ebode IPV68P2P
3. PRODUCT CHARACTERISTICS:
In Colli: 5 Pcs Weight Colli: 10,4 KG Volume Colli: 0.073 Length Colli: 80,0 cm Width Colli: 30,0 cm Height Colli: 30,5 cm Length Product Carton: 15,5 cm Width Product Carton: 29,5 cm Height Product Carton: 28,5 cm Weight Article: 3,080 kg EAN Code EU: 8717399103336 EAN Code UK: 8717399103343
4. INTRODUCTION
The IPV68P2P is the first 960HD 1.3M wireless indoor/outdoor camera with PTZ (4x Optical Zoom) & Auto-Focus from ebode. The IPV68P2P offers a hassle-free, 3-steps installation, thanks to its unique QR code scanning method. This dome camera keeps an eye on your house, office, store, garage with live views during day- and night. The camera includes an IR-Cut Filter which is designed to reflect or block mid-infrared wavelengths while passing visible light. The IR-Cut filter will prevent that colours of the camera footage will be faded due to infrared light fall from sources like the sun. The camera has an IR Range up to 20 meters. Thanks to the Wi-Fi Standard IEEE802.11 b/g/n and security standard WEP, WPA and WPA2 the IPV68P2P uses a secured and safe wireless (or wired LAN) connection to forward H.264 video compression pictures. A free DDNS service is embedded to assure live feeds wherever you are. The IPV68P2P operates with browsers Microsoft IE7 and above or compatible web-browsers; Mozilla Firefox, Google Chrome, Apple Safari. The IPV68P2P supports the Onvif protocol for NVR recording, motion detection warning via e-mail and 2-way audio. The IPV68P2P Includes a free app for both iOS and Android!
5. OPTIONAL ARTICLES
ebode offers some articles which are optional to order for the IPV68P2P Wi-Fi HD960P
1.3MP PTZ Dome P2P IP Camera:
POE-IPV5868
The ebode PoE injector cable kit provides additional ease of install for all your ebode IP Cameras. All our ebode cameras need both Ethernet and power and in some (most outdoor) installations it is needed to run wires and connect the camera to the power mains and Ethernet. With the ebode PoE injector cable kit it is no longer needed to run separate power to feed power to our cameras saving installation costs and materials. Please note that there are two available kits, 1.) POE-IPV38 for IPV38(P2P), and 2.) POE-IPV5868 for IPV58P2P and IPV68(P2P). It is possible to have the cameras bundled with the correct PoE injector cable kit as item numbers: IPV38POE, IPV58POE and IPV68POE.
IPV68P2PSD ebode offers the possibility to purchase the ebode IPV68P2P including the extra feature of a build in SD memory card. With this memory card it is possible to save alarm recordings to your Dropbox account directly and make them available from everywhere in the world you have internet access.
Please contact ebode in case you would like to purchase one of these optional items.
24-9-2015 5 ebode IPV68P2P
6. CONFORMITY OF USE
For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner’s manual.
Safety Warnings To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity. Only connect the power cord to the mains after checking whether the mains voltage is the same as the values on the rating labels. Never connect a power cord when it is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm, it is a good precaution to unplug the power supply from the mains network in order to protect it from lightning. The same applies if the system is to be out of action for any length of time. Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity. Do not disassemble any part of the product: no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts. Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries be sure the polarity is respected. Make sure that the batteries are not short circuited and are not disposed in fire (danger of explosion).
In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.
7. OVERVIEW
The IP Camera is an integrated wireless IP Camera with a colour CMOS sensor enabling viewing resolution 1280*960. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet.
Thanks to the P2P easy access technology, you don’t need to do complicated Port
Forwarding and DDNS settings, you just need to scan the QR code on the bottom of the camera to connect it on smart phone, or input the UID to do remote access.
The IP Camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explorer. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration and start-up.
24-9-2015 6 ebode IPV68P2P
The camera is designed for outdoor surveillance applications such as courtyards, supermarket, and school. Controlling the IPCAM and managing images are simplified by using the provided web interface across the network utilizing wireless connectivity.
The IPCAM provides Smart Phone APP for Android and iPhone users, please search and install IPCam Viewer on Google Play for Android devices, search and install IPCam_Viewer on APP Store for iOS devices, then you can view your camera anywhere, anytime on your smart mobile devices.
7.1 Key Features
Standard H.264 video compression algorithm to satisfy the transmission of high definition video in narrow bandwidth network
P2P feature for easy access 1.3 Mega-Pixel Supports IE/Firefox/Google/Safari browser or any other standard browsers Supports WEP,WPA and WPA2 Encryption Wi-Fi compliant with wireless standards IEEE 802.11b/g/n IR night vision (Range:20m) Supports image snapshot Supports dual-stream Supports IR-Cut and the filter change automatically Embedded DDNS(dynamic domain name service) Service Supports remote viewing & record from anywhere anytime Multi-level users management with password protection Motion detection alert via email or upload image to FTP Supporting third party domain name Providing Phone APPs for Android and iPhone users Supports multiple network protocols: HTTP /HTTPS /RTSP / TCP/IP / UDP/ FTP/
DHCP/ DDNS/ UPNP /ONVIF
7.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents listed on page 2. Before the IP Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.
7.3 Physical Description
Front Panel
Figure 7.1
Infrared LED
Lens
Infrared LED
24-9-2015 7 ebode IPV68P2P
Infrared LED: 21 IR LEDs, night visibility up to 20 meters LENS: CMOS sensor with zoom lens
Back View
Figure 7.2
WIFI Antenna: Wireless Antenna
Interface View
Figure 7.3
1) I/O alarm terminal block This network camera provides a I/O alarm terminal block which is used to connect to external input / output device. The pin(there are four number in the terminal block from no. 1 to no. 4) definitions are descripted below:
Antenna
24-9-2015 8 ebode IPV68P2P
Figure 7.4
This camera supports I/O alarm, go to Settings – Alarm – I/O page to configure it.
2) Audio output interface
The jack is used to plug external speakers.
3) Power Interface Connect the external power adapter, request for 12V/2A power.
4) Audio input interface
The jack is used to plug external microphone.
5) LAN 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected with various network devices, such as hub, router, etc.
6) Reset button Press and hold on the reset button for 5 seconds. Releasing the reset button, the password will back to the factory default administrator password. The default administrator user is admin with no password.
Bottom View There are up to three labels located on the body of the camera; this is an important feature of original cameras. If your camera does not have labels as shown in Figure 7.5, it may be a clone one. Cloned cameras cannot use original firmware and are not eligible for warranty or technical services.
Figure 7.5
24-9-2015 9 ebode IPV68P2P
7.4 SD Card Management
Please first of all note that the SD card is an optional feature and that IPV68P2P including SD card has to be ordered separately as item number IPV68P2PSD. The record files of the IPC can be stored in the SD Card. This camera supports SD Card and the max size of SD card must be under 32G. You need open the IP Camera, then plug the SD card into SD card slot inside the IP Camera. When you plug in the SD card during the camera work process, please reboot the camera again, or else the SD Card may be cannot work well.
Note: When you re-install the camera, please ensure the tightness with the camera.
8. ACCESS THE IP CAMERA
This chapter explains how to access the camera through browser and RTSP player.
8.1 Access the Camera in LAN
This camera supports HTTP and HTTPS protocols, you can access the camera by 2 ways. (1) http:// LAN IP + HTTP Port NO.
Double click the IP Camera Tool icon and it should find the camera’s IP address
automatically after you plug in the network cable.
Figure 8.1
Double click the IP address of the camera; your default browser will open to the camera login page.
(2) https:// LAN IP + HTTPS Port NO. The default Https port NO. is 443. You can use the url to access the camera: https:// LAN IP + HTTPS port. Go to Settings - Network - Port panel , you can see and change the https and https port NO.
Figure 8.2
HTTPS(Hypertext Transfer Protocol over Secure Socket Layer) is a safe way to access your camera, the data transferred on the Internet will be encrypted.
Since we cannot apply license for every LAN or DDNS URL, the webpage may pop up a warning like the following picture, you just need to click 'Continue to this website (not recommended). '
24-9-2015 10 ebode IPV68P2P
Figure 8.3
Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button.
Figure 8.4
For Firefox, you can add the trusted as the following way: Tools / Options / Advanced / View Certificates / Servers
24-9-2015 11 ebode IPV68P2P
Figure 8.5
Click View Certificates, and go to Servers option.
Figure 8.6
Go to Add Exception panel.
24-9-2015 12 ebode IPV68P2P
Figure 8.7
8.2 Access the Camera in WAN
8.2.1 Static IP Addresses
Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number.
How to Obtain the WAN IP address from a public website To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com. The page at this address will show you the current WAN IP.
Figure 8.8
Click this button to add it.
Enter the camera’s url,
here take for example: https://192.168.8.129:443.
24-9-2015 13 ebode IPV68P2P
Access your IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http://
183.37.28.254:85
NOTE: Make sure port forwarding is successful. You can do port forwarding two ways.
1. Login to your router to enable the “UPNP” function. You can then login to the camera as administrator, choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads “UPnP Successful” on the Device Status page.
2. Do port (HTTP port) forwarding manually. (See Figure 8.16 for further details)
If your router has a Virtual Server, it can do port forwarding. Add the camera’s LAN IP and port which you had set earlier to your router’s port forwarding settings.
NOTE: If you plug the camera into a router, it will have a dynamic IP address and you need to set DDNS service settings to view it remotely.
8.2.2 Dynamic IP Addresses
DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. This means that even though your WAN IP address is constantly changing, you will have a fixed hostname you can use to access your cameras at all times. You can access the camera directly from the Internet using the hostname and port number.
What is the HTTP Port NO.? Default HTTP Port is 88 All cameras have the default HTTP port of 88. For example, if the LAN IP link of the
camera is http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88 to another port if you’d like such as 2000 or 8090, which will not be
conflict with other existing ports like 25, 21,10000.Here you can set the port no. between 1 and 65535. Change the default http NO.88 to another one.
How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera Tool

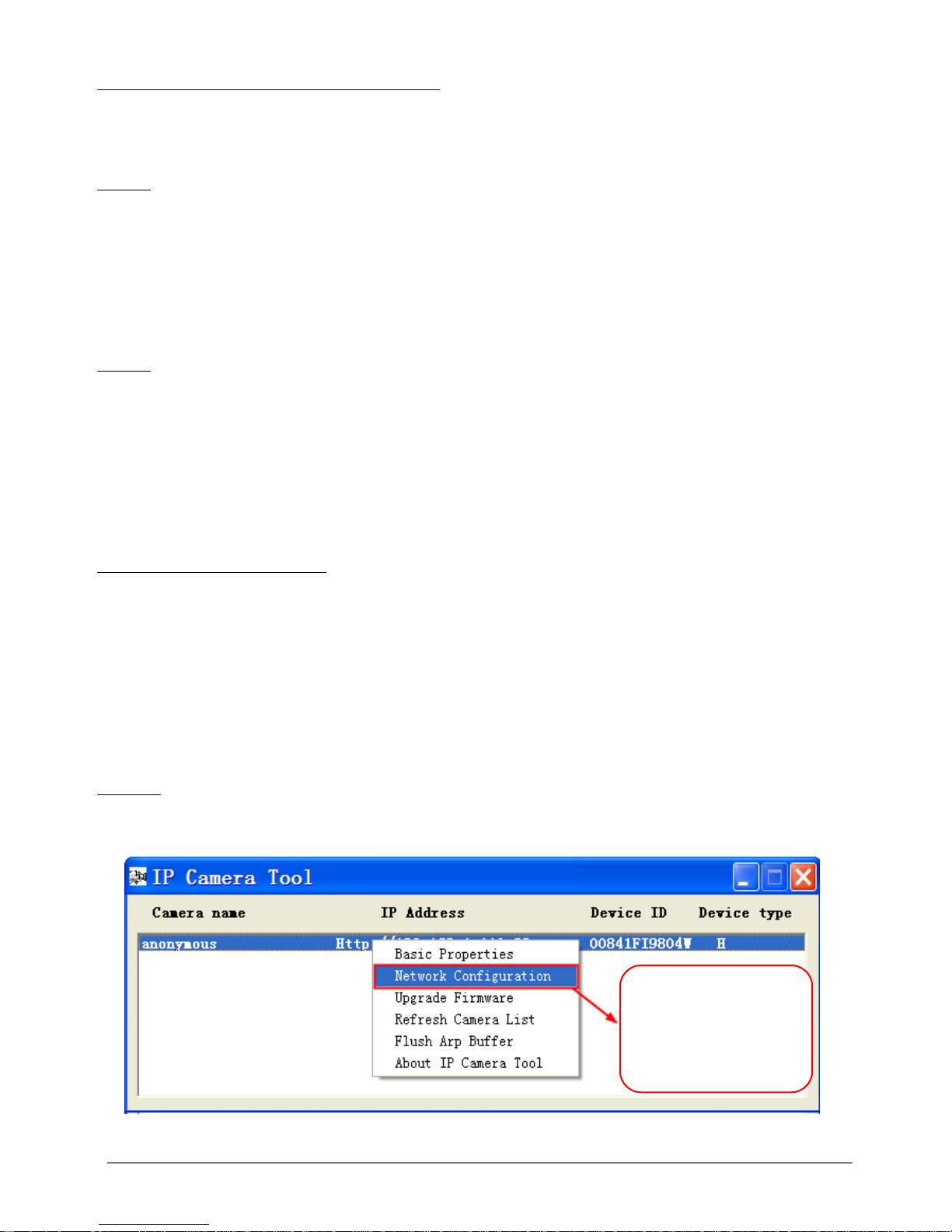

Step 1) Open the IP Camera Tool, select the camera you would like to change the port
of, right click on the IP address, and click on ”Network Configuration”, this brings up the
network configuration box.
Figure 8.9
Select which
camera you’d like
to change the
port for, and right
click.
24-9-2015 14 ebode IPV68P2P
Figure 8.10
Step 2) Enter the username and password of the Administrator (default username is admin with a blank password), and click “OK” to apply changes.
Step 3) Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!
Figure 8.11
What is Port forwarding? If you have never done port forwarding before, you can open and view the following link to understand the basic concept. Port forwarding allows for outside connections to access a specific device on your network from anywhere in the world. Every router automatically blocks any incoming connections for safety purposes. Using port forwarding, you are telling your router to allow a connection through a certain port (you can think of it as a gateway) into your router. You set this port to a specific device, in our case an IP Camera, so it can be accessed from anywhere in the world.
Learn more about port forwarding: http://portforward.com/help/portforwarding.html How do we configure Port Forwarding?
For this section, we will be using an example: Let’s say the camera’s LAN IP address is http://192.168.8.100:2000
Modify the Http
Port.
Enter the
Username and
password, click
OK.
24-9-2015 15 ebode IPV68P2P
Step 1) Login to the router, and go to your router’s port forwarding or port triggering menu. Sometimes this is also under the name of Virtual Server or NAT.
Using the Linksys brand router as an example, we would log into the router, and go to
the Applications & Gaming menu. We would then click on the “Single Port Forwarding”
sub-menu.
Step 2) Create a new column using the LAN IP address & HTTP Port of the camera within the router as shown below, then push OK or Submit to save your settings:
Figure 8.12
First method: Use the embedded DDNS to access the camera via the Internet Each camera has an embedded unique DDNS domain name, the format of this domain name is xxxxxx.myipcamera.org. On the bottom of the camera, you can see the domain name sticker with this information on it.
For example, we can use test09.myipcamera.org. In the camera, click Settings at the
top, click “Network” on the left, then click “DDNS” to get to the DDNS settings page.
Here you can see the unique domain name of your camera.
Figure 8.13
Assign a name for the
port forward setting here.
Fill the HTTP Port of
the camera in the
columns of External
Port and Internal Port.
Example: 2000
Fill in this
section with the
LAN IP of the
camera; we would enter
“100” for our
example.
24-9-2015 16 ebode IPV68P2P
Now you can use “http://Domain name + HTTP Port” to access the camera via the
Internet. Take hostname test09.myipcamera.org and HTTP Port of 2000 for example, the URL link to access the camera via the Internet would be http:// test09.myipcamera.org:2000.
Second method: Use the Third party DDNS to access the camera via the Internet Step 1) Please go to the third party DDNS website(such as www.no-ip.com) to create a free hostname. Step 2) DO DDNS Service Settings within the Camera.
Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from www.no-ip.com. Take hostname ycxgwp.no-ip.info, user name test, password test2012 for example.
1.) Go to option of DDNS Settings on the administrator panel.
2.) Select No-IP as a server.
3.) Fill test as DDNS user, fill password test2012 as DDNS password, fill ycxgwp.no­ip.info as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective.
Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and check if the DDNS status is successful. If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.
NOTE: If you have set Third Party DDNS successfully ,the Domain Name will be invalid. The Third Party DDNS and the Domain Name cannot work at the same time, the last time you configured will take effect.
8.3 Using the VLC player
This camera supports RTSP streaming, here you can view the camera using VLC player.
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number / video stream
The part in the square brackets may be omitted. Username & password: The username + password to access the camera. Can be omitted. IP: WAN or LAN IP address. Video stream: Here support three mode: video Main, video Sub and audio. When the network speed is bad, here you had better select video Sub. If you select audio, you can only hear the sound but cannot see the video.
For example: IP: 192.168.1.11 HTTP Port number: 88 User name: admin Password: 123
Here I can enter one of the following URLs in the VLC.
1) rtsp://admin:123@192.168.1.11:88/videoMain
2) rtsp:// @192.168.1.11:88/videoMain
3) rtsp://:123@192.168.1.11:88/videoMain
4) rtsp://admin@192.168.1.11:88/videoMain
24-9-2015 17 ebode IPV68P2P
Open the VLC, and go to Me VLC.
Figure 8.14
Figure 8.15
24-9-2015 18 ebode IPV68P2P
Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview.
Figure 8.16
Figure 8.17
If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding.
NOTE: If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.
8.4 IP camera connection to the server
Device supports ONVIF 2.2.1 protocol, you can easily access the NVR with ONVIF or server with ONVIF.
24-9-2015 19 ebode IPV68P2P
9. SURVEILLANCE SOFTWARE GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software.
9.1 Login Window
Figure 9.1
Please check the login window above, it was divided to 5 sections from no. 1 to 4.
Section 1 Enter the User name and password The default administrator username is admin with a blank password, please reset the password at first using and prevent unauthorized users login the camera.
Section 2 Stream The camera supports two stream modes: Main stream and Sub stream. If you want to access the camera form LAN, here you can select Main stream. If you want to access the camera from Internet, here we recommend Sub stream. Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be more fluency.
Section 3 Select the language You can select the language you need via click on the language drop-down list to switch.
Section 4 Login the camera Click Login button and you will see the surveillance windows.(If login the camera for the first time, the page that modify the username and password will appears.)
9.2 Modify the Username and Password
When you log in for the first time, it will come to the operating of modify the username and password automatically.
1 2 3
4
24-9-2015 20 ebode IPV68P2P
Figure 9.2
Enter the New Username, New password and Confirm the password. Click Modify button, you will see the login page again.
9.3 Setup Wizard
After logging in for the first time, you will be directed to the “Setup Wizard” automatically. Here you can set the basic parameters of camera, such as camera name, camera time, wireless settings, IP configuration.
Figure 9.3
Camera Name: You could give a name for your IP camera.
Figure 9.4
24-9-2015 21 ebode IPV68P2P
System Time: Select the time zone you need to set the date, time,format, etc.
Figure 9.5
Wireless networks: Click Scan, find the SSID of your wireless router, select and enter the password.
Figure 9.6
IP: Set the IP address of the camera. You could choose to obtain an IP automatically (DHCP) or set the IP address manually according to your needs.
24-9-2015 22 ebode IPV68P2P
Figure 9.7
NOTE: It takes about 1 minute to connect the camera to your router.
9.4 Surveillance Window
Figure 9.8
Section 1 - Live Video / Settings buttons
Path to surveillance window. Click button and back to surveillance window.
Path to Administrator Control Panel, Click it, and it will lead to Administrator
Control Panel and do advanced settings.
Section 2 - Multi-Device Window
24-9-2015 23 ebode IPV68P2P
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-device setting.
Figure 9.9
Section 3 - Mode/ Stream / Mirror/ Flip / Zoom in / Zoom out buttons Mode
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor Mode ------ Outdoor surveillance
Stream The default stream supports multiple modes, For example: HD Mode/720P/30fps/2M meanings: Stream type / Resolution / Maximum frame rate/ Bit rate. (Different models support different specific mode. )
1) Stream type. :It is used to identify the stream type.
2) 720P/ VGA There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.
3) Maximum frame rate When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video. The maximum frame rate for each model is different, please see the “Default Parameters”.
4) Bit rate Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video cannot play well.
You can reset the stream type on Settings-> Video-> Video Settings panel.
24-9-2015 24 ebode IPV68P2P
Figure 9.10
After changing, please re-login the camera and you can see the modification.
Zoom: Device Support 4x zoom feature, click or , The focal length of the camera lens will be larger or shrink, you can adjust the focus distance to the target object size, access to high-definition screen.
Focus: You can manually adjust focus by clicking on the button or
Section 4 - Pan/Tilt Control 1------ Up control button 2------ Down control button 3 ------ Left control button 4------ Right control button 5 ------ Up-Left control button 6------ Up-Right control button 7 ------ Down-Left control button 8------ Down-Right control button
Click this button and go to center Section 5 - Cruise / Preset settings
Start cruise.
Stop cruise.
Vertical: Camera rotates up to down. Horizontal: Camera rotates left to right.
If you want to define or change the cruise trace, please go to Settings PTZ Preset Settings panel.
24-9-2015 25 ebode IPV68P2P
How to do cruise?
1.) Select one track in the track drop-down list
2.) Click Start cruise button, the camera will cruise following the predefined path.
3.) Click stop button and finish cruising.
Preset settings
IPCAM supports 16 preset positions, which is considered enough for DIY home & small business surveillance market.
The default preset position is TopMost, BottomMost, LeftMost, RightMost, you can add other preset positions.
Add Click this icon to save the position you need the camera to remember
Delete Select one preset position and click this button to delete it.
GO Select one preset position in the preset drop-down list and click Go to make the camera move the preset position How to do preset position? Firstly, move the camera and stop at a desired place where you want make preset
position. Secondly, click button and enter a descriptive name for the preset position. The preset position cannot contain special characters. Then click OK to save it. If you want to reset the preset position, click Cancel. After that, you can move the camera and stop at another place, and set another preset position. You can do all the 16 preset positions with this method. If you want to see one preset position you have set, only
select the preset position name from the preset drop-down list, and click go button, the camera will go to the preset position.
Section 6 - Guard Position After setting the guard position, your camcorder will automatically return to the guard position within a predetermined time (manually setting) when it stops moving(manually or cruise). Please refer to the method in chapter 6.7.4 (Guard Position Settings).
Section 7 - IR LED Lights
Click Infra led, there are 3 modes to adjust the infrared led: Auto: The camera will adjust the infra led (on/off) automatically. Manual: Turn on or turn off the infra led manually.
Schedule: IR led light will be off at the schedule period. If you
want to define or change the IR led lights schedule time, please
go to Settings Video IR LED Schedule page.
Section 8 - Image quality settings
In this page, you can tune Hue, Brightness, Contrast,
Saturation, and Sharpness to get higher quality.
24-9-2015 26 ebode IPV68P2P
Section 9 – OSD If you have added time and camera name in the video, you can see it in the live window. Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous. Go to Settings ---Basic settings---Camera time panel and adjust the device time. Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.
Section 10 - Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button
1 Play Click it to play the video of the camera 2 Stop Click it to stop the video of the camera 3 Talk Click the button and the icon will become to , then talk to the microphone that connected with PC, people around the camera can here your voice. Click the icon again and stop talking.
4 Audio Click this icon, the icon will become to you can hear the sound around the camera by the earphone or speakers that connected with PC. 5 Snapshot Click it to make snapshot and it pop-up a window which picture you
snapshot, right click in the window and save the picture to anywhere you want.
6 Record Click the icon and the camera start recording, you can see a green
dot in the live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path: Go
to Settings- >Record->Storage Location panel. 7 Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen.
Onscreen Mouse Control Right click the mouse and you can adjust the screen ration, full screen and Zoom up.
Figure 9.11
24-9-2015 27 ebode IPV68P2P
Keep ration: Select it and the camera will adjust the size of live window based on the the computer monitor automatically. Sometimes there is a black border around the video, please select Keep ration to get a better visual quality . Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen. Zoom up: First Method: Here is a convenient and fast solution to Zoom up/down screen by Clicking Video Screen and adjusting Mouse pulley, or by press the CTRL key and click the mouse left button. Second Method: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.
Figure 9.12
When you select the Full Screen, then click right mouse, there is a Screen PTZ button.
Figure 9.13
24-9-2015 28 ebode IPV68P2P
Click the Screen PTZ button and put the mouse on the screen to indicate the camera move direction you prefer, press the left mouse, the camera will move to the corresponding direction. Loosen the mouse and stop moving. Press Esc button or double click right mouse and cancel the function. Please note that for Mac OS, the plugin cannot support Onscreen Mouse Control, so you cannot allow to use it.
10. ADVANCED CAMERA SETTINGS Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.
10.1 Status
Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera.
10.1.1 Device Information
Figure 10.1
Camera Model: The model of the device. Camera Name: The Device Name is a unique name that you can give to your device to help you identify it. Click Basic Settings and go to Camera name panel where you can change your camera name. The default device name is anonymous. Camera ID: Display the wired MAC address of your camera. For example Device ID is HJYFC8613P03, the same MAC ID sticker is found at the bottom of the camera. Camera Time: The system time of the device. Click Basic Settings and go to Camera time panel and adjust the time. System Firmware version: Display the System Firmware version of your camera. App Firmware version: Display the application firmware version of your camera. Plug-in version: Display the plug-in version of your camera
10.1.2 Device Status
On this page you can see device status such as Alarm status/ Record Status ,DDNS status ,WIFI status and so on.
Figure 10.2
24-9-2015 29 ebode IPV68P2P
10.1.3 Session Status
Session status will display who and which IP is visiting the camera now.
Figure 10.3
10.1.4 Log
The log record shows who and which IP address accessed or logout the camera and when.
Figure 10.4
Reboot the camera and clear the log records.
10.2 Basic Settings
This section allows to configure the camera name, time, user account and multi-camera.
10.2.1 Camera Name
Default alias is anonymous. You can define a name for your camera here such as apple. Click Save to save your changes. The alias name cannot contain special characters.
Figure 10.5
Click the page number and go
to the corresponding page to
see more logs.
Fill in one page number, click
Go button and go to the
corresponding page.
24-9-2015 30 ebode IPV68P2P
10.2.2 Camera Time
This section allows to configure the settings of the internal system clocks for the camera.
Figure 10.6
Time Zone: Select the time zone for your region from the drop-down menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server. Choose the one that is closest to your camera. Sync with PC: Select to synchronize date + time of the Network Camera with computer. Manually: Administrator can enter date and time manually. Select date and time format. Use DST: Select the use DST, then select the daylight saving time from the drop-down menu. Click Save button to submit your settings.
10.2.3 User Accounts
Here you can create users and set privilege, visitor, operator or administrator. The default user account is admin, with a blank password. You can enter the users accounts of visitor operator and administrator Manually.
Figure 10.7
24-9-2015 31 ebode IPV68P2P
How to change the password of administrator?
Firstly, select the account of administrator, then select “Change password”, enter the old
password and the new password, lastly click modify to take effect.
Figure 10.8
How to add account? Select one blank column, then enter the new user name, password and privilege, last click Add to take effect. You can see the new added account on the Account list.
Figure 10.9
24-9-2015 32 ebode IPV68P2P
Figure 10.10
DeleteSelect the account you want to delete, then click Delete button to take effect.
Note: Default admin account cannot be deleted. You can add other administrator users.
How to change the username? Firstly, select the account which you want to change the username, then select “Change username”, enter the new password, lastly click modify to take effect.
Figure 10.11
10.2.4 Multi-Camera
If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed. The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window.
24-9-2015 33 ebode IPV68P2P
Add cameras in LAN In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You can add more cameras in the list in LAN for monitoring. The
camera’s software supports up to 9 IP Cameras online simultaneously. Click The 2nd
Device and click the item in the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username and password then click Add. Add more cameras in the same way.
Figure 10.12
Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you which series the camera belongs to.
Figure 10.13
24-9-2015 34 ebode IPV68P2P
Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.
Figure 10.14
Figure 10.15
Add cameras in WAN If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 4.3.3) Login to the first camera using a DDNS domain name and port.
24-9-2015 35 ebode IPV68P2P
Figure 10.16
Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port number. Enter user name and password and then choose Add.
Figure 10.17
1 ---- The camera model: MJ or H264. 2 ---- The 2nd camera’s name 3 ---- Fill in the 2nd camera’s DDNS host not LAN IP 4 ---- Enter the 2nd camera’s user name and password 5 ---- Click Add button and to take effect
NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP.
Use DDNS domain name and port to login
Make sure each camera you
need add could login with
DDNS name and port NO.
24-9-2015 36 ebode IPV68P2P
Figure 10.18
Return to video window. You will see all of the cameras accessible through the internet.
When you are away from home, you can use the first camera’s DDNS domain name and
port to view all the cameras via internet.
Figure 10.19
24-9-2015 37 ebode IPV68P2P
10.3 Network
This section will allow you to configure your camera’s IP, PPPoE, DDNS, Wireless
Settings, UPnP and Port.
10.3.1 IP Configuration
If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same subnet of your router or computer.
Figure 10.20
Changing settings here is the same as using the IP Camera Tool. (Figure 10.20/10.21) It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows:
Control PanelNetwork ConnectionsLocal Area ConnectionsChoose SupportDetails.
Figure 10.21
24-9-2015 38 ebode IPV68P2P
Figure 10.22
If you don’t know the DNS server, you can use the same settings as the Default Gateway.
10.3.2 Wireless Settings
Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side of the screen, then click “Wireless Settings.”
Click the Scan button and the camera will detect all wireless networks around the area. It should also display your router in the list (Figure 10.23).
Figure 10.23
Click the Scan
button to search for
wireless networks.
Click Page number
to see other
wireless networks
devices if there are
more than 10.
24-9-2015 39 ebode IPV68P2P
Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network, such as the name and the encryption, will be filled into the relevant fields automatically.
You will only need to fill in the password of your network. Make sure that the SSID, Encryption and the password you filled in are exactly the same for your router.
Figure 10.24
Step 3: Please click on the Save button after all settings have been entered and disconnect the network cable. Never shut down the power of the camera until the IP camera is able to connect to the wireless network.
The LAN IP address will disappear on the window of IP Camera Tool when the camera is configuring a wireless connection. Wait about 1 minute, the camera should obtain a wireless connection, and the LAN IP of the camera will show again on the window of the IP Camera Tool. The IP address may have changed after the camera receives a wireless connection; we recommend setting a static local IP address if this IP address changes by right clicking the camera in IP Camera Tools, setting a static IP, and pushing OK (see Figure 10.36). Congratulations! You have set up the wireless connection of the camera successfully.
NOTE: If you fail to make a wireless connection, please refer to your seller or contact us directly for assistance.
10.3.3 PPPoE
If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account.
24-9-2015 40 ebode IPV68P2P
Figure 10.25
10.3.4 DDNS
The camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name.
IPCAM domain name Here take test09.myipcamera.org for example. Go to option of DDNS on the Settings Network panel, you can see the domain name.
Figure 10.26
Now you can use http:// Domain name + HTTP Port to access the camera via internet. Take hostname test09.myipcamera.org and HTTP Port no. 800 for example, the accessing link of the camera via internet would be http:// test09.myipcamera.org:800 Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you
want to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s
DDNS Service.
Third Party Domain Name Settings User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com
Here take www.no-ip.com for example:
Step 1, Go to the website www.no-ip.com to create a free hostname
Firstly: Login on www.no-ip.com and click No-IP Free to register.
24-9-2015 41 ebode IPV68P2P
Figure 10.27
Figure 10.28
Please register an account step by step according to instructions on www.no-ip.com
After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email.
24-9-2015 42 ebode IPV68P2P
Secondly: Login the link with the registered username and password to create your domain name.
Figure 10.29
Figure 10.30
Please create the domain name step by step according to instructions on www.no-ip.com
Step 2, DO DDNS Service Settings within the Camera Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name test, password test2012 for example.
24-9-2015 43 ebode IPV68P2P
Firstly, goes to option of DDNS Settings on the administrator panel. Secondly, select No-Ip as a server.. Thirdly, fill test as DDNS user, fill password test2012 as DDNS password, fill ycxgwp.no­ip.info as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective. Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and check if the DDNS status is successful.
If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.
NOTE: If you have set Third Party DDNS successfully ,the Domain Name will be invalid. The Third Party DDNS and the Domain Name cannot work at the same time, the last time you configured will take effect.
Do port forwarding within the router
Example: The camera’s LAN IP address is http://192.168.8.100:2000 , Media port no. is
9200. Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on some brands of router). Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding. Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below.
Figure 10.31
Use domain name to access the camera via internet
After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000 for example, the accessing link of the camera via internet would be http:// ycxgwp.no­ip.info:2000
24-9-2015 44 ebode IPV68P2P
10.3.5 UPnP
Figure 10.32
The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for port forwarding. Back to the “Device Status” panel, you can see the
UPnP status:
Figure 10.33
The camera’s software will be configured for port forwarding. There may be issues with
your routers security settings, and sometimes may error. We recommend you configure port forwarding manually on your router.
10.3.6 Port
This camera supports HTTP Port. HTTP Port is used to access the camera remotely. If you want to access the camera and view the video, the HTTP Port must both be configured correctly.
HTTP port: By default, the HTTP port is set to 88. Also, they can be assigned with another port number between 1 and 65535. But make sure they can not be conflict with other existing ports like 25, 21.
Figure 10.34
24-9-2015 45 ebode IPV68P2P
Another way to change the HTTP port NO.
Step 1: Open the IP Camera Tool, select the camera you would like to change the port
of, right click on the IP address, and click on ”Network Configuration”, this brings up the
network configuration box as shown in Figure 10.35 and 10.36.
Figure 10.35
Figure 10.36
Step 2: Enter the username and password of the Administrator (default username is
admin with a blank password), and click “OK” to apply changes.
Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has
changed. In our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!
Select which
camera you’d like
to change the port
Modify the Http
Port.
Enter the
Username and
password, click
OK.
24-9-2015 46 ebode IPV68P2P
Figure 10.37
Note: If the camera cannot be accessed, make sure the port forwarding is succeed.
HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port NO.
ONVIF port: By default, the ONVIF port is set to 888. Also, they can be assigned with another port number between 1 and 65535(except 0 and 65534). But make sure they cannot be conflict with other existing ports.
10.3.7 Mail Settings
If you want the camera to send emails when motion has been detected, here Mail will need to be configured.
Figure 10.38
1-----SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select. 2-----SMTP Username/ password ID account and password of the sender email address 3-----Sender E-mail Mailbox for sender must support SMTP 4-----Receiver Mailbox for receiver need not support SMTP,you can set 4 receivers
24-9-2015 47 ebode IPV68P2P
5-----Save Click Save to take effect 6-----Test Click Test to see if Mail has been successfully configured.
Click Test to see if Mail has been successfully configured.
Figure 10.39
If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail.
If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test.
1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try again
6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device
10.3.8 FTP Settings
If you want to upload record files and images to your FTP serveryou can set FTP Settings.
Test
Result
24-9-2015 48 ebode IPV68P2P
Figure 10.40
Figure 10.41
FTP server: If the FTP server is located on the LAN, you can set as Figure 10.45. If you have an FTP server which you can access on the internet, you can set as Figure 10.46 Port: Default is port 21. If changed, external FTP client program must change the server connection port accordingly. FTP Mode: Here supports two modes: PORT and PASV. Username/password: The FTP account and password. Click Save to take effect. Click Test to see if FTP has been successfully configured.
10.3.9 P2P
Access the IP Camera by Smart Phone (Android or iOS operating system). First of all, you need to open the P2P function of the IP Camera at “Settings Network P2P”.
24-9-2015 49 ebode IPV68P2P
Figure 10.42
Search and install IPCam Viewer for Android device, or search and install IPCam_Viewer on APP Store for iOS device. If you want to know more details of the iOS APP or Android APP, see the iOS App User Manual or Android APP User Manual.
10.3.10 Cloud Server
Please first of all note that the SD card is an optional feature and that IPV68P2P including SD card has to be ordered separately as item number IPV68P2PSD. You can configure the cloud server information to store the recording files.
Figure 10.43
Enable cloud server: you can check it to enable the cloud server. Click the Get Authorization Code button, then you will enter the cloud server website. After you signed in account, you will get the authorization code, copy it and paste to the Authorization Code textbox. Then click the Accept button. You will see the status at the Status Information textbox. Click the Save button. Note: You must plug the SD card into the camera before using the cloud storage feature.
10.4 Video
This section allows you to configure Video stream settings, On screen display and Snapshot settings.
10.4.1 Video Settings
There are two ways to set the stream video settings. They are main stream video settings and sub stream video settings.
24-9-2015 50 ebode IPV68P2P
Figure 10.44
Stream type: There are four types to identify different streams you have set.
Resolution: The camera supports multiple types, For example: 960P, 720P, VGA, QVGA. The higher the resolution is, the clearer video will become. But the code flux will become larger too, and it will take up more bandwidth.
Bit rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video cannot play well.
Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video. The maximum frame rate for each model is different, please see the “Default Parameters”.
Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption.
10.4.2 On Screen Display
This page is used to add time-stamp and device name on the video.
Figure 10.45
24-9-2015 51 ebode IPV68P2P
Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the video. Display Camera Name: There are two options: Yes or NO. Select Yes and you can see the device name on the video.
10.4.3 Privacy Zone
This page is used to set some mask as privacy zone on the video.
Figure 10.46
Allow On Screen Display Mask: There are two options: Yes or NO. Select yes and draw a mask area on the video, the mask area will be black on the video.
Figure 10.47
Click Back button and return to the OSD page, click Save to take effect. Back to the surveillance window, you can see the mask area as the following picture:
The
Mask
Area
24-9-2015 52 ebode IPV68P2P
Figure 10.48
10.4.4 Snapshot Settings
On this page you can set the snapshot pictures’ image quality and the storage path.
Figure 10.49
Manual snap Quality: Low, Middle, High. The higher the quality, the clearer the picture. Alarm Pictures Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP automatically.
Enable timing to capture To enable capture interval, follow the steps below:
1) Select Enable timing to capture
2) Capture interval:The interval time between two captures.
3) Select the capture time
Capture anytime: Click the black button up the MON, you will see all time range
turn red. When something moving in the detection area at any time, the camera will capture.
Specify an capture schedule: Click the week day words, the corresponding column
will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, the camera will capture.
Press the left mouse and drag it on the time boxes, you can select the serial area,
4) Click Save button to take effect.
24-9-2015 53 ebode IPV68P2P
10.4.5 IR LED Schedule
On this page you can set the schedule time for switching IR LED lights. When parameter Mode is set to the Schedule on the Live Video window, at these schedule time, the IR LED lights will be turned off.
Figure 10.50
10.5 Alarm
10.5.1 Motion Detection
IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or upload images to FTP.
Figure 10.51
To enable motion detection, follow the steps below:
1.) Enable Motion detection
2.) Sensitivity---- It supports three modes: Low, Middle and High. The higher the
sensitivity, the camera will be more easily alarmed. Select one motion sensitivity.
3.) Trigger interval--- The interval time between two motion detections. Here supports
5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.
4.) Select the alarm indicator
When the motion has been detected, the alarm status will turn to Detect alarm.
24-9-2015 54 ebode IPV68P2P
Figure 10.52
There are four alarm indicators:
A Camera Sound and PC Sound If the camera has connected with a speaker or other audio output device, if you select Camera Sound or PC Sound, when the motion has been detected, the people around the camera will hear beep alarm sound.
B Send E-mail If you want to receive alarm emails when motion is detected, you must select Send E­mail and set Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected Take Snapshot.
C Take Snapshot If you select this check-box, when the motion has been detected, the camera will snap the live view window as a still picture and load it to the FTP. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot settings panel. If you select Send Email, at the same time the picture will be send to you as an attachment. Time interval: The interval time between two pictures.
D IO Output If IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.). Click "Clear IO alarm output" , the alarm output device will stop alarming. If IO alarm is triggered again after alarm interval, IO alarm output device will be restart.
E IO Output If IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.). Click "Clear IO alarm output" , the alarm output device will stop alarming. If IO alarm is triggered again after alarm interval, IO alarm output device will be restart.
5.) Set detect area Click set detect area and it pop up a window, then you can draw the detection area. Click OK button after settings. When something moving in the detection area, the camera will alarm.
24-9-2015 55 ebode IPV68P2P
Figure 10.53
Step 06: Alarm Schedule Alarm anytime when motion is detected Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at any time, the camera will alarm.
Figure 10.54
Specify an alarm schedule Click the week day words, the corresponding column will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm.
Figure 10.55
Click this button and select all time range.
24-9-2015 56 ebode IPV68P2P
Press the left mouse and drag it on the time boxes, you can select the serial area.
Figure 10.56
Step 07: Click Save button to take effect. When the motion has been detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators.
NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.
10.5.2 IO Alarm
This IP camera provides a I/O alarm terminal block which is used to connect to external input / output device. The alarm device(door sensor, infrared sensor, smoke detectors, etc) send input command to the network camera, then the network camera send output command to the alarm output device(local audible alarm, lights alarm, etc.).
Figure 10.57
There is an IO alarm input/output lines in the IPCAM camera tails, as shown in Figure
10.58. Enable IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.). I/O Alarm has four ports:
Port 1 and port 2 indicate IO alarm input Port 3 and port 4 indicate IO alarm output
24-9-2015 57 ebode IPV68P2P
Figure 10.58
Setting IO alarm On the IO page, Enable the I/O alarm, select the “Send E-mail”and ”Snapshot” before you have configured the mail and FTP.
Figure 10.59
If an IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.). Click "Clear IO alarm output" , the alarm output device will stop alarming. If IO alarm is triggered again after alarm interval, IO alarm output device will be restart.
Click this button and select all time range.
24-9-2015 58 ebode IPV68P2P
Figure 10.60
Note: motion detection alarm can also be triggered IO alarm output.
Figure 10.61
10.6 Record
10.6.1 Storage Location
Please first of all note that the SD card is an optional feature and that IPV68P2P including SD card has to be ordered separately as item number IPV68P2PSD. On this page you change the manually recording storage path. Default storage path is D:\ipc.
Figure 10.62
24-9-2015 59 ebode IPV68P2P
Recording Location: SD card or FTP. When the camera alarmed, it will store the alarm files to the SD card or FTP. If you select the SD card from the Recording Location, Make sure the camera has been inserted the SD card. On this page, you can see the available space of the SD card. Local Recording Location: For Windows OS, the location recording path is c:/ IPCamRecord, you can change another one. For MAC OS, the manual recording path is: / IPCamRecord.
10.6.2 Alarm Recording
This page you can change the Pre-record time and Alarm record time.
Figure 10.63
The default Pre-recorded time is 5s and the alarm record time is 30s, you can change another time, click Save button to take effect.
10.6.3 Local Alarm Location
On this page you can enable local alarm record, and select the local alarm record time.
Figure 10.64
10.6.4 Schedule recording
On this page you can enable schedule record.
When the parameter Recording Location is set None on the Storage Location page, the page Schedule Recording do not be setting.
When the parameter Recording Location is set SD Card on the Storage Location page, you can configure parameters as shown in following figure
24-9-2015 60 ebode IPV68P2P
Figure 10.65
When the parameter Recording Location is set FTP on the Storage Location page, you can configure parameters as shown in follow figure.
Figure 10.66
Click Save button to take effect.
10.6.5 SD Card Management
Please first of all note that the SD card is an optional feature and that IPV68P2P including SD card has to be ordered separately as item number IPV68P2PSD. The max size of SD card must be under 32G. When you plug in the SD card during the camera work process, please reboot the camera again, or else the SD Card may be cannot work well.
This page you can check the SD card information.
24-9-2015 61 ebode IPV68P2P

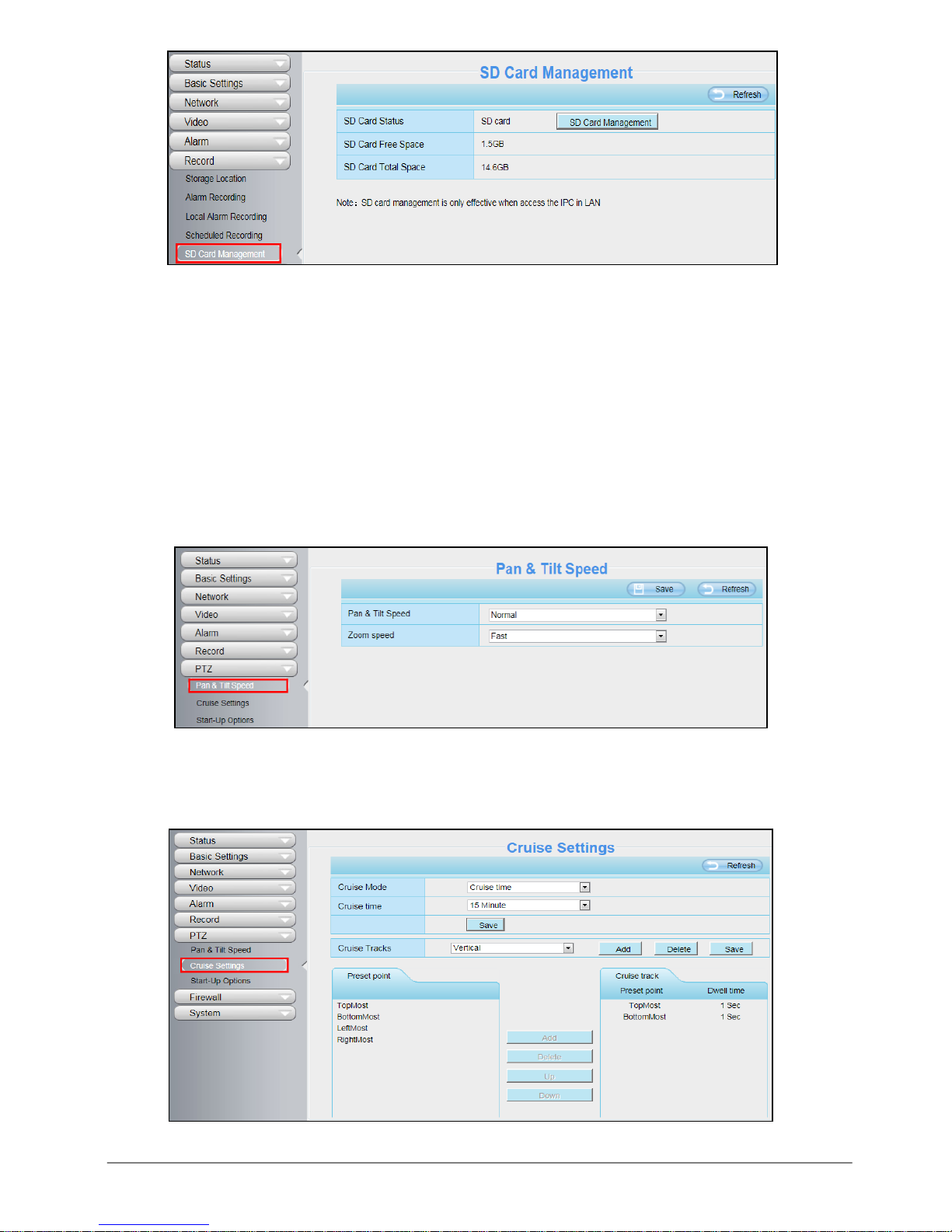

Figure 10.67
Go to the Settings StatusDevice Status page, you can see the SD card status.
The default storage path of alarm record files is SD card, when the available size of SD card is less than 256M, the old record files will be deleted automatically.
10.7 PTZ
This page will allow you to change the pan/tilt speed and do cruise tracks settings.
10.7.1 Pan/Tilt Speed
There are five Pt speed types: very fast, fast, normal, slow and very slowly. Select the desired PTZ speed type and click save button.
Figure 10.68
10.7.2 Cruise Settings
This section explains how to add/ delete one cruise track.
Figure 10.69
24-9-2015 62 ebode IPV68P2P
Setting the Cruise Mode There are two cruise modes: Cruise time and Cruise Loops. Cruise time: Select Cruise time from Cruise Mode dropdown, then set the Cruise time of the camera. Cruise Loops: Select Cruise Loops from Cruise Mode dropdown, set the Cruise Loops of the camera. Click Save to take effect.
Figure 10.70 Manage the Cruise Track There are two default cruise tracks: Vertical and Horizontal. Vertical: The camera will rotate from up to down Horizontal: The camera will rotate form left to right. Add: Add one cruise track, then click save button. Delete: Select one cruise track and delete it. Save: After you modify the Dwell time, you should click Save button to take effect.
Example How to do add cruise tracks ?
1.) Click Add button and enter a descriptive name to identify the cruise track.
2.) On the lower left of the page, you can see all preset points you have added. Select one preset point and click Add button, you can see the preset point has been added to the cruise track on the cruise track page. You need to add two or more preset points to the cruise track.
Figure 10.71
The new added
track name.
1 Select one
preset point.
2 Click
Add
Here you can see
the preset point has
been added to one track. And you can
24-9-2015 63 ebode IPV68P2P
Thirdly: Click OK button and the cruise track will take effect.
You can add other cruise track as the same method.
For example: I have added three preset points to the “track 1”, that means: When I select the “track 1” on the
surveillance window, the camera moves as the following track: upright then Right Most last downleft.
Add preset on the left of the surveillance window.
Figure 10.72
Figure 10.73
After add the cruise track, back to the surveillance window, click Cruise, here you can see all cruise tracks you have added.
Figure 10.74
There are other buttons between the Preset points and Cruise track, you can use these buttons to adjust the order of preset points or add/delete one preset points in one cruise track.
Add the preset.
The cruise tracks have
added to the “track 1” .
24-9-2015 64 ebode IPV68P2P
Figure 10.75
Add: Select one preset points and add it to the selected cruise track. Delete: Select one preset points you have added to one cruise track, click delete. Move up/ down: Select one cruise track, adjust the order of preset points in one cruise track. Attention: Considering the life time and thermal issue of the motor, it’s not recommend to do long-time cruise.
10.7.3 Start-Up Options
Here section will allow you to set the stop position after the camera reboots.
It supports three modes: Disable Start-Up, Go To Home Position and Go To Preset Position.
Disable Start-Up: When rebooting, the camera will not pan / tilt. Go To Home Position: When rebooting, the camera will pa Providing Central Management Software to manage or monitor multi-cameras n / tilt and stops at center. Go To Preset Position: Select one preset position and save it. When rebooting, the camera will pan/ tilt and stops at the preset position you have set.
Figure 10.76
10.7.4 Guard Position Settings
After setting the guard position, your camcorder will automatically return to the guard position within a predetermined time (manually setting) when it stops moving (manually or cruise). You could refer to the following method:
24-9-2015 65 ebode IPV68P2P
Figure 10.77
Then go to the settings page to set time (min):
Figure 10.78
10.8 Firewall
This section explains how to control the access permission by checking the client PC’s IP
addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses..
Figure 10.79
24-9-2015 66 ebode IPV68P2P
Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most, only those clients whose IP addresses listed in the Only allow access from these IP addresses can access the Network Camera. If you select Block access from these IP addresses, only those clients whose IP addresses are in the IP list cannot access the Network Camera.
Click Save to take effect.
10.9 System
In this panel, you can backup/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device.
10.9.1 Back-up & Restore
Click Back-up to save all the parameters you have set. These parameters will be stored in a bin file for future use.
Click Browse and select the parameters file you have stored, then click Submit to restore the restore the parameters.
Figure 10.80
10.9.2 System Upgrade
Your current firmware version will be displayed on your screen. You may go to the Device Status Device Information Page to check for the latest firmware versions available.
Click Browse, choose the correct bin file and then click System upgrade. Make sure you have unplugged the SD card. Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.
Figure 10.81
Upgrade Firmware by IP Camera Tool
24-9-2015 67 ebode IPV68P2P
Double click the IP Camera Tool shot icon , select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade.
Figure 10.82
Figure 10.83
CAUTION: If your camera works well with the current firmware, we recommend not
upgrading. Please don’t upgrade the firmware unnecessarily. Your camera may be
damaged if mis-configured during an upgrade.
NOTE:
1) Before upgrade the firmware, please unplug the SD card and reboot the camera,
don’t upgrade the firmware in WAN through the web UI, or else the upgrade process
may be failed.
2) Please ensure you have download the correct firmware package for your camera before upgrading. Read the upgrade documentation (readme.txt file) in the upgrade package before you upgrade.
3) Upon downloading the firmware check the sizes of the .bin files. They must match the size in the readme.txt file. If not, please download the firmware again until the sizes are the same. Your camera will not function correctly if a corrupt .bin file is used.
4) Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device System Firmware.
5) Never shut down the power of the camera during upgrade until the IP camera restart and get connected.
6) After upgrade successfully, please uninstall the old plugin and re-install it, then reset the camera to the default factory settings before using the camera.
Enter the
User name
and
password.
24-9-2015 68 ebode IPV68P2P
10.9.3 Patch Installation
Click "Browse" to select the correct patch file, and then click "Install Patch" to install the patch. Do not turn off the power during it installing. After installing is complete, you will receive a system prompt.
Figure 10.84
10.9.4 Factory Reset
Click All reset and all parameters will return to factory settings if selected. This is similar to press the Reset button on the bottom of the camera.
Figure 10.85
10.9.5 Reboot
Click Reboot System to reboot the camera. This is similar to unplugging the power to the camera.
Figure 10.86
24-9-2015 69 ebode IPV68P2P
11. PLAYBACK
Please first of all note that the SD card is an optional feature and that IPV68P2P including SD card has to be ordered separately as item number IPV68P2PSD. On this page you can view the record files stored in the SD card.
Figure 11.1
Section 1 - Define the Record files time and Type
: The storage path of record files
: Here supports three types: current day, current month and
All records. Another way, select the time on the time & date manually.
Figure 11.2
: The type of records files, Here supports two typs: Normal
record, Alarm record and All records.
: Click this button to search all record files satisfy the conditions you selected.
Continuous Play: Select the checkbox to play continuously all the record files.
1 2 3
24-9-2015 70 ebode IPV68P2P
Section 2 - Search record files On this panel you can see all record files satisfy the conditions you set.
Section 3 - Play/Stop/Audio/Full screen buttons Please select one record file before use these buttons.
Click this button to play the record files
Click this button to stop the record files
Open or stop audio
Click this button to make full screen, and double click left mouse to exit full screen.
12. APPENDIX
12.1 Frequently Asked Questions
NOTE: Any questions you would meet, please check Network connections firstly. Check the working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections.
12.1.1 How to download and install the ActiveX for Firefox users
For the first time login the camera, it may prompt you to download plugin.
Figure 12.1
Drag the download file to Firefox web page and it will prompt you to Install it.
Click here
to
download
the plugin.
24-9-2015 71 ebode IPV68P2P
Figure 12.2
Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera again, you can see the surveillance window.
NOTE: If you could not view living video after running the ActiveX, only a red cross in the centre of the video or just a black screen. Change another port number to try. Make sure all firewall or antivirus software on your computer does not block the active download and installation. If you are unable to run the ActiveX control, try shutting down the firewall or antivirus program.
12.1.2 How to download and install the ActiveX for Google Chrome users
For the first time login the camera, it will prompt you to download the ActiveX.
Figure 12.3
Click
Install
24-9-2015 72 ebode IPV68P2P
Download the plugin and drag it to the Extensions page of Google Chrome.
Figure 12.4
Click Add button to install the Plugins.
Figure 12.5
Reboot the browser and relogin the camera, you will see the surveillance window.
12.1.3 I have forgotten the administrator password
To reset the administrator username and password, press and hold down the RESET BUTTON for 5 seconds. Upon releasing the reset button, wait for 20 seconds, the camera will reboot and the username and password will return to the factory default administrator username and password. Please power on the camera before reset Default administrator username: admin
Go To
Extensions
Page.
Click Add button to
install the
plugin.
24-9-2015 73 ebode IPV68P2P
Default administrator password: No password
12.1.4 Camera cannot record
Camera cannot record if click Record button or can’t change the manually record path. When you use Windows7 or Vista, you may be not able to do manually record or change the record path because of the security settings of computer. There are two ways to resolve this problem: (1) Please add the camera as a trusted site to resolve this issue. The steps are IE browser Tool Internet Properties Security Trusted sites Sites Add (2) Open IE browser, then right click, select “Run as administrator”
12.1.5 Subnet doesn’t match
Check whether your ipcamera in the same subnet of your computer. The step is Control Panel Network Connections Dbclick Local Area Connections Choose General Properties. Check subnet mask, IP address and gateways. When you set IP address please make sure they are in the same subnet. Otherwise you can't access camera.
12.1.6 No Pictures Problems
The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t
installed correctly you will see no video image. You can resolve this problem by this way: Download ActiveX controller and set the safety property of IE in the PC when you view it
first time: IE browser Tool Internet Proper Security Custom Level ActiveX
control and Plug-ins. Three options of front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows: Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plug-ins
24-9-2015 74 ebode IPV68P2P
Figure 12.6
If you allow the ActiveX running, but still could not see living video. Please change another port number to try. Don’t use port 8000.
Figure 12.7
NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could not see video, please shut down firewall or anti-virus software to try again.
12.1.7 Can’t access IP camera in internet
There are some reasons: 1ActiveX controller is not installed correctly 2The port which camera used is blocked by Firewall or Anti-virus software. Please
change another port number and try again. 3Port forwarding is not successful
Check these settings and make sure they are correct.
12.1.8 UPnP always failed
UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding automatically because of firewall or anti-virus software. It also has much relation with router’s security settings. So we recommend you do port forwarding manually. You can view your camera in internet successfully after you do port forwarding manually in your router (Figure 10.29).
12.1.9 Camera cannot connect wireless
If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check whether your settings are correct or not. Normally, camera can’t connect wireless mainly because of wrong settings. Make sure broadcast your SSID; use the same encryption for router and camera.
12.1.10 Can’t see other cameras listed
Can’t see other cameras listed in multi-device when using remote access. If you want to view all the cameras via the WAN, verify that each camera added in the multi-device settings can be accessed by using the DDNS name and port number. Use
the DDNS domain name not the camera’s LAN IP. (For more details see: How to add
cameras in WAN)
12.2 Default Parameters
Default network Parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically DDNS: Embedded domain name
Username and password
24-9-2015 75 ebode IPV68P2P
Default username is admin with a blank password
12.3 Specifications
ITEMS
IPV68P2P
Image Sensor
Sensor
High Definition Color CMOS Sensor
Display Resolution
1280 x 960 (1.3 Megapixel)
Min. Illumination
0 Lux (With IR Illuminator)
Lens
Lens Type
Glass Lens
focal length
f:3.7~14.8mm
Aperture
F1.6
Angle of View
70° maximum
Video
Image Compression
H.264
Image Frame Rate
30fps maximum, downward adjustable
Resolution
(1.3Megapixel) 1280x960, 720P(1280x720), VGA(640x480), VGA(640x360), QVGA(320x240), QVGA(320x180)
Stream
dual stream
Image adjustment
The hue, brightness, contrast, saturation, sharpness are adjustable
Flip image
flip and mirror
Infrared mode
Automatic or manual
Pan/Tilt Angle
Horizontal:355° & Vertical: 90°
Night visibility
21pcs IR-LEDs, night vision range up to 20 meters
Audio
Input/Output
External 3.5mm standard interface for two-way audio
Audio Compression
PCM/G.726
Network
Ethernet
One 10/100Mbps RJ45 port
Wireless Standard
IEEE802.11b/g/n
Data Rate
IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.).
Wireless Security
WEP, WPA, WPA2
Network Protocol
IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF
System
Requirements
Operating System
Microsoft Windows XP, Vista, 7, 8; Mac OS iOSAndroid
Browser
Microsoft IE7 and above version or compatible browser; Mozilla Firefox; Google Chrome; Apple Safari.
Other
Features
Motion Detection
Alarm via E-Mail, upload alarm snapshot to FTP
Privacy Zone
Set privacy zone manually
User Accounts
Three levels user role
Firewall
Supports IP Filtering
Reset
Reset button is available
Power
Power Supply
DC 12V/2.0A
Power Consumption
10Watts (Max.)
Physical
Dimension(LxWxH)
240(L)*140(W)*160(H) mm
Net Weight
1800g
Environment
Operating Temper.
-20°C ~ 55°C (-4°F ~ 131°F)
Operating Humidity
20% ~ 85% non-condensing
Storage Temperature
-20°C ~ 60° (-4°F ~ 140°F)
Storage Humidity
0% ~ 90% non-condensing
Certification
CE, FCC, RoHS
Warranty
Limited 1-year warranty
Attention: Power adapter should be used between -20 & -40, and 20%-90% relative humidity.
24-9-2015 76 ebode IPV68P2P
12.4 CE & FCC
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
This device may not cause harmful interference, and This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is like to cause harmful interference, in which case the user will be required to correct the interference at his own expense.
FCC Caution Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Questions? Please visit our website www.ebodeelectronics.eu
for FAQ and our contact details.
24-9-2015 77 ebode IPV68P2P
DECLARATION OF CONFORMITY
Hereby, ebode electronics, declares that this ebode IPV68P2P is in compliance with the essential requirements and other relevant provisions of the following Directives:
Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using
Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
24-9-2015 78 ebode IPV68P2P
DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein
Product category: general consumer (category 3).
English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
Deutsch [German]: Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Nederlands [Dutch]: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen van de Richtlijn 1999/5/EC.
Svenska [Swedish]: Denna utrustning står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Français [French]: Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC
Español [Spanish]: Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 1999/5/CE.
Português [Portuguese]: Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC.
Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE.
Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF.
Suomi [Finnish]:Tämä laite tÿttää direktiivin 1999/5/EY olennaiset vaatimukset ja on siinä asetettujen muiden laitetta koskevien määräysten mukainen.
Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF.
Polski [Polish]: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi
warunkami okreslonymi Dyrektywą UE: 1999/5/EC
24-9-2015 79 ebode IPV68P2P
Also available from ebode: FM Transmitters and Infrared products
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit
www.ebodeelectronics.eu.
24-9-2015 80 ebode IPV68P2P
www.ebodeelectronics.eu
Loading...
