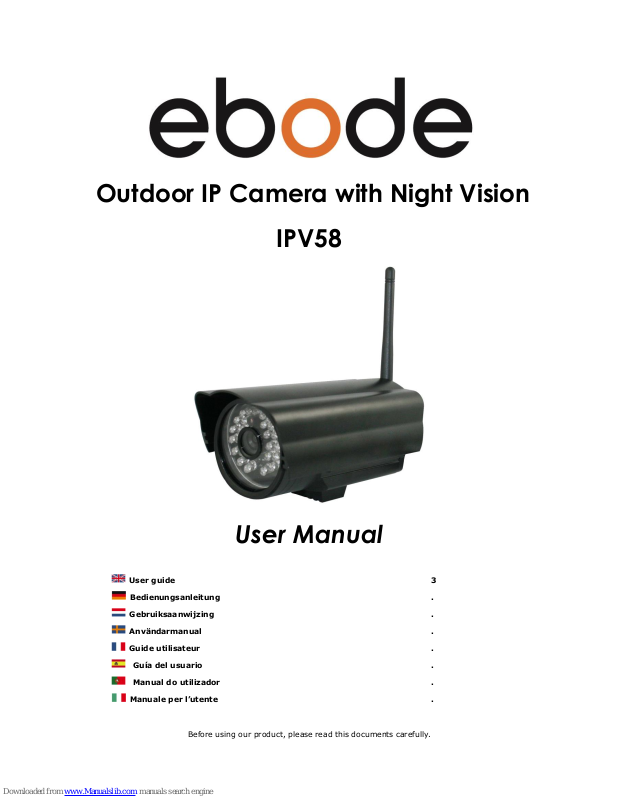

Ebode IPV58 User Manual
Outdoor IP Camera with Night Vision
IPV58
User Manual
User guide 3
Bedienungsanleitung .
Gebruiksaanwijzing .
Användarmanual .
Guide utilisateur .
Guía del usuario .
Manual do utilizador .
Manuale per l’utente .
Before using our product, please read this documents carefully.
March 2013 2 IPV58
Index
1.0 Introduction
1.1 Features
1.2 Packing List
1.3 Product Views
1.3.1 Front View
1.3.2 Rear Panel
1.3.3 Bottom View
1.4 PC System Requirements
1.5 Hardware Installation
1.6 Software Installation
1.7 IP Camera Tool
1.7.1 Six Options Available
1.7.2 Basic Properties
1.7.3 Network Configuration
1.7.4 Upgrade Firmware
1.7.5 Refresh Camera List
1.7.6 Flush Arp Buffer
1.7.7 About IP Camera Tool
1.8 Camera Login
1.8.1 For IE Browser
1.8.2 For Safari, Firefox, Google Browser
1.8.3 For Mobile Phone
1.9 ActiveX Mode (For IE Browser)
1.9.1 For Visitor
1.9.2 For Operator
1.9.3 For Administrator
2.0 Settings as administrator
2.1 Multi-Device Settings
2.1.1 Set Multi-Device in LAN
2.1.2 Set Multi-Device for WAN
2.1.3 Upgrade Device Firmware
2.1.4 Restore Factory Settings
2.1.5 Reboot Device
2.2 Network Settings
2.3 Basic Network Settings
2.4 Wireless LAN Settings
2.5 ADSL Settings
2.6 UPnP Settings
2.7 DDNS Service Settings
2.7.1 To change the camera’s port
2.7.2 DDNS Status
March 2013 3 IPV58
2.7.3 Set Port Forwarding in the router
2.7.4 Belgian Customers with Telenet Modem/Router
3.0 Settings
3.1 System Settings
3.1 Device Info
3.2 Alias Settings
3.3 Settings
3.4 Date & Time Settings
3.5 Users Settings
3.6 Pan, Tilt, (PTZ) Settings
3.7 Indicator Settings
3.8 Backup & Restore
3.9 Other Settings
3.10 Mail Service Settings
3.11 FTP Service Settings
3.12 Alarm Service Settings
3.12.1 Motion Detect Armed
3.12.2 Motion Detect Sensitivity
3.12.3 Alarm Input Armed / IO Linkage on Alarm
3.12.4 IO Pins for IO Alarm Linkage
3.13 Send e-mail on Alarm
3.14 Path Settings
3.15 Server Push Mode (For Safari, FireFox, Google Browser)
4.0 Sign in mobile phone
4.1 Compatible Apps for mobile devices
5.0 Appendix
5.1 Frequently Asked Questions
6.0 Specifications
7.0 Obtaining Technical Support
March 2013 4 IPV58
1.0 Introduction
This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with
network connectivity and a powerful web server to bring clear to your Desktop from anywhere on your
local network or over the Internet.
The basic function of it is transmitting remote video on IP network. The high quality video image can be
transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology.
It is based on TCP/IP standard, build-in WEB server which could support Internet Explore. Therefore the
management and maintenance of your device become more simply by using network to achieve the
remote configuration, start-up and upgrade firmware. You can use this IP Camera to monitor some special
places such as your home and your office. Also controlling and managing images are simple by clicking
the website through the network.
1.1 Features
☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 300k pixels
☆Optimized MJPEG video compression for transmission
☆Multi-level users’ management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Support wireless network (WI-FI/802.11/b/g)
☆Supporting Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Giving alarm in cause of motion detection
☆Supporting image snapshot
☆Support multiple protocols：HTTP/TCP/IP/UDP/SMTP/DDNS/SNTP/DHCP/FTP
☆Support WEP/WPA/WPA2 encryption
☆Support 3G phone, Smart phone control and surveillance
☆Support Firefox, Safari, Google chrome browser.
1.2 Packing List
Please check that the following items are included:
● IP Camera
● Power Supply
● Network Cable
● Mounting bracket
● Quick Start Guide
● CD with software and manual
NOTE: Please contact us immediately in case of any damaged or short of contents.
March 2013 5 IPV58
1.3 Product Views
1.3.1 Front View
Figure 1.1
Sensitive Hole: For light sensitive
Infrared LED: For night Vision.
LENS: CMOS sensor with fixed focus lens. (Default is 3.6mm, 6mm optional)
Antenna: WI-FI Antenna
Shell: For protection and waterproof
1.3.2 Rear Panel
Figure 1.2
March 2013 6 IPV58
Network Indicator LED: The green LED will on when connect to the network, the yellow LED will blink
when data transferred
RJ45 Port: RJ-45/10-100 base T, connect the network cable here.
Power Jack: DC 5V/2A power supply
RESET BUTTON: Press and hold the RESET BUTTON for 15 Seconds, then the IPCAM will be reset back
to the factory default Parameter. (Please keep the power on when do RESET)
1.3.3 Bottom View
Figure 1.3
Original ebode IPCAM have some stickers at the bottom/back, such as MAC address sticker, QC sticker
etc.
If your camera does not have these stickers, it may be a clone one, clone ebode IPCAM could not use the
original firmware and obtain our good after sale service.
1.4 PC System Requirements
System configuration requirements : (Example for viewing four IPCAM)
CPU: 2.06GHZ or above
Memory: 256M or above
Network Card: 10M or above
Display Card: 64M or above memory
Recommendable Operating system: Windows 2000/ XP/ Vista/ 7
March 2013 7 IPV58
1.5 Hardware Installation
Follow the steps below to set up your camera hardware. Make sure to follow each step carefully to ensure
that the camera operates properly
1. Install the Wi-Fi antenna
2. Plug the power adaptor into camera
3. Plug the network cable into camera and router/switch
4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from
“IP Camera Tool” (Figure: 1.9)
5. When the power on and network cable connected, the green led of the real panel will keep on,
The yellow led will keep flash, and the Indicator led at the front of the camera will flash. (The indicator LED
can be controlled by software)
Figure1.4
1.6 Software Installation
1. IP Camera Tool: Insert the CD, a popup menu might appear like shown in the picture below.
2. Select “Open Map” and click “OK”
March 2013 8 IPV58
3. Open the “ebode IP Vision Software” map and double click “IPCamSetup.exe” then click next to
complete the software installation. (Please note that on some computer systems it might take a few
seconds before the “IPCamSetup” icon will appear)
March 2013 9 IPV58
In order to run smooth we will need to install the “ActiveX App” on each system we would like to use to visit
the camera. The “AppInstall” file is located in the same folder as the “IPCamSetup” file from the previous
steps. Please take the following steps:
4. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.
Figure 1.5
Figure1.6
March 2013 10 IPV58
Figure1.7
Figure1.8
After this done, the icon “IP Camera Tool” will be displayed on desktop automatically.
CAUTION: Before installing and using the product, please read the following precautions carefully and
make sure they are fully understood.
Use only the power adaptor attached with the product. Use unauthorized power adapter may
cause damage to your IP Camera.
The IPV58 IP Camera terminal could be installed in an outdoor environment.
Do not touch the lens of the IP Camera at will. The optimum focus range has been set before it
is delivered out of the factory. If you turn the lens, it may cause incorrect focus and vague
images.
March 2013 11 IPV58
For firmware upgrading or connection with an external, refer to detailed instructions
contained in the CD.
WARNING : On the first run of the program “IP Camera Tool” you might get a Windows Security Alert
Popup. It will ask you to choose a setting for the firewall. Please make sure you choose the ‘UNBLOCK’
option. Your IP camera will not work without unblocking the firewall settings.
1.7 IP Camera Tool
When the Device has been mounted properly, you can double click the Icon “IP Camera Tool”
and a dialog box as Figure 1.9 will pop up.
Figure1.9
March 2013 12 IPV58
NOTE: The software searches IP Servers automatically over LAN. There are 3 cases:
1. No IP Cameras found within LAN. After about 1 minute search, the Result Field will show “not found IP
Server” and the program shut automatically.
2. IP Cameras have been installed within LAN. All the IP Cameras will be listed and the total number is
displayed in the result field as shown in Figure 1.9
3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt
as shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left
mouse button to choose the prompt and click the right mouse, choose Network Configuration to set the
static IP address of the Camera to the same subnet as LAN. (Figure 2.3)
NOTE: If it shows” Subnet doesn’t match, double click to change!”, you can also choose ”Obtain IP
from DHCP Server” to get a dynamic IP. (Figure 2.2) If the camera still doesn`t show in the IP Camera
Tool please use the Reset button on the bottom of the camera and hold it for 15 seconds with the power on.
(Figure 1.3)
Please be sure your computer is on the same network as the camera !
Mac Users:
Browse to the Mac folder x:\ebode IP Vision software\IP Camera Tool.app\Contents
and install the IP Camera Tool.
March 2013 13 IPV58
1.7.1 Six Options Available
Choose the IP Camera and Click the right mouse button on that camera, there are six options: (Figure 2.0).
Basic Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp
Buffer, About IP Camera Tool.
Figure2.0
1.7.2 Basic Properties
There are some device information in the Basic Properties, such as Device ID, System Firmware
Version, Web UI Version.（Figure 2.1）
The Device ID just is the camera’s MAC ID, which should be the same as showed on the sticker at the
bottom of camera. Every camera has its unique MAC ID. So if there are many IP address showed in the list,
check the MAC ID, you can ensure which camera is it.
Sometimes, if there is no IP address showed on the IP Camera tool, maybe it’s blocked by firewall, then
add the MAC ID to the router, and give it a fixed IP or add the MAC ID as a trusted site. There are two MAC
Address, one is Device MAC ID, the other is WIFI MAC ID.
WIFI MAC ID, you can find it from the sticker at the bottom of the camera, if this sticker lost, you can
login your WIFI router, check the host status, which will show all the WIFI device connect to this router,
you can also find the IPCAM’s WIFI MAC ID there.
Figure2.1
March 2013 14 IPV58
1.7.3 Network Configuration
In this page, you can configure the Network parameter.
Figure2.2
Obtain IP from DHCP server: If clicked, the device will obtain IP from DHCP server. In other words, the
camera will have a dynamic IP. (Make sure the Router which the camera connects has DHCP function and
DHCP is enabled). (Figure 2.2)
Figure 2.3
IP address: Fill in the IP address assigned and make sure it is in the same subnet as the Gateway, and
the subnet should be the same as your computer or router. (I.e. the first three sections are the same)
Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0. You can find the subnet
mask from your PC or router.
Gateway: Make sure it is in the same subnet with PC’s IP address .Here gateway is the LAN IP of your
router.
DNS Server: IP address of IPS network provider. You can also set it’s the same as the Gateway.
NOTE: You can find the Subnet Mask, Gateway, DNS Server from your router, or check the local
connection status of your computer, get all the parameters. Normally two DNS servers are optional.
March 2013 15 IPV58
Http Port: LAN port assigned for the equipment, default is 80. You could set another port number like 81,
801, 8001 etc.
User: Default administrator username is: admin (please make sure all are lowercase letter)
Password: Default password is bank, no password.
NOTE: When prompt “subnet doesn’t match, double chick to change!” appeared, please set the IP
Address, Subnet Mask, Gateway, DNS Server once again, or enable Obtain IP from DHCP server.
1.7.4 Upgrade Firmware
Enter the correct User and Password to upgrade system Firmware and Web UI. If you upgrade the camera,
Please upgrade system firmware first and then upgrade Web UI. Or it may damage the camera.
（Figure 2.4）
Figure 2.4
Please download the firmware package under the correct type of your camera before upgrade.
Follow the upgrade document in the package carefully to upgrade. Please look readme firstly before you
do upgrade.
CAUTION: You should not upgrade the firmware unnecessarily. It is possible to damage the camera if a
mistake is made during the upgrade. If your camera works well with the current firmware, we recommend
that you don’t upgrade it.
NOTE: When doing an upgrade, remember you must keep the power on, and it’s best to use wired mode,
connected via the network cable.
1.7.5 Refresh Camera List
Refresh camera list manually.
1.7.6 Flush Arp Buffer
When cable network and wireless network of the device are fixed IP address .There is a problem you may
encounter is can search the camera IP but can’t open the camera web page .you may try to use Flush Arp
Buffer.
March 2013 16 IPV58
1.7.7 About IP Camera Tool
Check the IP Camera Tool Version and IP Camera ActiveX Control Version here.
1.8 Camera Login
You can access the camera through IP Camera Tool or IE, Firefox, Safari, Google Chrome or other
standard browser directly.
1. Double click the IP address of the IP Camera listed (Figure 1.9). Select your language and
browser you use. Note that IE Browser stands for “Internet Explorer” which is Microsoft Windows
default browser.
ADVISORY: If you are going to use this manual to set up the camera, we suggest you select the English
language, as all images and references in this manual are in English. After installation, you can of course
select your own language to login and view the camera.
2. To access the camera by IE Browser directly, just type the camera’s IP address, You will find the
address of your camera with the Camera Tool (Figure 1.9). For example, if the camera’s IP address is
192.168.1.123:
Figure 2.5
The following screen will pop up after pressing “Enter”:
March 2013 17 IPV58
Figure 2.6
The default user name is admin, no password (please leave password blank)
Input the correct user name and password, the Sign In interface will pop-up.
There are three models to login (figure 2.7).
Figure 2.7
(1) Active Mode (For IE Browser): available in IE6.0 or above explorer
(2) “Server Push Mode”: available in Firefox, Safari, and Google Chrome browser.
(3) “Sign in mobile phone”: available in Mobile phone
1.8.1 For IE Browser (Microsoft Windows default browser “Internet Explorer”)
Choose Active Mode (For IE Browser), and sign in.
March 2013 18 IPV58
Figure 2.8
The first time you login to the camera, you might get an ActiveX prompt as in the picture above, please click
the prompt and choose Run Add-on, refresh and login to the camera again, then will see live video, as
below:
Figure2.9
March 2013 19 IPV58
Figure 3.0
Note: If there is still no live video after you run ActiveX, and a red cross shows in the center of the
screen, or even just a black screen, please try to enable the ActiveX options of IE security settings.
(Did you install the ActiveX App from step 4 Figure 1.5?)
Please take the following steps:
1. Close the firewall of your computer.
2. Change the ActiveX settings, “IE” browser > “Tool” > “Internet Options” > “Security”> “Custom
Level” > “ActiveX control and Plug-ins”, all the ActiveX options set to be “Enable”:
Especially:
Enable: Download unsigned ActiveX controls
Enable: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins
March 2013 20 IPV58
Figure 3.1
In addition: you can also click “Start” menu->“Internet Explorer”, choose “Internet attributes “ to
enter, or via “Control Panel” ->“Internet Explorer”, enter to Security setting.
If you allowed the ActiveX running, but still could not see live video, only a Red Cross in the center
of the video, and the device status light change to yellow color , not green, please change another
port number to try. Don’t use port 80, use other port such as 128, 1008 etc.
Figure 3.2
NOTE: Make sure that the firewall or anti-virus software doesn’t block the software or ActiveX. If you
couldn’t see live video, please close your firewall or anti-virus software, and try again.
1.8.2 For Safari, Firefox, Google Browser
Choose Server Push Mode (For Safari, Firefox, Google Browser), and sign in.
Server Push Mode doesn’t support ActiveX, so some functions are not available, such as Play, Stop,
Record, etc. if you want to use these functions, please use IE browser.
March 2013 21 IPV58
Figure 3.3
1.8.3 For Mobile Phone
Choose Sign in mobile phone, and sign in.
Mobile phone doesn’t support ActiveX, only some basic functions can be available in this mode.
It supports Iphone, Smart phone, 3G phone etc. Normally, if the mobile phone supports network video,
then it can work with our IP Camera.
Figure 3.4
March 2013 22 IPV58
1.9 ActiveX Mode (For Internet Explorer Browser)
Login to the camera in ActiveX mode, the main User Interface is as below:
NOTE: There are 3 levels of users, Visitor, Operator, Administrator, if you login with different users, the
use authority is different. (See 3.11 User Settings, Figure 8.5).
1.9.1 For Visitor
When you login as Visitor, you can enter the IP Camera for visitor.
Visitor is the lowest level with only some operation available.
Figure 3.5
Channels:
The IE software supports 9 channels. Click to get different windows.
Click this one to view the main channel of the camera you login to.
Click this one to view 4 Channels of cameras that are connected, from CH1 to CH4.
Click this one to view 9 Channels of cameras that are connected, from CH1 to CH9.
NOTE: If you want to view 4/9 channels, you should set the Multi-Device first (See 3.1
Multi-Device Settings).
March 2013 23 IPV58
Status of Channels:
There are 9 icons at the bottom of the UI which show the status of each channel of the camera.
Grey color, means there is no device connected to the main device for this channel.
Green color, means the device is connected for this channel, and it works well.
Red color, means the device for this channel is recording.
Yellow color, means this channel is set in multi-device already, but it fails to connect to the main
device.
OSD Settings:
Figure 3.6
OSD: Means “On-Screen Display”, click “Audio video” > “OSD”, set display date and time on the video.
Disabled: Clicking this one means clear the OSD.
Color: Can set the OSD text color as black, yellow, red, white, blue etc.
Add time stamp on record: if you click this, there will be time OSD on record video files.
Figure 3.7
Rate and Resolution:
Loading...
