Ebode HDSPLIT12, HDSPLIT14 User Manual

www.ebodeelectronics.eu
HDMI Splitters
HDSPLIT12 HDSPLIT14
HDSPLIT12 Bedienungsanleitung 5
HDSPLIT12 Gebruikershandleiding 8
HDSPLIT12 Guide utilisateur 11
HDSPLIT14 User guide 14
HDSPLIT14 Bedienungsanleitung 17
HDSPLIT14 Gebruikershandleiding 20
HDSPLIT14 Guide utilisateur 23
Before using our product, please read this document carefully.
23-5-2013 2 ebode HDMI Splitters
User guide
Contents
1. CONFORMITY OF USE
2. INTRODUCTION
3. SPECIFICATIONS
4. SET CONTENTS
5. ADVANTAGES
6. OPERATION
7. PRODUCT OVERVIEW
8. WARNING
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product, or any changes to the product, are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner’s manual.
Safety Warnings
To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity. Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity. Do not disassemble any part of the product: the device contains live parts and no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.
23-5-2013 3 ebode HDMI Splitters
2. Introduction Thank you for purchasing the ebode HDSPLIT12. Split your HDMI signal to 2 HDMI outputs with the ebode HDSPLIT12. You can split your HDMI signal simultaneously to 2 HDMI outputs with high speed Full HD 1080p with 3D support. The HDSPLIT12 comes with a 0.2m pigtail HDMI input cable. The HDSPLIT12 supports deep colour 36bit, signal retiming and Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 audio formats. Optional: HDIK30 – IR over HDMI accessories to remotely control A/V sources such as a DVD player.
3. Specifications
HDMI version: High speed with 3D HDCP version: HDCP1.2 Support HDMI resolution: 1080P24fs/1080P/1080i/720P/576P/576i/480P/480i Support video colour bit: Deep colour 24bit/36bit Support audio format: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Output cable distance: ≤20m 24AWG Cable Input cable distance: ≤20m 24AWG Cable Data transfer speed: 6.75Gbps Operating Humidity range: 5 to 90% RH (No Condensation) Operating Temperature range: -15 to +55C˚ Power adapter format: No external power required Dimensions (Lx W x H): 57x66x12(mm) excluding 23cm pigtail cable Weight: 135g
4. Set Contents When unpacking your HDMI Splitter please check if the following items are included:
HDMI Splitter User Manual
5. Advantages
Small size splitter (57x66x12mm) Splits your single HDMI output into 2 outputs No external power required. Easy to install (no technical knowledge and tools required)
6. Operation
1. Connect the splitter input pigtail cable to your source such as DVD, PS3, STB etc.
(figure 1.1).
2. Connect your displays such as LCD, Monitor, and Plasma to an available Output of the
splitter (figure 1.1).
3. Please do not put the splitter behind an AV Receiver; it might result in no image.
(figure 1.2)
4. If you would like to add more inputs to the splitter simply add one of our optional (not
included) switchers (HDSWITCH31 or HDSWITCH51) to the splitter (figure 1.2).
23-5-2013 4 ebode HDMI Splitters

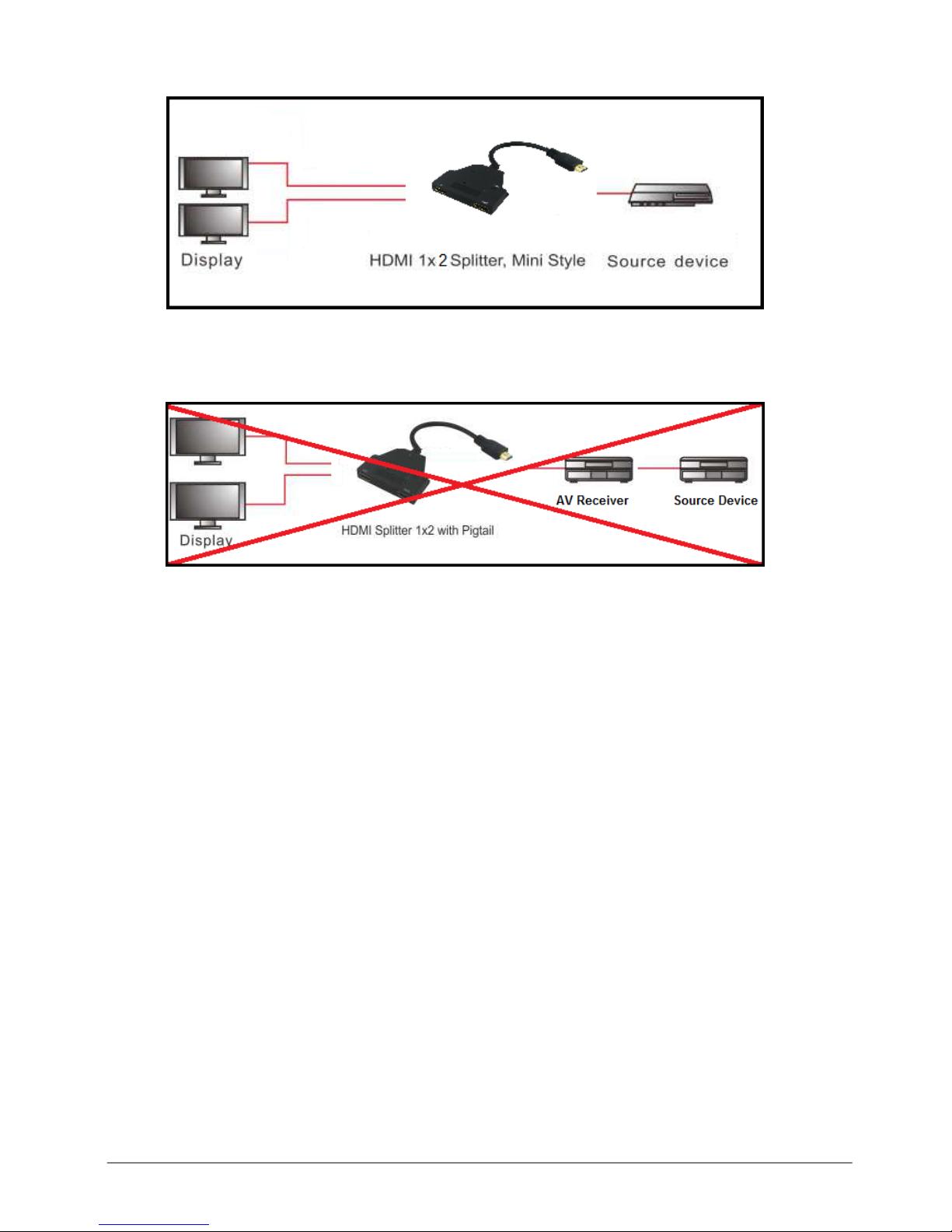

Figure 1.1
7. Product overview
Figure 1.2
Note: Ebode HDIK30 - Receiver, Blaster and Adapter are optional items for this product.
8. Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus to rain, moisture, dripping or splashing and make sure
that no objects filled with liquids, such as vases, are placed on the apparatus.
2. If installed or placed in a bookcase, built-in cabinet or another confined space make
sure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the
unit’s ventilation openings with newspapers, tablecloths, curtains and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus.
5. Do not place sources of naked flames, such as lighted candles on the unit.
6. Clean this apparatus only with dry cloth.
7. Unplug this apparatus during lighting storms or when unused for long time.
8. Protect the power cord from being walked on or pinched, particularly at plugs.
9. Only use attachments/accessories specified by the manufacture.
10. Refer all servicing to qualified service personnel.
23-5-2013 5 ebode HDMI Splitters
Bedienungsanleitung
Inhalt
1. KONFORMITÄTSBESTIMMUNGEN
2. EINLEITUNG
3. TECHNISCHE DATEN
4. LIEFERUMFANG
5. VORTEILE
6. INBETRIEBNAHME
7. PRODUKTÜBERSICHT
8. WARNUNG
1. Konformitätsbestimmungen
Für unbeschwerte und sichere Verwendung dieses Produktes lesen Sie bitte diese Bedienungsanleitung und Sicherheitshinweise sorgfältig durch und folgen Sie den Anweisungen. Das Gerät ist als ein Gerät registriert, das keine hochfrequente Störungen aussendet und nicht von solchen beeinflusst wird. Es ist CE-geprüft und entspricht der Niederspannungsrichtlinie. Die Sicherheits-und Installationsanweisungen sind zu beachten. Technische Manipulationen des Produkts, oder Änderungen an dem Produkt sind aufgrund von Sicherheits- und Zulassungsbestimmungen verboten. Bitte achten Sie darauf, das Gerät korrekt einzurichten - konsultieren Sie die Bedienungsanleitung. Kleine Kinder sollten das Gerät nur unter Aufsicht von Erwachsenen verwenden. Es wird keine Garantie oder Haftung für Schäden übernommen, die durch falsche Verwendung des Gerätes entgegen dieser Bedienungsanleitung entstanden sind.
Sicherheitshinweise
• Um Kurzschlüsse zu vermeiden, sollte dieses Produkt (außer wenn es ausdrücklich für
den Außeneinsatz konzipiert ist) nur innerhalb und nur in trockenen Räumen verwendet werden. Setzen Sie die Komponenten nicht Regen oder Feuchtigkeit aus.
• Vermeiden Sie starke mechanische Abnutzung, extreme Umgebungstemperaturen, starke
Vibrationen und Luftfeuchtigkeit.
• Zerlegen Sie nie irgendeinen Teil des Produkts: Das Gerät enthält stromführende Teile
und keine vom Anwender zu wartenden Teile im Inneren. Das Produkt sollte nur repariert oder gewartet werden von qualifiziertem und autorisiertem Service-Personal. Defekte Teile müssen durch Original-(Ersatz-) Teile ersetzt werden.
Bei unsachgemäßer Nutzung oder wenn Sie das Produkt geöffnet haben, verändert oder das Produkt selber repariert haben, erlöschen sämtliche Garantieansprüche. Der Lieferant übernimmt keine Verantwortung im Falle einer falschen Verwendung des Produkts oder wenn das Produkt für andere Zwecke als angegeben verwendet wird. Der Lieferant übernimmt keine Verantwortung für Folgeschäden als für die, die durch die gesetzliche Produkthaftung gedeckt werden.
23-5-2013 6 ebode HDMI Splitters
2. Einleitung Vielen Dank, dass Sie sich für den ebode HDSPLIT12 entschieden haben. Der Splitter erlaubt es Ihnen, 1 HDMI Signal auf bis zu 2 HDMI Zielgeräte aufzuteilen. Der HDSPLIT12 unterstützt High Speed Full HD 1080p mit 3D-Support und wird mit einem 0,2m langen HDMI Eingabekabel geliefert. Der HDSPLIT12 unterstützt eine 36bit­Farbtiefe, Signal-Retiming und Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Audioformate. Optionales: HDIK30 - IR über HDMI Zubehör vor Bedienung von A/V Endgeräten (z.B. DVD-Playern).
3. Technische Daten
HDMI Version: High Speed mit 3D HDCP Version: HDCP1.2 Unterstützte HDMI Auflösung: 1080P24fs/1080P/1080i/720P/576P/576i/480P/480i Unterstützte Farbtiefen: 24bit/36bit Unterstützte Audioformate: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Kabellänge (Ausgang): ≤20m 24AWG Kabellänge (Eingang): ≤20m 24AWG Datenübertragungsrate: 6.75Gbps Zulässige Luftfeuchtigkeit: 5 bis 90 % RH (keine Kondensation) Betriebstemperaturbereich: -15 bis +55C˚ Netzteil: Keine externe Stromversorgung erforderlich Maße Gerät (L x B x H): 57x66x12(mm) ohne 23cm pigtail Kabel Gewicht: 135g
4. Lieferumfang Folgende Produkte sind im Lieferumfang enthalten:
HDMI Splitter Bedienungsanleitung
5. Vorteile
Kleine Splitter (57x66x12mm) Teilt Ihr einziges HDMI-Ausgang in 2 Ausgänge Keine externe Stromversorgung nötig. Einfach zu installieren (keine technische Kenntnisse und Werkzeuge erforderlich)
6. Inbetriebnahme
1. Verbinden Sie das Anschlusskabel Ihres HDMI Splitters mit dem Zielgerät,
beispielsweise einem DVD-Player, PS3, etc. (Darstellung 1.1).
2. Verbinden Sie Ihren Bildschirm (LCD, LED oder Plasma) mit einem der freien Ausgänge
am Splitter (Darstellung 1.1).
3. Platzieren Sie den Splitter nicht hinter einem AV Receiver, da es dann zu Bildstörungen
kommen kann (Darstellung 1.2).
4. Wenn Sie mehrere Eingänge an den Splitter anschließen wollen, können Sie optional
einen der (nicht im Lieferumfang enthaltenen) Schalter (HDSWITCH31 oder HDSWITCH51) erwerben. (Darstellung 1.2).
23-5-2013 7 ebode HDMI Splitters
Darstellung 1.1
7. Produktübersicht
Darstellung 1.2
Anmerkung: Ebode HDIK30 - Receiver, Lautsprecher und Adapter sind optionales Zubehör.
8. Warnung
Um das Risiko von Feuer, elektrischem Stromschlag oder Produktschäden zu verringern, beachten Sie bitte Folgendes:
1. Setzen Sie das Produkt weder Regen, Feuchtigkeit noch Nässe aus. Gehen Sie sicher,
dass keine mit Flüssigkeit gefüllten Gegenstände (wie Blumenvasen) in der Nähe von dem Produkt stehen.
2. Wenn das Produkt auf einem Bücherregal platziert oder in einem Einbauschrank
eingebaut wird, stellen Sie sicher, dass es gut belüftet wird.
3. Um das Risiko von Stromschlägen oder Feuer durch Überhitzung zu verhindern, sorgen
Sie dafür, dass die Belüftungen nicht durch Zeitungen, Tischdecken oder ähnlichen Materialien abgedeckt sind.
4. Installieren Sie das Produkt nicht in der Nähe von Wärmequellen wie Heizungen, Öfen
oder ähnlichen Apparaturen.
5. Stellen Sie keine brennenden Kerzen oder ähnliches auf das Gerät oder in die Nähe.
6. Reinigen Sie das Gerät nur mit trockenen Tüchern!
7. Trennen Sie das Gerät während eines Gewitters oder bei längerer Nichtbenutzung vom
Stromnetz.
8. Achten Sie darauf, dass das Stromkabel geschützt und nicht geknickt wird
9. Verwenden Sie nur Zubehör, das auch vom Hersteller empfohlen wird.
10. Überlassen Sie jegliche Wartung qualifiziertem Personal.
23-5-2013 8 ebode HDMI Splitters
Gebruikershandleiding
Inhoud
1. GEBRUIKSVOORSCHRIFT
2. INTRODUCTIE
3. SPECIFICATIES
4. INHOUD
5. VOORDELEN
6. WERKING
7. PRODUCTOVERZICHT
8. WAARSCHUWING
1. Gebruiksvoorschrift
Voor een zorgeloos en veilig gebruik van dit product, dient u deze handleiding en veiligheidsinformatie zorgvuldig te lezen en de instructies op te volgen. Het apparaat is geregistreerd als een apparaat dat geen verstoring door radiofrequentie veroorzaakt of hier hinder van ondervindt. Het is CE goedgekeurd en voldoet aan de laagspanningsrichtlijn. De veiligheid en installatie-instructies dienen in acht te worden genomen. Technische veranderingen van het product, dan wel wijzigingen aan het product, zijn verboden, om redenen van veiligheid en keuringen. Let er op bij gebruik van het apparaat dat u de gebruikershandleiding correct raadpleegt. Jonge kinderen mogen het apparaat alleen onder toezicht van volwassenen gebruiken. Garantie of aansprakelijkheid zullen niet worden aanvaard voor schade veroorzaakt door verkeerd gebruik van de geleverde apparatuur, anders dan vermeld in deze handleiding.
Veiligheidswaarschuwingen
• Om kortsluiting te voorkomen, dient dit product (tenzij anders aangegeven voor gebruik
buitenshuis) alleen binnen en alleen te worden gebruikt in droge ruimten. Stel de componenten niet bloot aan regen of vocht.
Vermijd sterke mechanische slijtage, extreme temperaturen, sterke trillingen en luchtvochtigheid.
• Demonteer geen delen van het product: de apparatuur bevat onder spanning staande
delen en bevat geen, door de gebruiker te repareren, onderdelen. Het product mag alleen worden gerepareerd of onderhouden door gekwalificeerd en bevoegd personeel. Defecte onderdelen moeten worden vervangen door originele (reserve) onderdelen.
In het geval van onjuist gebruik of wanneer u het product zelf hebt geopend, gewijzigd of reparaties hebt aangebracht, komen alle garantiebepalingen te vervallen. De leverancier aanvaardt geen enkele aansprakelijkheid in het geval van onjuist gebruik van het product of wanneer het product wordt gebruik voor andere doeleinden dan aangegeven. De leverancier aanvaardt geen enkele aansprakelijkheid voor schade anders dan de wettelijke aansprakelijkheid.
23-5-2013 9 ebode HDMI Splitters
2. Introductie Bedankt voor de aankoop van de ebode HDSPLIT12. Splits uw HDMI signaal naar 2 HDMI uitgangen met de ebode HDSPLIT12. U kunt uw HDMI signaal tegelijkertijd splitsen naar 2 HDMI-uitgangen, met hoge snelheid Full HD1080p met 3d ondersteuning. De HDSPLIT12 wordt geleverd met een 0,2m pigtail HDMI ingang kabel. De HDPLIT12 ondersteunt diepe kleur 36bit, het opnieuw timen van signalen en Dolby-AC3/DTS7.1/DSD/DTS-HD/true­HD/LPCM7.1 audio formaten. Optioneel: HDIK30 - IR over HDMI accessoires om externe A/V bronnen te bedienen, zoals een DVD speler.
3. Specificaties
HDMI versie: High speed met 3D support HDCP versie: HDCP1.2 Ondersteuning HDMI resolutie: 1080P24fs/1080P/1080i/720P/576P/576i/480P/480i Ondersteuning video bit kleur: Deep colour 24bit/36bit Ondersteuning audioformaat: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Uitgang kabelafstand: ≤20m 24AWG kabel Ingang kabelafstand: ≤20m 24AWG kabel Data transfer snelheid: 6.75Gbps Actief luchtvochtigheidsbereik: 5 tot 90% RH (Geen Condensatie) Actief temperatuurbereik: -15 tot +55C˚ Formaat voedingsadapter: Geen externe voeding nodig Afmetingen (Lx B x H): 57x66x12(mm) exclusief 23cm pigtail kabel Gewicht: 135g
4. Inhoud Controleert u bij het uitpakken van uw HDSPLIT12 of de volgende items zijn meegeleverd:
HDMI Splitter Gebruikershandleiding
5. Voordelen
Klein formaat splitter (57x66x12mm) Splits uw HDMI uitgang naar 2 uitgangen Geen externe voedingsadapter nodig Eenvoudig te installeren (geen vereiste technische kennis en hulpmiddelen nodig)
6. Werking
1. Verbind de splitter ingang pigtail kabel met uw bron, bijvoorbeeld DVD, PS3, STB enz.
(figuur 1.1).
2. Verbind uw displays zoals LCD, monitor en plasma met een beschikbare uitgang van de
splitter (figuur 1.1).
3. Gelieve de splitter niet achter een AV-ontvanger te plaatsen, dit kan resulteren in geen
beeld (figuur 1.2)
4. Wanneer u meerdere ingangen wilt toevoegen aan de splitter, gebruik dan een van
onze optionele (niet inclusief) switches (HDSWITCH31 of HDSWITCH51)(figuur 1.2).
23-5-2013 10 ebode HDMI Splitters
Figuur 1.1
7. Productoverzicht
Figuur 1.2
Opmerking: Ebode HDIK30 - Ontvanger, blaster en adapter zijn optionele items voor dit product.
8. Waarschuwing
Om het risico van brand, elektrische schokken of schade aan het product te beperken:
1. Stel het apparaat niet bloot aan regen, vocht, druppels of spatten en zorg er voor dat
er geen met vloeistof gevulde voorwerpen, zoals vazen op het apparaat worden geplaatst.
2. Indien geïnstalleerd of geplaatst in een boekenkast, inbouwkast of een andere
afgesloten ruimte, zorg er voor dat het apparaat goed geventileerd is.
3. Om het risico van elektrische schokken of brandgevaar door oververhitting te
voorkomen, zorg er voor dat de ventilatieopeningen niet bedekt zijn met kranten, tafelkleden, gordijnen en dergelijke.
4. Plaats het apparaat niet in de buurt van warmtebronnen zoals radiatoren, warmte
uitlaten, kachels of andere apparaten.
5. Plaats geen open vuur bronnen, zoals brandende kaarsen op het apparaat.
6. Reinig het apparaat uitsluitend met een droge doek.
7. Koppel het apparaat los bij onweer en bliksem of wanneer het apparaat voor langere
tijd niet wordt gebruikt.
8. Bescherm het netsnoer zodat er niet overheen gelopen kan worden, vooral bij stekkers.
9. Gebruik uitsluitend hulpstukken/accessoires die door de fabrikant worden
gespecificeerd.
10. Laat al het onderhoud over aan gespecificeerd personeel.
23-5-2013 11 ebode HDMI Splitters
Guide utilisateur
Contents
1. CONFORMITÉ D’UTILISATION
2. INTRODUCTION
3. CARACTERISTIQUES
4. CONTENU
5. AVANTAGES
6. UTILISATION
7. VUE D’ENSEMBLE DU PRODUIT
8. ATTENTION
1. Conformité d’utilisation
Pour une utilisation correcte et sans danger de ce produit, veuillez lire attentivement ce manuel et suivre ses instructions. Ce produit est conforme aux normes en vigueur et au marquage CE. Toute manipulation technique du produit ou tout changement du produit sont interdits en raison des normes de sécurité et de conformité. Veuillez installer correctement le produit - pour ce faire, consultez le guide d’utilisation. Ne pas laisser les enfants utiliser ce produit sans la surveillance d’un adulte. Aucune garantie ou responsabilité ne sera accepté en cas d'usage incorrect de l'équipement ou différent de celui expliqué dans ce guide utilisateur.
Précautions de sécurité
Pour éviter tous risques de court-circuit, ce produit doit être utilisé à l'intérieur uniquement. Evitez de l'utiliser dans des locaux très humides. N'exposez pas les produits à la pluie ou à l'humidité. Evitez les contraintes mécaniques, les températures extrêmes, les chocs, les vibrations ainsi que les atmosphères humides. Ne démontez aucun élément du kit de transmission. Aucun composant du kit ne peut
faire l’objet d’une réparation par l’utilisateur. Si vous versez du liquide sur le récepteur,
débranchez-le du secteur, afin d’éviter tout risque d’électrocution ou d’incendie, et consultez un technicien qualifié. Les pièces défectueuses doivent être remplacées par des pièces d’origine.
Dans le cas d'un usage impropre ou si vous avez ouvert, modifié et réparé le produit vous-même annule la garantie. Le fournisseur n'assume aucune responsabilité en cas d'utilisation impropre du produit ou si le produit est utilisé à des fins autres que celles spécifiées. Le fournisseur n'assume aucune responsabilité pour dommage conséquent, autre que la responsabilité civile du fait des produits.
23-5-2013 12 ebode HDMI Splitters
2. Introduction Nous vous remercions d’avoir acheté le HDSPLIT12 de Ebode. Grâce à ce produit vous allez pouvoir diviser votre signal HDMI vers 2 sorties simultanément et à haute vitesse, en Full HD 1080p avec support de la 3D. Le HDSPLIT12 est livré avec un câble de 0.2m entrée HDMI – HDMI. Le HDSPLIT12 supporte 36bits de couleur profonde, signal de resynchronisation et les formats audio Dolby-AC3/DTS7.1/DSD/DTS-HD/true­HD/LPCM7.1. En option: HDIK30 - Accessoire IR vers HDMI, pour contrôler les sources distantes A/V comme un lecteur DVD.
3. Caractéristiques
Version HDMI: Haute vitesse avec 3D Version HDCP: HDCP1.2 Résolutions HDMI supportées: 1080P24fs/1080P/1080i/720P/576P/576i/480P/480i Signal vidéo supporté: Couleurs profondes 24bit/36bit Format audio supporté: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Distance câble sortie: ≤20m 24AWG Cable Distance câble entrée: ≤20m 24AWG Cable Vitesse transfert de données: 6.75Gbps Plage fonctionnement humidité: 5 to 90% RH (No Condensation) Plage fonctionnement température:-15 to +55C˚ Alimentation: Aucune alimentation externe nécessaire Dimensions (Lx W x H): 57x66x12(mm) sans cable pigtail 23cm Poids: 135g
4. Contenu Lorsque vous déballez votre Splitter HDMI, veuillez vérifier que les éléments suivants sont inclus:
Splitter HDMI Manuel Utilisateur
5. Avantages
Petite taille splitter (57x66x12mm) Diviser votre sortie HDMI unique en 2 sorties Aucune alimentation externe requise. Facile á installer (pas de connaissances techniques et les outils requis)
6. Utilisation
1. Connectez lentrée du HDSPLIT12 à votre source vidéo comme un lecteur DVD, PS3,
STB etc. (figure 1.1).
2. Connectez votre écran (LCD, Moniteur, ou Plasma) à un port de sortie disponible du
HDSPLIT12 (figure 1.1).
3. Merci de ne pas mettre le HDSPLIT derrière un récepteur A/V; cela pourrait corrompre
l’image. (figure 1.2).
4. Si vous voulez ajouter plus d’entrées au HDSPLIT12, il vous suffit d’ajouter un de nos
switch (en option) (HDSWITCH31 ou HDSWITCH51) au HDSPLIT12 (figure 1.2).
23-5-2013 13 ebode HDMI Splitters
Image 1.1
7. Vue d’ensemble du produit
Image 1.2
Note: Ebode HDIK30 - Récepteur, blaster et adaptateur sont en option pour ce produit.
8. Attention
Pour réduire les risques d’incendie, de choc électrique ou dommages sur le produit:
1. Ne pas exposer le produit à la pluie, moisissures, éclaboussures et assurez-vous
qu’auncun objet contenant du liquide, comme un vase, ne se trouve sur l’appareil.
2. Si installé ou placé dans une bibliothèque, un meuble encastré ou n’importe quel
environnement confiné, soyez sûr que le produit est bien ventilé.
3. Pour prévenir des dangers électriques ou incendiaires dus à un sur échauffement, ne
pas boucher la sortie de ventilation du produit avec des journaux, une nappe, des rideaux ou tout objet de ce genre.
4. Ne pas installer près d’une source de chaleur comme un radiateur, une cheminée, un
poêle ou tout objet de ce genre.
5. Ne pas placer de flamme nue, comme des bougies, sur l’appareil.
6. Nettoyer cet appareil avec un chiffon sec.
7. Débrancher l’appareil pendant un orage ou pour une longue période de non-utilisation.
8. Protéger le cordon afin d’éviter qu’il ne soit piétiné ou pincé, en particulier au niveau
des fiches.
9. N’utiliser que des fixations/accessoires spécifiés par le fabricant.
10. Confiez toutes les réparations à un personnel qualifié.
23-5-2013 14 ebode HDMI Splitters
User guide
Contents
1. CONFORMITY OF USE
2. INTRODUCTION
3. SPECIFICATIONS
4. SET CONTENTS
5. ADVANTAGES
6. OPERATION
7. PRODUCT OVERVIEW
8. WARNING
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product, or any changes to the product, are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner’s manual.
Safety warnings
To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity. Only connect the power cord to the mains after checking whether the mains voltage is the same as the values on the rating labels. Never connect a power cord when it is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm, it is a good precaution to unplug the power supply from the mains network in order to protect it from lightning. The same applies if the system is to be out of action for any length of time. Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity. Do not disassemble any part of the product: the device contains live parts and no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.
23-5-2013 15 ebode HDMI Splitters
2. Introduction Thank you for purchasing the ebode HDSPLIT14. Split your HDMI signal to 4 HDMI outputs with the ebode HDSPLIT14. The HDMI input will simultaneously send the signal to 4 HDMI outputs including high speed Full HD 1080p with 3D support. The 4 HDMI outputs support up to 20m of AWG24 HDMI cable. Optional: HDIK30 – IR over HDMI accessories to remotely control A/V sources such as a DVD player.
3. Specifications
HDMI version: High speed with 3D support HDCP version: HDCP1.2 Support HDMI resolution: 4K*2K/3D_Video/1080P/1080i/720p/576p/576i/ 480p/480i Support video colour bit: Deep colour 24bit/36bit Support audio format: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Input video signal: 5.0Volts P-P Output cable distance: ≤20m 24AWG Cable Input cable distance: ≤20m 24AWG Cable Data transfer speed: 6.75Gbps Operating Humidity range: 5 to 90% RH (No Condensation) Operating Temperature range: -15 to +55C˚ (5 to 131 of) Power adapter format: Input AC (50Hz.60Hz) 100-240V, output 5v DC
4. Set Contents When unpacking your HDMI Splitter please check if the following items are included:
HDMI Splitter 5V DC Power Supply User Manual
5. Advantages
Dimensions: 111x75x23.5mm Splits your single HDMI output into 4 outputs Optional: 4 adapters by 4 x TV, IR control Easy to install (no technical knowledge and tools required)
6. Operation
1. Connect the splitter input cable to your source such as DVD, PS3, STB etc. (figure 1.1).
2. Connect your displays such as LCD, Monitor, and Plasma to an available Output of the
splitter (figure 1.1).
3. Please do not put the splitter behind an AV Receiver; it might result in no image.
(figure 1.2)
4. If you would like to add more inputs to the splitter simply add one of our optional (not
included) switches (HDSWITCH31 or HDSWITCH51) to the splitter (figure 1.2).
23-5-2013 16 ebode HDMI Splitters
Figure 1.1
7. Product overview
Figure 1.2
Note: Ebode HDIK30 - Receiver, Blaster and Adapter are optional items for this product.
8. Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus to rain, moisture, dripping or splashing and make sure
that no objects filled with liquids, such as vases, are placed on the apparatus.
2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined
space. Ensure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the
unit’s ventilation openings with newspapers, tablecloths, curtains and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus.
5. Do not place sources of naked flames, such as lighted candles on the unit.
6. Clean this apparatus only with dry cloth.
7. Unplug this apparatus during lighting storms or when unused for long time.
8. Protect the power cord from being walked on or pinched, particularly at plugs.
9. Only use attachments/accessories specified by the manufacture.
10. Refer all servicing to qualified service personnel.
23-5-2013 17 ebode HDMI Splitters
Bedienungsanleitung
Inhalt
1. KONFORMITÄTSBESTIMMUNGEN
2. EINLEITUNG
3. TECHNISCHE DATEN
4. LIEFERUMFANG
5. VORTEILE
6. INBETRIEBNAHME
7. PRODUKTÜBERSICHT
8. WARNUNG
1. Konformitätsbestimmungen
Für unbeschwerte und sichere Verwendung dieses Produktes lesen Sie bitte diese Bedienungsanleitung und Sicherheitshinweise sorgfältig durch und folgen Sie den Anweisungen. Das Gerät ist als ein Gerät registriert, das keine hochfrequente Störungen aussendet und nicht von solchen beeinflusst wird. Es ist CE-geprüft und entspricht der Niederspannungsrichtlinie. Die Sicherheits-und Installationsanweisungen sind zu beachten. Technische Manipulationen des Produkts, oder Änderungen an dem Produkt sind aufgrund von Sicherheits- und Zulassungsbestimmungen verboten. Bitte achten Sie darauf, das Gerät korrekt einzurichten - konsultieren Sie die Bedienungsanleitung. Kleine Kinder sollten das Gerät nur unter Aufsicht von Erwachsenen verwenden. Es wird keine Garantie oder Haftung für Schäden übernommen, die durch falsche Verwendung des Gerätes entgegen dieser Bedienungsanleitung entstanden sind.
Sicherheitshinweise
• Um Kurzschlüsse zu vermeiden, sollte dieses Produkt (außer wenn es ausdrücklich für den Außeneinsatz konzipiert ist) nur innerhalb und nur in trockenen Räumen verwendet werden. Setzen Sie die Komponenten nicht Regen oder Feuchtigkeit aus.
• Schließen Sie das Netzkabel erst dann an das Stromnetz an, wenn Sie überprüft haben, ob die Netzspannung den gleichen Wert aufweist, wie auf dem Typenschild vermerkt. Verbinden Sie niemals ein Netzkabel, wenn es beschädigt ist. In diesem Fall kontaktieren Sie Ihren Lieferanten. Wenn ein Gewitter heranzieht, ist es eine gute Vorsichtsmaßnahme, die Stromversorgung aus dem Netz ziehen, um das Gerät vor Blitzschlag zu schützen. Das gleiche gilt, wenn Sie das System für längere Zeit außer Betrieb nehmen.
• Vermeiden Sie starke mechanische Abnutzung, extreme Umgebungstemperaturen, starke Vibrationen und Luftfeuchtigkeit.
• Zerlegen Sie nie irgendeinen Teil des Produkts: Das Gerät enthält stromführende Teile
und keine vom Anwender zu wartenden Teile im Inneren. Das Produkt sollte nur repariert oder gewartet werden von qualifiziertem und autorisiertem Service-Personal. Defekte Teile müssen durch Original-(Ersatz-) Teile ersetzt werden.
Bei unsachgemäßer Nutzung oder wenn Sie das Produkt geöffnet haben, verändert oder das Produkt selber repariert haben, erlöschen sämtliche Garantieansprüche. Der Lieferant übernimmt keine Verantwortung im Falle einer falschen Verwendung des Produkts oder wenn das Produkt für andere Zwecke als angegeben verwendet wird. Der Lieferant übernimmt keine Verantwortung für Folgeschäden als für die, die durch die gesetzliche Produkthaftung gedeckt werden.
23-5-2013 18 ebode HDMI Splitters
2. Einleitung Vielen Dank, dass Sie sich für den ebode HDSPLIT14 entschieden haben. Der Splitter erlaubt es Ihnen, 1 HDMI Signal auf bis zu 4 HDMI Zielgeräte aufzuteilen. Der HDSPLIT14 unterstützt High Speed Full HD 1080p mit 3D-Support. An die 4 HDMI Ausgänge können AWG24 HDMI Kabel mit einer Länge von bis zu 20 m angeschlossen werden. Optionales: HDIK30 - IR über HDMI Zubehör vor Bedienung von A/V Endgeräten (z.B. DVD-Playern).
3. Technische Daten
HDMI Version: High Speed mit 3D HDCP Version: HDCP1.2 Unterstützte HDMI Auflösung: 4K*2K/3D_Video/1080P/1080i/720p/576p/576i/ 480p/480i Unterstützte Farbtiefe: 24bit/36bit Unterstütztes Audioformat: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Input Video: 5.0Volt P-P Kabellänge (Ausgang): ≤20m 24AWG Kabellänge (Eingang): ≤20m 24AWG Datenübertragungsrate: 6.75Gbps Zulässige Luftfeuchtigkeit: 5% bis 90% RH (nicht kondensierend) Betriebstemperaturbereich: -15 bis +55C˚ Netzteil: Eingang AC (50Hz.60Hz) 100-240V, Ausgang 5v DC
4. Lieferumfang Folgende Produkte sind im Lieferumfang enthalten:
HDMI Splitter 5V DC Netzteil Bedienungsanleitung
5. Vorteile Maße 111 x 75 x 23.5 mm Teilt Ihr einziges HDMI-Ausgang in 4 Ausgänge Optional: 4 Adapter für 4x TV, IR Fernbedienung Einfach zu installieren (keine technische Kenntnisse und Werkzeuge erforderlich)
6. Inbetriebnahme
1. Verbinden Sie das Anschlusskabel Ihres HDMI Splitters mit dem Zielgerät,
beispielsweise einem DVD-Player, PS3, etc. (Darstellung 1.1)
2. Verbinden Sie Ihren Bildschirm (LCD, LED oder Plasma) mit einem der freien Ausgänge
am Splitter (Darstellung 1.1)
3. Platzieren Sie den Splitter nicht hinter einem AV Receiver, da es dann zu Bildstörungen
kommen könnte (Darstellung 1.2).
4. Wenn Sie mehrere Eingänge an den Splittern anschließen wollen, können Sie optional
einen der (nicht im Lieferumfang enthaltenen) Schalter (HDSWITCH31 oder HDSWITCH51) erwerben (Darstellung 1.2).
23-5-2013 19 ebode HDMI Splitters
Darstellung 1.1
7. Produktübersicht
Darstellung 1.2
Anmerkung: Ebode HDIK30 - Receiver, Lautsprecher und Adapter sind optionales Zubehör
8. Warnung
Um das Risiko von Feuer, elektrischem Stromschlag oder Produktschäden zu verringern, beachten Sie bitte Folgendes:
1. Setzen Sie das Produkt weder Regen, Feuchtigkeit noch Nässe aus. Gehen Sie sicher,
dass keine mit Flüssigkeit gefüllten Gegenstände (wie Blumenvasen) in der Nähe von dem Produkt stehen.
2. Wenn das Produkt auf einem Bücherregal platziert oder in einem Einbauschrank
eingebaut wird, stellen Sie sicher, dass es gut belüftet wird.
3. Um das Risiko von Stromschlägen oder Feuer durch Überhitzung zu verhindern, sorgen
Sie dafür, dass die Belüftungen nicht durch Zeitungen, Tischdecken oder ähnlichen Materialien abgedeckt sind.
4. Installieren Sie das Produkt nicht in der Nähe von Wärmequellen wie Heizungen, Öfen
oder ähnlichen Apparaturen.
5. Stellen Sie keine brennenden Kerzen oder ähnliches auf das Gerät oder in die Nähe.
6. Reinigen Sie das Gerät nur mit trockenen Tüchern!
7. Trennen Sie das Gerät während eines Gewitters oder bei längerer Nichtbenutzung vom
Stromnetz.
8. Achten Sie darauf, dass das Stromkabel geschützt und nicht geknickt wird Verwenden
Sie nur Zubehör, das auch vom Hersteller empfohlen wird.
9. Überlassen Sie jegliche Wartung qualifiziertem Personal.
23-5-2013 20 ebode HDMI Splitters
Gebruikershandeiding
Inhoud
1. GEBRUIKSVOORSCHRIFT
2. INTRODUCTIE
3. SPECIFICATIES
4. INHOUD
5. VOORDELEN
6. WERKING
7. PRODUCTOVERZICHT
8. WAARSCHUWING
1. Gebruiksvoorschrift
Voor een zorgeloos en veilig gebruik van dit product, dient u deze handleiding en veiligheidsinformatie zorgvuldig te lezen en de instructies op te volgen. Het apparaat is geregistreerd als een apparaat dat geen verstoring door radiofrequentie veroorzaakt of hier hinder van ondervindt. Het is CE goedgekeurd en voldoet aan de laagspanningsrichtlijn. De veiligheid en installatie-instructies dienen in acht te worden genomen. Technische veranderingen van het product, dan wel wijzigingen aan het product, zijn verboden, om redenen van veiligheid en keuringen. Let er op bij gebruik van het apparaat dat u de gebruikershandleiding correct raadpleegt. Jonge kinderen mogen het apparaat alleen onder toezicht van volwassenen gebruiken. Garantie of aansprakelijkheid zullen niet worden aanvaard voor schade veroorzaakt door verkeerd gebruik van de geleverde apparatuur, anders dan vermeld in deze handleiding.
Veiligheidswaarschuwingen
• Om kortsluiting te voorkomen, dient dit product (tenzij anders aangegeven voor gebruik buitenshuis) alleen binnen en alleen te worden gebruikt in droge ruimten. Stel de componenten niet bloot aan regen of vocht.
• Sluit de stroomkabel aan op het stopcontact nadat u hebt gecontroleerd of de netspanning gelijk is aan de waarde die op de typeplaatjes is aangegeven. Sluit nooit een stroomkabel aan wanneer deze beschadigd is. In dat geval kunt u contact opnemen met uw leverancier. Als er gevaar dreigt van onweer, is het een goede voorzorgsmaatregel om de voeding los te koppelen van het elektriciteitsnet, om het te beschermen tegen bliksem. Hetzelfde geldt als het systeem voor enige tijd buiten werking gesteld is.
Vermijd sterke mechanische slijtage, extreme temperaturen, sterke trillingen en luchtvochtigheid.
• Demonteer geen delen van het product: de apparatuur bevat onder spanning staande delen en bevat geen, door de gebruiker te repareren, onderdelen. Het product mag alleen worden gerepareerd of onderhouden door gekwalificeerd en bevoegd personeel. Defecte onderdelen moeten worden vervangen door originele (reserve) onderdelen.
In het geval van onjuist gebruik of wanneer u het product zelf hebt geopend, gewijzigd of reparaties hebt aangebracht, komen alle garantiebepalingen te vervallen. De leverancier aanvaardt geen enkele aansprakelijkheid in het geval van onjuist gebruik van het product of wanneer het product wordt gebruik voor andere doeleinden dan aangegeven. De leverancier aanvaardt geen enkele aansprakelijkheid voor schade anders dan de wettelijke aansprakelijkheid.
23-5-2013 21 ebode HDMI Splitters
2. Introductie Bedankt voor de aankoop van de ebode HDSPLIT14. Splits uw HDMI signaal naar 4 HDMI uitgangen met de ebode HDSPLIT14. De HDMI ingang zal het signaal tegelijkertijd naar 4 HDMI uitgangen verzenden, inclusief hoge snelheid Full HD 1080p met 3D ondersteuning. De 4 HDMI uitgangen ondersteunen tot 20m AWG24 HDMI kabel. Optioneel: HDIK30 - IR over HDMI accessoires om externe A/V bronnen te bedienen, zoals een DVD speler.
3. Specificaties
HDMI versie: High speed met 3D support HDCP versie: HDCP1.2 Ondersteuning HDMI resolutie: 4K*2K/3D_Video/1080P/1080i/720p/576p/576i/ 480p/480i Ondersteuning video bit kleur: Deep colour 24bit/36bit Ondersteuning audio formaat: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-HD/LPCM7.1 Ingang video signaal: 5.0Volts P-P Uitgang kabelafstand: ≤20m 24AWG kabel Ingang kabelafstand: ≤20m 24AWG kabel Data transfer snelheid: 6.75Gbps Actief luchtvochtigheidsbereik: 5 tot 90% RH (Geen condensatie) Actief temperatuurbereik: -15 tot +55C˚ (5 tot 131 uit) Formaat voedingsadapter: Ingang AC (50Hz.60Hz) 100-240V, uitgang 5v DC
4. Inhoud Controleert u bij het uitpakken van uw HDSPLIT14 of de volgende items zijn meegeleverd:
HDMI Splitter 5V DC Voeding Gebruikershandleiding
5. Voordelen
Afmetingen: 111x75x23.5mm Splits uw HDMI uitgang naar 4 uitgangen Optioneel: 4 adapters met 4 x TV, IR controle Eenvoudig te installeren (geen vereiste technische kennis en hulpmiddelen nodig)
6. Werking
1. Verbind de splitter ingang kabel met uw bron, bijvoorbeeld DVD, PS3, STB enz. (figuur
1.1).
2. Verbind uw displays zoals LCD, monitor en plasma met een beschikbare uitgang van de
splitter (figuur 1.1).
3. Gelieve de splitter niet achter een AV-ontvanger te plaatsen, dit kan resulteren in geen
beeld (figuur 1.2)
4. Wanneer u meerdere ingangen wilt toevoegen aan de splitter, gebruik dan een van
onze optionele (niet inclusief) switches (HDSWITCH31 of HDSWITCH51)(figuur 1.2).
23-5-2013 22 ebode HDMI Splitters
Figuur 1.1
7. Productoverzicht
Figuur 1.2
Opmerking: Ebode HDIK30 - Ontvanger, blaster en adapter zijn optionele items voor dit product.
8. Waarschuwing
Om het risico van brand, elektrische schokken of schade aan het product te beperken:
1. Stel het apparaat niet bloot aan regen, vocht, druppels of spatten en zorg er voor dat
er geen met vloeistof gevulde voorwerpen, zoals vazen op het apparaat worden geplaatst.
2. Indien geïnstalleerd of geplaatst in een boekenkast, inbouwkast of een andere
afgesloten ruimte, zorg er voor dat het apparaat goed geventileerd is.
3. Om het risico van elektrische schokken of brandgevaar door oververhitting te
voorkomen, zorg er voor dat de ventilatieopeningen niet bedekt zijn met kranten, tafelkleden, gordijnen en dergelijke.
4. Plaats het apparaat niet in de buurt van warmtebronnen zoals radiatoren, warmte
uitlaten, kachels of andere apparaten.
5. Plaats geen open vuur bronnen, zoals brandende kaarsen op het apparaat.
6. Reinig het apparaat uitsluitend met een droge doek.
7. Koppel het apparaat los bij onweer en bliksem of wanneer het apparaat voor langere
tijd niet wordt gebruikt.
8. Bescherm het netsnoer zodat er niet overheen gelopen kan worden, vooral bij stekkers.
9. Gebruik uitsluitend hulpstukken/accessoires die door de fabrikant worden
gespecificeerd.
10. Laat al het onderhoud over aan gespecificeerd personeel.
23-5-2013 23 ebode HDMI Splitters
Guide utilisateur
Contents
1. CONFORMITÉ D’UTILISATION
2. INTRODUCTION
3. CARACTERISTIQUES
4. CONTENU
5. AVANTAGES
6. OPERATION
7. VUE D’ENSEMBLE DU PRODUIT
8. ATTENTION
1. Conformité d’utilisation
Pour une utilisation correcte et sans danger de ce produit, veuillez lire attentivement ce manuel et suivre ses instructions. Ce produit est conforme aux normes en vigueur et au marquage CE. Toute manipulation technique du produit ou tout changement du produit sont interdits en raison des normes de sécurité et de conformité. Veuillez installer correctement le produit - pour ce faire, consultez le guide d’utilisation. Ne pas laisser les
enfants utiliser ce produit sans la surveillance d’un adulte. Aucune garantie ou
responsabilité ne sera accepté en cas d'usage incorrect de l'équipement ou différent de celui expliqué dans ce guide utilisateur.
Précautions de sécurité
Pour éviter tous risques de court-circuit, ce produit doit être utilisé à l'intérieur uniquement. Evitez de l'utiliser dans des locaux très humides. N'exposez pas les produits à la pluie ou à l'humidité. Branchez le cordon d'alimentation sur le secteur uniquement après avoir vérifié que la tension du réseau correspond à la valeur indiquée sur les étiquettes de notation. Ne jamais brancher le cordon d'alimentation s'il est endommagé. Dans ce cas, contactez votre fournisseur. S'il y a danger d'orage, il est conseillé de débrancher l'alimentation électrique afin de le protéger de la foudre. Ceci s'applique également si le système est inutilisé pendant une longue période. Evitez les contraintes mécaniques, les températures extrêmes, les chocs, les vibrations ainsi que les atmosphères humides. Ne démontez aucun élément du kit de transmission. Aucun composant du kit ne peut faire l’objet d’une réparation par l’utilisateur. Si vous versez du liquide sur le récepteur, débranchez-le du secteur, afin d’éviter tout risque d’électrocution ou d’incendie, et consultez un technicien qualifié. Les pièces défectueuses doivent être remplacées par des pièces d’origine.
Dans le cas d'un usage impropre ou si vous avez ouvert, modifié et réparé le produit vous-même annule la garantie. Le fournisseur n'assume aucune responsabilité en cas d'utilisation impropre du produit ou si le produit est utilisé à des fins autres que celles spécifiées. Le fournisseur n'assume aucune responsabilité pour dommage conséquent, autre que la responsabilité civile du fait des produits.
23-5-2013 24 ebode HDMI Splitters
2. Introduction Nous vous remercions d’avoir acheté le HDSPLIT14 de Ebode. Grâce à ce produit vous allez pouvoir diviser votre signal HDMI vers 4 sorties simultanément et à haute vitesse, en Full HD 1080p avec support de la 3D. Les 4 sorties HDMI supportent 20m de cable HDMI AWG24. En option: HDIK30 - Accessoire IR vers HDMI, pour contrôler les sources distantes A/V comme un lecteur DVD.
3. Caractéristiques
Version HDMI: High speed with 3D support Version HDCP: HDCP1.2 Résolutions HDMI supportés: 4K*2K/3D_Video/1080P/1080i/
720p/576p/576i/480p/480i Signal vidéo supporté: Couleurs profondes 24bit/36bit Format audio supporté: Dolby-AC3/DTS7.1/DSD/DTS-HD/true-
HD/LPCM7.1 Entrée signal video: 5.0Volts P-P Distance câble sortie: ≤20m 24AWG Cable Distance câble entrée: ≤20m 24AWG Cable Vitesse transfert de données: 6.75Gbps Plage de fonctionnement humidité: 5 to 90% RH (No Condensation) Plage de fonctionnement température: -15 to +55C˚ (5 to 131 of) Alimentation: Input AC (50Hz.60Hz) 100-240V, output 5v DC
4. Contenu Lorsque vous déballez votre Splitter HDMI, veuillez vérifier que les éléments suivants sont inclus:
Splitter HDMI Alimentation 5V DC Manuel Utilisateur
5. Avantages
Dimensions: 111x75x23.5mm Diviser votre sortie HDMI unique en 4 sorties Option: 4 adapteurs pour 4 x TV, control IR Facile á installer (pas de connaissances techniques et les outils requis)
6. Operation
1. Connectez lentrée du HDSPLIT14 à votre source vidéo comme un lecteur DVD, PS3,
STB etc. (figure 1.1).
2. Connectez votre écran (LCD, Moniteur, ou Plasma) à un port de sortie disponible du
HDSPLIT14 (figure 1.1).
3. Merci de ne pas mettre le HDSPLIT derrière un récepteur A/V; cela pourrait corrompre
l’image. (figure 1.2).
4. Si vous voulez ajouter plus d’entrées au HDSPLIT12, il vous suffit d’ajouter un de nos
switch (en option) (HDSWITCH31 ou HDSWITCH51) au HDSPLIT12 (figure 1.2).
23-5-2013 25 ebode HDMI Splitters
Image 1.1
7. Vue d’ensemble du produit
Image 1.2
Note: Ebode HDIK30 - Récepteur, blaster et adaptateur sont en option pour ce produit.
8. Attention
Pour réduire les risques d’incendie, de choc électrique ou dommages sur le produit:
1. Ne pas exposer le produit à la pluie, moisissures, éclaboussures et assurez-vous
qu’auncun objet contenant du liquide, comme un vase, ne se trouve sur l’appareil.
2. Si installé ou placé dans une bibliothèque, un meuble encastré ou n’importe quel
environnement confiné, soyez sur que le produit est bien ventilé.
3. Pour prévenir des dangers électriques ou incendiaires dues à un sur échauffement, ne
pas boucher la sortie de ventilation du produit avec des journaux, une nappe, des rideaux ou tout objet de ce genre.
4. Ne pas installer près d’une source de chaleur comme un radiateur, une cheminée, un
poêle ou tout objet de ce genre.
5. Ne pas placer de flamme nue, comme des bougies, sur l’appareil.
6. Nettoyer cet appareil avec un chiffon sec.
7. Débrancher l’appareil pendant un orage ou pour une longue période de non-utilisation.
8. Protéger le cordon afin d’éviter qu’il ne soit piétiné ou pincé, en particulier au niveau
des fiches.
9. N’utiliser que des fixations/accessoires spécifiés par le fabricant.
10. Confiez toutes les réparations à un personnel qualifié.
23-5-2013 26 ebode HDMI Splitters
DECLARATION OF CONFORMITY
Hereby, ebode electronics, declares that this ebode HDSPLIT12 and HDSPLIT14 are in compliance with the essential requirements and other relevant provisions of the following Directives:
Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using
Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
23-5-2013 27 ebode HDMI Splitters
DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein
Product category: general consumer (category 3).
English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
Deutsch [German]: Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Nederlands [Dutch]: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen van de Richtlijn 1999/5/EC.
Svenska [Swedish]: Denna utrustning står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Français [French]: Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC
Español [Spanish]: Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 1999/5/CE.
Português [Portuguese]: Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC.
Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE.
Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF.
Suomi [Finnish]:Tämä laite tÿttää direktiivin 1999/5/EY olennaiset vaatimukset ja on siinä asetettujen muiden laitetta koskevien määräysten mukainen.
Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF.
Polski [Polish]: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi
warunkami okreslonymi Dyrektywą UE: 1999/5/EC
23-5-2013 28 ebode HDMI Splitters
Also available from ebode: Bluetooth Speaker and Bluetooth receiver
..
Use the BT Sound to share the music on your smartphone, tablet or laptop wirelessly with your friends. As the BT Sound is small in size you can enjoy your favourite songs any place, any time, any where! Ideal for parties, festivals or while travelling.
Transmit the music from you smartphone, tablet or laptop wireless to your BT Sound Receiver. You easily hook this up to your amplifier, stereo set or your car audio system. Enjoy your favourite songs with all your friends at home, and on the go!
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit
www.ebodeelectronics.eu.
23-5-2013 29 ebode HDMI Splitters
Also available from ebode: Bluetooth Speaker and Bluetooth receiver
..
The indoor camera comes with a standard
6.0mm lens or you can choose the 3.6mm WIdeEye lens. They are both pan and tilt and can be set as a motion detector which records videos, photos and sound. They have a build-in microphone and speaker.
The dome camera is a waterproof camera for both outdoor and indoor use. The camera can Pant, Tilt, has 3x Optical Zoom and 640 x 480 pixels (300k) MPEG4 resolution. It has a metal housing, an easy user interface and is fully plug and play.
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit
www.ebodeelectronics.eu.
23-5-2013 30 ebode HDMI Splitters
Also available from ebode: Bluetooth Speaker and Bluetooth receiver
..
Plug the FM Sound in your Smartphone and send the music wireless to your (car)radio. Works with any free frequency. Available for iPod, iPhone, iPad, Android, and any other device with a 3.5mm plug.
The ebode line offers accessories for infrared control, such as single, dual or triple infrared emitters, either in a blinking or non-blinking version. Our opiotnal emitter shields prevent unwanted, external IR signals from passing through.
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit
www.ebodeelectronics.eu.
23-5-2013 31 ebode HDMI Splitters
NOTES
23-5-2013 32 ebode HDMI Splitters
www.ebodeelectronics.eu
Loading...
