1.
1. Features
Intel® low power consumption and high performance technology
Durable ultra-slim & robust die-casting aluminum chassis
4 x USB 2.0, 4 x RS-232, Gigabit Ethernet port (RJ-45), cash drawer port
(RJ-11) and 1 X parallel port equipped
Video Module (Optional)
Wireless LAN supported
Microsoft Windows series operation system (Windows XP Home Edition,
Windows XP Professional Edition and WEPOS) and open-source Linux
operation system supported.
Chapter 1
1
Page 7
2.
2. Unpacking the Box

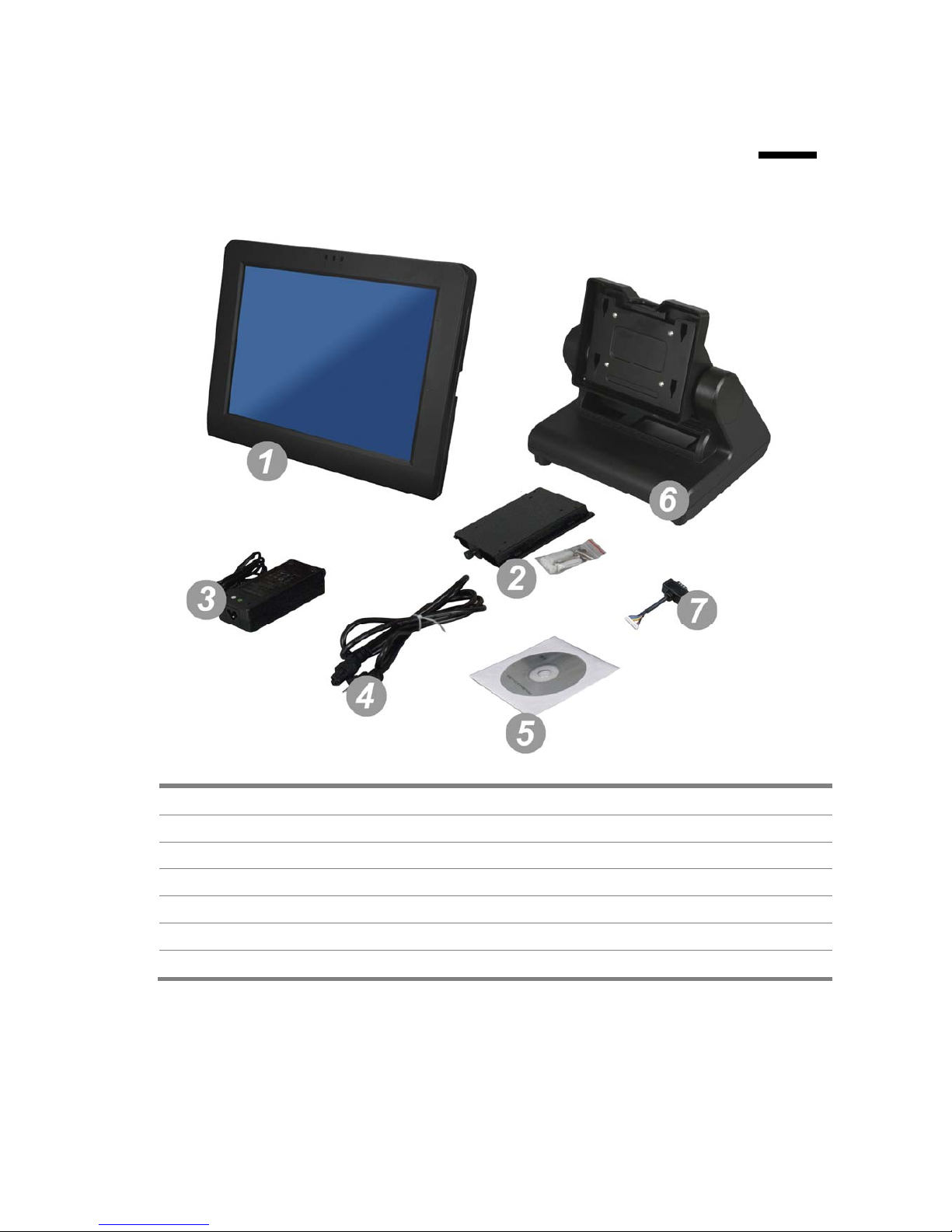

Verify that the box contains the following items.
1
Device X 1
2
Wall mount Kit x 1 (EZPPC series only)
3
Power Adaptor X 1
4
Power Cord X 1
5
Driver and utility CD X 1
6
Base Unit (EZPOS series only)
7
D-Sub 9 cable
Chapter 3
2
Page 8
3.
3. Hardware Setup
3.1. Quick Tour

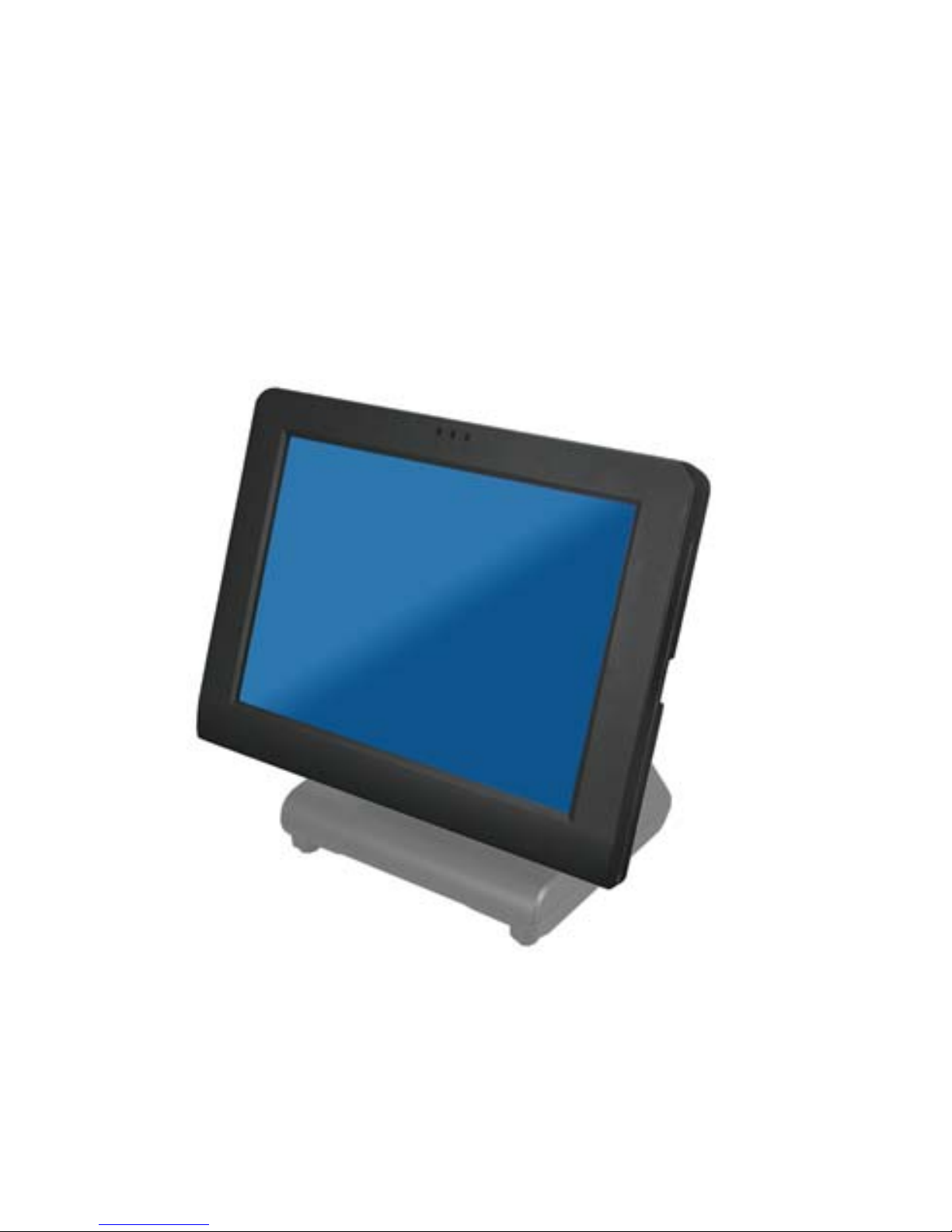

Front View

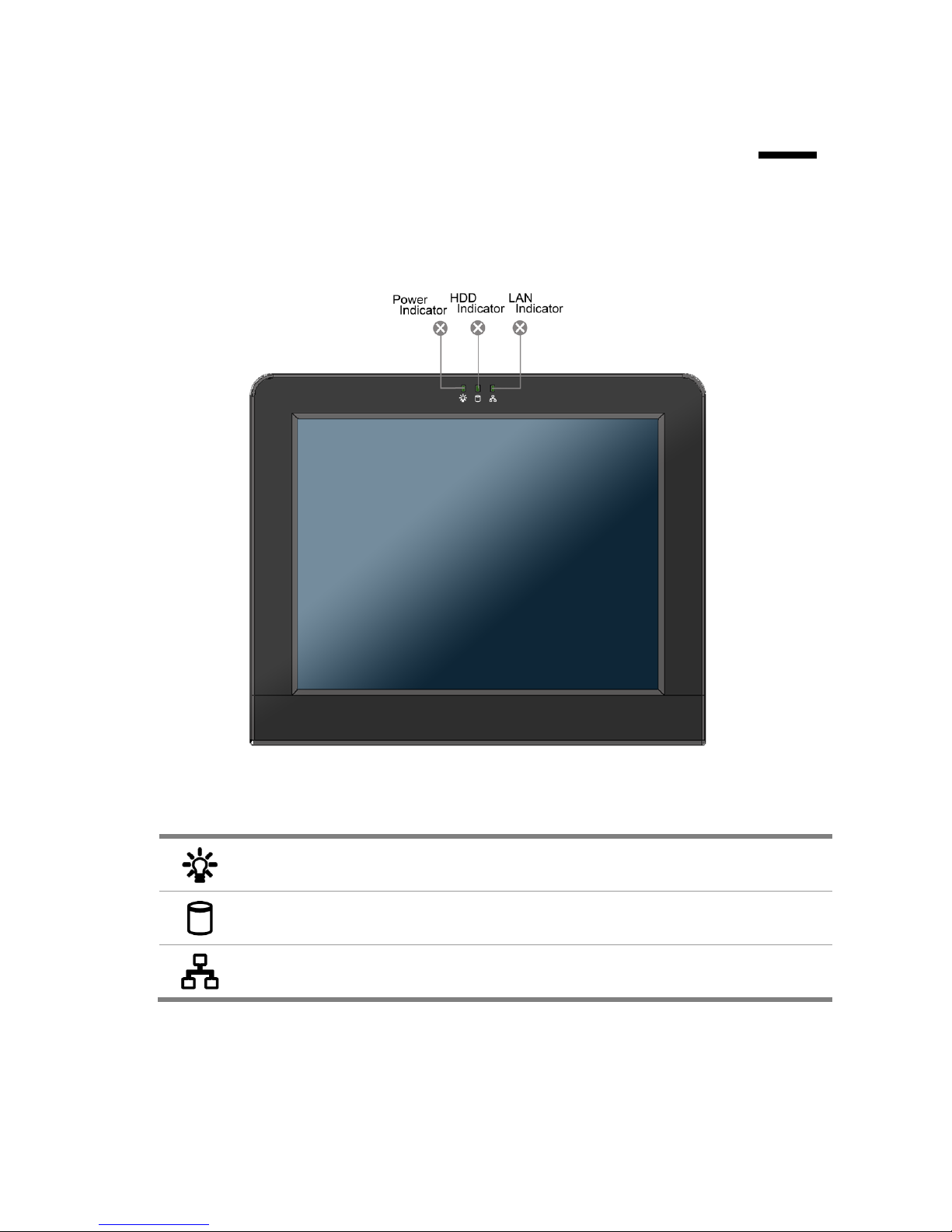

LED Indicator
The Power indicator will glow green when power is on.
The HDD indicator will blink green when the HDD is accessed.
The LAN indicator will blink green when transferring data though the LAN.
Chapter 3
3
Page 9

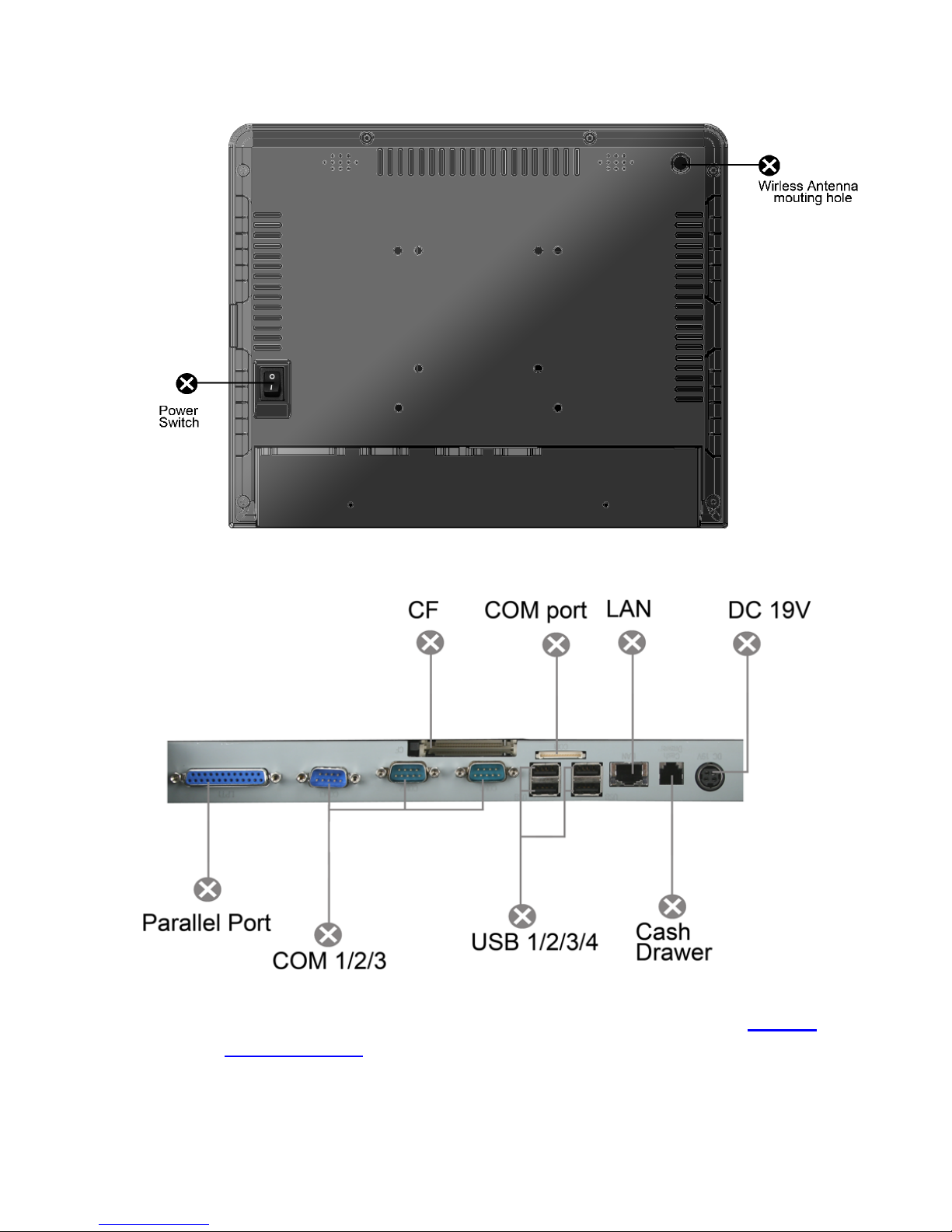

Back View
Back Panel I/O
Note: For details of I/O ports on the back panel, please refer to Chapter
6 – I/O Definition..
Chapter 3
4
Page 10

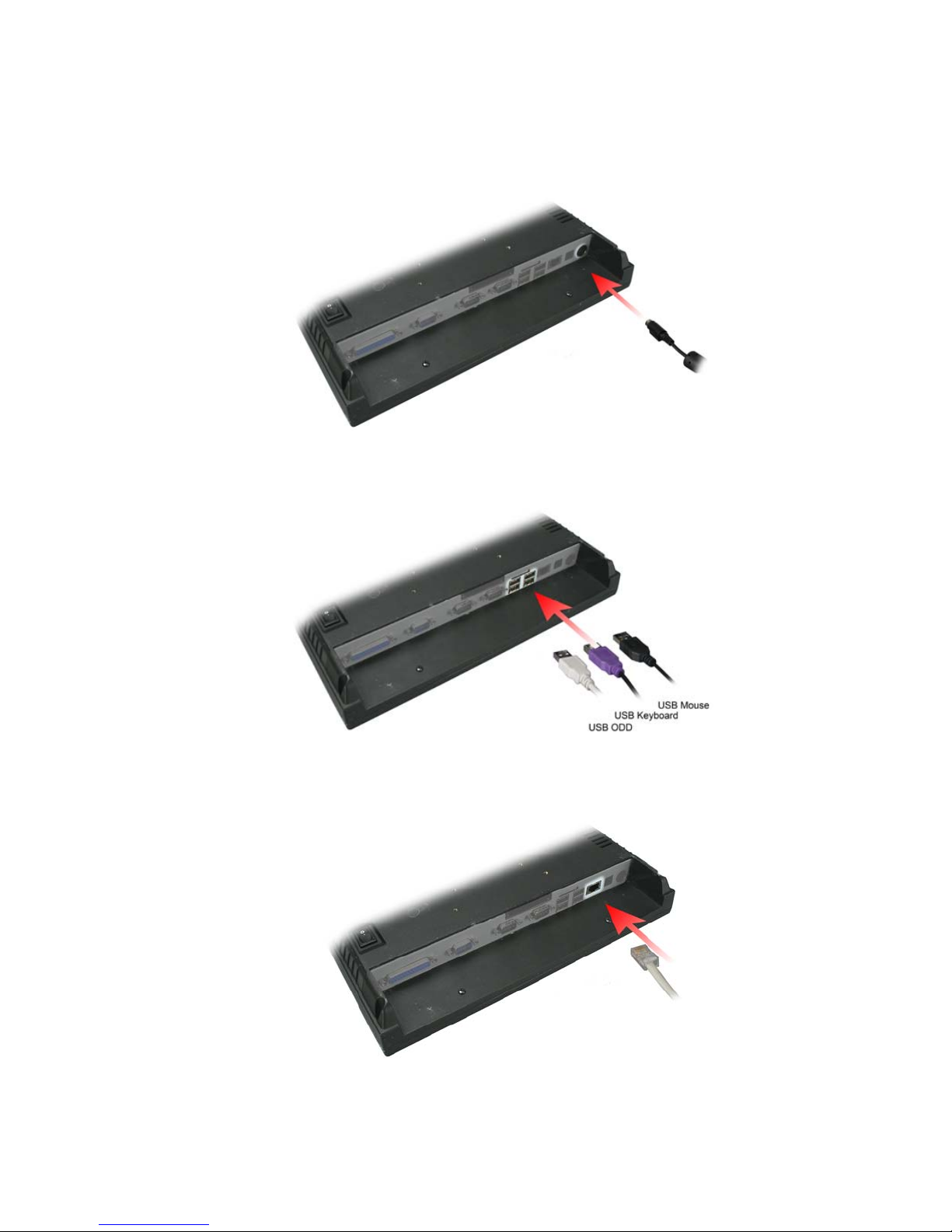

3.2. Peripherals Installation
Power Adapter

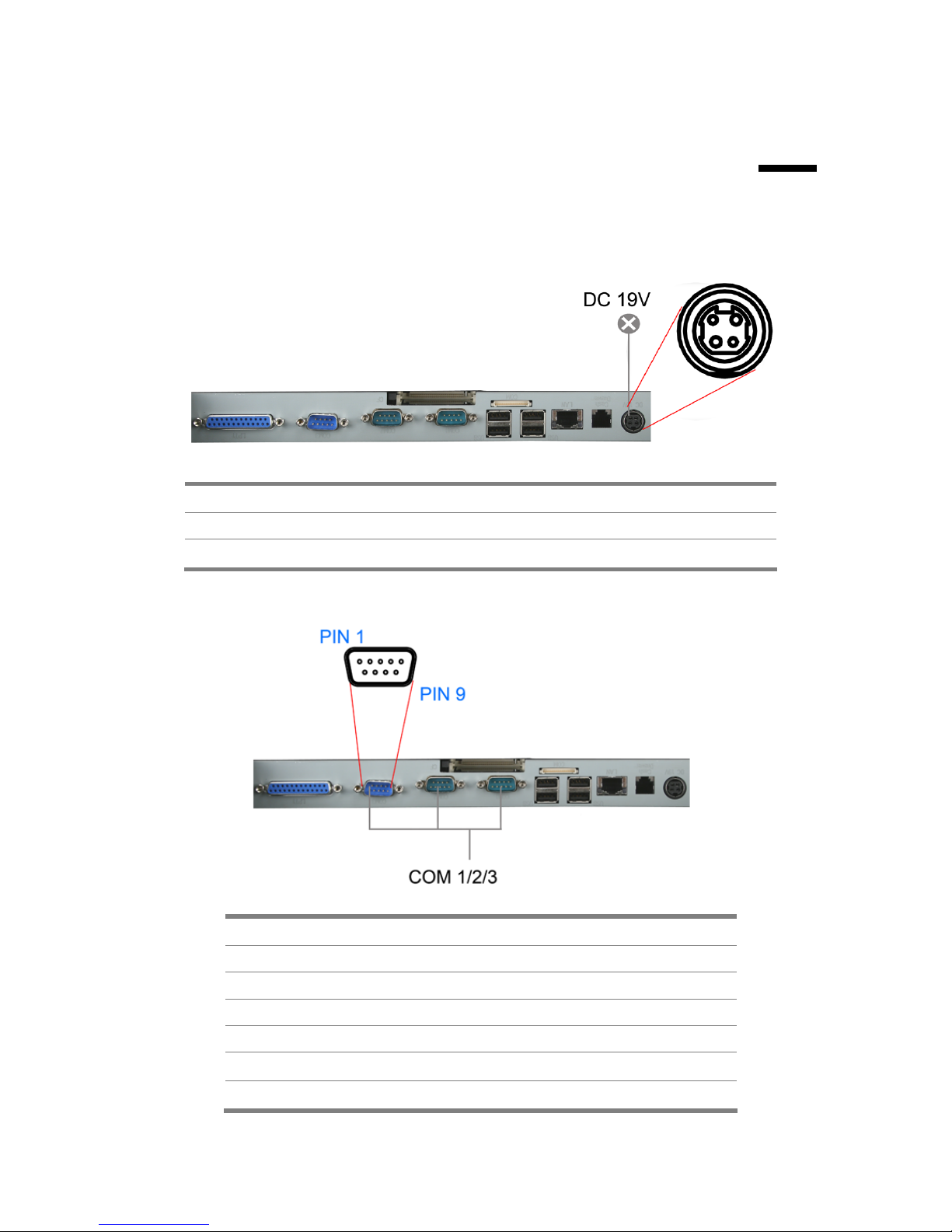

Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel
of the device.
USB Mouse, USB Keyboard and USB ODD
Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the
back panel of the device.
LAN Cable
Connect one end of RJ-45 LAN cable to the LAN port on the back panel of the
device, another end to your internet device.
Cash Drawer
Connect one end of RJ-1 1 cable to the Cash Drawer port on the back panel of the
Chapter 3
5
Page 11
device, another end to your cash drawer.
D-Sub 9 Cable
1. Connect the female connector of the D-Sub 9 cable to the COM port on the
back panel of the device in the correct orient.

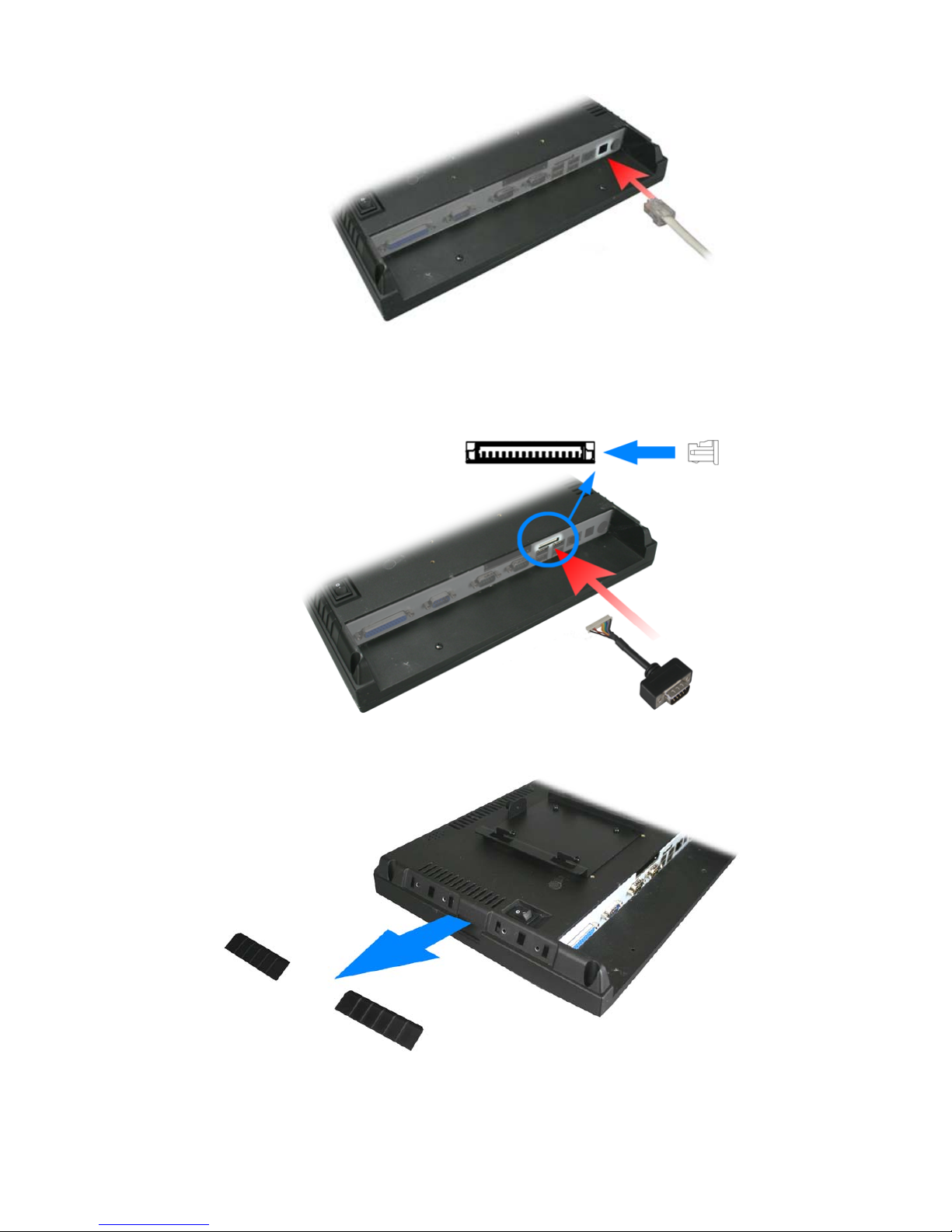

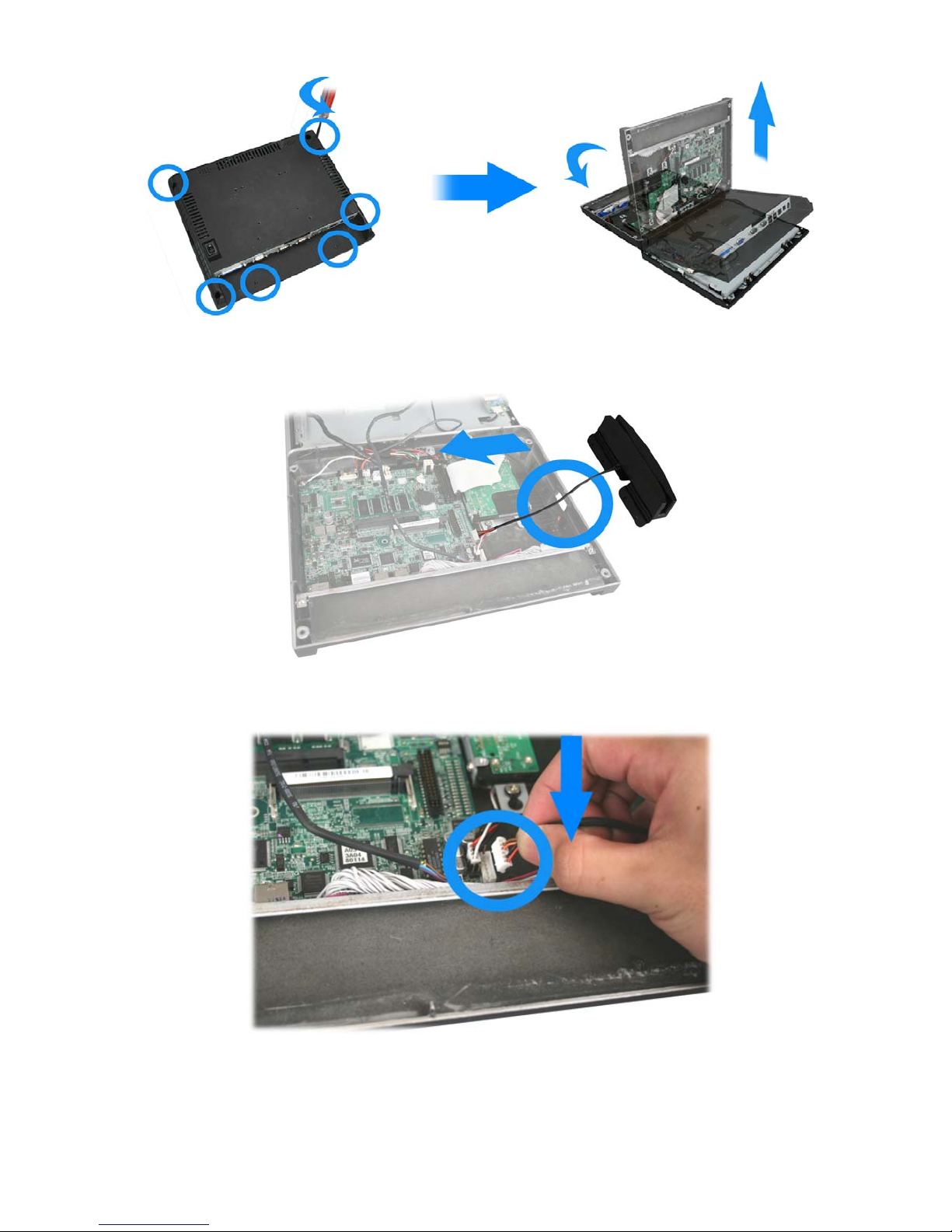

MSR Installation

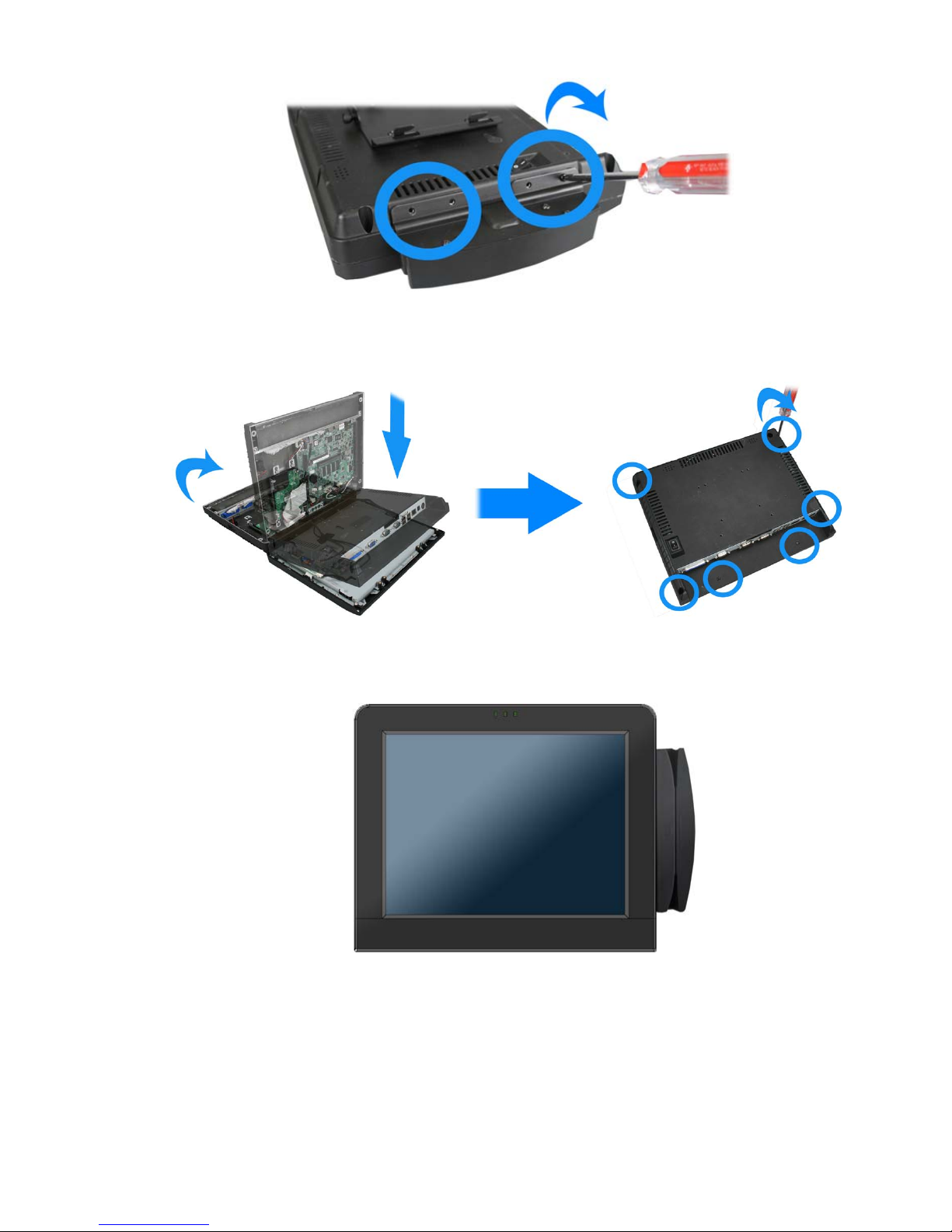

1. Remove the two plastic covers from the device as shown below.
2. Loosen the six screws and open the chassis as shown below.
Chapter 3
6
Page 12
3. Pass the MSR cable through the hole of the chassis as shown below.
4. Plug the MSR to the connector in the correct orient.
5. Tighten the four screws of the MSR assembly as shown below.
Chapter 3
7
Page 13
6. Close the back panel and tighten the four screws on the back panel.
7. Finished.

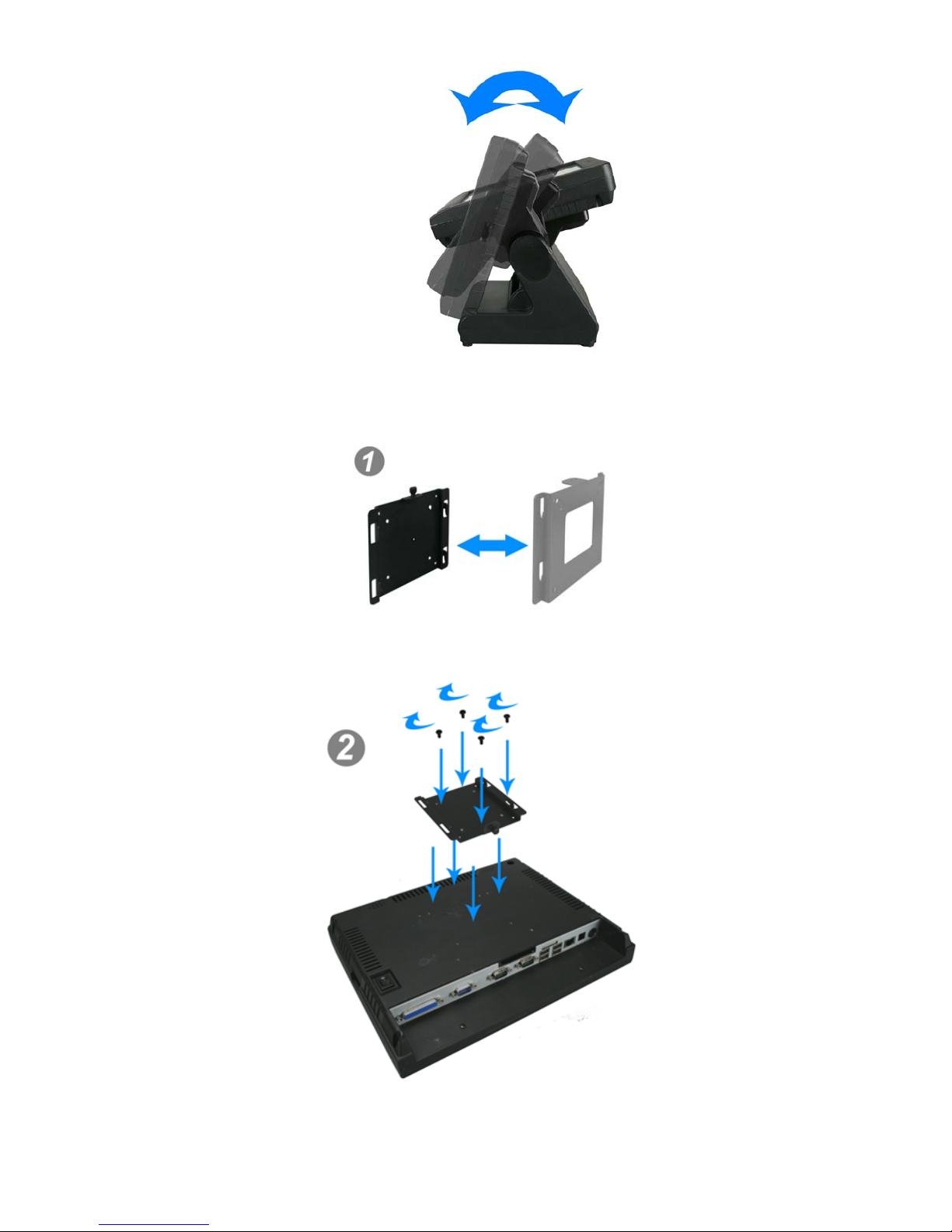

3.3. Adjust View Angle (EZPOS Series only)
Adjust the device to the proper view angle.
Chapter 3
8
Page 14
3.4. Wall Mount Kit installation (EZPC Series only)
1. Separate the wall mount kit.
2. Align the screw holes of the wall mount kit to the holes of the device and tighten the
four screws.
Chapter 3
9
Page 15
3.5. Turn on the Device
1. Make sure all peripherals are connected properly.

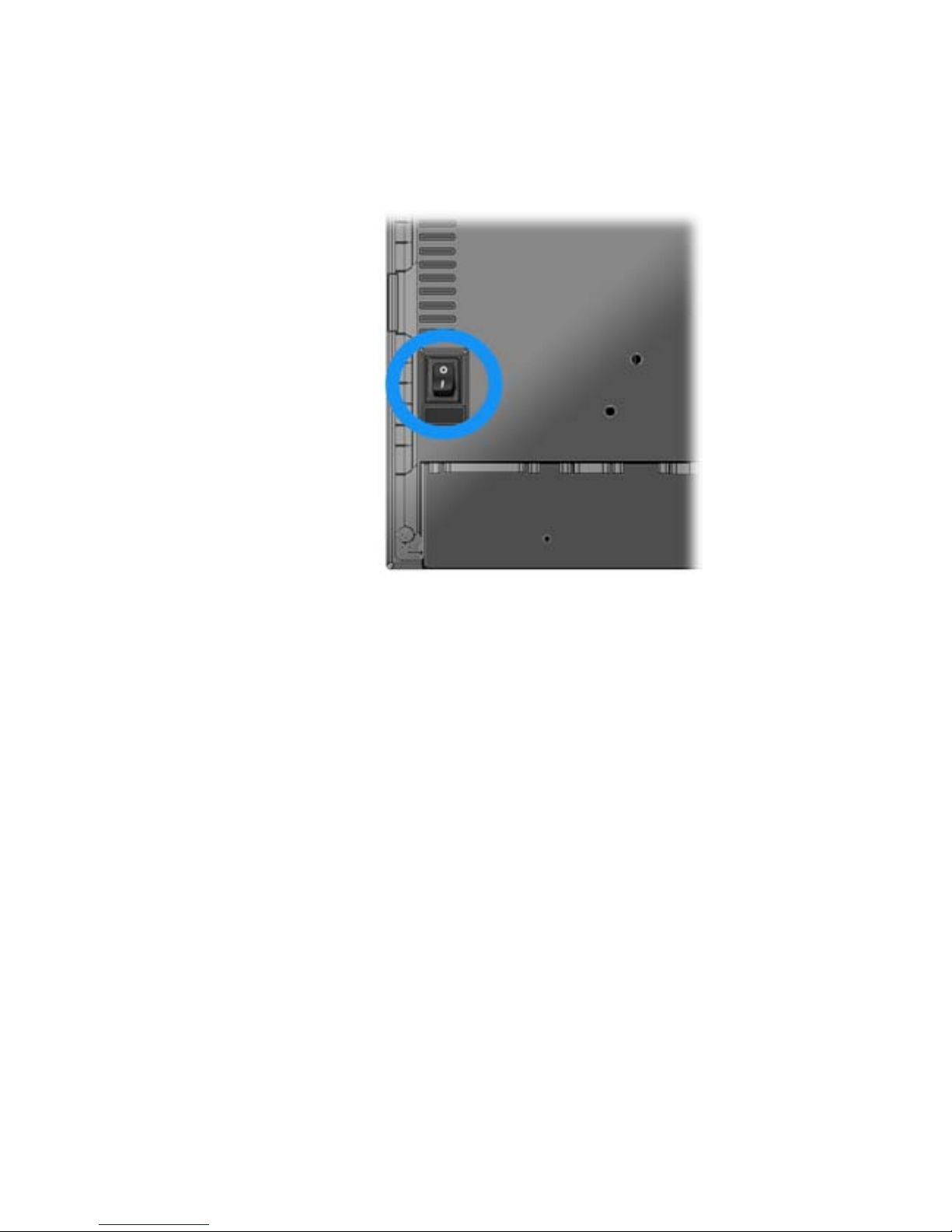

2. Press and hold the power switch until the power indicator on the front panel
glow green.
Chapter 3
10
Page 16
4.
4. Driver and Utility Installation
4.1. Before the installation
All installation procedures described below are based on Microsoft Windows XP.

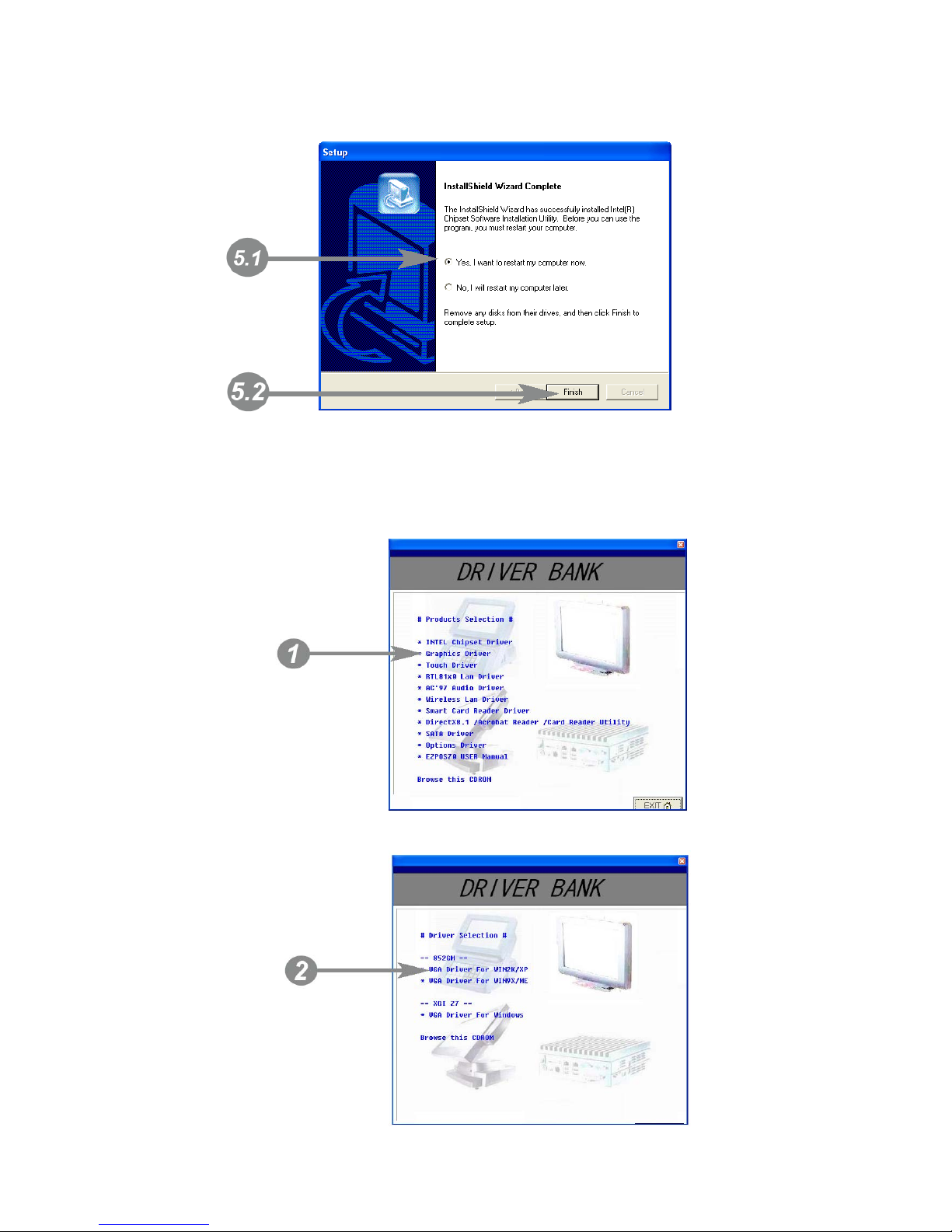

1. Connect an external USB CDROM drive to the USB port and insert the
driver CD and turn on the device. The program autoruns and displays the

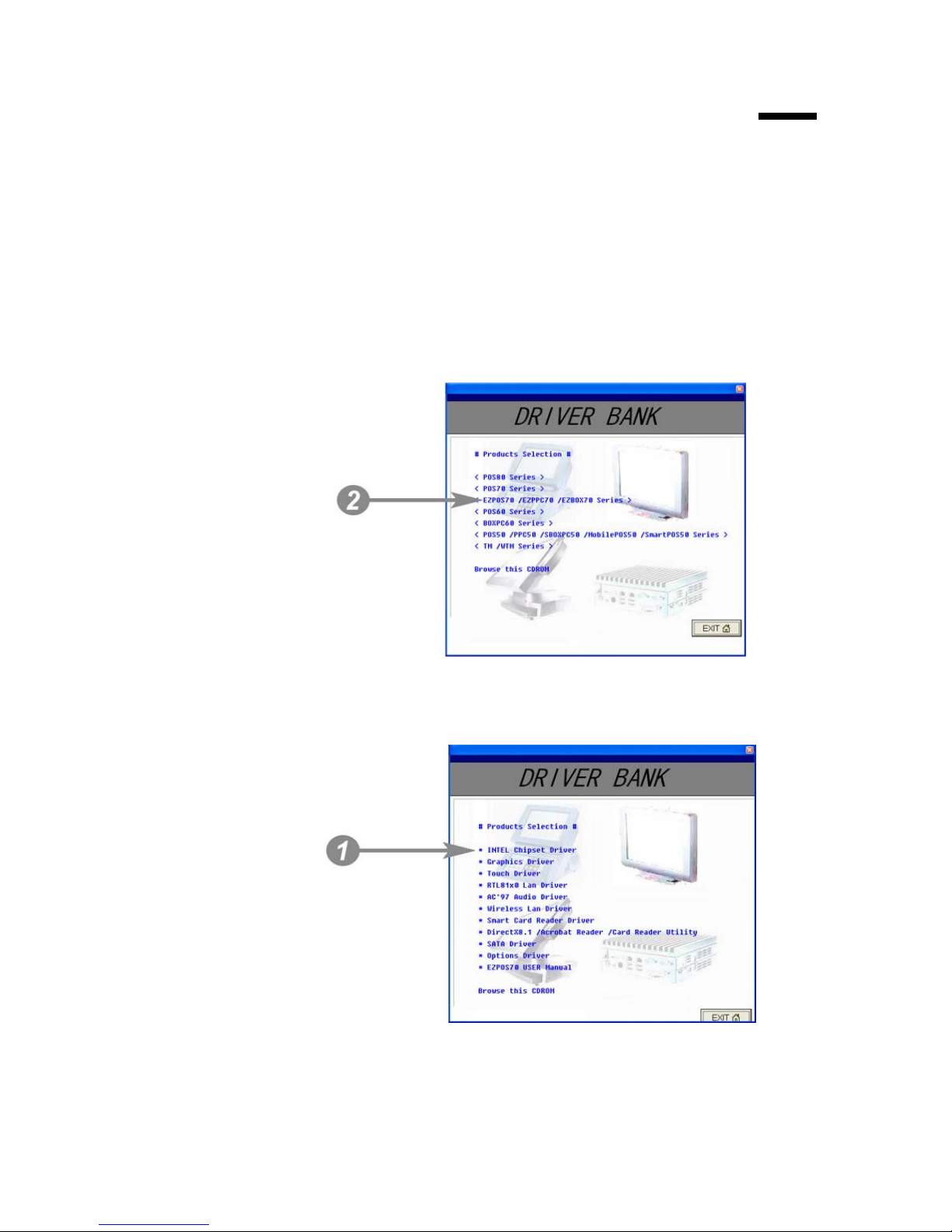

DRIVER BANK screen.
2. Click the proper product item.

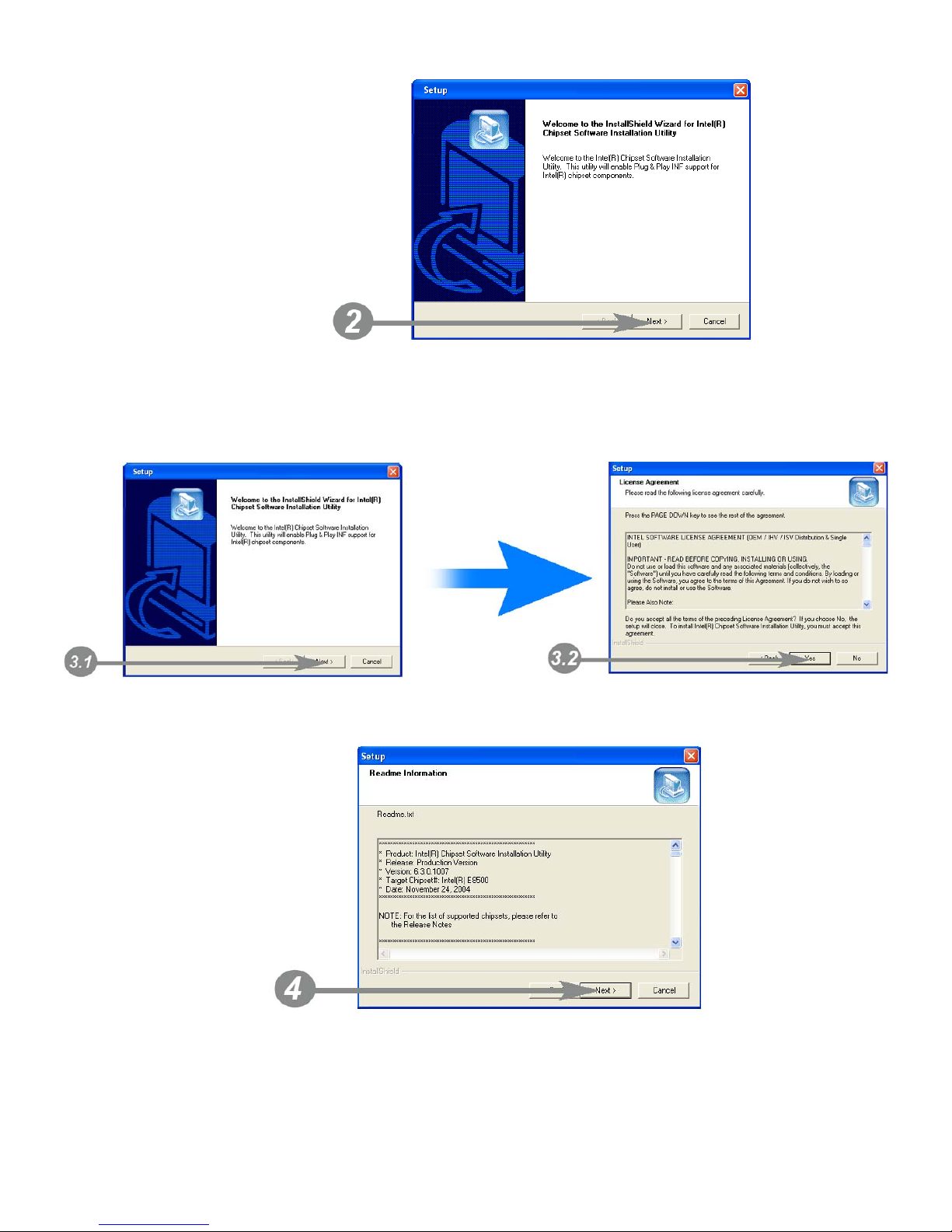

4.2. Chipset Software Installation
1. Click INTEL Chipset Driver.
Chapter 4
11
Page 17
2. Click Next.
3.1. Click Next.
3.2. Read the License Agreement carefully and click Yes.
4. Click Next.
Chapter 4
12
Page 18
5.1. Select restart your computer right now or later.

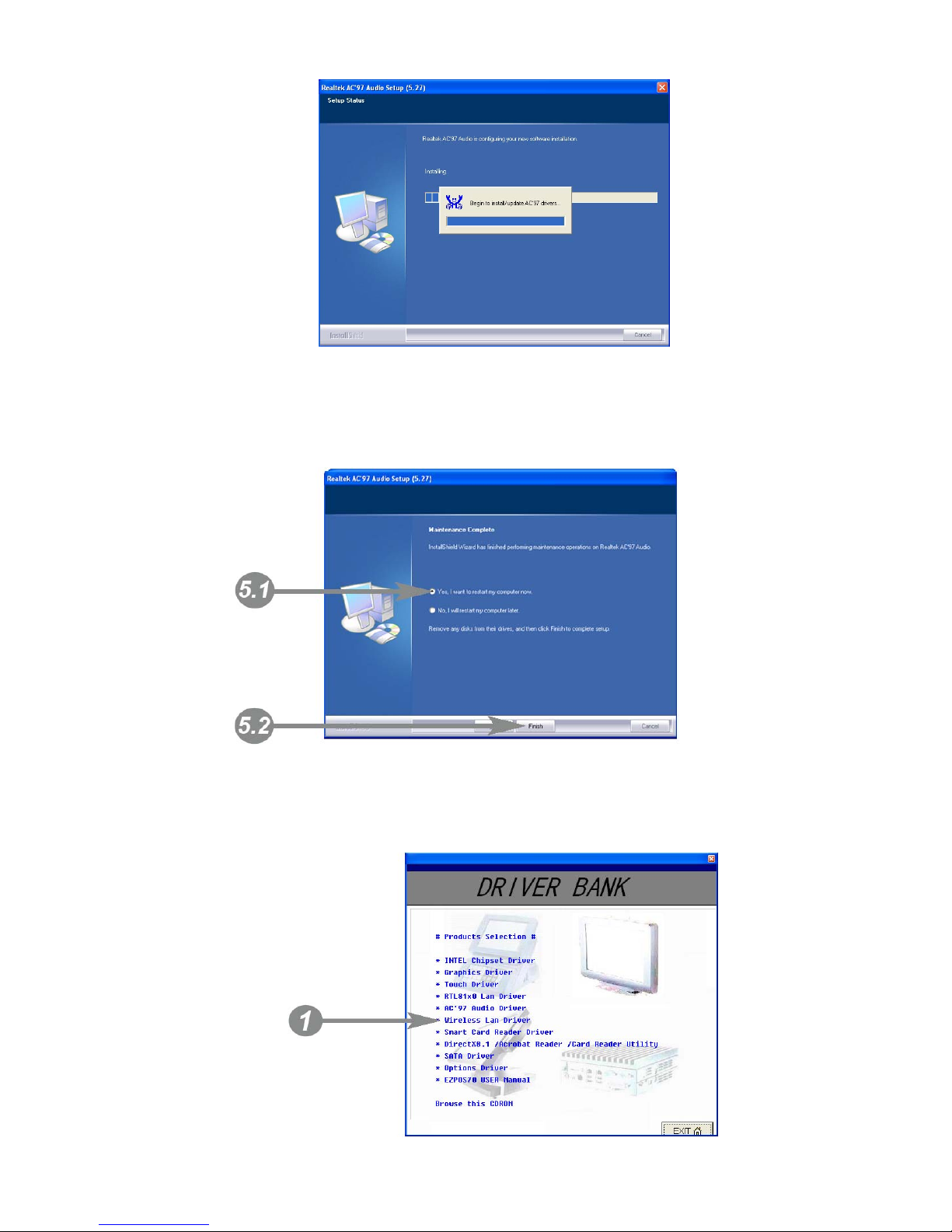

5.2. Click Finish.
4.3. VGA Driver Installation
1. Click Graphic Driver.
2. Click VGA Driver for WIN2K/XP.
Chapter 4
13
Page 19

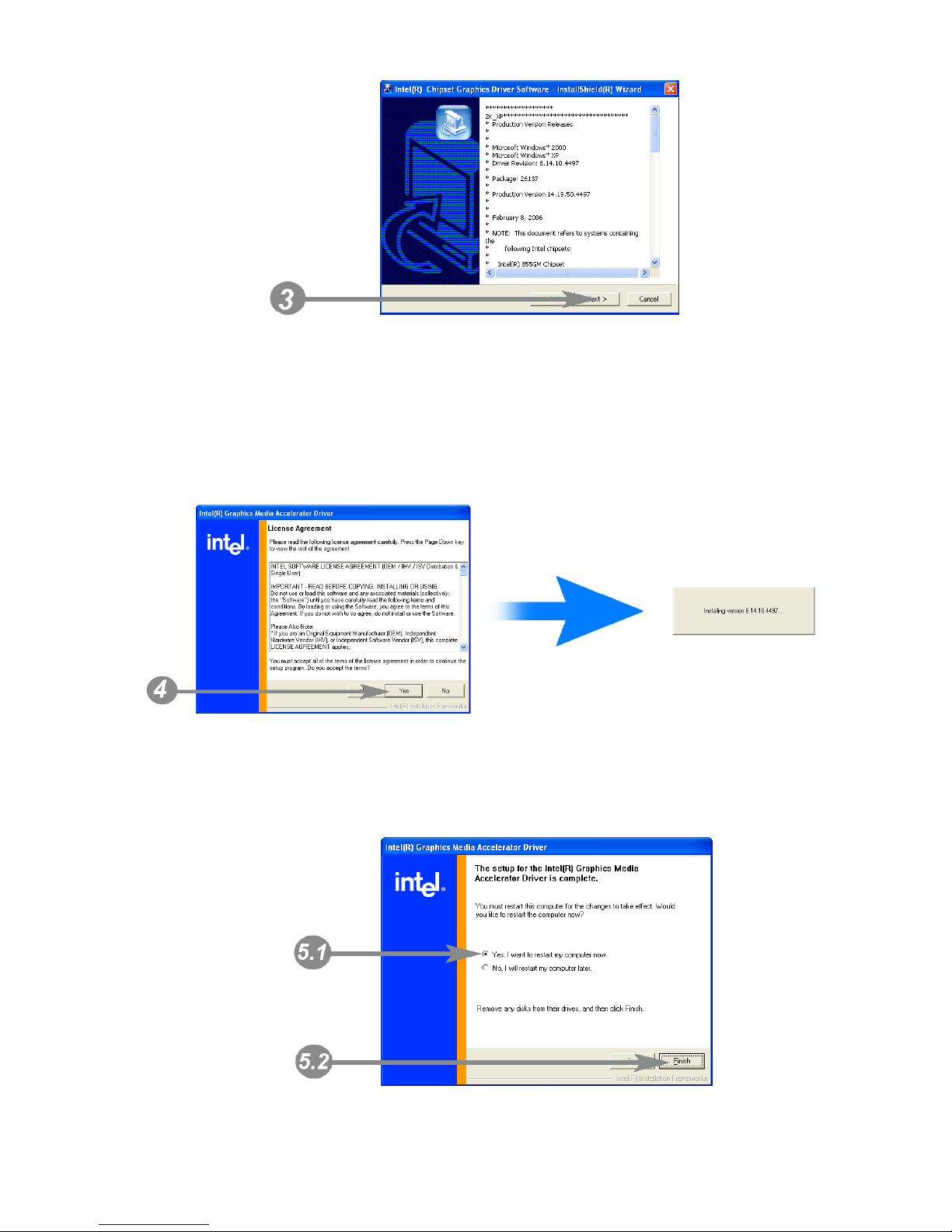

3. Click Next.
3.1. After files extracted, click Next on the welcome screen.
4. Read the License Agreement carefully and click Yes, and then the installation
starts.
5.1. Select restart your computer right now or later.
5.2. Click Finish.
Chapter 4
14
Page 20

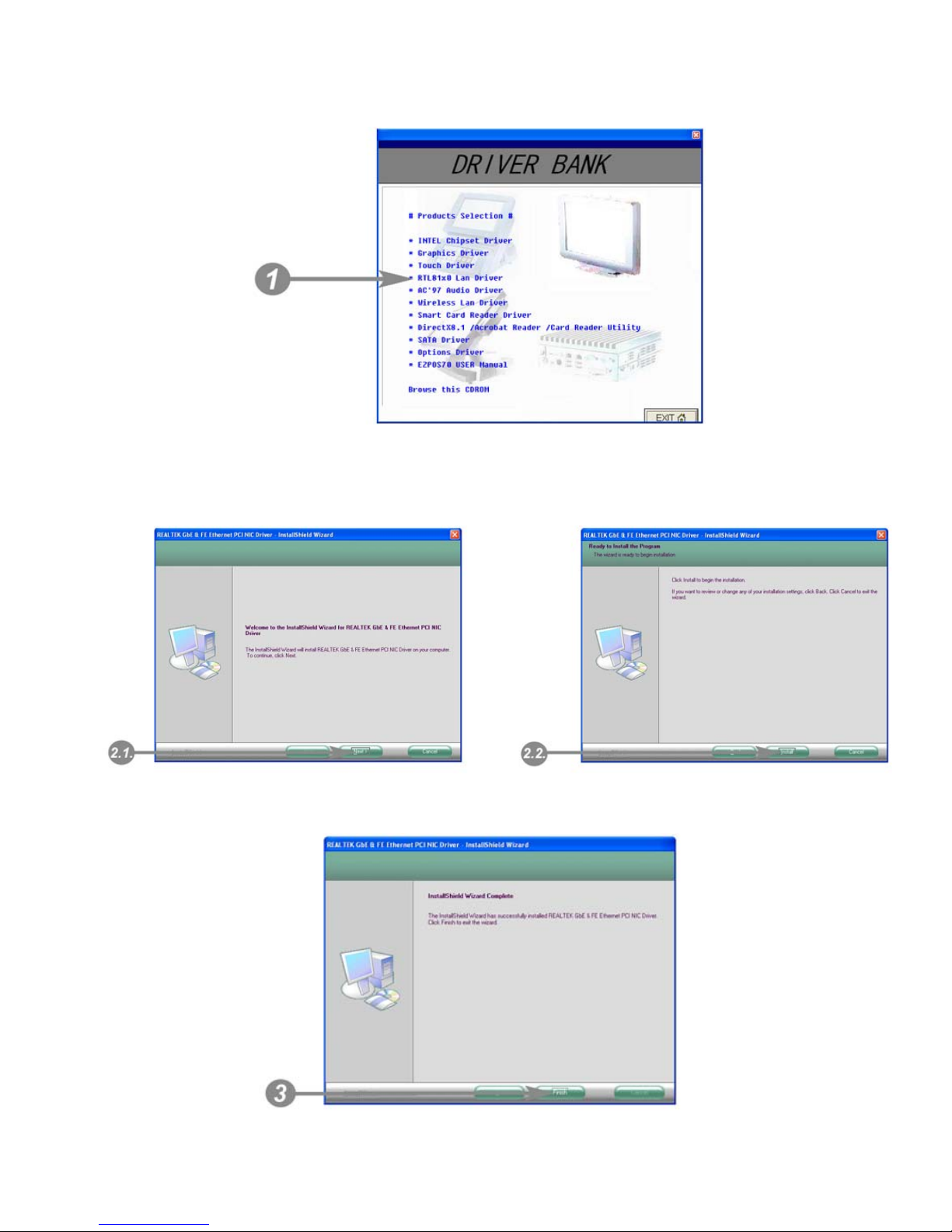

4.4. LAN Driver Installation
1. Click RTL81x0 LAN Driver.
On the welcome screen, click Next.
Click Install to begin the installation.
3. Click Finish.
Chapter 4
15
Page 21

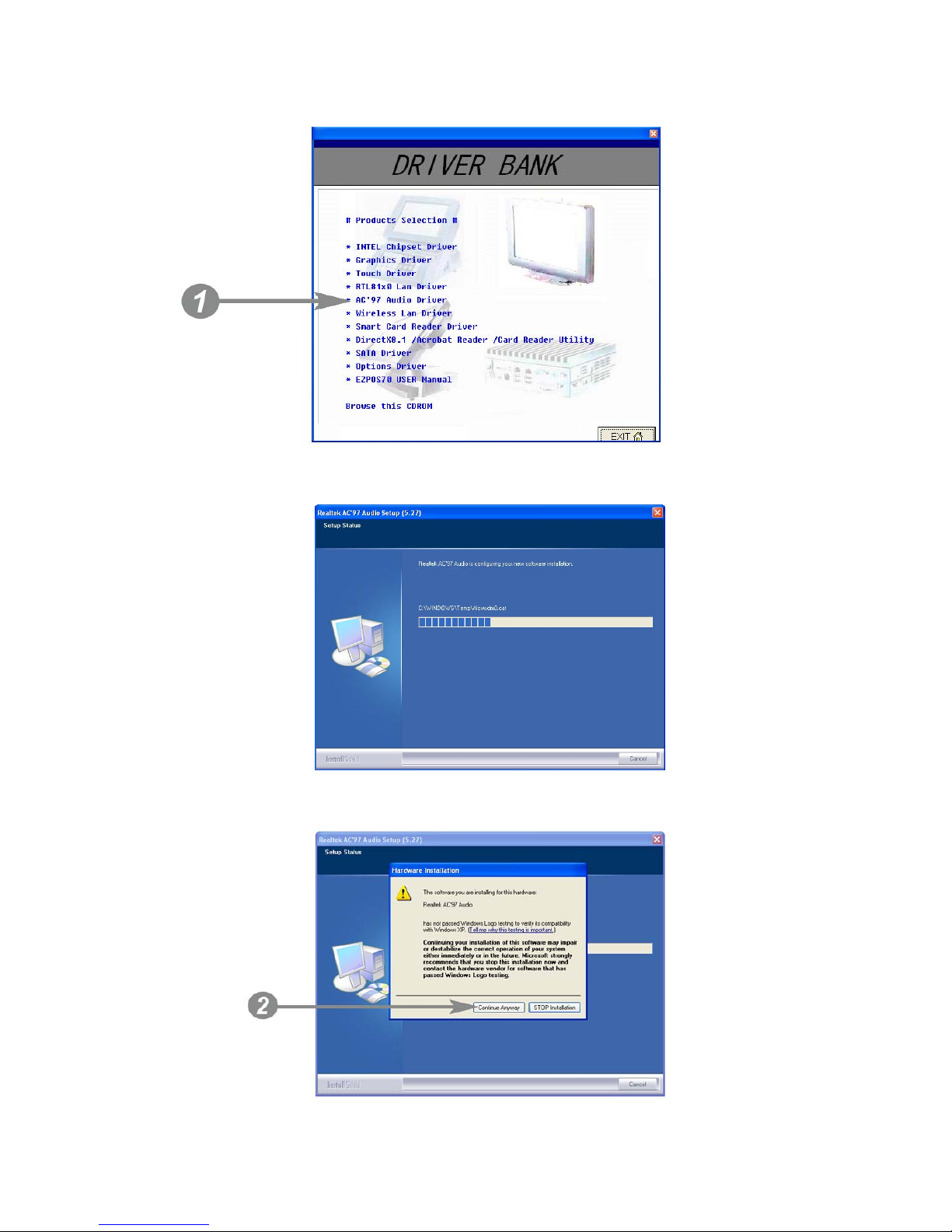

4.5. Audio Driver Installation
1. Click AC’97 Audio Driver.
2. Configures new software installation.
3. Click Configure Anyway.
Chapter 4
16
Page 22
4. AC’97 drivers begins to install.
5.1. Select restart your computer right now or later.
5.2. Click Finish.
4.6. Wireless LAN Driver Installation
1. Click Wireless Lan Driver.
Chapter 4
17
Page 23

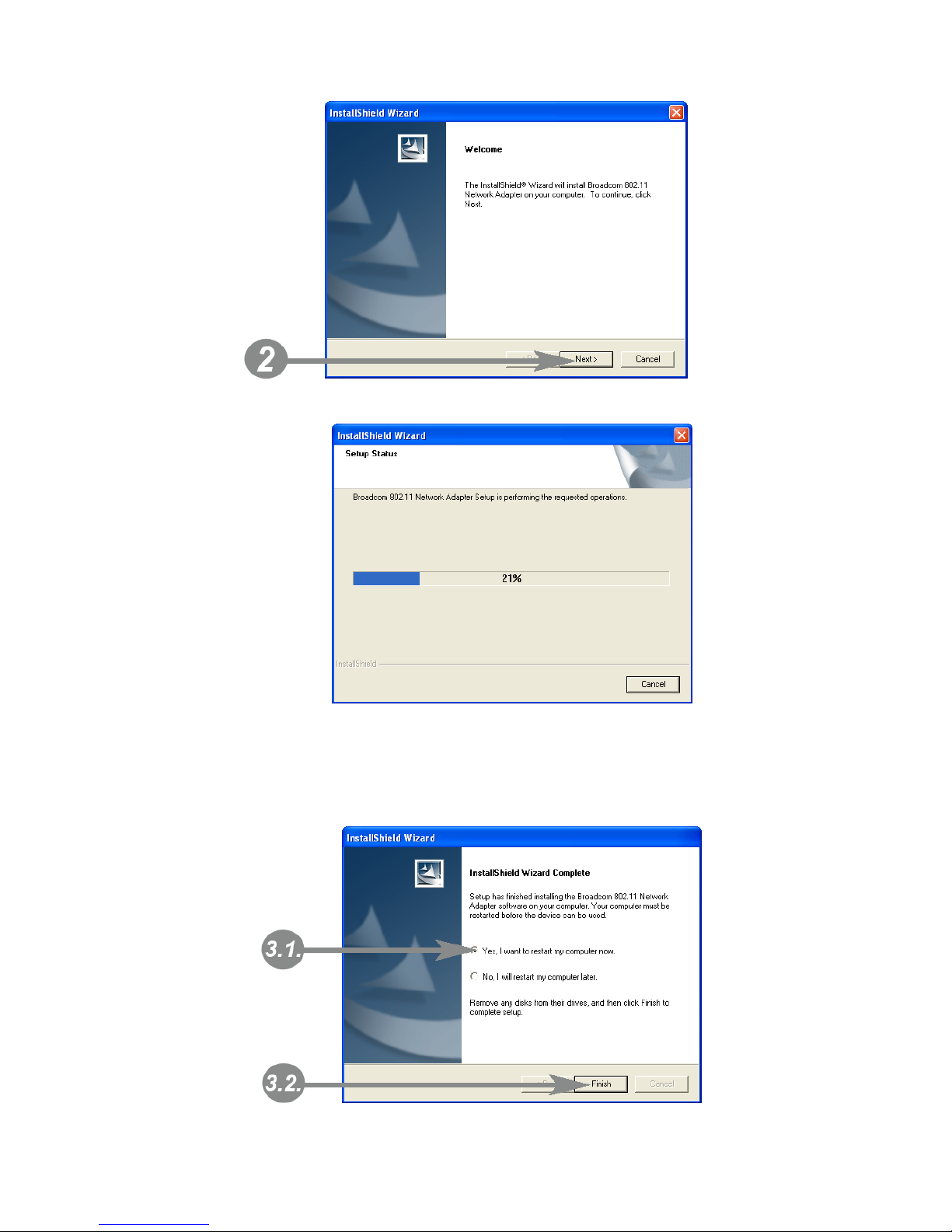

2. On the welcome screen, click Next, and then the installation begins.
3.1. Select restart your computer right now or later.
3.2. Click Finish.
Chapter 4
18
Page 24
5.
5. TouchKit Utility Quick Guide
5.1. Launch Touchscreen V7.3.COM
1. Under Microsoft Windows XP, click “start” menu and select “Programs”,
under ”Touchscreen V7.3.COM” menu, click “Touchscreen Control Panel
V7.3.COM”, the control panel of the program shows.

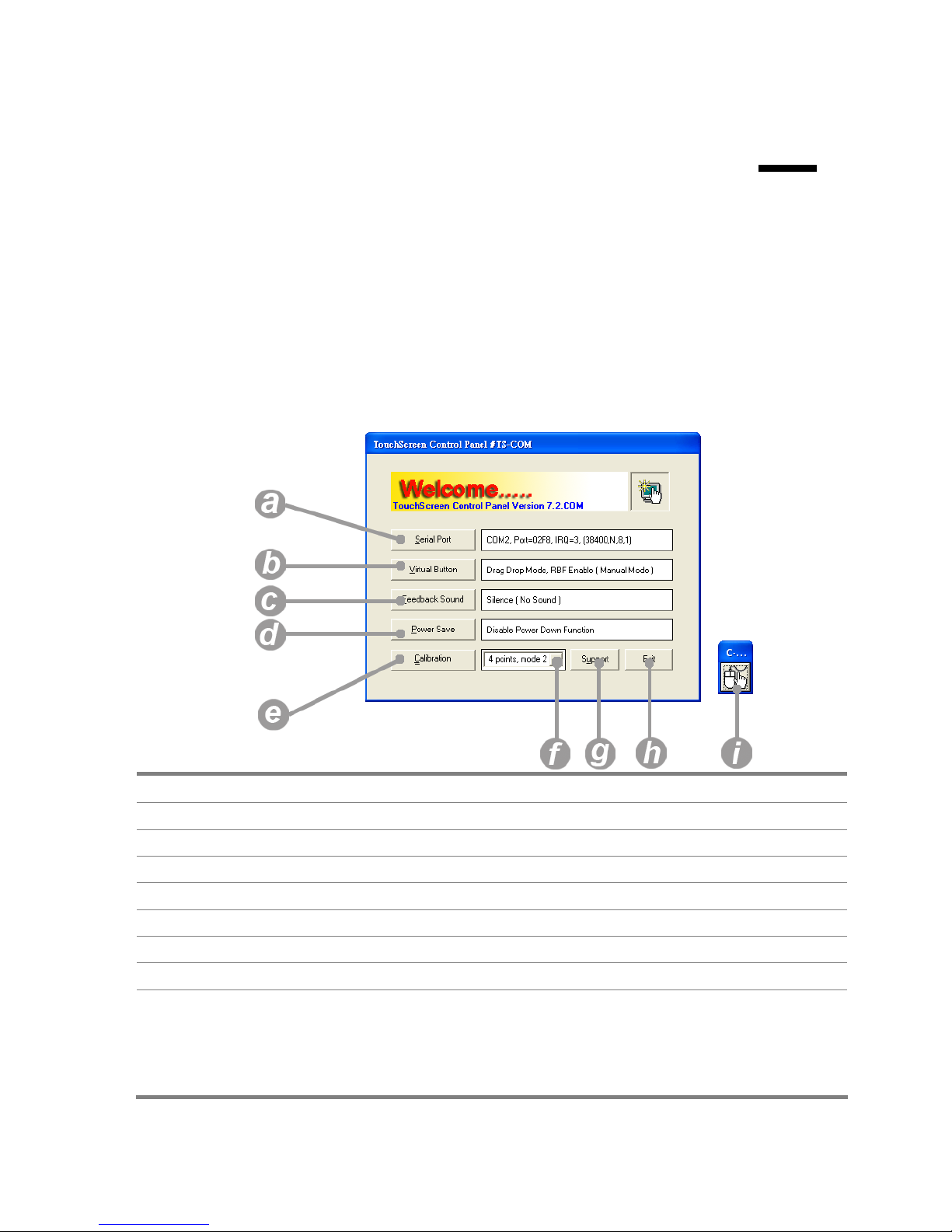

5.2. User interface
a
Serial Port
Display serial port information of the system.
b
Virtual Button
Open the virtual button setting dialogue box.
c
Feedback Sound
Open the feedback sound setting dialogue box.
d
Power Save
Open the power down timer adjustment dialogue box
e
Calibration
Switch to calibration screen.
f
Calibration Mode Menu
Select the calibration by clicking this drop-down list.
g
Support
Display technical support information.
h
Exit
Exit the program.
i
Event Selector
Enable right mouse button function.
The default of this selector is with the left mouse button
selected on. For details about event selector settings,
please see “How to Use Event Selector” of Section 5.2.
Chapter 5
19
Page 25
5.3. Serial Port Information

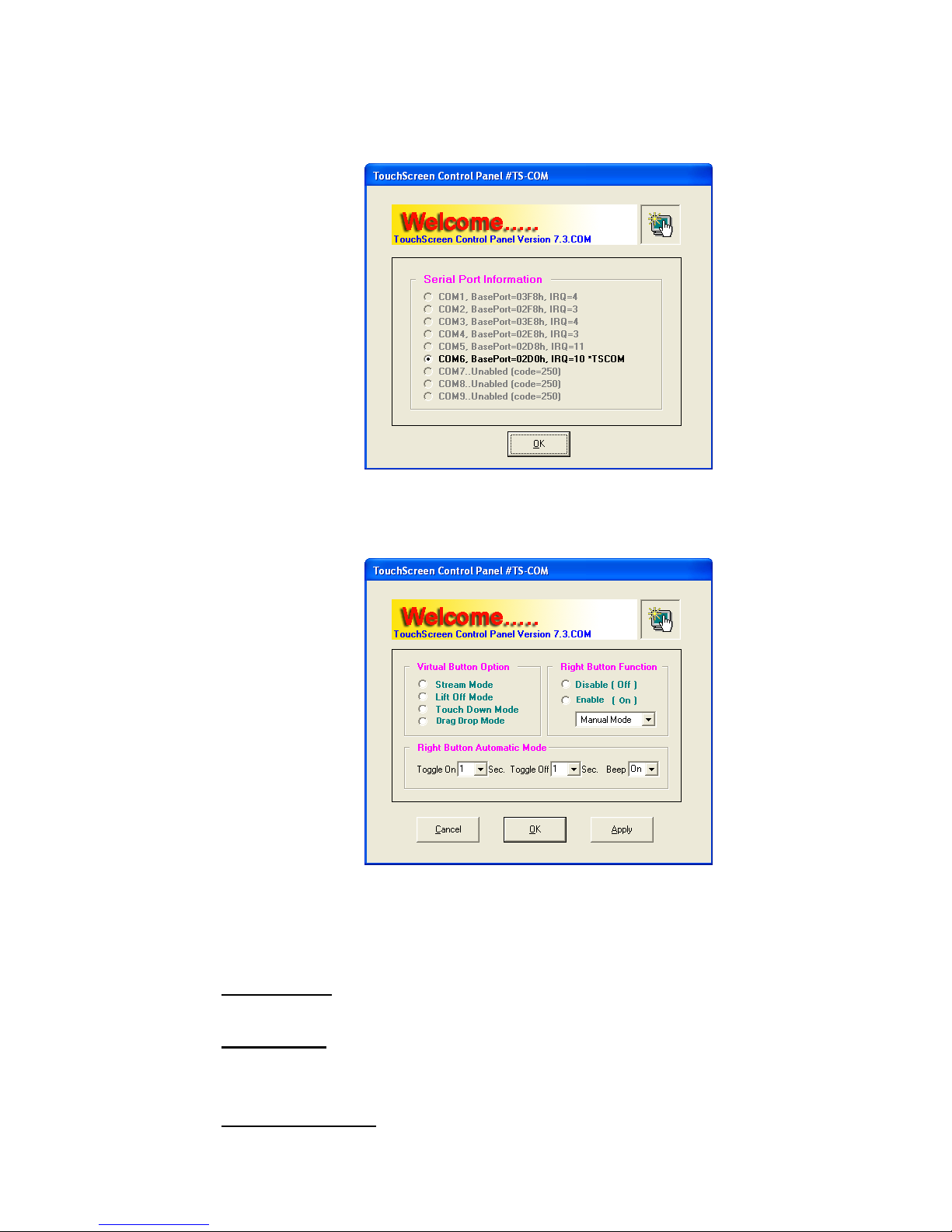

Click Serial Port button, the serial port information shows.
Click OK to back to the control panel.
5.4. Virtual Button Settings
Click Virtual Button button, the dialogue box shows:
The selected option will be in black.
Virtual Button Option
Under Virtual Button Option group box, there are four options:
˙Stream Mode
Under this mode, all mouse button simulation will be disabled.
˙Lift off Mode
Under Lift off Mode, tapping and holding on the screen equals pressing and
holding on the left button of the mouse.
˙Touch Down Mode
Chapter 5
20
Page 26
Under Touch Down Mode, one single-tapping equals one left mouse
clicking.
˙Drag Drop Mode
Drag Drop mode allows you to select an object on the screen by tapping, and
then slide the selected object to a new location on the screen, the selected
object will be dropped on the new location by releasing the touch.
The selected option will be in black.
Right Button Function
˙Disabled (Off)
Select this option, the event selector will be disabled and disappear.
˙Enable (On)
Select this option, the event selector will be enabled and show on
the left-bottom corner of the screen.
˙Automatic Mode/Manual Mode Drop-down List
If the Drag Drop Mode under Virtual Button Option group box is select,
the drop-down menu below the Enable (On) option will be enabled.
Automatic Mode
- Select this option, the Right Button Function will switch to automatic
mode and the event selector
will be disabled and disappear.
Manual Mode
- Select this option, the Right Button Function will switch to manual
mode and the event selector
will be enabled and show on the
left-bottom corner of the screen.
- Options under Right Button Automatic Mode will be enabled when
Manual Mode is selected.
The selected option will be in black.
Chapter 5
21
Page 27
Right Button Automatic Mode

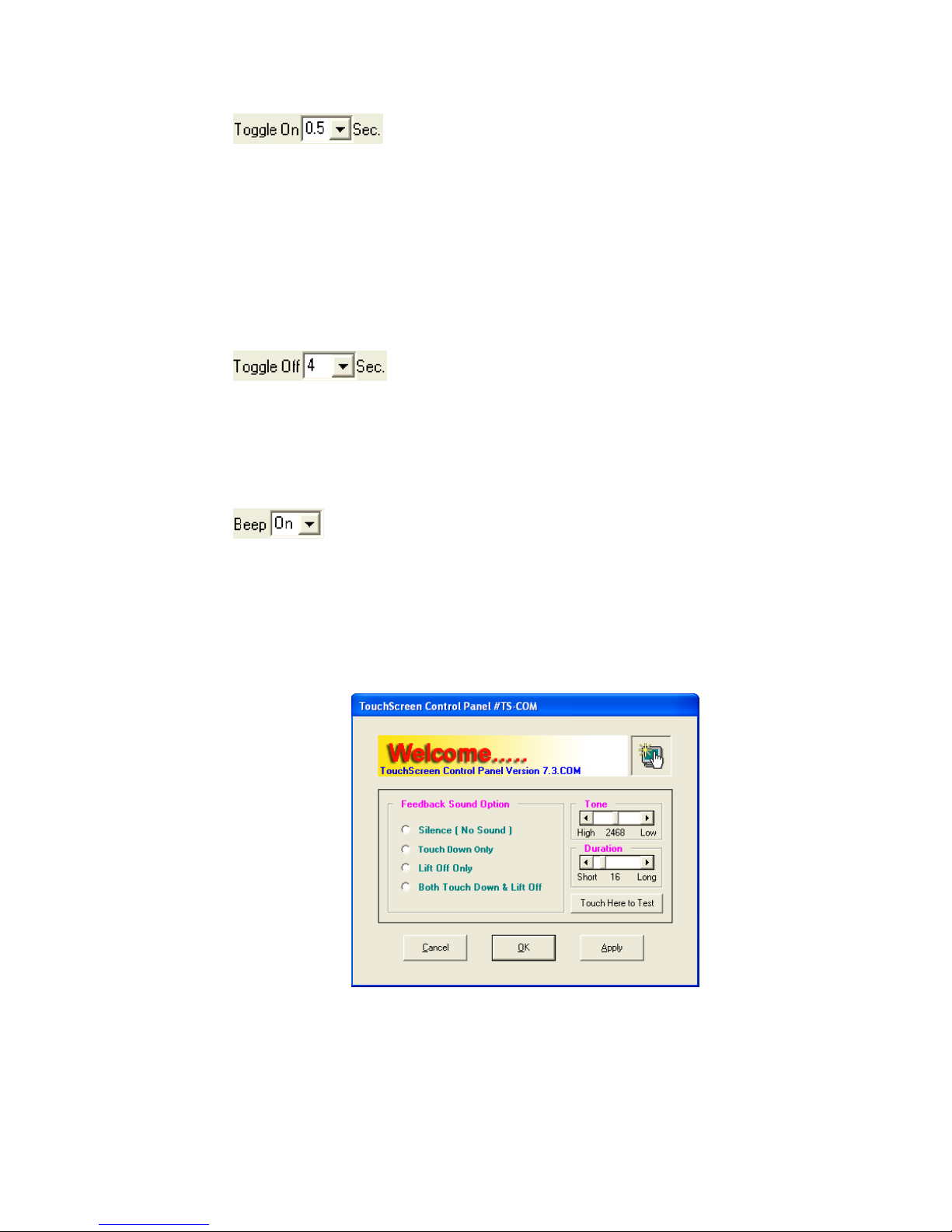

Toggle On time is the duration between the tapping on the screen and that
the right mouse button is “virtually” pressed and held.
Release the tapping from screen after toggle-on, the pop-up menu shows.
The minimize value is 0.5 and maximum value is 5.
This option defines how long the right button function will be off.
The minimize value is 0.5 and maximum value is 5.
Click the drop-down menu to select On or Off to enable or disable the beep
sound effect for toggle-on and toggle off.
5.5. Feedback Sound
Click Feedback Sound button, the dialogue box shows:
Feedback Sound Option
Silence (No Sound)
Chapter 5
22
Page 28
No any sound effect.
Touch Down Only
When this option is selected, there will be one “beep” sound when
tapping on the screen.
Lift Off Only
When this option is selected, there will be one “beep” sound when
releasing from the screen.
Both Touch Down & Lift Off
When this option is selected, there will be one “beep” sound when
tapping on the screen and releasing from the screen.
Tone
Drag the bar to adjust the frequency of the sound effect.
The minimize value is 200 and maximum value is 5000.
Duration
Drag the bar to adjust how long the “Beep” sound will be.
The minimize value is 10 and maximum value is 50.
The selected option will be in black.
5.6. Screen Calibration
1. Click the drop menu next to the Calibration button to select calibration
mode.
4 points, mode 1 – rectangular four-point calibration
4 points, mode 2 – rhombic four-point calibration
2. Click Calibration button to enter the calibration screen.
Chapter 5
23
Page 29

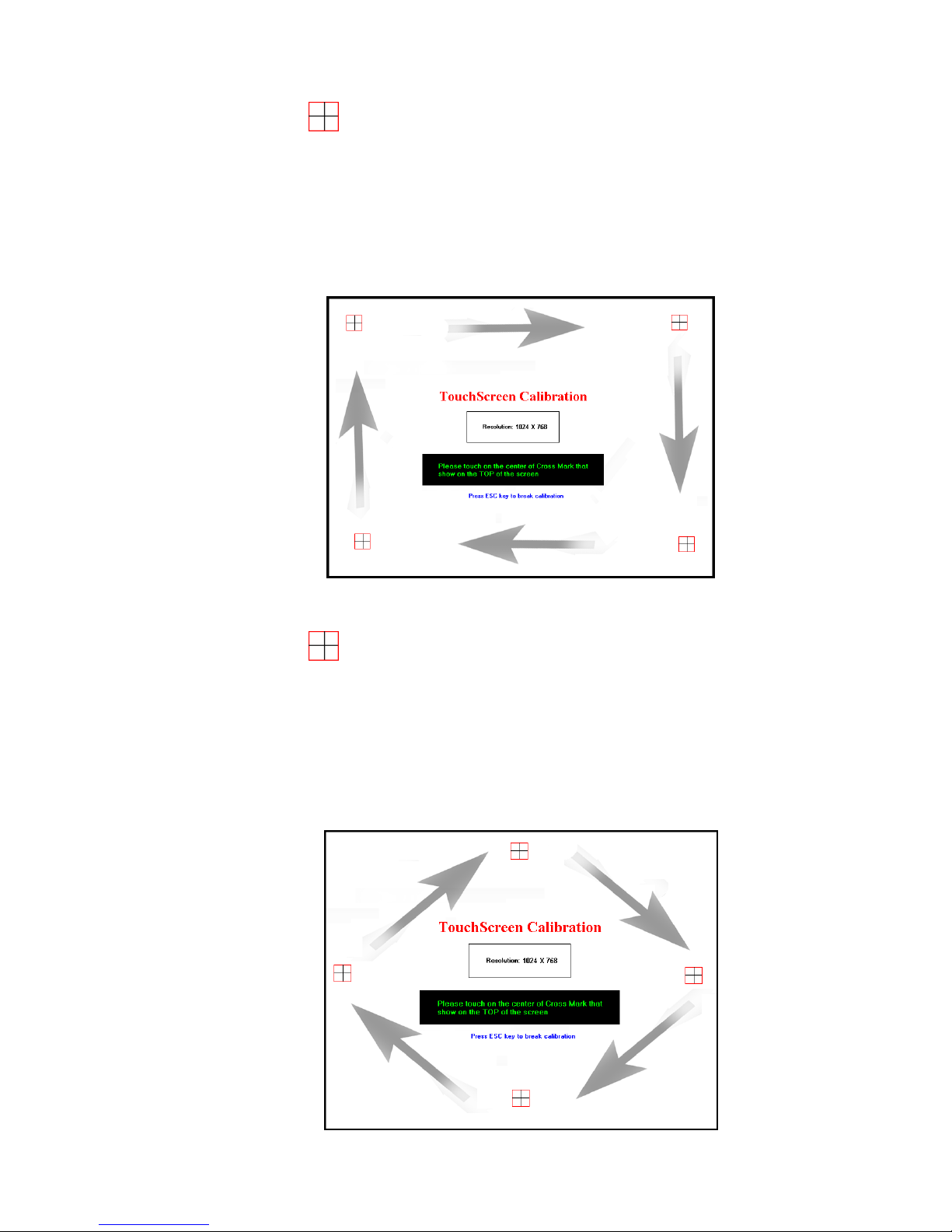

4 points, mode 1
a. The mark shows on the Left-up corner.
b. Follow the instruction in green to touch the center of Cross Mark.
c. When the instruction turns into yellow, releasing the tapping from the
screen.
d. Follow the instruction in green to touch the center of Cross Mark.
e. Repeat Step 2 – Step4 to finish the calibration procedure.
4 points, mode 2
a. The mark shows in the middle of the length of the screen.
b. Follow the instruction in green to touch the center of Cross Mark.
c. When the instruction turns into yellow, releasing the tapping from the
screen.
d. Follow the instruction in green to touch the center of Cross Mark.
e. Repeat Step 2 – Step4 to finish the calibration procedure.
Chapter 5
24
Page 30

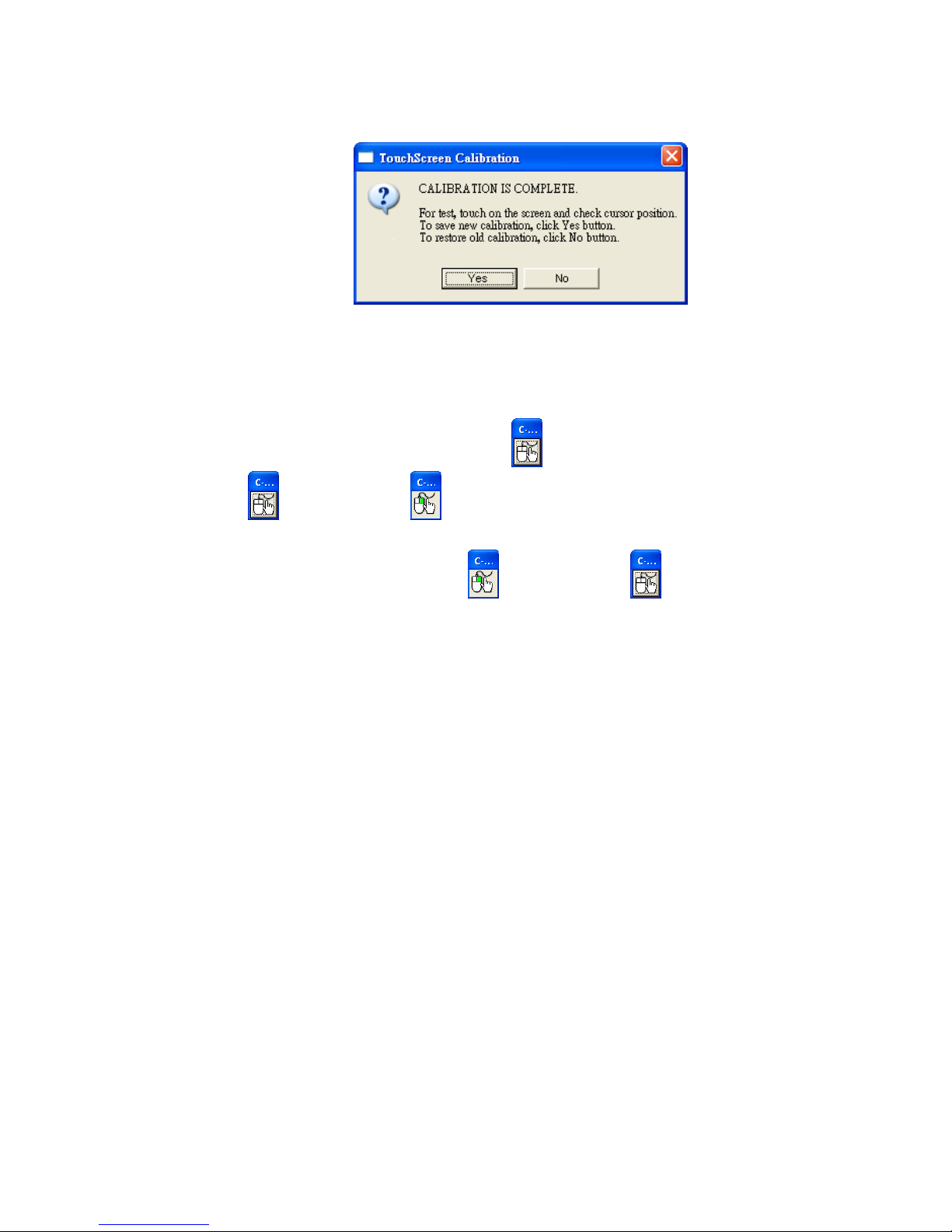

3. When the calibration procedure is completed, the message shows:
To save the new calibration, click Yes, to restore the old calibration, click No.
How to Use Event Selector
1. On the desktop of Windows, click icon.
2. icon change to .
3. Now the tapping is simulating right mouse button clicking.
4. After one tap on the screen, icon change to .
5. The tapping resumes to left mouse button clicking.
Chapter 5
25
Page 31
6.
6. I/O Definition
Please refer the detailed technical information about all I/O ports as followings.
6.1. Power Connector
PIN Description PIN Description
1 +19V 3 GROUND
2 +19V 4 GROUND
6.2. Serial Port
COM Port 1/2/3/4
PIN Description PIN Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4
DTR
9
RI / 5V /12V
5
GND
10
NC
Chapter 6
26
Page 32

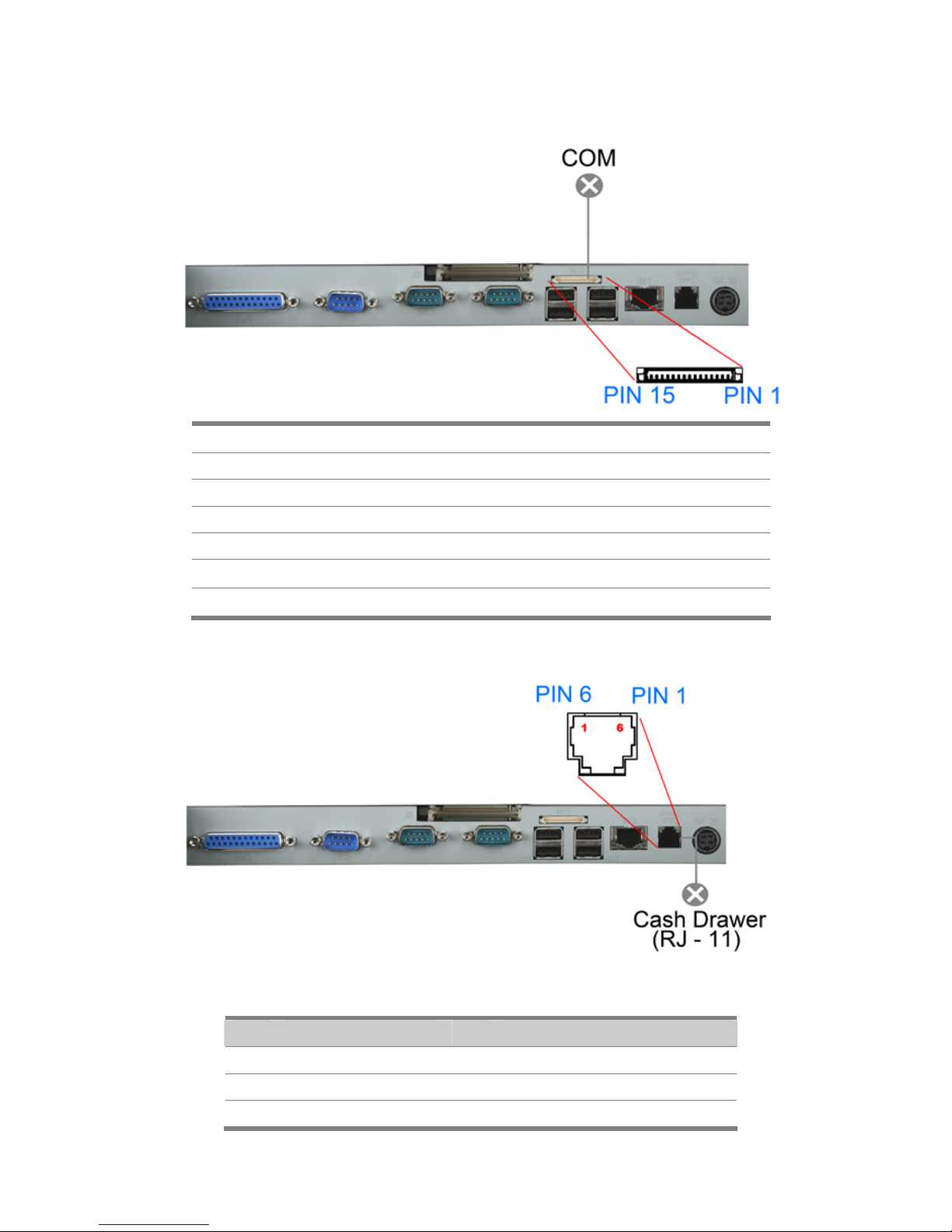

6.3. COM Port
PS2/COM
PIN
Description
PIN Description PIN Description
1
GND
6 N.C 11 CTS
2
+5V
7 N.C 12 RTS
3
RXD
8 N.C 13 DSR
4
TXD
9 RI / 5V /12V 14
DCD
5
N.C
10 DTR 15 N.C
6.4. Cash Drawer
Connector
PIN Description PIN Description
1 GND 4 12V
-+2 D_OUT 5 NC
3 D_IN 6 GND
Chapter 6
27
Page 33
Cash Drawer Control
Status Address Value
Open 280H Bit 4 = 0
Close 280H Bit 4 = 1
Read Status 281H Bit 0 = 0/1
Chapter 6
28
Page 34
7.
7. Specification
Chapter 8
29
Page 35
Main Board
CPU
Intel
®
Ultra Low Voltage Celeron M 1GHz w/o L2 cache
Chipset
Intel 852GM + ICH4
System Memory
SO-DIMM DDR266, 128MB up to 1GB
Thermal Solution
Fan-less
OS
Microsoft Windows XP Professional, XPE, WEPOS, Windows CE, Linux
Storage Device
HDD
1 x SA TA , 2.5" HDD Drive Bay
Compact Flash
1 x Slot, T ype II
I/O Ports
Serial
6 x RS-232
COM2/3: RS-232, DB-9, male, Pin9 w/ RI/5V/12V Selectable by BIOS
COM4: Internal Pin Header for MSR
COM5: 15Pin Header or DB9
COM6: Internal for Touch Panel
Parallel
1 x DB25 ECP/EPP/SPP
USB
4 x USB 2.0
LAN
1 x RJ45, Gigabit Ethernet
Cash Drawer
1 x RJ11 (12V)
Audio
AC’97 2.0 Compliant, 2W Speaker x 2
Expansion
1 x Mini PCI, optional wireless LAN module
Others
Power Supply
External Adapter, 135W, 19VDC input
Color
Black
Material
Die-Casting Aluminum
Compliance
FCC / CE / WEEE / RoHS
Weight
Approx. PPC:6Kg / POS:7.5Kg

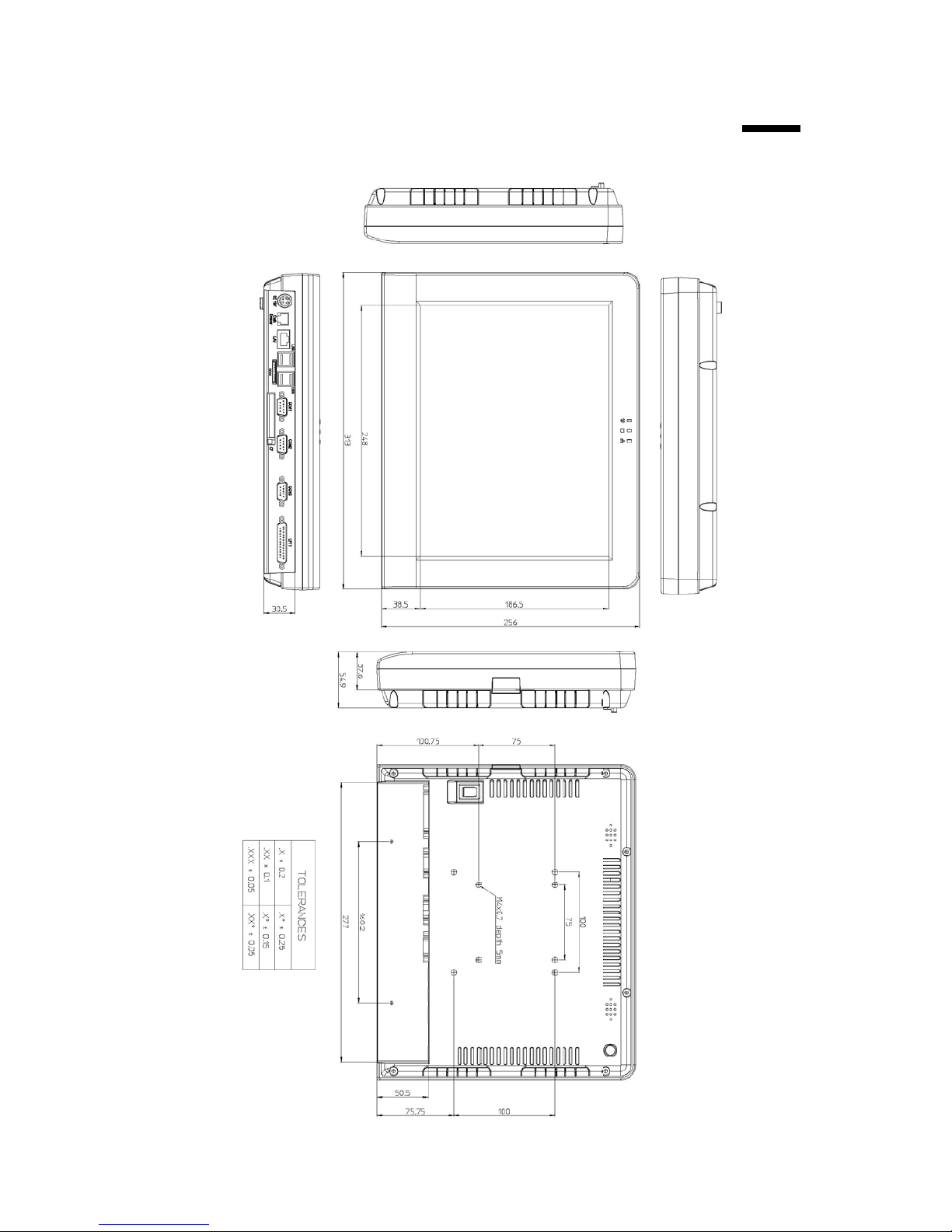

Dimension
256(W) x 55(D) x 313(H) mm
Operation Temperature
5
o
~ 40oC,
Storage Temperature
-20
o
~ 60 oC,
Storage Humidity
20 – 85% RH, non-condensing
Chapter 8
30
Loading...
