EBM Papst W2S130-BM03-01 Operating instructions

W2S130-BM03-01

Operating instructions

ebm-papst Mulfingen GmbH & Co. KG

Bachmühle 2
D-74673 Mulfingen
Phone [phone]
Fax [phone]
[e-mail]
www.ebmpapst.com

CONTENTS

1. SAFETY REGULATIONS AND NOTES

Please read these operating instructions carefully before starting to work
with the device. Observe the following warnings to prevent malfunctions
or physical damage to both property and people.
These operating instructions are to be regarded as part of this device.
If the device is sold or transferred, the operating instructions must
accompany it.
These operating instructions may be duplicated and forwarded for
information about potential dangers and their prevention.

11. SAFETY REGULATIONS AND NOTES

11.1 Levels of hazard warnings

11.2 Staff qualification

11.3 Basic safety rules

11.4 Electrical voltage

21.5 Safety and protective functions

21.6 Mechanical movement

21.7 Emission

21.8 Hot surface

21.9 Transport

21.10 Storage

32. PROPER USE

43. TECHNICAL DATA

43.1 Product drawing

53.2 Nominal data

53.3 Technical features

53.4 Mounting data

53.5 Transport and storage conditions

1.1 Levels of hazard warnings

These operating instructions use the following hazard levels to indicate
potentially hazardous situations and important safety regulations:

DANGER

Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury. Compliance with
the measures is mandatory.

WARNING

Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury. Exercise extreme
caution while working.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury or damage of property.

NOTE

A potentially harmful situation can occur and, if not avoided, can
lead to property damage.

CAUSES AND REMEDIES

Translation of the original operating instructions

64. CONNECTION AND START-UP

64.1 Connecting the mechanical system

64.2 Connecting the electrical system

74.3 Connection of the cables

84.4 Connection screen

94.5 Checking the connections

94.6 Switch on device

94.7 Switching off the device

95. MAINTENANCE, MALFUNCTIONS, POSSIBLE

105.1 Cleaning

105.2 Safety test

105.3 Disposal

1.2 Staff qualification

The device may only be transported, unpacked, installed, operated,
maintained and otherwise used by qualified, trained and authorised
technical staff.
Only authorised specialists are permitted to install the device, to carry
out a test run and to perform work on the electrical installation.

1.3 Basic safety rules

Any safety hazards stemming from the device must be re-evaluated
once it is installed in the end device.
The local industrial safety regulations must always be observed when
working on the device.
Keep the workplace clean and tidy. Untidiness in the working area
increases the risk of injury.
Observe the following when working on the unit:

; Do not make any modifications, additions or conversions to the

device without the approval of ebm-papst.

1.4 Electrical voltage

; Check the electrical equipment of the device at regular intervals, refer

to chapter 5.2 Safety test.

; Replace loose connections and defective cables immediately.

DANGER
Electrical load on the device

Risk of electric shock

→ Stand on a rubber mat if you are working on an electrically

charged device.

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 1 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

Operating instructions

WARNING
Terminals and connections have voltage even with a
unit that is shut off

Electric shock

→ Wait five minutes after disconnecting the voltage at all poles

before opening the device.

CAUTION
In the event of failure, there is electric voltage at the
rotor and impeller

The rotor and impeller are base insulated.

→ Do not touch the rotor and impeller once they are installed.

CAUTION
The motor restarts automatically when operating voltage
is applied, e.g. after a power failure.

Danger of injury

→ Keep out of the danger zone of the device.

→ When working on the device, switch off the mains

supply voltage and secure the latter from being switched on
again.

→ Wait until the device stops.

1.5 Safety and protective functions

DANGER
Protective device missing and protective device not
functioning

Without a protective device there is a risk of serious injury, for
instance when reaching into the device during operation.

→ Operate the device only with a fixed protective device and

guard grille.

→ The fixed protective device must be able to withstand the

kinetic energy of a fan blade that becomes detached at
maximum speed. There must not be any gaps which it is
possible to reach into with the fingers, for example.

→ The device is a built-in component. As the operator, you

are responsible for ensuring that the device is secured
adequately.

→ Stop the device immediately if a protective device is

found to be missing or ineffective.

1.7 Emission

WARNING
Depending on the installation and operating conditions,
a sound pressure level greater than 70 dB(A) may arise.

Danger of noise-induced hearing loss

→ Take appropriate technical safety measures.

→ Protect operating personnel with appropriate safety

equipment, e.g. hearing protection.

→ Also observe the requirements of local agencies.

1.8 Hot surface

CAUTION
High temperature at the motor housing

Danger of burn injuries

→ Ensure that sufficient protection against accidental contact is

provided.

1.9 Transport

NOTE
Transport of device

→ Transport the device in its original packaging only.

→ Secure the device so that it does not slip, e.g. by using a

clamping strap.

1.10 Storage

; Store the device, partially or fully assembled, in the original

packaging in a clean, dry and weatherproof place free of vibrations.

; Protect the device against environmental effects and dirt until final

installation.

; We recommend storing the device for no longer than one year in

order to guarantee trouble-free operation and longest possible service
life.

; Even devices explicitly intended for outdoor use are to be stored as

described prior to commissioning.

; Maintain the storage temperature, see

chapter 3.5 Transport and storage conditions.

1.6 Mechanical movement

DANGER
Rotating device

Body parts that come into contact with the rotor and impeller
can be injured.

→ Secure the device against accidental contact.

→ Before working on the system/machine, wait until all

parts have come to a standstill.

WARNING
Rotating device

Translation of the original operating instructions

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 2 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

Long hair, dangling items of clothing, jewellery and similar items
can become entangled and be pulled into the device. Risk of
injury.

→ Do not wear any loose-fitting or dangling clothing or jewellery

while working on rotating parts.

→ Protect long hair with a cap.

W2S130-BM03-01

Operating instructions

2. PROPER USE

The device is exclusively designed as a built-in device for conveying
air according to its technical data.
Any other usage above and beyond this does not conform with the
intended purpose and constitutes misuse of the device.
Customer equipment must be capable of withstanding the mechanical
and thermal stresses that can arise from this product. This applies for the
entire service life of the equipment in which this product is installed.

Proper use also includes:

● Conveying of air at an ambient air pressure of 800 mbar to 1050 mbar.

● Using the device in accordance with the permitted ambient

temperature, see chapter 3.5 Transport and storage conditions and
chapter 3.2 Nominal data.

● Operating the device with all protective features in place.

● Minding the operating instructions.

Improper use

Using the device in the following ways is particularly prohibited and
may cause hazards:

● Operating the device with an imbalance, e.g. caused by dirt deposits

or icing.

● Resonance mode, operation with heavy vibrations. These also

include vibrations that are transmitted from the customer system to the
fan.

● Operation in medical equipment with a life-sustaining or lifesaving

function.

● Moving solids content in flow medium.

● Painting the device

● Connections (e.g. screws) coming loose during operation.

● Moving air that contains abrasive particles.

● Moving highly corrosive air, e.g. salt spray mist. Exceptions are

devices that are intended for salt spray mist and protected accordingly.

● Moving air that contains dust pollution, e.g. suctioning off saw dust.

● Operating the device close to flammable materials or components.

● Operating the device in an explosive atmosphere.

● Using the device as a safety component or for taking on safety-

related functions.

● Operation with completely or partially disassembled or modified

protective features.

● In addition, all application options that are not listed under proper use.

Translation of the original operating instructions

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 3 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

3. TECHNICAL DATA

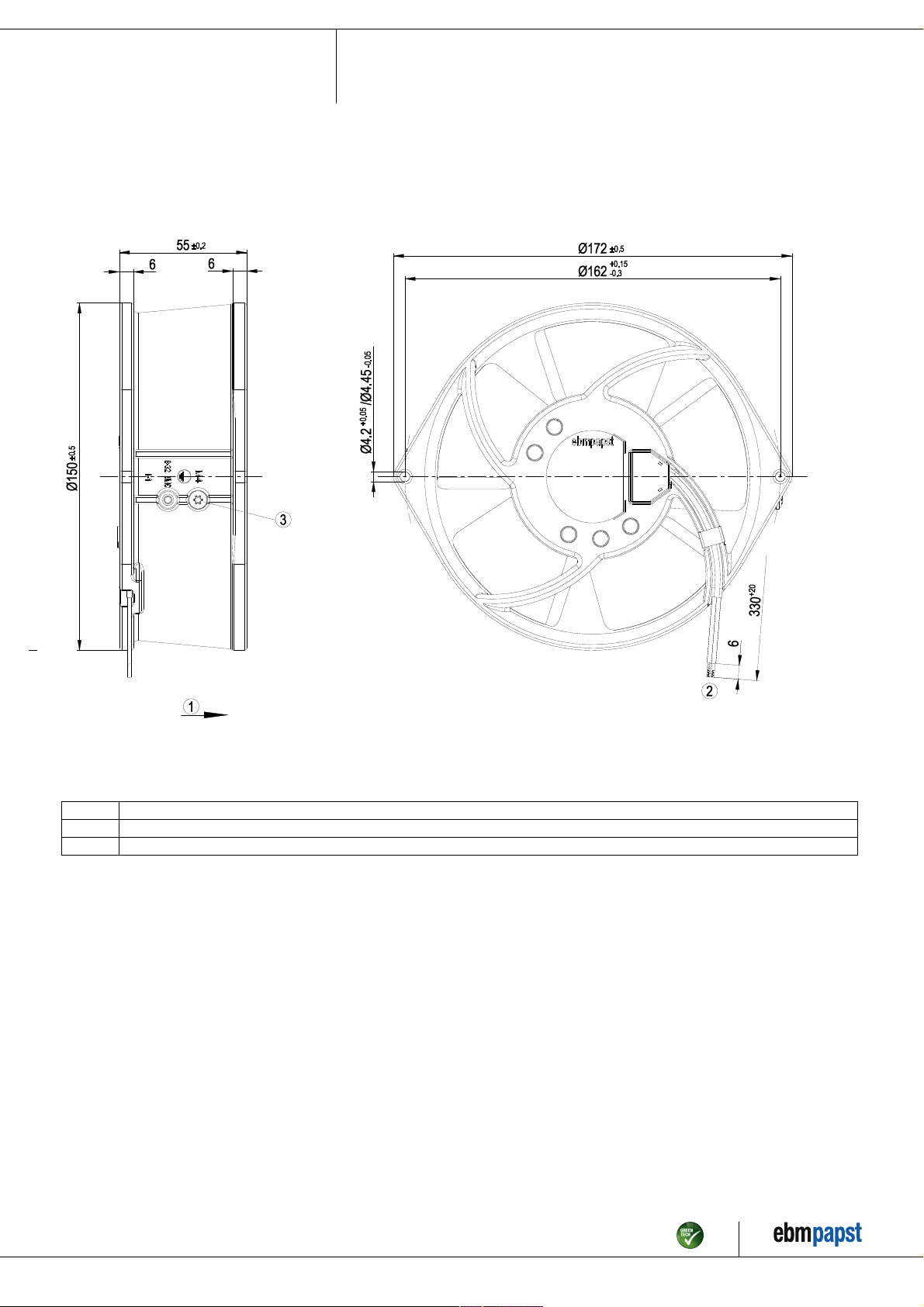

3.1 Product drawing

Operating instructions

All measures have the unit mm.

1 Direction of air flow "A"
2 Connection line AWG20, 2x brass lead tips crimped
3 M4 screw for fastening earth conductor

Translation of the original operating instructions

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 4 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

Operating instructions

3.2 Nominal data

Motor M2S052-CA

Phase 1~ 1~
Nominal voltage / VAC 230 230
Frequency / Hz 50 60

Type of data definition fa fa
Valid for approval /
standard
Speed (rpm) / min
Power input / W 47 46
Current draw / A 0.31 0.27
Min. ambient
temperature / °C
Max. ambient
temperature / °C
Starting current / A 0.45 0.40

ml = Max. load · me = Max. efficiency · fa = Running at free air
cs = Customer specs · cu = Customer unit

Subject to alterations

-1

CE CE

2700 3050

-25 -25

50 70

3.3 Technical features

Mass 1.1 kg
Size 130 mm
Motor size 52
Surface of rotor Coated in black
Material of blades Sheet steel, coated in black
Housing material Die-cast aluminum, coated in black
Number of blades 5
Direction of air flow A
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP20
Insulation class "B"
Humidity (F) /
environmental
protection class (H)
Mounting position Any
Condensation
drainage holes
Operation mode S1
Motor bearing Ball bearing
Touch current acc.
IEC 60990 (measuring
network Fig. 4, TN
system)
Motor protection Thermal overload protector (TOP) wired

Protection class I (if protective earth is connected by

Product conforming
to standard

Translation of the original operating instructions

Approval VDE; CSA C22.2 no. 113; CCC;

H0+

None, open rotor

< 0.75 mA

internally

customer)
EN 60335-1; CE

EAC; UL 507

For cyclic speed loads, note that the rotating parts of the device
are designed for maximum one million load cycles. If you have
specific questions, contact ebm-papst for support.

; Use the device in accordance with its protection type.

Notes on surface quality

The surfaces of the products conform to the generally applicable industrial
standard. The surface quality may vary during the production period.
Strength, dimensional stability and dimensional accuracy are not affected
by this.
The colour pigments of the paints used react perceptibly to UV light over
the course of time. This does not however have any influence on the
technical properties of the products. To prevent the formation of patches
and fading, the product is to be protected against UV radiation. Changes
in colour are not a reason for complaint and are not covered by the
warranty.

3.4 Mounting data

; Secure the mounting screws against accidentally coming loose (e.g.

by using self-locking screws).

For depth of screw, see chapter 3.1 Product drawing

Strength class for
mounting screws

Any further mounting data required can be taken from the product
drawing or Section chapter 4.1 Connecting the mechanical system.

8.8

3.5 Transport and storage conditions

Max. permissible
ambient motor temp.
(transp./ storage)
Min. permissible
ambient motor temp.
(transp./storage)

+ 80 °C

- 40 °C

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 5 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

Operating instructions

4. CONNECTION AND START-UP

4.1 Connecting the mechanical system

CAUTION
Cutting and crushing hazard when removing the device
from the packaging

Blades can be bent

→ Carefully remove the device from its packaging, only

touching the wall ring. Make sure to avoid any shock.

→ Wear safety shoes and cut-resistant safety gloves.

NOTE
Damage to device from vibration

Bearing damage, reduced service life

→ Forces or impermissibly high vibration levels must not be

transmitted to the fan from system components.

→ If the fan is connected to air ducts, it should isolated from

vibrations, for example using compensators or similar
elements.

→ Fasten the fan to the substructure without distorting it.

; Check the device for transport damage. Damaged devices must no

longer be installed.

; Install the undamaged device according to your application.

CAUTION
Possibility of damage to the device

Serious damage may result if the device slips during assembly.

→ Keep the device fixed in position at the installation location

until all attachment screws have been tightened.

● The fan must not be strained on fastening.

4.2 Connecting the electrical system

DANGER
Electric voltage on the device

Electric shock

→ Always install a protective earth first.

→ Check the protective earth.

DANGER
Incorrect insulation

Risk of fatal injury from electric shock

→ Use only cables that meet the specified installation

requirements for voltage, current, insulation material, load etc.

→ Route cables such that they cannot be touched by any

rotating parts.

CAUTION
Electrical voltage

The fan is a built-in component and features no electrically
isolating switch.

→ Only connect the fan to circuits that can be switched off with

Translation of the original operating instructions

an all-pole separating switch.

→ When working on the fan, you must switch off the

installation/machine in which the fan is installed and secure it
from being switched on again.

NOTE
Water penetration into leads or wires

Water enters at the cable end on the customers side and can
damage the device.

→ Make sure that the cable end is connected in a dry

environment.

Connect the device only to circuits that can be switched off
using an all-pole disconnecting switch.

4.2.1 Prerequisites

; Check that the data on the type plate match the connection data.

; Before connecting the device, ensure that the supply voltage matches

the operating voltage of the device.

; Only use cables designed for current according to the type plate.

For determining the cross-section, follow the basic principles in
accordance with EN 61800-5-1. The protective earth must have a
cross-section equal to or greater than the outer conductor cross­section.
We recommend the use of 105°C cables. Ensure that the minimum
cable cross-section is at least
AWG26/0.13 mm².

Protective earth contact resistance as per EN 60335

Compliance with the resistance specifications as per EN 60335 for the
protective earth connection circuit must be verified in the application.
Depending on the installation situation, it may be necessary to connect
an additional protective earth conductor by way of the extra protective
earth terminal provided on the device.

4.2.2 Voltage control

NOTE

Excessive current may occur with speed control using
transformers or electronic voltage regulators (e.g. phase angle
control). In addition, depending on how the unit is installed,
noise and vibration can occur with phase angle control.
Vibrations can lead to bearing damage, which can lead to
premature failure.

4.2.3 Frequency inverter

Please use a frequency converter only after consultation with ebm-papst.

For operation with frequency converters, fit sinusoidal filters that
work on all poles (phase-phase and phase-earth) between the
frequency converter and the motor.
During operation with frequency converters, an all-pole sine
filter protects the motor against high-voltage transients that can
destroy the winding insulation system, and against harmful
bearing currents.

Heating-up of the motor when using a frequency converter must be
checked by the customer following installation in the end device.

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 6 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

4.3 Connection of the cables

External leads are brought out of device.

● Connect the lines according to your application. When doing so,

observe chapter 4.4 Connection screen.

Operating instructions

Translation of the original operating instructions

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 7 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

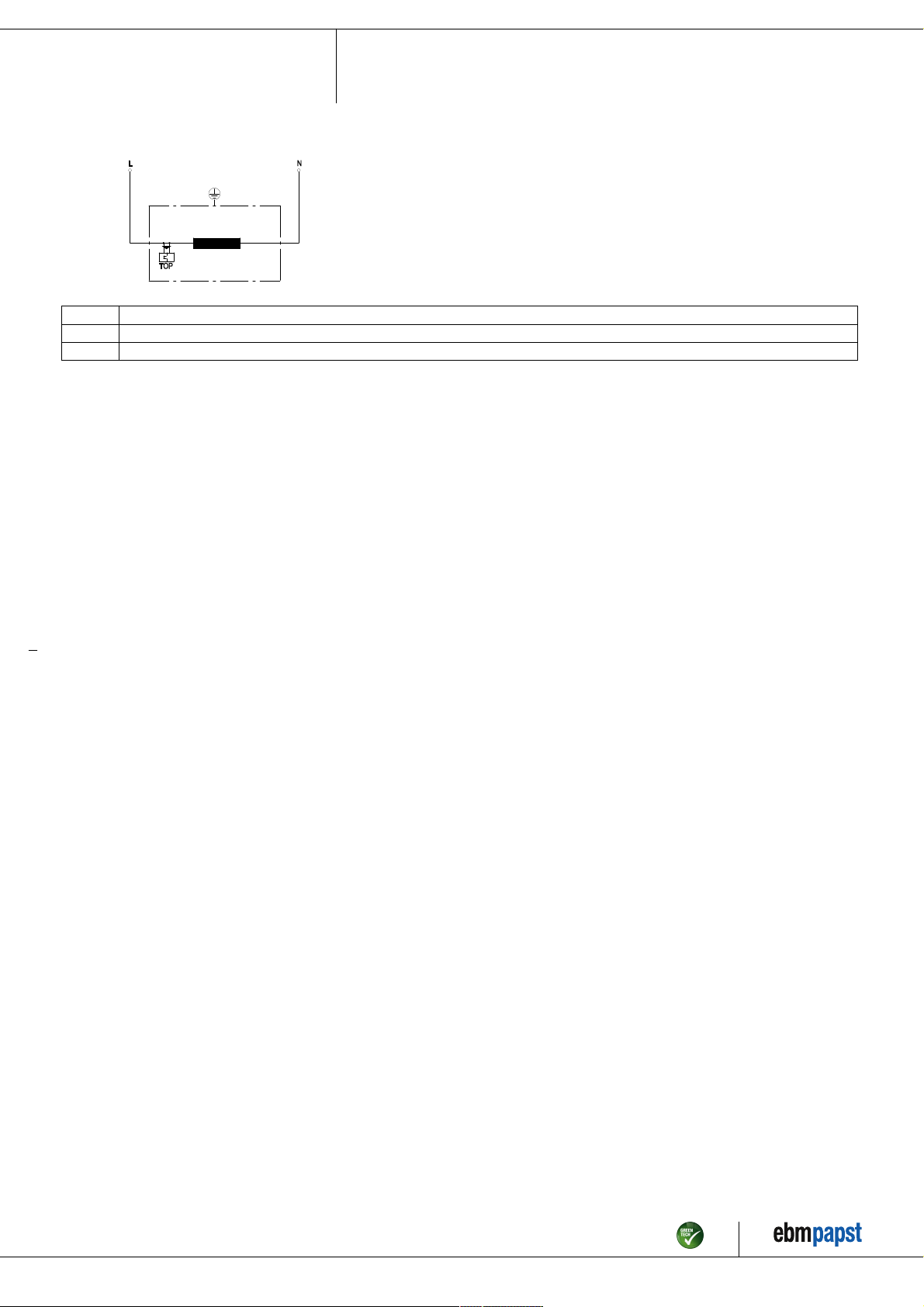

4.4 Connection screen

L = black
N = black
TOP = Thermal overload protector

Operating instructions

Translation of the original operating instructions

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 8 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

Operating instructions

4.5 Checking the connections

; Make sure that the power is off (all phases).

; Secure it from being switched on again.

; Check the correct fit of the connection lines.

4.6 Switch on device

The device is not to be switched on until it has been installed properly
and in accordance with its intended use, including the required protective
devices and professional electrical connection. This also applies to
devices which have already been equipped with plugs and terminals or
similar connectors by the customer.

WARNING
Hot motor housing

Fire hazard

→ Ensure that no combustible or flammable materials are

located close to the fan.

; Inspect the device for visible external damage and the proper function

of the protective features before switching it on.

; Check the air flow paths of the fan for foreign objects and remove any

that are found.

; Apply the nominal voltage to the voltage supply.

NOTE
Damage to device by vibrations

Bearing damage, reduced service life

→ The fan must operate free of vibrations throughout its speed

control range.

→ Strong vibrations can result from improper handling,

imbalance resulting from damage during transport, or
component-induced or structural resonances.

→ When putting the fan into service, determine the speed

ranges with excessive vibration levels and also any
resonance frequencies that may be present.

→ When regulating the speed, pass through resonance

ranges as quickly as possible or find another remedy.

→ Operation at excessive vibration levels can lead to

premature failure.

4.7 Switching off the device

; Disconnect the device from the supply voltage at the main switch for

the supply line.

Translation of the original operating instructions

5. MAINTENANCE, MALFUNCTIONS, POSSIBLE
CAUSES AND REMEDIES

Do not perform any repairs on your device. Return the device to ebm­papst for repair or replacement.

WARNING
Terminals and connections have voltage even with a
unit that is shut off

Electric shock

→ Wait five minutes after disconnecting the voltage at all poles

before opening the device.

CAUTION
The motor restarts automatically when operating voltage
is applied, e.g. after a power failure.

Danger of injury

→ Keep out of the danger zone of the device.

→ When working on the device, switch off the mains

supply voltage and secure the latter from being switched on
again.

→ Wait until the device stops.

NOTE

If the device is not operated for a lengthy period in installed
condition in a dry environment, it is to be started up and
operated at full speed for one hour at least every four months. If
the device is not operated for a lengthy period in installed
condition in a damp environment (e.g. outdoors), it is to be
started up and operated at full speed for at least two hours once
a month to move the bearings and allow any condensate that
may have ingressed to evaporate.

Malfunction/error Possible cause Possible remedy
Impeller running
roughly

Motor does not turn Mechanical blockage Switch off, de-

Overtemperature of
motor

Imbalance in rotating
parts

Mains supply voltage
faulty

Faulty connection De-energise, correct

Thermal overload
protector responded

Unacceptable
operating point
Ambient temperature
too high

Clean the device; if
imbalance is still
evident after cleaning,
replace the device.
If you have
attached any weight
clips during cleaning,
make sure to remove
them afterwards.

energise, and
remove mechanical
blockage.
Check mains supply
voltage,
restore power
supply.

connection, see
connection diagram.
Allow motor to cool
off, locate and rectify
cause of error, if
necessary cancel
restart lock-out
Check operating point

Lower ambient
temperature if possible

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 9 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com

W2S130-BM03-01

Operating instructions

Insufficient cooling Improve cooling

If you have any other problems, contact ebm-papst.

5.1 Cleaning

NOTE
Damage to the device during cleaning

Malfunction possible

→ Do not clean the device using a water jet or high-pressure

cleaner.

→ Do not use any acid, alkali or solvent-basedcleaning

agents.

→ Do not use any pointed or sharp-edged objects for cleaning

5.2 Safety test

What has to
be tested?

Check the
protective
casing against
accidental
contact for
damage and to
ensure that it is
intact
Check the
device for
damage to
blades and
housing
Mounting the
connection lines
Check the
insulation of the
wires for damage
Weld seams for
crack formation
Abnormal
bearing noise

How to test? Frequency Which

measure?

Visual inspection At least every

6 months

Repair or
replacement of
the device

Visual inspection At least every

6 months

Visual inspection At least every

Replacement of
the device

Fasten

6 months

Visual inspection At least every

Replace wires

6 months

Visual inspection At least every

Replace device

6 months

acoustic At least every

Replace device

6 months

5.3 Disposal

For ebm-papst, environmental protection and resource preservation are
top priority corporate goals.
ebm-papst operates an environmental management system which is
certified in accordance with ISO 14001 and rigorously implemented
around the world on the basis of German standards.
Right from the development stage, ecological design, technical safety
and health protection are fixed criteria.
The following section contains recommendations for ecological disposal
of the product and its components.

Translation of the original operating instructions

5.3.1 Country-specific legal requirements

NOTE
Country-specific legal requirements

Always observe the applicable country-specific legal
regulations with regard to the disposal of products or waste
occurring in the various phases of the life cycle. The
corresponding disposal standards are also to be heeded.

5.3.2 Disassembly

Disassembly of the product must be performed or supervised by
qualified personnel with the appropriate technical knowledge.
The product is to be disassembled into suitable components for disposal
employing standard procedures for motors.

WARNING
Heavy parts of the product may drop off. Some of the
product components are heavy. These components
could drop off during disassembly.

This can result in fatal or serious injury and material damage.

→ Secure components before unfastening to stop them falling.

5.3.3 Component disposal

The products are mostly made of steel, copper, aluminium and plastic.
Metallic materials are generally considered to be fully recyclable.
Separate the components for recycling into the following categories:

● Steel and iron

● Aluminium

● Non-ferrous metal, e.g. motor windings

● Plastics, particularly with brominated flame retardants, in accordance

with marking

● Insulating materials

● Cables and wires

● Electronic scrap, e.g. circuit boards

Only ferrite magnets and not rare earth magnets are used in external
rotor motors from ebm-papst Mulfingen GmbH & Co. KG.

; Ferrite magnets can be disposed of in the same way as normal iron

and steel.

Electrical insulating materials on the product, in cables and wires are
made of similar materials and are therefore to be treated in the same
manner.
The materials concerned are as follows:

● Miscellaneous insulators used in the terminal box

● Power lines

● Cables for internal wiring

● Electrolytic capacitors

Dispose of electronic components employing the proper procedures for
electronic scrap.

→ Please contact ebm-papst for any other questions on disposal.

Item no. 10946-5-9970 · ENG · Revision 202174 · Release 2019-01-04 · Page 10 / 10

ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone [phone] · Fax [phone] · [e-mail] · www.ebmpapst.com
