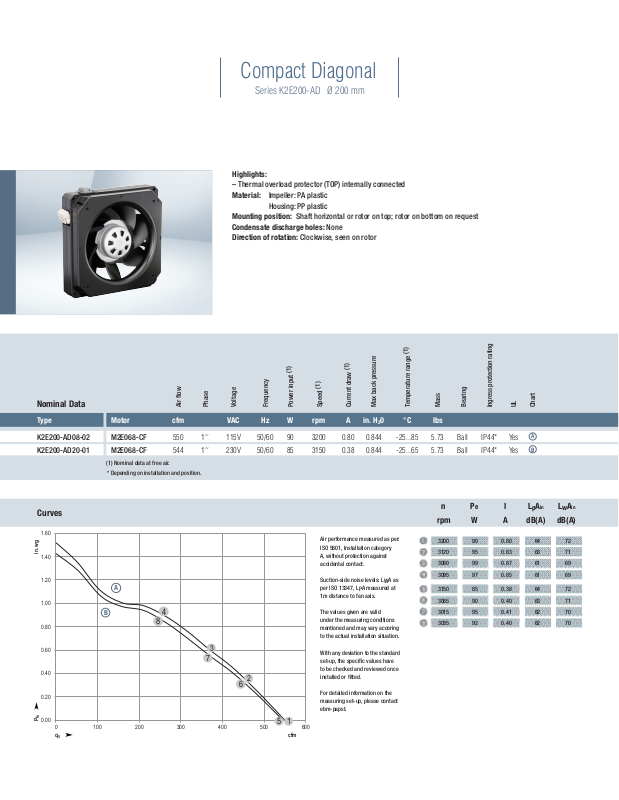

ebm-papst Series K2E200-AD Data Sheet

Compact Diagonal

0.00

0.20

0.40

0.60

0.80

1.00

1.20

1.40

1.60

0 100 200 300 400 500 600

q

V

cfm

p

fs

in. wg

1

2

3

5

6

7

4

8

Series K2E200-AD Ø 200 mm

Highlights:
– Thermal overload protector (TOP) internally connected
Material: Impeller: PA plastic
Housing: PP plastic

Mounting position: Shaft horizontal or rotor on top; rotor on bottom on request
Condensate discharge holes: None
Direction of rotation: Clockwise, seen on rotor

(1)

(1)

(1)

(1)

Nominal Data

Type Motor cfm VAC Hz W rpm A in. H20 °C lbs

K2E200-AD08-02 M2E068-CF 550 1

K2E200-AD20-01 M2E068-CF 544 1

(1) Nominal data at free air.

* Depending on installation and position.

Air flow

Phase

Voltage

~

115V 50/60 90 3200

~

230V 50/60 85 3150

Frequency

Power input

Speed

Current draw

0.80 0.844

0.38 0.844

Curves

Air performance measured as per:
ISO 5801, Installation category
A, without protection against
accidental contact.

Suction-side noise levels: LWA as

A

B

per ISO 13347, LPA measured at
1m distance to fan axis.

The values given are valid
under the measuring conditions
mentioned and may vary accoring
to the actual installation situation.

With any deviation to the standard
set-up, the specific values have
to be checked and reviewed once
installed or fitted.

For detailed information on the
measuring set-up, please contact
ebm-papst.

Max back pressure

Temperature range

Mass

Bearing

-25...85 5.73 Ball IP44* Yes

-25...65 5.73 Ball IP44* Yes

n

Pe

rpm

3200 90 0.80 64 72

3120 95 0.83 63 71

3080 99 0.87 61 69

3095 97 0.85 61 69

3150 85 0.38 64 72

3065 90 0.40 63 71

3015 95 0.41 62 70

3035 92 0.40 62 70

W

Ingress protection rating

I ALpAin

UL

Chart

A

B

dB(A)

LwAin

dB(A)

K2E200-ADXX-XX

Dimensions shown in millimeters

Connection screen

L black N blue PE green/yellow
