ebm-papst REF100-11/14 Data Sheet

REF 100-11/14

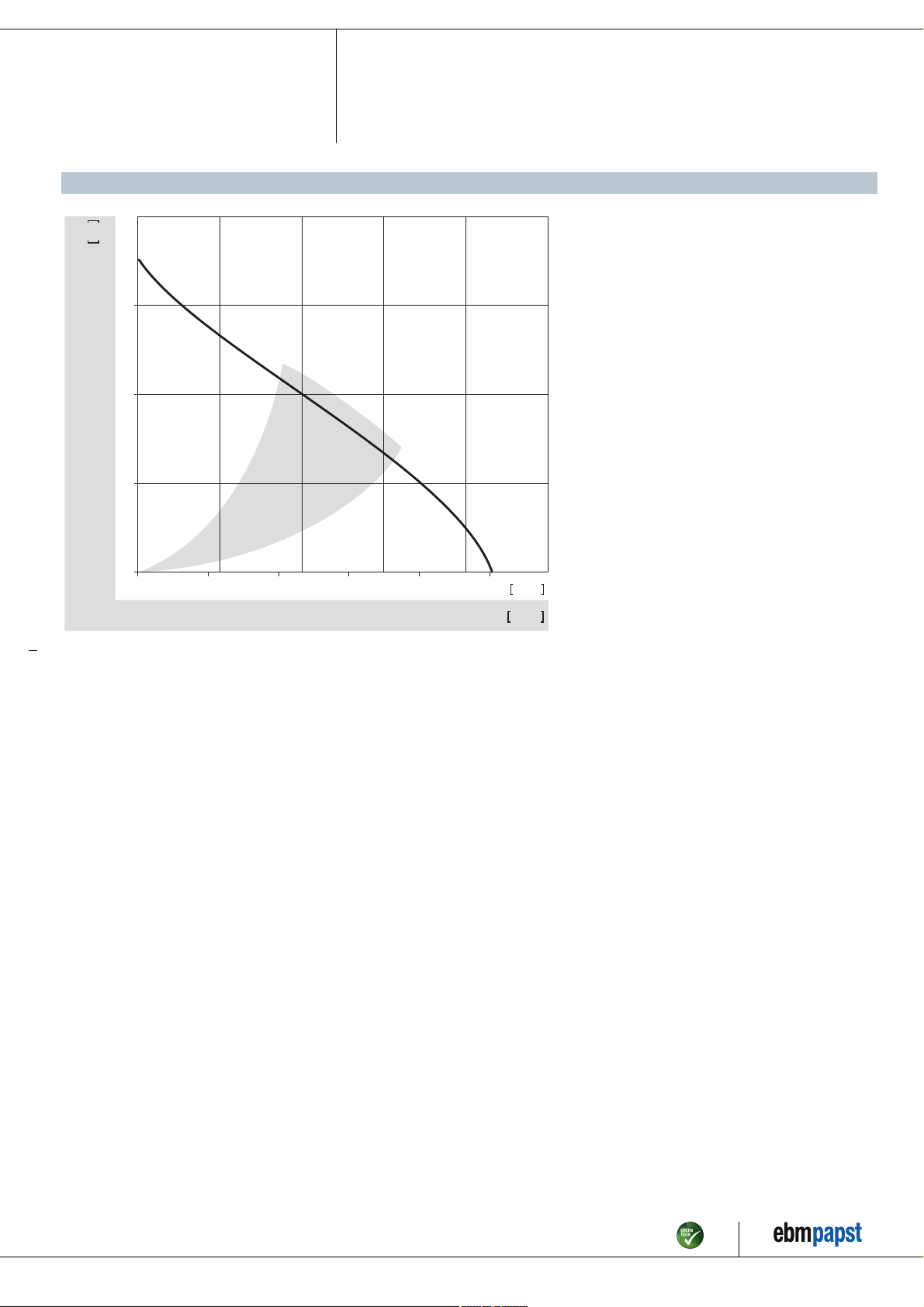

Nominal data

Type REF 100-11/14

Nominal voltage VDC 24

Nominal voltage range VDC 16 .. 30

DC centrifugal compact fan

single-intake

Speed (rpm) min-15400

Power consumption W 7.5

Min. ambient temperature °C -20

Max. ambient temperature °C 75

Air flow m3/h 86

Sound power level B 6.3

ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change

ENU (Web) · Approved 2016-06-22 · Page 1 / 4

· · · · · ·

REF 100-11/14

DC centrifugal compact fan

single-intake

Technical description

General description Backward-curved impeller

Weight 0.160 kg

Dimensions Ø 100 x 25 mm

Impeller material Glass-fiber reinforced plastic

Housing material Scroll housing made of glass-fiber reinforced plastic.

Airflow direction Axial intake, radial discharge from outlet.

Direction of rotation Clockwise, viewed toward rotor

Storage Ball bearing

Service life L10 at 40 °C 80000 h

Service life L10 at maximum
temperature

Cable With leads AWG 22, TR 64

Motor protection Protection against reverse polarity and blocked rotor.

Locked-rotor protection With electronic locked-rotor and overload protection.

Approval CE

Option Speed signal

30000 h
