R4E310-AO32-17
Nominal data
Type R4E310-AO32-17
Motor M4E074-DF
AC centrifugal fan
backward-curved, single-intake
ebm-papst Mulfingen GmbH & Co. KG
Phase 1~ 1~
Nominal voltage VAC 115 115
Frequency Hz 60 60
Method of obtaining data fa fa
Valid for approval/standard CE UL 1004-3
Speed (rpm) min-11720 1720
Power consumption W 155 185
Current draw A 1.5 1.8
Capacitor µF 16 16
Capacitor voltage VDB 220 220
Capacitor standard S0 (CE)
Min. back pressure Pa 0 0
Min. back pressure in. wg 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 65 65
ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change
Item no. 16398-5-9980 · ENU · Change 92090 · Approved 2018-05-07 · Page 1 / 5
R4E310-AO32-17
AC centrifugal fan
backward-curved, single-intake
Technical description
Weight 3.8 kg
Size 310 mm
Motor size 74
Rotor surface Painted black
Impeller material Sheet aluminum
Number of blades 6
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class "F"
Moisture (F) / Environmental (H)
protection class
Max. permitted ambient temp.
for motor (transport/storage)
Min. permitted ambient temp. for
motor (transport/storage)
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system)
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval UL 1004-3; CSA C22.2 No. 77
H1
+ 80 °C
- 40 °C
< 0.75 mA
Item no. 16398-5-9980 · ENU · Change 92090 · Approved 2018-05-07 · Page 2 / 5
R4E310-AO32-17

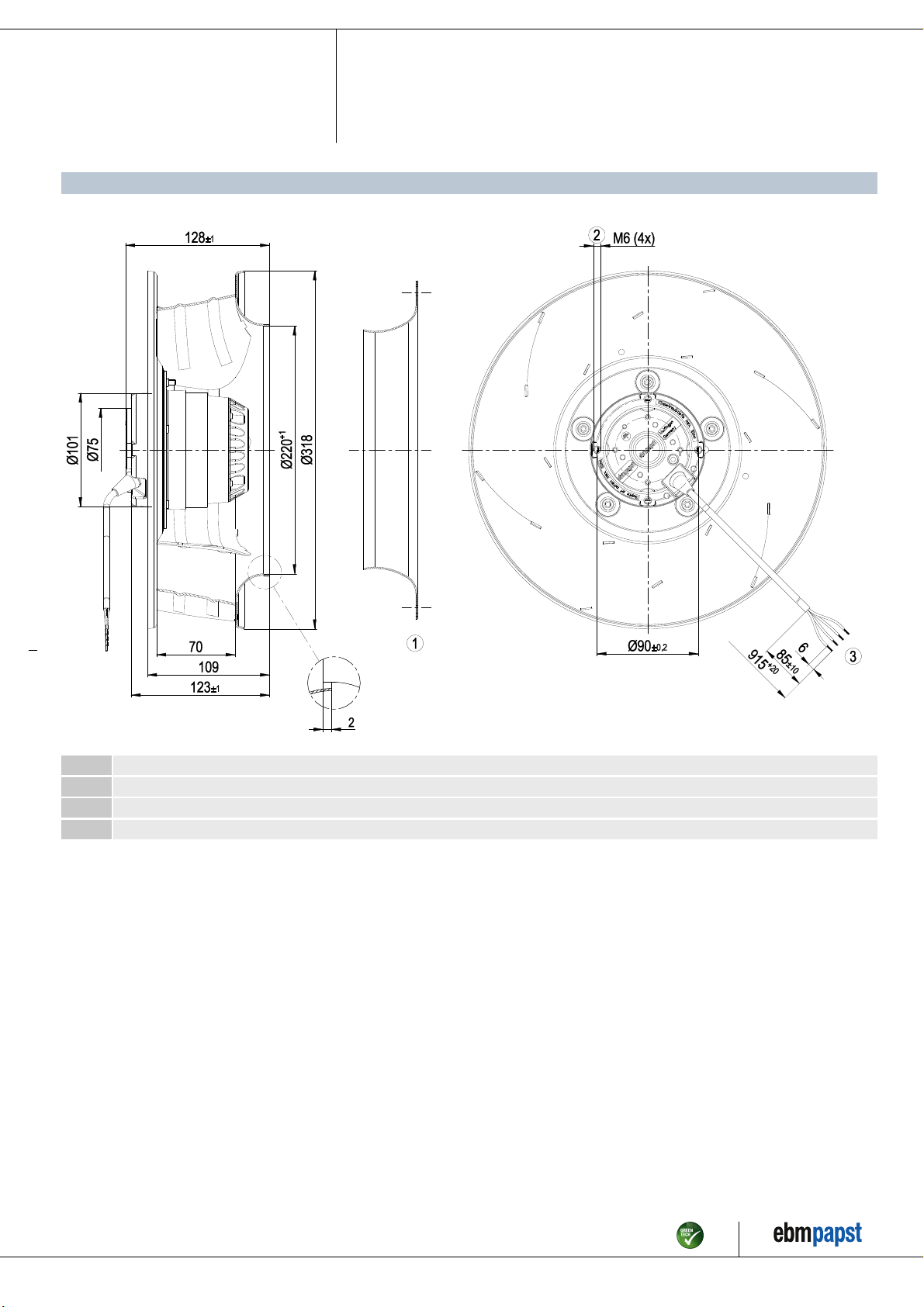

Product drawing
AC centrifugal fan
backward-curved, single-intake
1 Accessory part: inlet ring 31050-2-4013 not included in scope of delivery
2 Max. clearance for screw 10 mm
3 Cable PFA AWG20
4x splice
Item no. 16398-5-9980 · ENU · Change 92090 · Approved 2018-05-07 · Page 3 / 5
R4E310-AO32-17

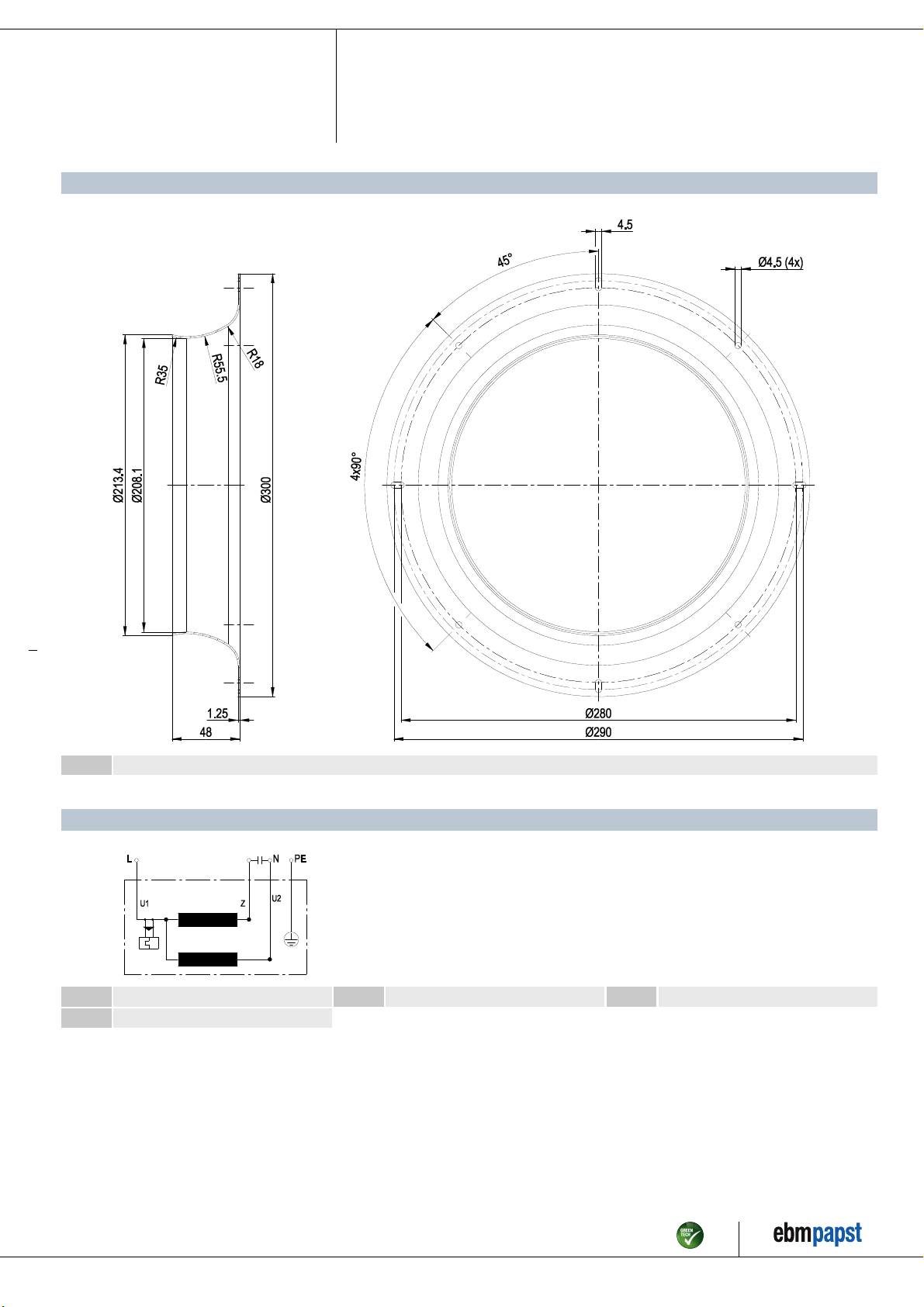

Accessory part
AC centrifugal fan
backward-curved, single-intake
inlet ring 31050-2-4013 not included in scope of delivery
Connection diagram
U1 blue Z brown U2 black
PE green/yellow
Item no. 16398-5-9980 · ENU · Change 92090 · Approved 2018-05-07 · Page 4 / 5
R4E310-AO32-17
qv m³/h
cfm
pfs Pa
in. wg
500 1000 1500
0 200 400 600 800 1000
100
200
300
400
0.4 0.8 1.2 1.6
1
2
3
4

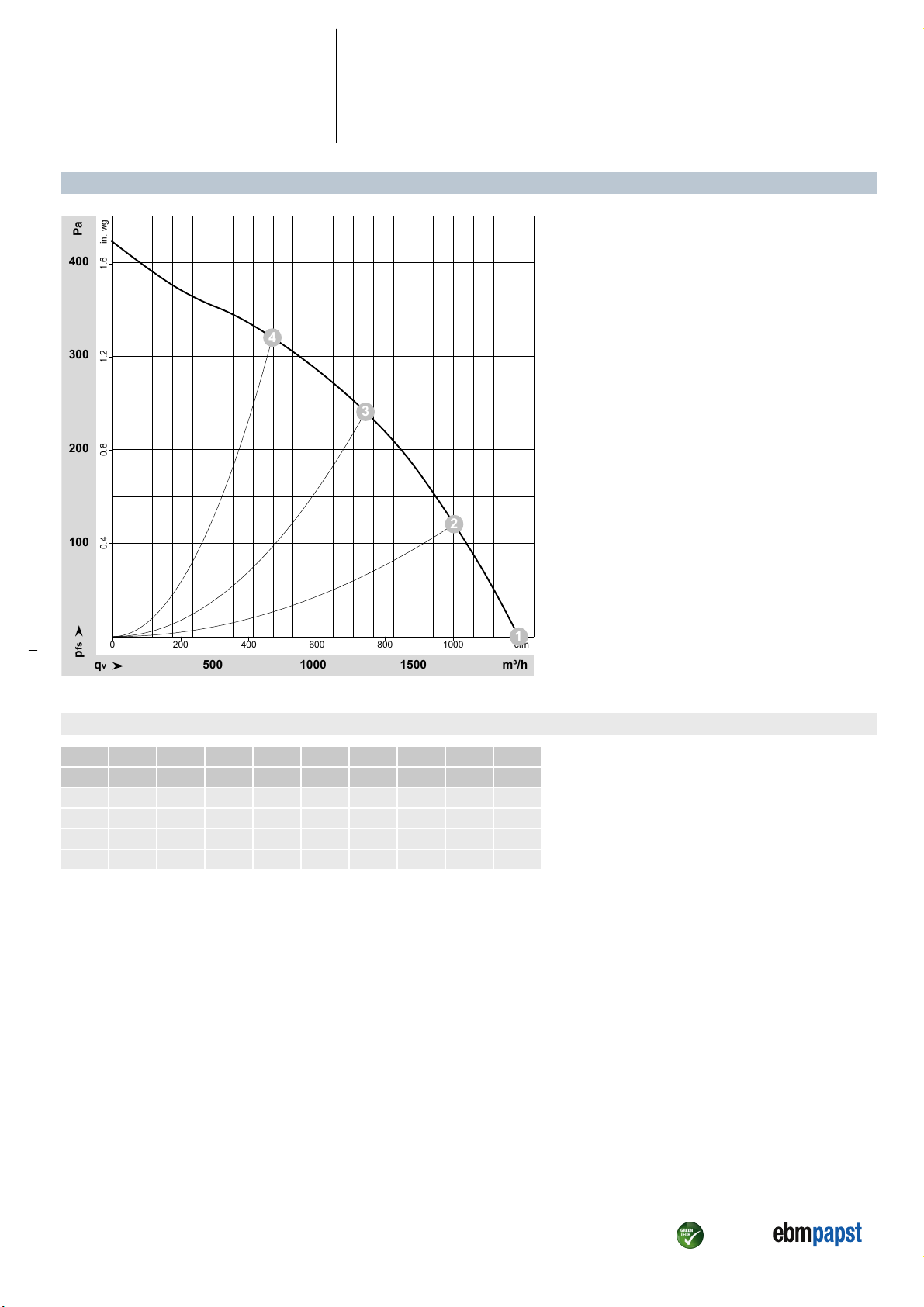

Curves: Air performance 60 Hz
AC centrifugal fan
backward-curved, single-intake
ρ = 1.15 kg/m³ ± 2 %
Measurement: LU-58085-1
Air performance measured according to ISO
5801 installation category A. For detailed
information on the measurement setup,
contact ebm-papst. Intake sound level:
Sound power level according to ISO 13347 /
sound pressure level measured at 1 m
distance from fan axis. The values given are
valid under the specified measuring
conditions and may vary due to conditions of
installation. For deviations from the standard
configuration, the parameters have to be
checked on the installed unit.
Measured values
U
V
1
2
3
4
U = Voltage · f = Frequency · n = Speed (rpm) · Pe= Power consumption · I = Current draw · qV= Air flow · pfs= Pressure increase
115
115
115
115
f
Hz
60
60
60
60
n
min
1720
1695
1675
1685
P
-1
W
155
183
199
191
I
e
A
1.50
1.70
1.82
1.75
q
V
m3/h
2025
1705
1260
795
p
Pa
0
120
240
320
q
fs
cfm
1190
1005
745
470
p
V
fs
in. wg
0.00
0.48
0.96
1.28
Item no. 16398-5-9980 · ENU · Change 92090 · Approved 2018-05-07 · Page 5 / 5
