ebm-papst 8214JH3 Data Sheet

8214 JH3

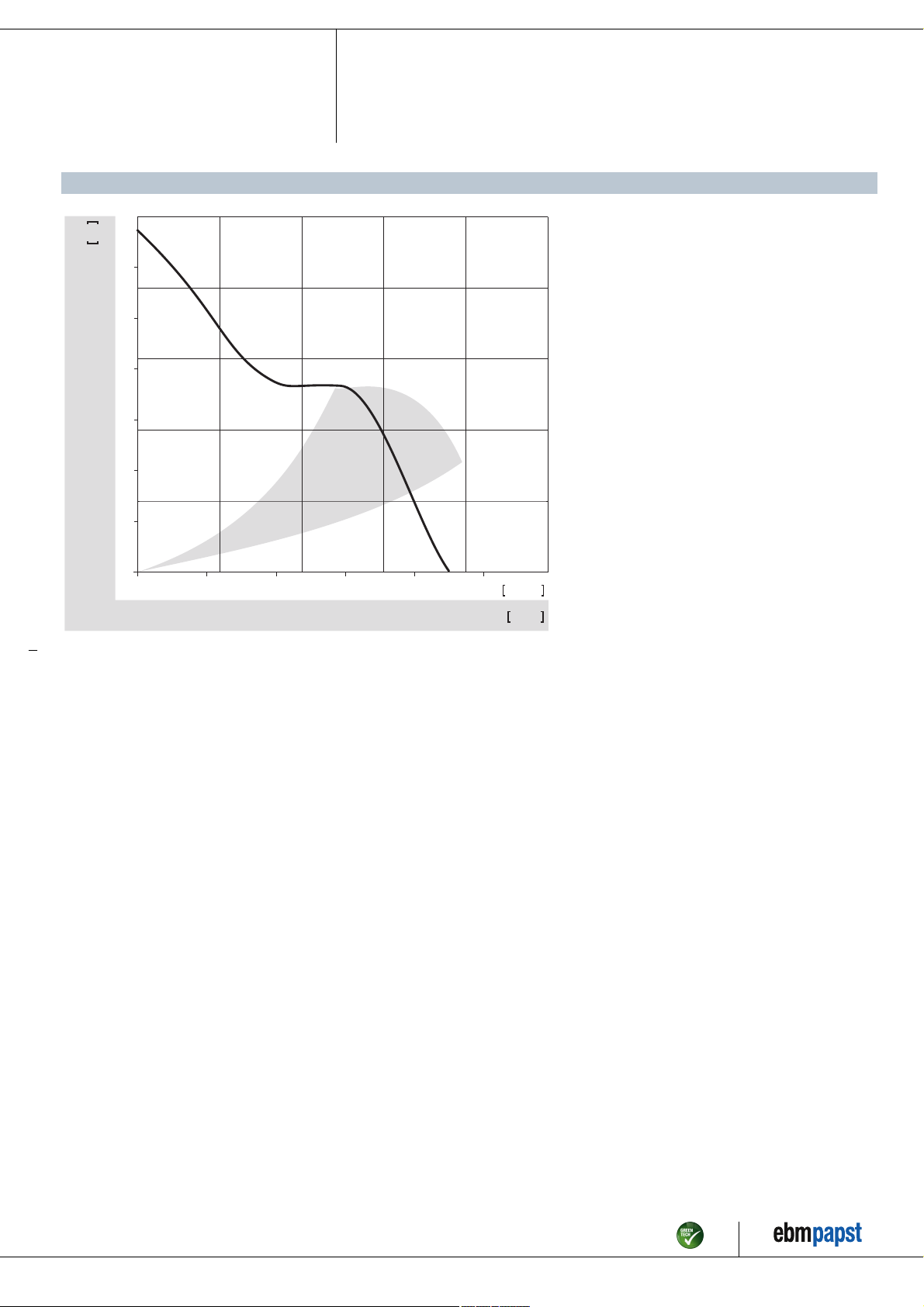

Nominal data

Type 8214 JH3

Nominal voltage VDC 24

Nominal voltage range VDC 12 .. 27.6

DC axial compact fan

Speed (rpm) min-112000

Power consumption W 26

Min. ambient temperature °C -20

Max. ambient temperature °C 70

Air flow m3/h 190

Sound power level B 7.3

Sound pressure level dB(A) 66

ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change

ENU (Web) · Approved 2016-06-22 · Page 1 / 4

· · · · · ·

8214 JH3

DC axial compact fan

Technical description

General description * Power consumption when wide open; these values may be considerably higher at the

operating point.

Housing material Glass-fiber reinforced PBT plastic

Impeller material Glass-fiber reinforced PA plastic

Weight 0.200 kg

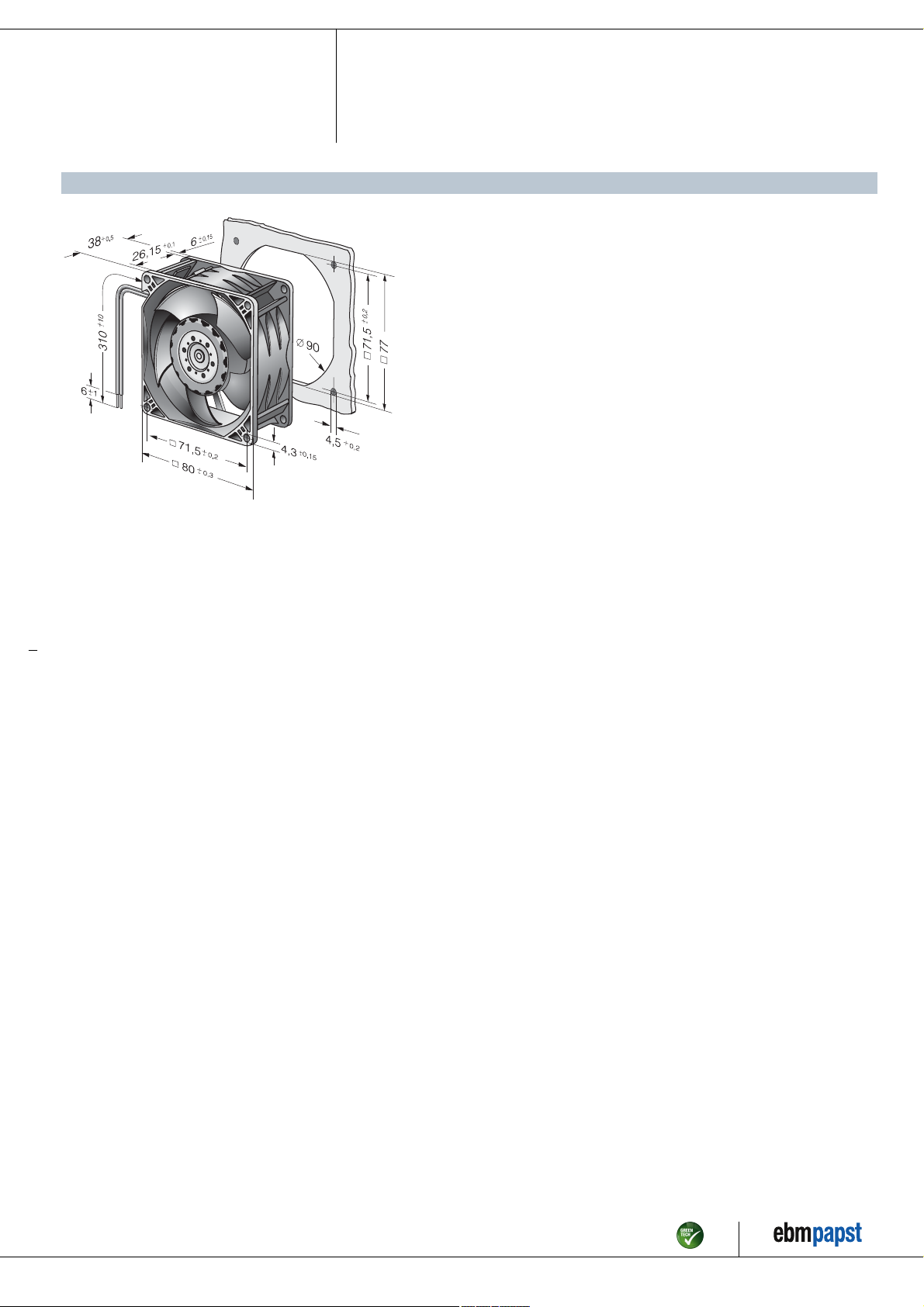

Dimensions 80 x 80 x 38 mm

Airflow direction Exhaust over struts

Direction of rotation Counterclockwise, viewed toward rotor

Storage Ball bearing

Service life L10 at 40 °C 55000 h

Service life L10 at maximum
temperature

Cable Leads AWG 22, TR 64, stripped and tin-plated.

Motor protection Protection against reverse polarity and blocked rotor.

Option Speed signal

27500 h

ENU (Web) · Approved 2016-06-22 · Page 2 / 4

· · · · · ·
