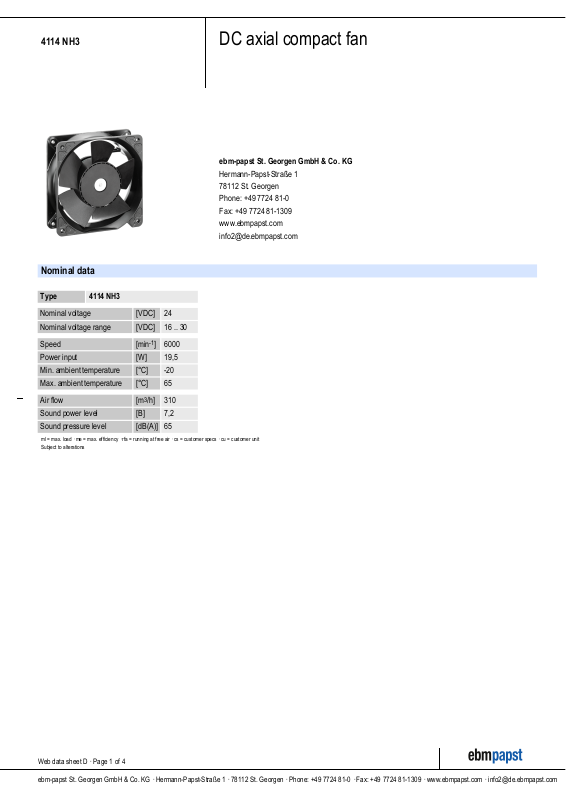

ebm-papst 4114NH3 Data Sheet

4114 NH3

Nominal data

Type 4114 NH3

Nominal voltage [VDC] 24

Nominal voltage range [VDC] 16 .. 30

DC axial compact fan

ebm-papst St. Georgen GmbH & Co. KG

Hermann-Papst-Straße 1
78112 St. Georgen
Phone: [phone]
Fax: [phone]
www.ebmpapst.com
[e-mail]

Speed

Power input [W] 19,5

Min. ambient temperature [°C] -20

Max. ambient temperature [°C] 65

Air flow

Sound power level [B] 7,2

Sound pressure level [dB(A)] 65

ml = max. load · me = max. efficiency · rfa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations

[min-1]

[m3/h]

6000

310

Web data sheet D · Page 1 of 4

ebm-papst St. Georgen GmbH & Co. KG · Hermann-Papst-Straße 1 · 78112 St. Georgen · Phone: [phone] · Fax: [phone] · www.ebmpapst.com · [e-mail]

4114 NH3

DC axial compact fan

Technical features

Dimensions 119 x 119 x 38 mm

General description Very rigid compression curve for high air flow at high counterpressure. Low operating noise level at

high counterpressure. Optional Vario-Pro: Highly flexible software configuration for the fan ensures an
easily customizable solution to meet the individual requirements of your application. Electronic
commutation completely integrated.

Connection line Single strands AWG 22, UL 2007, TR 64, bared and tin-plated.

Direction of protection Clockwise, looking at rotor

Direction of air flow Inlet over bars

Bearing Ball bearings

Lifetime L10 at 40 °C 65000 h

Lifetime L10 at maximum
temperature

Mass 0.390 kg

Housing material Aluminum with grounding lug for screw M4 x 8 (TORX).

Material of impeller Fiberglass-reinforced PA plastic

Motor protection Protected against reverse polarity and locking.

Option Speed signal

Approval CE

37500 h
