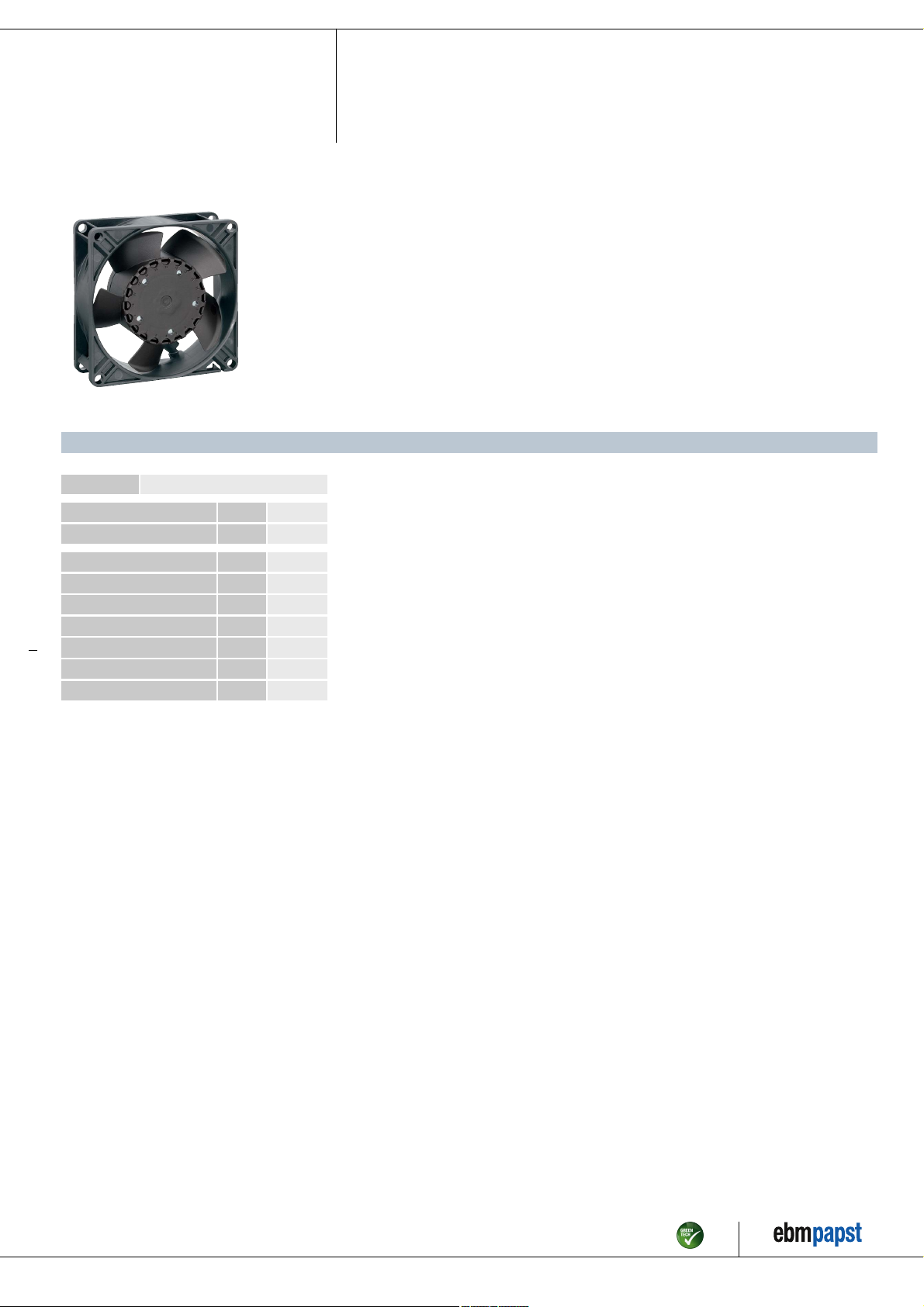

Page 1
3314 NN
Nominal data
Type 3314 NN
Nominal voltage VDC 24
Nominal voltage range VDC 18 .. 28
DC axial fan
Speed (rpm) min-12650
Power consumption W 1.8
Min. ambient temperature °C -20
Max. ambient temperature °C 75
Air flow m3/h 80
Sound power level B 4.7
Sound pressure level dB(A) 35
ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change
ENU (Web) · Approved 2016-06-22 · Page 1 / 4
· · · · · ·
Page 2
3314 NN
DC axial fan
Technical description
Housing material Glass-fiber reinforced PBT plastic
Impeller material Glass-fiber reinforced PA plastic
Weight 0.19 kg
Dimensions 92 x 92 x 32 mm
Airflow direction Exhaust over struts
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP40
Storage Ball bearing
Service life L10 at 40 °C 65000 h
Service life L10 at maximum
temperature
Cable With leads AWG 24 UL 1061, TR 64
27500 h
ENU (Web) · Approved 2016-06-22 · Page 2 / 4
· · · · · ·
Page 3
3314 NN
Ø 100,1 ± 0,3
Product drawing
DC axial fan
ENU (Web) · Approved 2016-06-22 · Page 3 / 4
· · · · · ·
Page 4
3314 NN
20 40 60 80 100
20
40
60
80
100
120
1
2
3
4
5
6
10 200 3040506070
cfm
0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4
33xx NL = Kennlinie 1
33xx NM = Kennlinie 2
33xx NN = Kennlinie 3
33xx NH = Kennlinie 4
33xx NHH = Kennlinie 5
33xx NH3 = Kennlinie 6
Curves
DC axial fan
ENU (Web) · Approved 2016-06-22 · Page 4 / 4
· · · · · ·
