Operating instructions
22 1000 32 85 02
08.2005
We reserve the right to make changes
Printed in Germany
© J. Eberspächer GmbH & Co. KG
Radio remote control with heating
function feedback for parking heaters.
2
Contents
Important Information
General information .................................................................................................... 3
Purpose...................................................................................................................... 3
Safety information....................................................................................................... 3
Overview
Mobile unit of the radio remote control........................................................................ 4
LED displays............................................................................................................... 5
Operation and Adjustment
Basic operation and adjustment rules ......................................................................... 6
Activate mobile unit .................................................................................................... 7
Switch on heater ........................................................................................................ 8
Switch off heater......................................................................................................... 8
Switch on ventilation................................................................................................... 9
Switch off ventilation................................................................................................... 9
Set operating time .................................................................................................... 10
Function pushbuttons .............................................................................................. 11
Maintenance
Battery state of charge ............................................................................................. 12
Replace battery ........................................................................................................ 12
What to do if …?
Displays............................................................................................................ 13 – 14
Service
Hotline...................................................................................................................... 15
3
Safety information
Important! Danger!
– Only the battery cover of the mobile unit
may be opened.
– The battery and battery cover must be
kept out of reach of children – swallowed small parts.
– Before washing clothing, remove the
mobile unit from pocket.
– Protect the mobile unit from adverse
effects (impacts, extreme temperatures,
moisture, rain, liquids).
– The mobile unit and heater must be
switched off when refuelling.
– Dispose of the battery and mobile part
according to the statutory regulations.
– Improper use and use outside the
specified area of use cancels all liability
and warranty.
– Only use the recommended battery and
original spare parts.
– All information and notes, in particular
the safety information in the heater‘s
technical description must be observed
at all times!
Important Information
General information
The mobile unit of the radio remote control has a simple control structure.
All functions can be set, and if necessary
changed, with 2 keys only.
Communication between the mobile unit
and stationary unit (installed in the vehicle)
is easily possible at a range of up to
1000 m, provided there are no negative
influences such as mirrored facades and
window panes, closely built buildings and
dense tree planting.
The mobile unit should always be pointed
towards the vehicle when activated or for
data transmission.
Depending on
the use and ambient influences
however, different
flashing signals
can appear on
the LED display,
as described
on page 7. The remedy is described on
pages 13 and 14.
Operation of the mobile unit is described
in detail from page 6.
Purpose
The bidirectional radio remote control
EasyStart R (mobile unit in conjunction
with stationary unit) is used for remote
controlled switching on / off and presetting the operating time and mode of
the heater installed in the vehicle.
4
Mobile unit of the radio remote
control
The mobile unit of the radio remote control can be used to make the necessary
adjustments for operation of the heater
and various units can be switched on
and off.
Activation key
• Mobile unit – ON / OFF
• Switch between heater
and ventilation
• Select operating time
OK key
Confirm entries
Key fob
Overview
LED display
The type of LED displays possible differs
depending on the installed heater and
feature options.
Please note!
5
Overview
LED displays
LED display lights up green.
LED display flickers red.
LED display flashes red.
LED display flickers green.
LED display flashes green.
LED display lights up red.
Data transmission
Heater preselection
Heater on
Ventilation preselection
Ventilation on
Battery too weak
6
Operation and Adjustment
Basic operation and adjustment rules
Activate mobile unit
Before each operation or setting, a con-
nection must be established between the
mobile unit and the stationary unit.
To do this, press until the LED display
is permanently lit green, then release the
key and continue with the operation or
adjustment (see also page 7).
Switch off mobile unit /
protect against involuntary actuation
If is pressed for a long time the LED
display disappears, i.e. the mobile unit is
switched off and is therefore also protec-
ted against involuntary actuation.
Confirm input
The settings and changes must always
be confirmed with , otherwise they
are lost.
Permanently set operating time
The operating time can be set in 4 steps
(20, 30, 40 and 60 minutes).
See page 10 for description.
LED display disappears
After confirming a setting or change the
LED display disappears after 10 seconds,
i.e. the mobile unit switches to its normal
condition.
If a setting / adjustment or confirmation
is not made within 10 seconds the LED
display disappears, i.e. the mobile unit
returns to its normal condition.
For renewed input you must press
again.
If data transmission was not possible, the
LED display disappears after 4 seconds.
Display during data transmission
During data transmission the LED display
is permanently lit green.
Terminate/quit settings
The setting can be cancelled or termina-
ted with .
7
Activate mobile unit
LED display
Use the mobile unit to establish the connection with the
stationary unit.
press until the LED display lights up green. Then
release the key. If a link has been established
between the mobile unit and stationary unit,
• the LED display flickers red
or
• the LED display flickers green
or
• the LED display flashes red
or
• the LED display flashes green.
The radio remote control is activated.
• If the key is not released when the LED is list
green the mobile unit switches itself off.
• Possible LED displays such as fast alternating red-
green flashes, slow alternating red-green flashing,
fast red flashing or a red display are described in the
chapter ”What to do if …?“ from page 13.
Please note!
Operation and Adjustment
LED: green
LED: flickers red
LED: flashes green
LED: flashes red
LED: flickers green
8
Operation and Adjustment
Activate mobile unit with (see page 7).
Use to select heater LED display.
Confirm selection with .
Heater is switched on.
The following actions are possible:
• can be used to switch to the ventilation
preselection.
• Adjust the operating time (see page 10).
Switch on heater
LED display
LED: flickers green
LED: flashes red
Switch off heater
Activate mobile unit with (see page 7).
Use to select heater LED display.
Confirm selection with .
Heater is switched off.
The following actions are possible:
• can be used to switch to the ventilation
preselection.
• Adjust the operating time (see page 10).
LED display
Data transmission
LED: green
LED: flickers red
LED: flickers green
LED: flashes red
Data transmission
LED: green
LED: flickers red
9
Operation and Adjustment

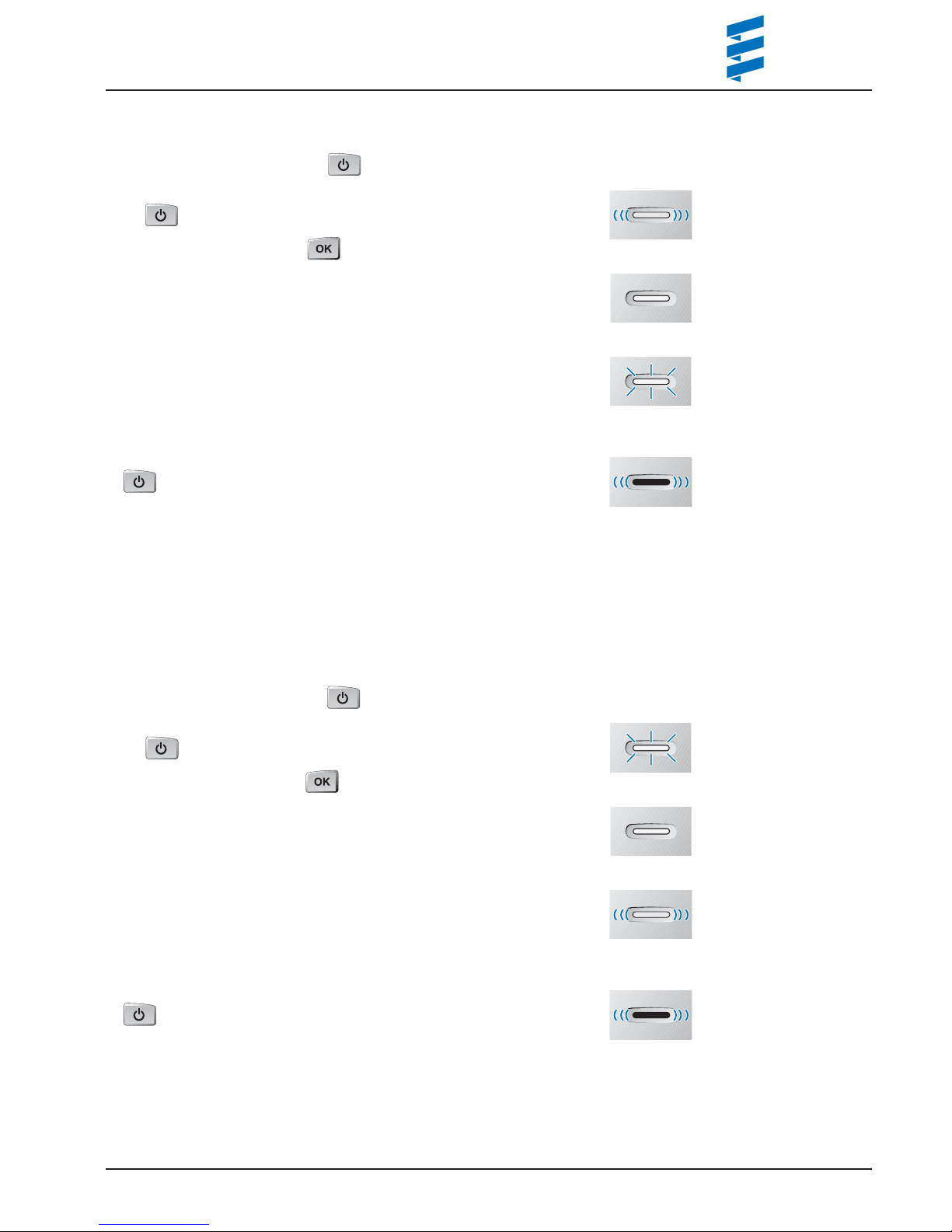

Activate mobile unit with (see page 7).
Use to select ventilation LED display.
Confirm selection with .
Ventilation is switched on.
The following actions are possible:
• can be used to switch to the heating
preselection.
• Adjust the operating time (see page 10).
Switch on ventilation
LED display
Switch off ventilation
Activate mobile unit with (see page 7).
Use to select ventilation LED display.
Confirm selection with .
Ventilation is switched off.
The following actions are possible:
• can be used to switch to the heating
preselection.
• Adjust the operating time (see page 10).
LED display
LED: flickers red
LED: flashes green
Data transmission
LED: green
LED: flickers green
LED: flickers red
LED: flashes green
Data transmission
LED: green
LED: flickers green
10
Operation and Adjustment
Activate mobile unit with (see page 7).
Briefly press and simultaneously.
The Adjust operating time function is activated.
Use to select the heating duration.
20 minutes operating time
30 minutes operating time
40 minutes operating time
60 minutes operating time
Use to confirm the selected operating time.
Switch on operating time
LED display
Please note!
The flashing signals are each repeated
5 times in total after a pause.
LED: flashes
red twice
LED: flickers red
LED: flashes
red 6 times
LED: flashes
red 4 times
LED: flashes
red 3 times
LED: flashes green twice for
a long time
Data transmission
LED: green
11
Operation and Adjustment
Function pushbuttons
The following activities can be executed with the buttons installed in the
vehicle:
• Start heater mode, heating duration 30 minutes (LED on ON button)
• Switch off heater mode (LED on OFF button)
12

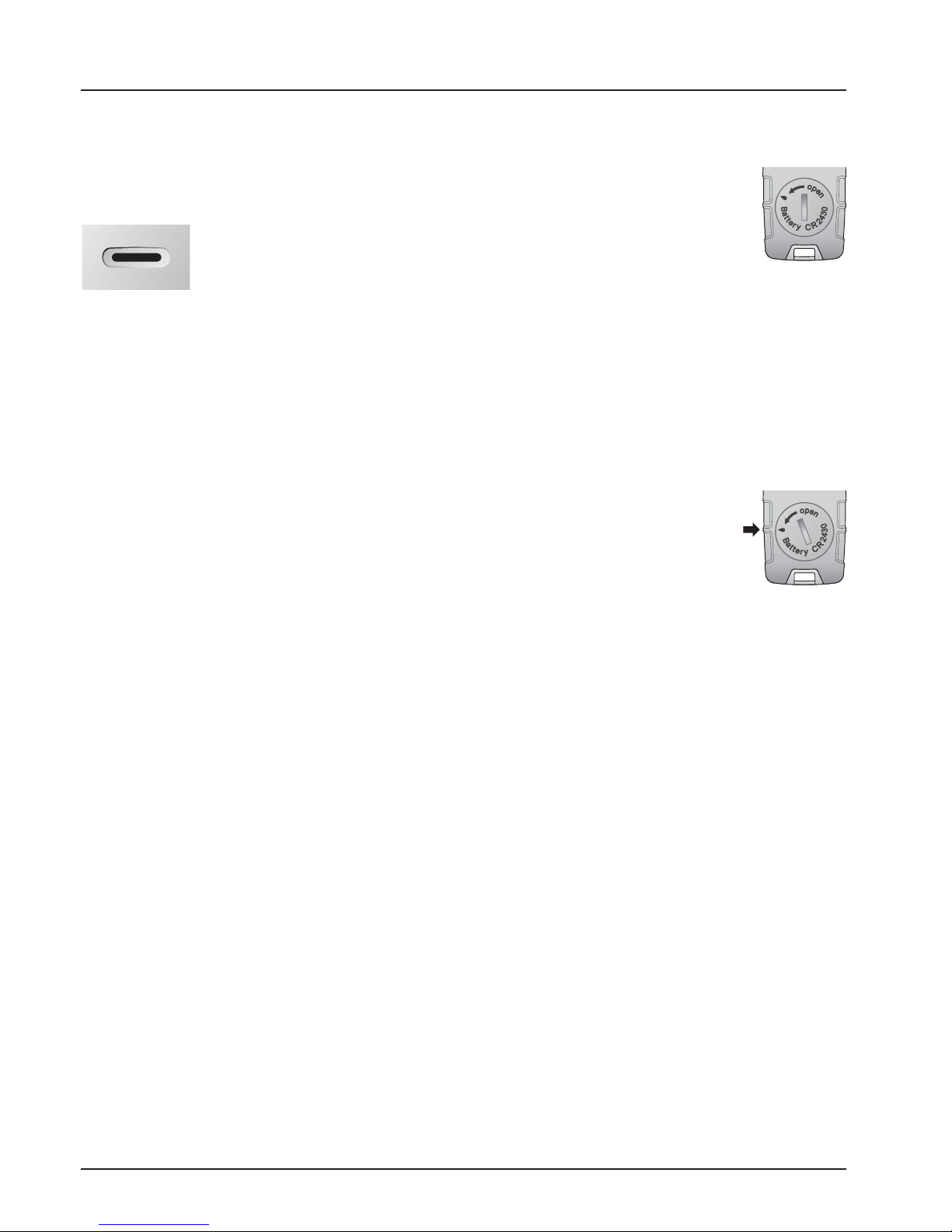

Replace battery
• Use a coin to turn the bayonet fastening of the battery
cover in the direction of the
arrow.
• Remove the battery cover.
• Check the cover seal for damage.
• Remove dead battery.
• Insert new battery. The battery has been
correctly inserted if the plus pole symbol
and the type designation of the battery
can be read.
• Put on the battery cover.
The drip-shaped marking
must point to the web
between the recesses.
• Use a coin to turn the
bayonet fastening of the battery cover
in a clockwise direction until the slit
reaches the vertical position.
• Activate mobile unit (see page 7).
Maintenance
Charged status of the
mobile unit‘s battery
(LED display on mobile unit)
Change the battery
If the LED display of the mobile unit indicates the battery is too weak with a red
display, purchase a standard CR 2430
type round cell battery made by Energizer,
Varta, Sony or Renata, as recommended
by JE-Eberspächer.
LED: Display lights up red
13
The unit cannot be used during the ”rapid red - green flashing“ signal. A running heater
can only be switched off using the button in the vehicle.
What to do if …?
Displays
Description
Communication between the mobile unit and stationary unit is not possible.
Possible causes Remedy
Distance between mobile unit and vehicle
too large.
Reduce distance.
Dense buildings between mobile unit and
vehicle?
Change the position relative to the
vehicle e.g. hold mobile unit higher or
move it to the side. Reduce distance
from vehicle.
Several Easy Start radio remote controls
are operated simultaneously.
Reactivate mobile unit after a pause.
Mobile unit has not been taught. Teach mobile unit as described in the
installation instruction.
Please note!
Rapid red-green flashing of the mobile unit‘s LED display
Description Remedy
A fault occurs in the heater during operation (e.g. fuel shortage or interruption in
the diagnostics cable).
See heater‘s operating instructions for
troubleshooting advice.
Description Remedy
Stationary unit is in learn mode. Teach mobile unit as described in the
installation instruction.
Rapid red flashing of the mobile unit‘s LED display
Slow red-green flashing of the mobile unit‘s LED display
14
What to do if …?
Description Remedy
The mobile unit‘s battery is too weak.
Data transmission is not possible.
Replace battery.
Description Remedy
Stationary unit is in learn mode. The display switches itself off after 30
seconds or teach the mobile unit as
described in the installation instruction.
LED display button flashing
Displays
If you are unable to remedy the fault or error, please contact an authorised JE workshop or dial the service phone number given on the next page.
Please note!
Possible causes Remedy
Battery dead. Replace battery.
No battery inserted. Insert battery.
Battery inserted wrong way around. Insert battery correctly.
The mobile unit cannot be activated
Red LED display of the mobile unit after activation
15
If you have any technical questions, a
problem with your radio remote control
or the heater, dial the following service
phone number:
Telephone hotline
00 49 (0)800 / 12 34 300
Fax hotline
00 49 (0)1805 / 26 26 24
Service
Loading...
