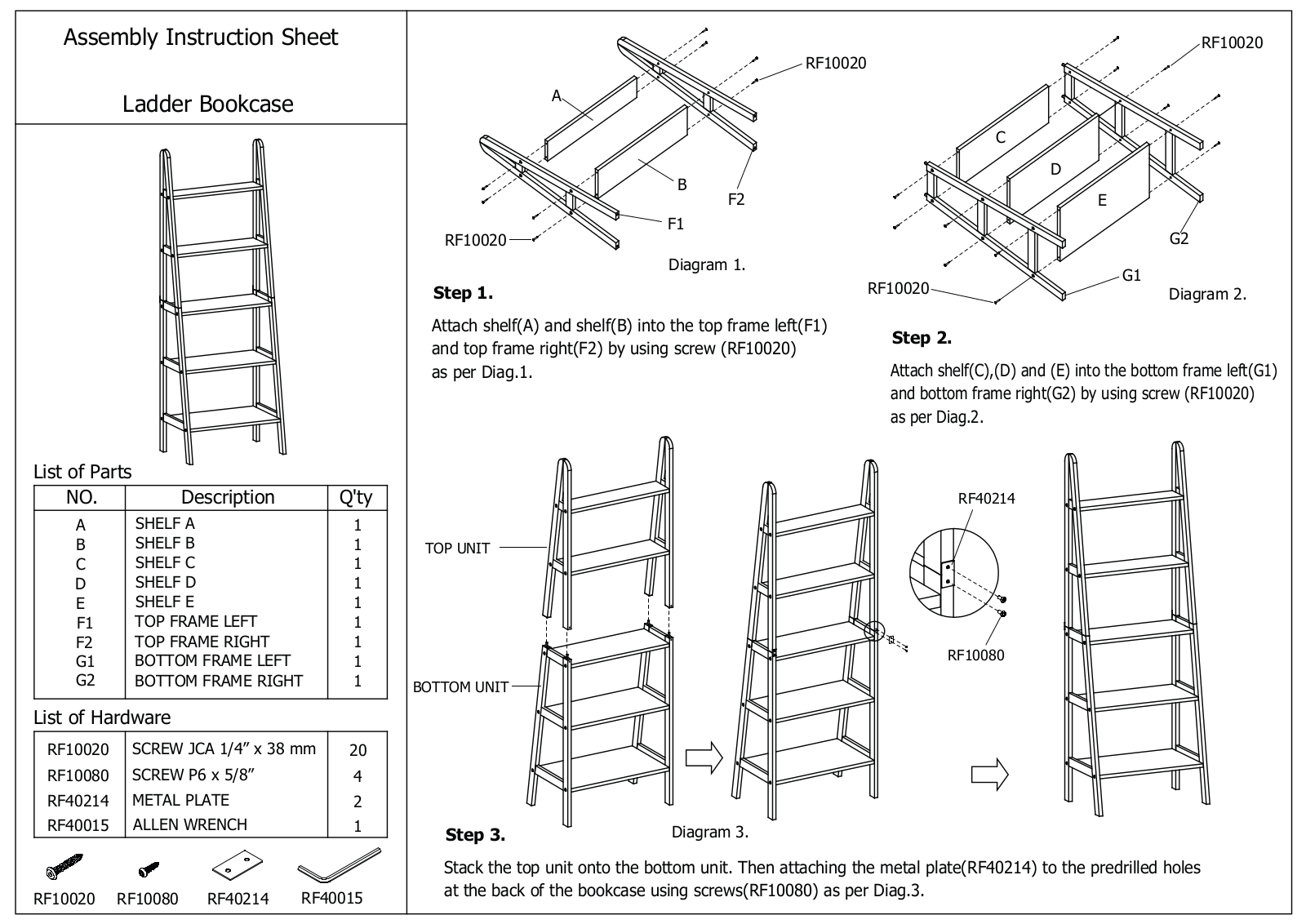

Assembly Instruction Sheet
RF10020
RF10020
Ladder Bookcase
List of Parts
NO. Description Q'ty
A
B
C
D
E
F1
F2
G1
G2
SHELF A
SHELF B
SHELF C
SHELF D
SHELF E
TOP FRAME LEFT
TOP FRAME RIGHT
BOTTOM FRAME LEFT
BOTTOM FRAME RIGHT
A
C
B
F2
F1
RF10020
Diagram 1.
Step 1.
Attach shelf(A) and shelf(B) into the top frame left(F1)
and top frame right(F2) by using screw (RF10020)
as per Diag.1.
RF10020
Step 2.
Attach shelf(C),(D) and (E) into the bottom frame left(G1)
D
E
G2
G1
Diagram 2.
and bottom frame right(G2) by using screw (RF10020)
as per Diag.2.
RF40214
1
1
1
1
1
1
1
1
1
TOP UNIT
RF10080
BOTTOM UNIT
List of Hardware
RF10020
RF10080
RF40214
RF40015
RF10020
SCREW JCA 1/4” x 38 mm
SCREW P6 x 5/8”
METAL PLATE
ALLEN WRENCH
RF10080
RF40214
20
RF40015
4
2
1
Step 3.
Diagram 3.
Stack the top unit onto the bottom unit. Then attaching the metal plate(RF40214) to the predrilled holes
at the back of the bookcase using screws(RF10080) as per Diag.3.
