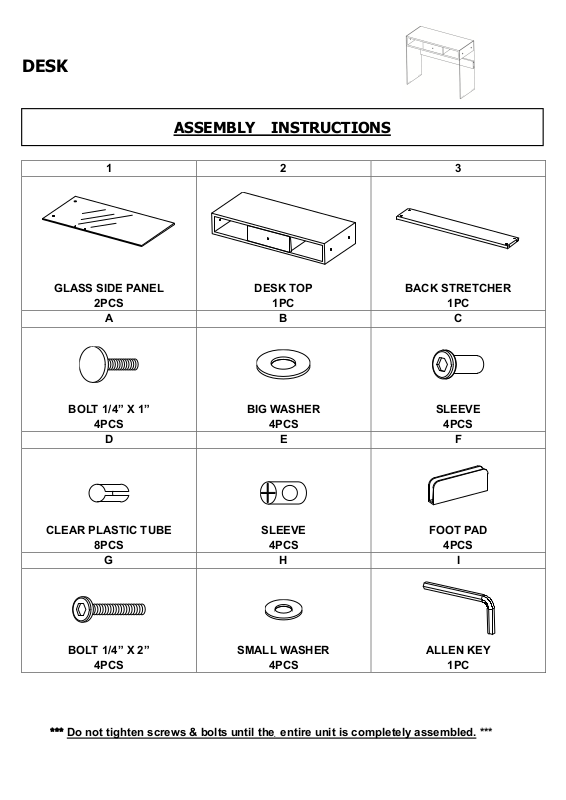

DESK
ASSEMBLY INSTRUCTIONS
1 2 3
GLASS SIDE PANEL
2PCS
A B C
BOLT 1/4” X 1”
4PCS
D E F
CLEAR PLASTIC TUBE
8PCS
G H I
BOLT 1/4” X 2”
4PCS
DESK TOP
BACK STRETCHER
1PC
BIG WASHER
4PCS
SLEEVE
FOOT PAD
4PCS
SMALL WASHER
ALLEN KEY
4PCS
1PC
SLEEVE
4PCS
4PCS
1PC
*** Do not tighten screws & bolts until the entire unit is completely assembled. ***
STEP 1
D
B
A
STEP 2
G + H + D
C
*Please put all parts on a
soft surface to prevent
scratches.
B
D
A
A
D
D
A
Attach glass side panel (1)
1
C
to desk top (2) by using bolt
(A), big washer (B) ,clear
B
2
C
plastic tube (D) and
sleeve(C) as shown.
Please combine (A) / (B) /
1
(D) first before assembly
and make sure clear plastic
tubes (D) are fixed in the
holes of glass side panel (1)
in assembly.
Attach back stretcher (3) to
glass side panel (1) by
using bolt (G), small washer
(H), clear plastic tube (D)
G + H + D
and sleeve (E) as shown.
Please combine (G) / (H) /
(D) first before assembly
and make sure clear plastic
tube (D) is fixed in the holes
of glass side panel (1) in
F
E
3
E
E
assembly.
Then, attach foot pad (F) to
the bottom of glass side
panel (1) as shown.
F
Turn the unit right side up
carefully.
Your desk is now complete.
