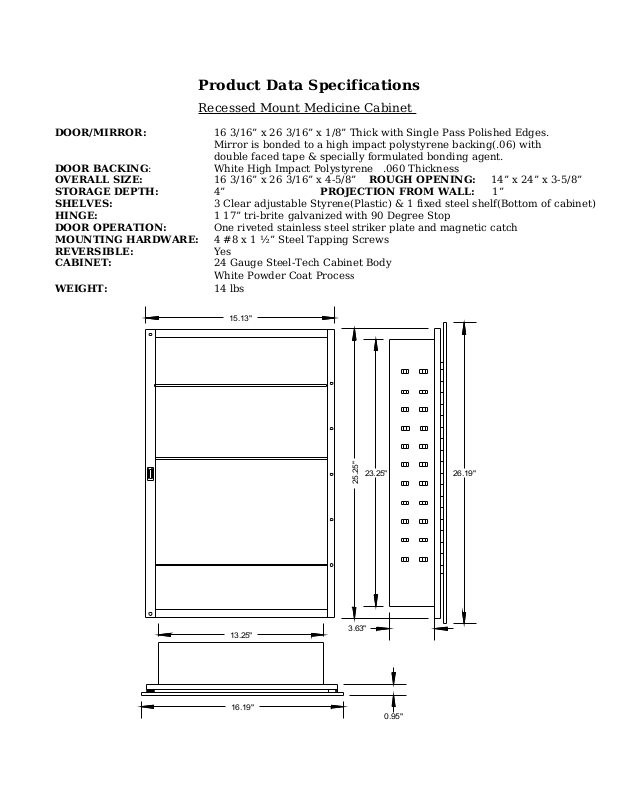

Product Data Specifications
15.13"
13.25"
23.25"
3.63"
25.25"
26.19"
16.19"
0.95"
Recessed Mount Medicine Cabinet
DOOR/MIRROR: 16 3/16” x 26 3/16” x 1/8” Thick with Single Pass Polished Edges.
Mirror is bonded to a high impact polystyrene backing(.06) with
double faced tape & specially formulated bonding agent.
DOOR BACKING: White High Impact Polystyrene .060 Thickness
OVERALL SIZE: 16 3/16” x 26 3/16” x 4-5/8” ROUGH OPENING: 14” x 24” x 3-5/8”
STORAGE DEPTH: 4” PROJECTION FROM WALL: 1”
SHELVES: 3 Clear adjustable Styrene(Plastic) & 1 fixed steel shelf(Bottom of cabinet)
HINGE: 1 17” tri-brite galvanized with 90 Degree Stop
DOOR OPERATION: One riveted stainless steel striker plate and magnetic catch
MOUNTING HARDWARE: 4 #8 x 1 ½” Steel Tapping Screws
REVERSIBLE: Yes
CABINET: 24 Gauge Steel-Tech Cabinet Body
White Powder Coat Process
WEIGHT: 14 lbs
