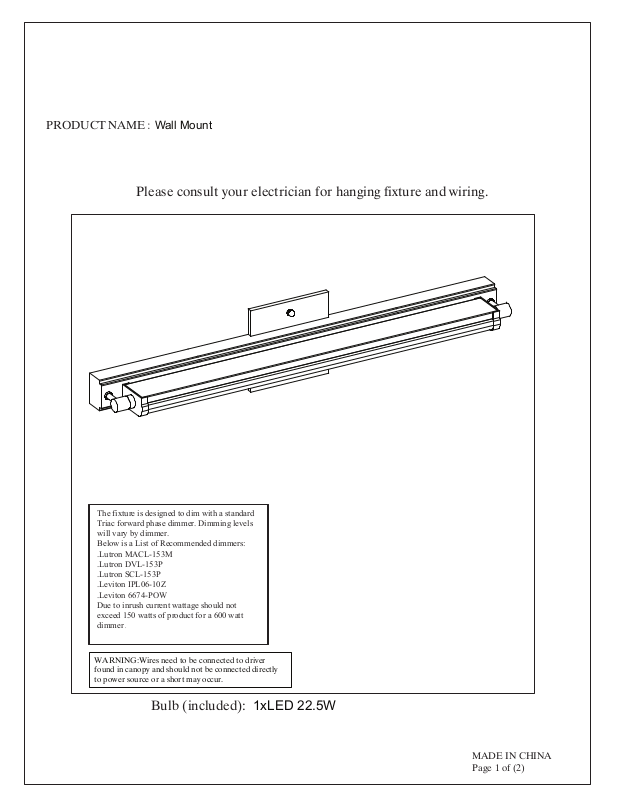

Page 1
PRODUCT NAME:
Please consult your electrician for hanging fixture and wiring.
Wall Mount
The fixture is designed to dim with a standard
Triac forward phase dimmer. Dimming levels
will vary by dimmer.
Below is a List of Recommended dimmers:
.Lutron MACL-153M
.Lutron DVL-153P
.Lutron SCL-153P
.Leviton IPL06-10Z
.Leviton 6674-POW
Due to inrush current wattage should not
exceed 150 watts of product for a 600 watt
dimmer．
WARNING:Wires need to be connected to driver
found in canopy and should not be connected directly
to power source or a short may occur.
B 1xLED 22.5W ulb (included):
MADE IN CHINA
Page 1 of (2)
Page 2
IMPORTANT: Turn off the power at the main fuse or circuit breaker box before starting installation
(A) (C)(B)
Bracket Ball Nuts
Mounting Screws
2Pcs
2Pcs
Locate all hardware & components before discarding packaging
1.)
A
B
B
A
C
Step1:Remove mounting bracket from
fixture and install to electrical box.
Turnable
C
Cleaning & Care:
Clean with soft cloth and a mild detergent.
Do not use abrasive cleaner.
2.)
White wire
Black wire
Connect to Neutral/White wire
Connect to Live/Black wire
Fixture
Ground wire
C
Step2:Wire fixture to wires in outlet box.
Copper wire is for Ground. Attach canopy
to mounting bracket and tighten with ball
nuts.
Page 2 of (2)
