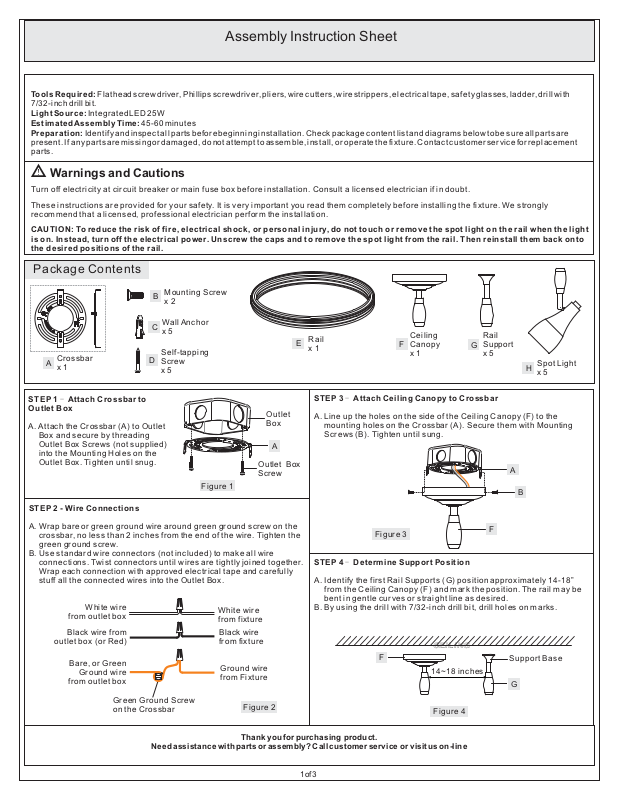

Assembly Instruction Sheet
ToolsRequired: Flathead screwdriver,Phillipsscrewdriver,pliers, wire cutters, wire strippers, electrical tape, safety glasses, ladder,drillwith
7/32-inchdrillbit.
IntegratedLED25WLightSource:
EstimatedAssembly Time:
Preparation:
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
CAUTION: To reduce the risk of fire, electrical shock, or personal injury, do not touch or remove the spot light on the rail when the light
is on. Instead, turn off the electrical power. Unscrew the caps and to remove the spot light from the rail. Then reinstall them back onto
the desired positions of the rail.
Package Contents
Crossbar
A
x1
45-60minutes
Mounting Screw
B
x2
Wall Anchor
C
x5
Self-tapping
D
Screw
x5
Rail
E
x1
Ceiling
Canopy
F
x1
G
Rail
Support
x5
Spot Light
H
x5
STEP 1 Attach Crossbar to
Outlet Box
A. Attach the Crossbar (A) to Outlet
STEP 2 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
B. Use standard wire connectors (not included) to make all wire
-
Outlet
Box
Box and secure by threading
Outlet Box Screws (not supplied)
into the Mounting Holes on the
Outlet Box. Tighten until snug.
Figure 1
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box
Black wire from
outlet box (or Red)
Bare, or Green
Ground wire
from outlet box
Green Ground Screw
on the Crossbar
White wire
from fixture
Black wire
from fixture
Ground wire
from Fixture
A
Outlet Box
Screw
Figure 2
STEP 3 - Attach Ceiling Canopy to Crossbar
A. Line up the holes on the side of the Ceiling Canopy (F) to the
mounting holes on the Crossbar (A). Secure them with Mounting
Screws (B). Tighten until sung.
A
B
Figure 3
STEP 4 Determine Support Position-
A. Identify the first Rail Supports (G) position approximately 14-18”
from the Ceiling Canopy (F) and mark the position.
bent in gentle curves or straight line as desired.
B. By using the drill with 7/32-inch drill bit, drill holes on marks.
CEILING
F
14~18 inches
Figure 4
F
Therailmaybe
Support Base
G
Need assistance with parts or assembly? Call customer service orvisit us on-line
Thank you for purchasing product.
1of3
STEP 5 Install Rail support-
A. Disassemble support base
from Rail Supports (G) as
shown.
Figure 5A
Support
Base
(Step 7 Continued)
Supports (G). Then Follow the Step 6 of Rail Installation to install the
Rail (E) onto the other Rail Supports (G).
Rail Support
CEILING
G
B. Insert the Wall Anchor (C) into the
C
drilled hole on the ceiling. Pass the
Support Base over the Wall Anchor
(C) and then screw the self-tapping
Support Base
D
screw (D) through the Support
Base into the wall anchor until
tight.
C. Thread the Rail Support (G) into
the Support Base and hand tighten
until snug.
G
STEP 6 Instal Rail to Rail Support
-
Figure 5B
A. Carefully take out the Rail (E) from the package and unfold it. There
is an Brass Strip in the top and (2) Brass Strips in one side of the
Rail (E).
B. Unscrew (2) caps on the Rail Support (G). Open the Moveable Part
of the Rail Support (G). Attach the Rail (E) with (2) Brass Strips side
facing towards the fixed part of Rail Support (G). Close the
moveable part of Rail Support (G) over the Rail (E), then reinstall
the caps to the Rail Support (G).
NOTE: The Brass Strip in the top of the Rail is always facing
towards the ceiling.
Figure 6
G
Cap
Brass Strip
E
Fixed Part
of Rail Support
Cap
Brass Strip
Moveable part
of Rail Support
F
G
Figure 7
E
F
Cap
Brass Clip
Brass Strip
Brass Clip
E
Fixed Part
Brass Strip
of Rail Adaptor
Cap
STEP 8 Spot Light Installation
-
Moveable part
of Rail Adaptor
A. Choose one spot light, unscrew (2) caps from the rail adapter of the
Spot Light (H), then open the moveable part of rail adapter body.
B. Attach the Rail (E) with (2) Brass Strips side facing towards the fixed
part of rail adaptor. Close the moveable part of rail adaptor over the
Rail (E), then reinstall the caps to the rail adaptor. Make certain that
the brass clips on the fixed part of rail adapter are connected
properly with the brass strips of the Rail (E).
NOTE: To ensure the fixture works correctly, make sure the
connection between the adapter and the rail is correct. The
Brass Strip in the top of the Rail is always facing towards the
ceiling.
C. Follow steps A~B in this step to install the other Spot Lights (H) onto
the Rail (E).
Note: Adjust the spotlight head to a desired position.
Your fixture is now assembled and ready to use. Enjoy!
Cap
Moveable part
of Rail Adaptor
Fixed Part
of Rail Adaptor
Brass Clip
Brass Strip
E
Brass Strip
Cap
Brass Clip
STEP 7 Install Rail to Ceiling Canopy
-
A. Unscrew (2) caps on the rail adaptor. Open the Moveable Part of the
rail adaptor.Attach the Rail (E) with (2) Brass Strips side facing
towards the fixed part of rail adaptor. Close the moveable part of rail
adaptor over the Rail (E), then reinstall the caps to the rail adaptor.
Make certain that the brass clips on the fixed part of rail adapter are
connected properly with the brass strips of the Rail (E).
NOTE: The Brass Strip in the top of the Rail is always facing
towards the ceiling.
B. Shape the Rail (E) as desired. Then mark and drill the desired
positions on the ceiling for the rest of the Rail Supports (G). Repeat
the Step 5 of Rail Supports Installations to locate the rest Rail
Thank you for purchasing product.
Need assistance with parts or assembly? Call customer service orvisit us on-line
H
Spotlight Head
Figure 8
ROTATE
2of3
FINISH: BRUSHED NICKEL
5” Dia.
11. 5”
108”
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Need assistance with parts or assembly? Call customer service orvisit us on-line
Thank you for purchasing product.
3of3
