CERTIFICATION: cETLus Wet

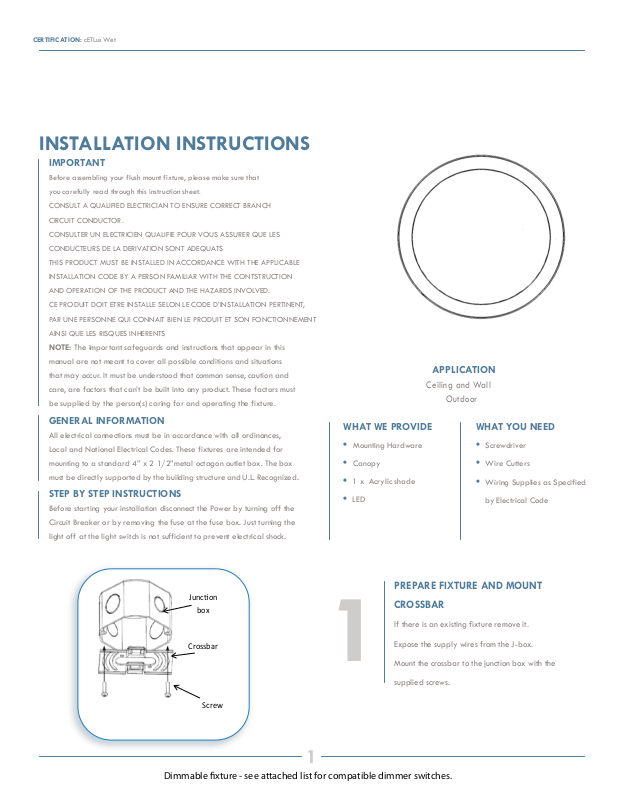

INSTALLATION INSTRUCTIONS
IMPORTANT
Before assembling your flush mount fixture, please make sure that
you carefully read through this instruction sheet.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR.
CONSULTER UN ELECTRICIEN QUALIFIE POUR VOUS ASSURER QUE LES
CONDUCTEURS DE LA DERIVATION SONT ADEQUATS
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONTSTRUCTION
AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
CE PRODUIT DOIT ETRE INSTALLE SELON LE CODE D’INSTALLATION PERTINENT,
PAR UNE PERSONNE QUI CONNAIT BIEN LE PRODUIT ET SON FONCTIONNEMENT
AINSI QUE LES RISQUES INHERENTS
NOTE: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can’t be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
APPLICATION
Ceiling and Wall
Outdoor
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and National Electrical Codes. These fixtures are intended for
mounting to a standard 4” x 2 1/2”metal octagon outlet box. The box
must be directly supported by the building structure and U.L. Recognized.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.
Juncon
box
Crossbar
Screw
WHAT WE PROVIDE
Mounting Hardware
•
• Canopy
• 1 x Acrylic shade
• LED
PREPARE FIXTURE AND MOUNT
CROSSBAR
If there is an existing fixture remove it.
Expose the supply wires from the J-box.
Mount the crossbar to the junction box with the
supplied screws.
WHAT YOU NEED
Screwdriver
•
• Wire Cutters
• Wiring Supplies as Specified
by Electrical Code
Dimmable xture - see attached list for compatible dimmer switches.
Page 2
2
4
2
CERTIFICATION: cETLus Wet
3
SUPPORT THE FIXTURE AND MAKE
WIRE CONNECTIONS
Hook the support wire to hold the fixture while you
make the electrical connection.
Gently pull the supply wires through the hole in the
crossbar. Connect the black supply wire to the black
fixture wire. Secure with the supplied wire nuts.
Connect the white supply wires to the white
fixture wire. Secure with the supplied wire nuts. Either
wrap the green wire around one of the protruding screws
or connect it to the supply ground wire. Secure all wire
with electrical tape (not supplied).
Tuck all wires carefully into the J-Box.
MOUNT FIXTURE
Align the acrylic shade with the crossbar and push the
clips into the key holes.
WARNING: if not pushed in place, the
fixture may fall and cause serious
injury.
** This fixture is wet location rated. In order to ensure
that moisture does not enter the outlet box and cause
a short circuit, clear caulking should be used to seal the
space between the fixture mounting bracket and the
wall. Ensure that a space is left at the bottom to allow
for the escape of moisture. It is recommended that
Outdoor Silicon Sealant is used for that purpose**
RESTORE THE ELECTRICITY AND
CHECK THE OPERATION OF YOUR
NEW FLUSH MOUNT FIXTURE
If the fixture is to be removed or replaced,
please ensure that the electricity is
CAUTION
switched off and that the fitting is cool
before touching it.
