TECHNICAL SPECIFICATIONS UB12S

DESCRIPTION

A 2-way full range system (passive LF/HF crossover) in an
ultracompact vented rectangular enclosure. Includes a 5.25­in woofer and a 3/4-in soft dome tweeter. Magnetically
shielded for use in immediate proximity to video monitors.

APPLICATIONS

The UB12S provides surprisingly high output and reliability
from a mini-monitor. Magnetically shielded for use in imme­diate proximity to video monitors. 1/4"-20 threaded mount­ing/suspension points allow permanent installation. Six year
warranty.

Applications include:

Ballroom Events
MultiMedia
Boardrooms
Restaurants
Small Retail Spaces

DESCRIPTIVE DATA

Part Number 999314 (matched pair)

Product Group J

LF Subsystem & Loading 1x 5.25-in Cone Vented

HF Subsystem & Loading 1x 3/4-in Soft Dome

System Configuration 2-way, Full Range

Powering Configuration(s) Passive LF/HF Crossover

Recommended High-Pass

Frequency (24 dB/Octave) 60Hz

Cabinet Type (shape) Rectangular

Enclosure Materials MDF

Finish Black Catalyzed Polyurethane

Connectors 2-Terminal Barrier Strip

Suspension Hardware (4) 1/4”-20 threaded mounting/

suspension points (1 each top and
bottom, 2 on one side to accept
Omnimount Series 25)

Grill Vinyl Coated Perforated Steel

Mounting Bracket 980004

One half of pair shown.

NOMINAL DATA

Frequency Response (Hz)

±3 db 98Hz to 20kHz

-10 dB 60Hz

Axial Sensitivity (dB SPL/1 Watt/1m)

89

Impedance (Ohms)

8

Power Handling (Watts)

AES Standard 140

Calculated Maximum Output (dB SPL, @ 1m)

Peak 116.5

Long Term 110.5

Nominal Coverage Angle / -6 dB points (degrees)

Conical 120

Dimensions inches millimeters

Height 10.75 273

Width 6.375 162

Depth 6 152

Weights pounds kilograms

Net Weight (each) 10 4.6

Shipping Weight (per pair) 23 10.5

EASTERN ACOUSTIC WORKS

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [e-mail] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# UB12S MATCHED PAIR 999314(A)/14p/4/7/97 • Printed In USA

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

TECHNICAL SPECIFICATIONS UB12S

DIMENSIONAL DRAWING SERVICE ITEMS

DIMENSIONAL DRAWINGS

UB12S Right

6.37

FRONT

510199
EXP 4/27/96 SHB

MOUNTING POINT 1/4"- 20 THREADED HOLE

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED.

4.13

10.75

2.50

2.13

3.00

1.13

6.00

RIGHT SIDE

6.37

2.88

6.00

3.19

TOP

1.87

BACK

4.37

LF: Complete Cone Driver

EAW Part No. 804056

HF: Complete Compression Driver/Tweeter

EAW Part No. 805005

Filter/Crossover Network: Complete Assembly

EAW Part No. 201458, 201459

ARCHITECTURAL SPECIFICATIONS

The two-way full range loudspeaker systems shall incorpo­rate a 5.25-in LF transducer a 3/4-in HF transducer.

The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The system shall have

a nominal coverage pattern of 120° (conical). An internal

passive filter network shall provide fourth order acoustical
crossover and system equalization. The drivers shall be mag­netically shielded allowing the systems to be used in imme­diate proximity to video monitors.

System frequency response shall vary no more than ±3 dB

from 98 Hz to 20 kHz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 89 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 116.5 SPL on axis at
1 meter. The loudspeaker shall handle 140 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 8 Ohms.

The loudspeaker enclosure shall be rectangular in shape and
shall be available in left/right mirror-imaged pairs. It shall
be constructed of 3/4-in medium density fiberboard (MDF)
and shall employ extensive internal bracing. It shall be fin­ished in black catalyzed polyurethane. Input connectors shall
be 2-terminal barrier strip. A total of four 1/4”-20 threaded
mounting/suspension points (1 each top and bottom, 2 on
one side to accept Omnimount Series 25) shall be provided.
The front of the loudspeaker shall be covered with a vinyl
coated perforated steel grill.

The two-way full range loudspeaker shall be the EAW model
UB12S.

Acoustic Performance Partnership Eastern Acoustic Works UB12S

One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

TECHNICAL SPECIFICATIONS UB12S

FREQUENCY RESPONSE INPUT IMPEDANCE

120

100

dB SPL

80

B

K

60

100 1000 10000 20000

UB12S Axial Response

Frequency (Hz)

Q & DIRECTIVITY INDEX (DI)

100

10

Q

Horizontal Q and Directivity (1/3 Octave)

Vertical Q and Directivity (1/3 Octave)

Total Q and Directivity (1/3 Octave)

B

1

200 1000 10000

K

UB12S Q and Directivity

Frequency (Hz)

BEAMWIDTH

360

330

300

270

240

210

180

150

Degrees

120

90

60

B

30

0

200 1000 10000

UB12S Beamwidth vs Frequency

Horizontal Beamwidth (1/3 Octave)

Vertical Beamwidth (1/3 Octave)

K

Frequency (Hz)

20

18

16

14

12

10

8

Directivity Index

6

4

2

0

UB12S Full Range Input Impedance (Magnitude)

20

15

10

Ohms

5

B

K

0

20 100 1000 10000 20000

Frequency (Hz)

Q & BEAMWIDTH BY FREQUENCY

Freq Hor Q Ver Q Tot Q Hor Beamwidth Ver Beamwidth
100 1.2 1.2 1.1 360 360
125 1.1 1 1 360 360
160 1.6 1.5 1.5 360 360
200 1.1 1.2 1.1 360 360
250 1.7 1.7 1.7 360 360
315 1.6 1.6 1.6 360 360
400 1.8 1.9 1.9 360 360
500 2.2 2.4 2.2 360 360
630 2.1 2.2 2.1 360 360
800 2.4 3 2.6 206 173
1000 3.2 4 3.5 191 120
1250 4 4.9 4.3 128 106
1600 4.6 10.2 6.4 120 71
2000 5.2 11.3 7.1 116 51
2500 4.9 7.2 5.8 120 106
3150 3.8 3.9 3.9 137 149
4000 3.1 3.3 3.4 144 146
5000 4.2 3.5 3.3 130 134
6300 6.4 5.6 6 105 115
8000 8.9 10.8 9.7 87 76
10000 11 8.6 9.5 66 77
12500 9.7 8.1 8.8 80 94
16000 18.7 18 18.3 56 55
20000 24.8 18.5 21.4 40 40

Acoustic Performance Partnership Eastern Acoustic Works UB12S

One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

TECHNICAL SPECIFICATIONS UB12S

-20

-10

0

10

200 1000 10000

Attenuation in dB

Frequency (Hz)

Vertical +10 degrees

Vertical -10 degrees

UB12S Vertical ±10°

K

B

-20

-10

0

10

200 1000 10000

Attenuation in dB

Frequency (Hz)

Vertical +20 degrees

Vertical -20 degrees

UB12S Vertical ±20°

K

B

-20

-10

0

10

200 1000 10000

Attenuation in dB

Frequency (Hz)

Vertical +30 degrees

Vertical -30 degrees

UB12S Vertical ±30°

K

B

-20

-10

0

10

200 1000 10000

Attenuation in dB

Frequency (Hz)

Vertical +40 degrees

Vertical -40 degrees

UB12S Vertical ±40°

K

B

HORIZONTAL OFF-AXIS RESPONSE VERTICAL OFF-AXIS RESPONSE

On-axis response normalized to 0 dB. On-axis response normalized to 0 dB.

10

0

UB12S Horizontal ±10°

-10

B

Attenuation in dB

-20
200 1000 10000

10

0

-10

B

Attenuation in dB

-20
200 1000 10000

10

0

-10

B

Attenuation in dB

-20
200 1000 10000

10

0

K

K

K

Horizontal +10 degrees

Horizontal -10 degrees

Frequency (Hz)

UB12S Horizontal ±20°

Horizontal +20 degrees

Horizontal -20 degrees

Frequency (Hz)

UB12S Horizontal ±30°

Horizontal +30 degrees

Horizontal -30 degrees

Frequency (Hz)

UB12S Horizontal ±40°

-10

B

Attenuation in dB

-20
200 1000 10000

Acoustic Performance Partnership Eastern Acoustic Works UB12S

One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]

K

Horizontal +40 degrees

Horizontal -40 degrees

Frequency (Hz)

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

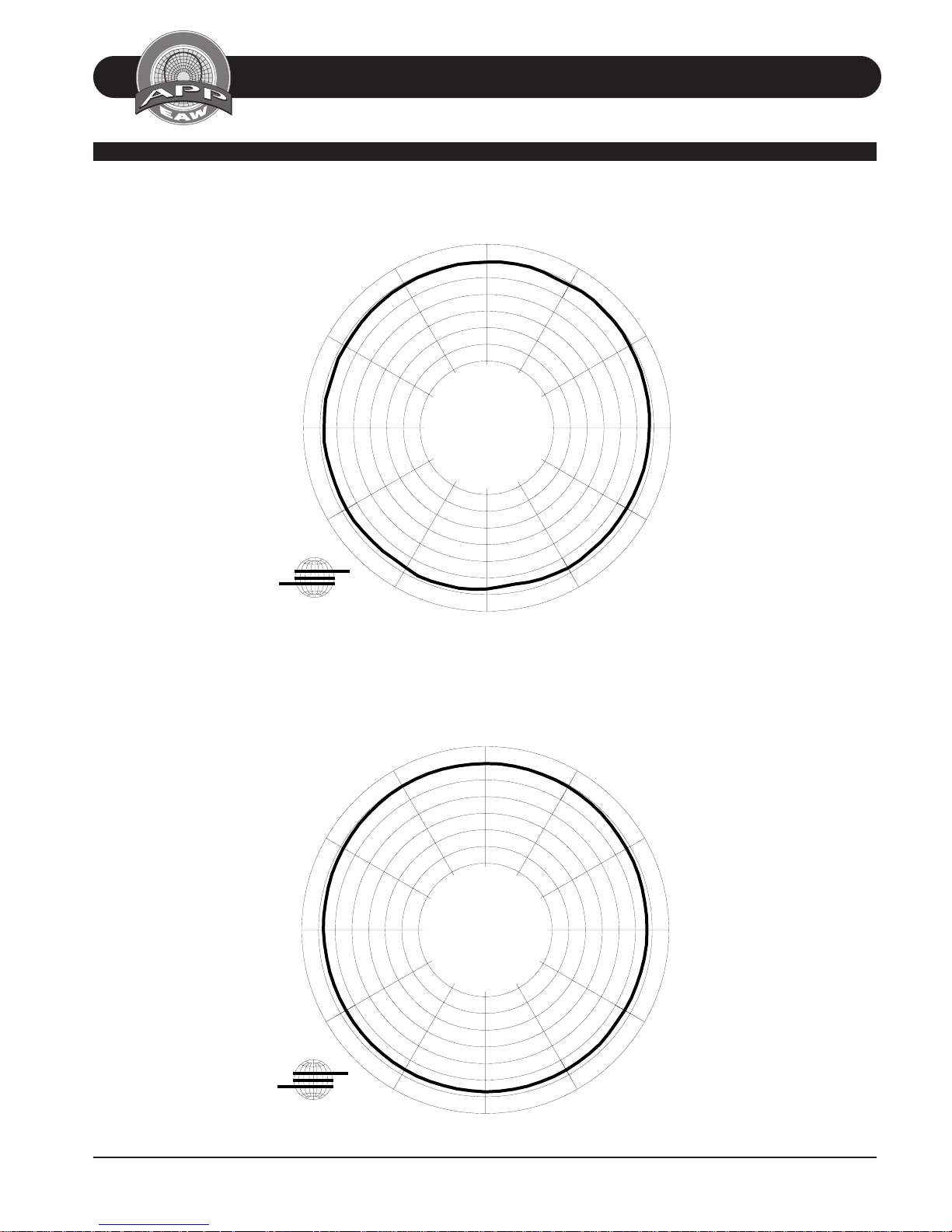

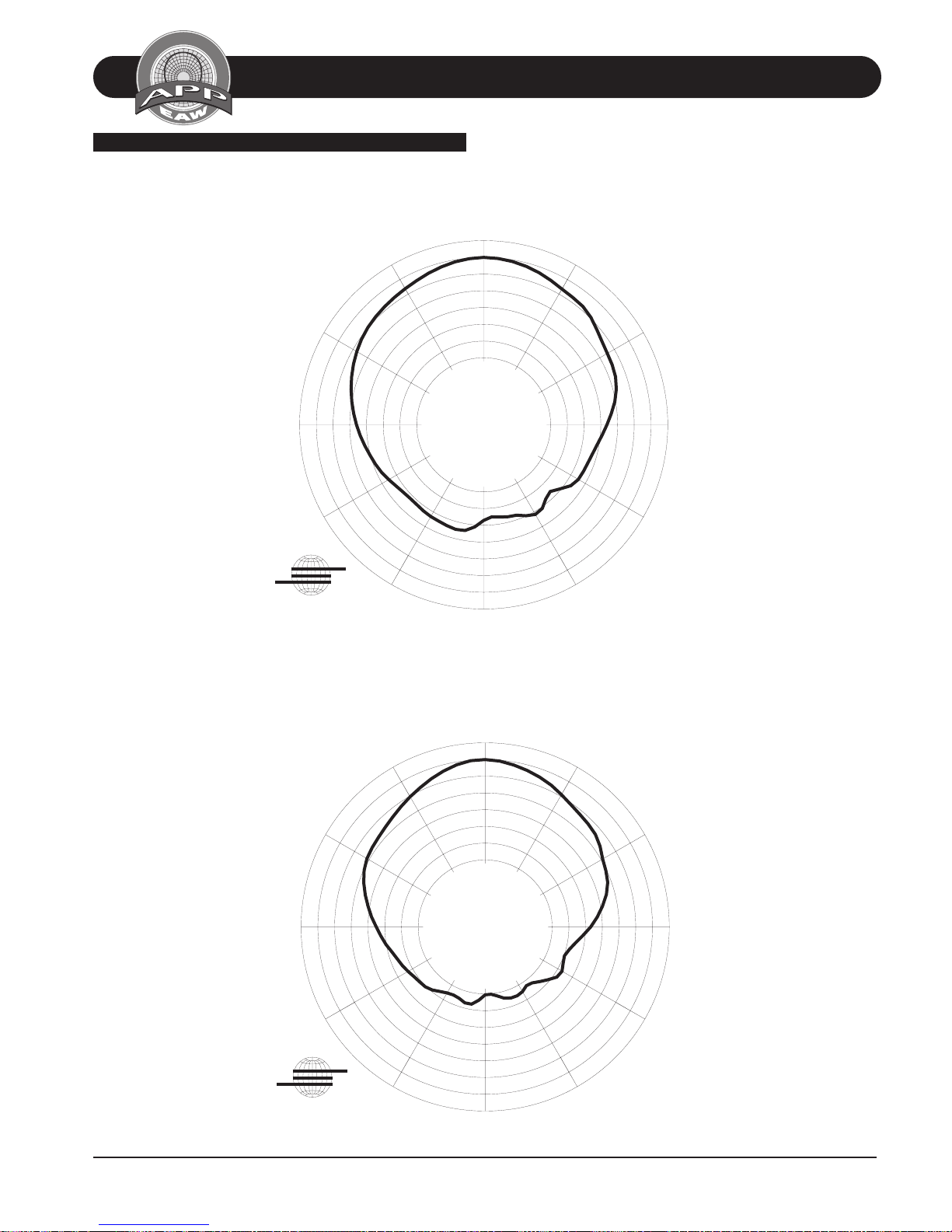

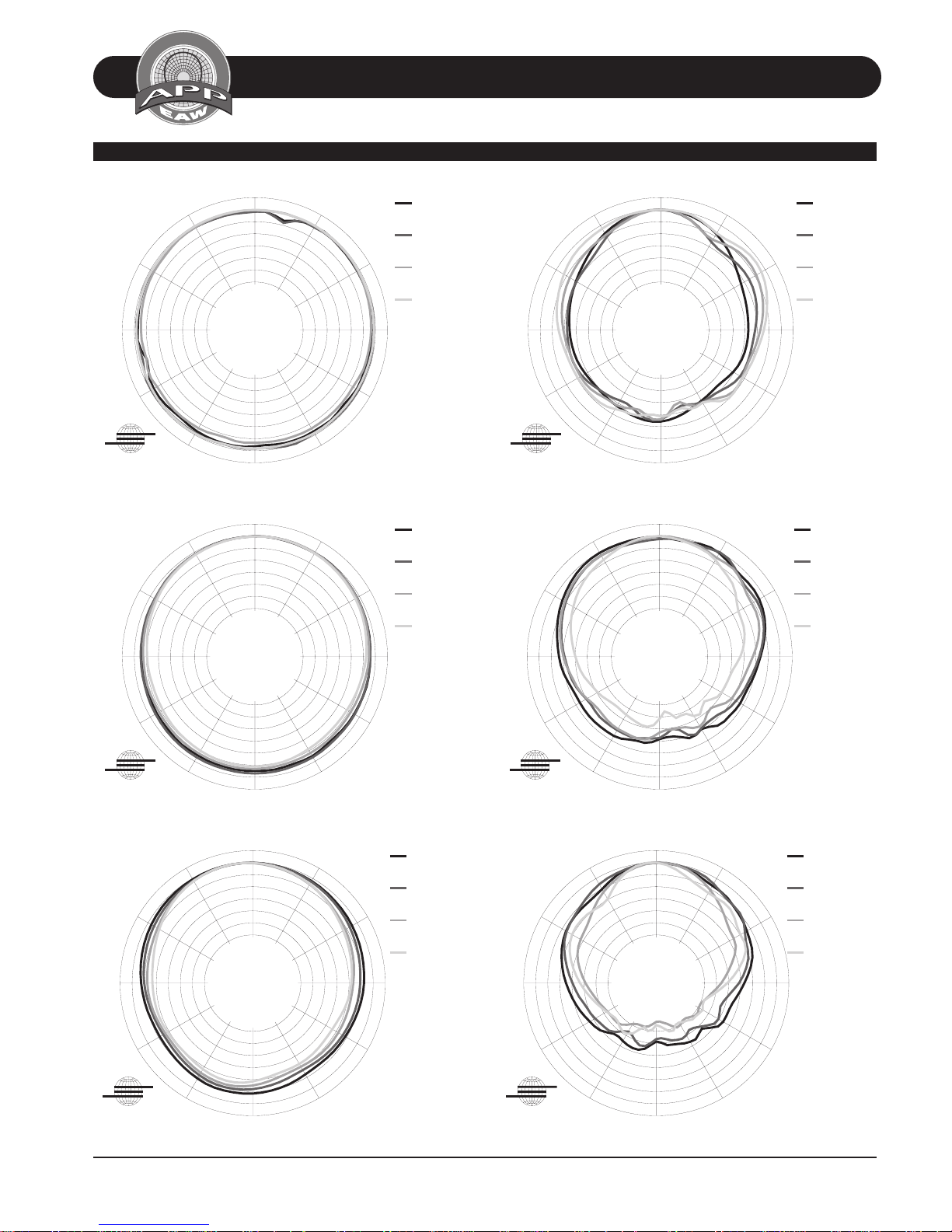

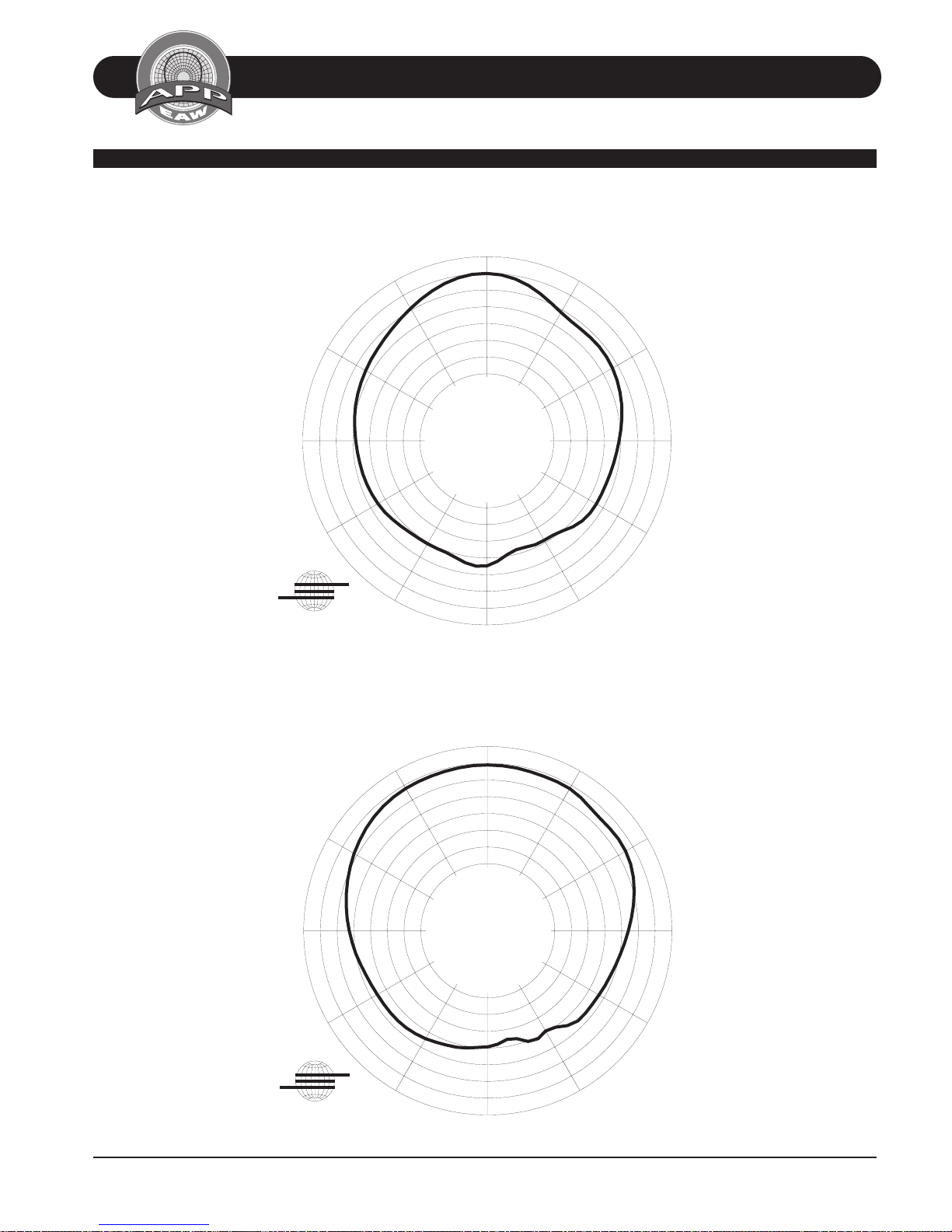

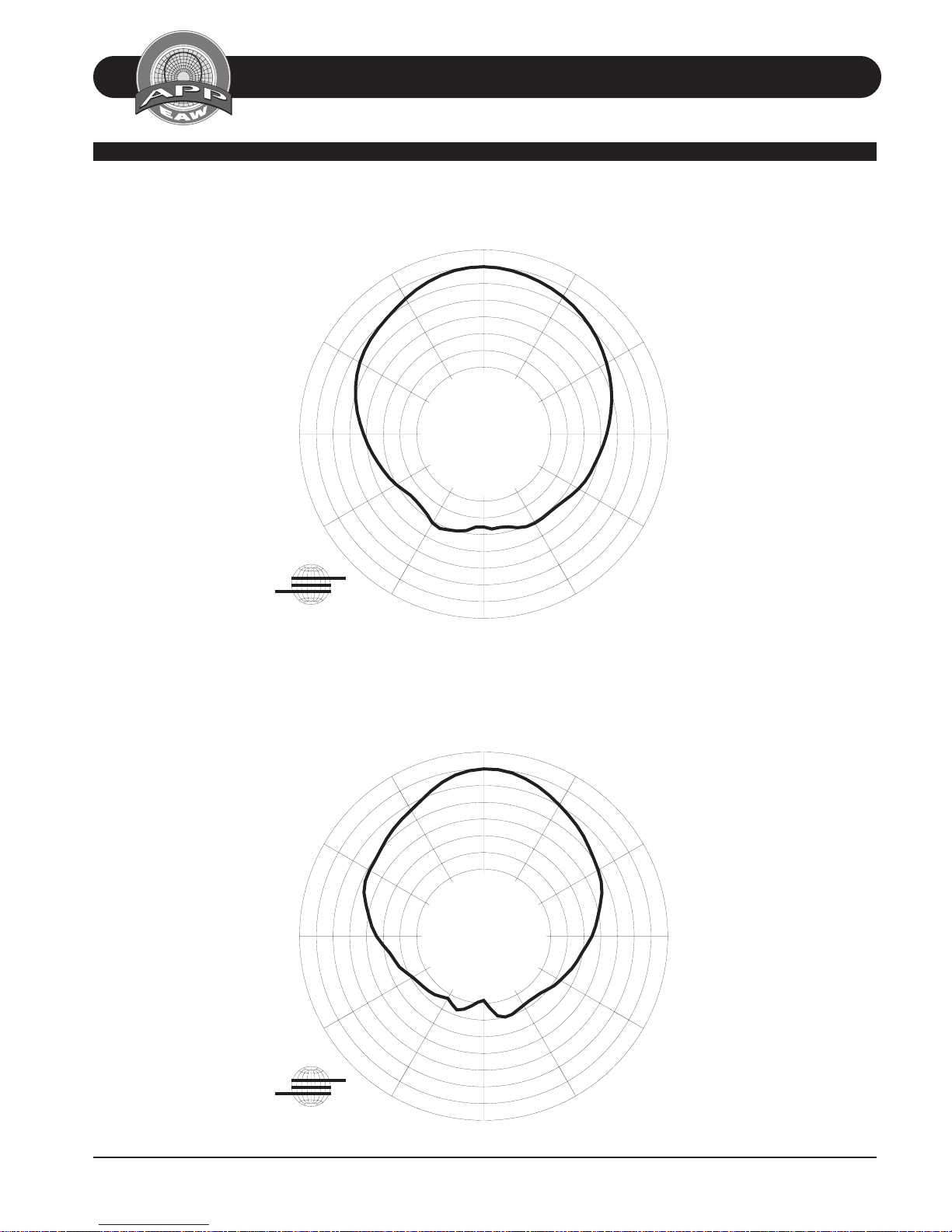

HORIZONTAL 1/3 OCTAVE POLAR DATA UB12
