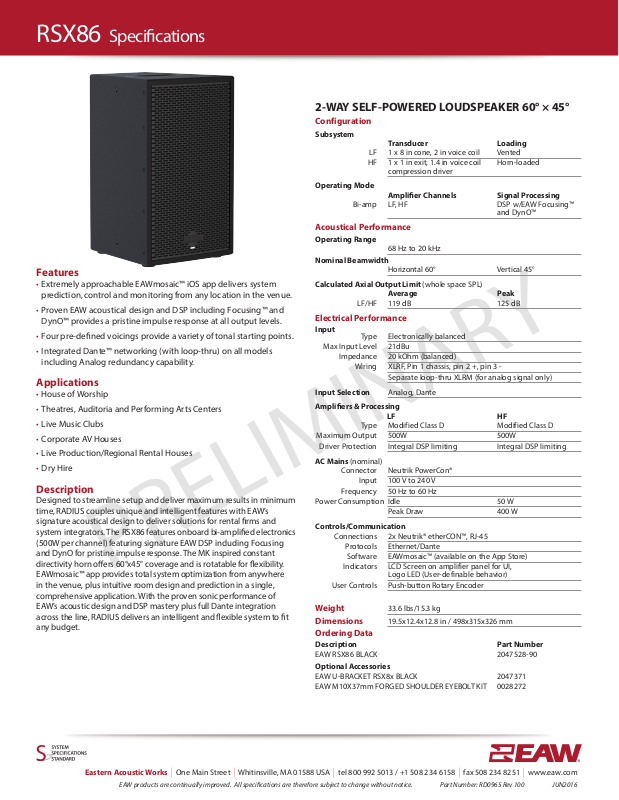

EAW RSX86 Specifications

PRELIMINARY

RSX86 Specications

Features

• Extremely approachable EAWmosaic™ iOS app delivers system

prediction, control and monitoring from any location in the venue.

• Proven EAW acoustical design and DSP including Focusing™ and

DynO™ provides a pristine impulse response at all output levels.

• Four pre-dened voicings provide a variety of tonal starting points.

• Integrated Dante™ networking (with loop-thru) on all models

including Analog redundancy capability.

Applications

• House of Worship

• Theatres, Auditoria and Performing Arts Centers

• Live Music Clubs

• Corporate AV Houses

• Live Production/Regional Rental Houses

• Dry Hire

Description

Designed to streamline setup and deliver maximum results in minimum
time, RADIUS couples unique and intelligent features with EAW’s
signature acoustical design to deliver solutions for rental rms and
system integrators. The RSX86 features onboard bi-amplied electronics
(500W per channel) featuring signature EAW DSP including Focusing
and DynO for pristine impulse response. The MK inspired constant
directivity horn oers 60°x45° coverage and is rotatable for exibility.
EAWmosaic™ app provides total system optimization from anywhere
in the venue, plus intuitive room design and prediction in a single,
comprehensive application. With the proven sonic performance of
EAW’s acoustic design and DSP mastery plus full Dante integration
across the line, RADIUS delivers an intelligent and exible system to t
any budget.

2-WAY SELF-POWERED LOUDSPEAKER 60° × 45°

Configuration

Subsystem
Transducer Loading

LF 1 x 8 in cone, 2 in voice coil Vented
HF 1 x 1 in exit, 1.4 in voice coil Horn-loaded

compression driver

Operating Mode
Amplier Channels Signal Processing

Bi-amp LF, HF DSP w/EAW Focusing™
and DynO™

Acoustical Performance

Operating Range

68 Hz to 20 kHz

Nominal Beamwidth

Horizontal 60° Vertical 45°

Calculated Axial Output Limit (whole space SPL)
Average Peak

LF/HF 119 dB 125 dB

Electrical Performance

Input

Type Electronically balanced
Max Input Level 21dBu
Impedance 20 kOhm (balanced)
Wiring XLRF, Pin 1 chassis, pin 2 +, pin 3 ­ Separate loop-thru XLRM (for analog signal only)

Input Selection Analog, Dante

Ampliers & Processing
LF HF

Type Modified Class D Modified Class D
Maximum Output 500W 500W
Driver Protection Integral DSP limiting Integral DSP limiting

AC Mains (nominal)
Connector Neutrik PowerCon®
Input 100 V to 240 V
Frequency 50 Hz to 60 Hz
Power Consumption Idle 50 W
Peak Draw 400 W

Controls/Communication

Connections 2x Neutrik® etherCON™, RJ-45
Protocols Ethernet/Dante
Software EAWmosaic™ (available on the App Store)
Indicators LCD Screen on amplifier panel for UI,

Logo LED (User-definable behavior)
User Controls Push-button Rotary Encoder

Weight 33.6 lbs/15.3 kg
Dimensions 19.5x12.4x12.8 in / 498x315x326 mm
Ordering Data

Description Part Number

EAW RSX86 BLACK 2047528-90

Optional Accessories

EAW U-BRACKET RSX8x BLACK 2047371
EAW M10X37mm FORGED SHOULDER EYEBOLT KIT 0028272

Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | tel [phone] | fax [phone] | www.eaw.com

JUN2016Part Number: RD0965 Rev 100EAW products are continually improved. All specications are therefore subject to change without notice.
