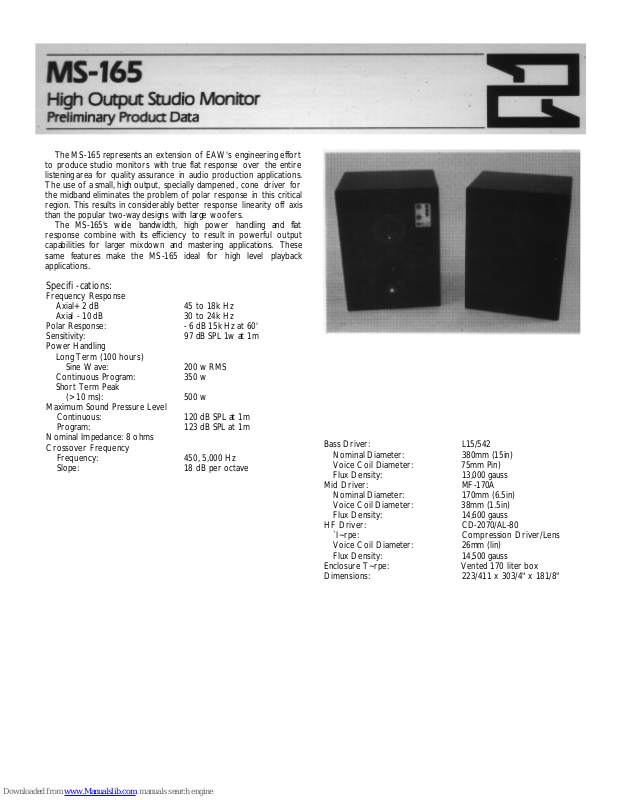

EAW MS165 Specifications

The MS-165 represents an extension of EAW's engineering effort
to produce studio monitors with true flat response over the entire
listening area for quality assurance in audio production applications.
The use of a small, high output, specially dampened, cone driver for
the midband eliminates the problem of polar response in this critical
region. This results in considerably better response linearity off axis
than the popular two-way designs with large woofers.

The MS-165's wide bandwidth, high power handling and flat
response combine with its efficiency to result in powerful output
capabilities for larger mixdown and mastering applications. These
same features make the MS-165 ideal for high level playback
applications.

Specifi -cations:

Frequency Response

Axial+ 2 dB 45 to 18k Hz

Axial - 10 dB 30 to 24k Hz
Polar Response: - 6 dB 15k Hz at 60'
Sensitivity: 97 dB SPL 1w at 1m
Power Handling

Long Term (100 hours)

Sine Wave: 200 w RMS
Continuous Program: 350 w
Short Term Peak

(> 10 ms): 500 w

Maximum Sound Pressure Level

Continuous: 120 dB SPL at 1m

Program: 123 dB SPL at 1m
Nominal Impedance: 8 ohms
Crossover Frequency

Frequency: 450, 5,000 Hz

Slope: 18 dB per octave

Bass Driver: L15/542

Nominal Diameter: 380mm (15in)
Voice Coil Diameter: 75mm Pin)
Flux Density: 13,000 gauss

Mid Driver: MF-170A

Nominal Diameter: 170mm (6.5in)
Voice Coil Diameter: 38mm (1.5in)
Flux Density: 14,600 gauss

HF Driver: CD-2070/AL-80

`I~rpe: Compression Driver/Lens
Voice Coil Diameter: 26mm (lin)

Flux Density: 14,500 gauss
Enclosure T~rpe: Vented 170 liter box
Dimensions: 223/411 x 303/4" x 181/8"
