FEATURES
FEATURES
• Full-range, 3-way system
• 2x 15-in LF; 2x 10-in horn-loaded MF; 2-in exit
Neodymium HF
• 60° x 40° beamwidth
• Horizontally configured to create vertical arrays
DESCRIPTION
A 3-way, full-range system in a vented trapezoidal enclosure.
Includes dual, slot-loaded 15-in woofers, dual, horn-loaded
10-in MF cones with Radial Phase Plug™, and a 2-in exit/3-in
diaphragm Neodymium compression driver. The MF and HF
horns provide a nominal 60° x 40° beamwidth. An internal
passive crossover with jumpers on the input panel allows user
selection of either bi-amplified or passive operation. In either
case digital signal processing is required to achieve specified
performance. The enclosure features a comprehensive system
of 3/8”-16 threaded suspension points.

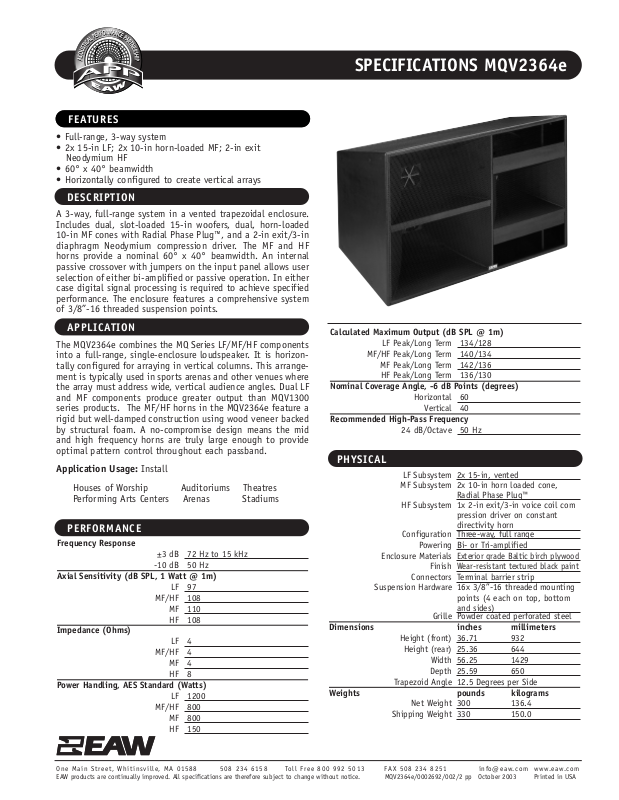

SPECIFICATIONS MQV2364e
APPLICATION
The MQV2364e combines the MQ Series LF/MF/HF components
into a full-range, single-enclosure loudspeaker. It is horizontally configured for arraying in vertical columns. This arrangement is typically used in sports arenas and other venues where
the array must address wide, vertical audience angles. Dual LF
and MF components produce greater output than MQV1300
series products. The MF/HF horns in the MQV2364e feature a
rigid but well-damped construction using wood veneer backed
by structural foam. A no-compromise design means the mid
and high frequency horns are truly large enough to provide
optimal pattern control throughout each passband.
Application Usage: Install
Houses of Worship Auditoriums Theatres
Performing Arts Centers Arenas Stadiums
PERFORMANCE
Frequency Response
±3 dB 72 Hz to 15 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 97
MF/HF 108
MF 110
HF 108
Impedance (Ohms)
LF 4
MF/HF 4
MF 4
HF 8
Power Handling, AES Standard (Watts)
LF 1200
MF/HF 800
MF 800
HF 150
Calculated Maximum Output (dB SPL @ 1m)
LF Peak/Long Term 134/128
MF/HF Peak/Long Term 140/134
MF Peak/Long Term 142/136
HF Peak/Long Term 136/130
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 60
Vertical 40
Recommended High-Pass Frequency
24 dB/Octave 50 Hz
PHYSICAL
LF Subsystem 2x 15-in, vented
MF Subsystem 2x 10-in horn loaded cone,
HF Subsystem 1x 2-in exit/3-in voice coil com
Configuration Three-way, full range
Powering Bi- or Tri-amplified
Enclosure Materials
Connectors Terminal barrier strip
Suspension Hardware 16x 3/8”-16 threaded mounting
Dimensions inches millimeters
Height (front) 36.71 932
Height (rear) 25.36 644
Trapezoid Angle 12.5 Degrees per Side
Weights pounds kilograms
Net Weight 300 136.4
Shipping Weight 330 150.0
Radial Phase Plug™
pression driver on constant
directivity horn
Exterior grade Baltic birch plywood
Finish
Wear-resistant textured black paint
points (4 each on top, bottom
and sides)
Grille Powder coated perforated steel
Width 56.25 1429
Depth 25.59 650
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MQV2364e/0002692/002/2 pp October 2003 Printed in USA
SPECIFICATIONS MQV2364e
C
A
A
10.92
15.34
25.59
L
C
L
C
L
VIEW A-A
56.25
15.71
DIMENSIONS
APPLY
TO TOP AND
BOTTOM
8.08
52.35
BACK
2X ACCESS
PANEL
0002341(A) 9/11/02
INPUT
SIDES
DIMENSIONS APPLY
TO BOTH SIDES
GRILLE PARTIALLY SHOWN
FRONT
7.50
(1.95)
27.50
4.00
NOTES:
1. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADE HOLE (PI ANGLE).
2. SYMBOL INDICATES CENTER OF BALANCE.
3. WEIGHT APPROX. 300 LBS.
4. SHIPPING WEIGHT APPROX. 330 LBS.
36.71
25°
29.61
(25.36)
22.81
12.50
5.00
DIMENSIONAL DRAWING
Manufacturing tolerances are +/-0.13 and +/-1°
A & E SPECIFICATIONS
The 3-way full-range loudspeaker shall incorporate two 15-in
slot-loaded woofers, two 10-in MF cones with Radial Phase
Plug™, and a 2-in exit/3-in diaphragm HF compression driver. The MF and HF devices shall be loaded on horns that provide a nominal 60° x 40° beamwidth. An internal passive
crossover network shall offer either bi- or tri-amplified operation, configurable via jumpers on the input panel.
System frequency response shall vary no more than 63 dB
from 70 Hz to 15 kHz measured on axis. The LF section shall
produce a sound pressure level of 97 dB SPL on axis at 1 meter
with a power input of 1 watt, and shall be capable of producing a peak output of 134 dB SPL on axis at 1 meter. The
LF section shall handle 1200 watts of amplifier power (AES
Standard) and shall have a nominal impedance of 4 ohms.
When operated in bi-amplified mode, the MF/HF section shall
produce a sound pressure level of 108 dB SPL on axis at 1
meter with a power input of 1 watt, and shall be capable of
producing a peak output of 140 dB SPL on axis at 1 meter. The
MF/HF section shall handle 800 watts of amplifier power (AES
Standard) and shall have a nominal impedance of 4 ohms.
When operated in tri-amplified mode, the MF section shall
produce a sound pressure level of 110 dB SPL on axis at 1
meter with a power input of 1 watt, and shall be capable of
producing a peak output of 142 dB SPL on axis at 1 meter. The
MF section shall handle 800 watts of amplifier power (AES
Standard) and shall have a nominal impedance of 4 ohms.
The HF section shall produce a sound pressure level of 108 dB
SPL on axis at 1 meter with a power input of 1 watt, and shall
be capable of producing a peak output of 136 dB SPL on axis
at 1 meter. The HF section shall handle 150 watts of amplifier power (AES Standard) and shall have a nominal impedance
of 8 ohms.
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MQV2364e/0002692/002/2 pp October 2003 Printed in USA
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of exterior grade Baltic birch plywood
and shall employ extensive internal bracing. It shall be finished in wear-resistant textured black paint. Input connectors
shall be a terminal strip. A total of 16x 3/8”-16 threaded
mounting/suspension points (4 each top, bottom, and sides)
shall be provided. The front of the loudspeaker shall be covered with a powder coated perforated steel grille.
The 3-way full-range loudspeaker shall be the EAW model
MQV2364e.
