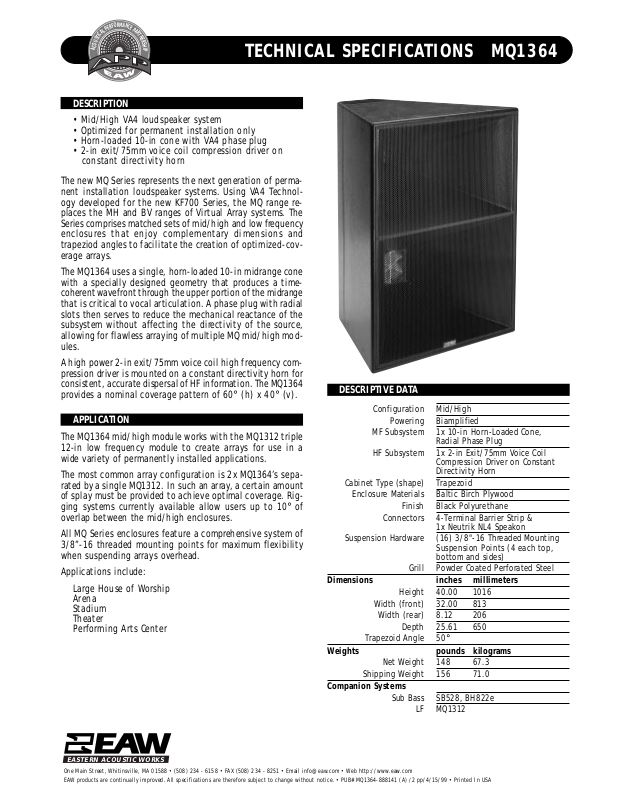

TECHNICAL SPECIFICATIONS MQ1364

DESCRIPTION

• Mid/High VA4 loudspeaker system

• Optimized for permanent installation only

• Horn-loaded 10-in cone with VA4 phase plug

• 2-in exit/75mm voice coil compression driver on
constant directivity horn

The new MQ Series r epresen ts the n ext g ener ation o f perm a­nent installation loudspeaker systems. Using VA4 Technol­ogy developed for the new KF700 Series, the MQ range re­places the MH and BV ranges of Virtual Array systems. The
Series comprises match ed sets of mid/high and low fr equency
enclosures that enjoy complementary dimensions and
trapeziod angles to f acilitate the cr eation of optimized-cov­erage arrays.

The MQ1364 uses a single, h orn-loaded 10-in mi dr ange cone
with a specially designed geometry that produces a time­coherent wavefr ont through the upper portion of th e midran ge
that is critical to vocal articulation. A phase plug with r adial
slots then serves to reduce the mechanical reactance of the
subsystem without affecting the directivity of the source,
allowing for flawless arrayin g of multiple MQ mi d/high mod­ules.

A high power 2-in exit/75mm voice coil hi gh frequency com­pression driver is m ounted on a constan t directivity horn f or
consistent, accurate dispersal o f HF information. The MQ1364
provides a nominal coverage pattern of 60° (h) x 40° (v).

APPLICATION

The MQ1364 mid/high m odule works with the MQ1312 triple
12-in low frequency module to create arrays for use in a
wide variety of permanently installed applications.

The most common array configuration is 2x MQ1364’s sepa­rated by a single MQ1312. In such an arr ay, a certain am ount
of splay must be provi d ed to achieve optim al cover age . Ri g­ging systems currently available allow users up to 10° of
overlap between the mid/high enclosures.

All MQ Series enclosures feature a comprehensive system of
3/8”-16 threaded mounting points for maximum flexibility
when suspending arrays overhead.

Applications include:

Large House of Worship
Arena
Stadium
Theater
Performing Arts Center

DESCRIPTIVE DATA

Configuration Mid/High

Powering Biamplified

MF Subsystem 1x 10-in Horn-Loaded Cone,

Radial Phase Plug

HF Subsystem 1x 2-in Exit/75mm Voice Coil

Compression Driver on Constant
Directivity Horn

Cabinet Type (shape) Trapezoid

Enclosure Materials Baltic Birch Plywood

Finish Black Polyurethane

Connectors 4-Terminal Barrier Strip &

1x Neutrik NL4 Speakon

Suspension Hardware (16) 3/8"-16 Threaded Mounting

Suspension Points (4 each top,
bottom and sides)

Grill Powder Coated Perforated Steel

Dimensions inches millimeters

Height 40.00 1016

Width (front) 32.00 813

Width (rear) 8.12 206

Depth 25.61 650

Trapezoid Angle 50°

Weights pounds kilograms

Net Weight 148 67.3

Shipping Weight 156 71.0

Companion Systems

Sub Bass SB528, BH822e

LF MQ1312

EASTERN ACOUSTIC WORKS

Acoustic Performance Partnership Eastern Acoustic Works MQ1364

One Main Street, Whitinsville MA, 0158 8 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web h ttp://www.eaw .com • email [e-mail]

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [e-mail] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MQ1364-888141 (A) /2 pp/4/15/99 • Printed In USA

M

R

A

N

O

F

C

R

E

E

P

P

A

L

A

C

I

T

S

U

O

C

A

R

T

N

E

R

S

H

I

P

TECHNICAL SPECIFICATIONS MQ1364

DIMENSIONAL DRAWINGS ARCHITECTURAL SPECIFICATIONS

MQ1364

40.00

GRILL PARTIALLY

FRONT

6.37

CENTER OF BALANCE, TBD.
MOUNTING POINT, 3/8-16 THREADED HOLE.

32.00

SHOWN

13.15

25.61

(8.12)

C

L

12.16

23.28

50°

TOP

5.63

11.91

5.00

The two-way mid/high lou dspeaker system shall incorpor ate
a 10-in cone MF tran sducer and a 2-in exit compressi on driver
HF transducer.

The MF driver shall be loaded into a midrange horn con­structed of 3mm birch plywood r einfor ced with hi gh den sity
polyurethane foam. The MF horn shall incorporate a phase/
displacement plug. The HF driver shall be loaded on con­stant directivity horn with a nominal coverage pattern of
60° (h) x 40° (v). An internal passive filter network shall
provide system equalization.

System frequency response shall vary no more than ±3 dB
from 190 Hz to 19 kHz measured on axis. The midr ange fre­quency section shall prod uce a Sound Pressur e Level (SPL) of

109.5 dB SPL on axis at 1 meter with a power input of 1

36.10

1.95

510834 (A)
exp 4/8/99 dpm

SIDES

10.57

INPUT

C

L

BACK

7.38

Watt, and shall be capable of producing a peak output of

141.5 SPL on axis at 1 meter. The high frequency section
shall produce a Soun d Pressur e Level (SPL) of 114 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 143 SPL on axis at 1
meter . The mid range frequen cy section shall handle 400 W atts
of amplifier power (AES Stand ar d) and shall have a nominal
impedance of 8 Ohm s. The high frequen cy section shall handle

NOMINAL DATA

Frequency Response (1 W @ 1m)

±3 dB 190 Hz to 19 kHz

-10 dB 140 Hz

Axial Sensitivity (dB SPL, 1 Watt @ 1m)

MF 109.5
HF 114.0

Impedance (Ohms)

MF 8
HF 8

Power Handling, AES Standard (Watts)

MF 400
HF 200

Calculated Maximum Output (dB SPL)

MF Peak 141.5

HF Peak 143.0
MF Long Term 135.5
HF Long Term 137.0

Nominal Coverage Angle/-6 dB points (degrees)

Horizontal 60

Vertical 40

Recommended High-Pass Frequency

24 dB/Octave 190 Hz

200 Watts of amplifi er power (AES Stan d ard) and shall have
a nominal impedance of 8 Ohms.

The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 15mm thi ckness void-free cross-gr ain­laminated Baltic birch plywood and shall employ extensive
internal bracin g. It shall be finished in black catalyzed poly­urethane. Input connectors shall be 4-terminal barrier strip
and one Neutrik NL4 Speakon. A total of sixteen 3/8"-16
threaded mounting/suspension points (4 each top, bottom
and sides) shall be provided. The front of the loudspeaker
shall be covered with a powder coated perforated steel grill.

The two-way mid/high loudspeaker shall be the EAW model
MQ1364.

Acoustic Performance Partnership Eastern Acoustic Works MQ1364

One Main Street, Whitinsville MA, 0158 8 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web h ttp://www.eaw .com • email [e-mail]

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

FREQUENCY RESPONSE

0

)

0

PERFORMANCE SPECIFICATIONS MQ1364

120

MQ1364 Axial Response

100

dB SPL

80

B

K

60

50 100 1000 10000 2000

Frequency (Hz

INPUT IMPEDANCE

20

15

10

MQ1364 Input Impedance (Magnitude)

Ohms

5

B

K

0

20 100 1000 10000 2000

HF Tri-Amp Input Impedance (Magnitude)
MF Tri-Amp Input Impedance (Magnitude)

Frequency (Hz)

Acoustic Performance Partnership Eastern Acoustic Works MQ1364

One Main Street, Whitinsville MA, 0158 8 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw .com • email info@eaw .com

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

PERFORMANCE SPECIFICATIONS MQ1364

0

y

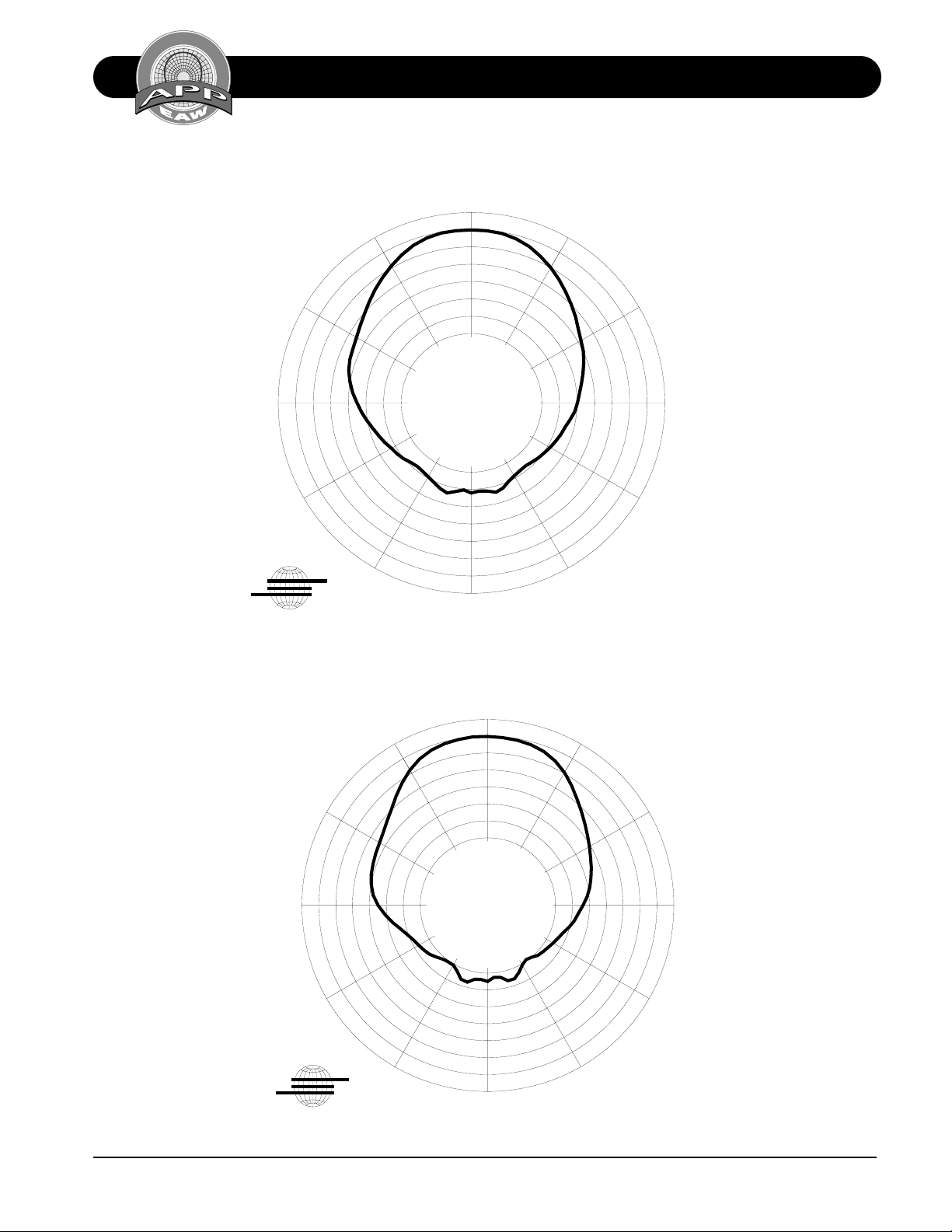

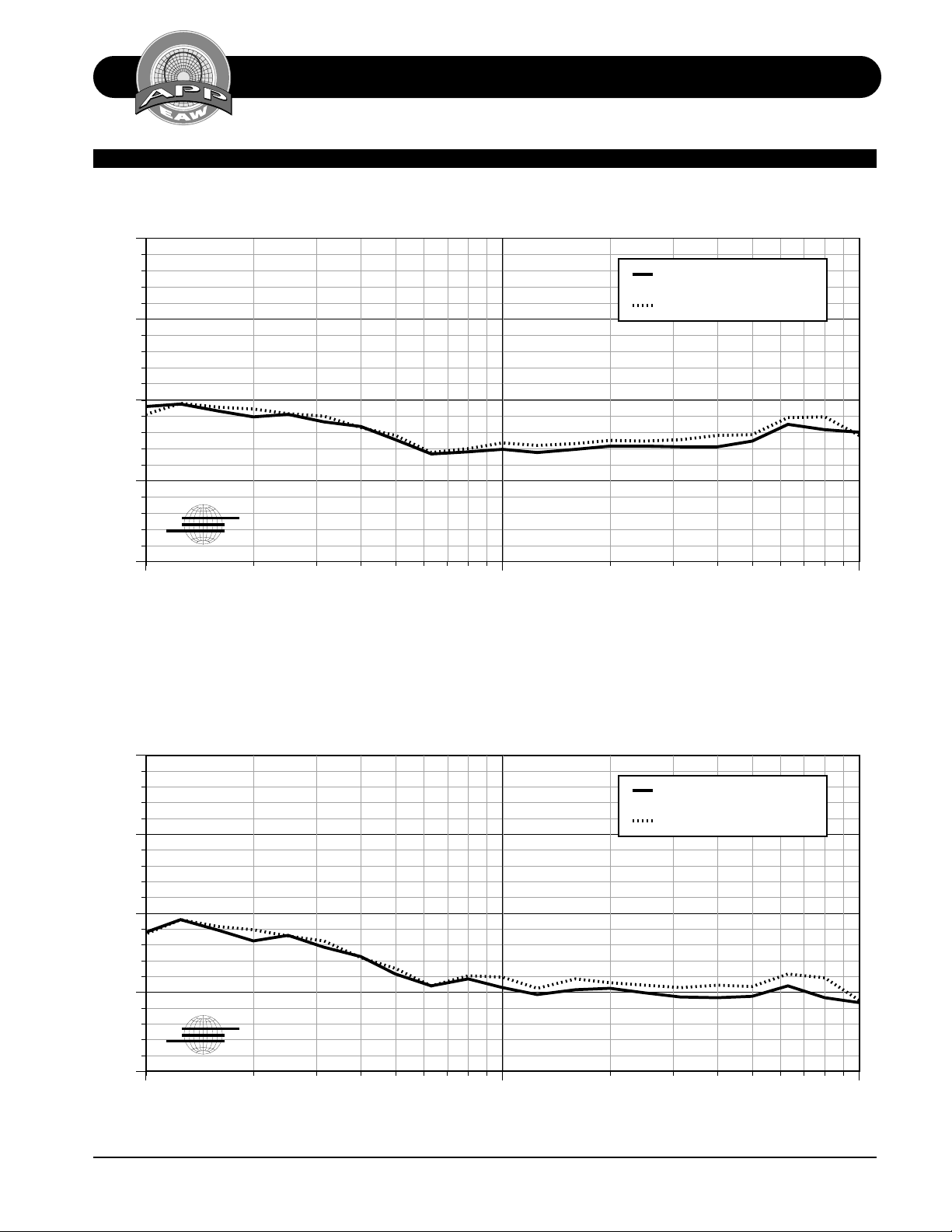

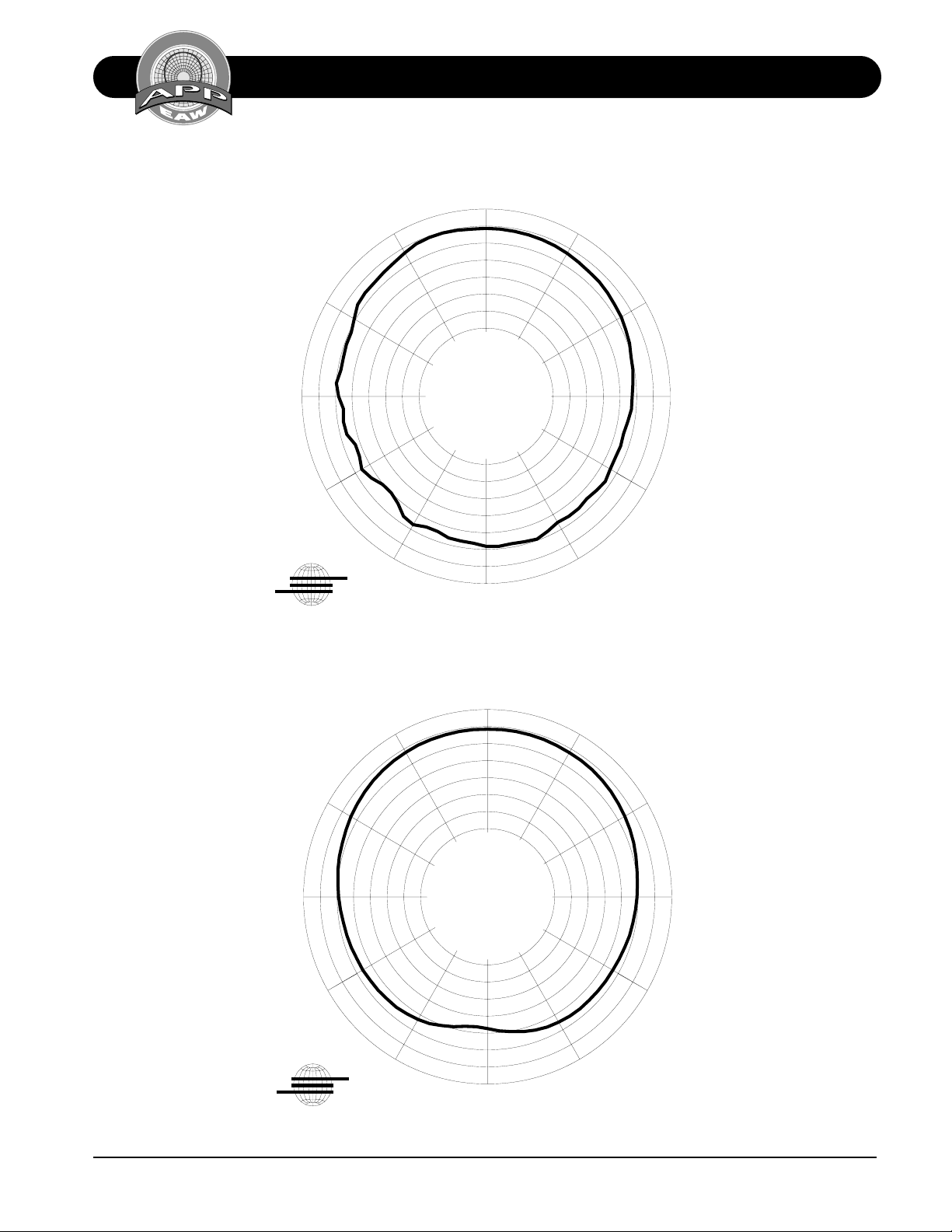

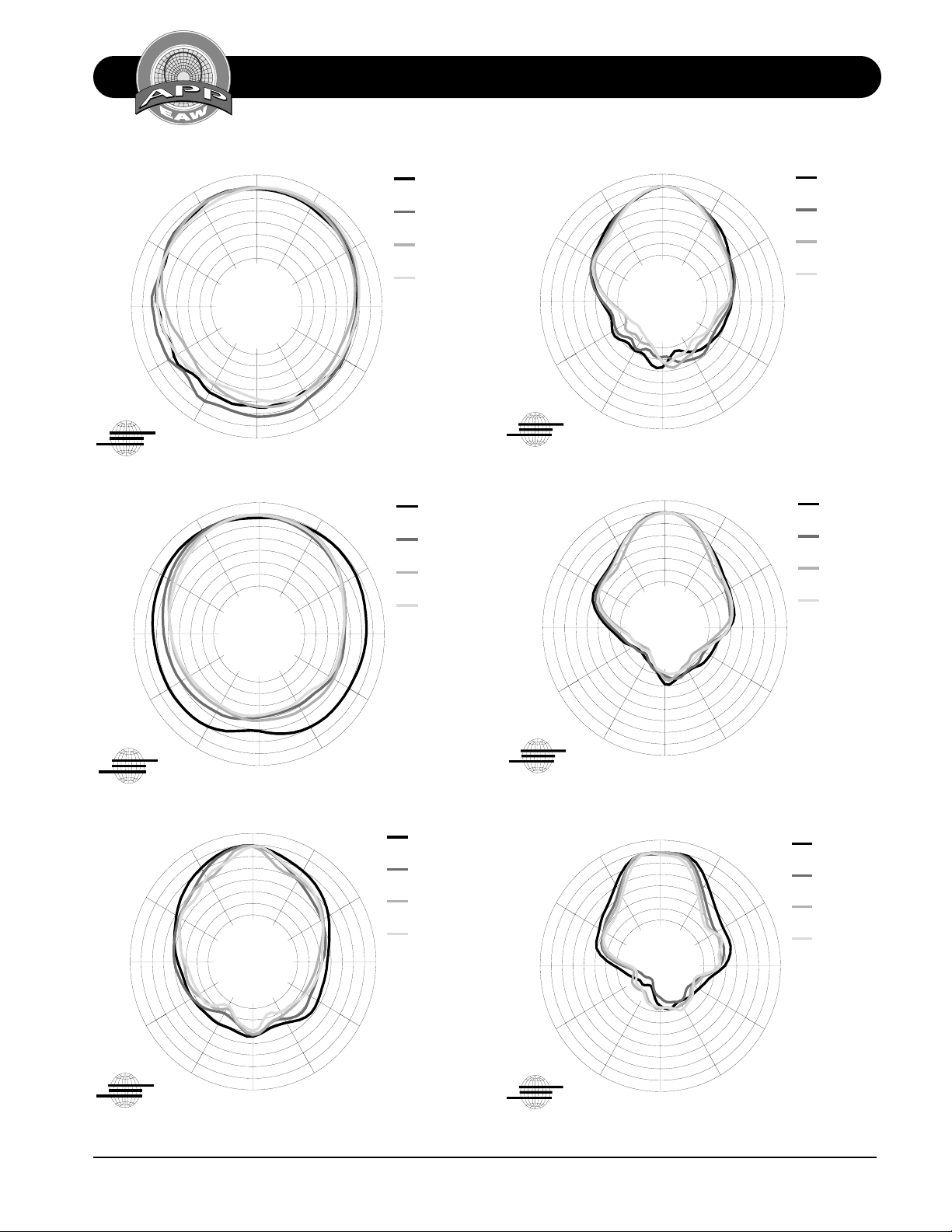

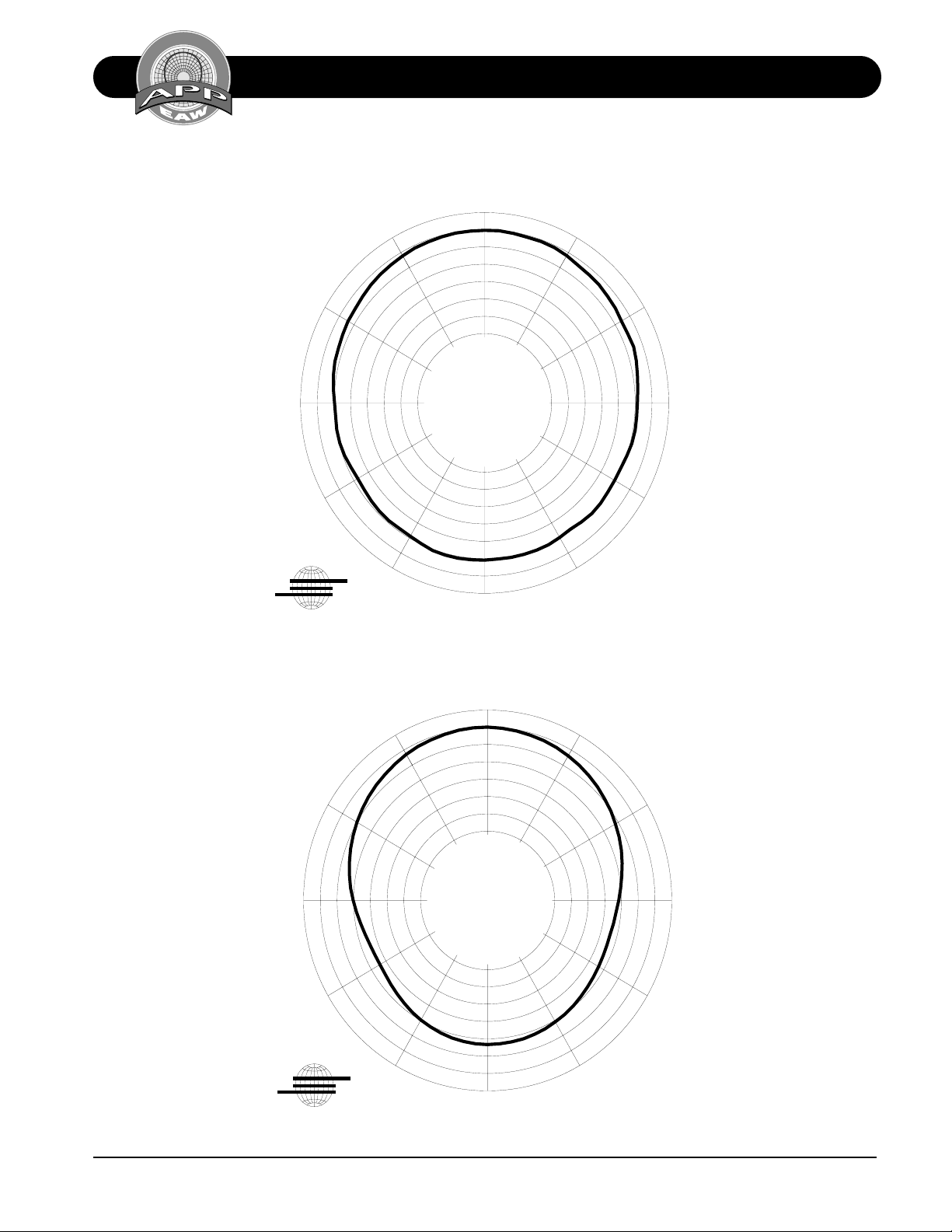

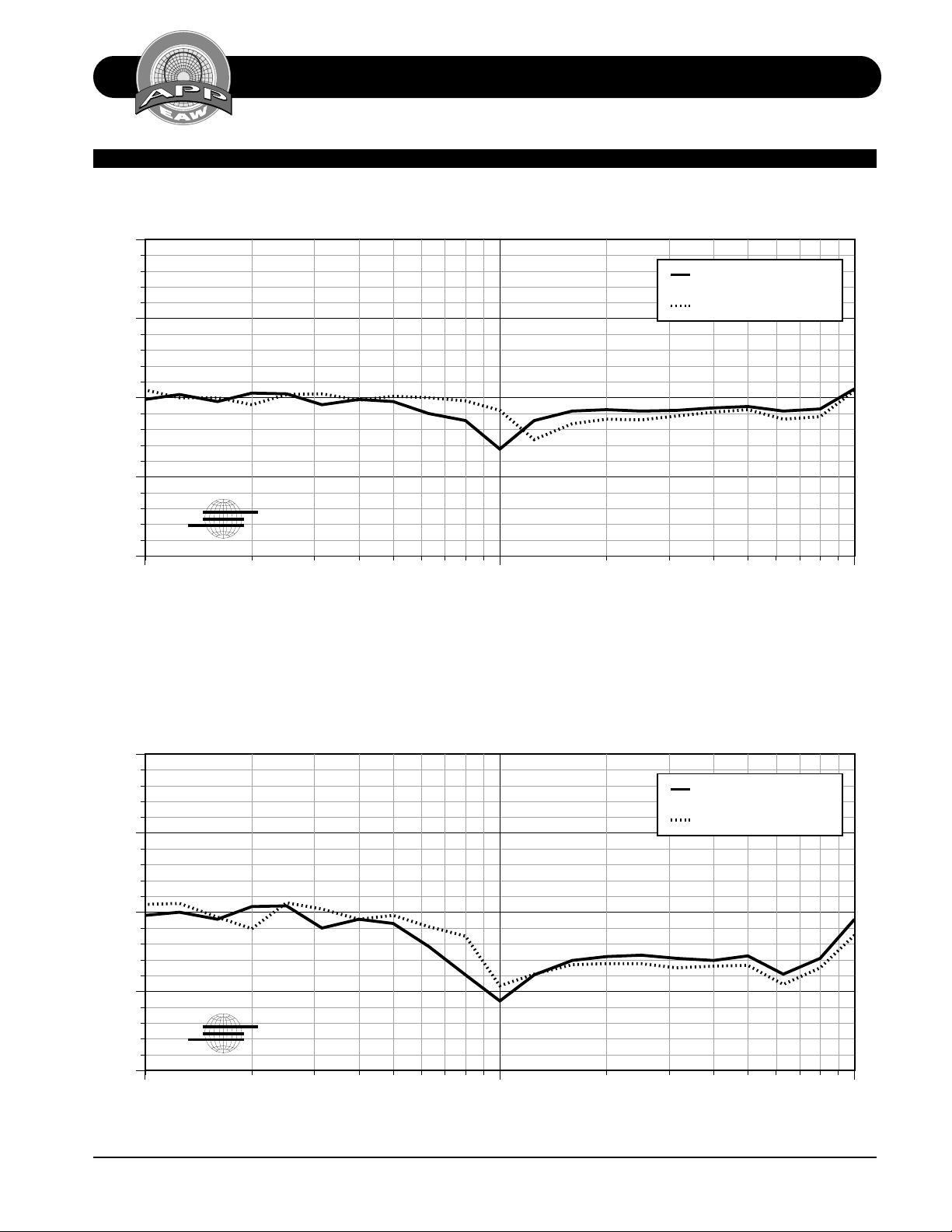

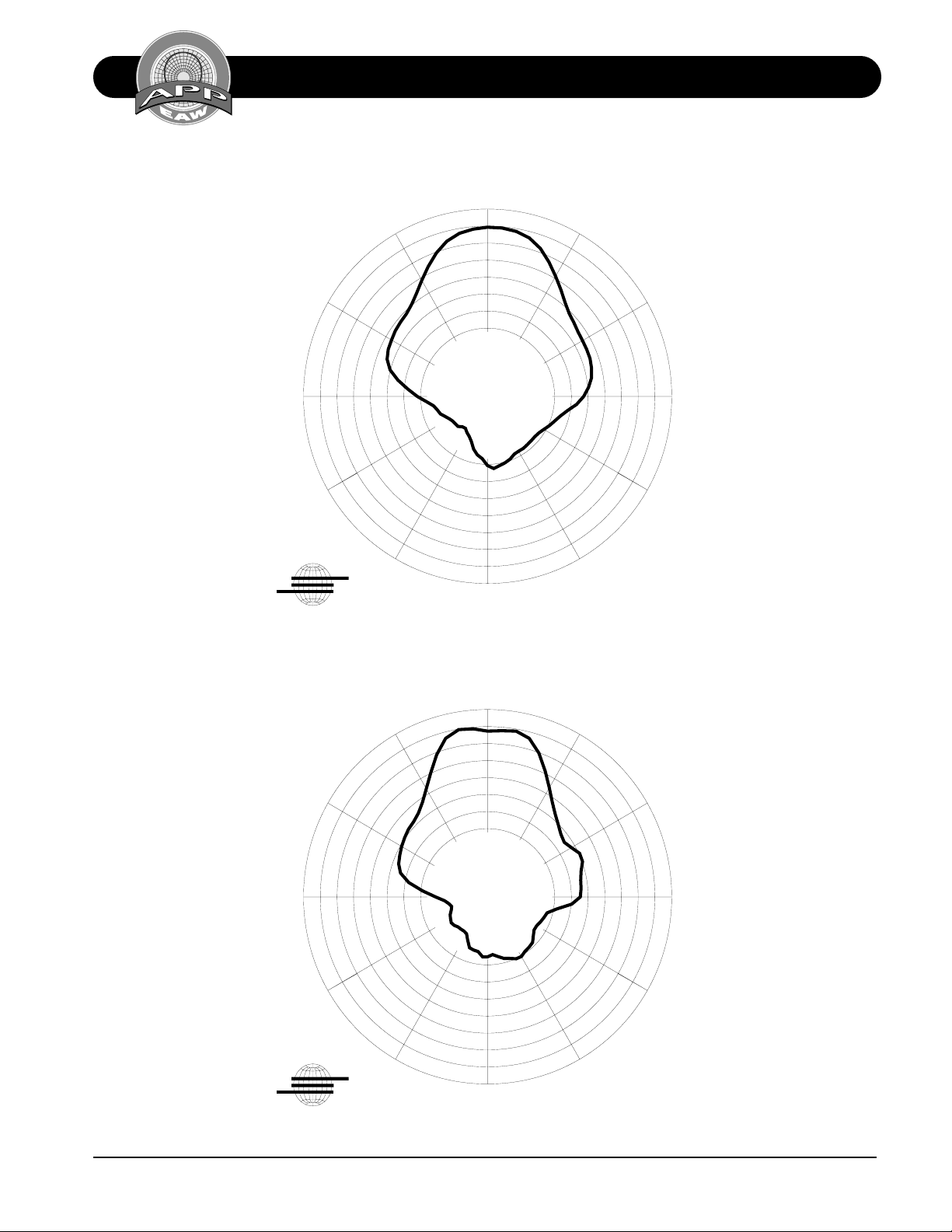

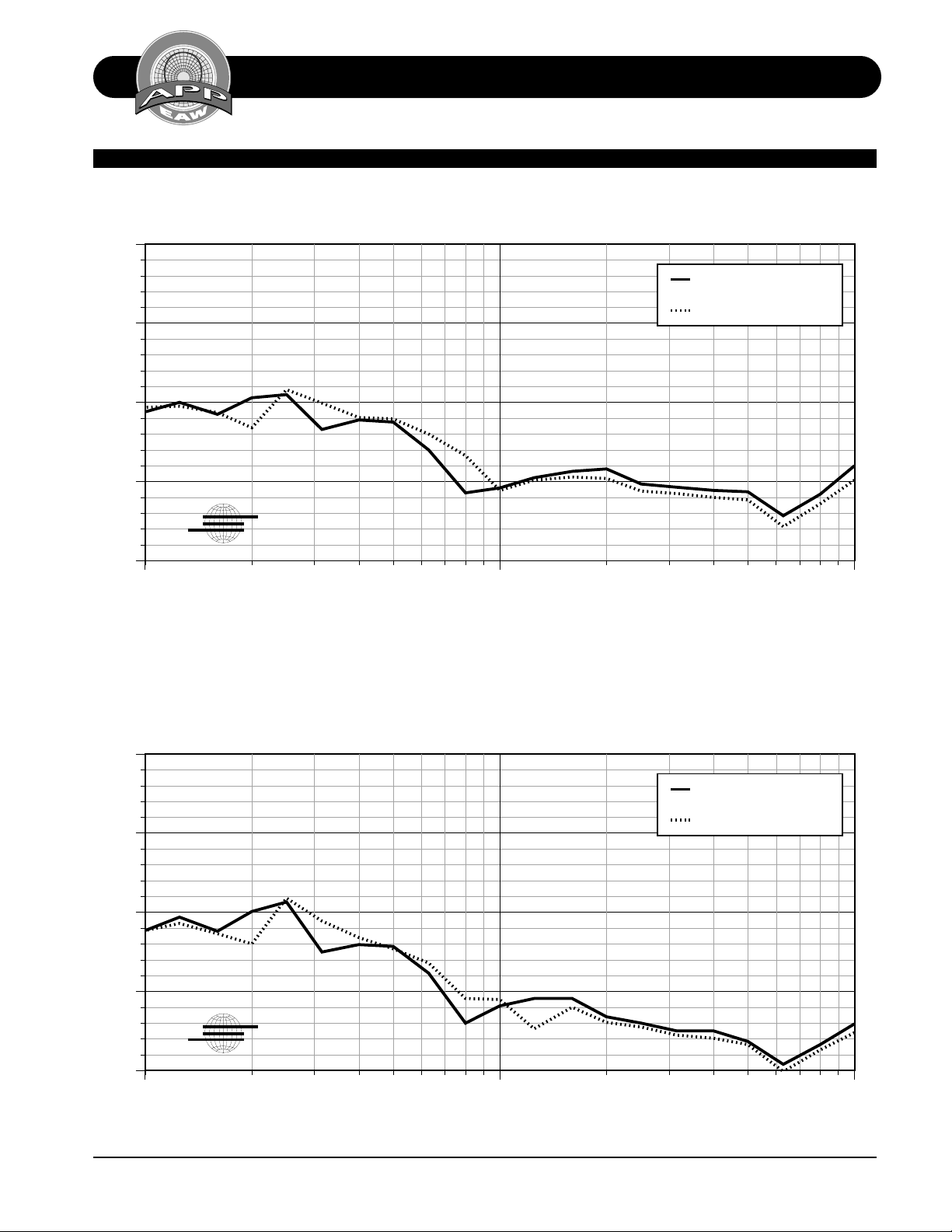

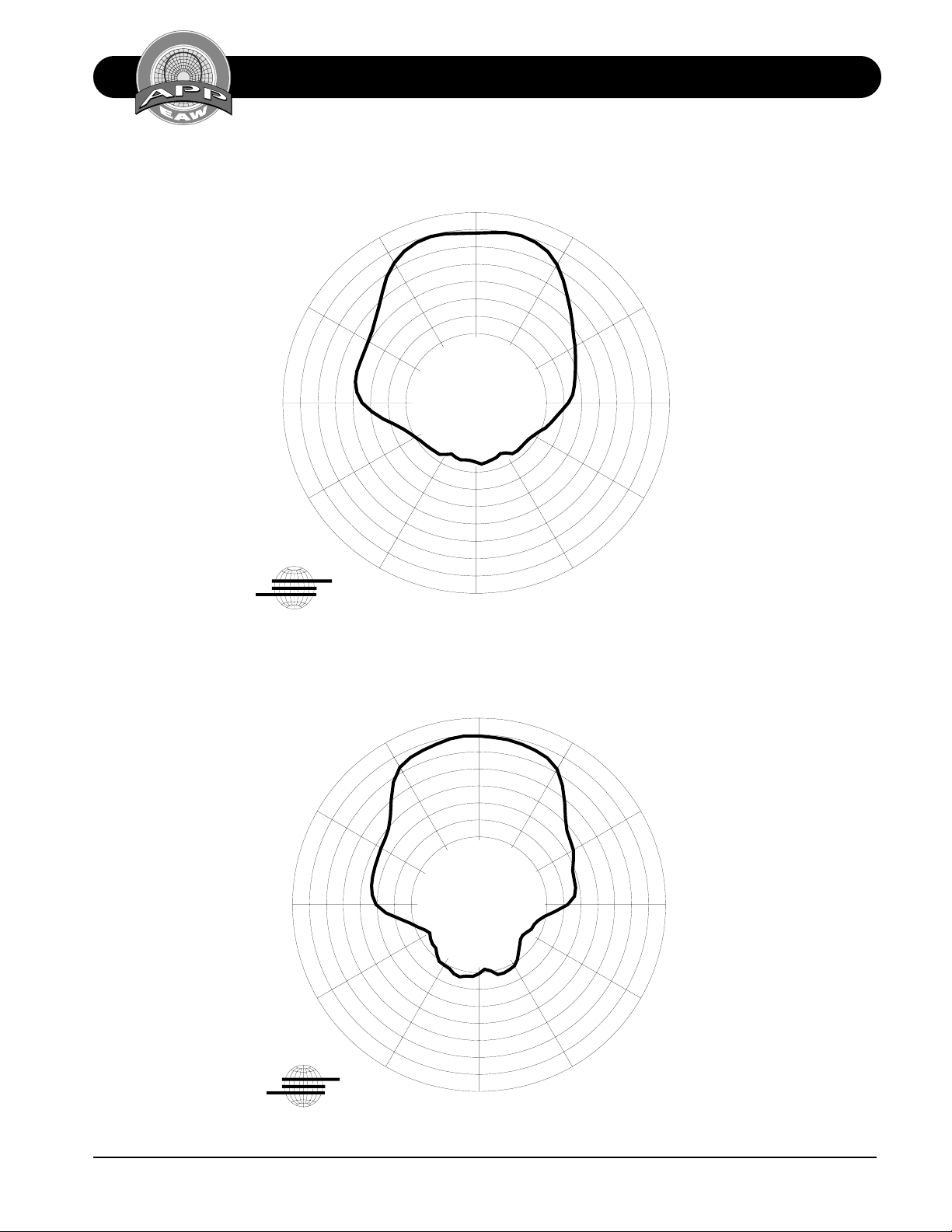

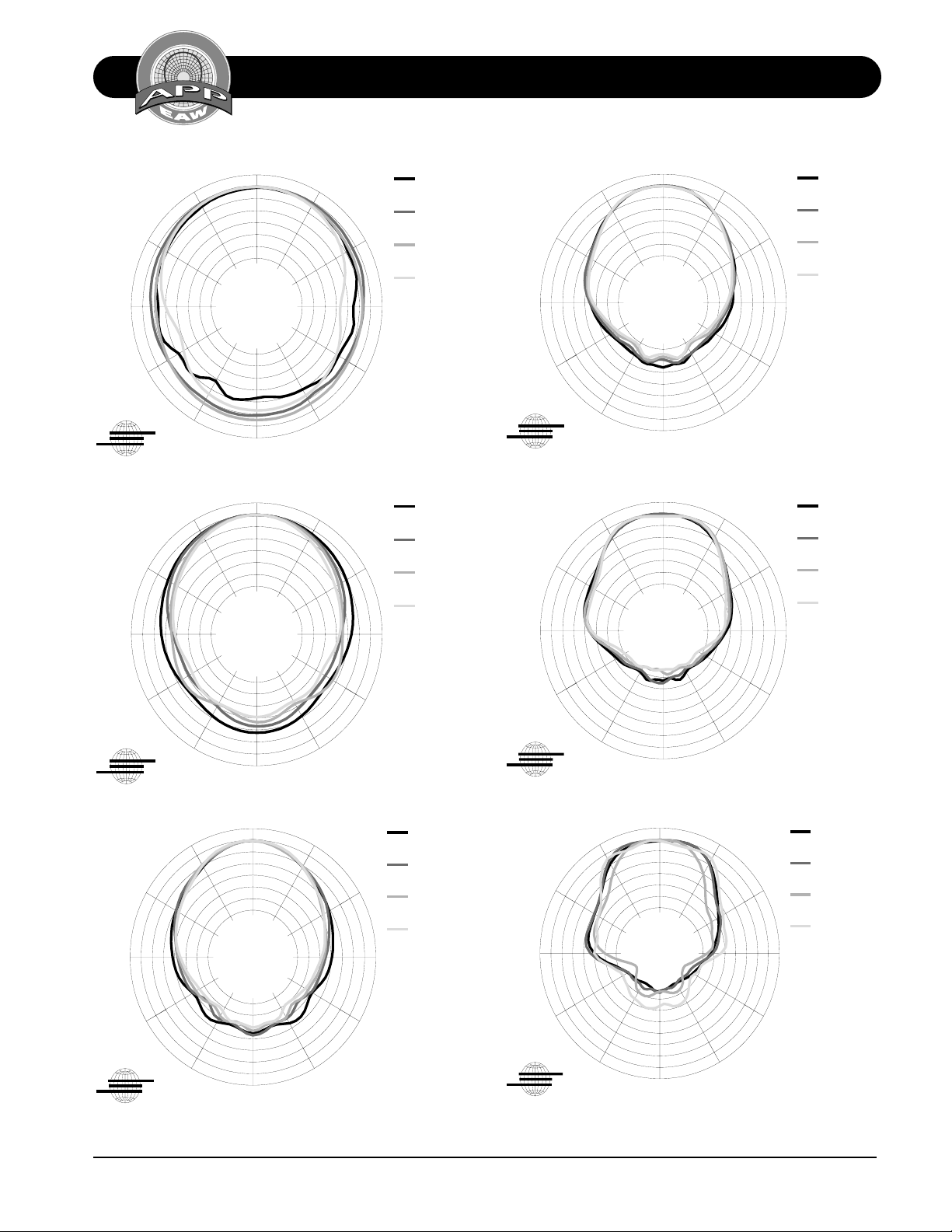

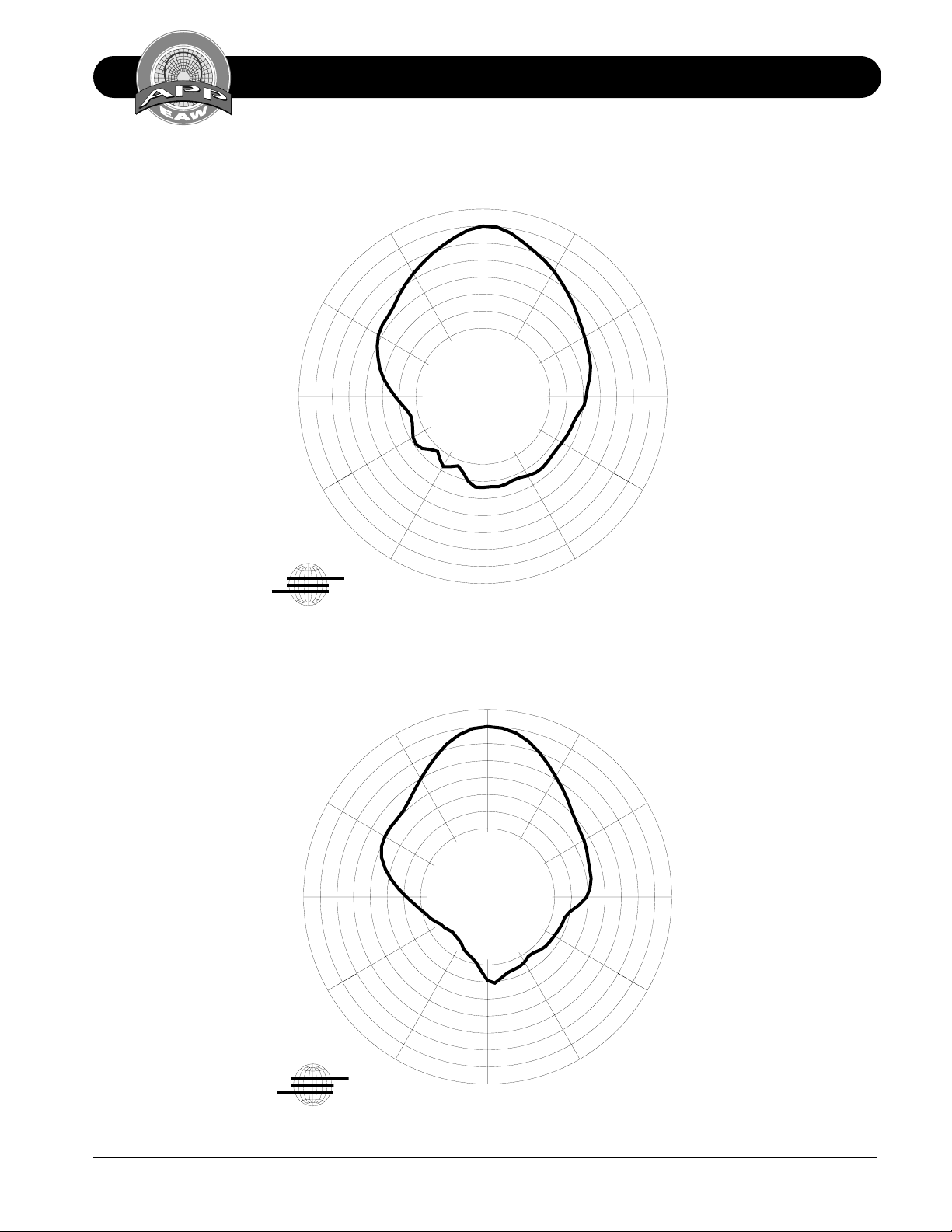

BEAMWIDTH

MQ1364 Beamwidth vs Frequency

360
330
300
270
240
210
180

Degrees

150
120

90
60

B

30

0

200 1000 1000

K

Frequency (Hz)

Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)

Q & DIRECTIVITY INDEX (DI)

MQ1364 Q and Directivity

100

10

Q

1

B

K

0.1
200 1000 10000

Horizontal Q and Directivity (1/3 Octave)
Vertical Q and Directivity (1/3 Octave)
Total Q and Directivity (1/3 Octave)

Frequency (Hz)

Acoustic Performance Partnership Eastern Acoustic Works MQ1364

One Main Street, Whitinsville MA, 0158 8 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]

100

10

1

0.1

Index

Directivit

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

POWER RESPONSE

0

)

120

100

dB SPL

80

PERFORMANCE SPECIFICATIONS MQ1364

MQ1364 Beamwidth Delimited Power Response

B

K

60

200 1000 10000 2000

Frequency (Hz

Acoustic Performance Partnership Eastern Acoustic Works MQ1364

One Main Street, Whitinsville MA, 0158 8 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

PERFORMANCE SPECIFICATIONS MQ1364

Q & DIRECTIVITY & BEAMWIDTH BY FREQUENCY

Frequency Hor Beamwidth Ver Beam width Hor Q & Dir Ver Q & Dir Tot Q & Dir

80 360 360 4.3 1.8 2.7
100 360 360 3.9 3.2 3.5
125 360 360 2.2 2.4 2.3
160 360 130 2.7 5.1 3.5
200 119 155 4.5 4.7 4.6
250 124 294 5 1.4 2.4
315 101 109 6.9 3.8 5
400 83 102 9 6.4 7.5
500 70 91 11.5 7.3 9
630 56 65 14.6 11.3 12.8
800 58 43 14.7 16 15.3

1000 61 25 15.1 24.4 18.3
1250 59 28 15.4 30.9 20.1
1600 62 38 14.6 28.6 19
2000 62 40 14.5 29.8 19.3
2500 63 39 15.2 33.5 20.7
3150 62 38 15.2 33.8 20.8
4000 63 38 13.8 33.2 19.4
5000 64 39 14.2 34.3 20.1
6300 67 33 10.3 46 17.8

8000 65 38 10.5 38.1 17.6
10000 62 48 15.5 23.6 18.6
12500 64 41 13.2 26.9 16.5
16000 47 39 24.3 32.9 27.7
20000 71 33 13.4 32.4 17.9
