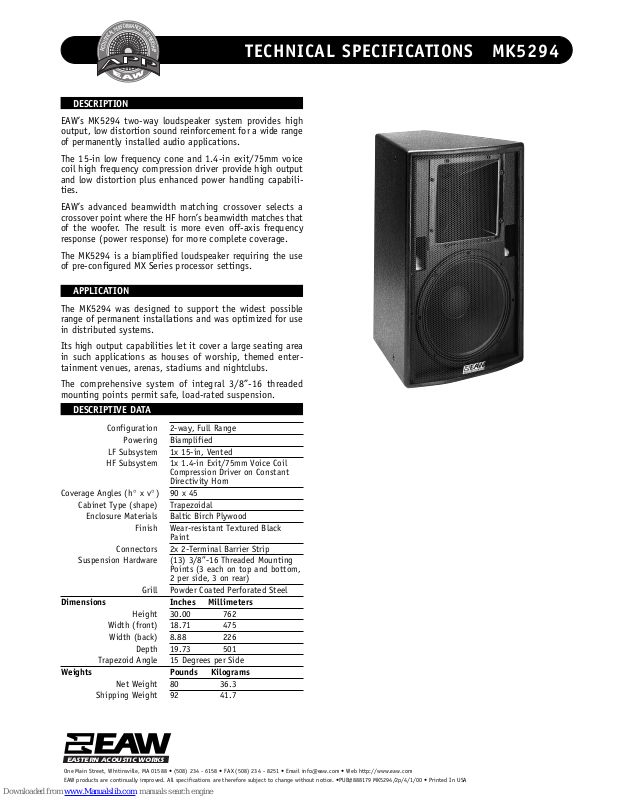

EAW MK5294 Technical Specifications
TECHNICAL SPECIFICATIONS MK5294
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
DESCRIPTION
EAW’s MK5294 two-way loudspeaker system provides high
output, low distortion sound reinforcement for a wide range
of permanently installed audio applications.
The 15-in low frequency cone and 1.4-in exit/75mm voice
coil high frequency compression driver provide high output
and low distortion plus enhanced power handling capabilities.
EAW’s advanced beamwidth matching crossover selects a
crossover point where the HF horn’s beamwidth matches that
of the woofer. The result is more even off-axis frequency
response (power response) for more complete coverage.
The MK5294 is a biamplified loudspeaker requiring the use
of pre-configured MX Series processor settings.
APPLICATION
The MK5294 was designed to support the widest possible
range of permanent installations and was optimized for use
in distributed systems.
Its high output capabilities let it cover a large seating area
in such applications as houses of worship, themed entertainment venues, arenas, stadiums and nightclubs.
The comprehensive system of integral 3/8”-16 threaded
mounting points permit safe, load-rated suspension.
DESCRIPTIVE DATA
Configuration 2-way, Full Range
Powering Biamplified
LF Subsystem 1x 15-in, Vented
HF Subsystem 1x 1.4-in Exit/75mm Voice Coil
Compression Driver on Constant
Directivity Horn
Coverage Angles (h° x v° ) 90 x 45
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Wear-resistant Textured Black
Paint
Connectors 2x 2-Terminal Barrier Strip
Suspension Hardware (13) 3/8”-16 Threaded Mounting
Points (3 each on top and bottom,
2 per side, 3 on rear)
Grill Powder Coated Perforated Steel
Dimensions Inches Millimeters
Height 30.00 762
Width (front) 18.71 475
Width (back) 8.88 226
Depth 19.73 501
Trapezoid Angle 15 Degrees per Side
Weights Pounds Kilograms
Net Weight 80 36.3
Shipping Weight 92 41.7
EASTERN ACOUSTIC WORKS
Acoustic Performance Partnership Eastern Acoustic Works MK5294
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email info@eaw.com
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. •PUB#888179 MK5294/2p/4/1/00 • Printed In USA
TECHNICAL SPECIFICATIONS MK5294
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
DIMENSIONAL DRAWING ARCHITECTURAL SPECIFICATIONS
INDICATES MOUNTING POINT,
MK5294
GRILLE PARTIALLY SHOWN
30.00
15°
BOTTOM
DIMENSIONS APPLY
510609 (A)
exp 4/6/00 dpm
TO TOP & BOTTOM
18.71
FRONT
30°
12.00
8.32
C
L
(8.88)
6.80
3/8-16 THREADED HOLE (PI ANGLE).
INDICATES CENTER OF BALANCE.
INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (NUT PLATE)
1.95
13.05
26.10
1.95
8.45
19.73
26.10
5.20
C
L
INPUT
BACK
7.30
6.09
SIDES
DIMENSIONS APPLY
TO BOTH SIDES
17.68
7.19
15.62
NOMINAL DATA
Frequency Response (1 Watt @ 1m, electronic processing)
±3 dB 56 Hz to 19 KHz
-10 dB 46 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 99
HF 109
Impedance (Ohms)
LF 8
HF 16
Power Handling, AES Standard (Watts)
LF 800
HF 200
Calculated Maximum Output (dB SPL)
LF Peak 134.0
HF Peak 138.0
LF Long Term 128.0
HF Long Term 132.0
The two-way full range loudspeaker systems shall incorporate 15-in LF transducer and a 1.4-in exit/75mm voice coil
compression driver HF transducer.
The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The HF driver shall be
loaded on constant directivity horn with a nominal coverage
pattern of 90° (h) x 45° (v).
System frequency response shall vary no more than ±3 dB
from 70 Hz to 19 kHz measured on axis. The low frequency
section shall produce a Sound Pressure Level (SPL) of 99 dB
SPL on axis at 1 meter with a power input of 1 Watt, and
shall be capable of producing a peak output of 134 dB SPL
on axis at 1 meter. The high frequency section shall produce
a Sound Pressure Level (SPL) of 109 dB SPL on axis at 1
meter with a power input of 1 Watt, and shall be capable of
producing a peak output of 138 dB SPL on axis at 1 meter.
The low frequency section shall handle 800 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 8 Ohms. The high frequency section shall handle 200
Watts of amplifier power (AES Standard) and shall have a
nominal impedance of 16 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 15mm thickness void-free cross-grainlaminated Baltic Birch plywood and shall employ extensive
internal bracing. It shall be finished in wear-resistant textured black paint. Input connector shall be 2x 2-terminal
barrier strip. The following suspension hardware shall be
provided: A total of thirteen 3/8”-16 threaded mounting
points (three each on top and bottom, two per side, three
on rear) shall be provided. The front of the loudspeaker shall
be covered with a powder coated perforated steel grill.
The two-way full range loudspeaker shall be the EAW model
MK5294.
