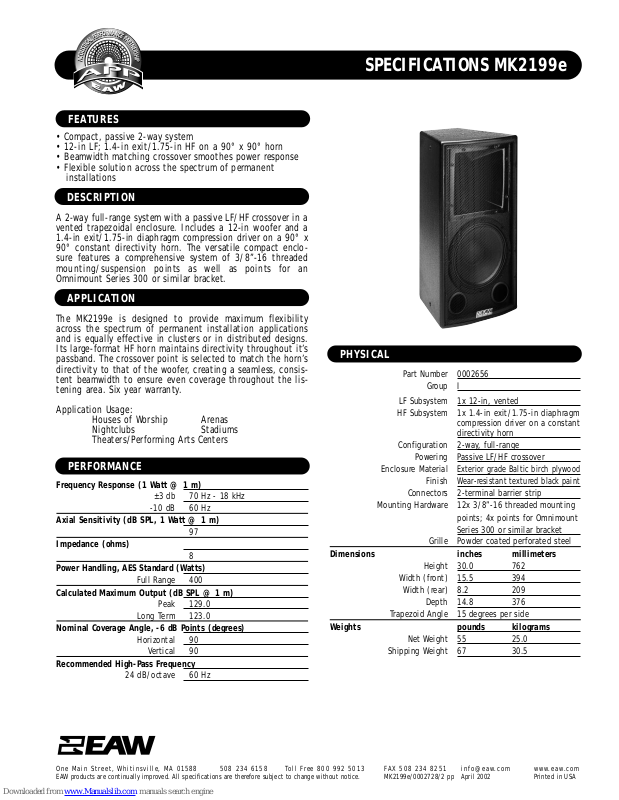

EAW MK2199e Specifications
Frequency Response (1 Watt @ 1 m)
±3 db 70 Hz - 18 kHz
-10 dB 60 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1 m)
97
Impedance (ohms)
8
Power Handling, AES Standard (Watts)
Full Range 400
Calculated Maximum Output (dB SPL @ 1 m)
Peak 129.0
Long Term 123.0
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 90
Vertical 90
Recommended High-Pass Frequency
24 dB/octave 60 Hz
• Compact, passive 2-way system
• 12-in LF; 1.4-in exit/1.75-in HF on a 90° x 90° horn
• Beamwidth matching crossover smoothes power response
• Flexible solution across the spectrum of permanent
installations
A 2-way full-range system with a passive LF/HF cr ossover in a
vented trapezoidal enclosure. Includes a 12-in woofer and a
1.4-in exit/1.75-in diaphragm compression driver on a 90° x
90° constant directivity horn. The versatile compact enclosure features a comprehensive system of 3/8”-16 threaded
mounting/suspension points as well as points for an
Omnimount Series 300 or similar bracket.
The MK2199e is designed to provide maximum flexibility
across the spectrum of permanent installation applications
and is equally effective in clusters or in distributed designs.
Its large-format HF horn maintains directivity throughout it’s
passband. The crossover point is selected to match the horn’s
directivity to that of the woofer, creating a seamless, consistent beamwidth to ensure even coverage throughout the listening area. Six year warranty.
Application Usage:
Houses of Worship Arenas
Nightclubs Stadiums
Theaters/Performing Arts Centers
SPECIFICATIONS MK2199e
FEATURES
DESCRIPTION
PERFORMANCE
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MK2199e/0002728/2 pp April 2002 Printed in USA
APPLICATION
PHYSICAL
Part Number 0002656
Group I
LF Subsystem 1x 12-in, vented
HF Subsystem 1x 1.4-in exit/1.75-in diaphragm
compression driver on a constant
directivity horn
Configuration 2-way, full-range
Powering Passive LF/HF crossover
Enclosure Material
Exterior grade Baltic birch plywood
Finish
Wear-resistant textured black paint
Connectors 2-terminal barrier strip
Mounting Hardware 12x 3/8”-16 threaded mounting
points; 4x points for Omnimount
Series 300 or similar bracket
Grille Powder coated perforated steel
Dimensions inches millimeters
Height 30.0 762
Width (front) 15.5 394
Width (rear) 8.2 209
Depth 14.8 376
Trapezoid Angle 15 degrees per side
Weights pounds kilograms
Net Weight 55 25.0
Shipping Weight 67 30.5
SPECIFICATIONS MK2199e
DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MK2199e/0002728/2 pp April 2002 Printed in USA
The 2-way full-range loudspeaker shall incorporate a 12-in LF
transducer and a 1.4-in exit/1.75-in diaphragm HF compression driver.
The LF transducer shall be mounted in a vented enclosure
tuned for optimum low fr equency respon se . The HF driver shall
be loaded on a constant directivity horn with a nominal
beamwidth o f 90° (h) x 90° (v). An internal passive filter network shall provide acoustical crossover and system equalization.
System frequency response shall vary no more than ±3 dB
from 70 Hz to 18 kHz measured on axis . Th e lou dspeak er shall
produce a sound pressure level (SPL) of 97 dB SPL on axis at
1 meter with a power input of 1 watt, and shall be capable o f
producing a peak output of 129 dB SPL on axis at 1 meter. It
shall handle 400 watts of amplifier power (AES Standard) and
shall have a nominal impedance of 8 ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of exterior grade Baltic birch plywood
and employ extensive internal bracing. It shall be finished in
wear-resistant textur ed black paint. Input conn ectors shall be
a 2-terminal barrier strip. A total of twelve 3/8”-16 threaded mounting points shall be provided. Four addtional mounting points for use with an Omnimount Series 300 or similar
bracket shall also be provided. The front of the loudspeaker
shall be covered with a powder coated perforated steel grille.
The 2-way full-range loudspeaker shall be the EAW model
MK2199e.
Manufacturing tolerances are +/- 0.13 and +/- 1°
8.75
C
L
14.75
6.69
7.23
30°
TOP
DIMENSIONS APPLY TO
TOP & BOTTOM
15.54
GRILLE PARTIALLY SHOWN
FRONT
NOTES:
1. SYMBOL INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (NUT PLATE).
2. SYMBOL INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (PI ANGLE).
3. SYMBOL INDICATES MOUNTING POINT, 5/16-18 T-NUT FOR OMNIMOUNT SERIES 300.
4. SYMBOL INDICATES CENTER OF BALANCE.
5. WEIGHT APPROX. 60 LBS.
6. SHIPPING WEIGHT APPROX. 70 LBS.
A
7.25
2X 15°
A
6.27
C
L
VIEW A-A
DIMENSIONS APPLY TO
BOTH SIDES
MK2199e
26.1030.00
(1.95)
INPUT
(8.23)
3.44
6.87
7.25
C
6.38
L
BACK
26.07
14.25
1.97
5.25
