TECHNICAL SPECIFICATIONS MH662E
DESCRIPTION
A 2-way biamp mid/high system in a trapezoidal enclosure.
Includes 2x horn-loaded 10-in midrange cone and a 2-in exit
compression driver on a 65 x 45 constant directivity horn.
APPLICATIONS
The MH662E Virtual Array mid/high loudspeaker is engineered
to combine with BH, BV or TD Series LF modules to create
true 3-way large format arrays. 3-way design dramatically
improves the quality of vocal reproduction while the conedriven large format midrange horn extends pattern control
into the lower octaves. It provides long throw and high output in large scale permanent installations. Comprehensive
mounting/suspension points. Six year warranty.
Applications include:
Large Theaters
Concert Halls
Stadiums
Cathedrals
Large HOW’s
Dance Clubs
DESCRIPTIVE DATA
Part Number 999086
Product Group M
MF Subsystem & Loading 2x 10-in Horn Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Mid/High
Powering Configuration(s) Biamp (MX Series Processors)
Recommended High-Pass
Frequency (24 dB/Octave) 120Hz
Cabinet Type (shape) Modified Trapezoid
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip
2x Neutrik NL4 Speakon
Suspension Hardware (16) 3/8”-16 threaded mounting/
suspension points (4 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
NOMINAL DATA
Frequency Response (Hz)
±3 db 160Hz to 19kHz
-10 dB 120Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
MF 112
HF 112
Impedance (Ohm)
MF 4
HF 5
Power Handling (Watts)
HF AES Standard 200
Calculated Maximum Output (dB SPL, @ 1m)
MF Peak 147.0
HF Peak 141.0
MF Long Term 141.0
HF Long Term 135.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 60
Vertical 45
Dimensions inches millimeters
Height 48.625 1235
Width 24.625 625
Width (Front) 24.625 625
Width (Rear) 12.75 324
Depth 29.5 749
Trapezoid Angle 15 degrees per side
Weights pounds kilograms
Net Weight 199 90.5
Shipping Weight 212 96.5
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MH662E 999086 (A)/2p/3/14/97 • Printed In USA
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS MH662E

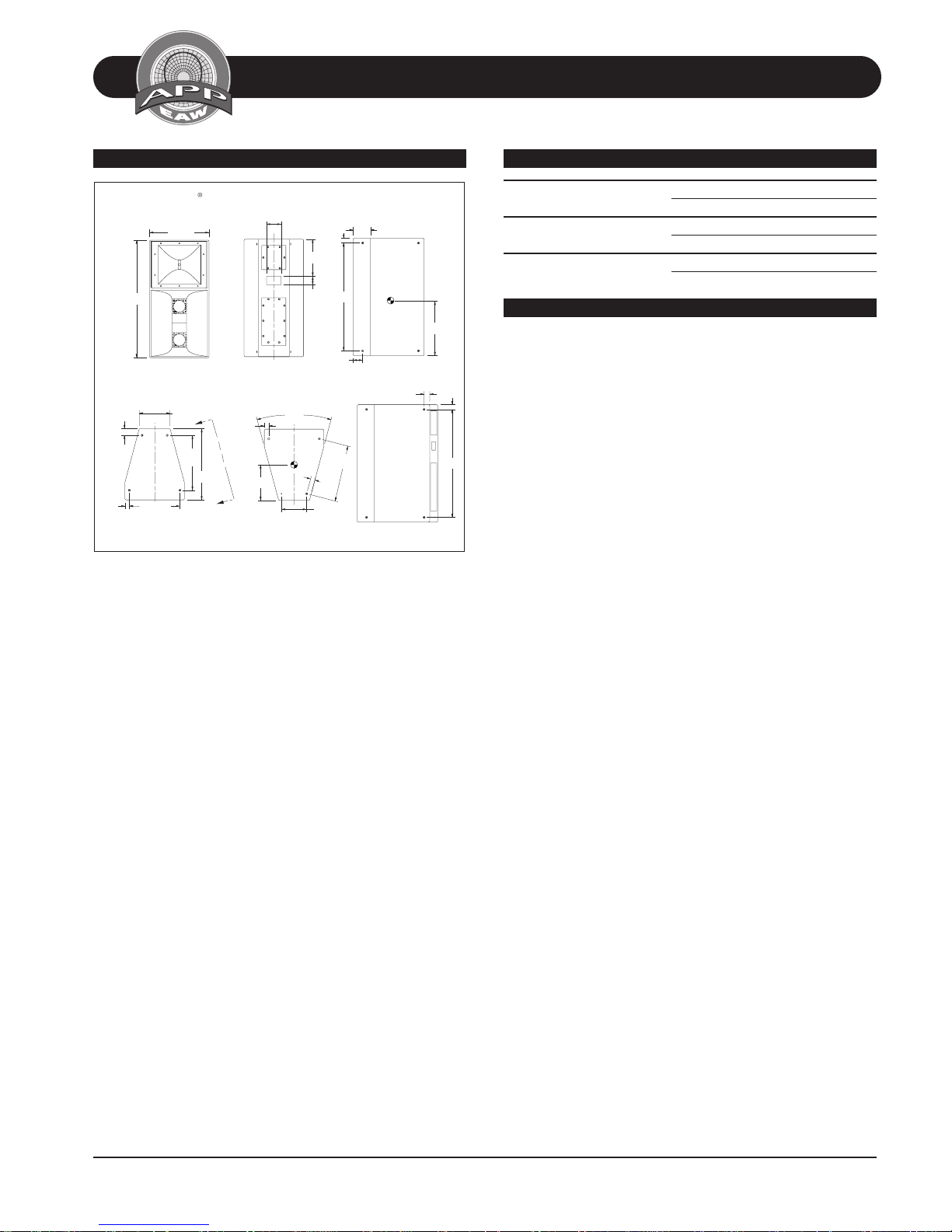

DIMENSIONAL DRAWING SERVICE ITEMS
DIMENSIONAL DRAWINGS
MH662E
48.63
C
L
2.75
TYP
1.84
20.94
TYP
TYP
REF
510114
exp 10/18/96 shb
TOP
3/8"-16 THREADED HOLE.
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED.
6
C
1.84
TYP
REF
14.75
L
BACK
30°
C
L
15.32
3.5
10.41 TYP
1.97
TYP
4 TYP
1.84
TYP
REF
44.69
24.63
FRONT
12.75
22.75
TYP
A
29.5
A
BOTTOM
23.35
TYP
7.25
SIDES
2.36 REF
VIEW A-A
22.56
44.69
1.97
LF: Complete Cone Dirver
EAW Part No. 804022
HF: Complete Compression Driver/Tweeter
EAW Part No. 803010
Filter/Crossover Network: Complete Assembly
EAW Part No. 225056
ARCHITECTURAL SPECIFICATIONS
The two-way mid/high loudspeaker system shall incorporate
2x 10-in cone MF transducers and a 2-in exit compression
driver HF transducer.
The MF drivers shall be loaded in a midrange horn constructed
of 3mm birch plywood reinforced with high density polyurethane foam. The MF horn shall incorporate a phase/displacement plug. The HF driver shall be loaded on constant direc-
tivity horn with a nominal coverage pattern of 60° (h) x 45°
(v). An internal passive filter network shall provide system
equalization.
System frequency response shall vary no more than ±3 dB
from 160 Hz to 19 kHz measured on axis. The midrange frequency section shall produce a Sound Pressure Level (SPL) of
112 dB SPL on axis at 1 meter with a power input of 1 Watt,
and shall be capable of producing a peak output of 147 SPL
on axis at 1 meter. The high frequency section shall produce
a Sound Pressure Level (SPL) of 112 dB SPL on axis at 1
meter with a power input of 1 Watt, and shall be capable of
producing a peak output of 141 SPL on axis at 1 meter. The
midrange frequency section shall handle 800 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 4 Ohms. The high frequency section shall handle 200
Watts of amplifier power (AES Standard) and shall have a
nominal impedance of 15 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 15mm thickness void-free cross-grainlaminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be 4-terminal barrier strip
and dual Neutrik NL4 Speakon. A total of sixteen 3/8"-16
threaded mounting/suspension points (4 each top, bottom
and sides) shall be provided. The front of the loudspeaker
shall be covered with a vinyl coated perforated steel grill.
The two-way mid/high loudspeaker shall be the EAW model
MH662E.
Acoustic Performance Partnership Eastern Acoustic Works MH662E
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email info@eaw.com
