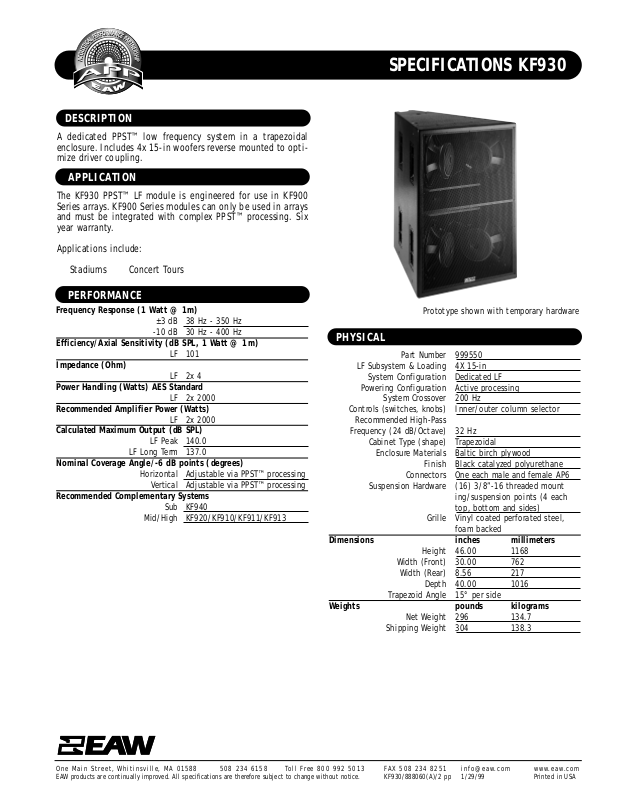

SPECIFICATIONS KF930
PHYSICAL
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. KF930/888060(A)/2 pp 1/29/99 Printed in USA
DESCRIPTION
PERFORMANCE
APPLICATION
A dedicated PPST™ low frequency system in a trapezoidal
enclosure . Inclu des 4x 15-in woo fers reverse m ounted to optimize driver coupling.
The KF930 PPST™ LF module is engineered for use in KF900
Series arrays. KF900 Seri es mod ules can only be used in arr ays
and must be integrated with complex PPST™ processing. Six
year warranty.
Applications include:
Stadiums Concert Tours
Frequency Response (1 Watt @ 1m)
±3 dB 38 Hz - 350 Hz
-10 dB 30 Hz - 400 Hz
Efficiency/Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 101
Impedance (Ohm)
LF 2x 4
Power Handling (Watts) AES Standard
LF 2x 2000
Recommended Amplifier Power (Watts)
LF 2x 2000
Calculated Maximum Output (dB SPL)
LF Peak 140.0
LF Long Term 137.0
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal Adjustable via PPST™ processing
Vertical Adjustable via PPST™ processing
Recommended Complementary Systems
Sub KF940
Mid/High KF920/KF910/KF911/KF913
Part Number 999550
LF Subsystem & Loading 4X 15-in
System Configuration Dedicated LF
Powering Configuration Active processing
System Crossover 200 Hz
Controls (switches, knobs) Inner/outer column selector
Recommended High-Pass
Frequency (24 dB/Octave) 32 Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic birch plywood
Finish Black catalyzed polyurethane
Connectors One each male and female AP6
Suspension Hardware (16) 3/8”-16 threaded mount
ing/suspension points (4 each
top, bottom and sides)
Grille Vinyl coated perforated steel,
foam backed
Dimensions inches millimeters
Height 46.00 1168
Width (Front) 30.00 762
Width (Rear) 8.56 217
Depth 40.00 1016
Trapezoid Angle 15° per side
Weights pounds kilograms
Net Weight 296 134.7
Shipping Weight 304 138.3
Prototype shown with temporary hardware
SPECIFICATIONS KF930
DIMENSIONAL DRAWING
INPUT PLATE
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. KF930/888060(A)/2 pp 1/29/99 Printed in USA
Manufacturing tolerances are +/-0.13 and +/-1°
A
22.00
10.81
6.44
A
TOP
BACK
9.13
7.00
23.00
46.00
40.00
30.00
18.758.75
42.00
30°
8.56
27.75
4.50
KF930
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED
CENTER OF BALANCE
510519 (1)
EXP 8/27/97 SHB
FRONT
RIGHT SIDE (VIEW A-A)
The dedicated low frequency module shall incorporate 4x 15in LF transducers. The LF drivers shall be reverse mounted in
horizontal pairs to optimize LF driver coupling. The module’s
horizontal and vertical beam profiles shall be adjustable via
complex digital signal processing. The module shall be integrated with complementary frequency-specific modules into a
single acoustical unit via complex digital signal processing.
The module shall be equipped with a switch to control an
internal passive filter network providing processing appropriate to the modules use in an inner or outer array column.
Module frequency response shall vary no more than ±3 dB
from 38 Hz to 350 Hz measured on axis . The m od ule shall pr oduce a Sound Pressure Level (SPL) of 101 dB SPL on axis at 1
meter with a power input of 1 Watt, and shall be capable of
producing a peak output of 140 dB SPL on axis at 1 meter.
Each driver pair shall handle 2000 Watts of amplifier power
(AES Standard) and shall have a nominal impedance of 4
Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 1/2-in thi ckn ess voi d-fr ee cr oss-gr ainlaminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed
polyurethane. Input connectors shall be one each male and
female AP6. The enclosure shall include sixteen 3/8”-16
threaded mounting/suspension points (4 each top, bottom
and sides). The front of th e loudspeaker shall be covered with
a vinyl coated perforated steel grille backed with open cell
foam to protect against dust.
The dedicated low frequency module shall be the EAW model
KF930.
AP6-22 (M)
AP6-21 (F)
KF930
S/N
CANNON
1
234
5
6
CANNON
1
234
5
6
PIN 1
PIN 2
LF
LF
... UPPER
... UPPER--+
PIN 3
PIN 4
LF
LF
... LOWER
... LOWER--+
PIN 5
PIN 6
NC
NC
...
...
