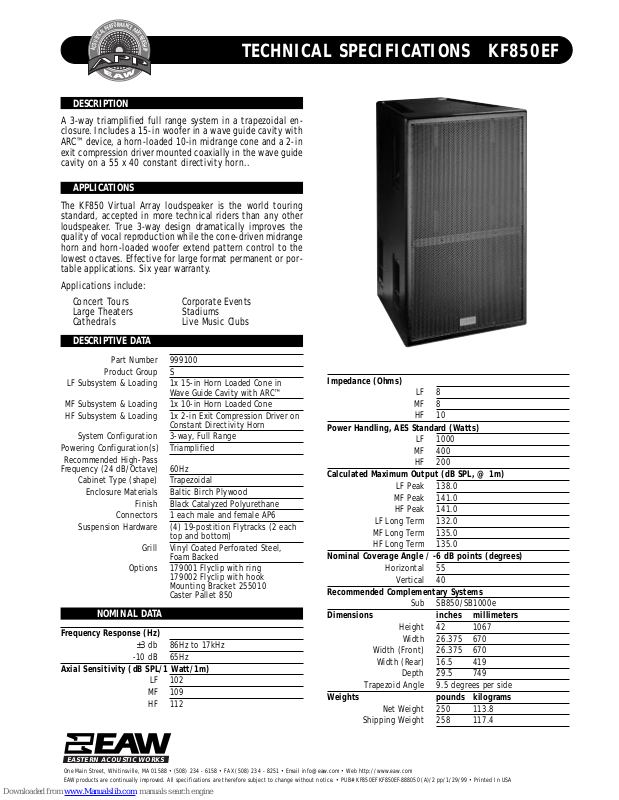

TECHNICAL SPECIFICATIONS KF850EF

DESCRIPTION

A 3-way triamplified full range system in a trapezoidal en­closure. In clud es a 15-in woofer in a wave guid e cavity with
ARC™ device , a horn-load ed 10-in mid ran ge con e and a 2-in
exit compression d river mounted coaxially in th e wave guide
cavity on a 55 x 40 constant directivity horn..

APPLICATIONS

The KF850 Virtual Array loudspeaker is the world touring
standard, accepted in more technical riders than any other
loudspeaker. True 3-way design dramatically improves the
quality of vocal repr oduction while the con e-driven midr ange
horn and horn-loaded woofer extend pattern control to the
lowest octaves. Effective for larg e form at perm anen t or por­table applications. Six year warranty.

Applications include:

Concert Tours Corporate Events
Large Theaters Stadiums
Cathedrals Live Music Clubs

DESCRIPTIVE DATA

Part Number 999100

Product Group S

LF Subsystem & Loading 1x 15-in Horn Loaded Cone in

Wave Guide Cavity with ARC™
MF Subsystem & Loading 1x 10-in Horn Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on

Constant Directivity Horn

System Configuration 3-way, Full Range

Powering Configuration(s) Triamplified

Recommended High-Pass

Frequency (24 dB/Octave) 60Hz

Cabinet Type (shape) Trapezoidal

Enclosure Materials Baltic Birch Plywood

Finish Black Catalyzed Polyurethane

Connectors 1 each male and female AP6

Suspension Hardware (4) 19-postition Flytracks (2 each

top and bottom)

Grill Vinyl Coated Perforated Steel,

Foam Backed

Options 179001 Flyclip with ring

179002 Flyclip with hook

Mounting Bracket 255010

Caster Pallet 850

NOMINAL DATA

Frequency Response (Hz)

±3 db 86Hz to 17kHz

-10 dB 65Hz

Axial Sensitivity (dB SPL/1 Watt/1m)

LF 102
MF 109
HF 112

Impedance (Ohms)

LF 8
MF 8
HF 10

Power Handling, AES Standard (Watts)

LF 1000
MF 400
HF 200

Calculated Maximum Output (dB SPL, @ 1m)

LF Peak 138.0
MF Peak 141.0
HF Peak 141.0

LF Long Term 132.0
MF Long Term 135.0
HF Long Term 135.0

Nominal Coverage Angle / -6 dB points (degrees)

Horizontal 55

Vertical 40

Recommended Complementary Systems

Sub SB850/SB1000e

Dimensions inches millimeters

Height 42 1067

Width 26.375 670

Width (Front) 26.375 670

Width (Rear) 16.5 419

Depth 29.5 749

Trapezoid Angle 9.5 degrees per side

Weights pounds kilograms

Net Weight 250 113.8

Shipping Weight 258 117.4
