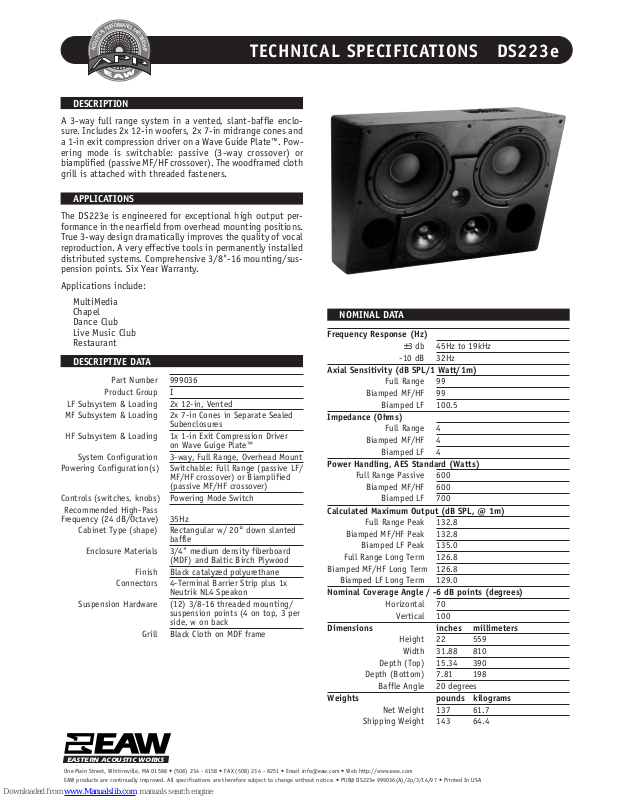

TECHNICAL SPECIFICATIONS DS223e

DESCRIPTION

A 3-way full range system in a vented, slant-baffle enclo­sure. Includes 2x 12-in woofers, 2x 7-in midrange cones and
a 1-in exit compression driver on a Wave Guide Plate™. Pow­ering mode is switchable: passive (3-way crossover) or
biamplified (passive MF/HF crossover). The woodframed cloth
grill is attached with threaded fasteners.

APPLICATIONS

The DS223e is engineered for exceptional high output per­formance in the nearfield from overhead mounting positions.
True 3-way design dramatically improves the quality of vocal
reproduction. A very effective tools in permanently installed
distributed systems. Comprehensive 3/8"-16 mounting/sus­pension points. Six Year Warranty.

Applications include:

MultiMedia
Chapel
Dance Club
Live Music Club
Restaurant

DESCRIPTIVE DATA

Part Number 999036

Product Group I

LF Subsystem & Loading 2x 12-in, Vented

MF Subsystem & Loading 2x 7-in Cones in Separate Sealed

Subenclosures

HF Subsystem & Loading 1x 1-in Exit Compression Driver

on Wave Guige Plate™

System Configuration 3-way, Full Range, Overhead Mount

Powering Configuration(s) Switchable: Full Range (passive LF/

MF/HF crossover) or Biamplified
(passive MF/HF crossover)

Controls (switches, knobs) Powering Mode Switch

Recommended High-Pass

Frequency (24 dB/Octave) 35Hz

Cabinet Type (shape) Rectangular w/ 20° down slanted

baffle

Enclosure Materials 3/4" medium density fiberboard

(MDF) and Baltic Birch Plywood

Finish Black catalyzed polyurethane

Connectors 4-Terminal Barrier Strip plus 1x

Neutrik NL4 Speakon

Suspension Hardware (12) 3/8-16 threaded mounting/

suspension points (4 on top, 3 per
side, w on back

Grill Black Cloth on MDF frame

NOMINAL DATA

Frequency Response (Hz)

±3 db 45Hz to 19kHz

-10 dB 32Hz

Axial Sensitivity (dB SPL/1 Watt/1m)

Full Range 99

Biamped MF/HF 99

Biamped LF 100.5

Impedance (Ohms)

Full Range 4

Biamped MF/HF 4

Biamped LF 4

Power Handling, AES Standard (Watts)

Full Range Passive 600

Biamped MF/HF 600

Biamped LF 700

Calculated Maximum Output (dB SPL, @ 1m)

Full Range Peak 132.8

Biamped MF/HF Peak 132.8

Biamped LF Peak 135.0

Full Range Long Term 126.8

Biamped MF/HF Long Term 126.8

Biamped LF Long Term 129.0

Nominal Coverage Angle / -6 dB points (degrees)

Horizontal 70

Vertical 100

Dimensions inches millimeters

Height 22 559

Width 31.88 810

Depth (Top) 15.34 390

Depth (Bottom) 7.81 198

Baffle Angle 20 degrees

Weights pounds kilograms

Net Weight 137 61.7

Shipping Weight 143 64.4

EASTERN ACOUSTIC WORKS

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [e-mail] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# DS223e 999036(A)/2p/3/14/97 • Printed In USA

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

TECHNICAL SPECIFICATIONS DS223e

DIMENSIONAL DRAWING SERVICE ITEMS

DIMENSIONAL DRAWINGS

DS223Hi

31.87

FRONT

10.00

510048
EXP 4/23/96 SHB

MOUNTING POINTS 3/8"-16 NUTS WELDED
TO A 2" x 2" STEEL L-PLATE

ALL DIMENSIONS ARE IN INCHES UNLESS
OTHERWISE NOTED.

7.50

.25

22.00

27.56

BACK

2.16

27.56

.50

2.00

TOP

2.13

2.00

23.38

5.38

BOTTOM

2.00

7.81

20°

15.34

2.00

10.00

SIDES

LF: Complete Cone Driver

EAW Part No. (2) 804024

MF: Complete Cone Driver

EAW Part No. (2) 804004

HF: Complete Compression Driver/Tweeter

EAW Part No. 803014

Filter/Crossover Network: Complete Assembly

.75

14.69

EAW Part No. 225061

ARCHITECTURAL SPECIFICATIONS

5.38

The three-way full range loudspeaker systems shall incorpo­rate 2x 12-in LF transducers, 2x 7-in cone MF transducers
and a 1-in exit compression driver HF transducer.

The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The MF drivers shall be
mounted in separate sealed subenclosures. The HF drivers

7.81

shall be loaded on axis-symmetrical wave guide plates with

a combined nominal coverage pattern of 70° (h) x 100° (v).

An internal passive filter network shall provide fourth order
acoustical crossover and system equalization.

System frequency response shall vary no more than ±3 dB

from 45 Hz to 19 kHz measured on axis. In passive mode,
the loudspeaker shall produce a Sound Pressure Level (SPL)
of 99 dB SPL on axis at 1 meter with a power input of 1
Watt, and shall be capable of producing a peak output of

132.8 SPL on axis at 1 meter. It shall handle 600 Watts of
amplifier power (AES Standard) and shall have a nominal
impedance of 4 Ohms.

In biamped mode, the passive mid/high frequency section
shall meet all passive mode performance criteria. In addi­tion, the low frequency section in biamped mode shall pro­duce a Sound Pressure Level (SPL) of 100.5 dB SPL on axis at
1 meter with a power input of 1 Watt, and shall be capable
of producing a peak output of 135 SPL on axis at 1 meter.
The low frequency section in biamped mode shall handle
700 Watts of amplifier power (AES Standard) and shall have
a nominal impedance of 4 Ohms.

The loudspeaker enclosure shall be rectangular in shape. The

loudspeaker enclosure’s front baffle shall be slanted 20° to

facilitate overhead mounting. It shall be constructed of 3/
4-in medium density fiberboard (MDF) with the exception of
the baffle which shall be of 15mm thickness void-free cross­grain-laminated Baltic birch plywood. The enclosure shall
employ extensive internal bracing. It shall be finished in
black catalyzed polyurethane. Input connectors shall be a 2­terminal barrier strip and one Neutrik NL4 Speakon. The sys­tem shall include a switch allowing it to be operated in biamp
or passive powering mode. A total of twelve 3/8"-16 threaded
mounting/suspension points (4 on top, 3 per side and 2 on
back) shall be provided. The front of the loudspeaker shall
be covered with wood-framed cloth grill.

The three-way full range loudspeaker shall be the EAW model
DS223e.
