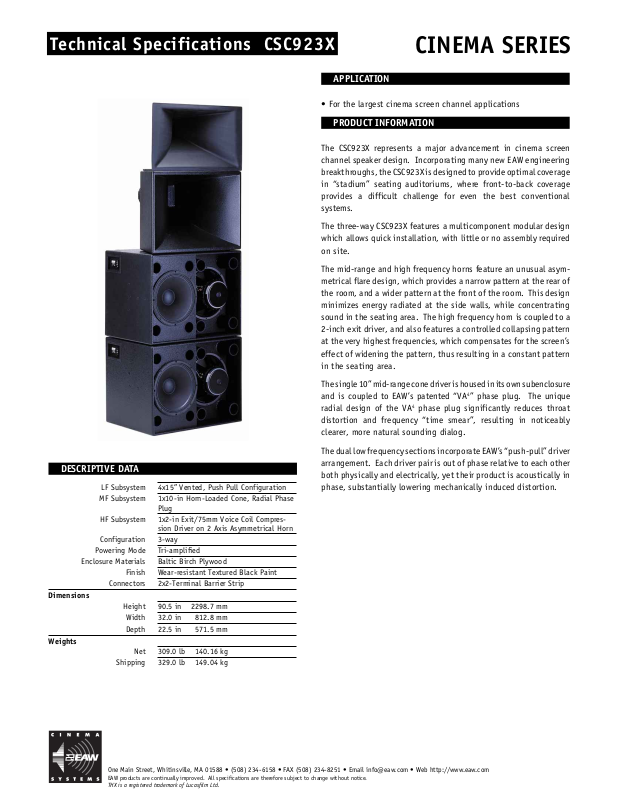

Technical Specifications CSC923X

• For the largest cinema screen channel applications

The CSC923X represents a major advancement in cinema screen
channel speaker design. Incorporating many new EAW engineering
breakthroughs, the CSC923X is designed to provide optimal coverage
in “stadium” seating auditoriums, where front-to-back coverage
provides a difficult challenge for even the best conventional
systems.

The three-way CSC923X features a multicomponent modular design
which allows quick installation, with little or no assembly required
on site.

The mid-range and high frequency horns feature an unusual asym­metrical flare design, which provides a narrow pattern at the rear of
the room, and a wider pattern at the front of the room. This design
minimizes energy radiated at the side walls, while concentrating
sound in the seating area. The high frequency horn is coupled to a
2-inch exit driver, and also features a controlled collapsing pattern
at the very highest frequencies, which compensates for the screen’s
effect of widening the pattern, thus resulting in a constant pattern
in the seating area.

CINEMA SERIES

APPLICATION

PRODUCT INFORMATION

DESCRIPTIVE DATA

LF Subsystem 4x15” Vented, Push Pull Configuration

MF Subsystem 1x10-in Horn-Loaded Cone, Radial Phase

HF Subsystem 1x2-in Exit/75mm Voice Coil Compres-

Configuration 3-way

Powering Mode Tri-amplified

Enclosure Materials Baltic Birch Plywood

Dimensions

Weights

Plug

sion Driver on 2 Axis Asymmetrical Horn

Finish Wear-resistant Textured Black Paint

Connectors 2x2-Terminal Barrier Strip

Height 90.5 in 2298.7 mm

Width 32.0 in 812.8 mm
Depth 22.5 in 571.5 mm

Net 309.0 lb 140.16 kg

Shipping 329.0 lb 149.04 kg

The single 10” mid-range cone driver is housed in its own subenclosure
and is coupled to EAW’s patented “VA
radial design of the VA

4

phase plug significantly reduces throat

4

” phase plug. The unique

distortion and frequency “time smear”, resulting in noticeably
clearer, more natural sounding dialog.

The dual low frequency sections incorporate EAW’s “push-pull” driver
arrangement. Each driver pair is out of phase relative to each other
both physically and electrically, yet their product is acoustically in
phase, substantially lowering mechanically induced distortion.

One Main Street, Whitinsville, MA 01588 • [phone] • FAX [phone] • Email [e-mail] • Web http://www.eaw.com

EAW products are continually improved. All specifications are therefore subject to change without notice.

THX is a registered trademark of Lucasfilm Ltd.

Technical Specifications CSC923X

DIMENSIONAL DRAWING

CSC923X

EAW 997159
CSC-HF

EAW 997158
CSC-MF

EAW 997157
CSC-LF

EAW 997157
CSC-LF

2X INPUT

2X .88

5.28

7.28

LEFT SIDE

32.00

FRONT

10.08

25.25

BOTTOM

MOUNTING POINTS
FOR 2 WAY
CONFIGURATION

24.50

72.00

49.25

23.71

C

L

INDICATES RUBBER FOOT.
INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE RIVNUT.

90.25

ACCESS
PANEL

6.14

3.69

C

19.48

L

13.60

RIGHT SIDE

BACK

3X HANDLE

8.75

5.84

exp 05/26/00 dpm

997201

CINEMA SERIES

NOMINAL DATA

Frequency Response (1 W @1m)

±3 dB 35 Hz to 18 kHz

Sensitivity (dB SPL, 1 Watt @ 1m)

LF 103

MF/HF 108

Impedance (Ohms)

LF 2 x 4 ohms

MF/HF 8

Power Handling, (AES Standard, Watts)

LF 2000

MF/HF 350

Calculated Maximum Output (dB SPL)

LF Peak 142

MF/HF Peak 139.4

LF Long Term 136

MF/HF Long Term 133.4

Recommended High-Pass Frequency

24 dB/Octave 50Hz
