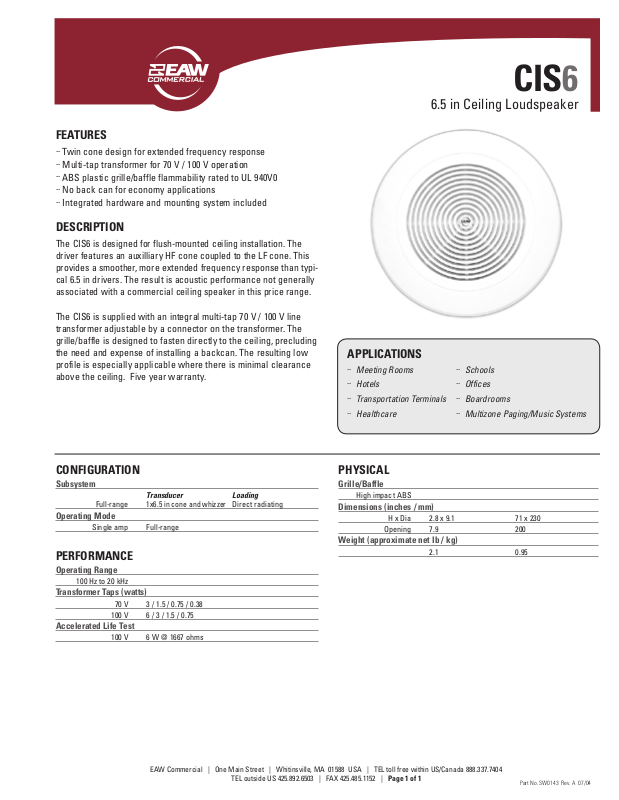

EAW CIS6 User Manual

FEATURES

Twin cone design for extended frequency response

Multi-tap transformer for 70 V / 100 V operation

ABS plastic grille/baffle flammability rated to UL 940V0

No back can for economy applications

Integrated hardware and mounting system included

DESCRIPTION

The CIS6 is designed for flush-mounted ceiling installation. The driver features an auxilliary HF cone coupled to the LF cone. This provides a smoother, more extended frequency response than typical 6.5 in drivers. The result is acoustic performance not generally associated with a commercial ceiling speaker in this price range.

The CIS6 is supplied with an integral multi-tap 70 V / 100 V line transformer adjustable by a connector on the transformer. The grille/baffle is designed to fasten directly to the ceiling, precluding the need and expense of installing a backcan. The resulting low profile is especially applicable where there is minimal clearance above the ceiling. Five year warranty.

6.5 in Ceiling Loudspeaker

APPLICATIONS

Meeting Rooms

Hotels

Transportation Terminals .. Boardrooms

Healthcare

Schools

Offices

Multizone Paging/Music Systems

CIS6

CONFIGURATION

Subsystem

Transducer Loading Full-range

Operating Mode

Single amp Full-range

1x6.5 in cone and whizzer

Direct radiating

PERFORMANCE

Operating Range

100 Hz to 20 kHz

Transformer Taps (watts)

70 V 3 / 1.5 / 0.75 / 0.38 100 V 6 / 3 / 1.5 / 0.75

Accelerated Life Test

100 V 6 W @ 1667 ohms

PHYSICAL

Grille/Baffle

High impact ABS

Dimensions (inches / mm)

H x Dia 2.8 x 9.1 71 x 230 Opening 7.9 200

Weight (approximate net lb / kg)

2.1 0.95

EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404

TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 1

Part No. SW0143 Rev. A 07/04
