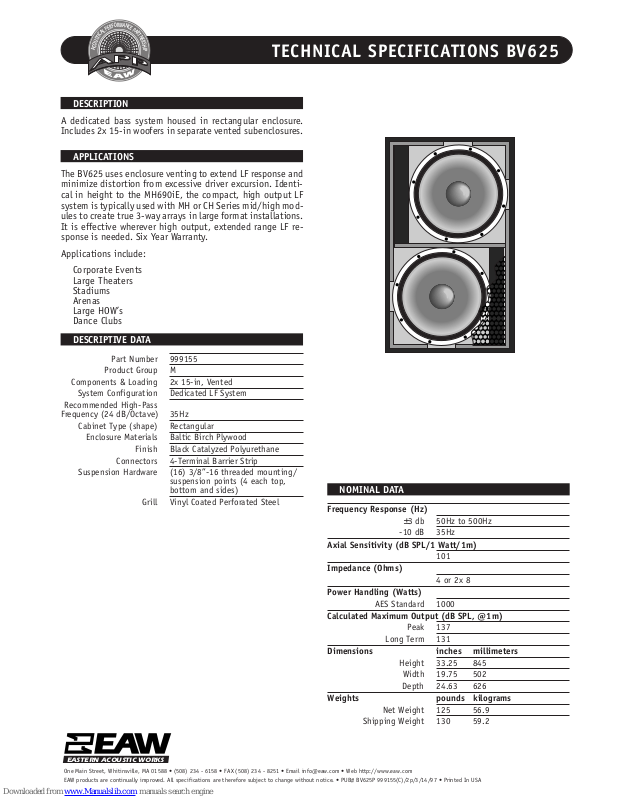

TECHNICAL SPECIFICATIONS BV625
DESCRIPTION
A dedicated bass system housed in rectangular enclosure.
Includes 2x 15-in woofers in separate vented subenclosures.
APPLICATIONS
The BV625 uses enclosure venting to extend LF response and
minimize distortion from excessive driver excursion. Identical in height to the MH690iE, the compact, high output LF
system is typically used with MH or CH Series mid/high modules to create true 3-way arrays in large format installations.
It is effective wherever high output, extended range LF response is needed. Six Year Warranty.
Applications include:
Corporate Events
Large Theaters
Stadiums
Arenas
Large HOW’s
Dance Clubs
DESCRIPTIVE DATA
Part Number 999155
Product Group M
Components & Loading 2x 15-in, Vented
System Configuration Dedicated LF System
Recommended High-Pass
Frequency (24 dB/Octave) 35Hz
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip
Suspension Hardware (16) 3/8”-16 threaded mounting/
suspension points (4 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
NOMINAL DATA
Frequency Response (Hz)
±3 db 50Hz to 500Hz
-10 dB 35Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
101
Impedance (Ohms)
4 or 2x 8
Power Handling (Watts)
AES Standard 1000
Calculated Maximum Output (dB SPL, @1m)
Peak 137
Long Term 131
Dimensions inches millimeters
Height 33.25 845
Width 19.75 502
Depth 24.63 626
Weights pounds kilograms
Net Weight 125 56.9
Shipping Weight 130 59.2
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# BV625P 999155(C)/2p/3/14/97 • Printed In USA
Page 2
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS BV625

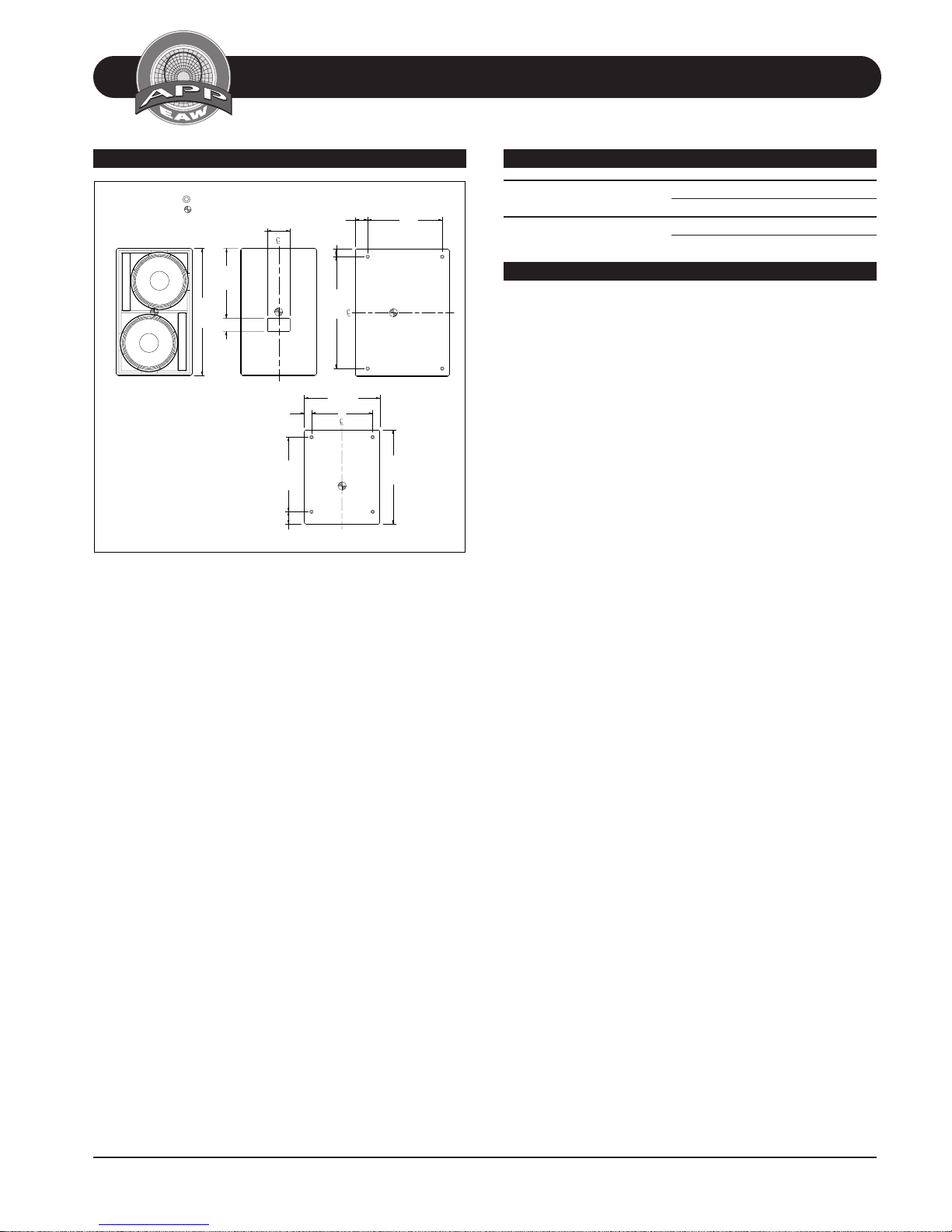

DIMENSIONAL DRAWING SERVICE ITEMS
DIMENSIONAL DRAWINGS
BH625P
FRONT
510047
EXP3/19/97 SHB
CABINET TO BE SYMETRICAL ABOUT CENTERLINE DESIGNATIONS.
3/8"-16 THREADED MOUNTING HOLES
CENTER OF BALANCE
6.00
18.25
33.25
3.5
BACK
(1.88)
3.25
(2)
29.25
19.75
16
19.50
TOP/BOTTOM
3.25
SIDES
24.63
19.5
LF: Complete Cone Driver
EAW Part No. 804071
Filter/Crossover Network: Complete Assembly
EAW Part No. 201353
ARCHITECTURAL SPECIFICATIONS
The low frequency loudspeaker systems shall incorporate 2x
15-in LF transducers. Each LF driver shall be mounted in
separate vented subenclosure tuned for optimum low frequency response.
System frequency response shall vary no more than ±3 dB
from 50 Hz to 500 Hz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 101 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 137 SPL on axis at 1
meter. The loudspeaker shall handle 1000 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 4 (2x 8) Ohms.
The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of 15mm thickness void-free cross-grainlaminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be a four-terminal barrier
strip. A total of sixteen 3/8"-16 threaded mounting/suspension points (4 each top, bottom, sides) shall be provided.
The front of the loudspeaker shall be covered with a vinyl
coated perforated steel grill.
The low frequency loudspeaker shall be the EAW model BV625.
Acoustic Performance Partnership Eastern Acoustic Works BV625
