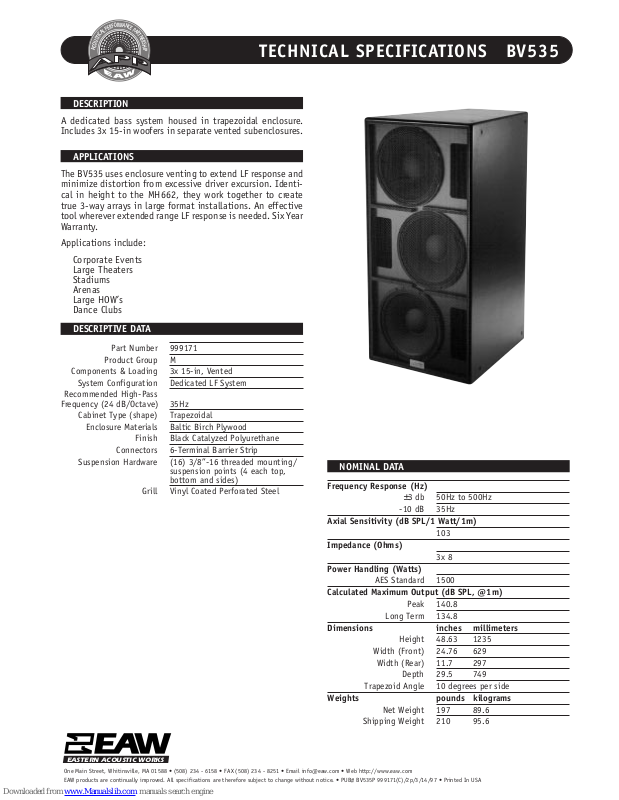

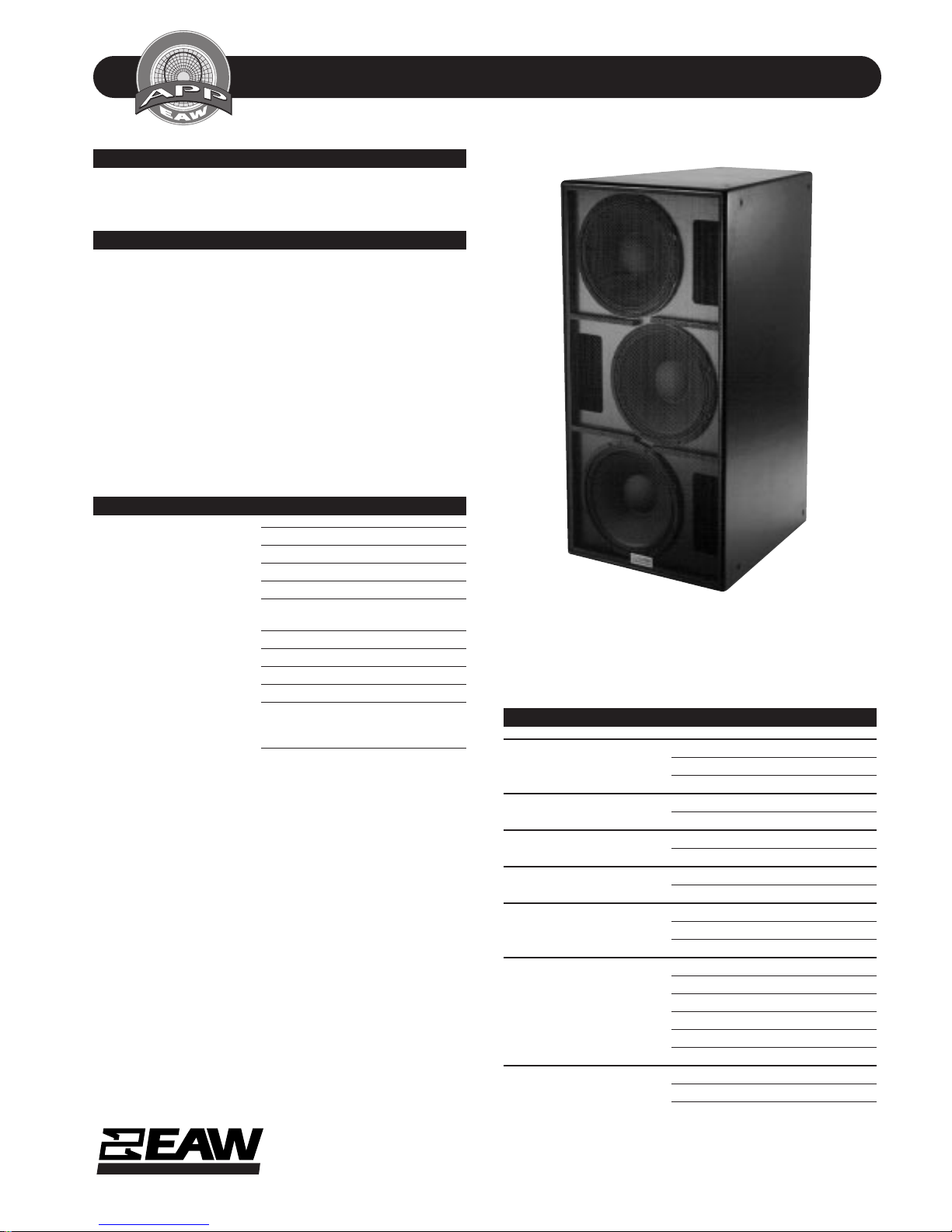

TECHNICAL SPECIFICATIONS BV535
DESCRIPTION
A dedicated bass system housed in trapezoidal enclosure.
Includes 3x 15-in woofers in separate vented subenclosures.
APPLICATIONS
The BV535 uses enclosure venting to extend LF response and
minimize distortion from excessive driver excursion. Identical in height to the MH662, they work together to create
true 3-way arrays in large format installations. An effective
tool wherever extended range LF response is needed. Six Year
Warranty.
Applications include:
Corporate Events
Large Theaters
Stadiums
Arenas
Large HOW’s
Dance Clubs
DESCRIPTIVE DATA
Part Number 999171
Product Group M
Components & Loading 3x 15-in, Vented
System Configuration Dedicated LF System
Recommended High-Pass
Frequency (24 dB/Octave) 35Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 6-Terminal Barrier Strip
Suspension Hardware (16) 3/8”-16 threaded mounting/
suspension points (4 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
NOMINAL DATA
Frequency Response (Hz)
±3 db 50Hz to 500Hz
-10 dB 35Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
103
Impedance (Ohms)
3x 8
Power Handling (Watts)
AES Standard 1500
Calculated Maximum Output (dB SPL, @1m)
Peak 140.8
Long Term 134.8
Dimensions inches millimeters
Height 48.63 1235
Width (Front) 24.76 629
Width (Rear) 11.7 297
Depth 29.5 749
Trapezoid Angle 10 degrees per side
Weights pounds kilograms
Net Weight 197 89.6
Shipping Weight 210 95.6
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# BV535P 999171(C)/2p/3/14/97 • Printed In USA
Page 2
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS BV535

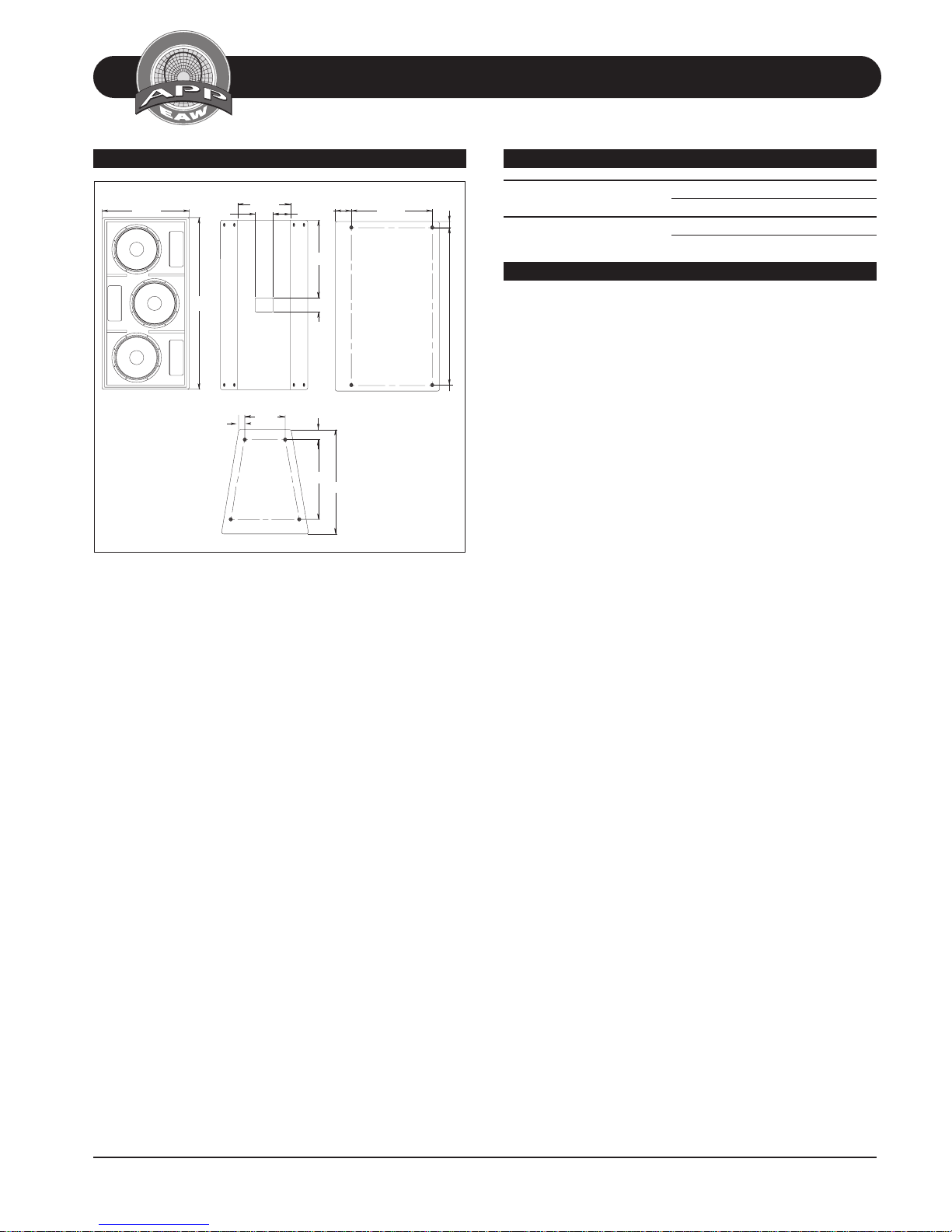

DIMENSIONAL DRAWING
DIMENSIONAL DRAWINGS
BV535P
ALL MEASUREMENTS IN INCHES UNLESS OTHERWISE SPECIFIED.
24.76
48.62
FRONT
5.00
1.76
14.94
BACK
11.42
TOP & BOTTOM
4.96
22.56
22.00
4.00
2.84
4.51
29.53
22.91
SIDES
1.69
44.63
SERVICE ITEMS
LF: Complete Cone Driver
EAW Part No. 804071
Filter/Crossover Network: Complete Assembly
EAW Part No. 201161
ARCHITECTURAL SPECIFICATIONS
The low frequency loudspeaker systems shall incorporate 3x
15-in LF transducers. The LF drivers shall be mounted in separate vented subenclosures tuned for optimum low frequency
response.
System frequency response shall vary no more than ±3 dB
from 50 Hz to 500 Hz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 103 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 140.8 SPL on axis at
1 meter. The loudspeaker shall handle 1500 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 3x 8 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 15mm thickness void-free cross-grainlaminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be a 6-terminal barrier strip.
A total of sixteen 3/8"-16 threaded mounting/suspension
points (4 each top, bottom, sides) shall be provided. The
front of the loudspeaker shall be covered with a vinyl coated
perforated steel grill.
The low frequency loudspeaker shall be the EAW model BV535.
Acoustic Performance Partnership Eastern Acoustic Works BV535P
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email [email protected]
