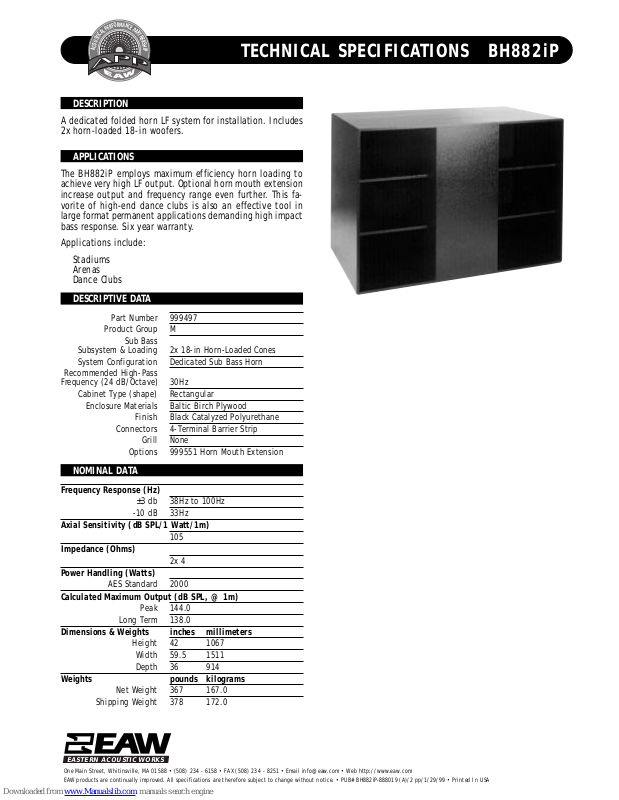

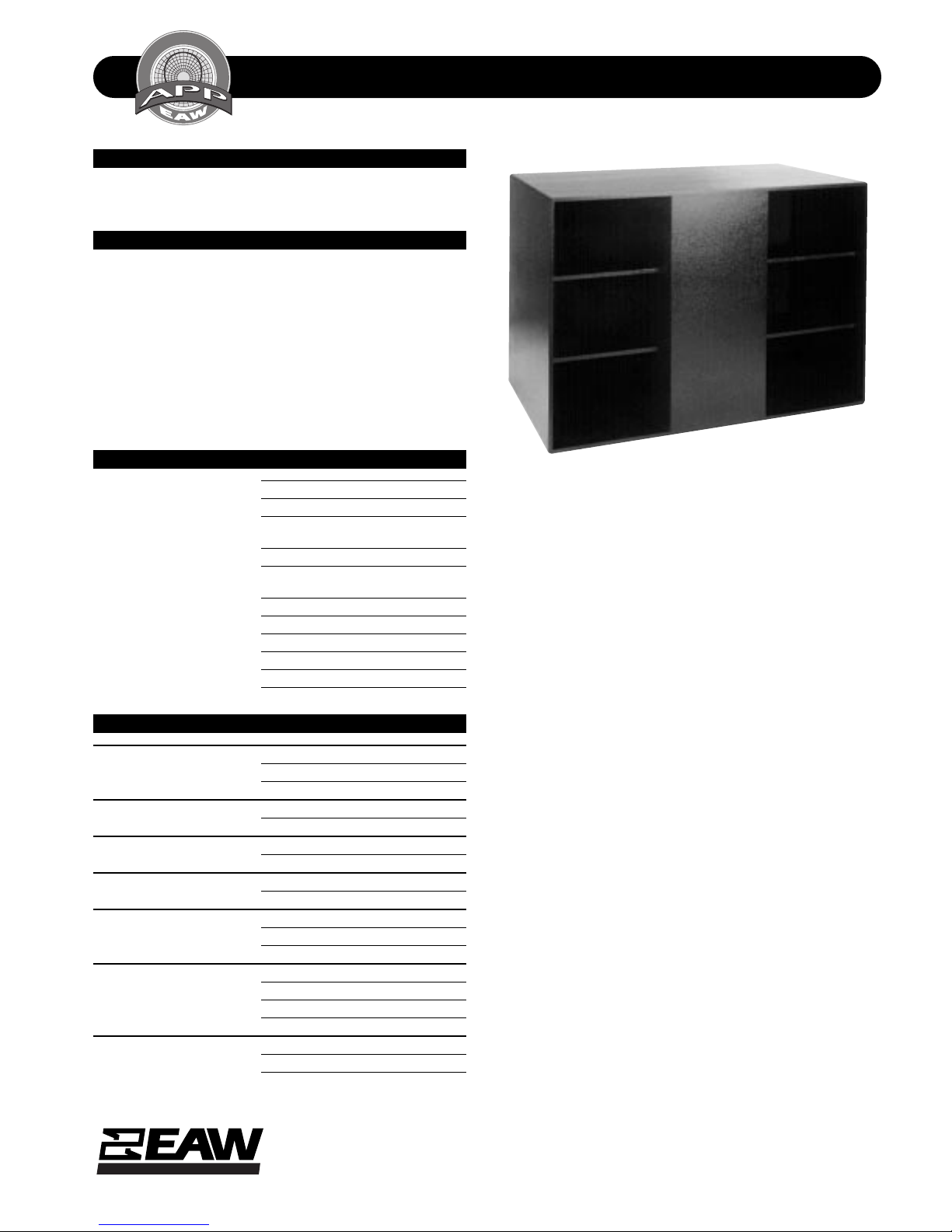

TECHNICAL SPECIFICATIONS BH882iP
DESCRIPTION
A dedicated fold ed h orn LF system f or installati on. In clu d es
2x horn-loaded 18-in woofers.
APPLICATIONS
The BH882iP employs maximum efficiency horn loading to
achieve very high LF output. Option al horn mouth e xtension
increase output and frequency range even further. This favorite of high-end dance clubs is also an effective tool in
large form at permanent appli cations dem anding high impact
bass response. Six year warranty.
Applications include:
Stadiums
Arenas
Dance Clubs
DESCRIPTIVE DATA
Part Number 999497
Product Group M
Subsystem & Loading 2x 18-in Horn-Loaded Cones
System Configuration Dedicated Sub Bass Horn
Recommended High-Pass
Frequency (24 dB/Octave) 30Hz
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic Birch Plywood
Sub Bass
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip
Grill None
Options 999551 Horn Mouth Extension
NOMINAL DATA
Frequency Response (Hz)
±3 db 38Hz to 100Hz
-10 dB 33Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
105
Impedance (Ohms)
2x 4
Power Handling (Watts)
AES Standard 2000
Calculated Maximum Output (dB SPL, @ 1m)
Peak 144.0
Long Term 138.0
Dimensions & Weights inches millimeters
Height 42 1067
Width 59.5 1511
Depth 36 914
Weights pounds kilograms
Net Weight 367 167.0
Shipping Weight 378 172.0
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# BH882iP-888019 (A)/2 pp/1/29/99 • Printed In USA
Page 2
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS BH882iP
DIMENSIONAL DRAWING ARCHITECTURAL SPECIFICATIONS

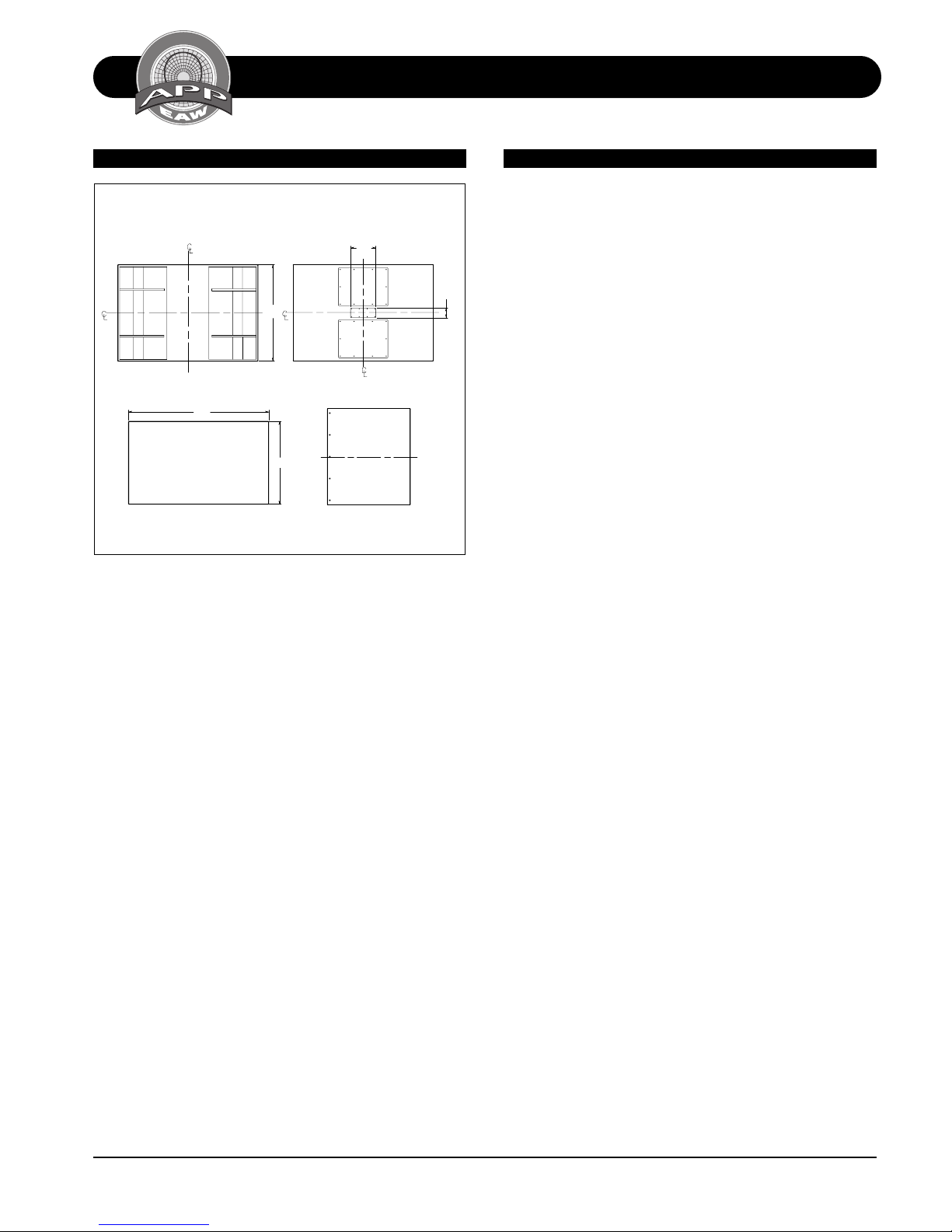

DIMENSIONAL DRAWINGS
BH882P
CABINET IS SYMMETRICAL ABOUT DESIGNATED CENTERLINES.
ALL DIMENSIONS IN INCHES UNLESS OTHERWISE STATED.
42
FRONT
61
36
BACK
11
4.25
The sub bass loudspeaker system s shall incorpor ate 2x 18-in
LF transducers in a folded bass horn constructed of 3mm
birch plywood reinforced with high density polyurethane
foam.
System frequency response shall vary no more than ±3 dB
from 38 Hz to 100 Hz measured on axis. The loudspeaker
shall produce a Soun d Pressure Level (SPL) o f 105 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 144 SPL on axis at 1
meter . Th e lou dspeaker shall han dle 2000 W atts o f amplifier
power (AES Standard) and shall have a nominal impedance
of 2x 4 Ohms.
The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of 15mm thi ckness void-free cr oss-grainlaminated Baltic birch plywood and shall employ extensive
internal bracin g. It shall be finished in black catalyzed polyurethane . Input connectors shall be 4-terminal barri er strip.
The sub bass loudspeaker shall be the EAW model BH882iP.
510042
EXP 3/20/97 SHB
TOP
SIDE
Acoustic Performance Partnership Eastern Acoustic Works BH882P
