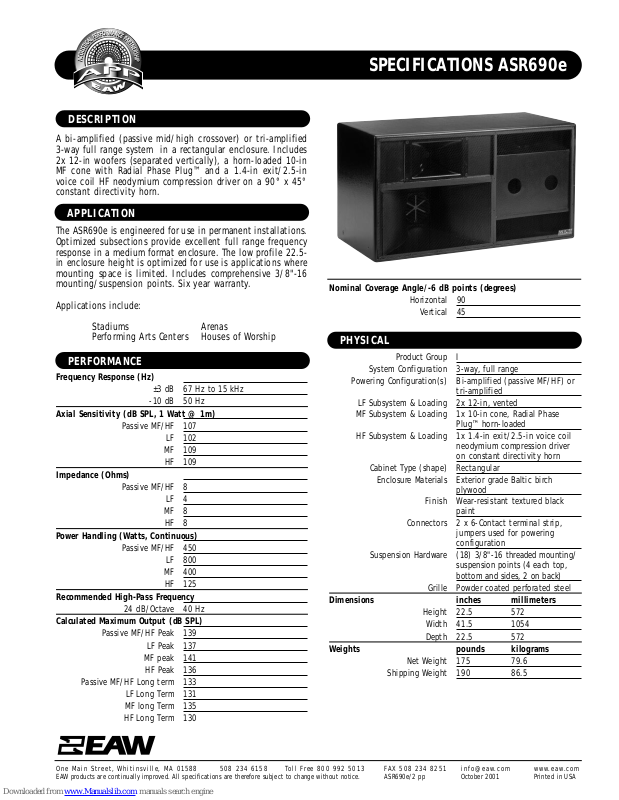

EAW ASR690e Specifications
SPECIFICATIONS ASR690e
DESCRIPTION
APPLICATION
PERFORMANCE
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. ASR690e/2 pp October 2001 Printed in USA
A bi-amplified (passive mid/high crossover) or tri-amplified
3-way full range system in a rectangular enclosure. Includes
2x 12-in woofers (separated vertically), a horn-loaded 10-in
MF cone with Radial Phase Plug™ and a 1.4-in exit/2.5-in
voice coil HF neodymium compression driver on a 90° x 45°
constant directivity horn.
The ASR690e is engineer ed for use in perm an ent in stallati ons .
Optimized subsections provide excellent full range frequency
response in a medium format enclosure. The low profile 22.5in enclosure height is optimized for use is applications where
mounting space is limited. Includes comprehensive 3/8"-16
mounting/suspension points. Six year warranty.
Applications include:
Stadiums Arenas
Performing Arts Centers Houses of Worship
Frequency Response (Hz)
±3 dB 67 Hz to 15 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive MF/HF 107
LF 102
MF 109
HF 109
Impedance (Ohms)
Passive MF/HF 8
LF 4
MF 8
HF 8
Power Handling (Watts, Continuous)
Passive MF/HF 450
LF 800
MF 400
HF 125
Recommended High-Pass Frequency
24 dB/Octave 40 Hz
Calculated Maximum Output (dB SPL)
Passive MF/HF Peak 139
LF Peak 137
MF peak 141
HF Peak 136
Passive MF/HF Long term 133
LF Long Term 131
MF long Term 135
HF Long Term 130
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal 90
Vertical 45
Product Group I
System Configuration 3-way, full range
Powering Configuration(s) Bi-amplified (passive MF/HF) or
tri-amplified
LF Subsystem & Loading 2x 12-in, vented
MF Subsystem & Loading 1x 10-in cone, Radial Phase
Plug™ horn-loaded
HF Subsystem & Loading 1x 1.4-in exit/2.5-in voice coil
neodymium compression driver
on constant directivity horn
Cabinet Type (shape) Rectangular
Enclosure Materials Exterior grade Baltic birch
plywood
Finish Wear-resistant textured black
paint
Connectors 2 x 6-Contact terminal strip,
jumpers used for powering
configuration
Suspension Hardware (18) 3/8"-16 threaded mounting/
suspension points (4 each top,
bottom and sides, 2 on back)
Grille Powder coated perforated steel
Dimensions inches millimeters
Height 22.5 572
Width 41.5 1054
Depth 22.5 572
Weights pounds kilograms
Net Weight 175 79.6
Shipping Weight 190 86.5
PHYSICAL
SPECIFICATIONS ASR690e
DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. ASR690e/2 pp October 2001 Printed in USA
INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE
(PI ANGLE).
INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE
(NUT PLATE).
SYMBOL INDICATES CENTER OF BALANCE.
FRONT
22.50
41.50
GRILLE PARTIALLY SHOWN
BACK
L
C
L
C
19.50
5.00
INPUT
ACCESS PANELS
4.00
9.43
5.38
(1.50)
TOP/BOTTOM
3.00
L
C
11.75
17.38
22.50
37.82
DIMENSIONS APPLY
TO BOTH SIDES
LEFT SIDE
C
L
12.00
12.00
18.60
3.0017.38
(1.95)
509137(0)
5/10/01
The bi-amplified or tri-amplified 3-way full range loudspeaker
system shall incorporate 2x 12-in LF transducers, a hornloaded 10-in MF cone with Radial Phase Plug™ and a 1.4-in
exit/2.5-in voice coil HF neodymium compression driver.
The LF drivers shall be mounted in slanted baffles and separated vertically. The MF d river shall be loaded in to a mi dr an ge
horn constructed of 1/8-in birch plywood backed with high
density polyurethane foam. The HF driver shall be loaded on
a constant directivity horn with a nominal coverage pattern
of 90° (h) x 45° (v). An internal passive filter network shall
provide fourth order acoustical crossover and system equalization between the MF and HF subsystems.
System frequency response shall vary no more than ±3 dB
from 67 Hz to 15 kHz measured on axis. The mid/high section shall produ ce a Sound Pr essure Level (SPL) o f 107 dB SPL
on axis at 1 meter with a power input of 1 W att, and shall be
capable of producing a peak output of 139 dB SPL on axis at
1 meter. The low frequency section shall produce a Sound
Pressure Level (SPL) of 102 dB SPL on axis at 1 meter with a
power input of 1 Watt, and shall be capable of producing a
peak output of 137 dB SPL on axis at 1 meter. The mid frequency section shall produce a Sound Pressure Level (SPL) of
109 dB SPL on axis at 1 meter with a power input of 1 Watt,
and shall be capable of producing a peak output of 141 dB
SPL on axis at 1 meter. The high fr equen cy secti on shall produce a Sound Pressure Level (SPL) of 109 dB SPL on axis at
1 meter with a power input of 1 Watt, and shall be capable
of produ cing a peak output of 136 dB SPL on axis at 1 meter.
The mid/high section shall handle 450 Watts of amplifier
power (contiuous) and shall have a nominal impedance of 8
Ohms. The low frequency section shall handle 800 Watts of
amplifier power (continuous) and shall have a nominal
impedance of 4 Ohms. The mid frequency section shall handle 400 Watts of amplifier power (continuous) an d shall have
a nominal impedance of 8 Ohms. The high frequency section
shall handle 125 Watts of amplifier power (continuous) and
shall have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of multi-ply, void-free, cross-grain-laminated, exterior grade, Baltic birch plywood and shall employ
extensive intern al br acin g. It shall be finished in wear-resistant, textured black pain t. Input connectors shall be 2x 6-
contact terminal barrier strips. Eighteen (18) 3/8"-16 threaded
mounting/suspension points (4 each top, bottom and sides,
2 on back) shall be provided. The front of the loudspeaker
shall be covered with a powder coated perfor ated steel grille.
The bi-amplified or tri-amplified 3-way full range loudspeaker shall be the EAW model ASR690e.
Manufacturing tolerances are +/- 0.13 and +/- 1°
