1
Catalog
number
Power rating
(VA/watts)
Input
connection
Output receptacles
Dimensions
(HxWxD, in.)
Weight
(lb.)
120V output, 50/60 Hz
9SX700
700/630
5-15P2
(6) 5-15R
9.9 x 6.3 x 13.9
26.5
9SX1000
1000/900
5-15P2
(6) 5-15R
9.9 x 6.3 x 15.1
30.9
9SX1500
1500/1350
5-15P2
(6) 5-15R
9.9 x 6.3 x 17.1
41.9
9SX2000
1960/1770
5-20P2
(1) L5-20R, (6) 5-20R
13.6 x 8.4 x 16.2
77.2
9SX3000
3000/2700
L5-30P2
(1) L5-30R, (4) 5-20R
13.6 x 8.4 x 16.2
77.2
9SX3000HW
3000/2700
Hardwired
Hardwired
13.6 x 8.4 x 16.2
77.2
208V output, 50/60 Hz bundles
9SX1000G
1000/900
C14
(6) C13
9.9 x 6.3 x 15.1
30.9
9SX1500G
1500/1350
C14
(6) C13
9.9 x 6.3 x 17.1
41.9
9SX2000G
2000/1800
C14 / L6-20P3
(8) C13
13.6 x 8.4 x 16.2
77.2
9SX3000G
3000/2700
C20 / L6-20P3
(8) C13, (1) C19
13.6 x 8.4 x 16.2
77.2
9SX3000GL
3000/2700
C20 / L6-20P3
(1) L6-30R, (2) L6-20R,
(2) 6-20R
13.6 x 8.4 x 16.2
77.2
General
Topology
Double-conversion, online
Configuration
Tower
Color
Black and silver
Diagnostics
Full system self-test at power up, ABM battery test every 30 days
Warranty
2 years electronics and battery
Remote power off
Remote On/Off (ROO) and Remote Power Off (RPO) rear terminal blocks
Contents
(Ships with the
following items)
UPS
Safety guide
Quick Start Guide
Reference guide
Output cables (for G models)
C19 to L6-20P input cables (for 9SX2000G, 9SX3000G, 9SX3000GL)
Cable lockers (for G models)
RS-232 serial cable
USB cable
Electrical input
208V
120V
Nominal voltage
208V default (200/208/220/230/240V)
120V default (100/110/120/125V)
Input voltage range
Full load: 190-276V,
<25% load: 120-276V
Full load: 100-138V,
<25% load: 60-144V
Frequency
50/60 Hz
Frequency range
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor
>.99
Input current distortion
<8%
Electrical Output
208V
120V
1
2
3

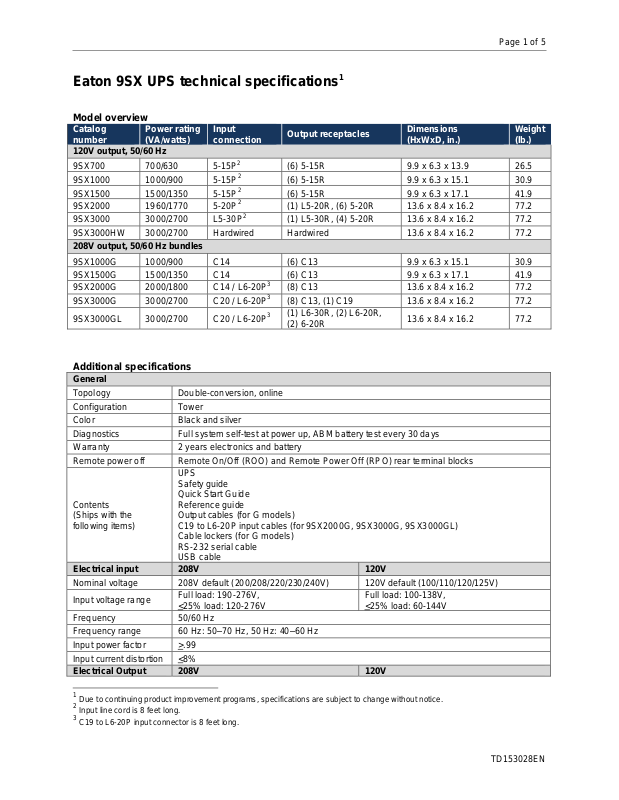

Eaton 9SX UPS technical specifications
Model overview
Additional specifications
Due to continuing product improvement programs, specifications are subject to change without notice.
Input line cord is 8 feet long.
C19 to L6-20P input connector is 8 feet long.
TD153028EN
Page 2
Page 2 of 5
Power ratings
9SX1000G:
1000VA / 900W
9SX1500G:
1500VA / 1350W
9SX2000G:
220/230/240V: 2000VA / 1800W
208V: 1800VA / 1620W
200V: 1600VA / 1440W
9SX3000G & 9SX3000GL:
220/230/240V: 3000VA / 2700W
208V: 2700VA / 2430W
200V: 2400VA / 2160W
9SX700:
700VA / 630W
9SX1000:
1000VA / 900W
9SX1500:
120/125V: 1500VA / 1350W
110V: 1350VA / 1215W
100V: 1200VA / 1080W
9SX2000:
120/125V: 1960VA / 1770W
110V: 1764VA / 1593W
100V: 1568VA / 1416W
9SX3000 & 9SX3000HW:
120/125V: 3000VA / 2700W
110V: 2700VA / 2430W
100V: 2400VA / 2160W
Circuit breaker
2200VA: None
3000VA: None
2000VA: None
3000VA: (3) 20A for (2) 5-20R each
Nominal voltage
208V default (200/208/220/230/240V)
120V default (100/110/120/125V)
Operating
Output voltage
regulation, steady
state
±2% normal mode
±2% normal mode
Output Voltage THD
(online)
Linear: <3%
Linear: <3%
Power factor
0.9
Efficiency
(online mode
with resistive load)
9SX1000G: 88%
9SX1500G: 91%
9SX2000G: 92%
9SX3000G: 92%
9SX3000GL: 92%
9SX700: 87%
9SX1000: 88%
9SX1500: 88%
9SX2000: 88%
9SX3000: 89%
9SX3000HW: 89%
Transfer time
0 ms
Extended Battery Module
Optional extended
battery module (EBM)
9SX700
No optional EBM
9SX1000
9SX1000G
9SXEBM36
9SX1500
9SX1500G
9SXEBM48
9SX2000
9SX2000G
9SX3000
9SX3000HW
9SX3000G
9SX3000GL
9SXEBM96
Maximum number of
EBMs
Add up to 4 EBMs
Battery description
Sealed, lead-acid; maintenance free
Battery management
ABM technology; 3-stage charging extends battery service life up to 50% and provides
advance warning for battery replacement
Battery replacement
Hot-swappable internal batteries and EBMs
Start on battery
Cold-start enabled; first cold start is always forbidden
Communications
User interface
Graphical display. UPS status in a single view.
LEDs
4 status-indicating LEDs
Communication ports
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
TD153028EN
Page 3
Page 3 of 5
Communications card
Mini-Slot Expansion port. Optional cards:
-NETWORK-M2 Gigabit Web/SNMP Card
-MODBUS-MS Modbus RTU Card
-INDRELAY-MS Industrial Relay Card
Power management
software
Integrates with Eaton Intelligent Power Manager software
Environmental & standards
Operating temperature
0 to 40 °C (32 to 104 °F) in Online mode, with linear derating for altitude
Storage temperature
0 to 35°C (32°F to 95°F); without batteries: -25 to 55°C (-13°F to 131°F)
Relative humidity
0 to 96% non-condensing
Altitude operating
temperature range
Up to 3,000 meters (9,843 ft) above sea level, no derating for 35 °C (95 °F)
room temperature
Audible noise
< 50 dBA at 1 meter typical
RoHS compliance
Yes
Safety conformance
CE / cULus
EMC markings
9PX3000, 9PX3000HW:
FCC Part 15, Subpart B, Class A
ANSI C63.4-2014
EN 62040-2: 2018, C2
All other 120V models:
FCC Part 15, Subpart B, Class B
ANSI C63.4-2014
EN 62040-2: 2018, C1
IEC 62040-2: 2016
CE / cULus / NOM
Surge protection
MOV: 510V, 296Joules
FCC Part 15, Subpart B, Class B
ANSI C63.4-2014
AS 62040.2-2008, C1
EN 62040-2: 2018, C1
Load
Internal batteries
+1 EBM
+2 EBMs
+3 EBMs
+4 EBMs
9SX700
630W
5.8
567W
7.0
504W
8.4
441W
10.4
378W
13.0
315W
16.6
252W
21.7
189W
29.7
9SX1000
900W
6.7
31.6
58.4
88
113
810W
7.9
35.7
66
99
130
720W
9.5
41
76
113
151
630W
11.7
47.9
88
132
180
4
Battery backup times (in minutes)4
Runtimes are shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery
age, temperature, etc.
TD153028EN
Page 4
Page 4 of 5
540W
14.6
57.1
105
156
218
450W
18.5
70
129
191
269
360W
24.1
89
164
244
-
270W
32.4
118
220 - -
180W
47.1
173 - -
-
9SX1000G
900W
5.9
29.0
52.9
83
108
810W
7.0
32.6
60
91
120
720W
8.4
37.2
69
102
136
630W
10.3
43.2
80
116
159
540W
12.8
51.2
95
138
189
450W
16.2
62
115
168
232
360W
20.8
78
142
214
-
270W
27.4
103
185 - -
180W
38.3
145 - -
-
9SX1500
1350W
6.0
29.0
53
81
105
1215W
6.9
32.2
59
90
118
1080W
8.3
36.6
68
102
135
945W
10.1
42.7
79
118
159
810W
12.8
51.3
95
140
192
675W
16.5
64
117
171
239
540W
21.9
82
150
220
-
405W
30.3
111
205 - -
270W
46.3
171 - -
-
9SX1500G
1350W
5.3
28.2
50.9
79
104
1215W
6.5
31.7
58.0
88
116
1080W
8.0
36.3
67
100
133
945W
10.0
42.3
78
116
156
810W
12.6
50.5
94
138
189
675W
16.2
62
115
168
234
540W
21.1
80
146
215
-
405W
28.7
108
195 - -
270W
43.7
162 - -
-
9SX2000
1770W
10.3
44
81
118
162
1620W
12.2
49.4
92
133
182
1440W
14.4
56.5
105
154
211
1260W
17.3
66
121
183
248
1080W
21.1
79
143
221
297
TD153028EN
Page 5
Page 5 of 5
900W
26.2
97
175
274
363
720W
33.5
123
223
348
-
540W
44.8
165
306 - -
360W
68
251 - -
-
9SX2000G
1800W
10.4
44
82
119
164
1620W
12.2
50
93
139
179
1440W
14.7
58.1
107
161
216
1260W
18.3
68
124
182
253
1080W
21.7
80
148
219
290
900W
27.5
102
180
276
396
720W
35
131
240
375
-
540W
47.2
173
323 - -
360W
69
255 - -
-
9SX3000
2700W
5.7
28.2
54.4
80
103
2430W
6.8
32.0
59.5
89
117
2160W
8.3
36.8
67
102
136
1890W
10.3
43.1
77
118
161
1620W
12.9
51.8
93
140
194
1350W
16.7
64
117
172
241
1080W
22.2
83
154
223
-
810W
30.9
113
215 - -
540W
47.8
175 - -
-
9SX3000G / 9SX3000GL
2700W
5.8
28.5
51.6
77
104
2430W
6.7
31.7
58.1
88
116
2160W
7.9
36
67
101
132
1890W
9.6
41.8
78
117
154
1620W
12.1
49.8
93
138
186
1350W
15.7
61
114
167
231
1080W
21
79
145
213
-
810W
29.2
108
195 - -
540W
44
164 - -
-
TD153028EN
