Technical Data
Technical Data
Effective November 5, 2014

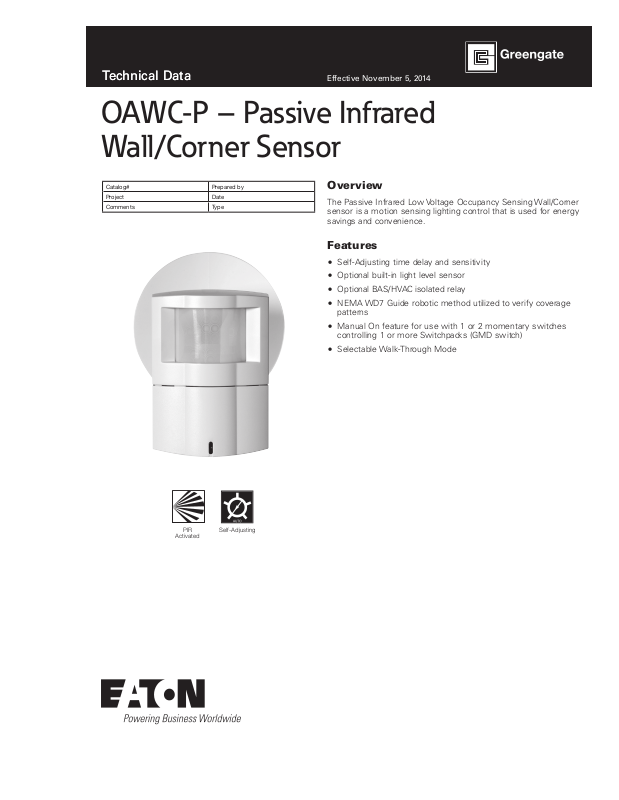

OAWC-P – Passive Infrared
Wall/Corner Sensor
Catalog# Prepared by
Project Date
Comments Type
Overview
The Passive Infrared Low Voltage Occupancy Sensing Wall/Corner
sensor is a motion sensing lighting control that is used for energy
savings and convenience.
Features
Self-Adjusting time delay and sensitivity
Optional built-in light level sensor
Optional BAS/HVAC isolated relay
NEMA WD7 Guide robotic method utilized to verify coverage
patterns
Manual On feature for use with 1 or 2 momentary switches
controlling 1 or more Switchpacks (GMD switch)
Selectable Walk-Through Mode
PIR
Activated
Self-Adjusting
Page 2
Technical Data
November 2014
OAWC-P – Passive Infrared Wall/Corner Sensor
Specifications
Technology Passive Infrared (PIR)
Power
Requirements
Time Delays Self-Adjusting, 15 seconds/test, 5, 10, 15,
Light Level
Sensing
(-R Models)
Operating
Environment
Housing Durable, injection molded housing. Polycarbonate
Size 4.4”H x 3.4”W x 2”D (112mm x 86.4mm x
Mounting Mounts directly to ceiling tile, to a 4” square box
LED Indicators Red LED for PIR detection
Standards FCC Compliant
Input
0-30 VDC from Greengate Switchpack or Greengate
System
Maximum current needed is 25 mA per sensor
Output
Open collector output to switch up to ten
Greengate Switchpacks
Isolated Form C Relay in (-R models)
Isolated Form C Relay Ratings: 1A 30 VDC/VAC
30 minutes
0 to 300 foot-candles
Temperature: 32°F - 104°F (0°C - 40°C)
Relative humidity: 20% to 90% Non-condensing
For indoor use only
resin complies with UL 94V-0
50.8mm)
and round mud ring or to 4” octagon box
cULus Listed
RoHS Compliant
Description/Operation
The sensor is designed to detect motion from a heat-emitting source
(such as a person entering a room) within its field-of-view and
automatically switch lights ON. These sensors have multi-segmented
lenses. For units to sense motion, the person must cross between
two segments. The distance between segments increases the
farther you are from the sensor, so motion has to be larger the
farther you are from the unit. PIR sensors are considered line-of
sight sensors, meaning that the sensor must be able to have a direct
line-of-sight to the person making the motion. The sensor includes
self-adaptive technology that continuously self-adjusts sensitivity and
time delay in real-time, maximizing the potential energy savings that
are available in the particular application. In Automatic On Mode, the
lights turn ON when a person enters the room. In Manual On Mode,
the lights are turned ON by activating a momentary switch (model
# GMDS-*) that is connected to the sensor. When used with 2
level lighting (-R model only), Bi-level Automatic On can be achieved
which allows Zone 1 to come on automatically upon occupancy.
Zone 2 does not come on unless the occupant presses the optional
momentary switch. When enabled, the daylighting feature (-R
models only) prevents lights from turning ON when the room is
adequately illuminated by natural light.
Applications
Offices
Conference Rooms
Storage Areas
Common Areas
Other Indoor Office
Aisles/Hallways
2
www.coopercontrol.com
Page 3
OAWC-P – Passive Infrared Wall/Corner Sensor
PURPLE (NORMALLY CLOSED)
GRAY (ISOLATED RELAY COMMON)
ORANGE (NORMALLY OPEN)
MANUAL MODE OPERATION:
1. SWITCHES ARE REQUIRED TO TURN
CORRESPONDING LOADS ON.
2. LOADS TURN OFF WHEN SENSOR
TIMES OUT OR WITH SWITCHES.
AUTOMATIC MODE OPERATION:
1. WHEN SENSOR ACTIVATES, BOTH
LOADS TURN ON.
2. SWITCHES CAN BE USED TO TURN
LOADS ON OR OFF.
3. IF DAYLIGHT SENSOR IS ENABLED AND
LIGHT LEVEL IS ABOVE SETPOINT,
SWITCHPACK CONNECTED TO YELLOW
LEAD WILL NOT TURN LOAD ON.
RECOMMENDED WIRE:
18-3 AWG STRANDED WIRE SHIELDED OR
NON/SHIELDED
LOAD "A"
BLUE
NEUTRAL
HOT
**USE BLACK LEAD FOR 120 VAC.
USE ORANGE LEAD FOR 277 VAC.
CAP UNUSED LEAD.
LINE
**HOT
WHITE
BLUE
SWITCH-
PACK
LOAD "B"
BLUE
NEUTRAL
HOT
**USE BLACK LEAD FOR 120 VAC.
USE ORANGE LEAD FOR 277 VAC.
CAP UNUSED LEAD.
LINE
**HOT
WHITE
BLUE
SWITCH-
PACK
BLACK (COMMON)
BLUE (CONTROL)
RED (15 VDC)
MODEL GMDS - LOAD "B"
(NORMALLY OPEN
MOMENTARY SWITCH)
MODEL GMDS - LOAD "A"
(NORMALLY OPEN
MOMENTARY SWITCH)
BLACK (COMMON)
BLUE (CONTROL)
RED (15 VDC)
NOTES
1. LOADS MAY BE ON SAME
CIRCUIT OR DIFFERENT
CIRCUITS OR VOLTAGES.
2. SP20-MV SWITCHPACK SHOWN.
120/277 VAC 20AMP RATING.
BLACK (COMMON)
YELLOW (CONTROL-OCC/DAY)
BLUE (CONTROL-OCC)
RED (10-30 VDC)
BROWN/WHITE (YELLOW CONTROL)
BROWN (BLUE CONTROL)
16’
(4.9)
0
16’
(4.9)
6.8
(2.1 mm)
3 ft
(1 mm)
7 ft
(2.2 mm)
10 ft
(3 mm)
43 ft
(13.2 mm)
75 ft
(23 mm)
92 ft
(28 mm)
Minor Motion, IR
Major Motion, IR
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
19.4º
10 m
(33 ft)
0
10 m
(33 ft)
5 m
(16 ft)
5 m
(16 ft)
2.1 m
(10 ft)
15.3 m
(50 ft)
7.7 m
(25 ft)
4.6 m
(15 ft)
1.7 m
(6 ft)

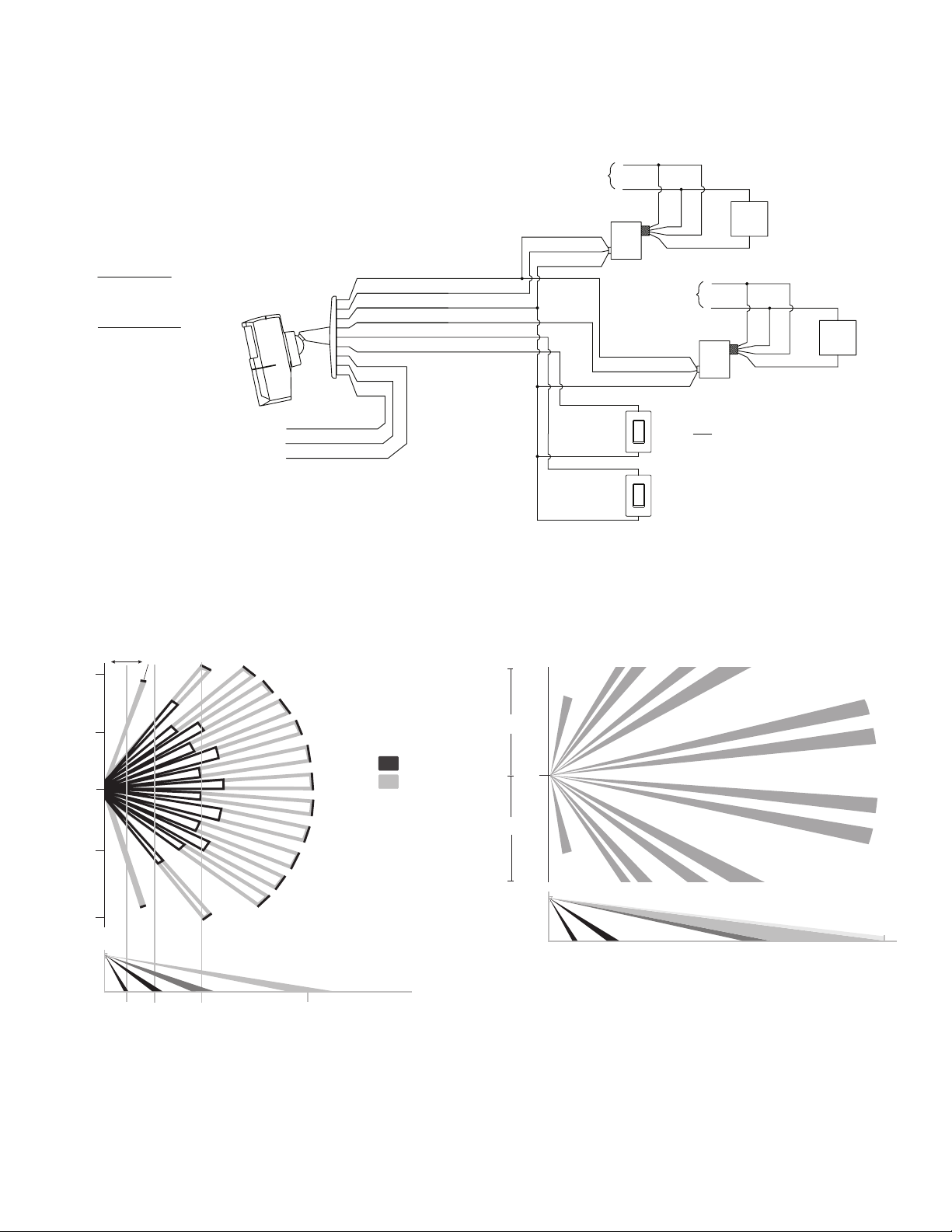

Wiring Diagrams
OAWC-P-120W-R, OAWC-P-009-H-R Models
*Wiring diagram for single sensor application.
Visit our website for other wiring diagrams.
Technical Data
November 2014
Coverage
1200 Sq. ft coverage
90 linear ft coverage
www.coopercontrol.com
3
Page 4
Technical Data OAWC-P – Passive Infrared Wall/Corner Sensor

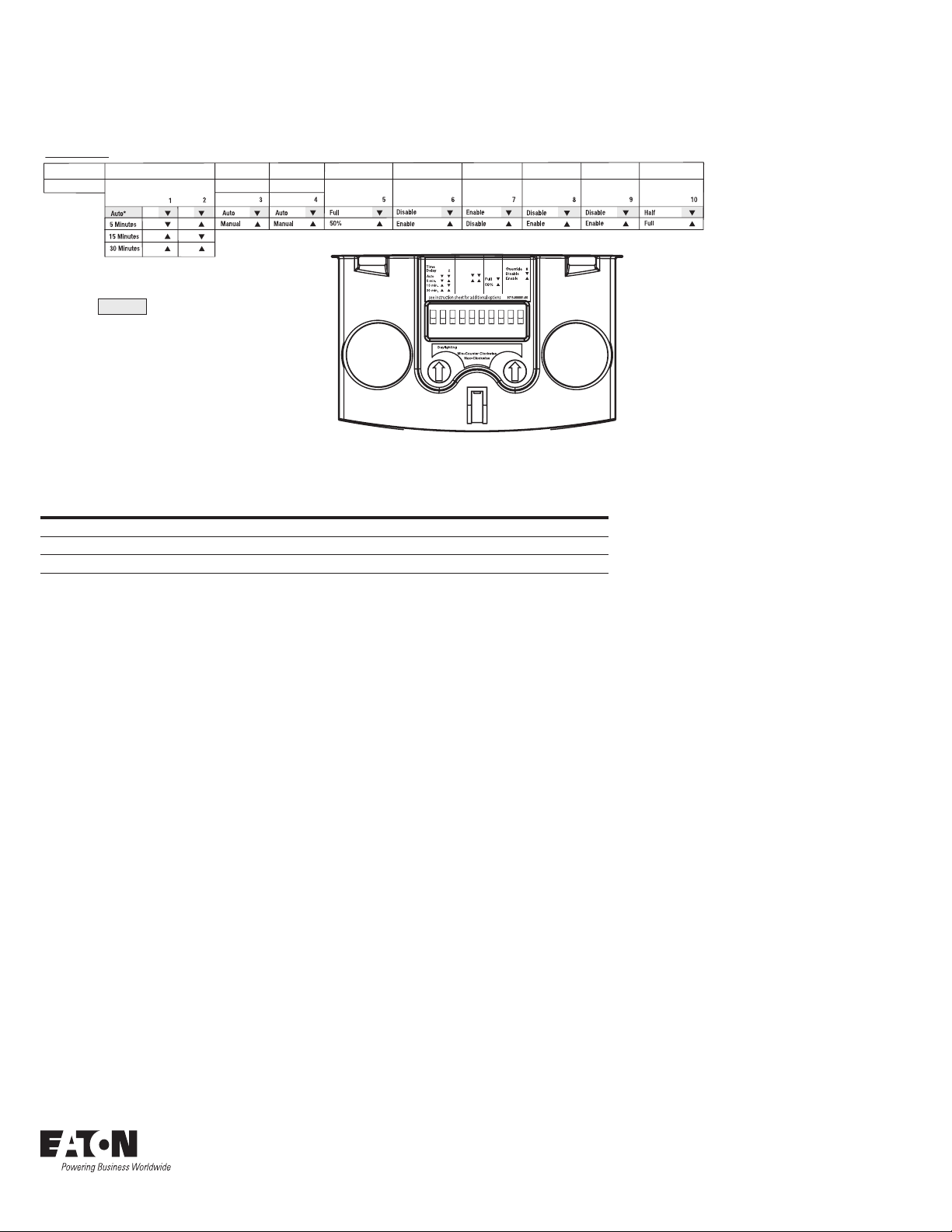

DIP Switch Legend
Controls
DIP Switch Legend
DIP Switch
Time DelayActivation
Power Pack One
Activation
Power Pack Two
PIR Sensitivity LEDs OverrideLighting Sweep Daylighting Mode
Walk-Through Mode
(-R model only)
Activation
PIR 5
1
*Self-Adjusts to
10 min. user
mode
3 4
Default =
12345678 910
9715-000004-00
Ordering
Catalog # Coverage Field of View Features
OAWC-P-120W-R 1,200 sq. ft. Wide Angle, 120° w/ BAS Relay and Daylight Sensor
OAWC-P-009L-H-R 90 linear ft. 180° w/ BAS Relay and Daylight Sensor
OAWC-P-120W 1,200 sq. ft. Wide Angle, 120°
OAWC-P-009L-H 90 linear ft. 180°
(-R model only)
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Eaton’s Cooper Controls Business
203 Cooper Circle
Peachtree City, GA 30269
coopercontrol.com
© 2014 Eaton
All Rights Reserved
Printed in USA
Publication No. ACC141016
November 5, 2014
