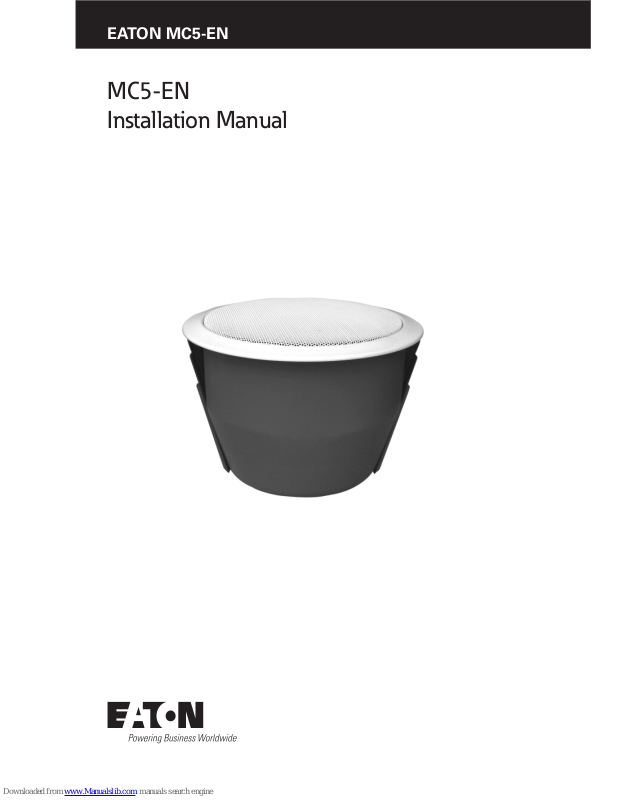

Eaton MC5-EN Installation Manual

MC5-EN
Installation Manual

EATON MC5-EN

1 EATON MC5-EN Installation Manual

Installers

Thank you for purchasing the Eaton MC5-EN
c

eiling speaker. This product was tested
before shipment and therefore should arrive in
working condition. If you have any issues with
this speaker, please contact your supplier in the
rst instance.

Safety Information

WARNING: Inappropriate use of this speaker can
result in property damage, injury or death.

• Please be sure to read the whole installtion

manual

• Please follow all recommendations of this

installation manual

• We recommend you keep this manual for

future reference

If you have any concerns or questions regarding
the points raised in this manual, please contact
your supplier in the rst instance.

Please note:

• The speaker is not waterproof and is

only designed for use inside a building.
Exposure to raise or other water sources
will result in damage to the unit.

•

This unit is design to operate at 100V AC.
Please isolate the s

peaker cabling from
the source before conducting any works
within the unit

• Ensure the speaker is correctly installed
into a rm recess. Failure to do so may
result in the speaker failing and causing an
injury or death

CAUTION

August 2015 www.eaton.com

• Ensure all terminations are fully
tightened to avoid short circuits
forming due to disconnected cables

• Do not install speakers into humid,
dusty, smoky or steamy environments;
the speaker may be damaged and not
operate correctly

• Do not use the re dome as juntion
box for other cables. Only 70V/100V
loudspeaker lines should be connected
to this speaker

Installation

Step 1

Pull down the speaker grill from the red
re dome. Disconnect the grill from the
fire dome by compressing the 2 spring
connections

Step 2

Remove as many knock-outs as required and
t 20mm re-rated glands. Install the cable
into the re dome leaving 8”-10” of cable
within the re dome.
